Tailgate Lock Actuator Test

  1. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 2P connector from the actuator.

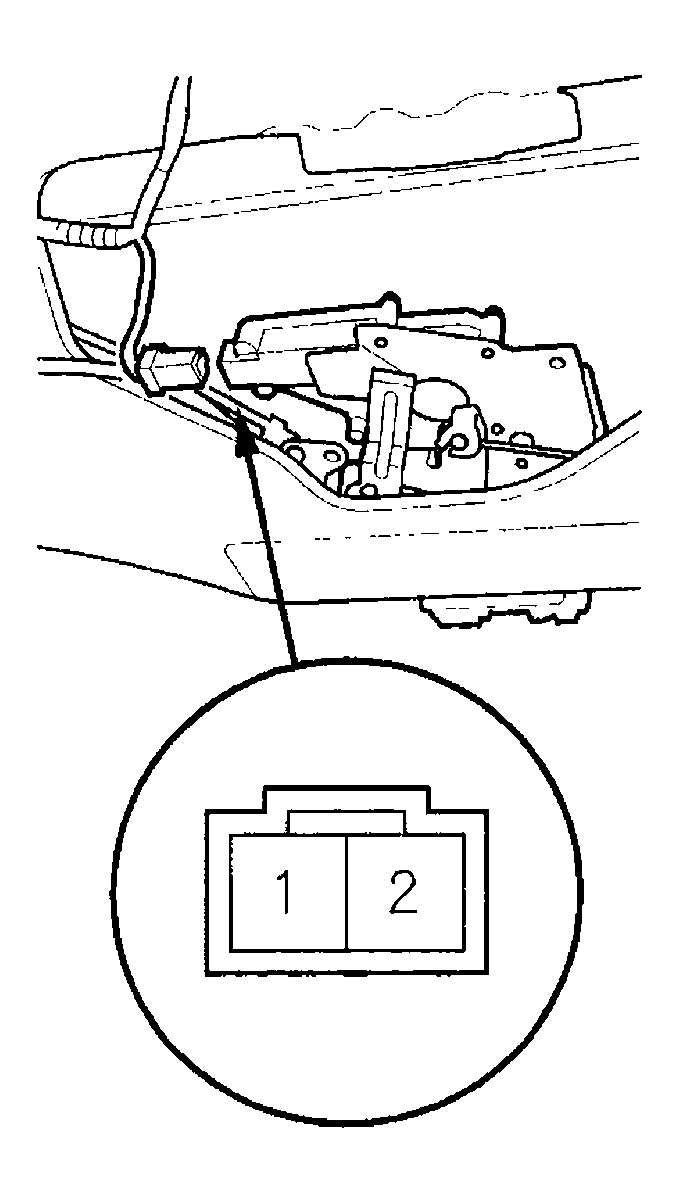

    Fig 1: Disconnecting 2P Connector From Actuator (Tailgate)
    G04548460Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

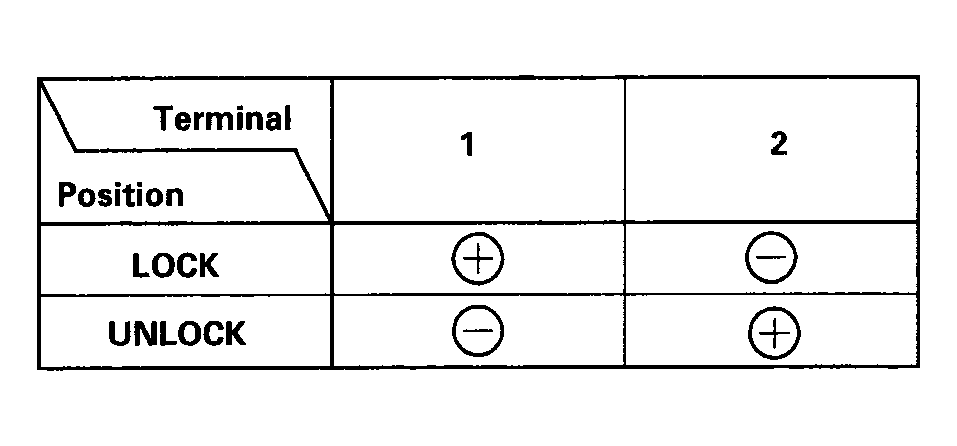

    Fig 2: Identifying Tailgate Actuator Switch Positions
    G04548461Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the actuator does not operate as specified, replace it.
