Wheel Sensor Replacement

NOTE: Install the sensors carefully to avoid twisting the wires.

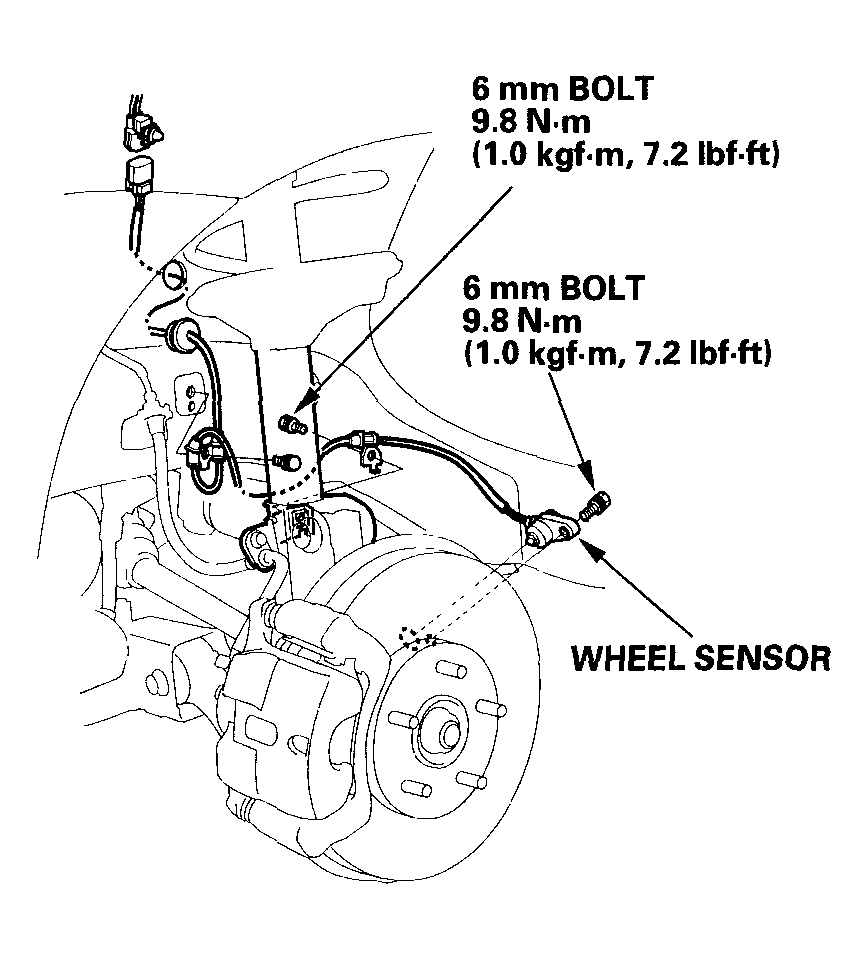

Front:

Fig 1: Removing Sensors

G04547459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

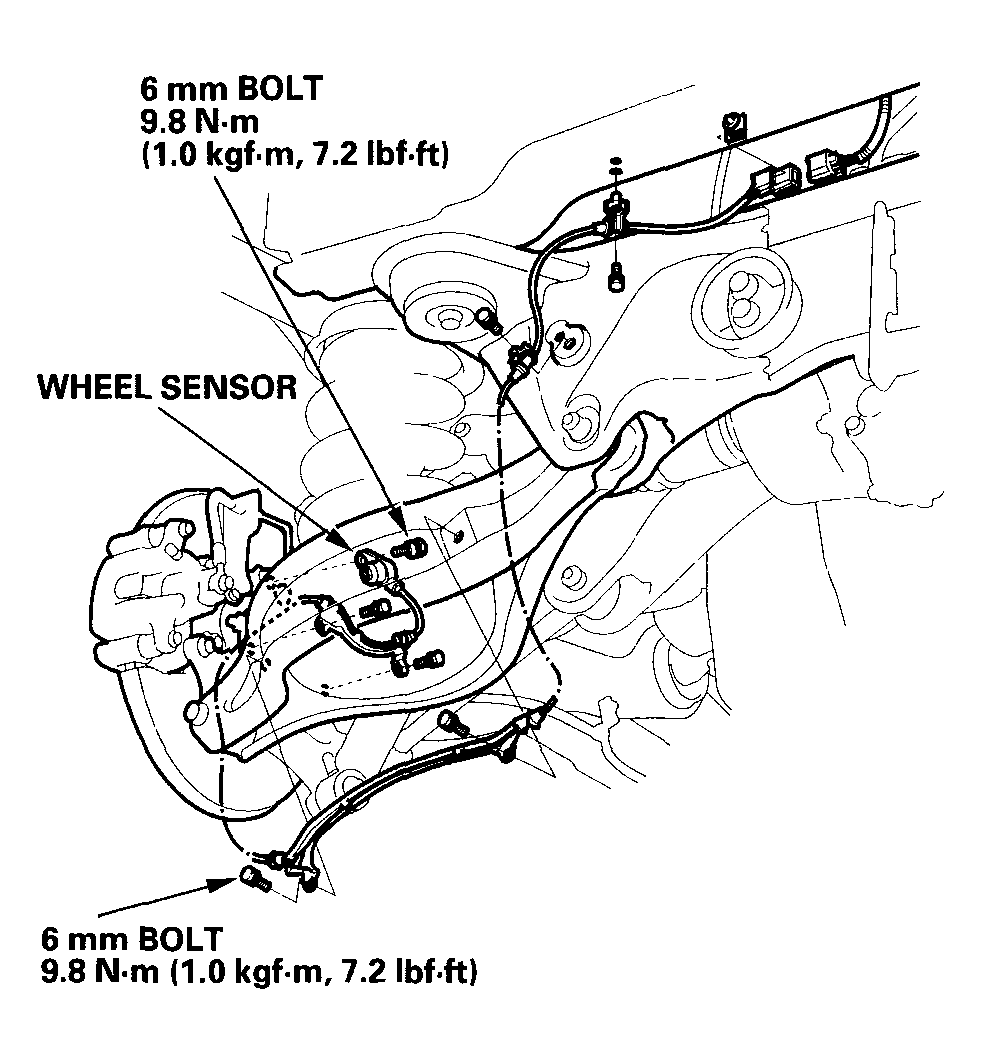

Rear:

Fig 2: Installing Sensors

G04547460

Courtesy of AMERICAN HONDA MOTOR CO., INC.
