Relays And Control Unit Locations: Dashboard

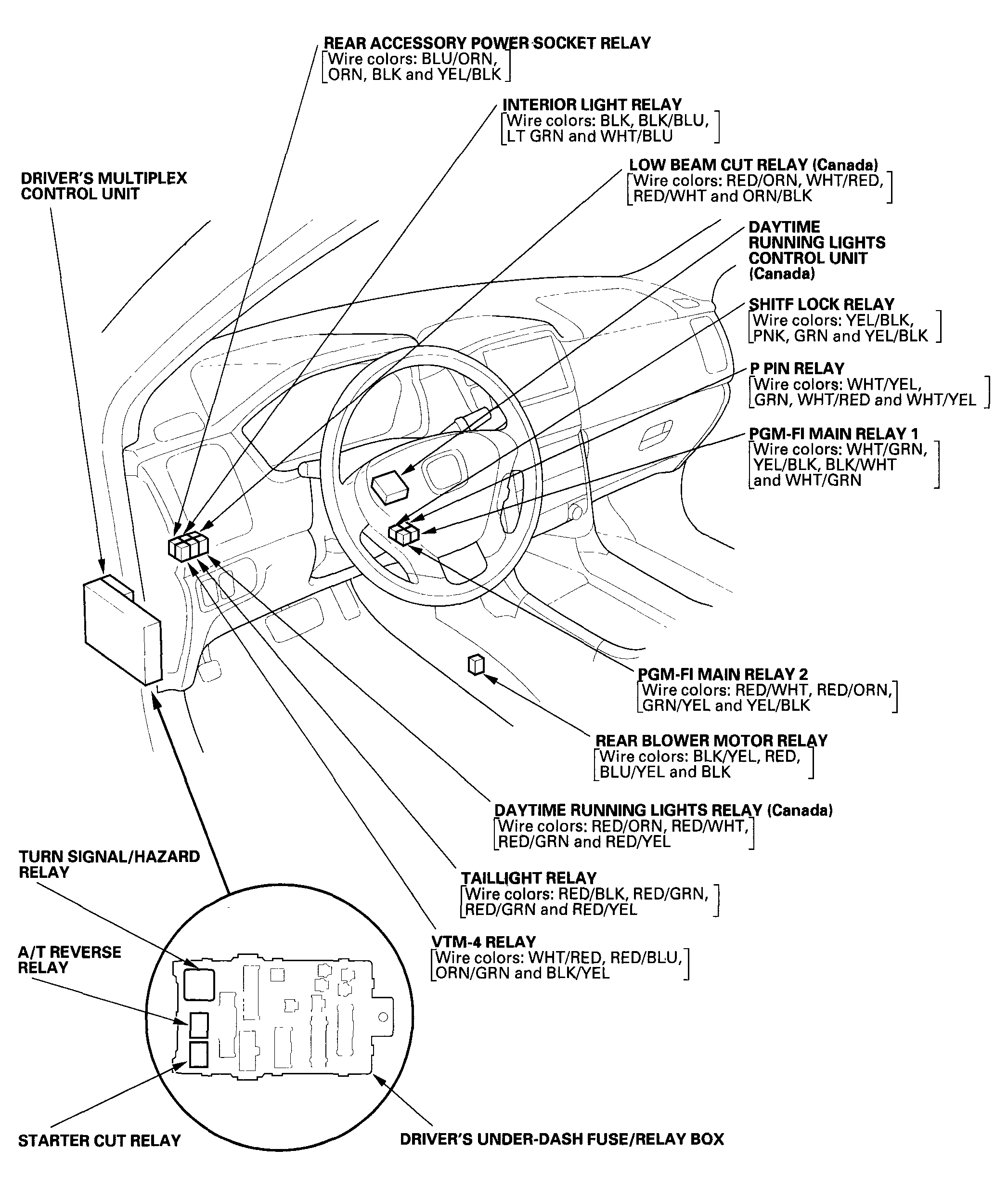

Fig 1: Identifying Relay And Control Unit Locations - Dashboard (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

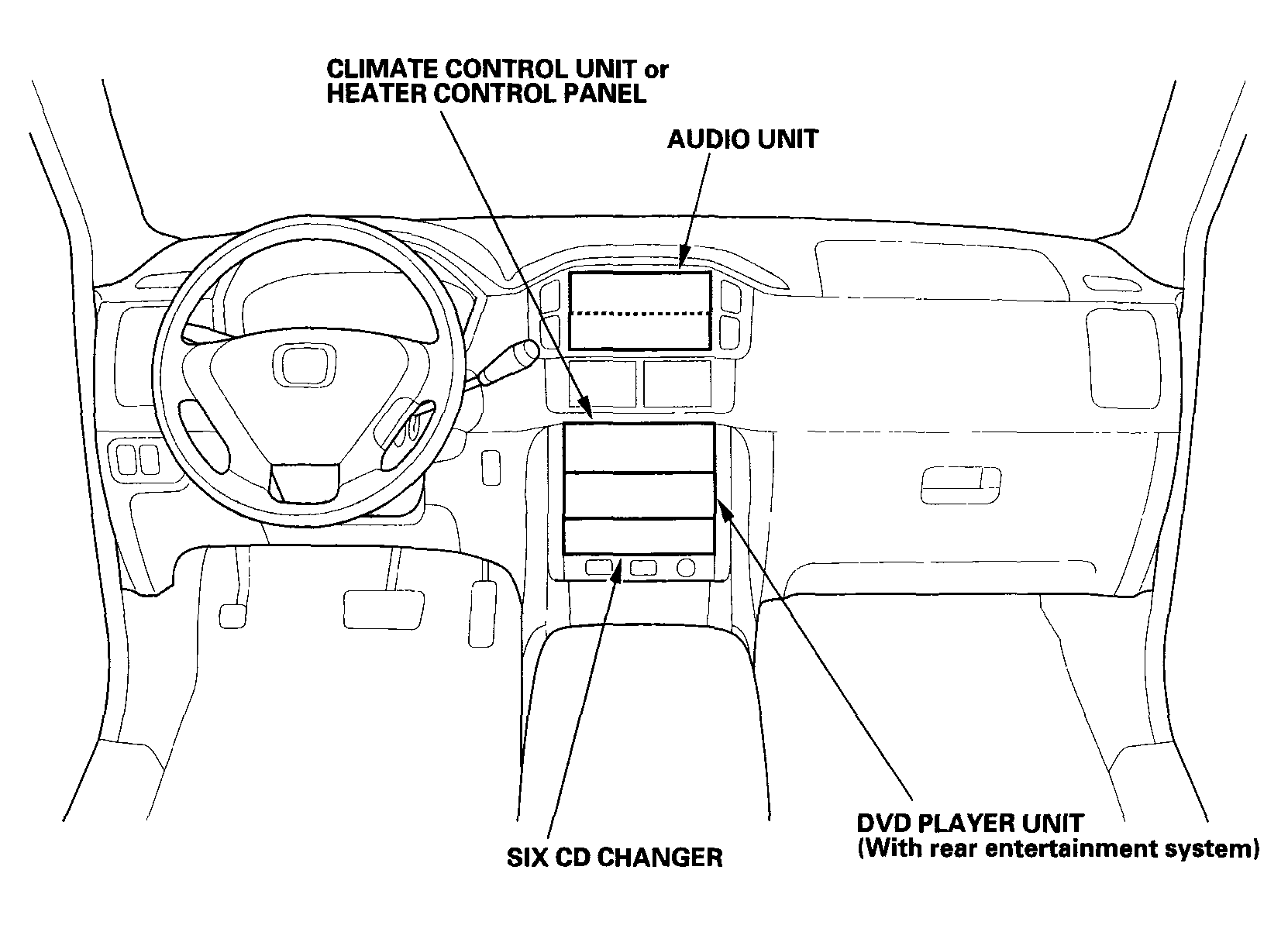

Fig 2: Identifying Relay And Control Unit Locations - Dashboard (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

With Navigation:

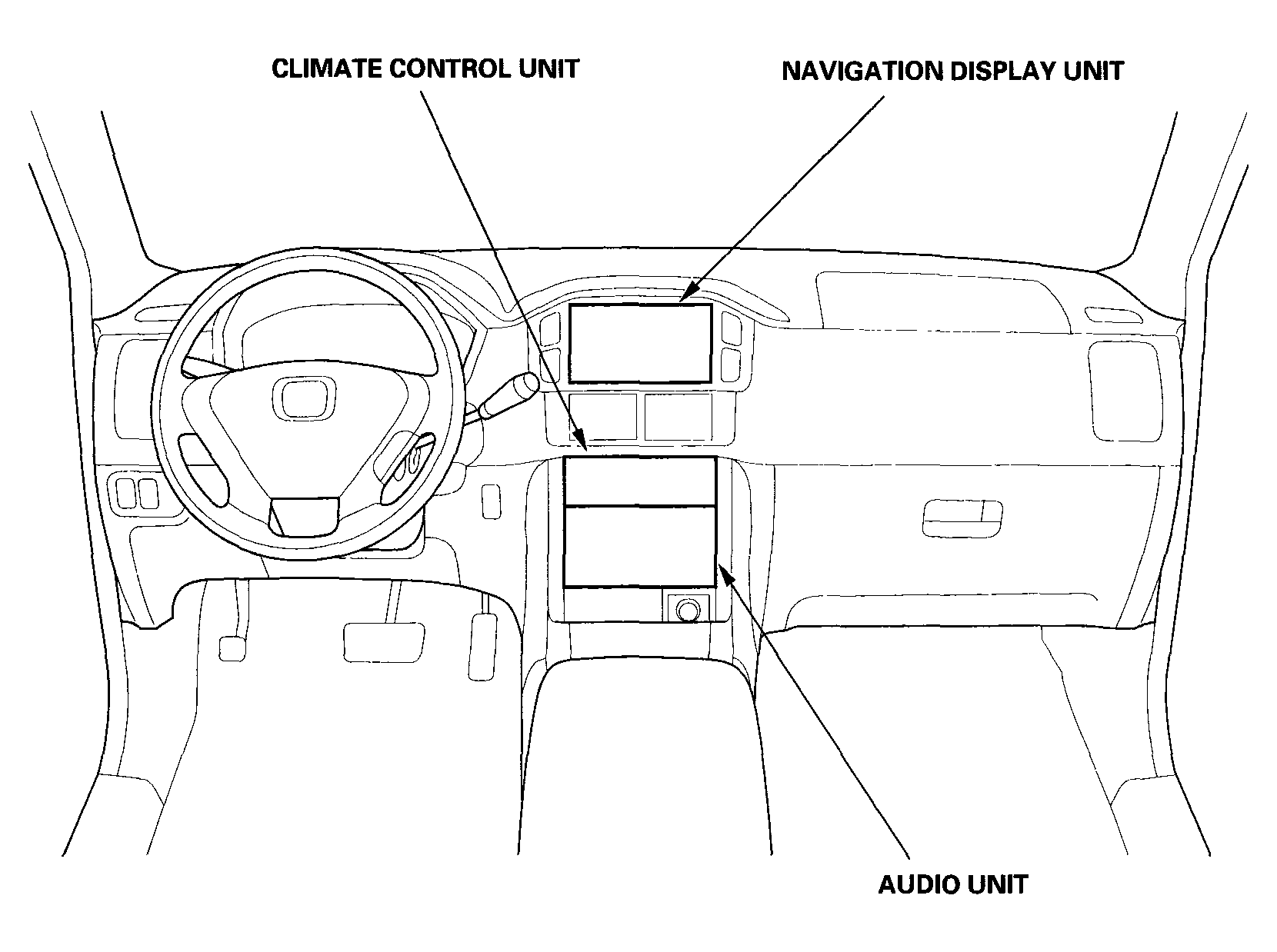

Fig 3: Identifying Relay And Control Unit Locations - Dashboard (With Navigation) (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without Navigation:

Fig 4: Identifying Relay And Control Unit Locations - Dashboard (Without Navigation) (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
