Pilot EX
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Relays And Control Unit Locations
>>
Engine Compartment
Engine Compartment

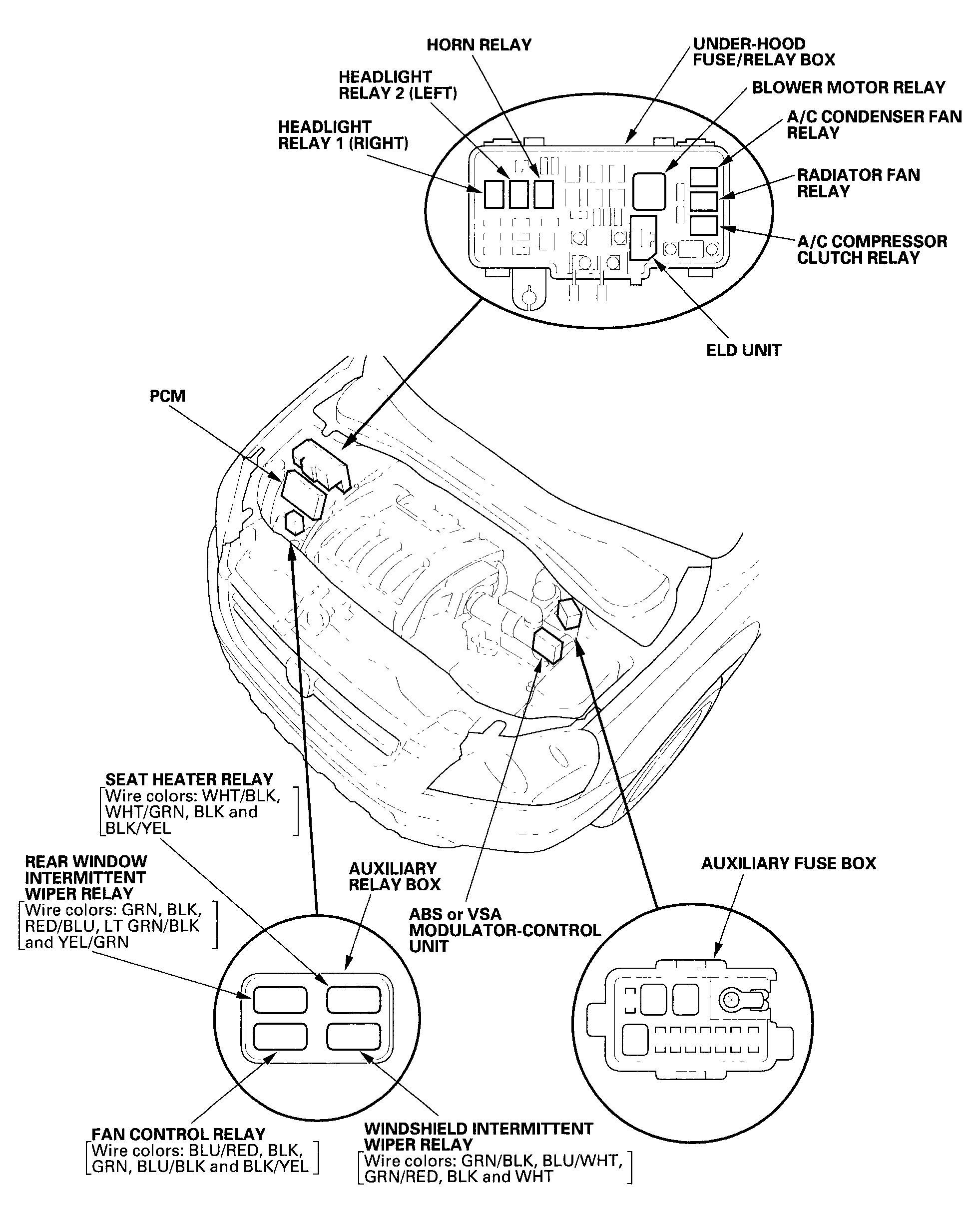

Fig 1: Identifying Relay And Control Unit Locations - Engine Compartment
