Safety Indicator Input Test

  1. Remove the gauge assembly (see GAUGE ASSEMBLY REPLACEMENT ).
  2. Disconnect the 30P connector A, 22P connector B, and 14P connector C from the gauge assembly.
  3. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 4.

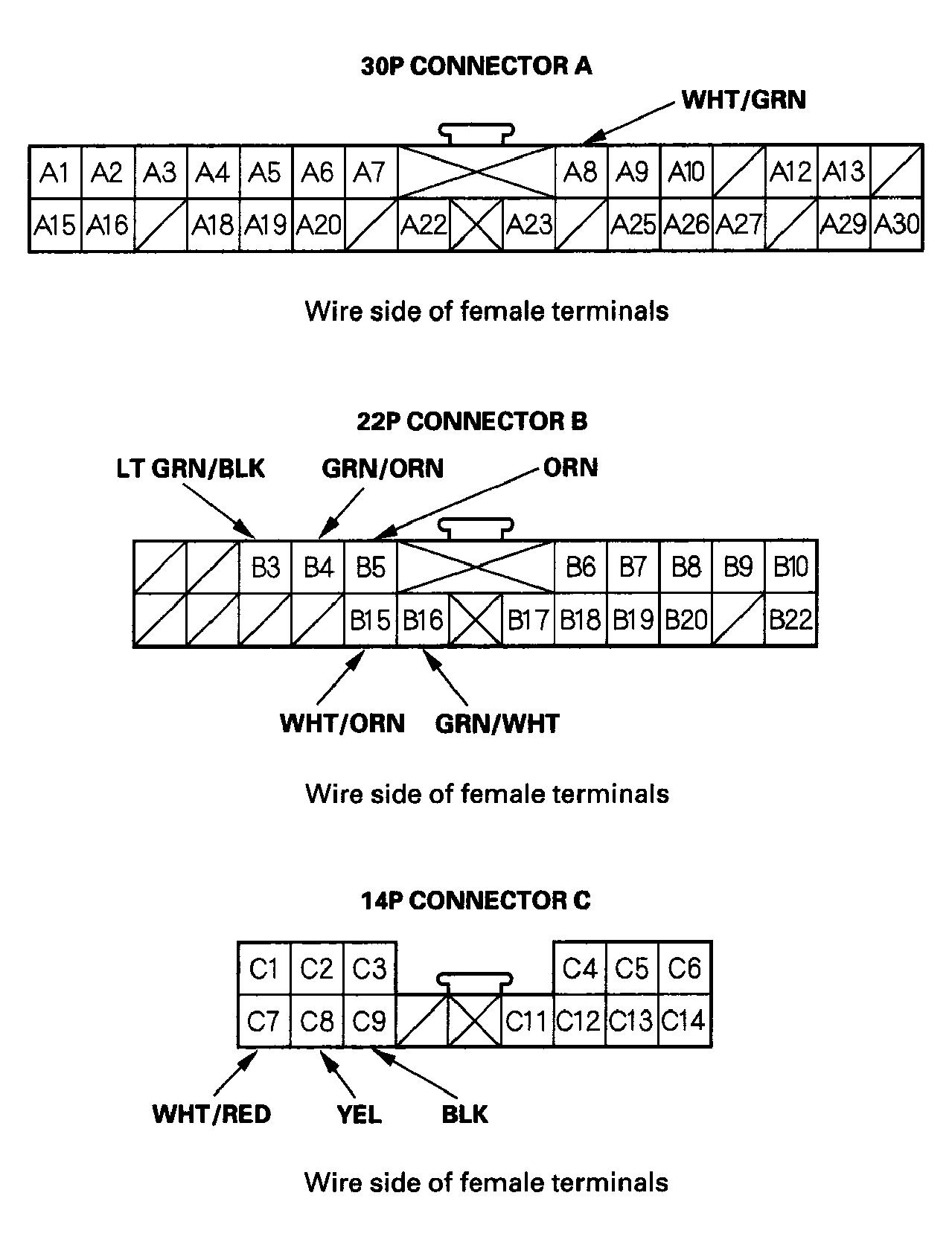

      Fig 1: Identifying Gauge Control Module 36P Connector B Terminals
      G04548222Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Reconnect the connectors to the gauge assembly, and make the following input tests at the appropriate connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 5.
      RESULT CHART

      Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
      C9 BLK Under all conditions Check for voltage to ground: There should be less than 1 V.
      • Poor ground (G502)
      • An open in the wire
      C7 WHT/RED Under all conditions Check for voltage to ground: There should be battery voltage.
      • Blown No. 13 (7.5 A) fuse in the passenger's under-dash fuse/relay box
      • An open in the wire
      C8 YEL Ignition switch ON (II) Check for voltage to ground: There should be battery voltage.
      • Blown No. 9 (10 A) fuse in the driver's under-dash fuse/relay box
      • An open in the wire
      B3 LT GRN/BLK Left rear door open Check for voltage to ground: There should be less than 1 V.
      • Faulty left rear door switch
      • An open in the wire
      Left rear door closed Check for voltage to ground: There should be 5 V or more.
      • Faulty left rear door switch
      • Short to ground in the wire
      B4 GRN/ORN Driver's door open Check for voltage to ground: There should be less than 1 V.
      • Faulty driver's door switch
      • An open in the wire
      Driver's door closed Check for voltage to ground: There should be 5 V or more.
      • Faulty driver's door switch
      • Short to ground in the wire
      B5 ORN Tailgate open Check for voltage to ground: There should be less than 1 V.
      • Faulty tailgate latch switch
      • An open in the wire
      • Poor ground (G652)
      Tailgate closed Check for voltage to ground: There should be 5 V or more.
      • Faulty tailgate latch switch
      • Short to ground in the wire
      B15 WHT/ORN Front passenger's door open Check for voltage to ground: There should be less than 1 V.
      • Faulty front passenger's door switch
      • An open in the wire
      Front passenger's door closed Check for voltage to ground: There should be 5 V or more.
      • Faulty front passenger's door switch
      • Short to ground in the wire
      B16 GRN/WHT Right rear door open Check for voltage to ground: There should be less than 1 V.
      • Faulty right rear door switch
      • An open in the wire
      Right rear door closed Check for voltage to ground: There should be 5 V or more.
      • Faulty right rear door switch
      • Short to ground in the wire
  5. Disconnect connector A (30P) from the gauge assembly, and make this input test at the connectors.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the gauge internal circuit must be faulty; replace the gauge assembly.
      RESULT CHART

      Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
      A8 WHT/GRN Under all conditions Check for continuity between the A1 terminal and the brake light failure sensor No. 4 terminal: There should be continuity. An open in the wire
