Oil Pump Overhaul
>>
Exploded View
Exploded View

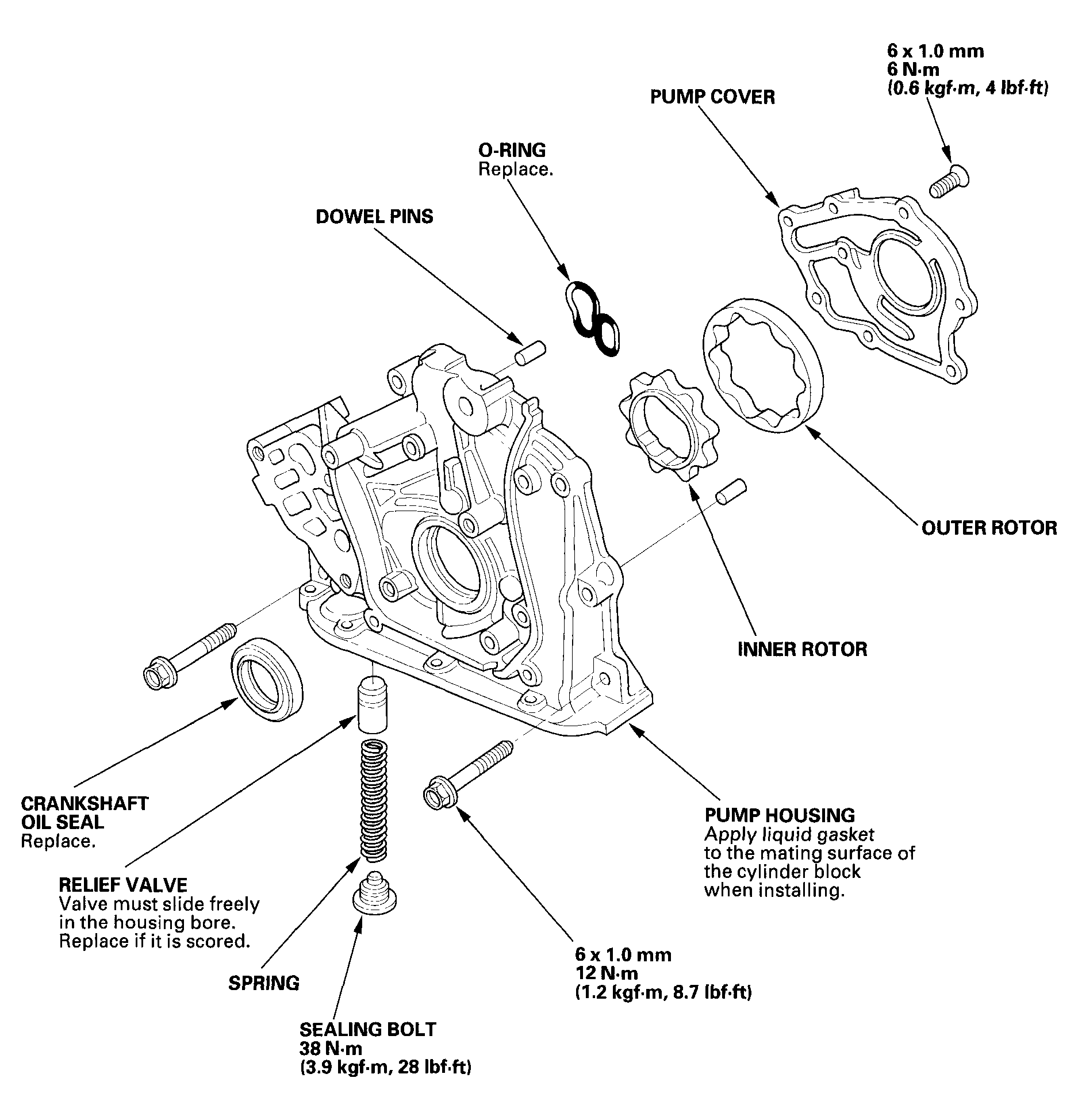

Fig 1: Exploded View Of Oil Pump
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Special Tools Required
Oil seal driver, 64 mm 070AD-RCAA100
