Component Location Index

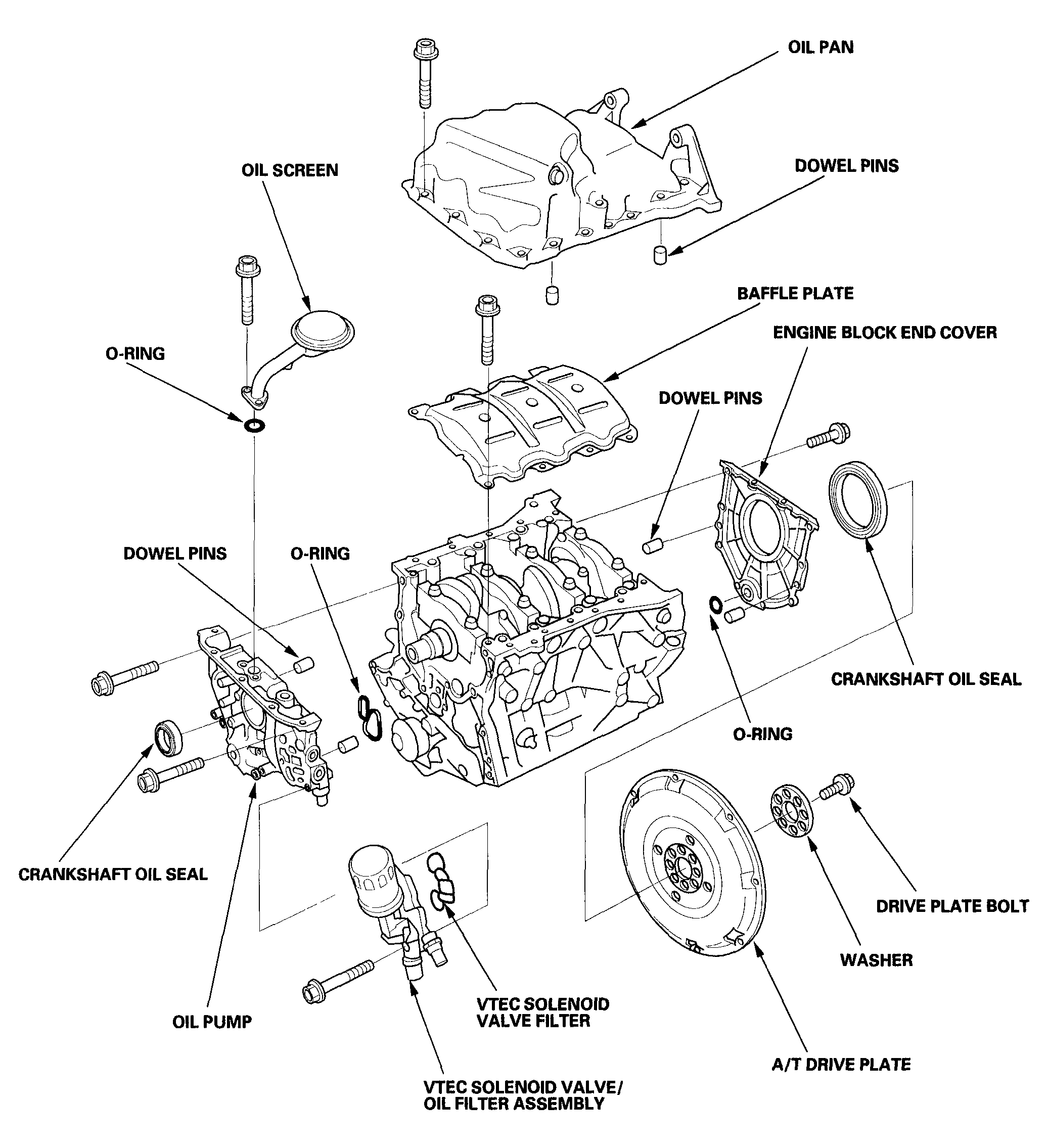

Fig 1: Identifying Engine Components Location (1 Of 3)
G04545708Courtesy of AMERICAN HONDA MOTOR CO., INC.

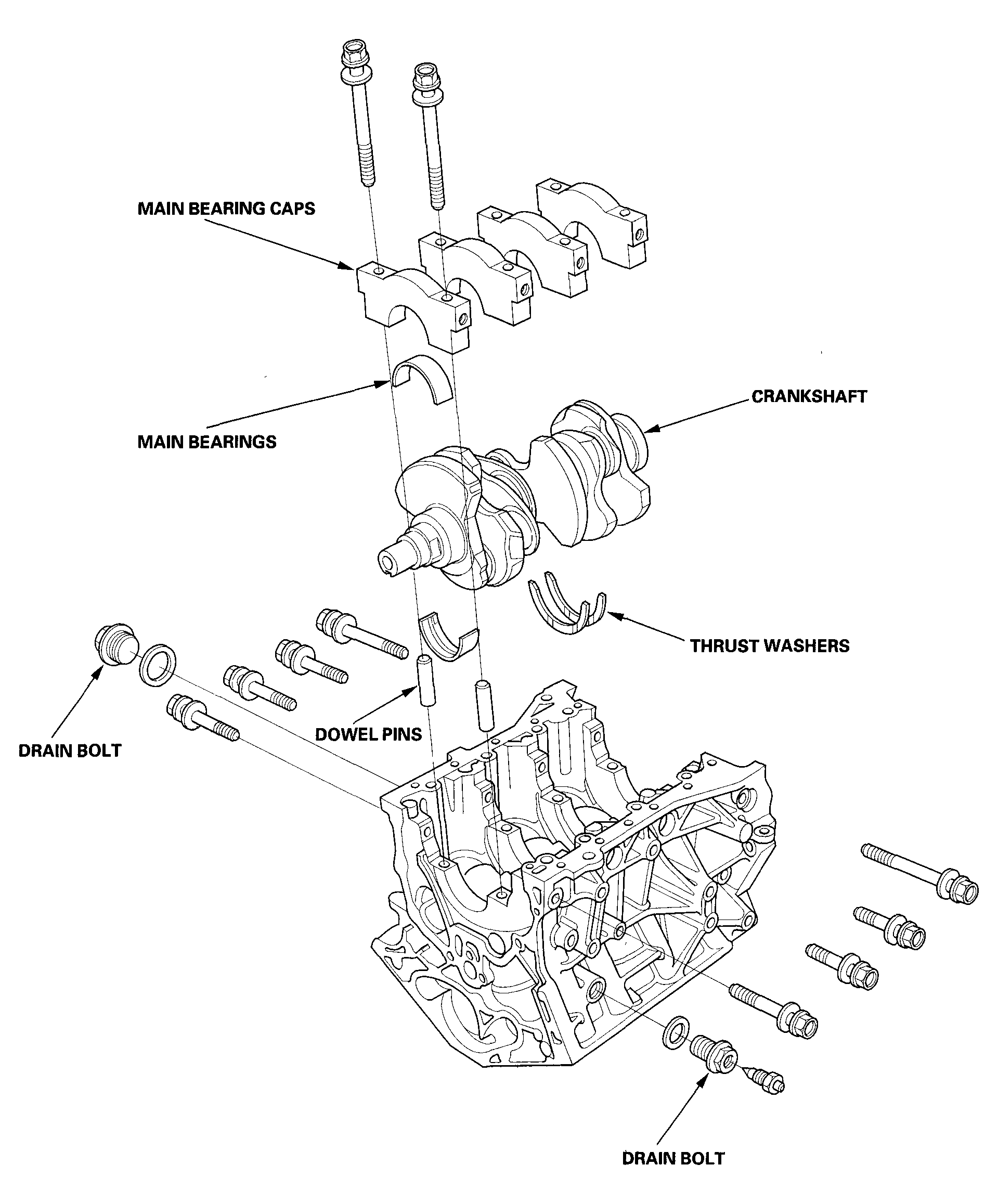

Fig 2: Identifying Engine Components Location (2 Of 3)
G04545709Courtesy of AMERICAN HONDA MOTOR CO., INC.

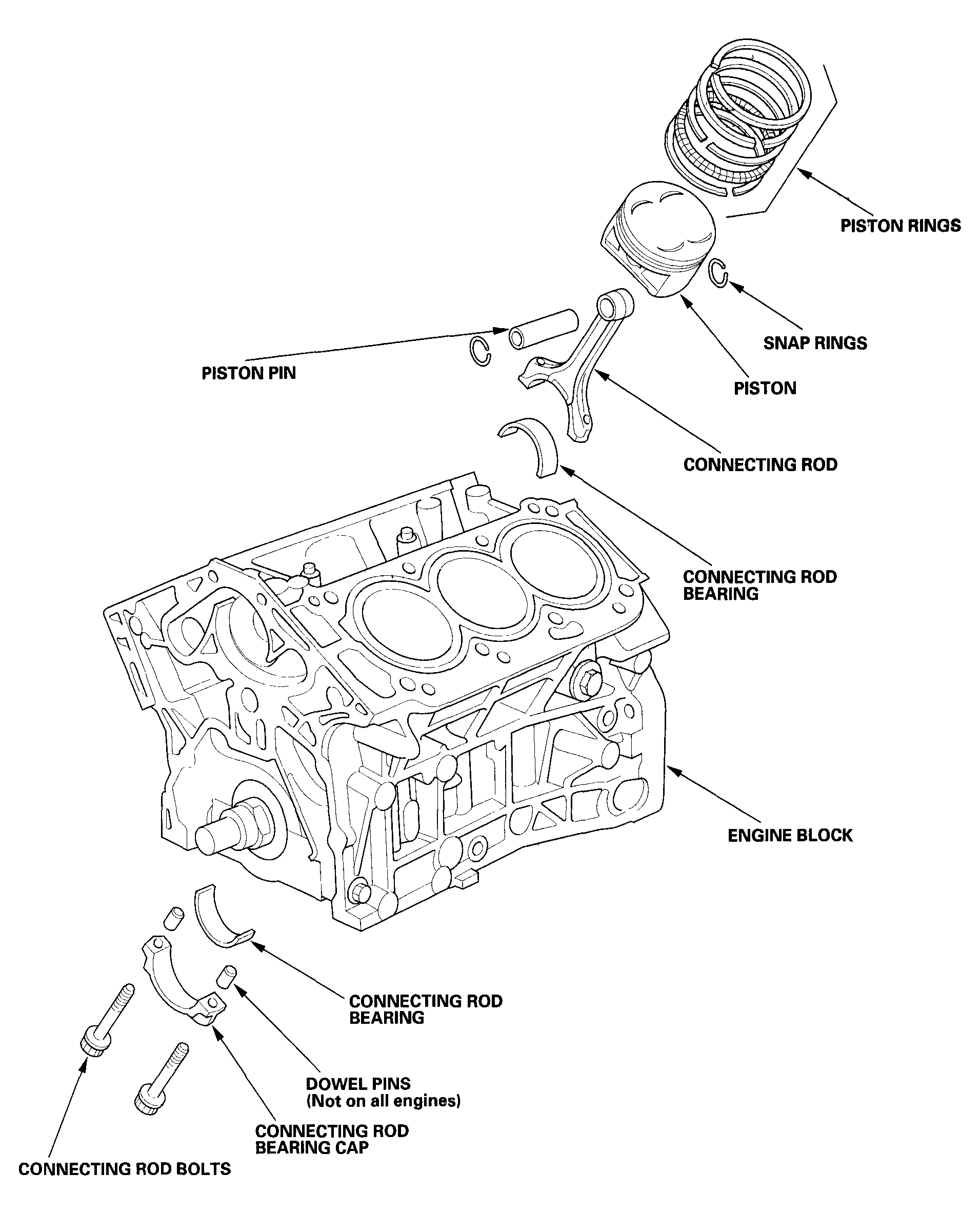

Fig 3: Identifying Engine Components Location (3 Of 3)
G04545710Courtesy of AMERICAN HONDA MOTOR CO., INC.
