System Description
>>
Vacuum Distribution
Vacuum Distribution

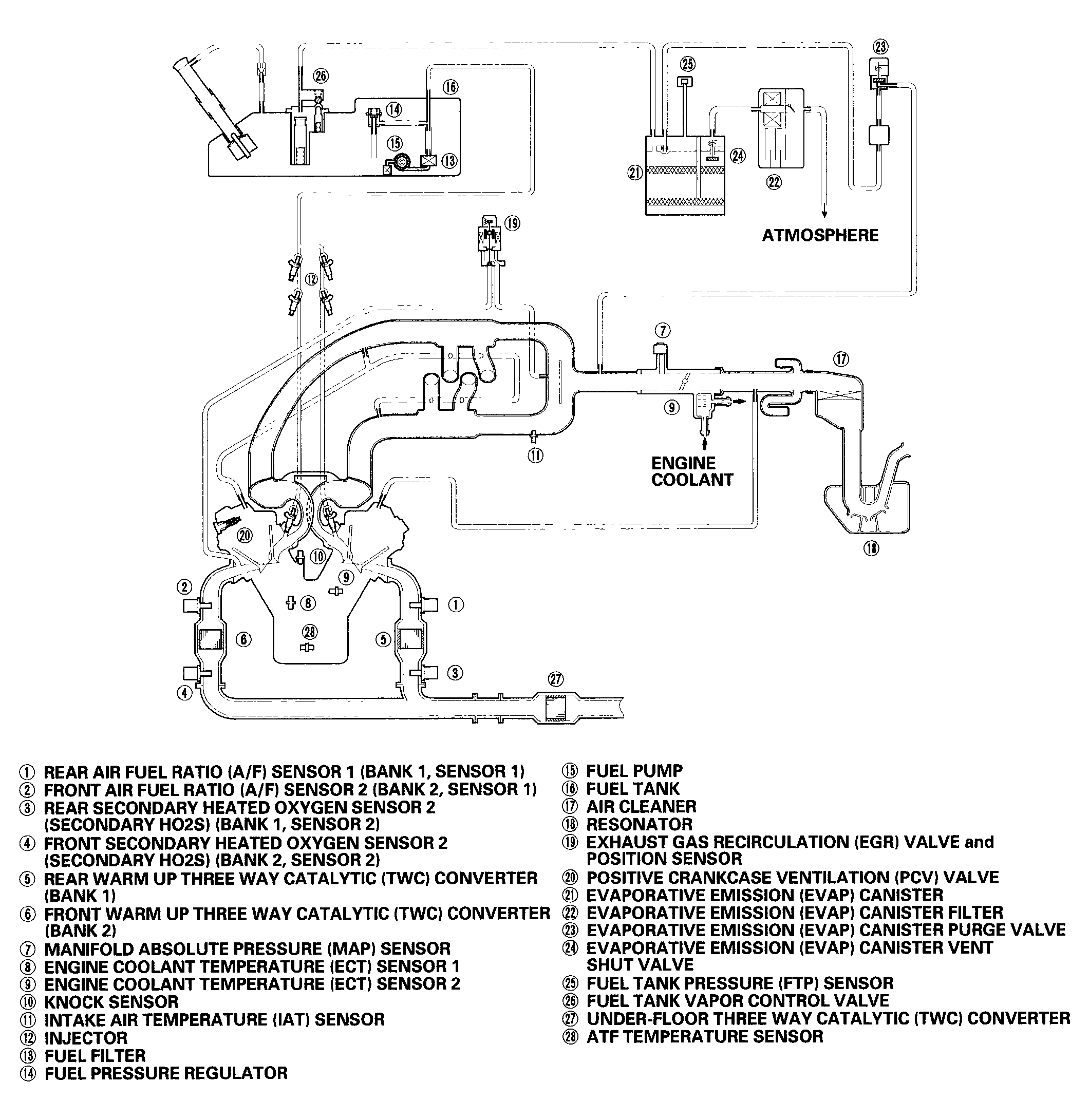

Fig 1: Vacuum Distribution Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
