ATF Temperature Sensor Replacement

  1. Remove the transmission lower mount nuts.

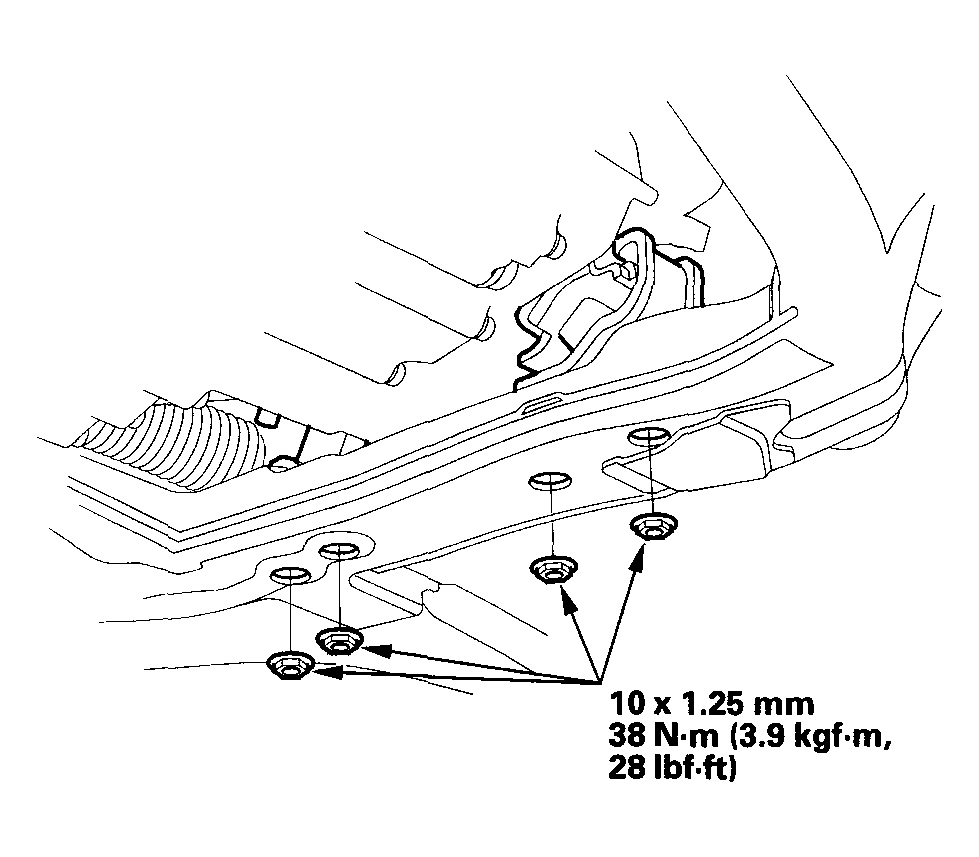

    Fig 1: Removing Transmission Lower Mount Nuts
    G04546477Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Place the transmission jack under the transmission, and lift it up until the studs of the transmission lower front mount clear the subframe.
  3. Remove the transmission lower front mount.

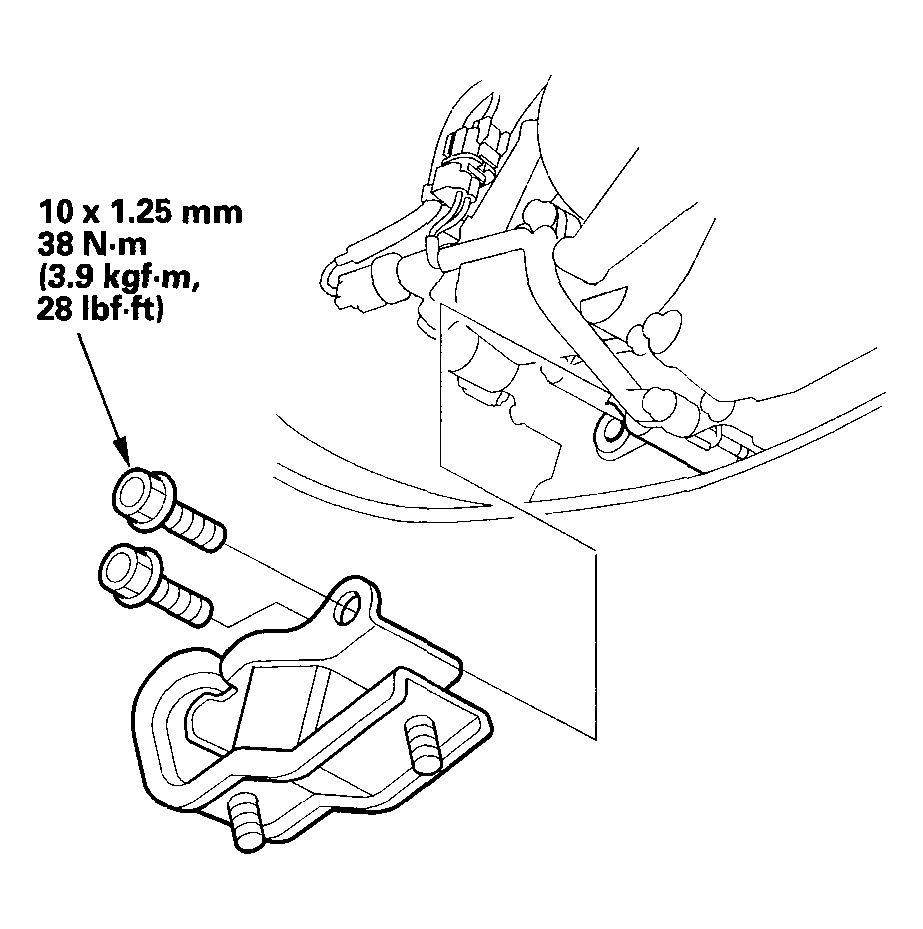

    Fig 2: Removing Transmission Lower Front Mount
    G04546478Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the ATF temperature sensor connector (A).

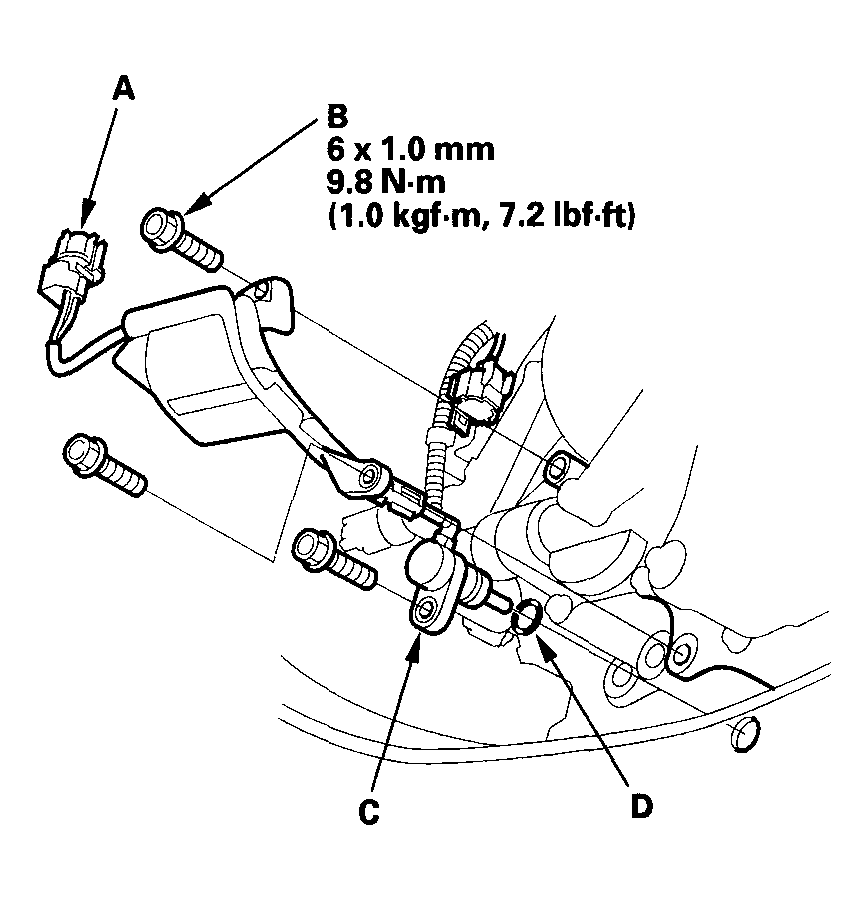

    Fig 3: Disconnect ATF Temperature Sensor Connector (A)
    G04546479Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the ATF temperature sensor harness clamp bolts (B), then remove the ATF temperature sensor (C).
  6. Install the new ATF temperature sensor with a new O-ring (D).
  7. Install the harness clamp, then connect the connector.
  8. Install the transmission lower front mount.
  9. Lower the transmission, then install the transmission lower mount nuts.
  10. Remove the transmission jack.
