Throttle Actuator Control Module Replacement

  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Push the tab (A), and disconnect the throttle actuator control module 16P connector (B).

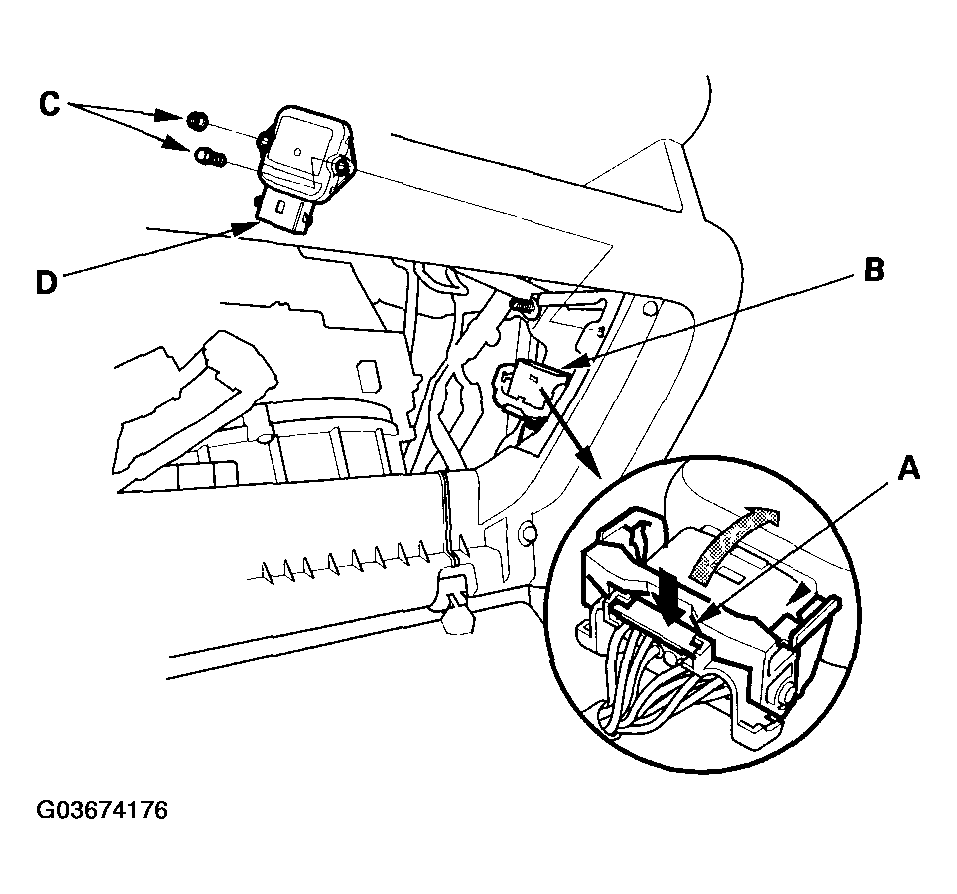

    Fig 1: Disconnecting Throttle Actuator Control Module 16P Connector
    G03674176Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (C), and the throttle actuator control module (D).
  4. Install the control module in the reverse order of removal.
