DTC P0685: Engine Control Module (ECM) Power Control Circuit/Internal Circuit Malfunction
>>
Notes
DTC P0685: Engine Control Module (ECM) Power Control Circuit/Internal Circuit Malfunction: Notes

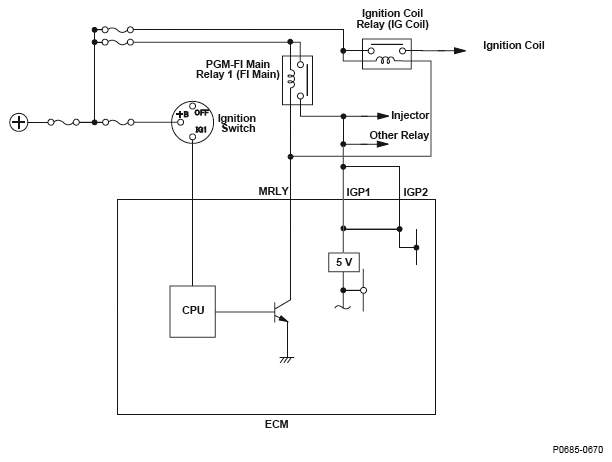

Fig 1: Engine Control Module (ECM) Power Control Circuit - Circuit Diagram
