Home >> Honda >> 2006 >> Insight Standard >> Repair and Diagnosis >> Engine Performance >> System >> Advanced Diagnostics >> DTC P0811: Problem in Start Clutch Control System >> Notes

DTC P0811: Problem in Start Clutch Control System: Notes

Fig 1: Start Clutch Control System Diagram

G04817819

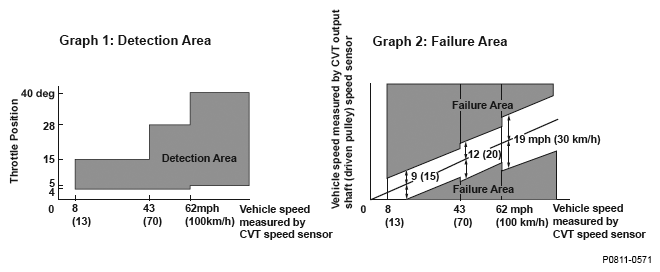

Fig 2: Throttle Position Graph

G04817820
