Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Back-Up Sensor Control Unit | Behind left side of rear seat. See Figure . |
| Immobilizer Control Unit Receiver | In steering column, on ignition key cylinder. See Figure . |
| Navigation Unit | Under driver's seat. See Figure . |

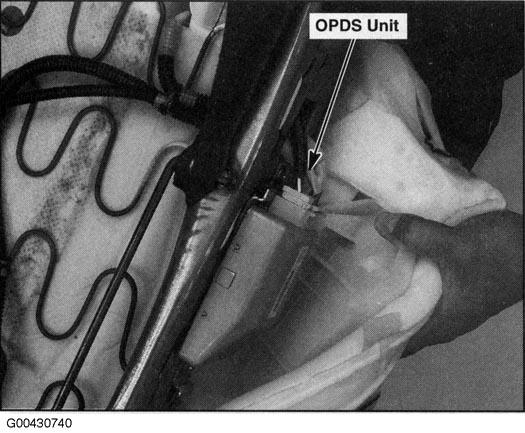

| OPDS Unit | In right front seat back. See Figure . |
| Powertrain Control (PCM) Module | Right Rear Of Engine Compartment. See Figure . |
| SRS Unit | Behind lower center of dash. See Figure . |
| TPMS Receiver Unit | Under left side of dash. See Figure . |
| VSA Modulator Control Unit | Left side of engine compartment. See Figure . |
| VTM-4 Control Unit | Behind right kick panel. See Figure . |
