Door Lock Switch Test

  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the two mounting screws and the door lock switch.

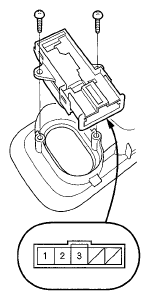

    Fig 1: Identifying Door Lock Switch Mounting Screws & Door Lock Switch Terminals
    G05451543Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the No. 1 and No. 2 terminals:
    • There should be continuity when the door lock switch is in the LOCKED position.
    • There should be no continuity when the door lock switch is in the neutral or UNLOCKED position.
  4. Check for continuity between the No. 2 and No. 3 terminals:
    • There should be continuity when the door lock switch is in the UNLOCKED position.
    • There should be no continuity when the door lock switch is in the neutral or LOCKED position.
  5. If the continuity is not as specified, replace the door lock switch.
