Home >> Honda >> 2007 >> Element SC, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Clutch Interlock Switch Replacement >> M/T Model

M/T Model

  1. Disconnect the clutch interlock switch connector (A).

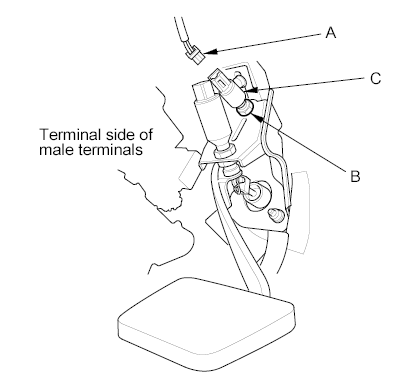

    2. Fig 1: Identifying Clutch Interlock Switch Connector, Clutch Interlock Switch & Locknut
    G00487369Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Loosen the locknut (B), then remove the clutch interlock switch (C).
  3. Install the clotch interlock switch, and adjust the pedal height.
