Home >> Honda >> 2007 >> Element SC, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter Overhaul >> Disassembly/Reassembly

Starter Overhaul: Disassembly/Reassembly

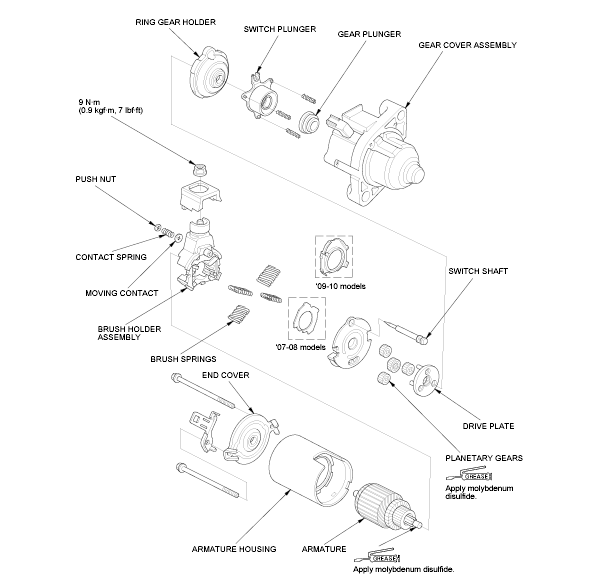

Fig 1: Exploded View Of Starter Overhaul Replacement Components
G00482821Courtesy of AMERICAN HONDA MOTOR CO., INC.
