PCV Valve Replacement

  1. Disconnect the PCV hose.
  2. Remove the PCV valve (A).

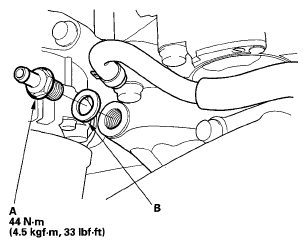

    Fig 1: Identifying PCV Valve & Hose
    G05449288Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal with a new washer (B).
