Fuel Fill Pipe Removal/Installation

  1. Drain the fuel tank (see FUEL TANK DRAINING  ).
  2. Remove the fuel fill cap.
  3. Remove the fuel fill pipe cover (A).

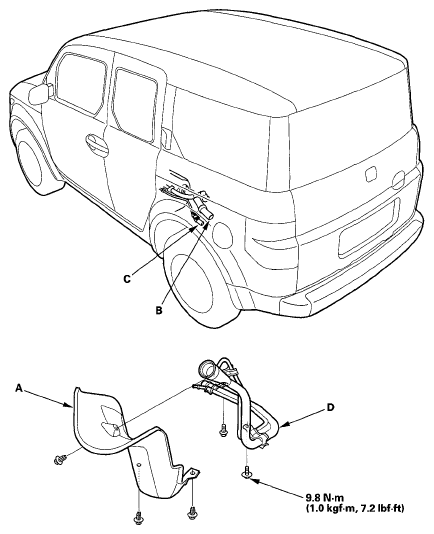

    Fig 1: Fuel Fill Pipe & Parts With Torque Specification
    G05449263Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the fuel fill tube (B) and the fuel vapor hose (C).
  5. Remove the fuel fill pipe (D).
  6. Install the parts in the reverse order of removal.
