Component Location Index

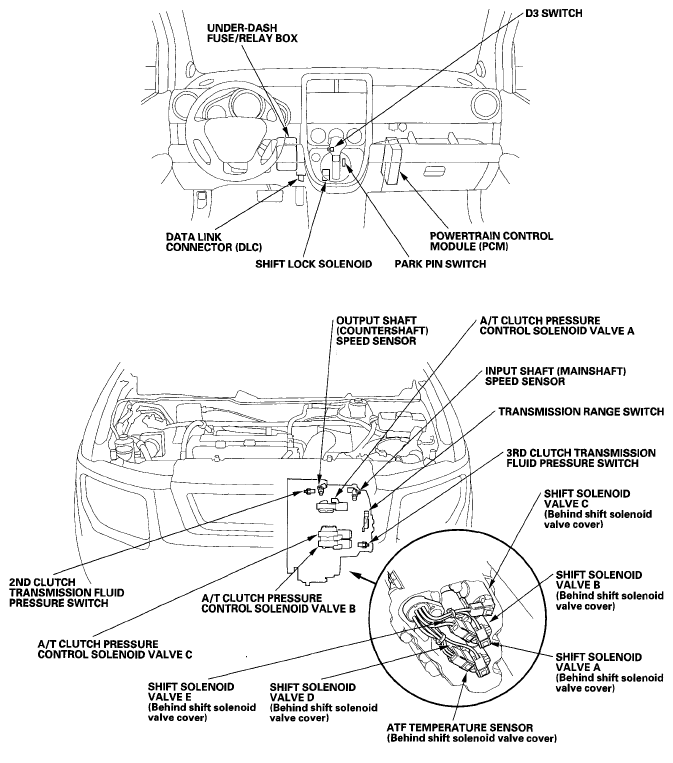

Fig 1: Identifying Automatic Transmission Component Location
G06266724Courtesy of AMERICAN HONDA MOTOR CO., INC.


4WD

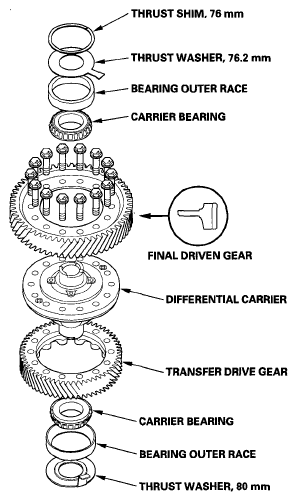

Fig 1: Identifying A/T Differential Components (4WD)
G06267261Courtesy of AMERICAN HONDA MOTOR CO., INC.

2WD

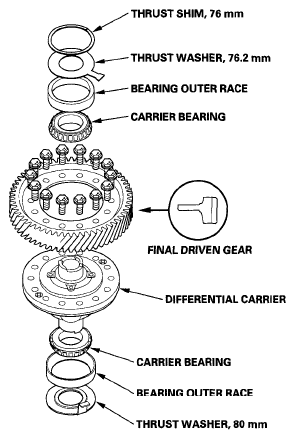

Fig 2: Identifying A/T Differential Components (2WD)
G06267262Courtesy of AMERICAN HONDA MOTOR CO., INC.
