Power Mirror Switch Test/Replacement

  1. Remove the driver's side dashboard side cover (A).
    Fig 1: Identifying Power Mirror Switch 13P Connector Terminals And Driver's Side Dashboard Side Cover
    G05456731
  2. Push the power mirror switch (B) out from the dashboard.
  3. Disconnect the 13P connector (C) from the switch.
  4. Check for continuity between the terminals in each switch position according to the table.

    Mirror Switch

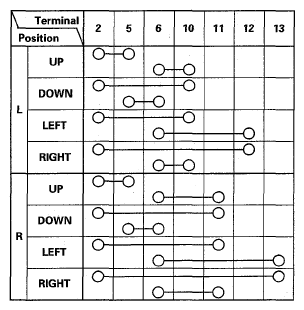

    Fig 2: Power Mirror Switch Terminals Continuity Reference Chart
    G05456732
  5. If the continuity is not as specified, replace the switch.
