Home >> Honda >> 2007 >> Fit Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass >> Component Location Index

Component Location Index

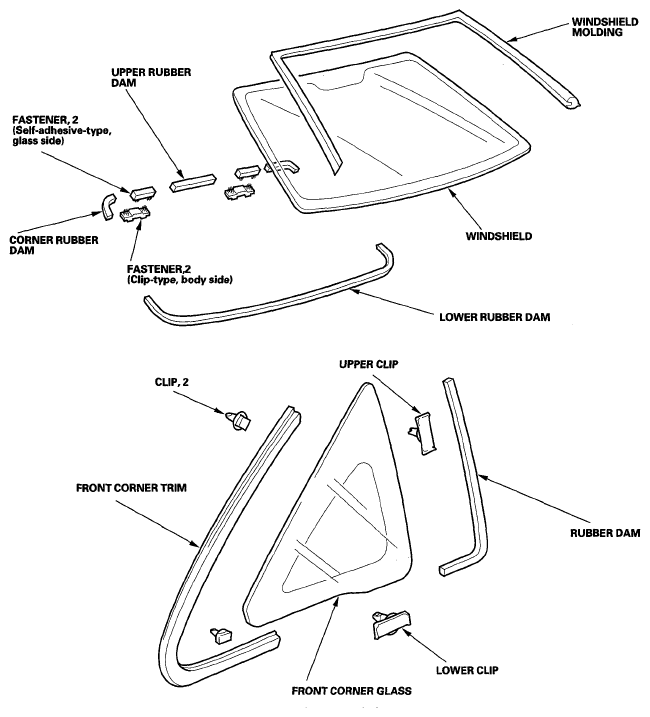

Fig 1: Identifying Glass Components (1 Of 2)

G05456157

Courtesy of AMERICAN HONDA MOTOR CO., INC.

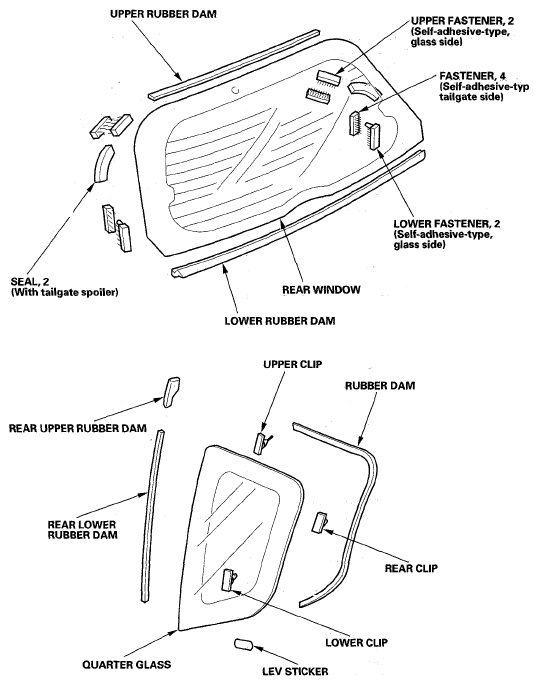

Fig 2: Identifying Glass Components (2 Of 2)

G05456158

Courtesy of AMERICAN HONDA MOTOR CO., INC.
