System Outline

This system is composed of the ABS modulator-control unit, the wheel speed sensors, and the system indicators in the gauge control module. The ABS modulator-control unit controls the anti-lock brakes and the brake distribution functions.

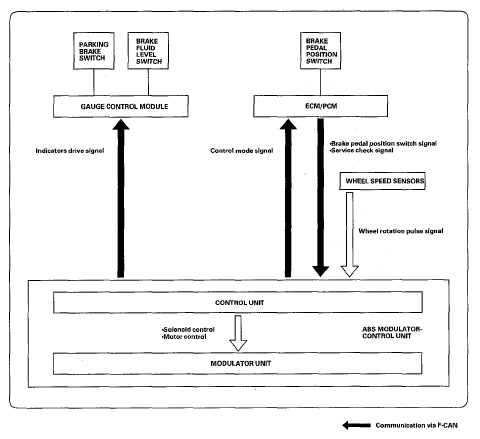

Fig 1: ABS System Outline Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
