Wheel Speed Sensor Replacement: Front

  1. Make sure the ignition switch is OFF.
  2. Release the connector holding clamps (A), then disconnect the wheel speed sensor connector (B).

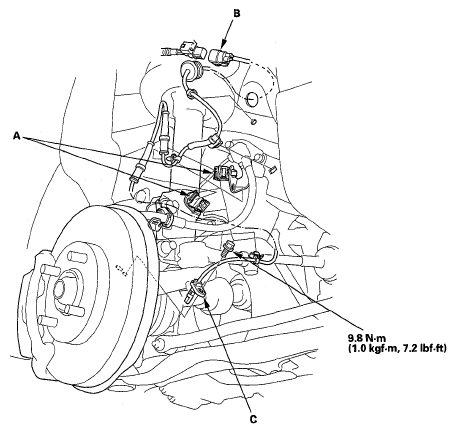

    Fig 1: Connector Holding Clamps And Wheel Speed Sensor Connector With Torque Specification
    G05456083Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the clips, the bolt, and the wheel speed sensor (C).
  4. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Install the sensor carefully to avoid twisting the wires.
    • If the wheel speed sensor comes in contact with the wheel bearing, it is faulty.
  5. Start the engine, and check that the ABS indicator goes off.
  6. Test-drive the vehicle, and check that the ABS indicator does not come on.
