Home >> Honda >> 2007 >> Fit Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Relays And Control Unit Locations >> Dashboard

Relays And Control Unit Locations: Dashboard

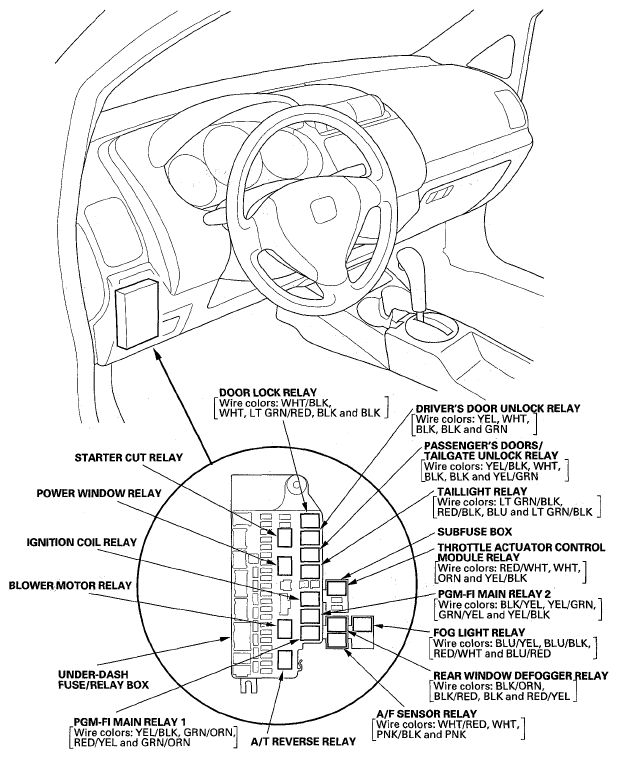

Fig 1: Identifying Relay And Control Unit Locations - Dashboard (1 Of 3)
G05456545

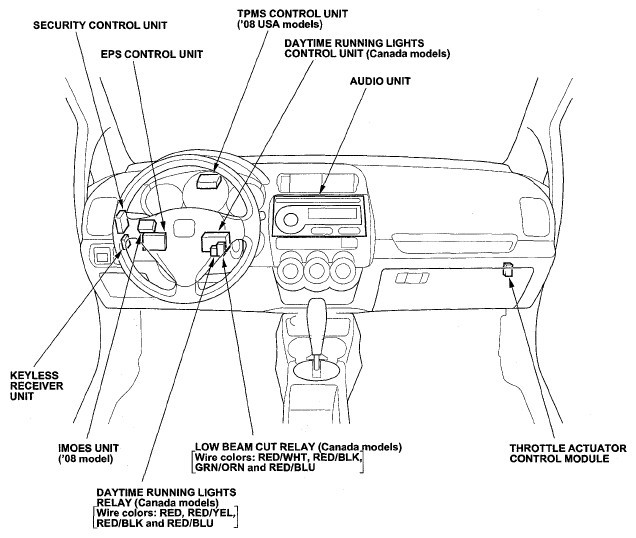

Fig 2: Identifying Relay And Control Unit Locations - Dashboard (2 Of 3)
G05456546

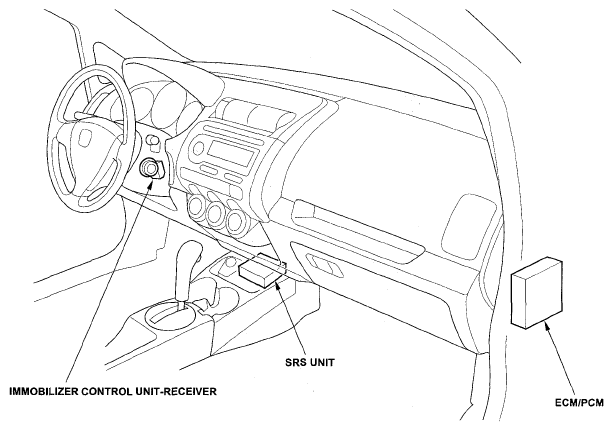

Fig 3: Identifying Relay And Control Unit Locations - Dashboard (3 Of 3)
G05456547
