Home >> Honda >> 2007 >> Fit Base, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Component Location Index

Component Location Index

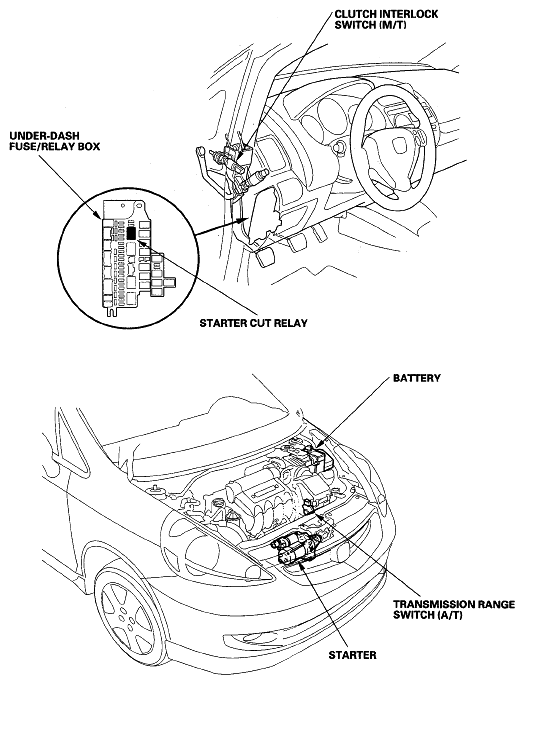

Fig 1: Identifying Starting System Component Location Index

G05453995

Courtesy of AMERICAN HONDA MOTOR CO., INC.
