Component Location Index

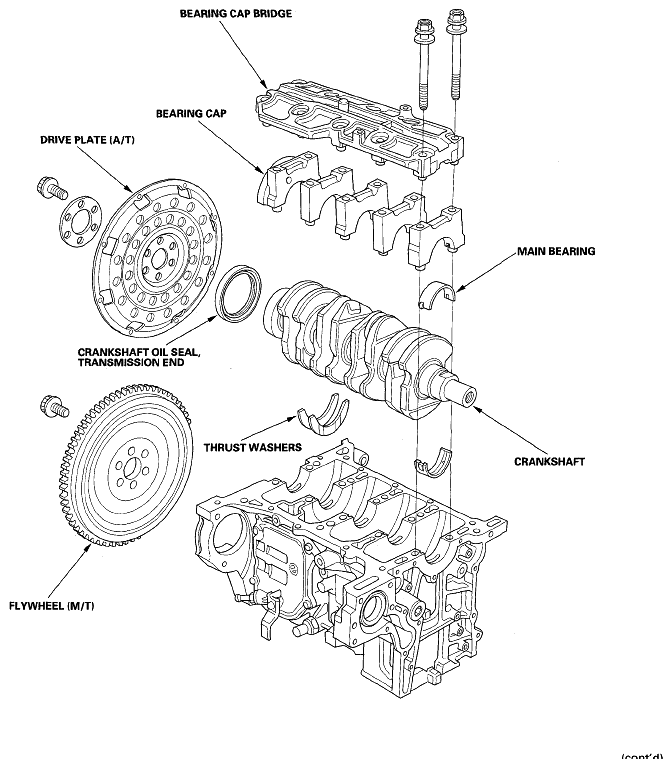

Fig 1: Identifying Engine Block Components (1 Of 2)
G05454290Courtesy of AMERICAN HONDA MOTOR CO., INC.

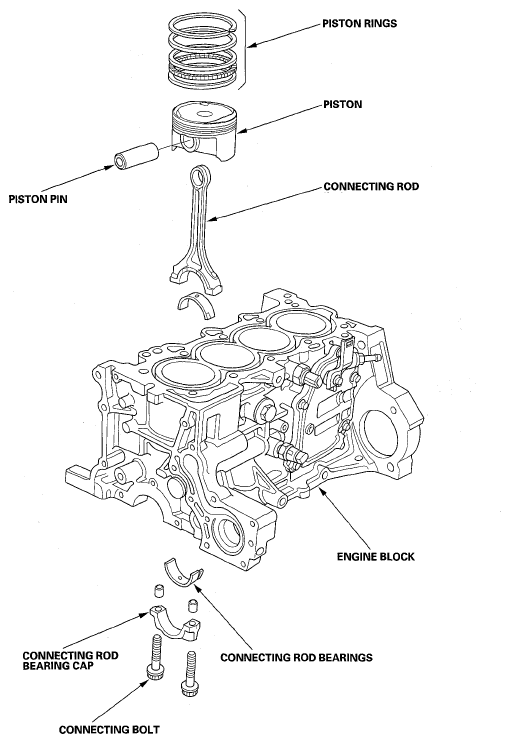

Fig 2: Identifying Engine Block Components (2 Of 2)
G05454291Courtesy of AMERICAN HONDA MOTOR CO., INC.
