DTC Troubleshooting Index

NOTE: Record all freeze data and any on-board snapshot, and review the GENERAL TROUBLESHOOTING INFORMATION  before you troubleshoot.

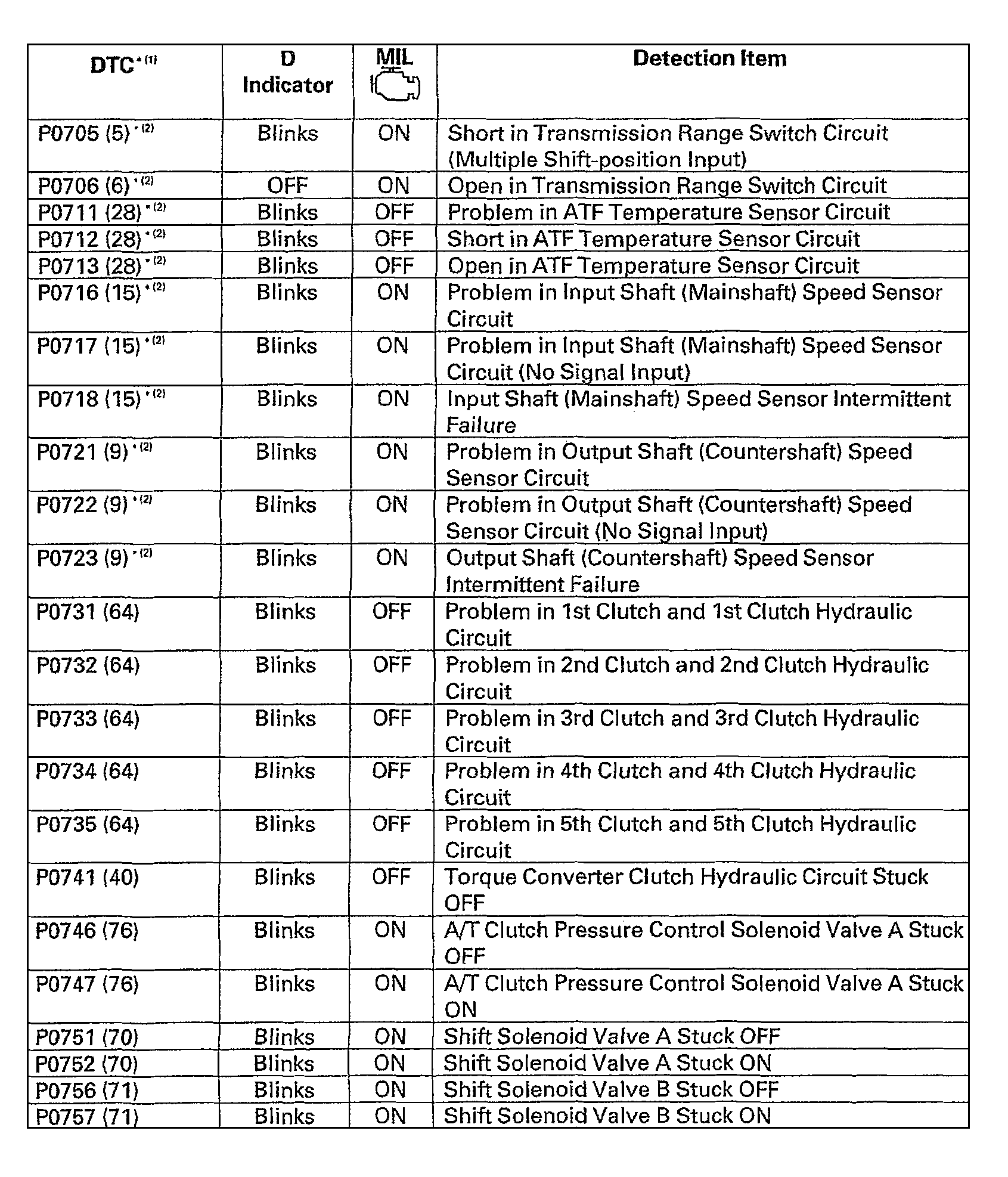

Fig 1: DTC Troubleshooting Reference Chart
G00468167Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Record all freeze data and any on-board snapshot, and review the GENERAL TROUBLESHOOTING INFORMATION  before you troubleshoot.

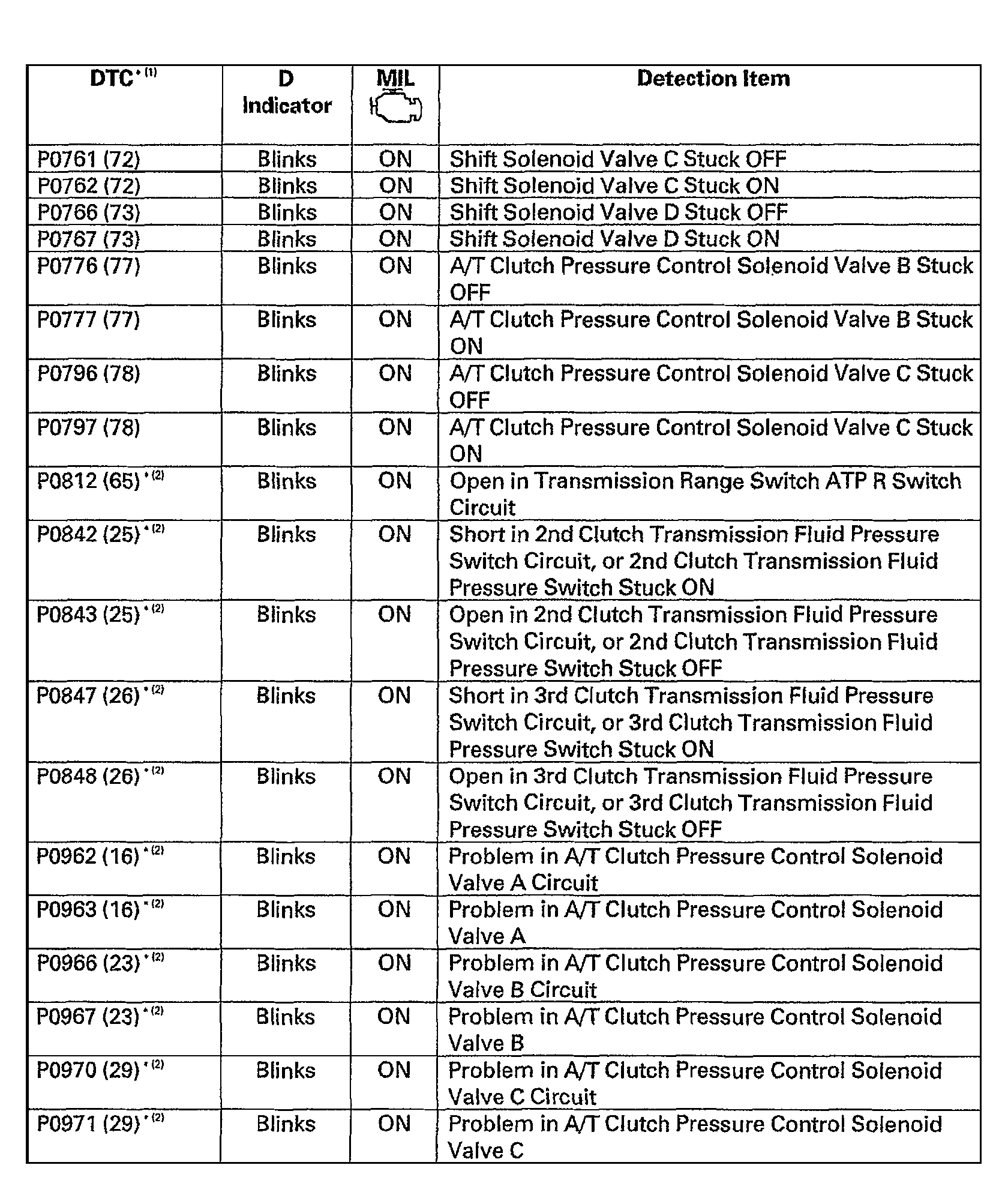

Fig 2: DTC Troubleshooting Reference Chart
G00468171Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Record all freeze data and any on-board snapshot, and review the GENERAL TROUBLESHOOTING INFORMATION  before you troubleshoot.

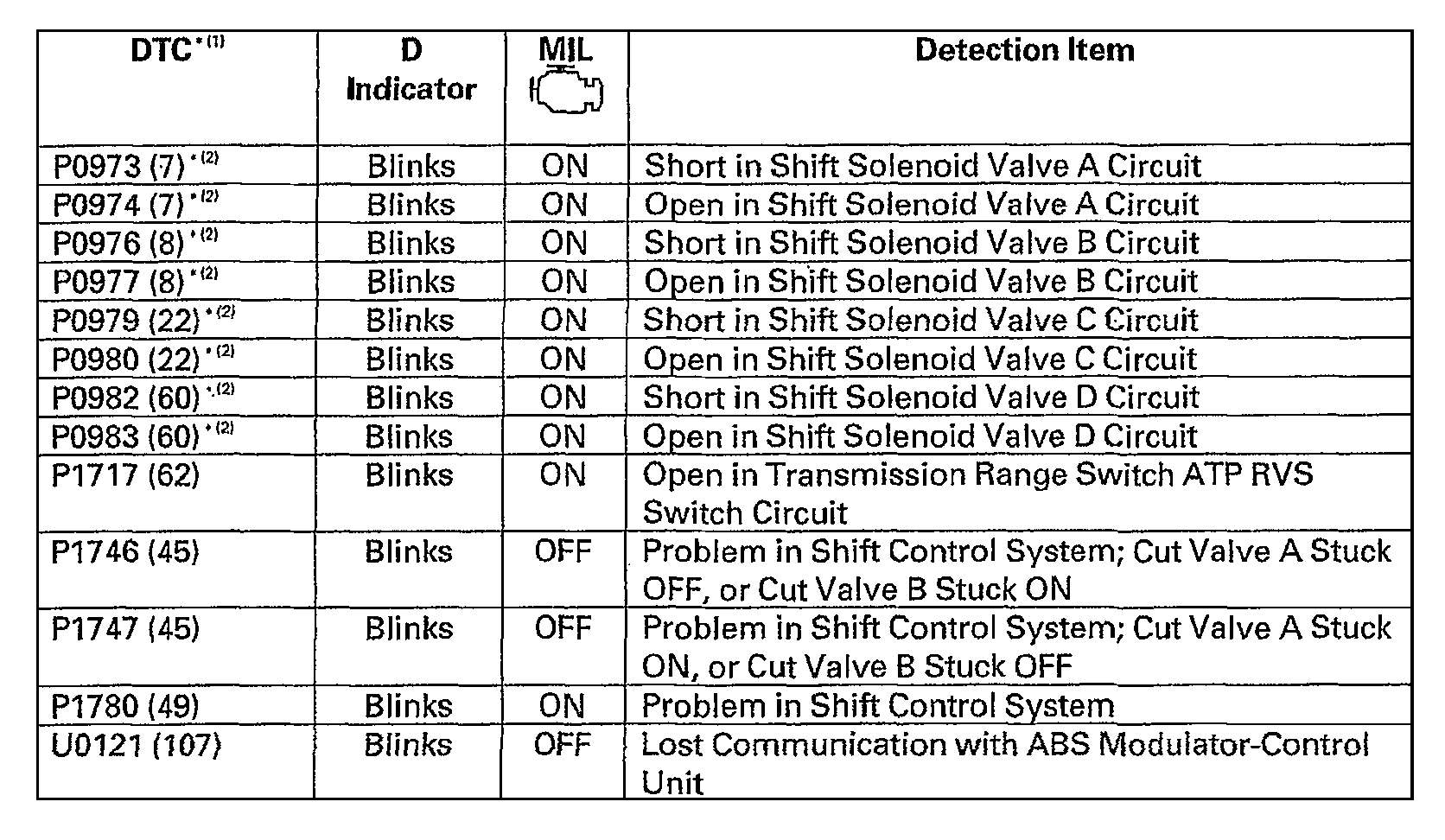

Fig 3: DTC Troubleshooting Reference Chart
G00468175Courtesy of AMERICAN HONDA MOTOR CO., INC.
