Ignition Switch Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Do the battery terminal disconnection procedure (seeBATTERY TERMINAL DISCONNECTION AND RECONNECTION
2. Remove the left front door sill trim (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ) and left kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
3. Disconnect the 6P connector from the driver's under-dash fuse/relay box.

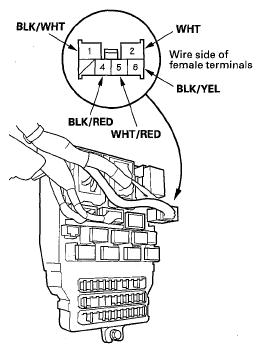

   Fig 1: Identifying Driver Under-Dash Fuse/Relay Box 6P Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check for continuity between the terminals in each switch position according to graphic below.
   Fig 2: Checking For Continuity Between Terminals In Each Switch Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If the continuity checks do not agree with the table, replace the steering lock/switch.
6. Connect the negative cable to the battery. SeeBATTERY TERMINAL DISCONNECTION AND RECONNECTION
