Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

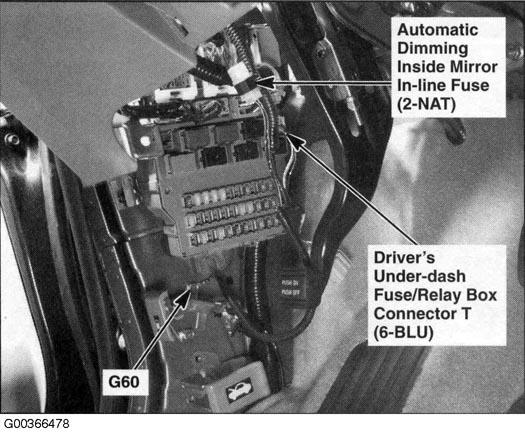

| Automatic Dimming Inside Mirror In-Line Fuse. | Left kick panel. See Figure. |

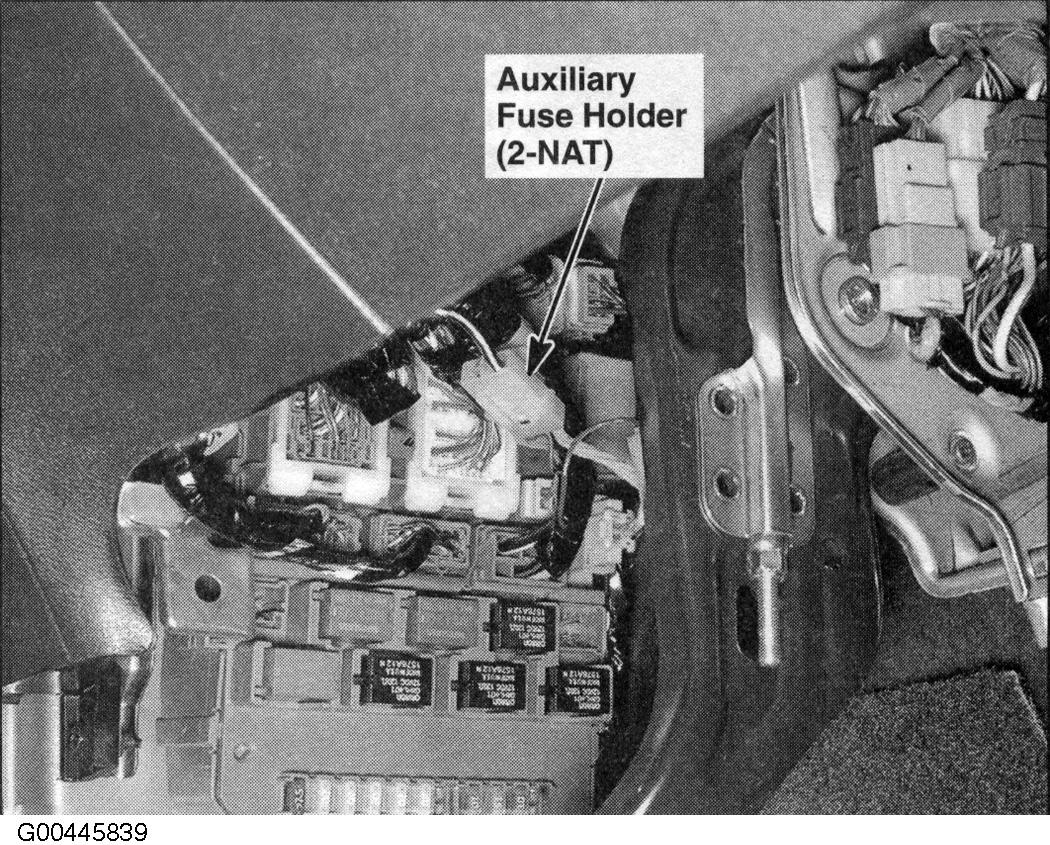

| Auxiliary Fuse Holder | Under left side of dash. See Figure. |

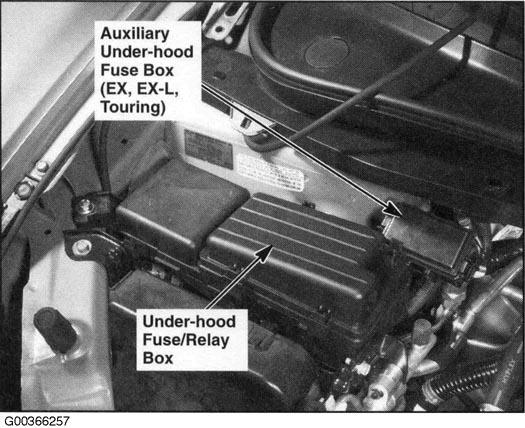

| Auxiliary Under-Hood Fuse Box | Right rear of engine compartment. See Figure. |
| Back-Up Sensor In-Line Fuse | Left rear of vehicle. See Figure. |

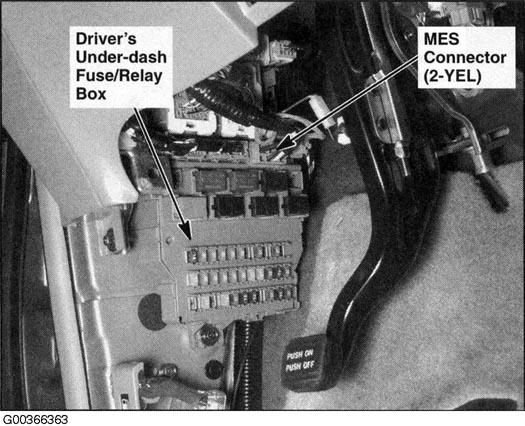

| Driver's Underdash Fuse/Relay Box | Under left side of dash. See Figure. |

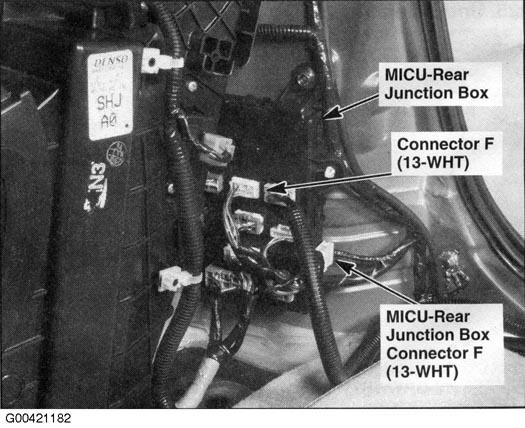

| MICU-Rear Junction Box | Behind right rear side trim panel. See Figure. |

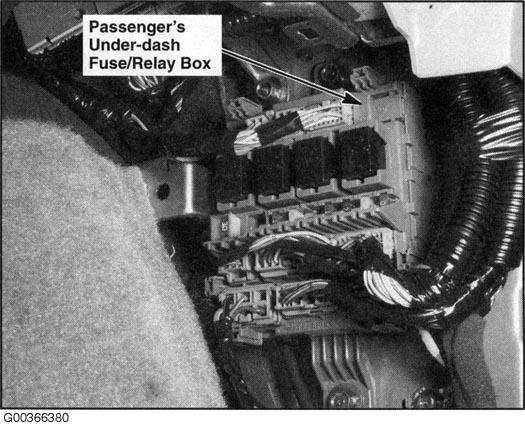

| Passenger's Under-Dash Fuse/Relay Box | Under right side of dash. See Figure. |
| Subwoofer In-Line Fuse | Behind glove box. See Figure. |
| Trailer Lighting In-Line Fuse | Left "D" pillar. See Figure. |
| Under-Hood Fuse/Relay Box | Right side of engine compartment. See Figure. |
