Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Rear Of Engine Compartment

G00366257

Courtesy of AMERICAN HONDA MOTOR CO., INC.

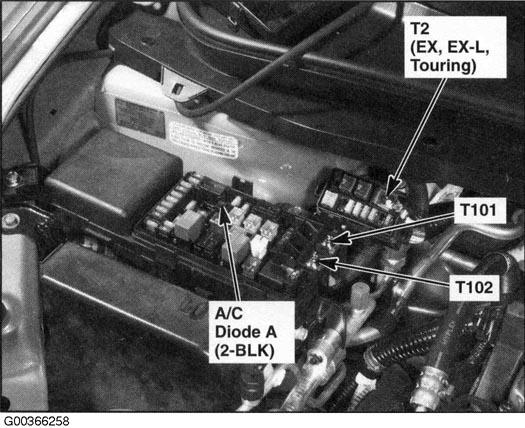

Fig 2: Right Rear Of Engine Compartment

G00366258

Courtesy of AMERICAN HONDA MOTOR CO., INC.

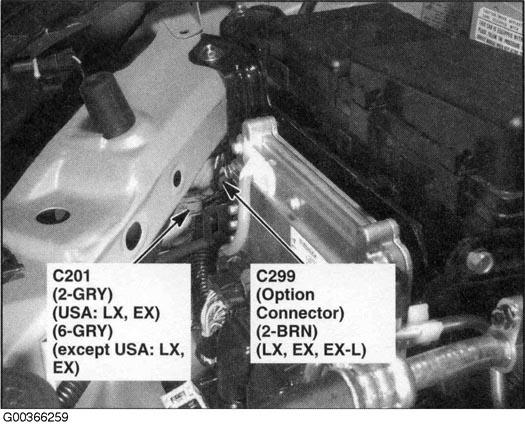

Fig 3: Right Front Of Engine Compartment

G00366259

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Engine Compartment

G00366260

Courtesy of AMERICAN HONDA MOTOR CO., INC.

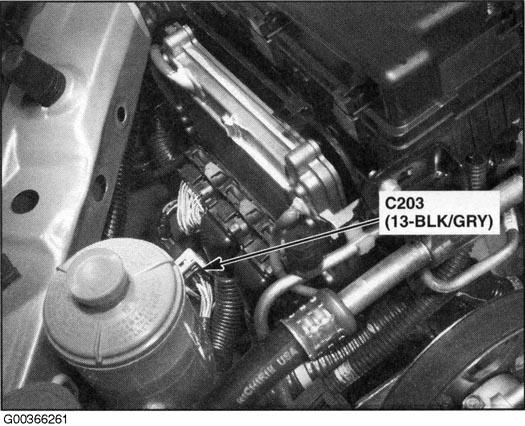

Fig 5: Right Side Of Engine Compartment

G00366261

Courtesy of AMERICAN HONDA MOTOR CO., INC.

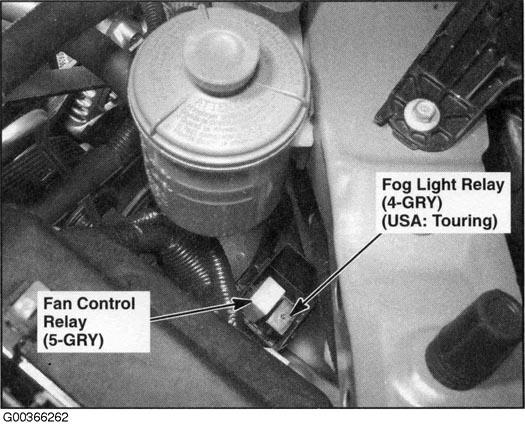

Fig 6: Right Front Of Engine Compartment

G00366262

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Right Side Of Engine Compartment

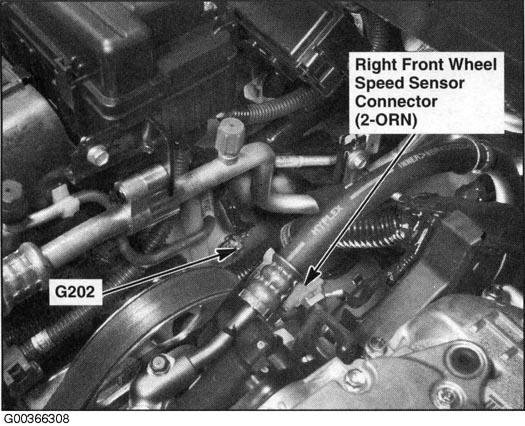

G00366308

Courtesy of AMERICAN HONDA MOTOR CO., INC.

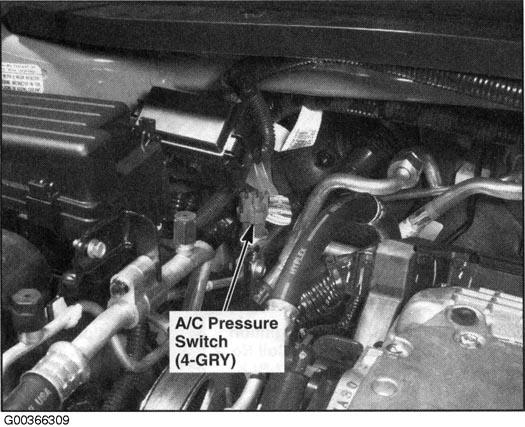

Fig 8: Right Side Of Engine Compartment

G00366309

Courtesy of AMERICAN HONDA MOTOR CO., INC.

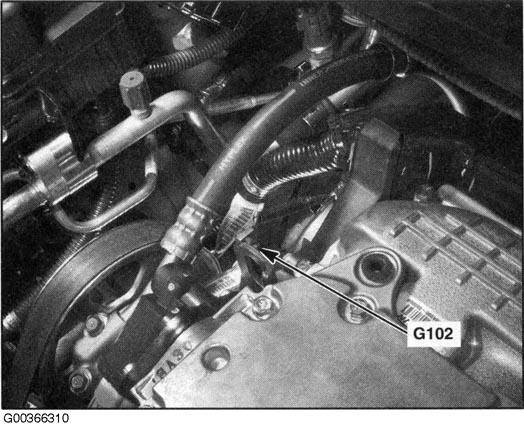

Fig 9: Top Front Of Engine

G00366310

Courtesy of AMERICAN HONDA MOTOR CO., INC.

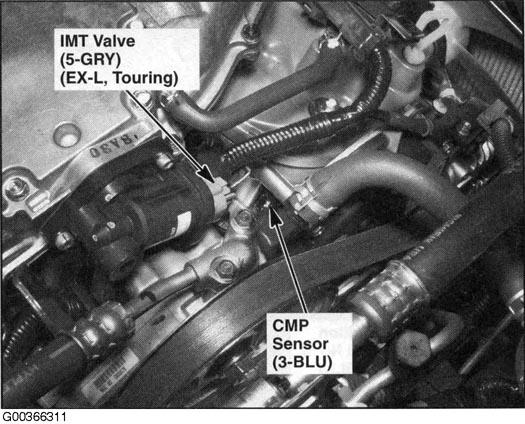

Fig 10: Top Front Of Engine

G00366311

Courtesy of AMERICAN HONDA MOTOR CO., INC.

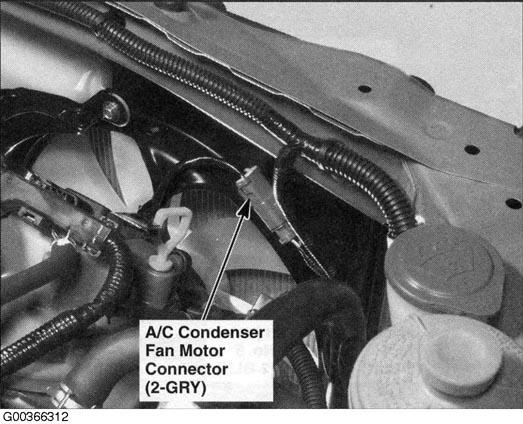

Fig 11: Right Side Of Engine Compartment

G00366312

Courtesy of AMERICAN HONDA MOTOR CO., INC.

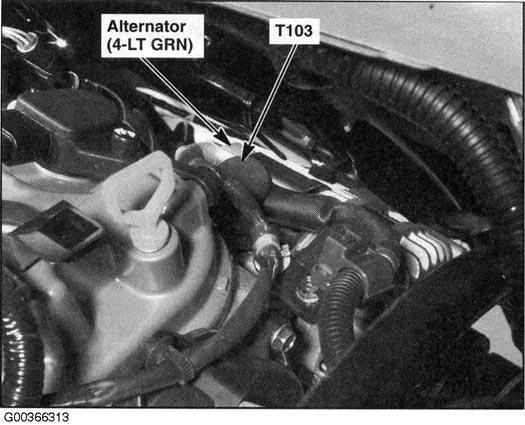

Fig 12: Front Left Side Of Engine

G00366313

Courtesy of AMERICAN HONDA MOTOR CO., INC.

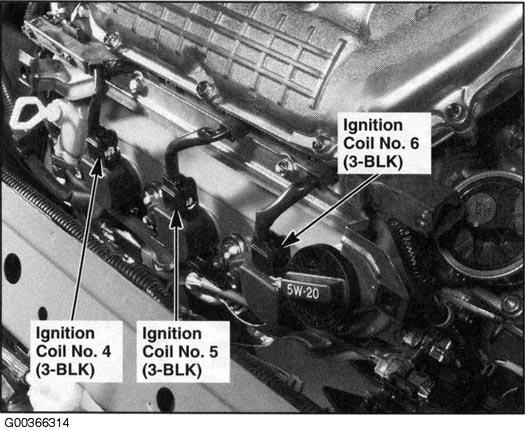

Fig 13: Left Side Of Engine

G00366314

Courtesy of AMERICAN HONDA MOTOR CO., INC.

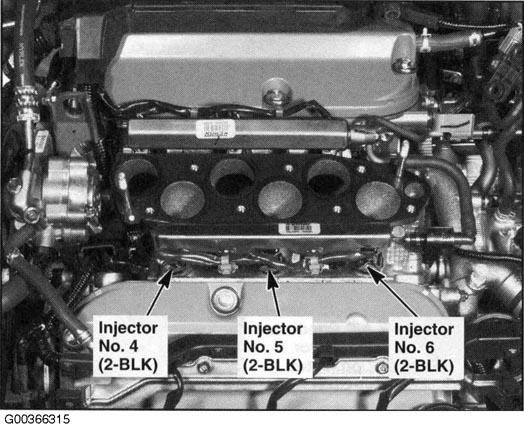

Fig 14: Top Left Side Of Engine

G00366315

Courtesy of AMERICAN HONDA MOTOR CO., INC.

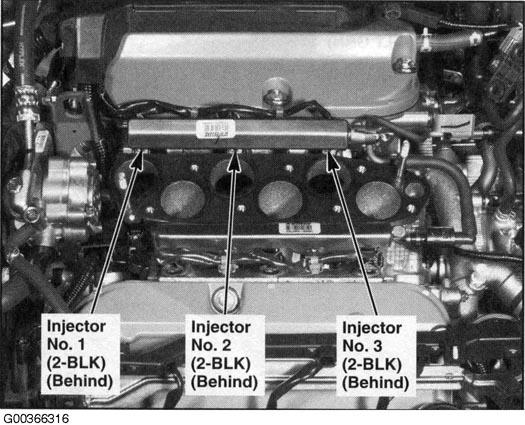

Fig 15: Top Right Side Of Engine

G00366316

Courtesy of AMERICAN HONDA MOTOR CO., INC.

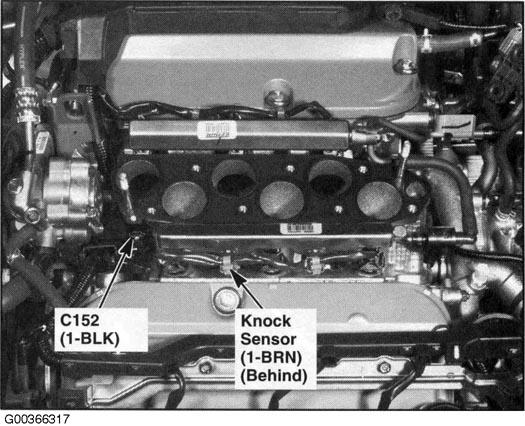

Fig 16: Top Of Engine

G00366317

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Right Side Of Engine

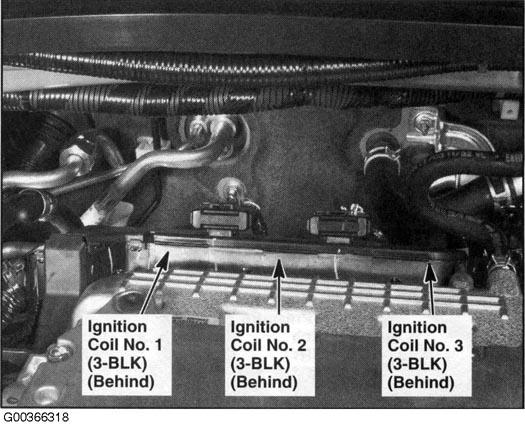

G00366318

Courtesy of AMERICAN HONDA MOTOR CO., INC.

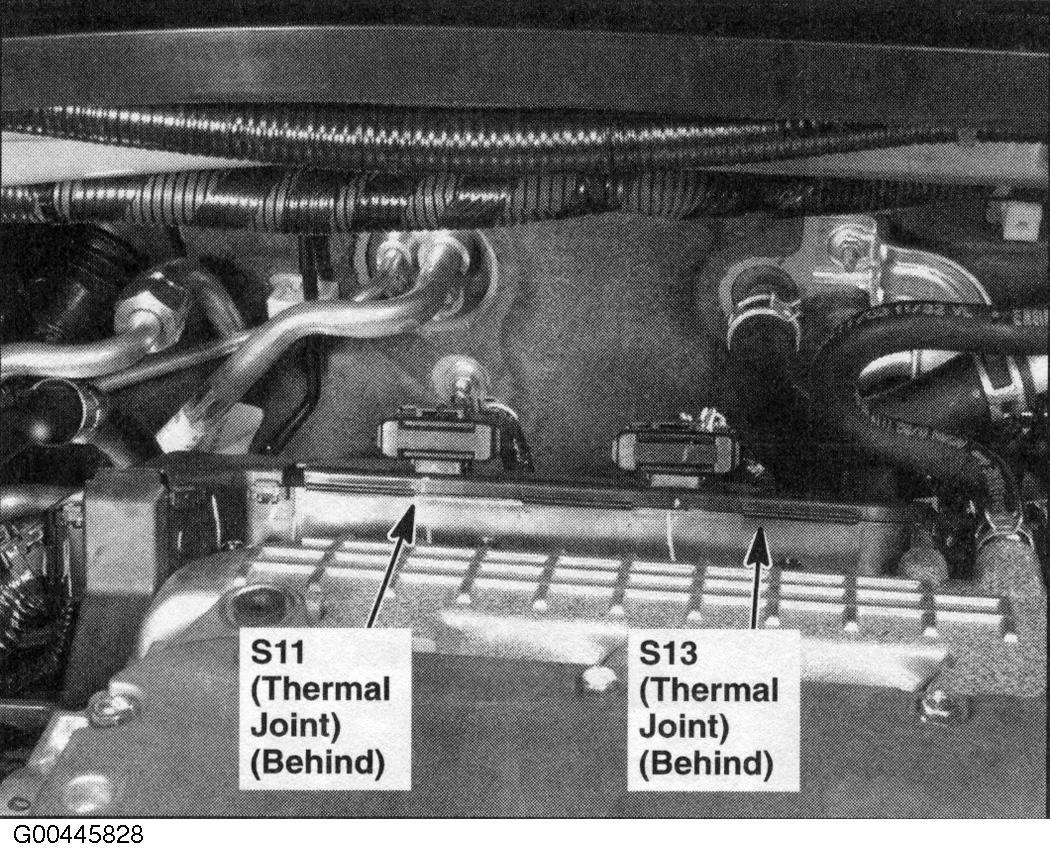

Fig 18: Right Side Of Engine

G00445828

Courtesy of AMERICAN HONDA MOTOR CO., INC.

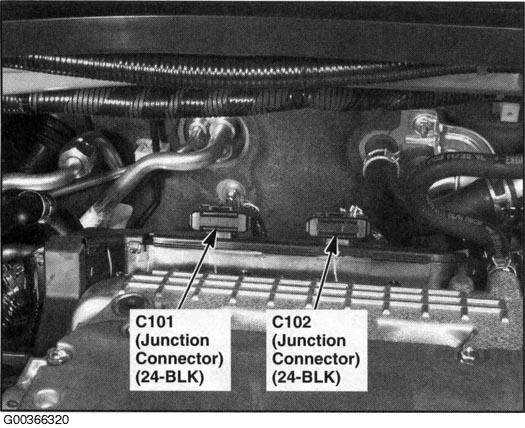

Fig 19: Right Side Of Engine

G00366320

Courtesy of AMERICAN HONDA MOTOR CO., INC.

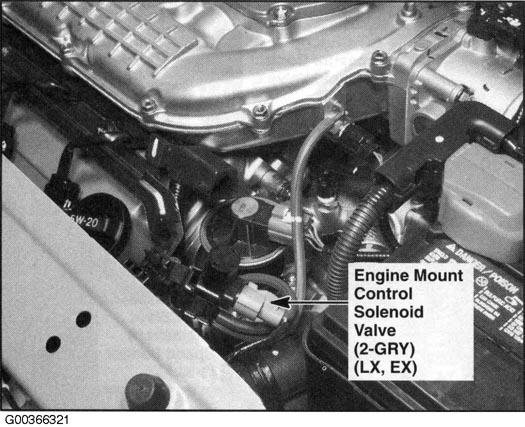

Fig 20: Front Of Engine Compartment (LX & EX)

G00366321

Courtesy of AMERICAN HONDA MOTOR CO., INC.

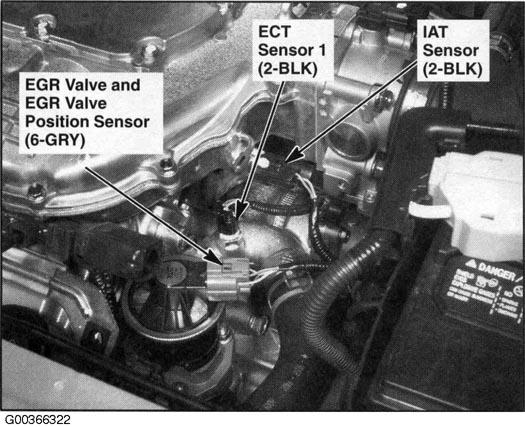

Fig 21: Top Rear Of Engine

G00366322

Courtesy of AMERICAN HONDA MOTOR CO., INC.

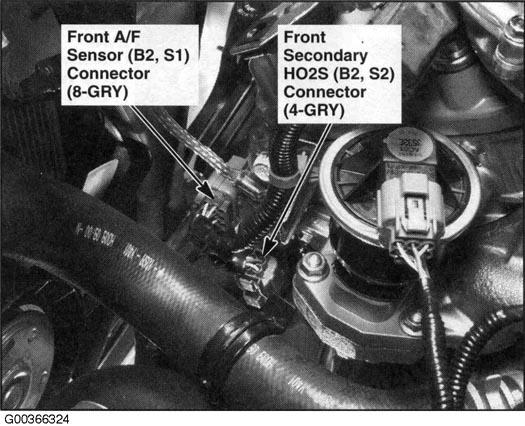

Fig 22: Rear Of Engine

G00366324

Courtesy of AMERICAN HONDA MOTOR CO., INC.

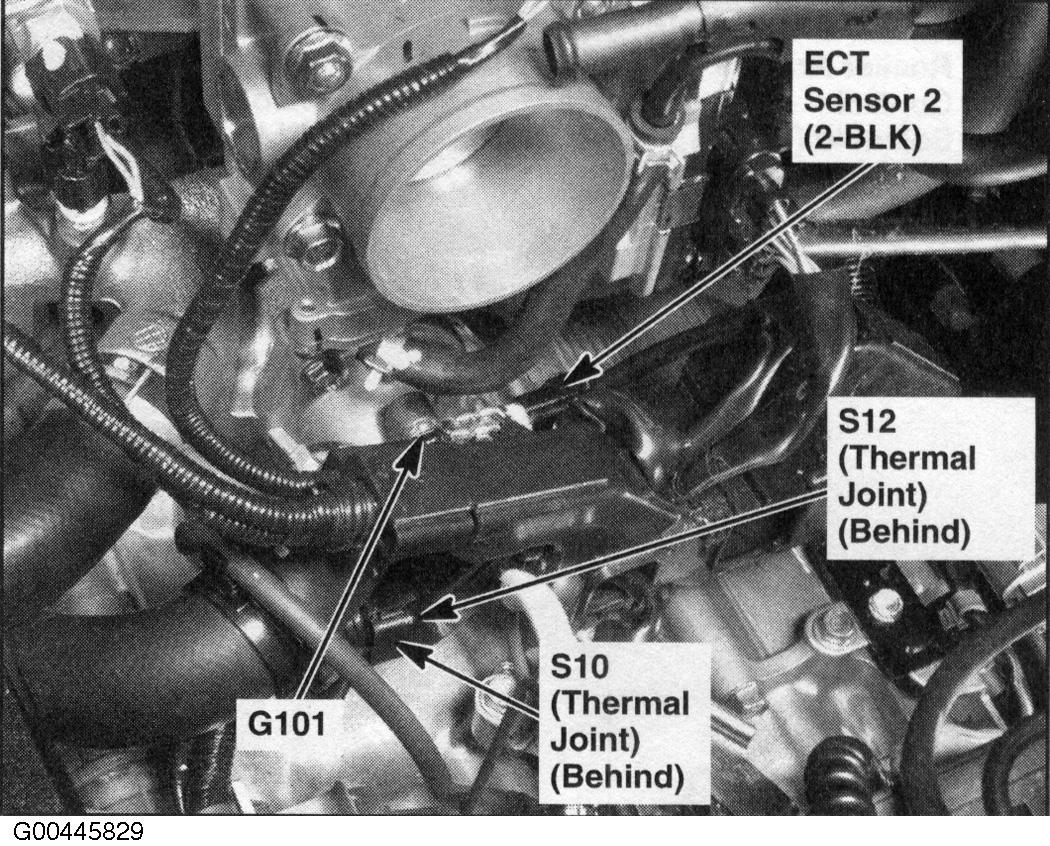

Fig 23: Rear Of Engine

G00445829

Courtesy of AMERICAN HONDA MOTOR CO., INC.

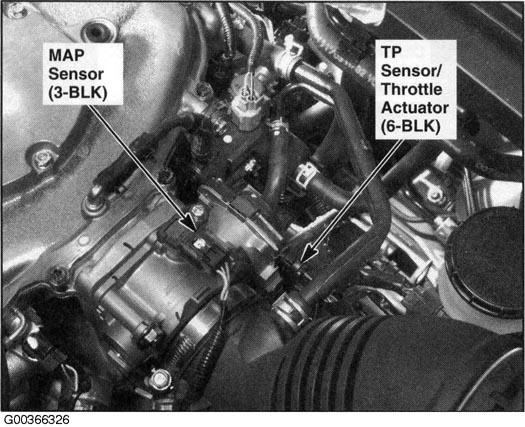

Fig 24: Rear Of Engine

G00366326

Courtesy of AMERICAN HONDA MOTOR CO., INC.

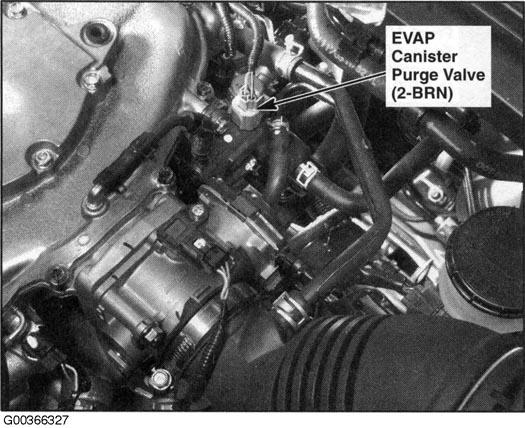

Fig 25: Left Rear Of Engine Compartment

G00366327

Courtesy of AMERICAN HONDA MOTOR CO., INC.

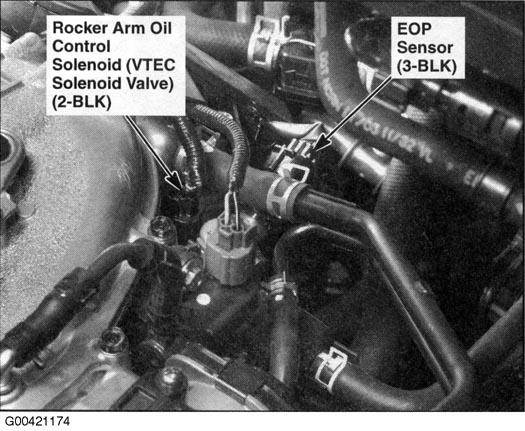

Fig 26: Right Rear Of Engine (EX-L & Touring)

G00421174

Courtesy of AMERICAN HONDA MOTOR CO., INC.

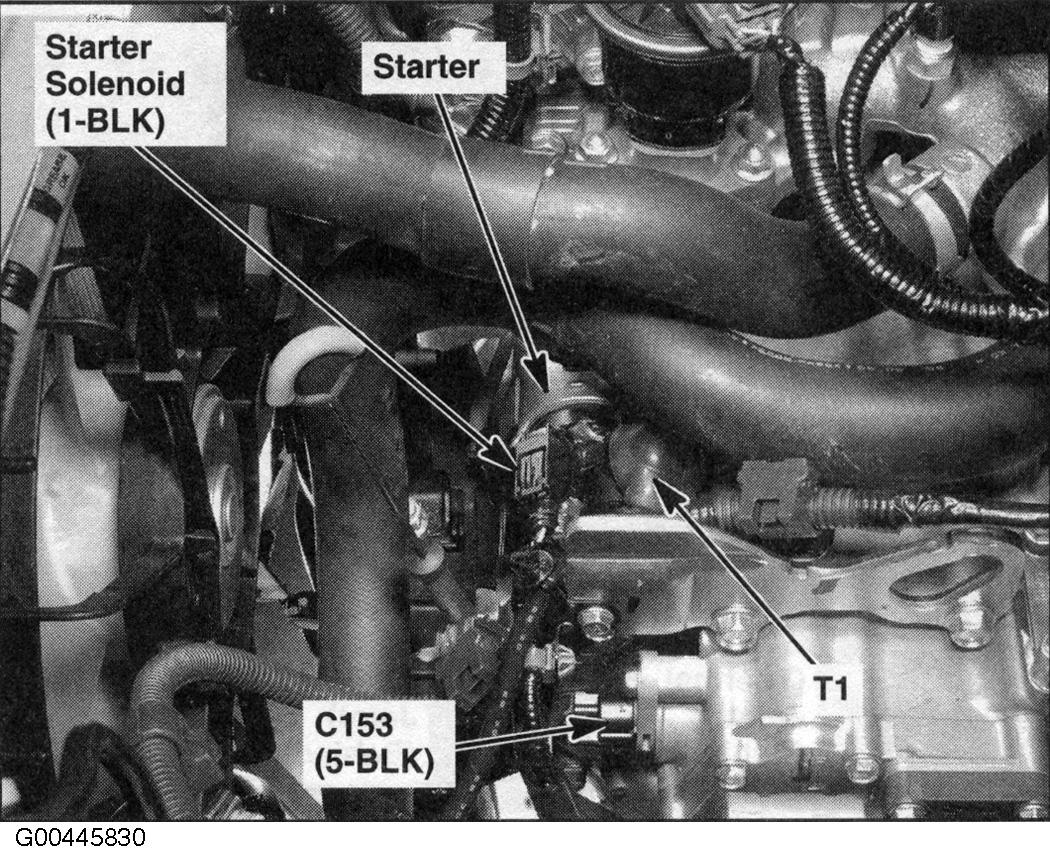

Fig 27: Left Rear Side Of Engine

G00445830

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Transmission Housing

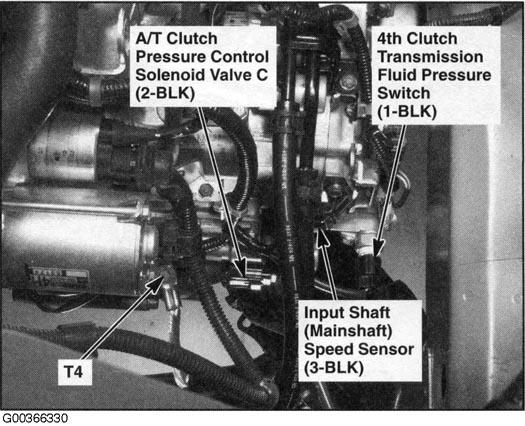

G00366330

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Transmission Housing

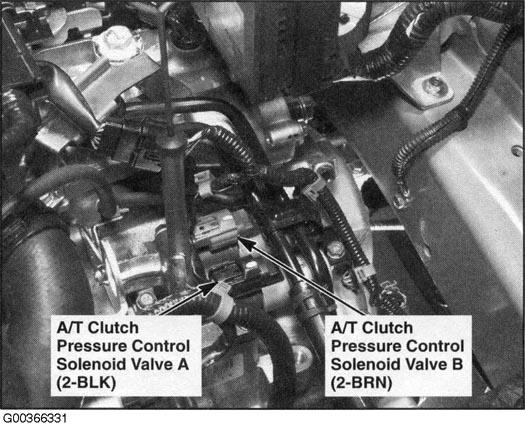

G00366331

Courtesy of AMERICAN HONDA MOTOR CO., INC.

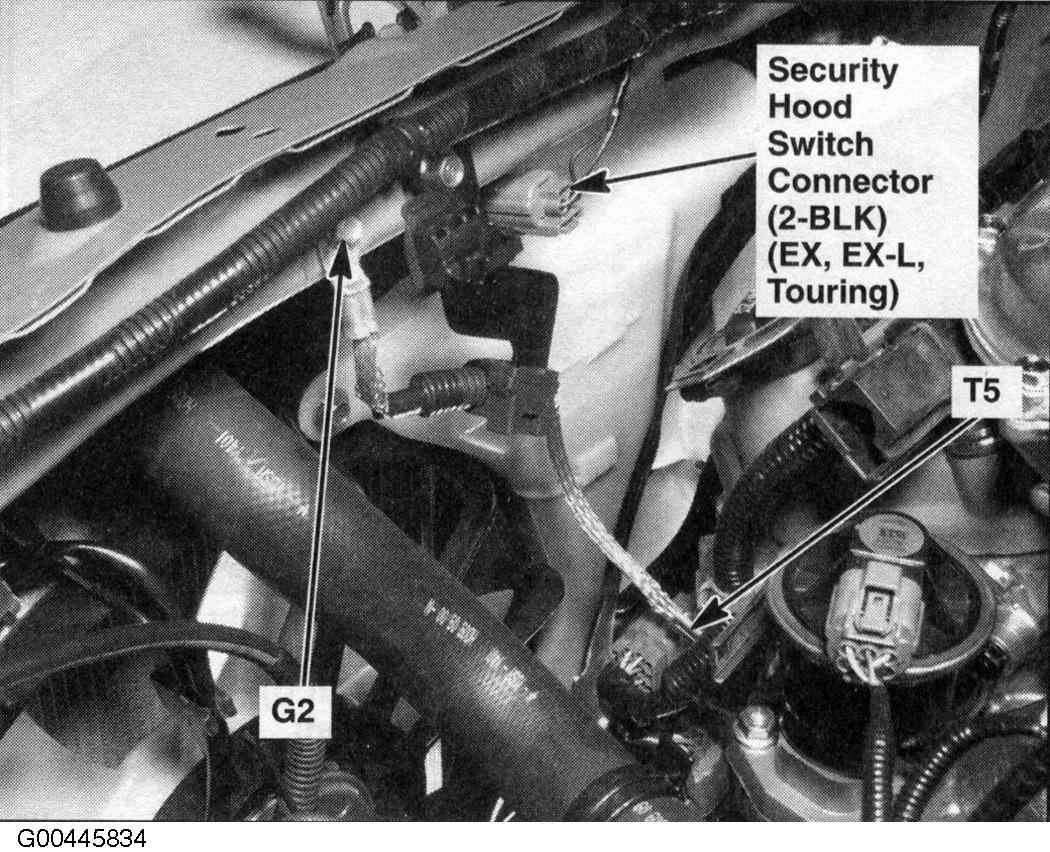

Fig 30: Left Side Of Engine Compartment

G00445834

Courtesy of AMERICAN HONDA MOTOR CO., INC.

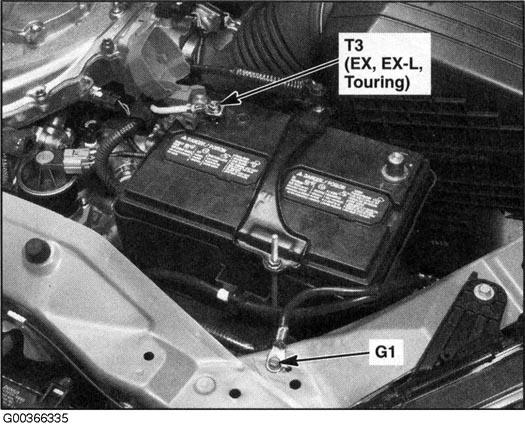

Fig 31: Left Front Of Engine Compartment

G00366335

Courtesy of AMERICAN HONDA MOTOR CO., INC.

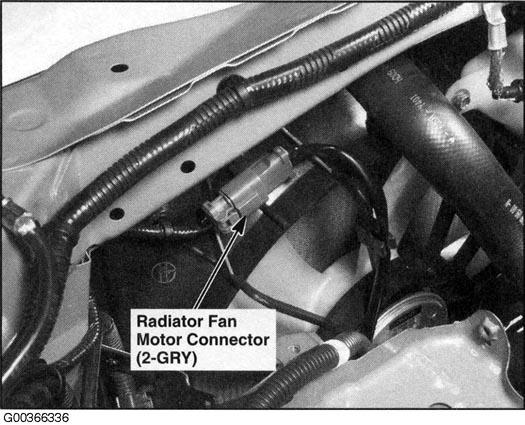

Fig 32: Left Front Of Engine Compartment

G00366336

Courtesy of AMERICAN HONDA MOTOR CO., INC.

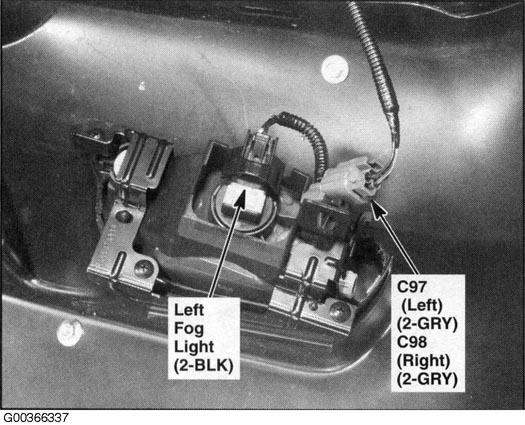

Fig 33: Behind Left Side Of Front Bumper (Right Similar)

G00366337

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Left Side Of Engine Compartment

G00445835

Courtesy of AMERICAN HONDA MOTOR CO., INC.

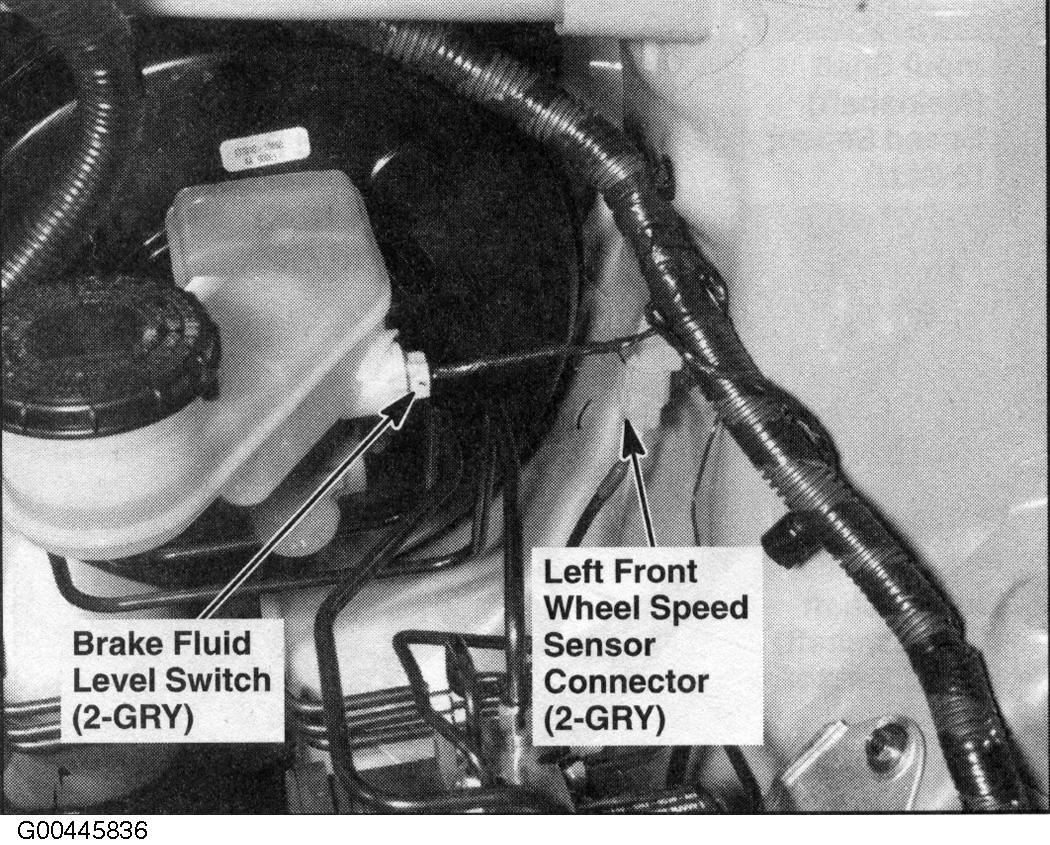

Fig 35: Left Rear Of Engine Compartment

G00445836

Courtesy of AMERICAN HONDA MOTOR CO., INC.

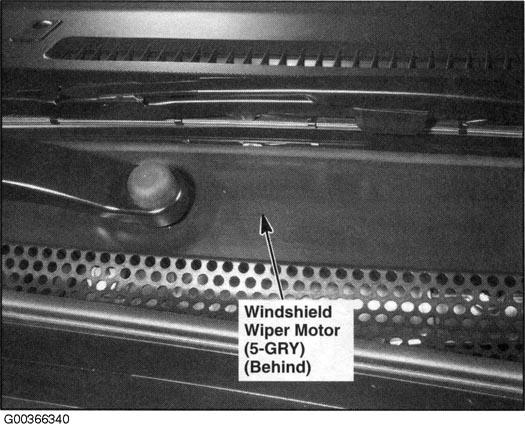

Fig 36: Under Cowl Cover

G00366340

Courtesy of AMERICAN HONDA MOTOR CO., INC.

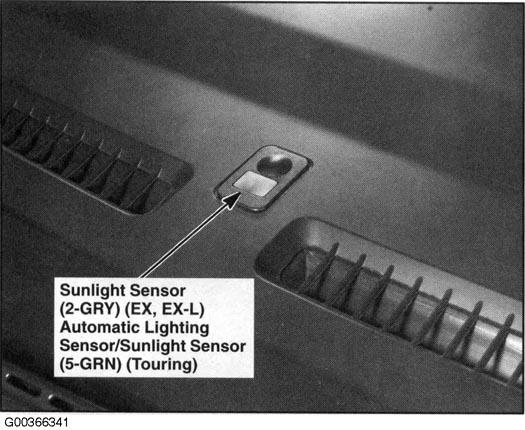

Fig 37: Top Of Dash

G00366341

Courtesy of AMERICAN HONDA MOTOR CO., INC.

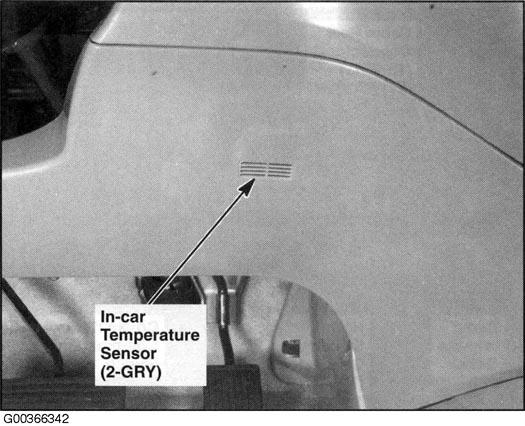

Fig 38: Left Side Of Dash

G00366342

Courtesy of AMERICAN HONDA MOTOR CO., INC.

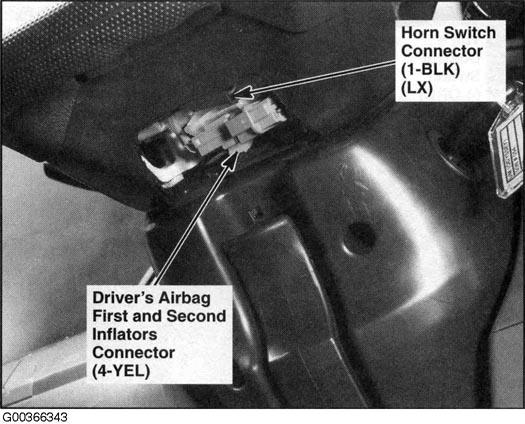

Fig 39: Steering Column

G00366343

Courtesy of AMERICAN HONDA MOTOR CO., INC.

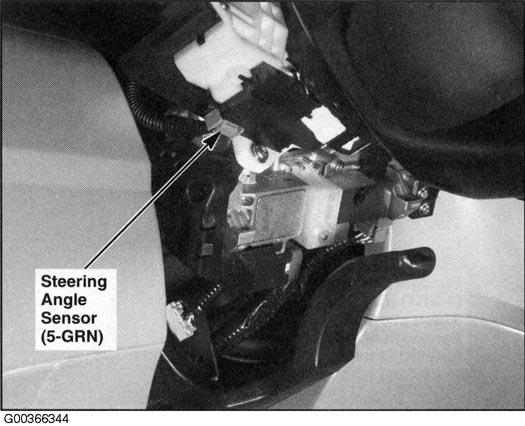

Fig 40: Steering Column

G00366344

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Steering Column

G00366345

Courtesy of AMERICAN HONDA MOTOR CO., INC.

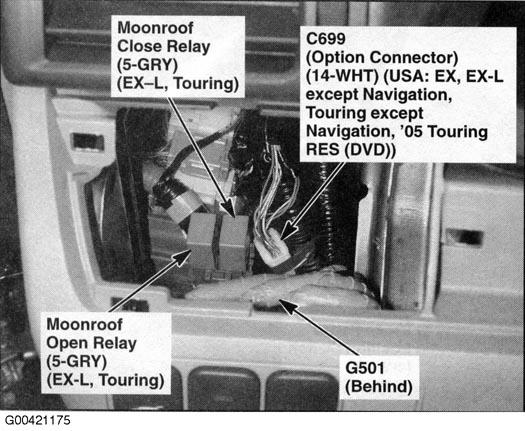

Fig 42: Behind Left Side Of Dash

G00421175

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Left Side Of Dash

G00366347

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Under Left Side Of Dash

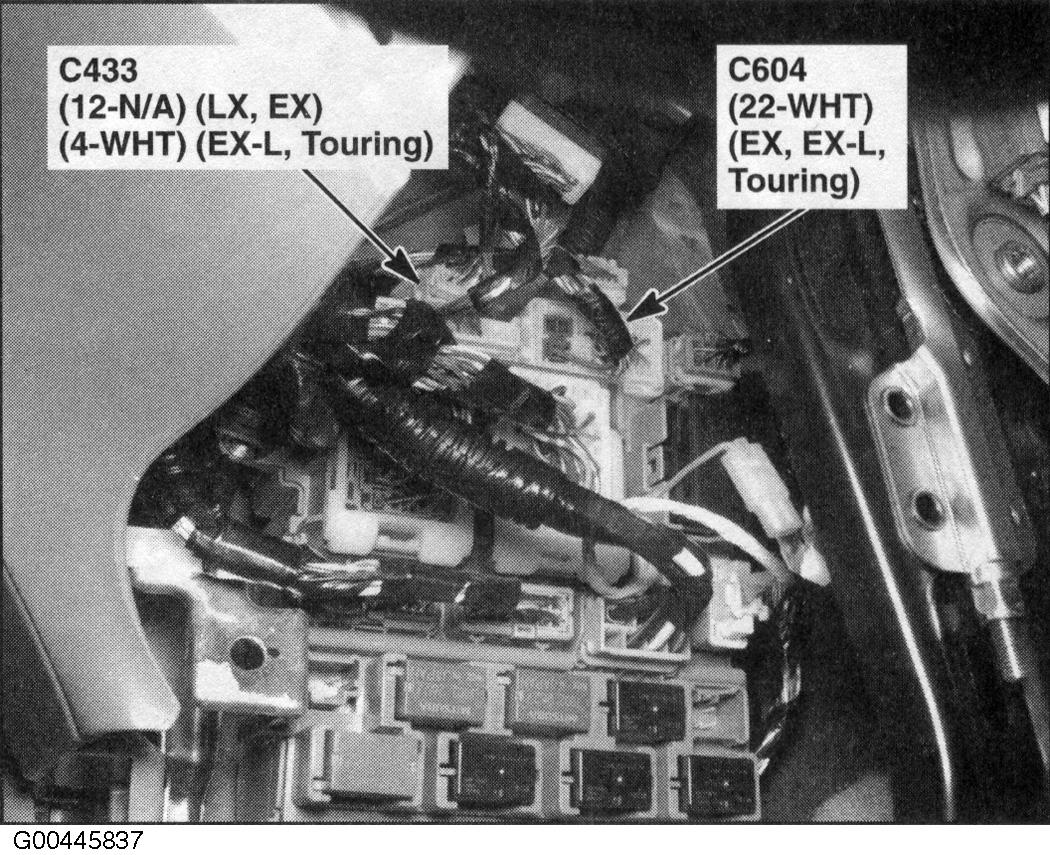

G00445837

Courtesy of AMERICAN HONDA MOTOR CO., INC.

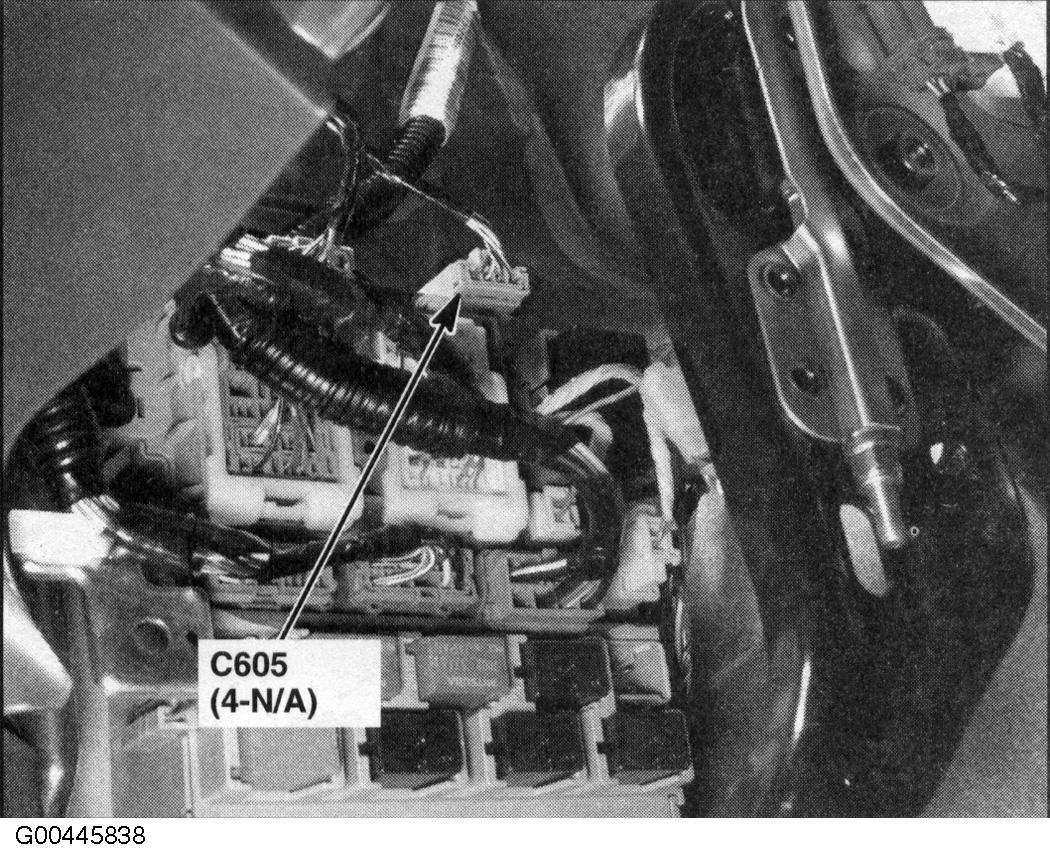

Fig 45: Under Left Side Of Dash (LX)

G00445838

Courtesy of AMERICAN HONDA MOTOR CO., INC.

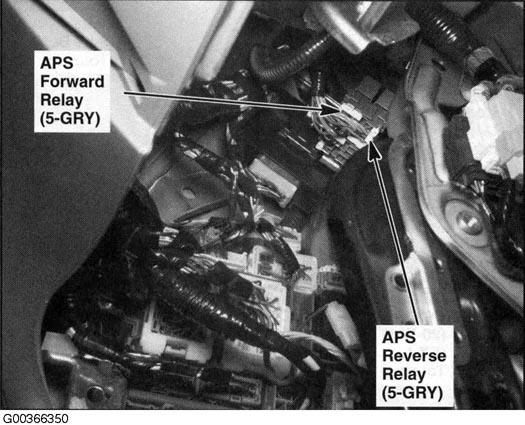

Fig 46: Under Left Side Of Dash (Touring)

G00366350

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Under Left Side Of Dash (Touring)

G00366351

Courtesy of AMERICAN HONDA MOTOR CO., INC.

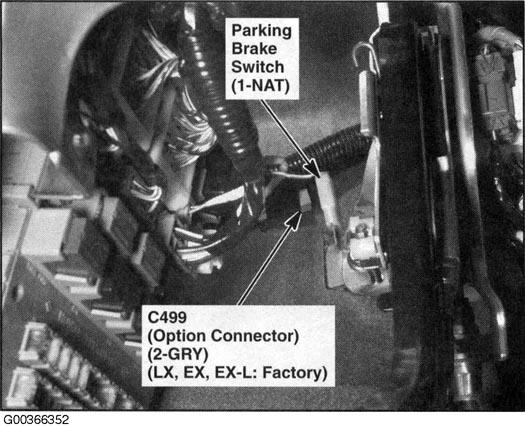

Fig 48: Under Left Side Of Dash

G00366352

Courtesy of AMERICAN HONDA MOTOR CO., INC.

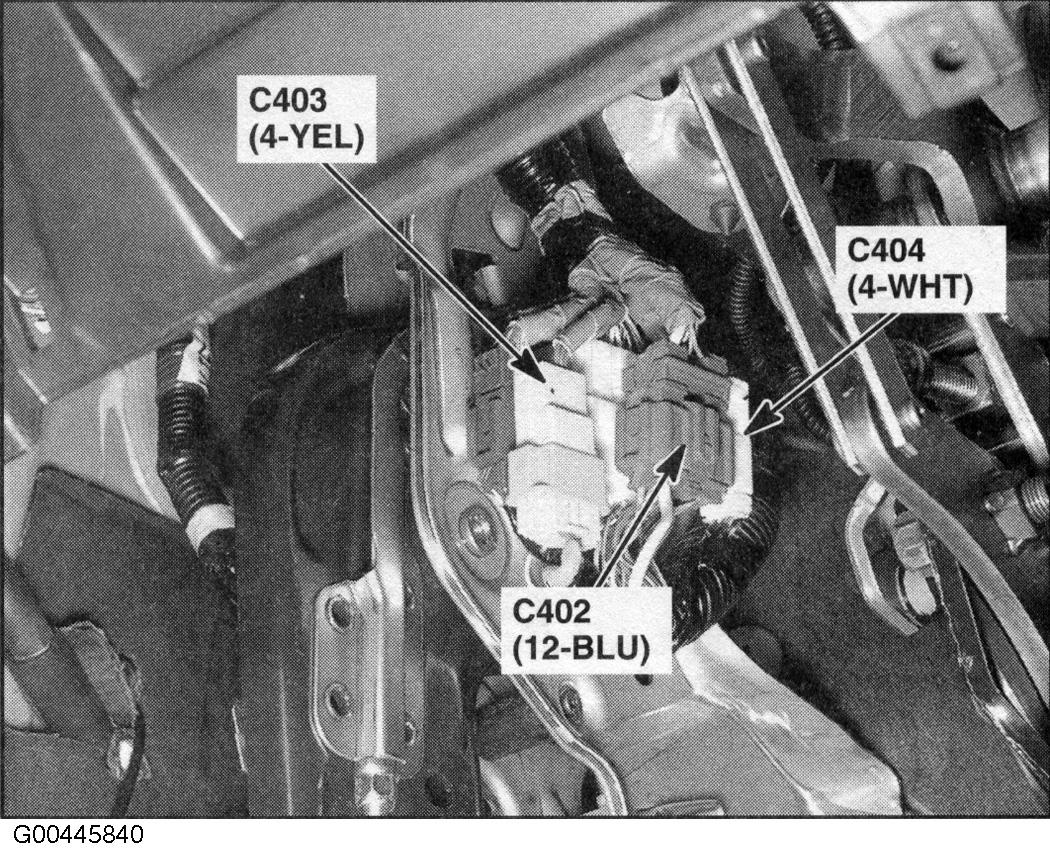

Fig 49: Under Left Side Of Dash

G00445840

Courtesy of AMERICAN HONDA MOTOR CO., INC.

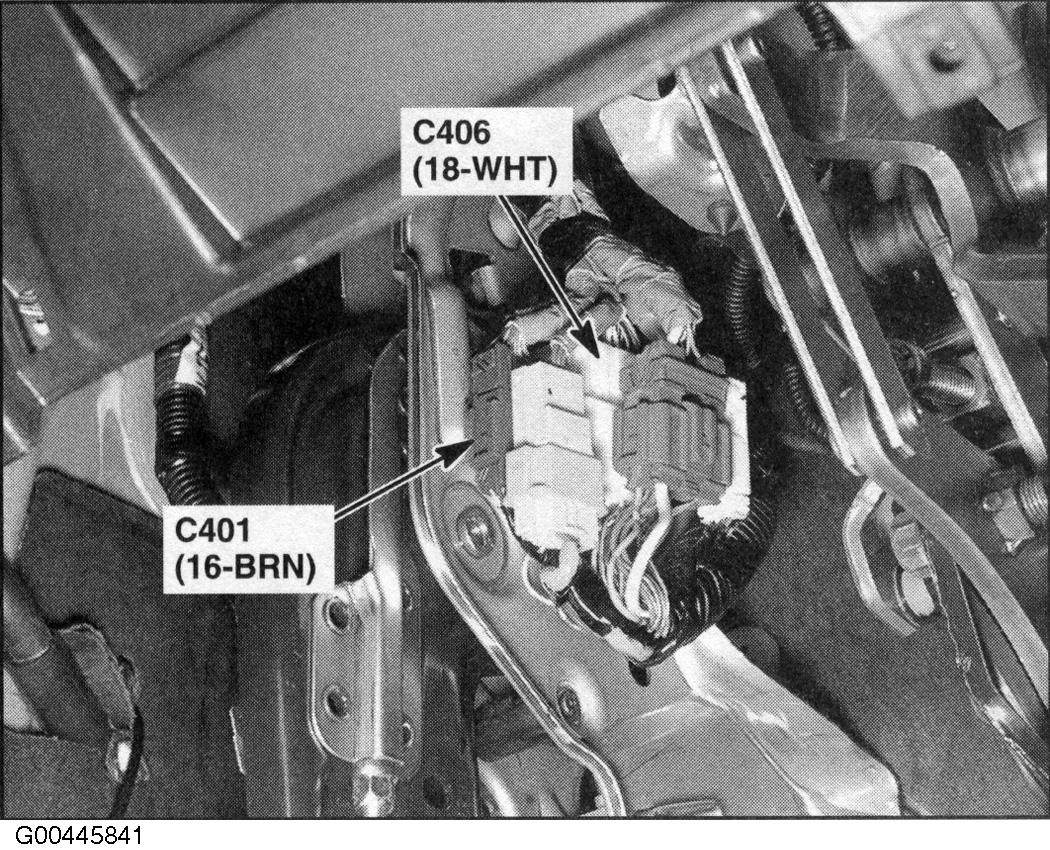

Fig 50: Under Left Side Of Dash

G00445841

Courtesy of AMERICAN HONDA MOTOR CO., INC.

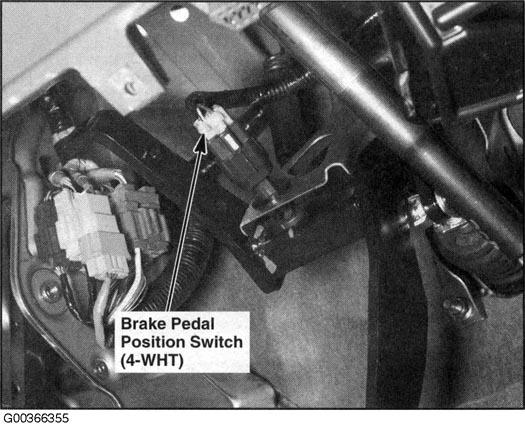

Fig 51: Under Left Side Of Dash

G00366355

Courtesy of AMERICAN HONDA MOTOR CO., INC.

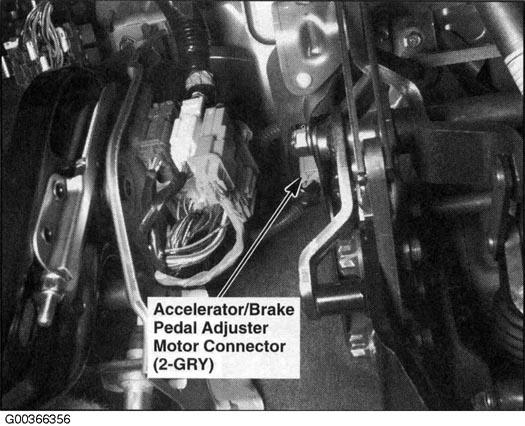

Fig 52: Under Left Side Of Dash (Touring)

G00366356

Courtesy of AMERICAN HONDA MOTOR CO., INC.

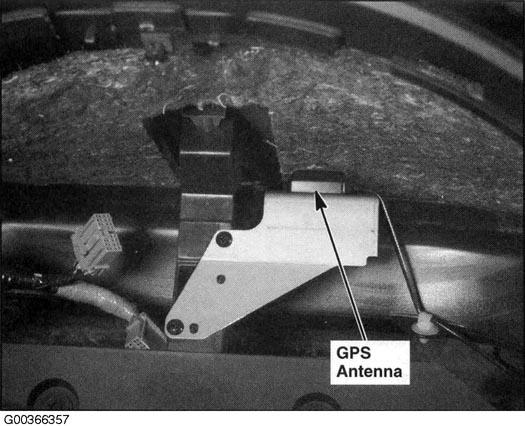

Fig 53: Under Left Side Of Dash (EX-L & Touring)

G00366357

Courtesy of AMERICAN HONDA MOTOR CO., INC.

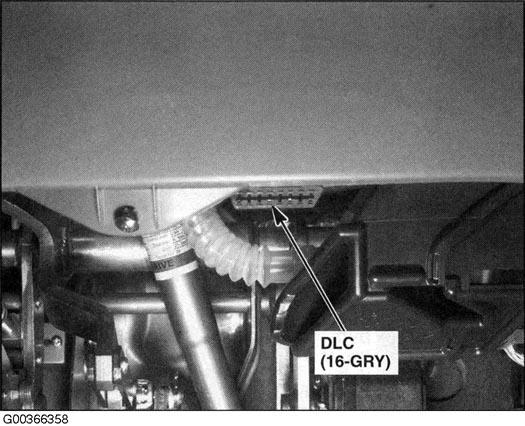

Fig 54: Under Left Side Of Dash

G00366358

Courtesy of AMERICAN HONDA MOTOR CO., INC.

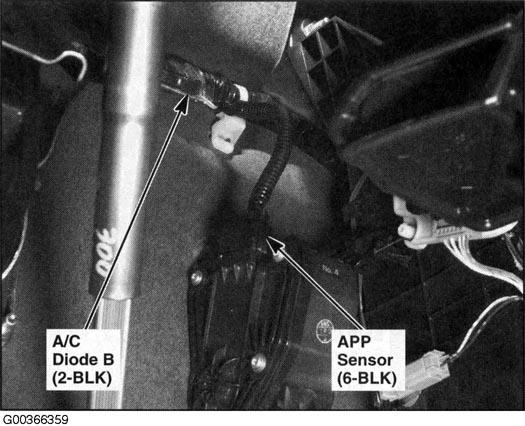

Fig 55: Under Left Side Of Dash

G00366359

Courtesy of AMERICAN HONDA MOTOR CO., INC.

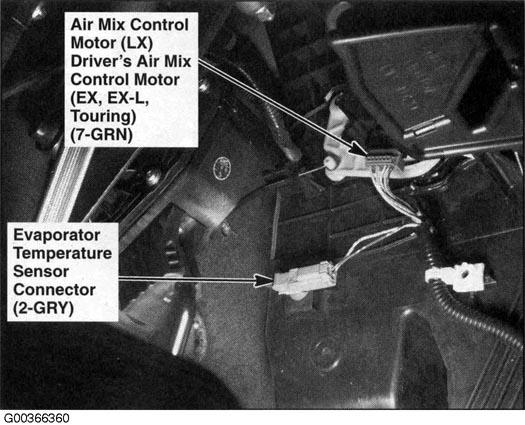

Fig 56: Under Left Side Of Dash

G00366360

Courtesy of AMERICAN HONDA MOTOR CO., INC.

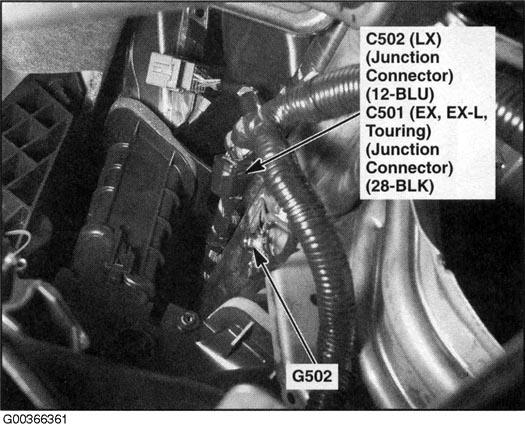

Fig 57: Under Left Side Of Dash

G00366361

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Under Left Side Of Dash

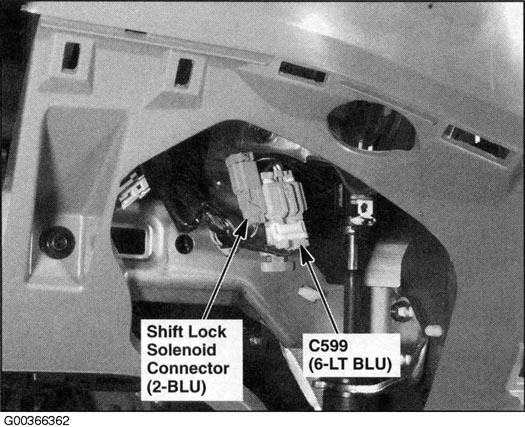

G00366362

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Behind Left Kick Panel

G00366363

Courtesy of AMERICAN HONDA MOTOR CO., INC.

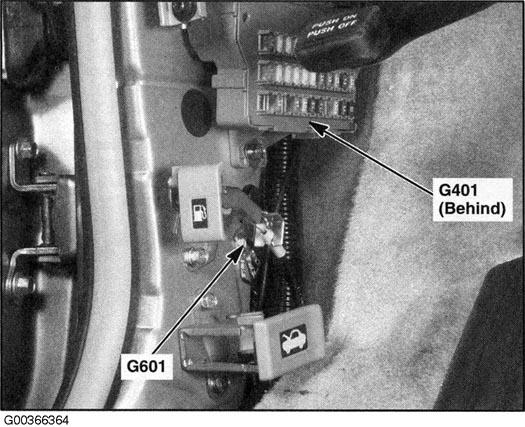

Fig 60: Behind Left Kick Panel

G00366364

Courtesy of AMERICAN HONDA MOTOR CO., INC.

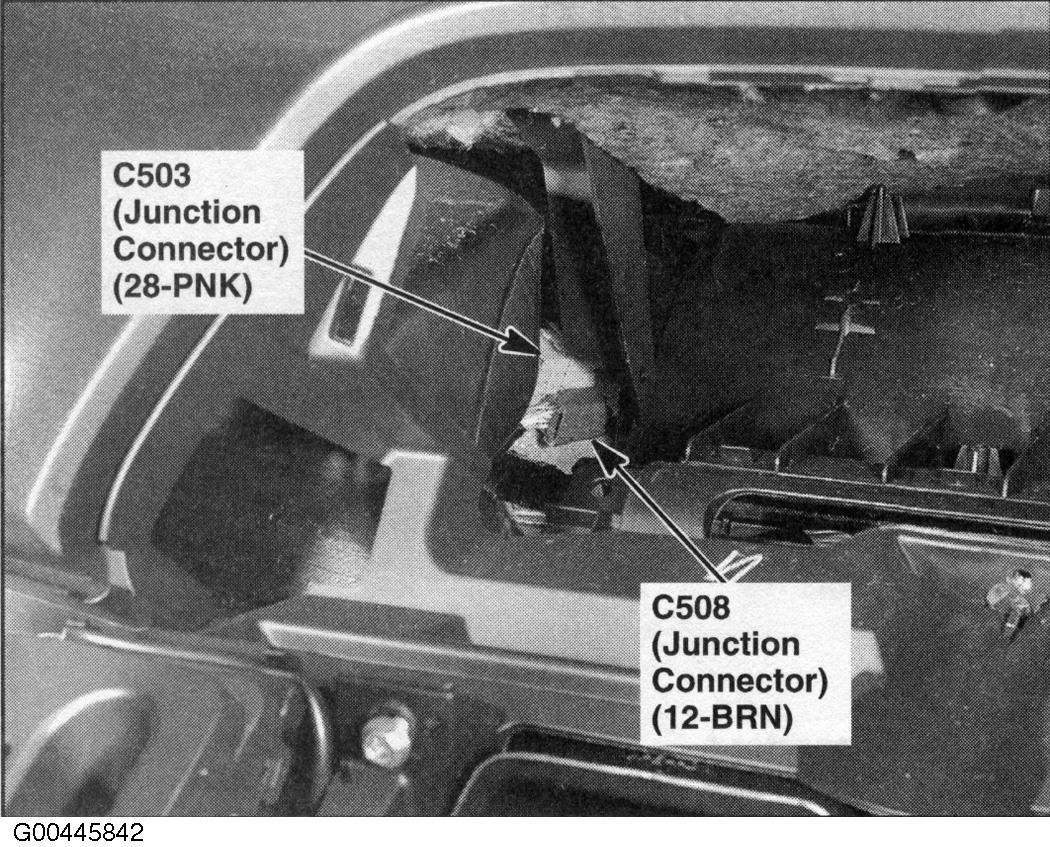

Fig 61: Behind Middle Of Dash

G00445842

Courtesy of AMERICAN HONDA MOTOR CO., INC.

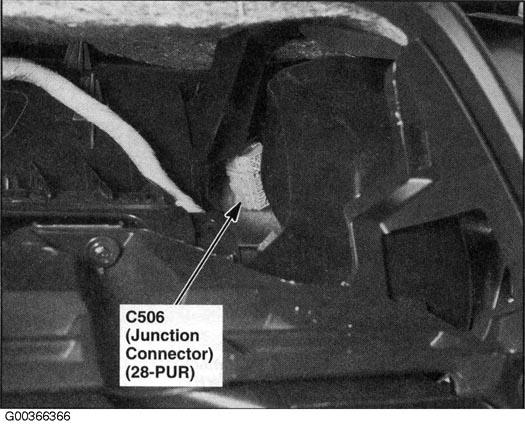

Fig 62: Behind Middle Of Dash

G00366366

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Behind Middle Of Dash (EX-L & Touring)

G00366367

Courtesy of AMERICAN HONDA MOTOR CO., INC.

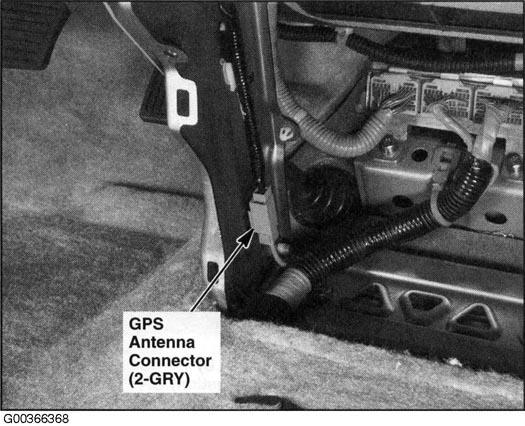

Fig 64: Behind Middle Of Dash (EX-L & Touring)

G00366368

Courtesy of AMERICAN HONDA MOTOR CO., INC.

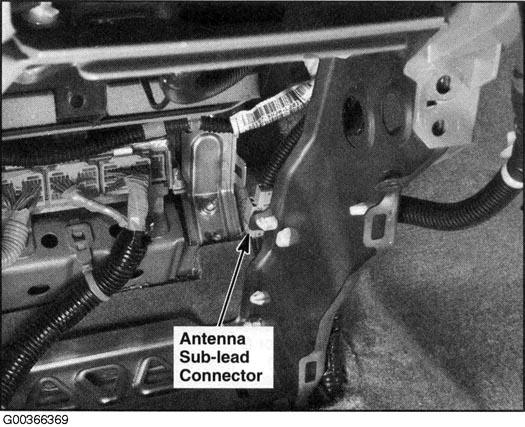

Fig 65: Behind Middle Of Dash

G00366369

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Behind Middle Of Dash

G00445843

Courtesy of AMERICAN HONDA MOTOR CO., INC.

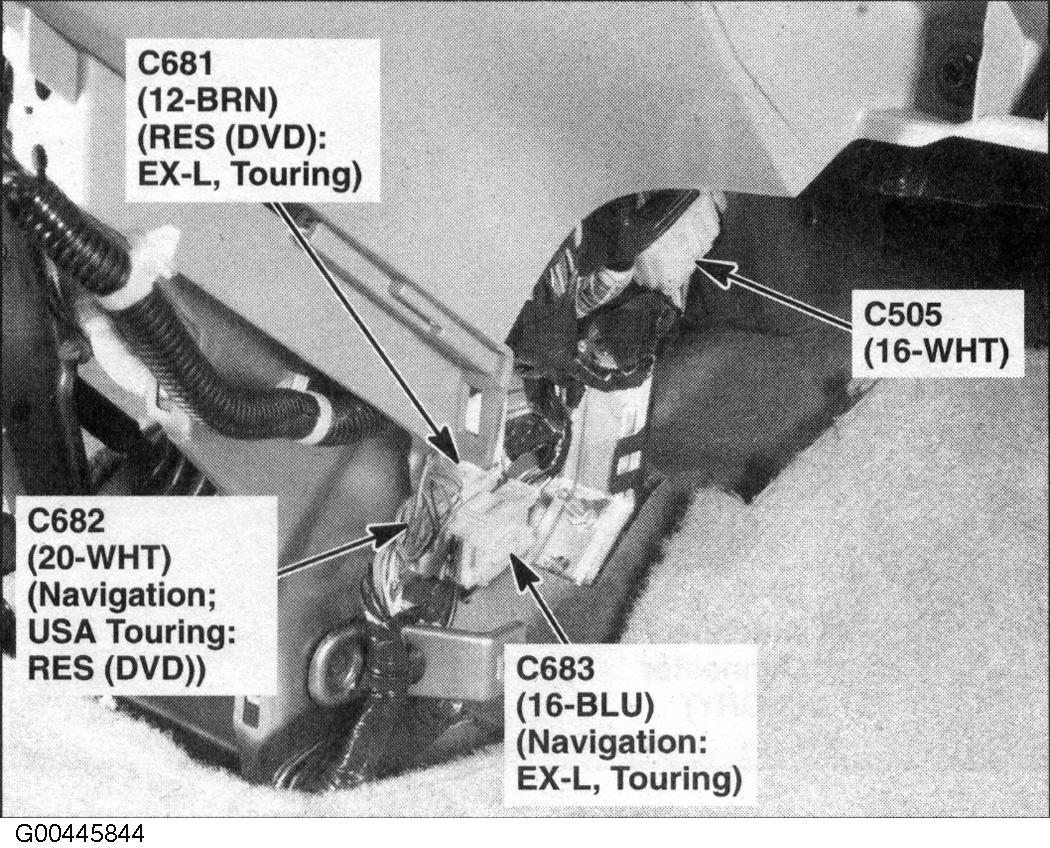

Fig 67: Under Middle Of Dash

G00445844

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Behind Glove Box

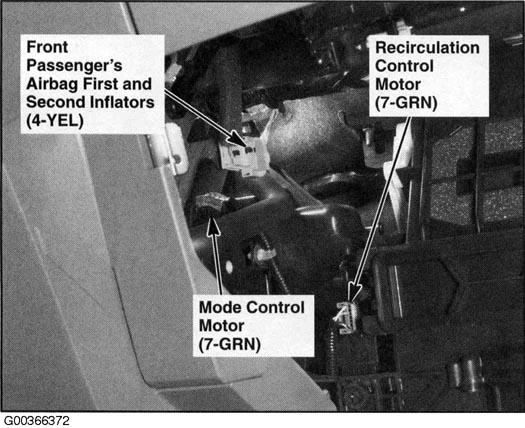

G00366372

Courtesy of AMERICAN HONDA MOTOR CO., INC.

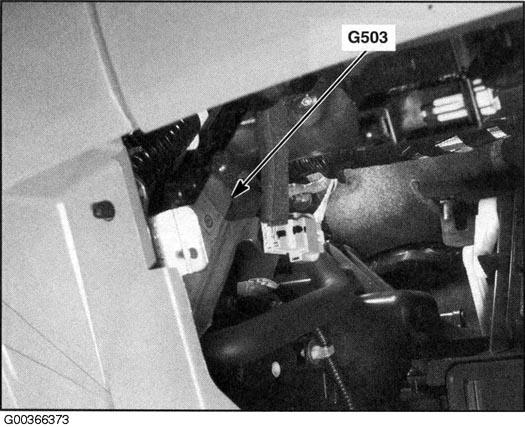

Fig 69: Behind Glove Box

G00366373

Courtesy of AMERICAN HONDA MOTOR CO., INC.

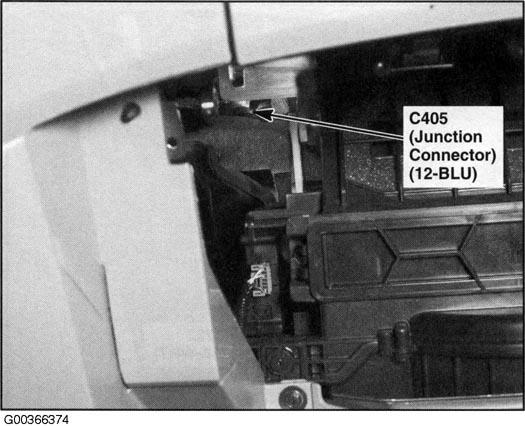

Fig 70: Behind Glove Box

G00366374

Courtesy of AMERICAN HONDA MOTOR CO., INC.

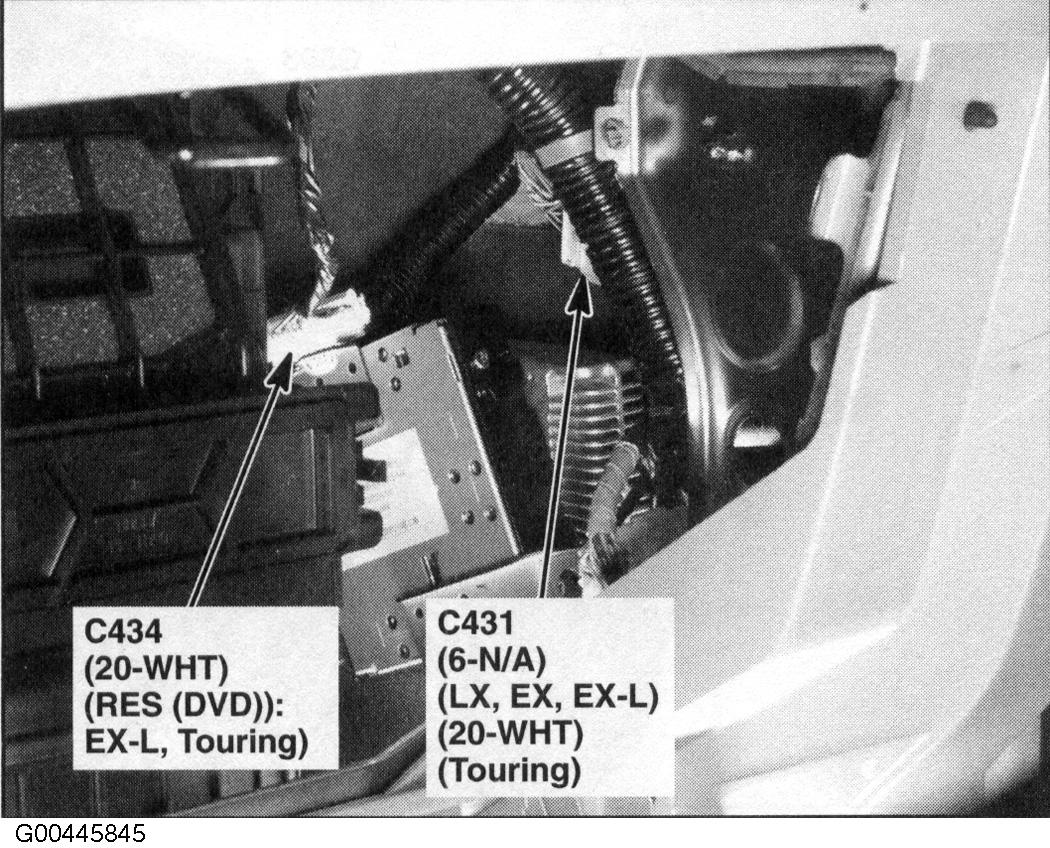

Fig 71: Behind Glove Box

G00445845

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Behind Glove Box (EX, EX-L & Touring)

G00366376

Courtesy of AMERICAN HONDA MOTOR CO., INC.

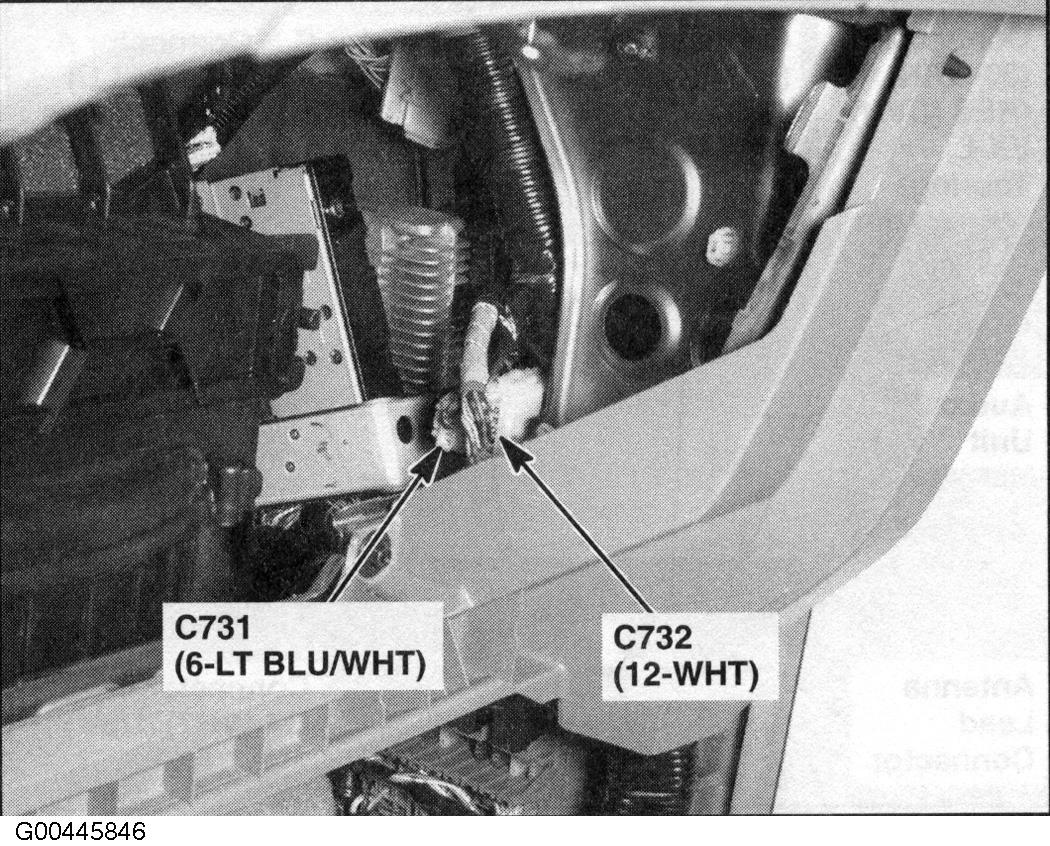

Fig 73: Behind Glove Box

G00445846

Courtesy of AMERICAN HONDA MOTOR CO., INC.

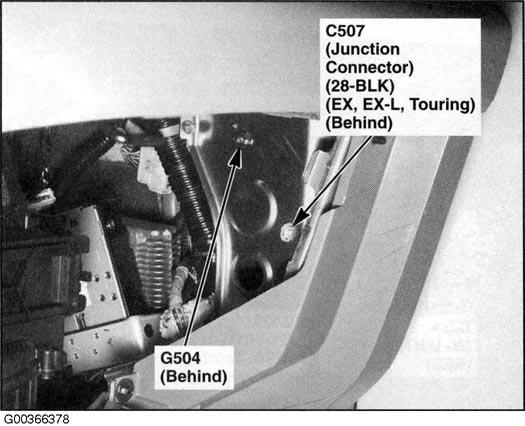

Fig 74: Behind Glove Box

G00366378

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Behind Glove Box (EX-L & Touring)

G00366379

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Behind Right Kick Panel

G00366380

Courtesy of AMERICAN HONDA MOTOR CO., INC.

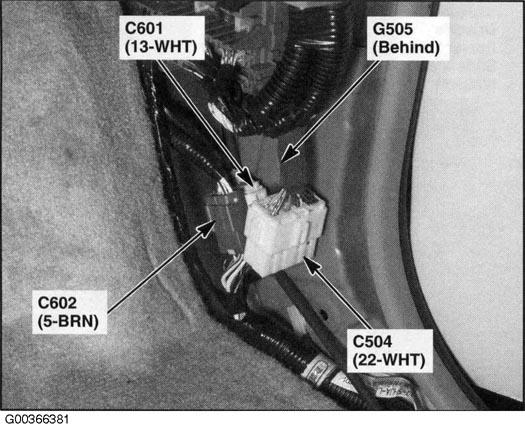

Fig 77: Behind Right Kick Panel

G00366381

Courtesy of AMERICAN HONDA MOTOR CO., INC.

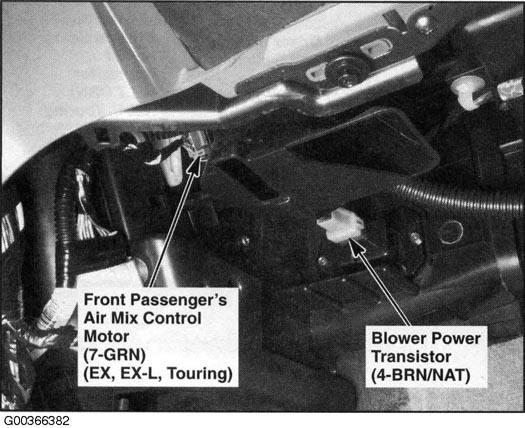

Fig 78: Under Right Side Of Dash

G00366382

Courtesy of AMERICAN HONDA MOTOR CO., INC.

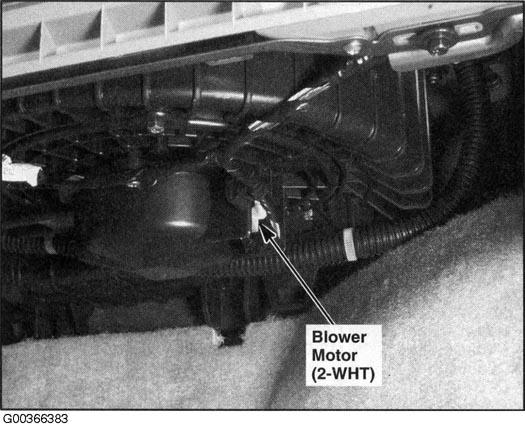

Fig 79: Under Right Side Of Dash

G00366383

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Under Driver's Seat (EX-L & Touring)

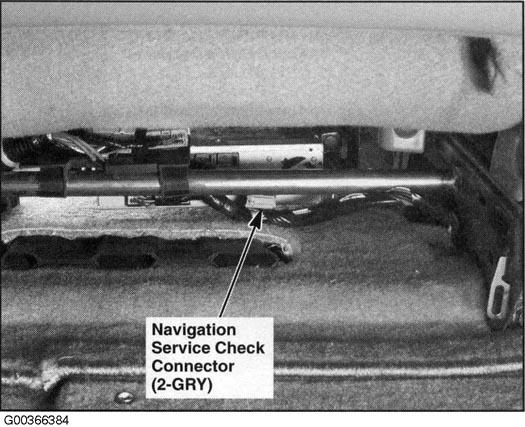

G00366384

Courtesy of AMERICAN HONDA MOTOR CO., INC.

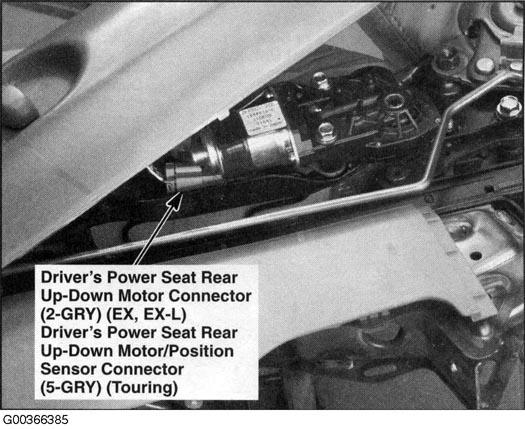

Fig 81: Left Side Of Driver's Seat (EX, EX-L & Touring)

G00366385

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Right Side Of Driver's Seat (EX, EX-L & Touring)

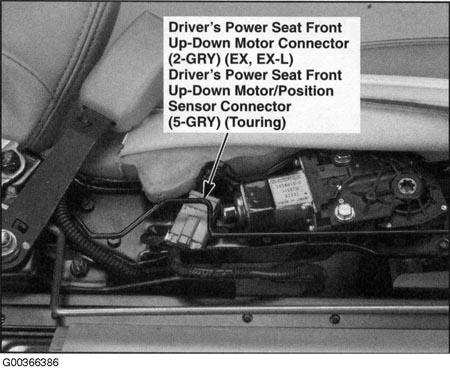

G00366386

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Under Driver's Seat (LX)

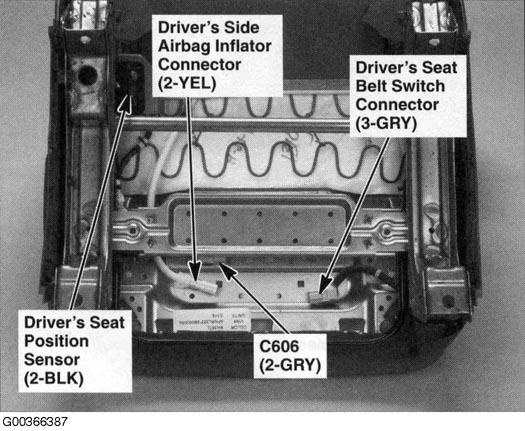

G00366387

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Under Driver's Seat (Touring)

G00366388

Courtesy of AMERICAN HONDA MOTOR CO., INC.

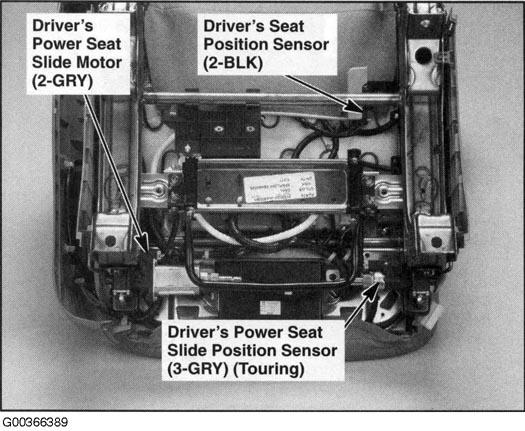

Fig 85: Under Driver's Seat (EX, EX-L & Touring)

G00366389

Courtesy of AMERICAN HONDA MOTOR CO., INC.

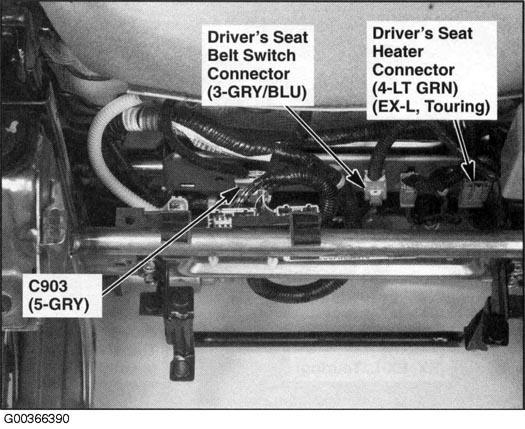

Fig 86: Under Driver's Seat (EX, EX-L & Touring)

G00366390

Courtesy of AMERICAN HONDA MOTOR CO., INC.

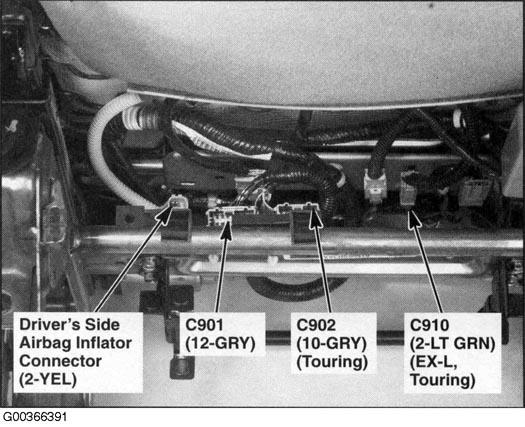

Fig 87: Under Driver's Seat (EX, EX-L & Touring)

G00366391

Courtesy of AMERICAN HONDA MOTOR CO., INC.

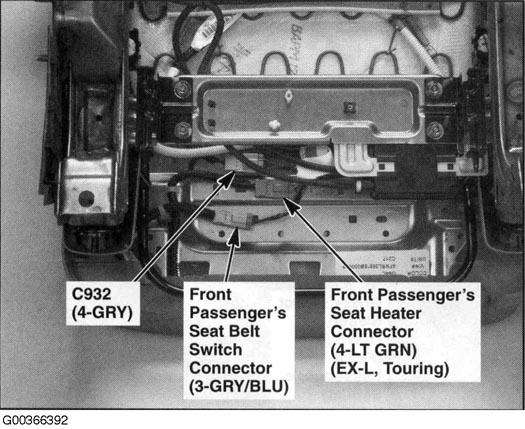

Fig 88: Under Front Passenger's Seat

G00366392

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Under Front Passenger's Seat

G00366393

Courtesy of AMERICAN HONDA MOTOR CO., INC.

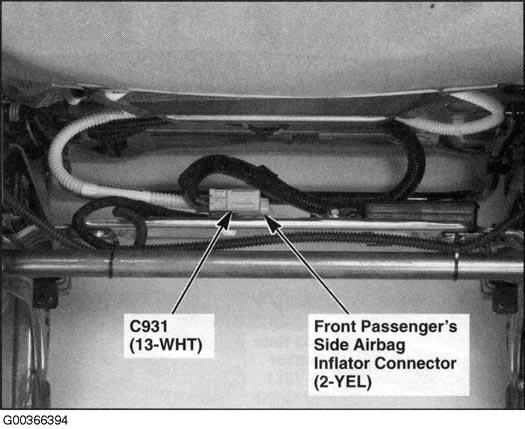

Fig 90: Under Front Passenger's Seat

G00366394

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: In Front Passenger's Seat

G00366395

Courtesy of AMERICAN HONDA MOTOR CO., INC.

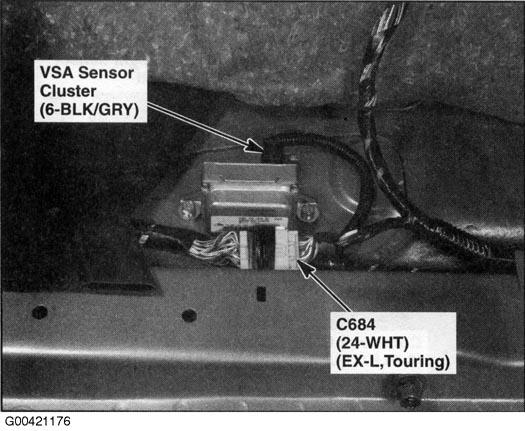

Fig 92: Left Side Of Floor

G00421176

Courtesy of AMERICAN HONDA MOTOR CO., INC.

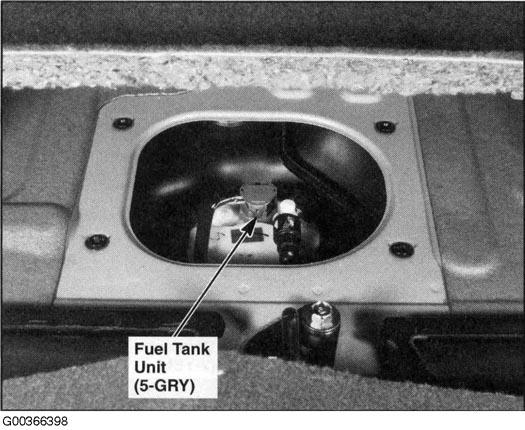

Fig 93: Middle Of Floor

G00366398

Courtesy of AMERICAN HONDA MOTOR CO., INC.

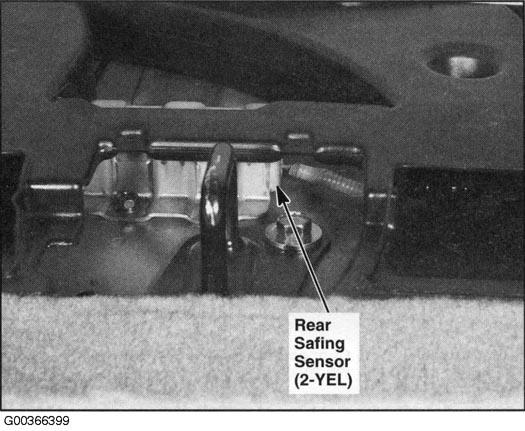

Fig 94: Rear Of Floor

G00366399

Courtesy of AMERICAN HONDA MOTOR CO., INC.

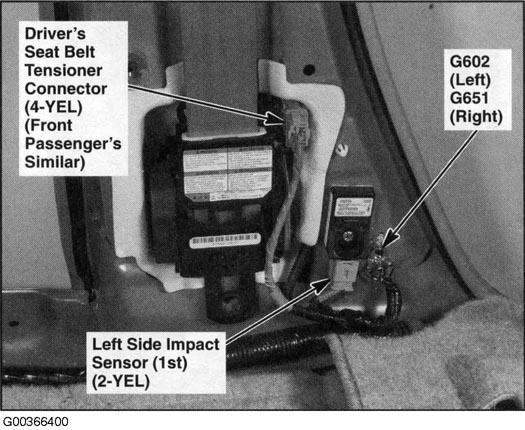

Fig 95: Left "B" Pillar (Right Similar)

G00366400

Courtesy of AMERICAN HONDA MOTOR CO., INC.

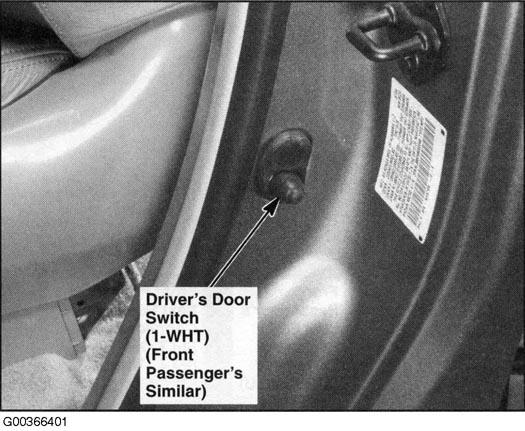

Fig 96: Left "B" Pillar (Right Similar)

G00366401

Courtesy of AMERICAN HONDA MOTOR CO., INC.

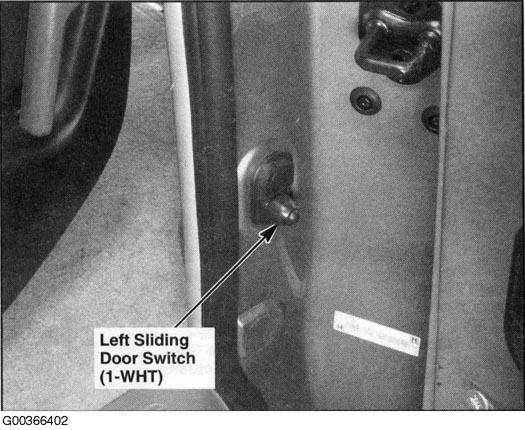

Fig 97: Left "C" Pillar (Right Similar)

G00366402

Courtesy of AMERICAN HONDA MOTOR CO., INC.

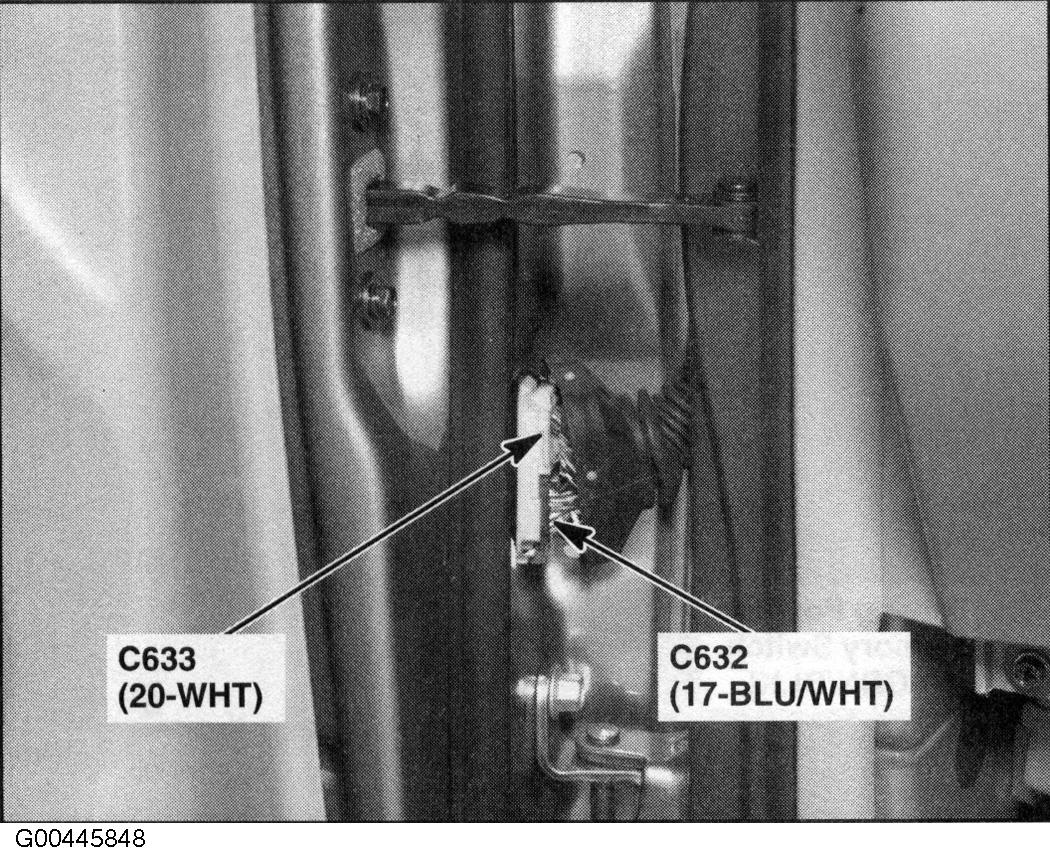

Fig 98: Driver's Door & Left "A" Pillar

G00445848

Courtesy of AMERICAN HONDA MOTOR CO., INC.

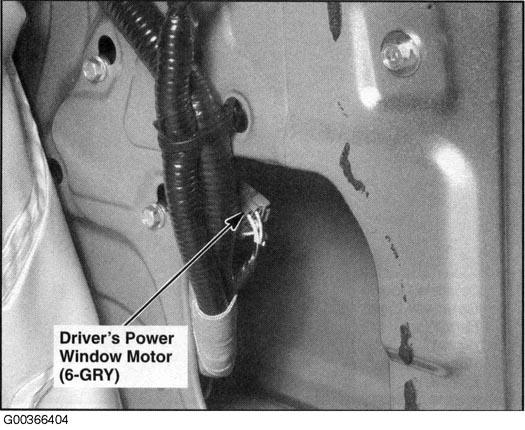

Fig 99: Driver's Door (Front Passenger's Similar)

G00366404

Courtesy of AMERICAN HONDA MOTOR CO., INC.

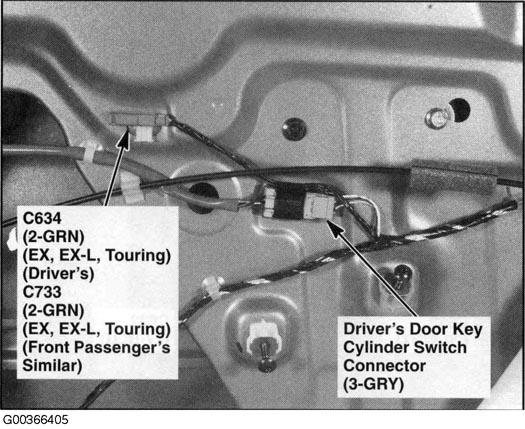

Fig 100: Driver's Door

G00366405

Courtesy of AMERICAN HONDA MOTOR CO., INC.

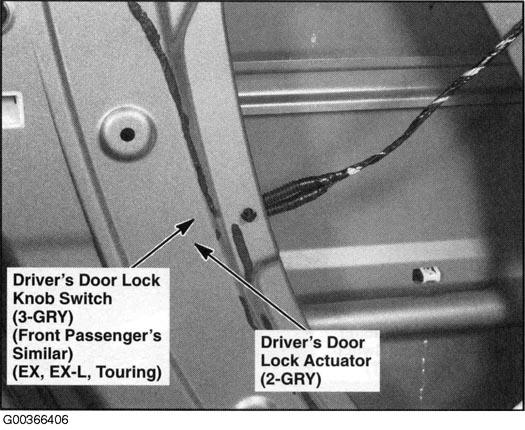

Fig 101: Driver's Door (Front Passenger's Similar)

G00366406

Courtesy of AMERICAN HONDA MOTOR CO., INC.

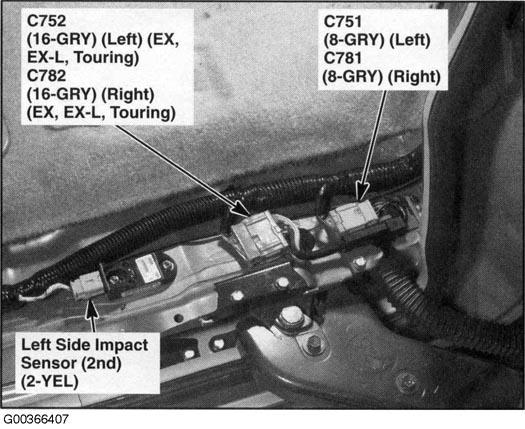

Fig 102: Left Sliding Door Sill (Right Similar)

G00366407

Courtesy of AMERICAN HONDA MOTOR CO., INC.

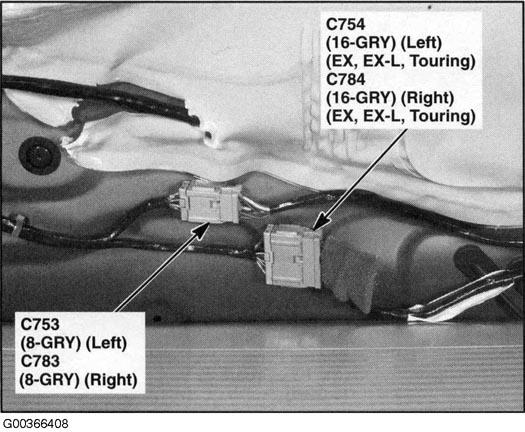

Fig 103: Left Sliding Door (Right Similar)

G00366408

Courtesy of AMERICAN HONDA MOTOR CO., INC.

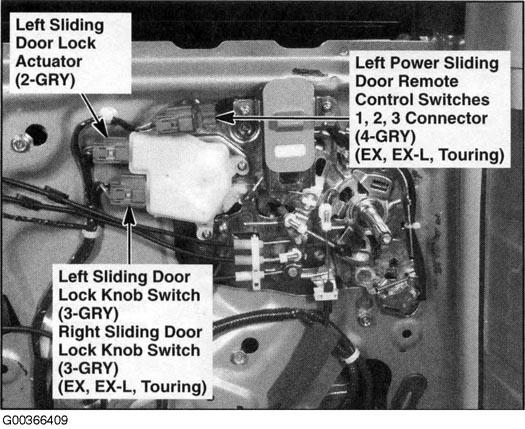

Fig 104: Left Sliding Door (Right Similar)

G00366409

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Left Sliding Door (Right Similar)

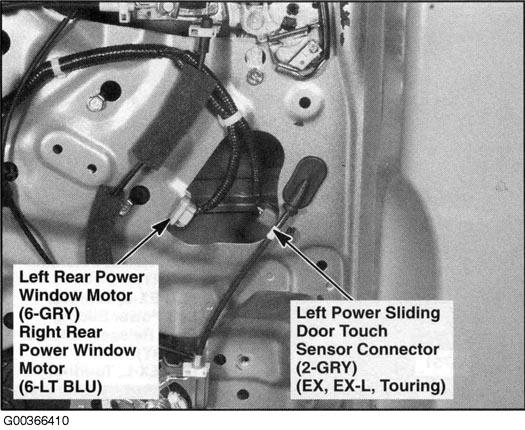

G00366410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

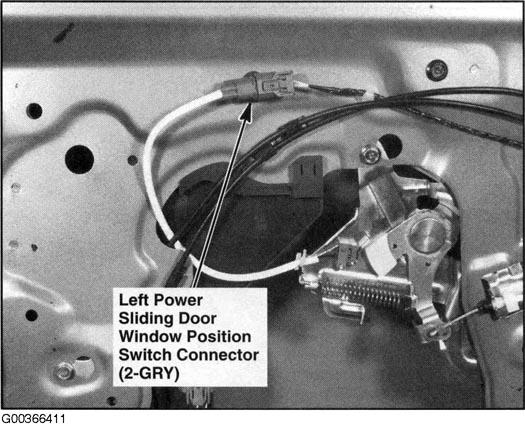

Fig 106: Left Sliding Door (Right Similar) (EX, EX-L & Touring)

G00366411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

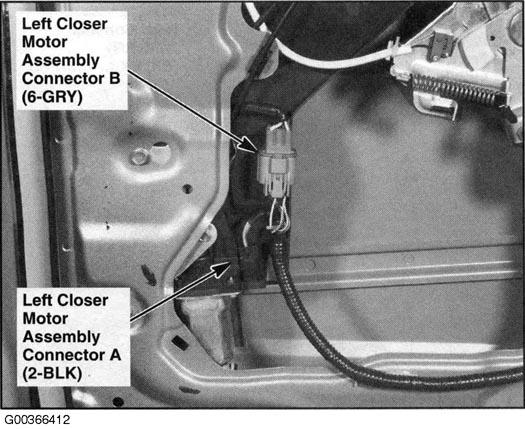

Fig 107: Left Sliding Door (Right Similar) (EX, EX-L & Touring)

G00366412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

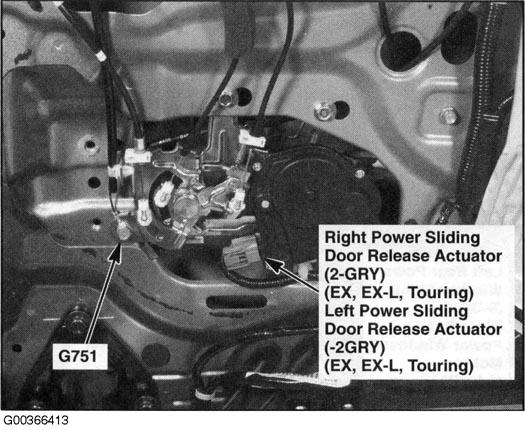

Fig 108: Right Sliding Door

G00366413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

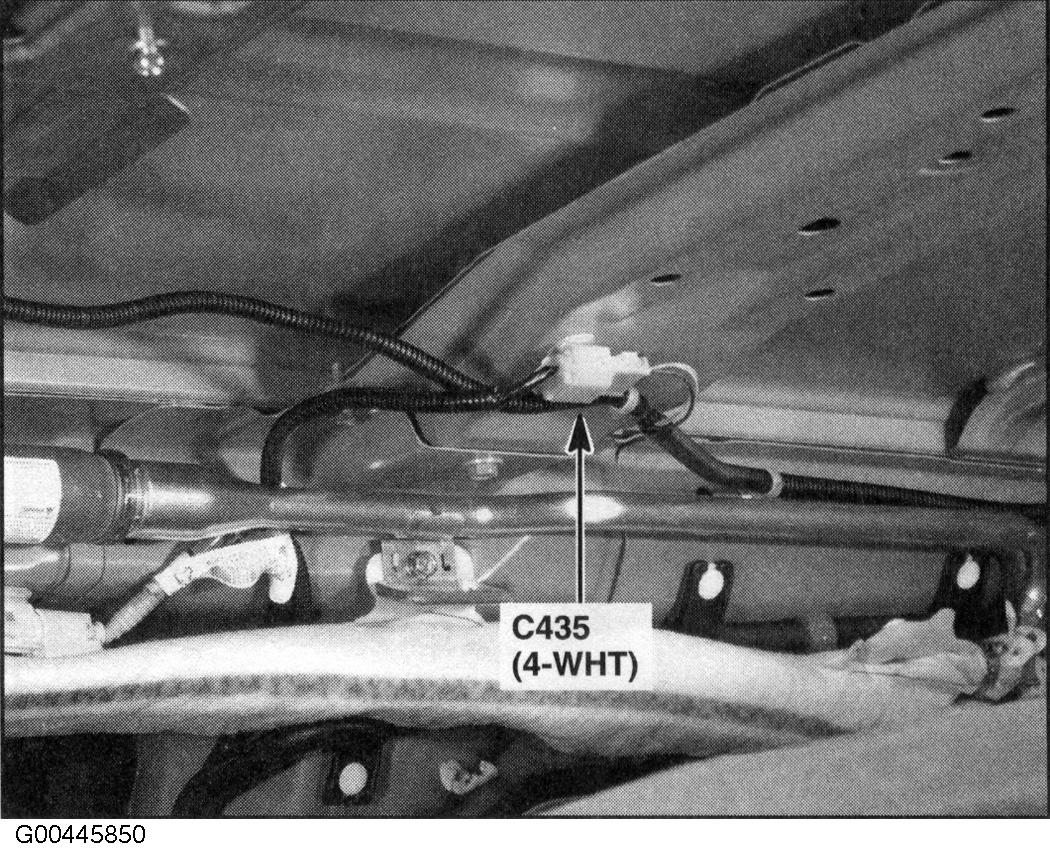

Fig 109: Left Middle Of Roof (EX-L & Touring)

G00445850

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 110: Middle Of Roof (EX-L & Touring)

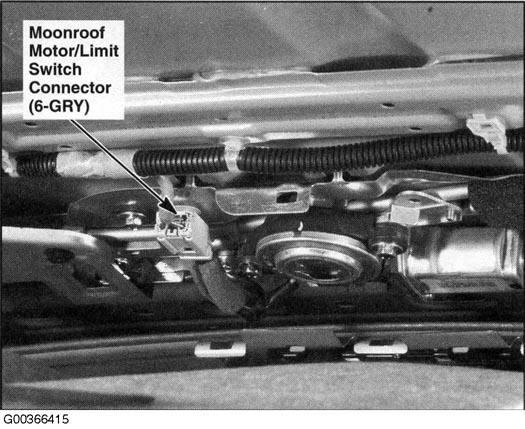

G00366415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 111: Middle Of Roof

G00366416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

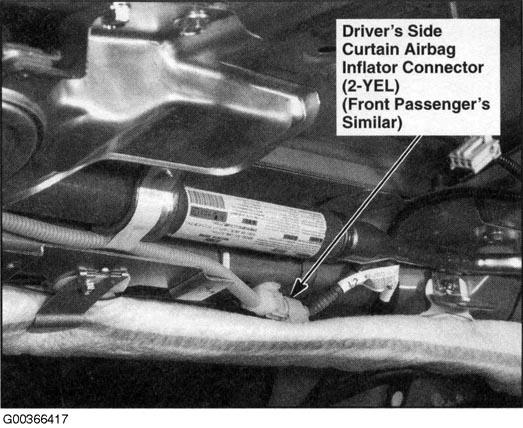

Fig 112: Left Rear Of Roof (Right Similar)

G00366417

Courtesy of AMERICAN HONDA MOTOR CO., INC.

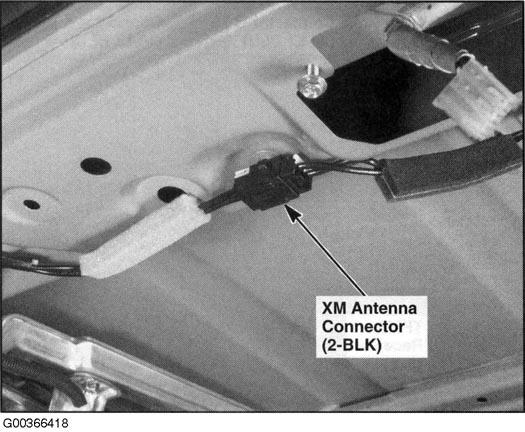

Fig 113: Rear Of Roof (USA)

G00366418

Courtesy of AMERICAN HONDA MOTOR CO., INC.

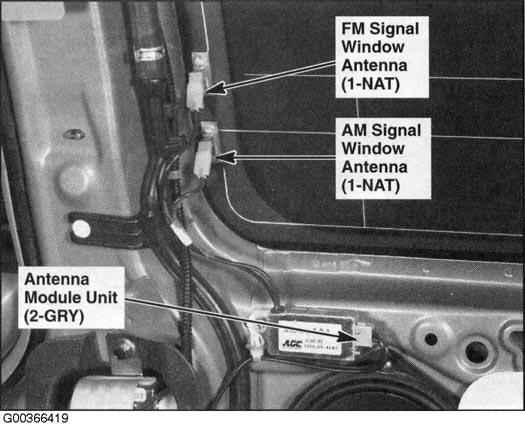

Fig 114: Right "C" Pillar

G00366419

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 115: Left "D" Pillar (Touring)

G00366420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

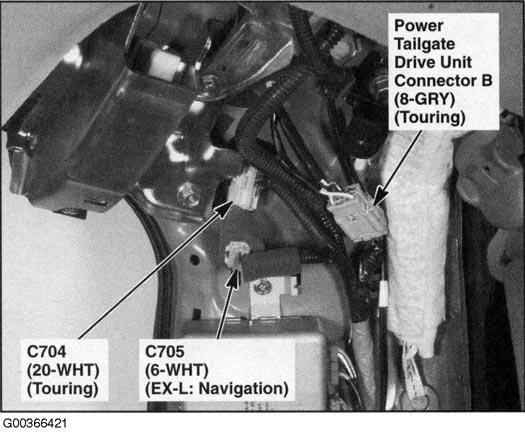

Fig 116: Left "D" Pillar (EX-L & Touring)

G00366421

Courtesy of AMERICAN HONDA MOTOR CO., INC.

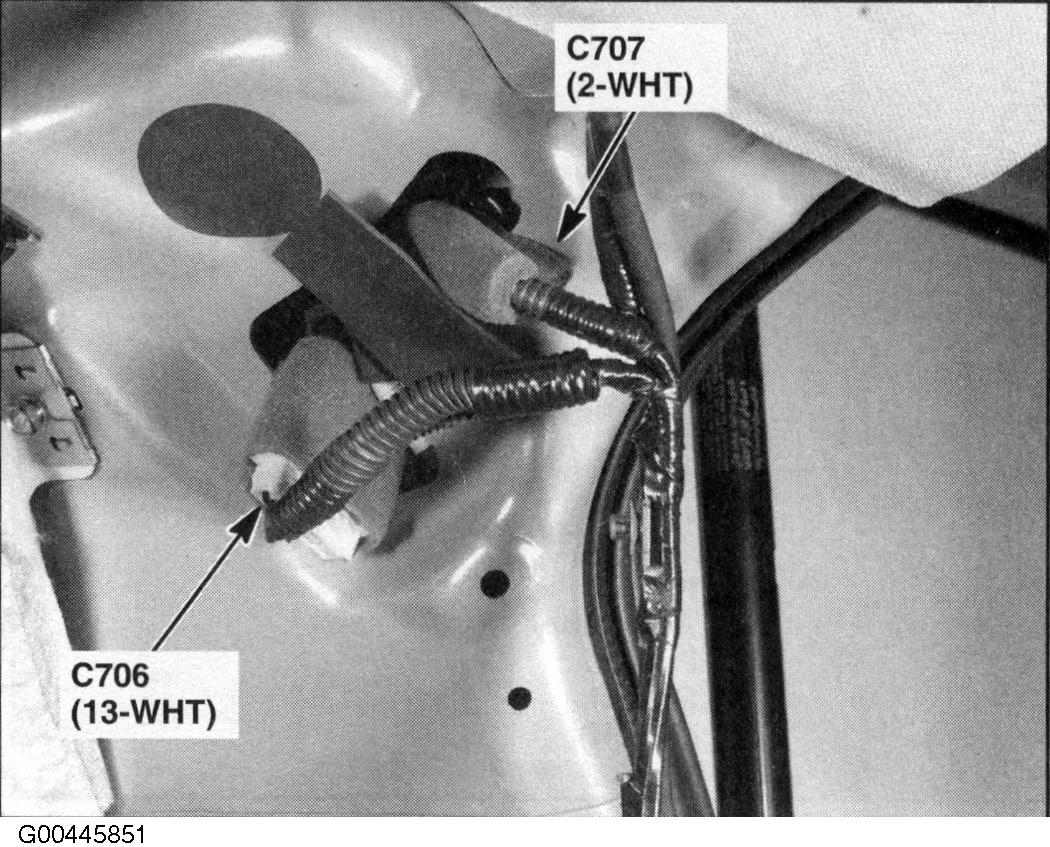

Fig 117: Right "D" Pillar

G00445851

Courtesy of AMERICAN HONDA MOTOR CO., INC.

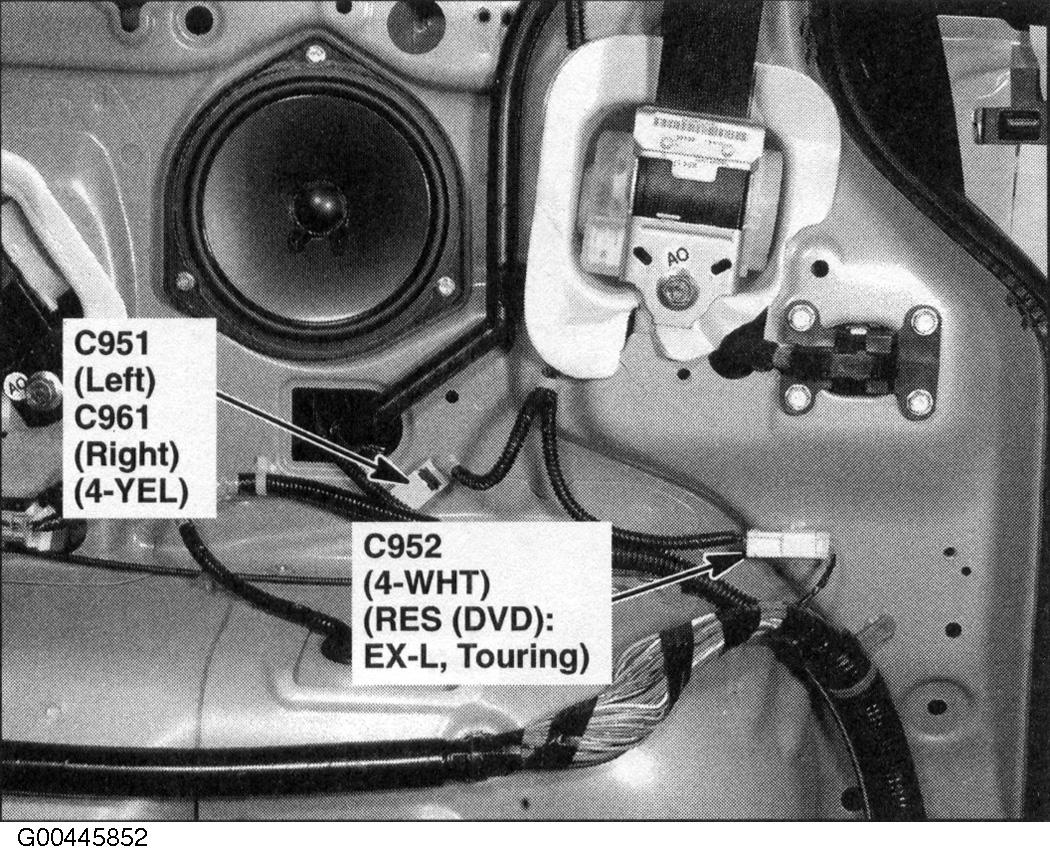

Fig 118: Left Rear Of Vehicle (Right Similar)

G00445852

Courtesy of AMERICAN HONDA MOTOR CO., INC.

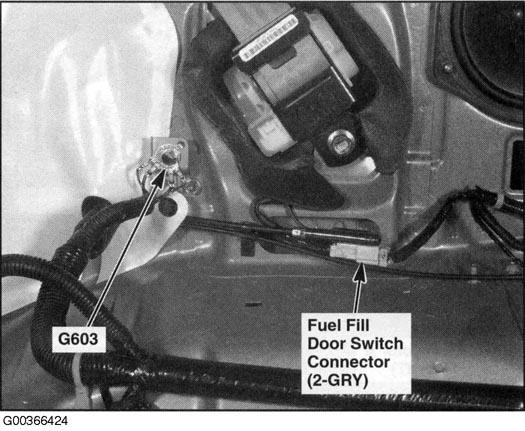

Fig 119: Left Rear Of Vehicle

G00366424

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 120: Left Rear Of Vehicle

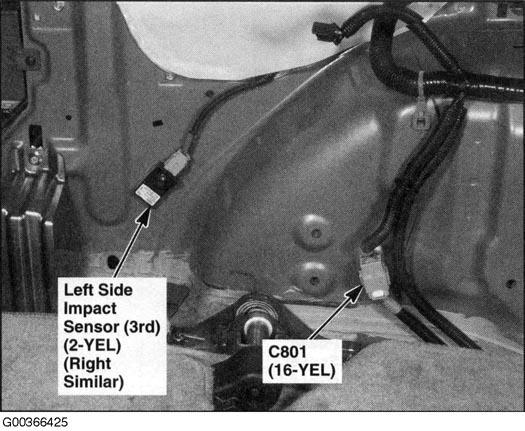

G00366425

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 121: Left Rear Of Vehicle (EX, EX-L & Touring)

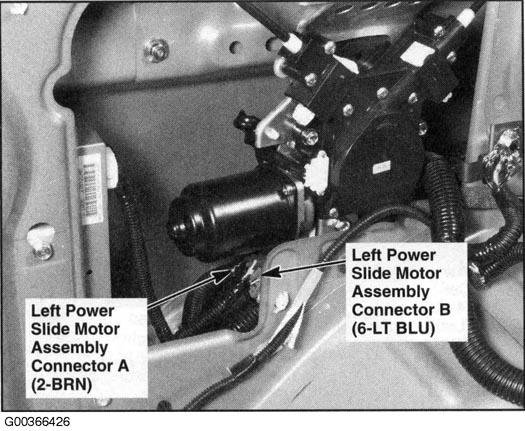

G00366426

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 122: Left Rear Of Vehicle (USA)

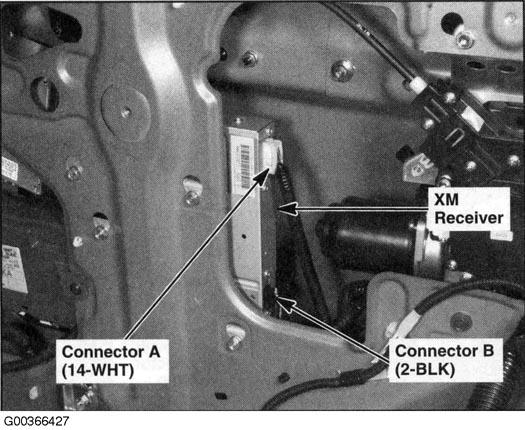

G00366427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 123: Left Rear Of Vehicle

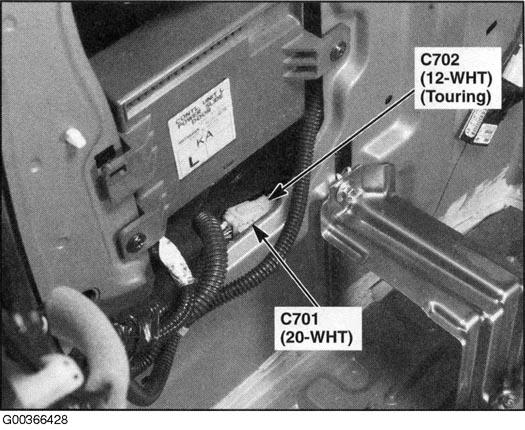

G00366428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 124: Left Rear Of Vehicle (Touring)

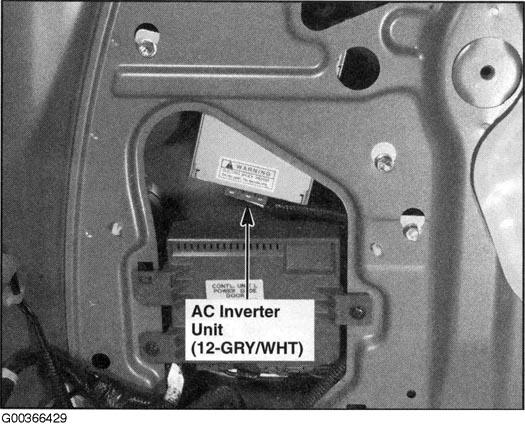

G00366429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Left Rear Of Vehicle (EX, EX-L & Touring)

G00366430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Left Rear Of Vehicle

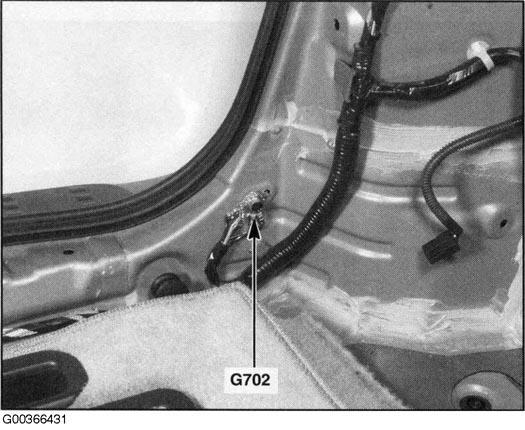

G00366431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 127: Right Side Of Vehicle (EX, EX-L & Touring)

G00366432

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 128: Right Rear Of Vehicle (EX, EX-L & Touring)

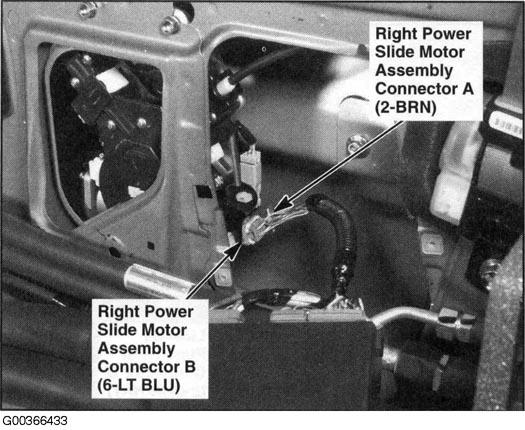

G00366433

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 129: Right Rear Of Vehicle

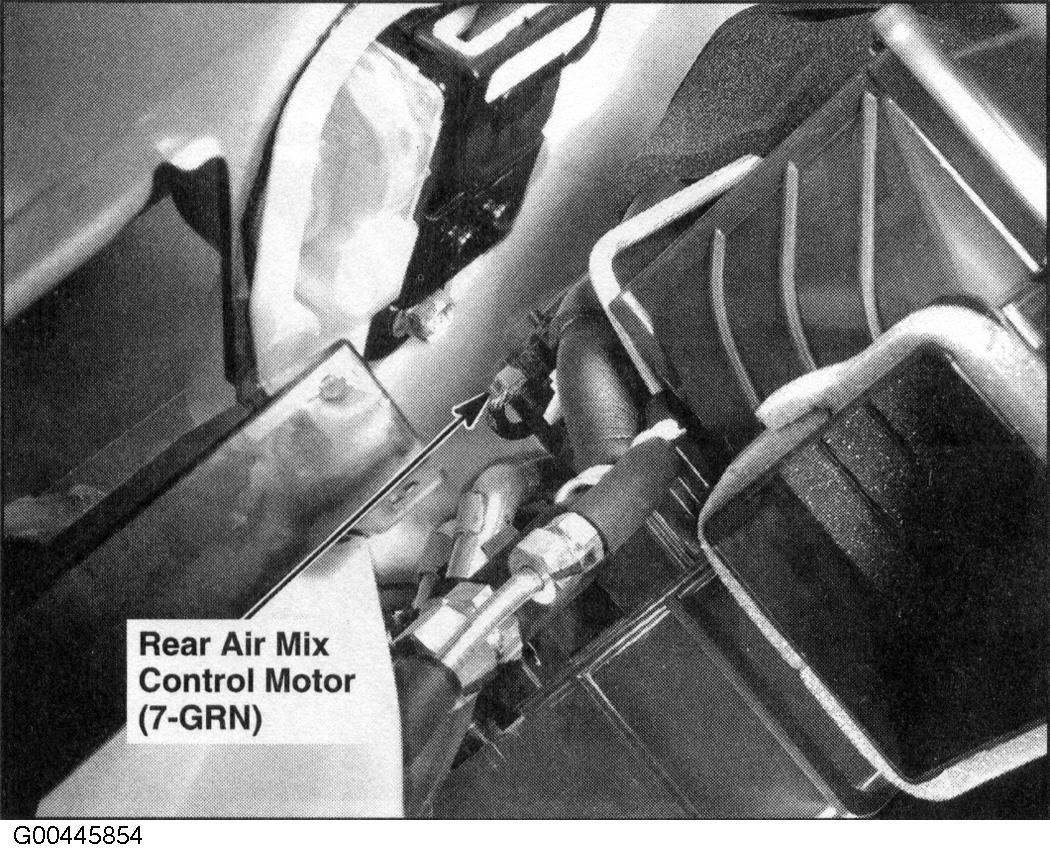

G00445854

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 130: Right Rear Of Vehicle

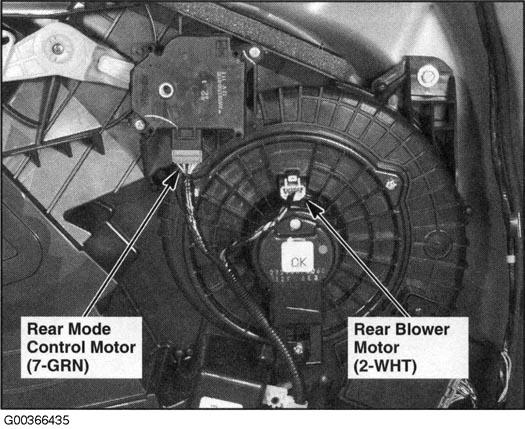

G00366435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Right Rear Of Vehicle

G00366436

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Right Rear Of Vehicle

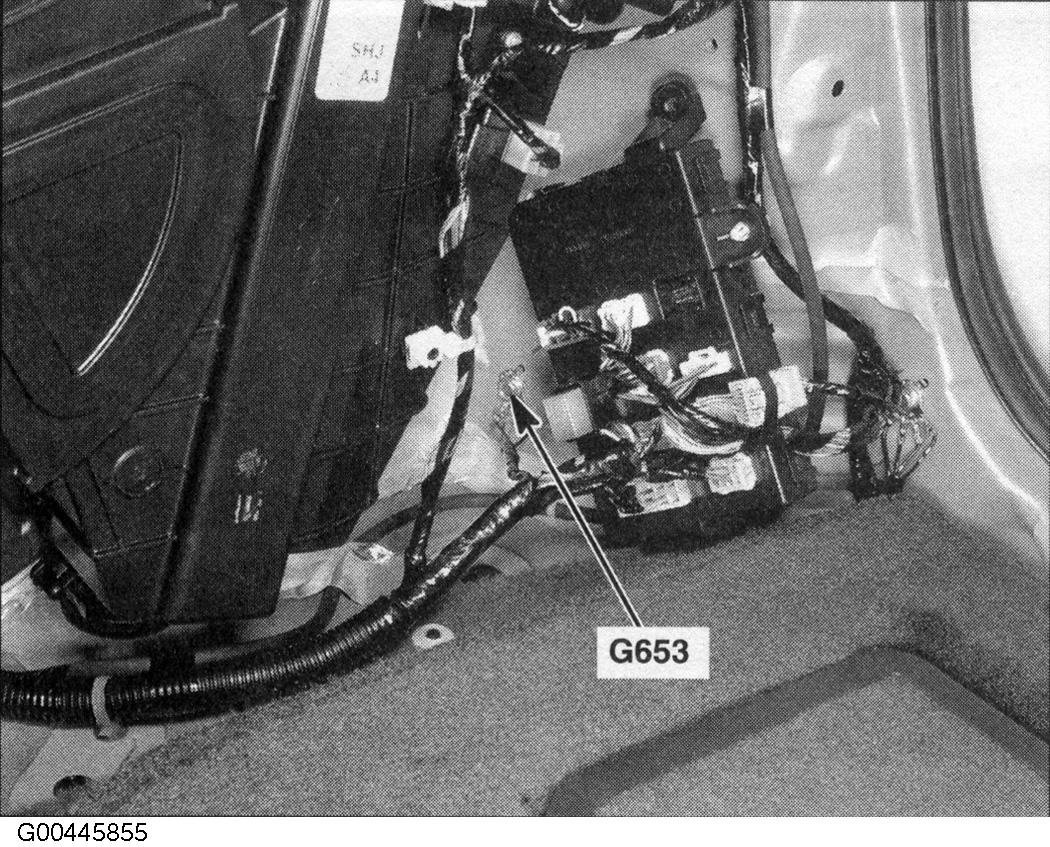

G00445855

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 133: Left Side Of Tailgate

G00421178

Courtesy of AMERICAN HONDA MOTOR CO., INC.

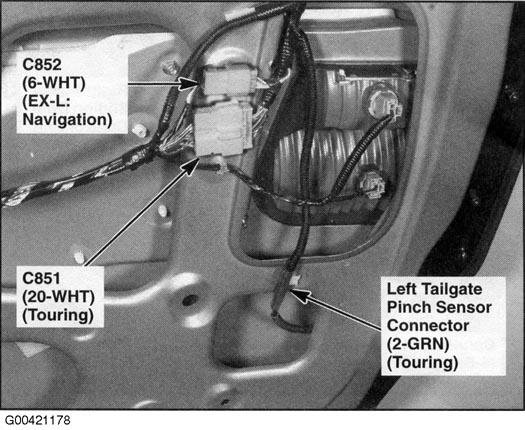

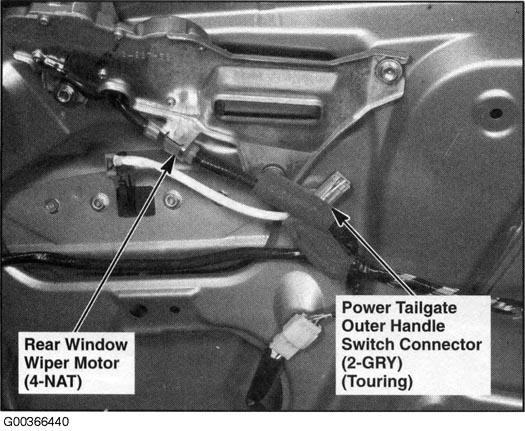

Fig 134: Middle Of Tailgate

G00366440

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Middle Of Tailgate (LX, EX & EX-L)

G00366441

Courtesy of AMERICAN HONDA MOTOR CO., INC.

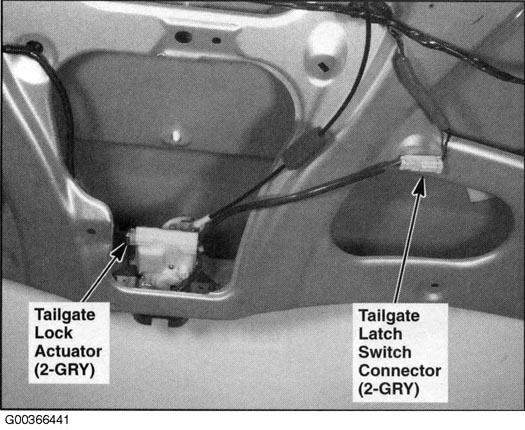

Fig 136: Middle Of Tailgate (Touring)

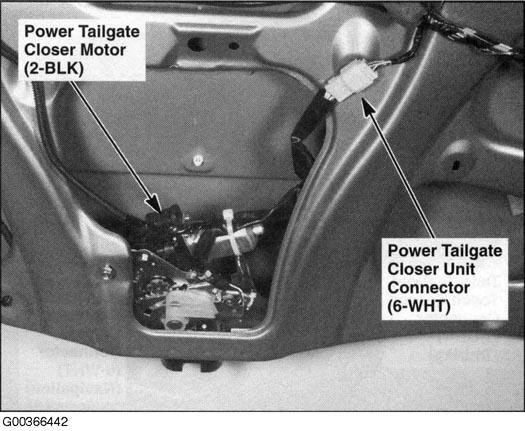

G00366442

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 137: Right Side Of Tailgate

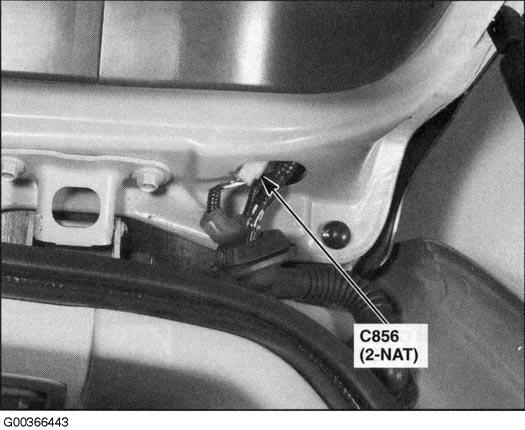

G00366443

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 138: Right Side Of Tailgate

G00421179

Courtesy of AMERICAN HONDA MOTOR CO., INC.

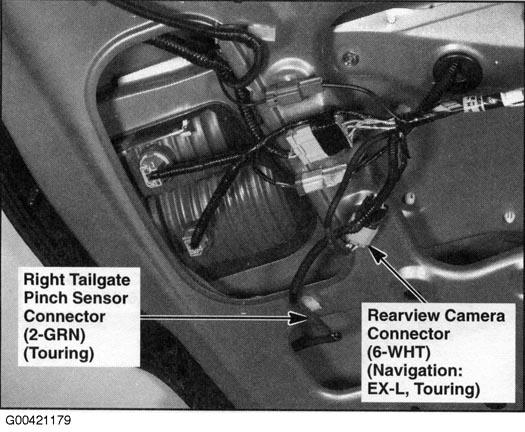

Fig 139: Right Side Of Tailgate

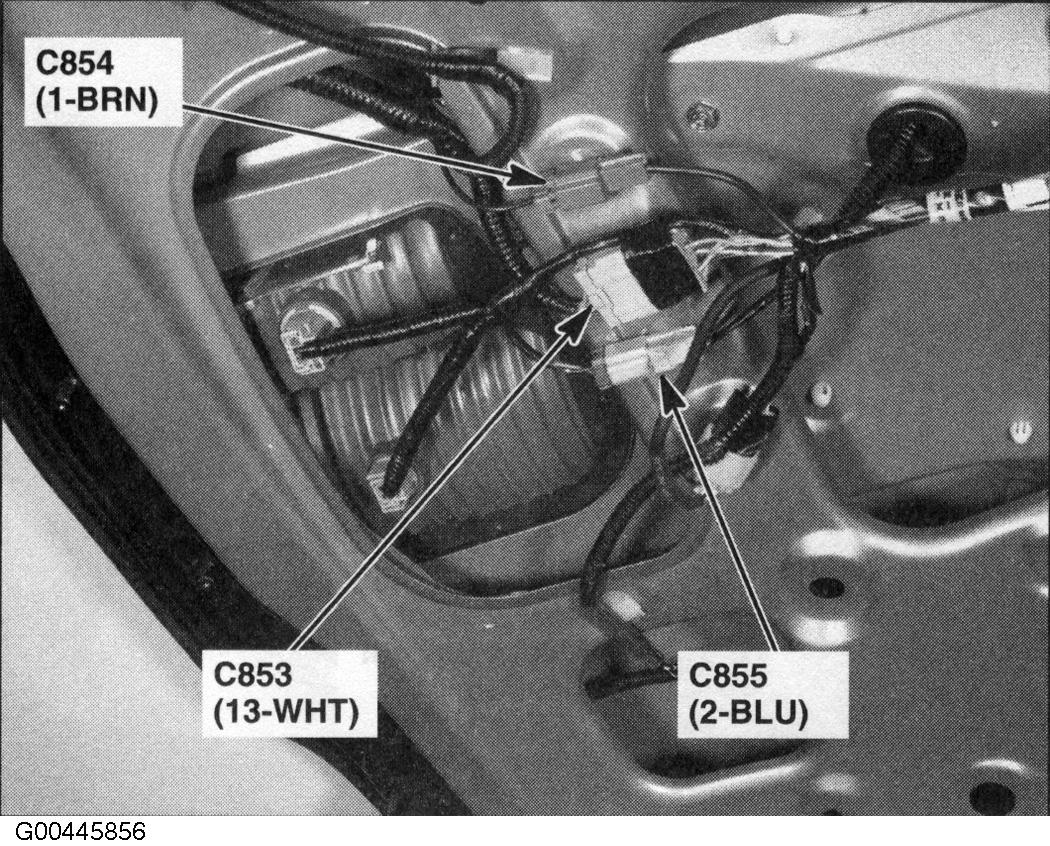

G00445856

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 140: Under Right Front Of Engine Compartment

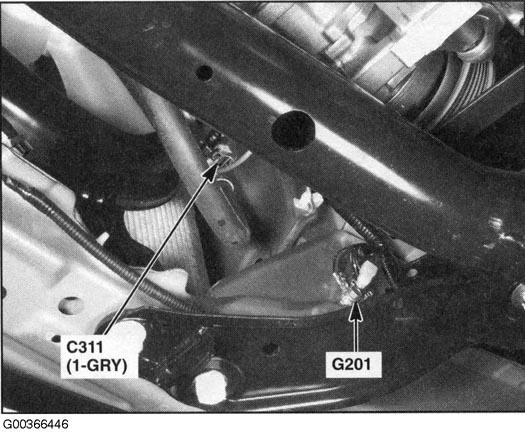

G00366446

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 141: Under Front Of Engine Compartment (EX-L & Touring)

G00445857

Courtesy of AMERICAN HONDA MOTOR CO., INC.

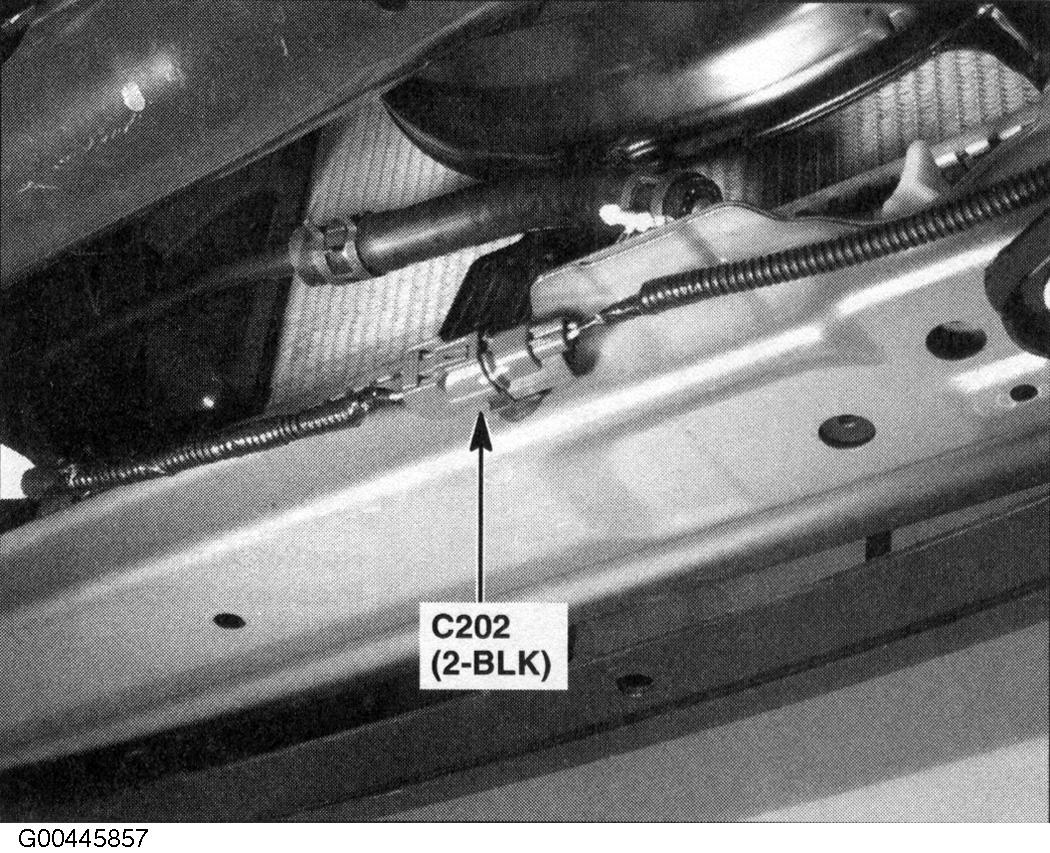

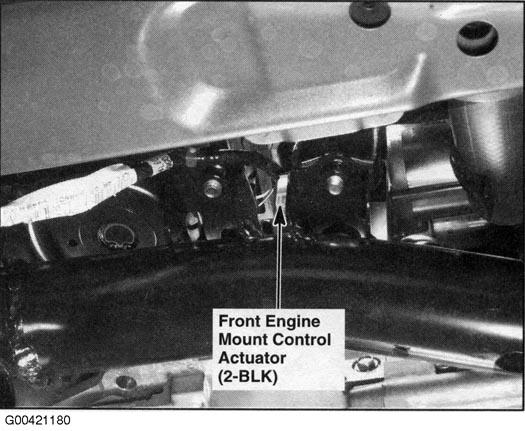

Fig 142: Under Front Of Engine Compartment (EX-L & Touring)

G00421180

Courtesy of AMERICAN HONDA MOTOR CO., INC.

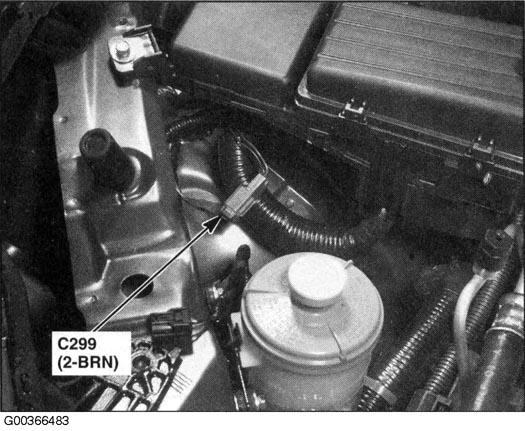

Fig 143: Under Left Front Of Engine Compartment

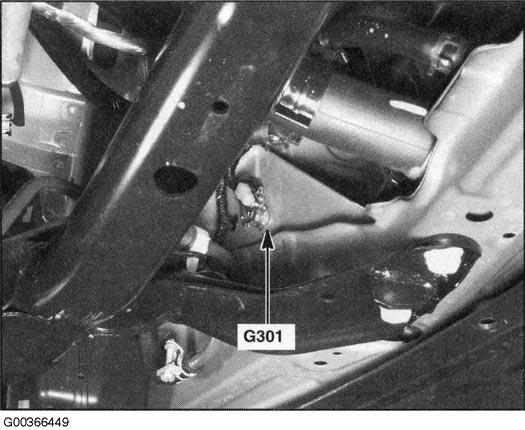

G00366449

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 144: Lower Front Of Engine (EX & LX)

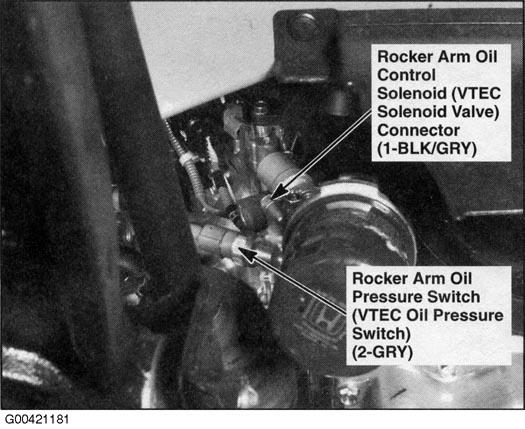

G00421181

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 145: Lower Front Of Engine

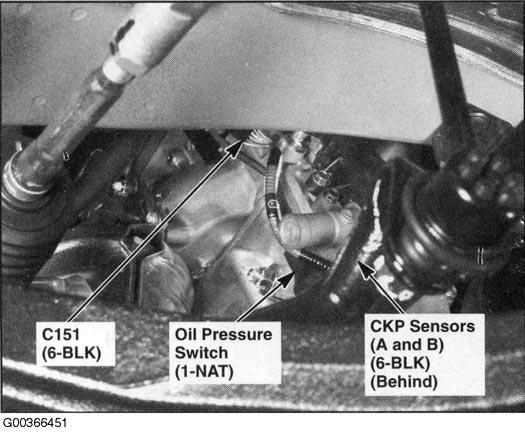

G00366451

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 146: Lower Right Side Of Engine

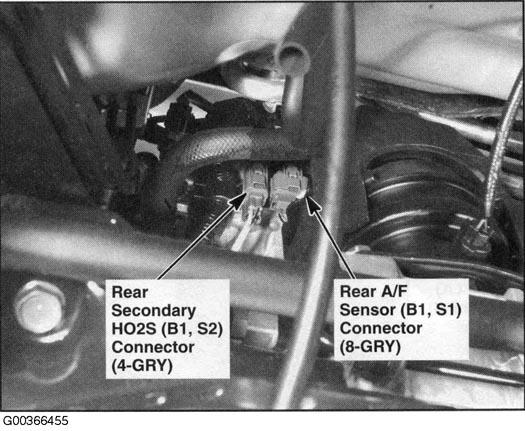

G00366455

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 147: Lower Right Side Of Engine (EX-L & Touring)

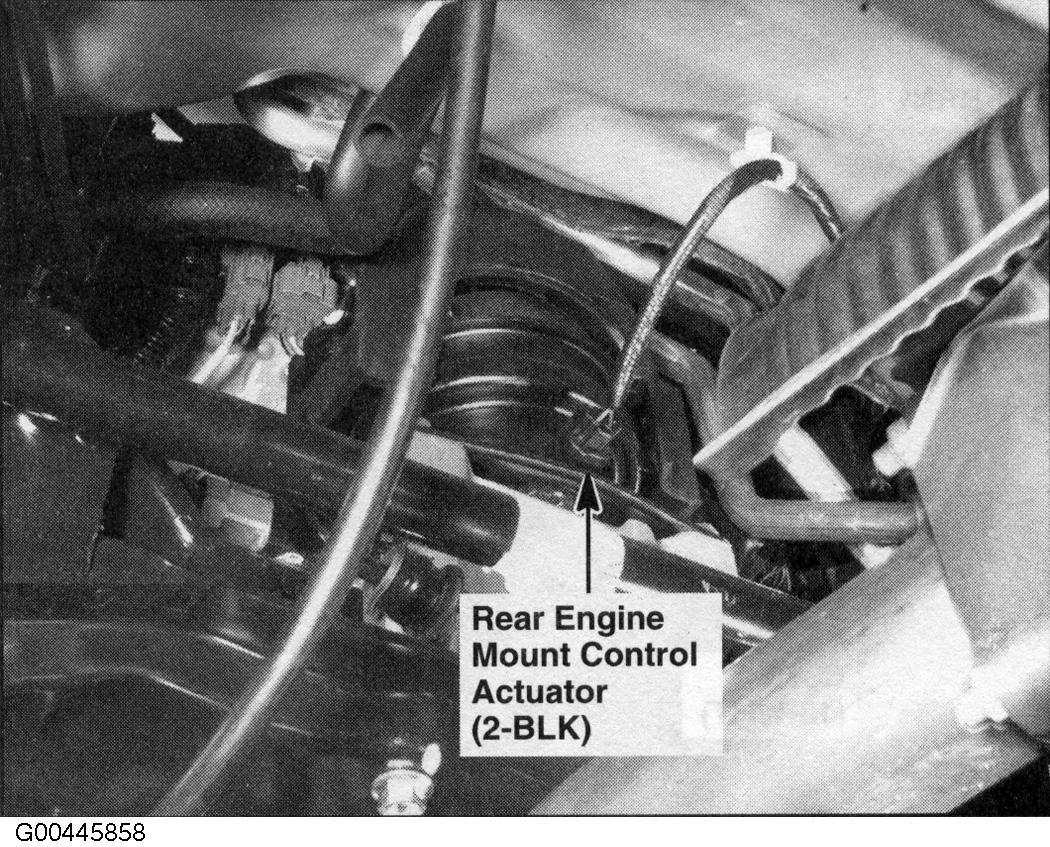

G00445858

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 148: Lower Right Side Of Engine Compartment

G00366457

Courtesy of AMERICAN HONDA MOTOR CO., INC.

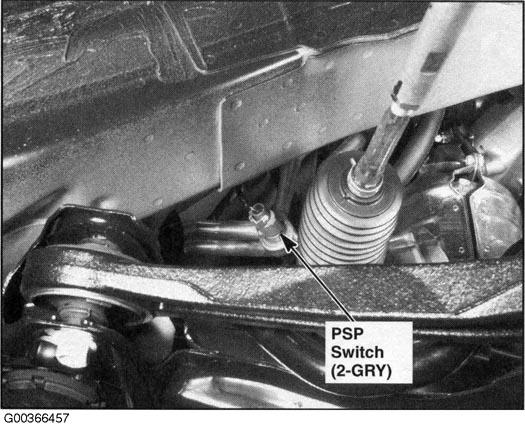

Fig 149: Behind Right Side Of Front Bumper

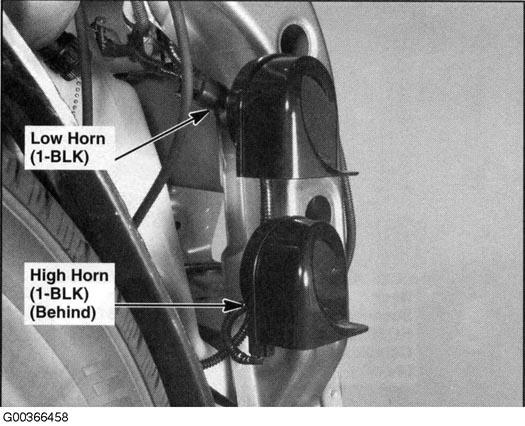

G00366458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 150: Left Side Of Front Bumper (Right Similar) (Touring)

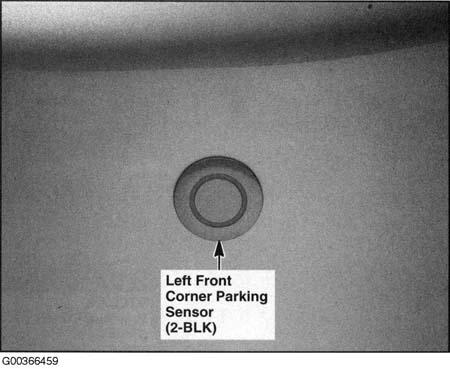

G00366459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 151: Behind Left Side Of Front Bumper (EX, EX-L & Touring)

G00366460

Courtesy of AMERICAN HONDA MOTOR CO., INC.

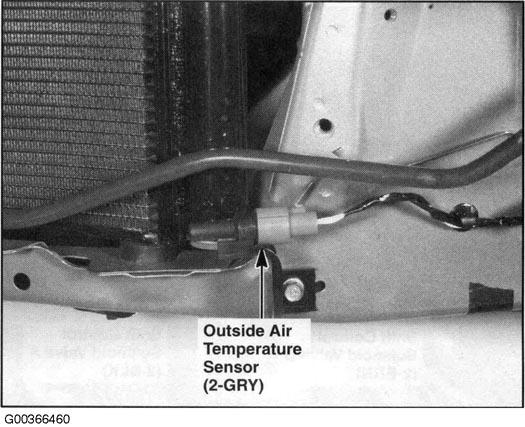

Fig 152: Behind Left Side Of Front Bumper (Right Similar)

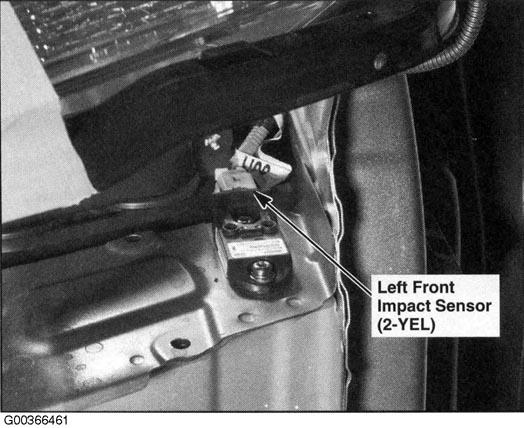

G00366461

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 153: Behind Left Side Of Front Bumper (Touring)

G00366462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

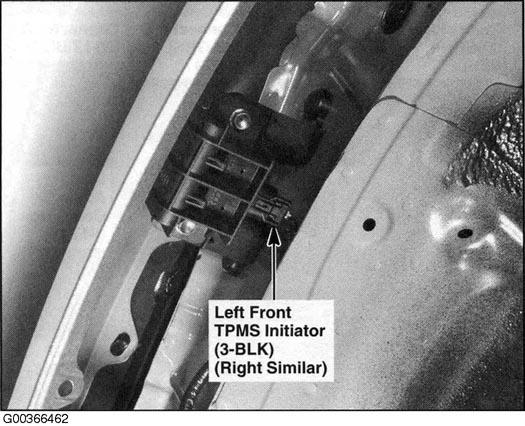

Fig 154: Under Middle Of Vehicle

G00366463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

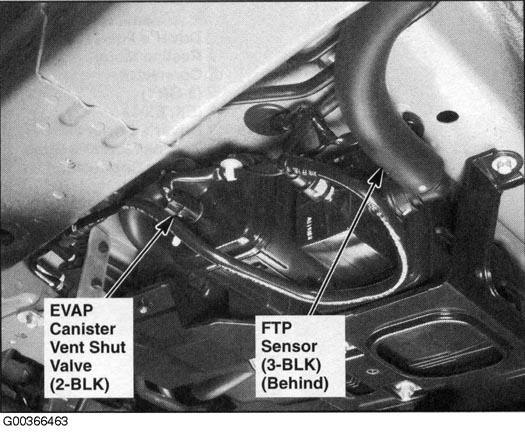

Fig 155: Under Rear Of Vehicle

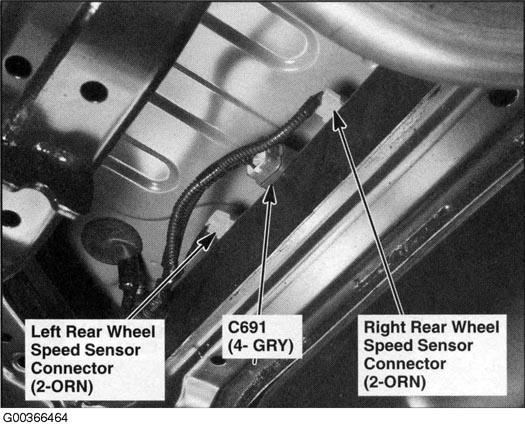

G00366464

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 156: Left Rear Wheelwell (Touring)

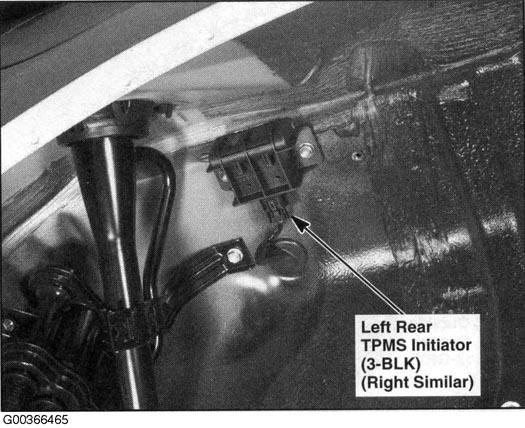

G00366465

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 157: Left Side Of Rear Bumper (Touring)

G00445859

Courtesy of AMERICAN HONDA MOTOR CO., INC.

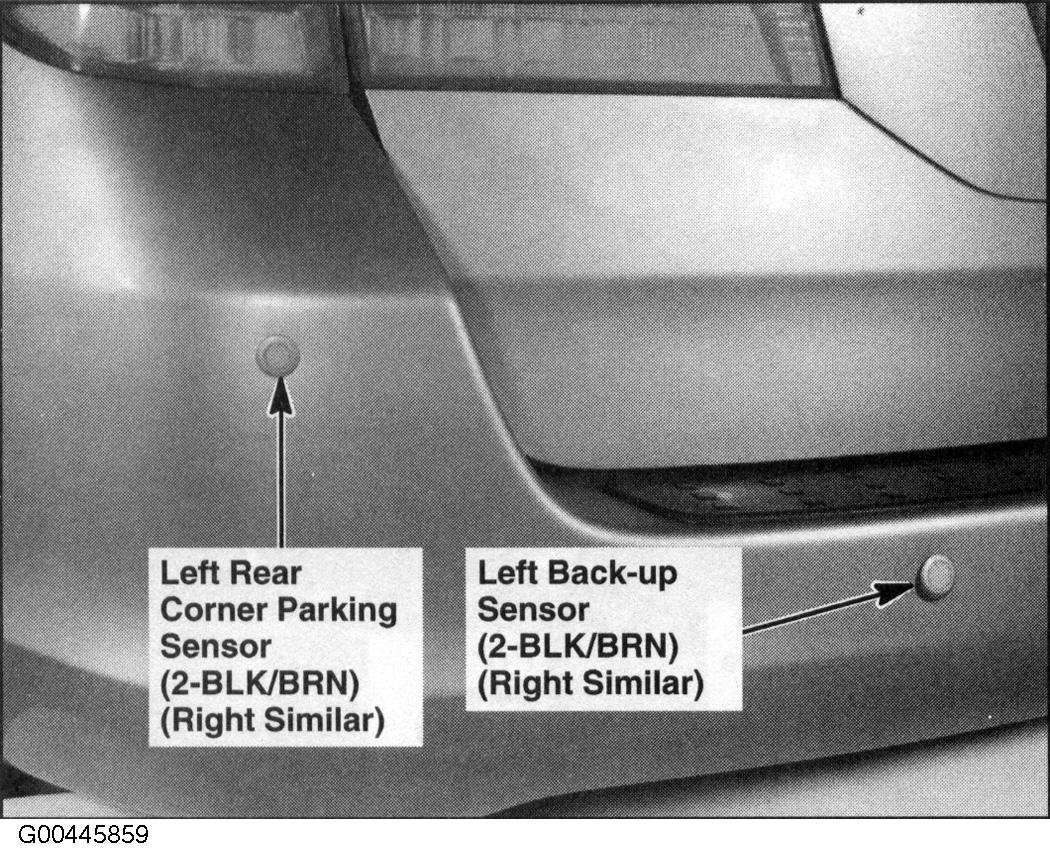

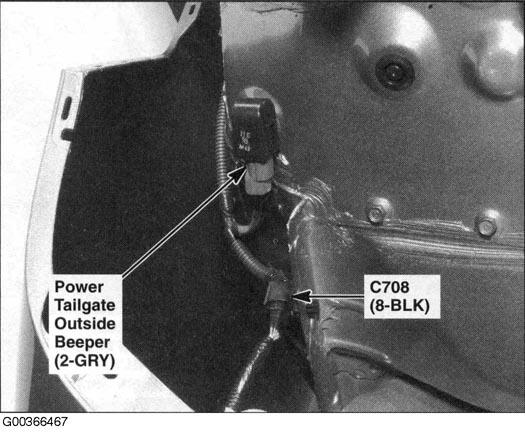

Fig 158: Behind Left Side Of Rear Bumper (Touring)

G00366467

Courtesy of AMERICAN HONDA MOTOR CO., INC.

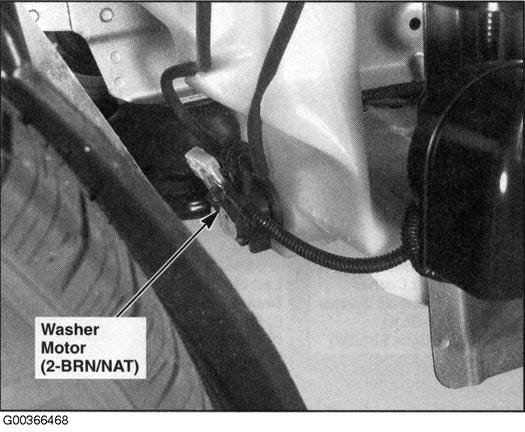

Fig 159: Behind Right Side Of Front Bumper

G00366468

Courtesy of AMERICAN HONDA MOTOR CO., INC.

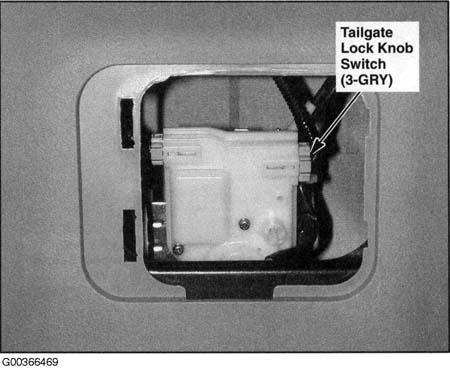

Fig 160: Middle Of Tailgate (EX & EX-L)

G00366469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

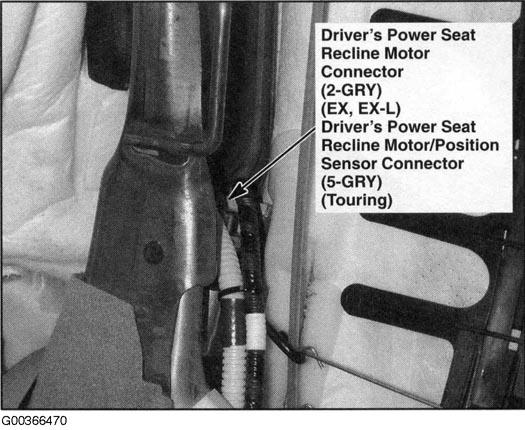

Fig 161: In Driver's Seat (EX, EX-L & Touring)

G00366470

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 162: Rear Of Roof (Touring: Except Navigation)

G00366471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 163: Behind Left Kick Panel (Honda Accessory)

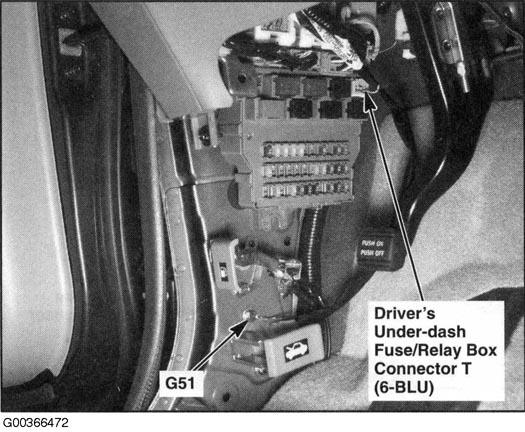

G00366472

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 164: Under Left Side Of Dash (LX, Honda Accessory)

G00366473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 165: Behind Glove Box (Honda Accessory)

G00366474

Courtesy of AMERICAN HONDA MOTOR CO., INC.

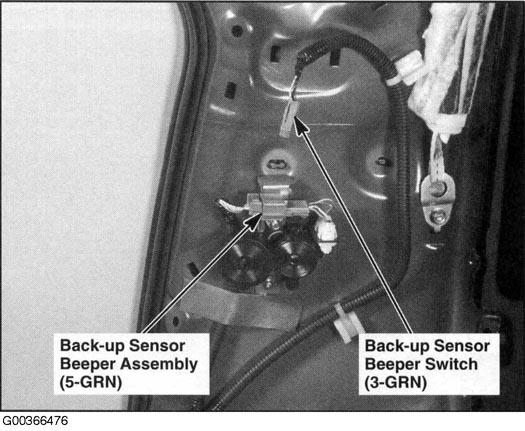

Fig 166: Left Rear Of Vehicle (LX, EX & EX-L: Honda Accessory)

G00366475

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 167: Left Rear Of Vehicle (LX, EX & EX-L: Honda Accessory)

G00366476

Courtesy of AMERICAN HONDA MOTOR CO., INC.

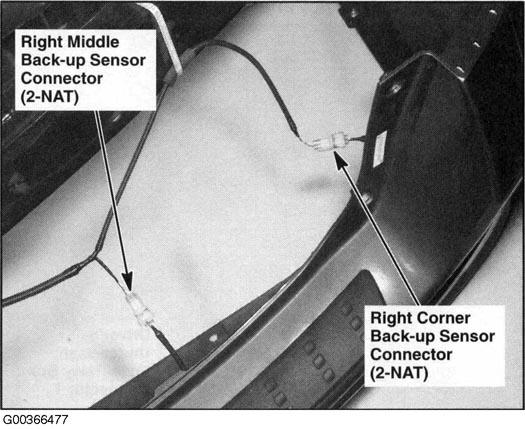

Fig 168: Behind Right Side Of Rear Bumper (Left Similar)

G00366477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 169: Left Kick Panel (Honda Accessory)

G00366478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

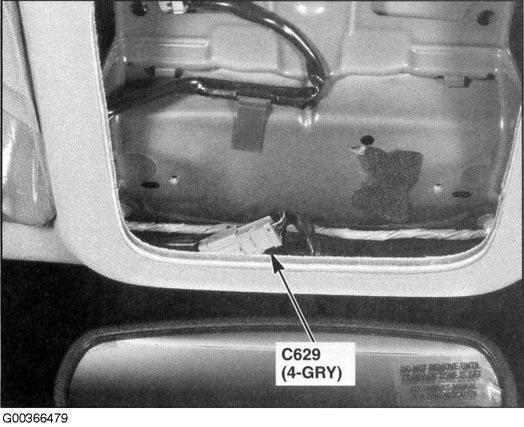

Fig 170: Front Of Roof (Honda Accessory)

G00366479

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 171: Left Rear Of Vehicle (Honda Accessory)

G00366480

Courtesy of AMERICAN HONDA MOTOR CO., INC.

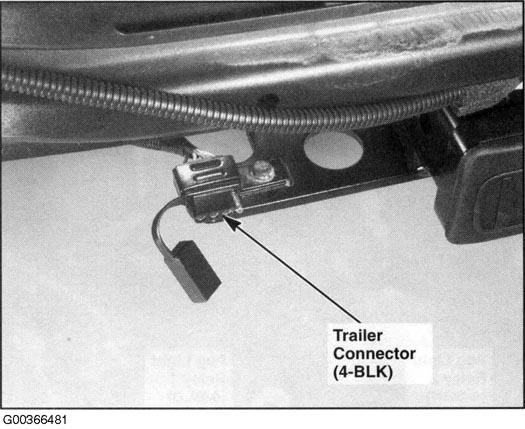

Fig 172: Under Middle Of Rear Bumper (Honda Accessory)

G00366481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

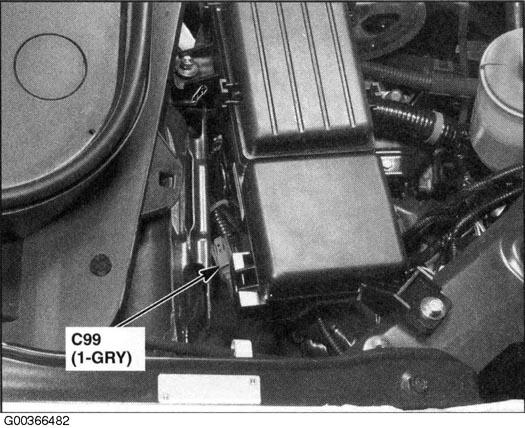

Fig 173: Right Side Of Engine Compartment (Honda Accessory)

G00366482

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 174: Right Front Of Engine Compartment (Honda Accessory)

G00366483

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 175: Right Front Of Engine Compartment (Honda Accessory)

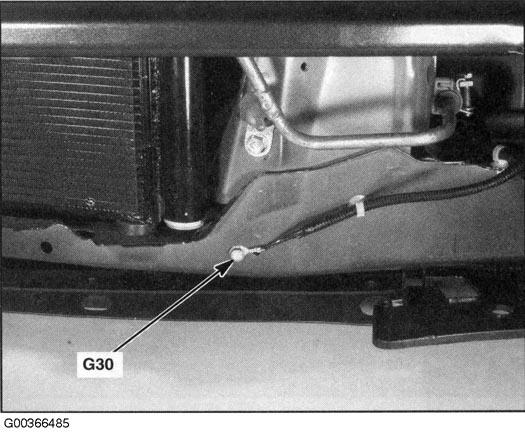

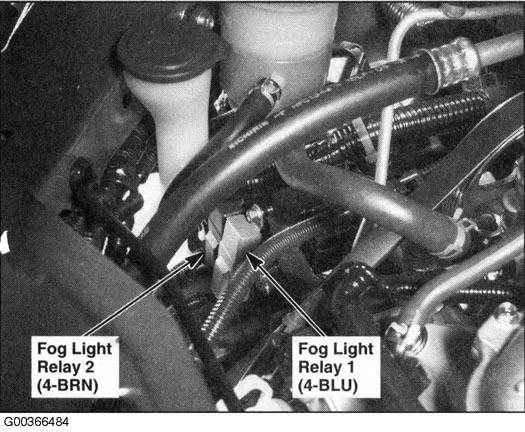

G00366484

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 176: Behind Left Side Of Front Bumper (Honda Accessory)

G00366485

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 177: Under Left Side Of Dash (Honda Accessory)

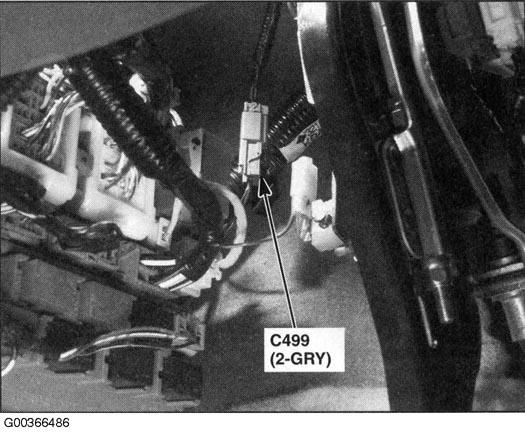

G00366486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 178: Driver's Door (Front Passenger's Similar)

G00421177

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 179: Behind Right Rear Side Trim Panel

G00421182

Courtesy of AMERICAN HONDA MOTOR CO., INC.

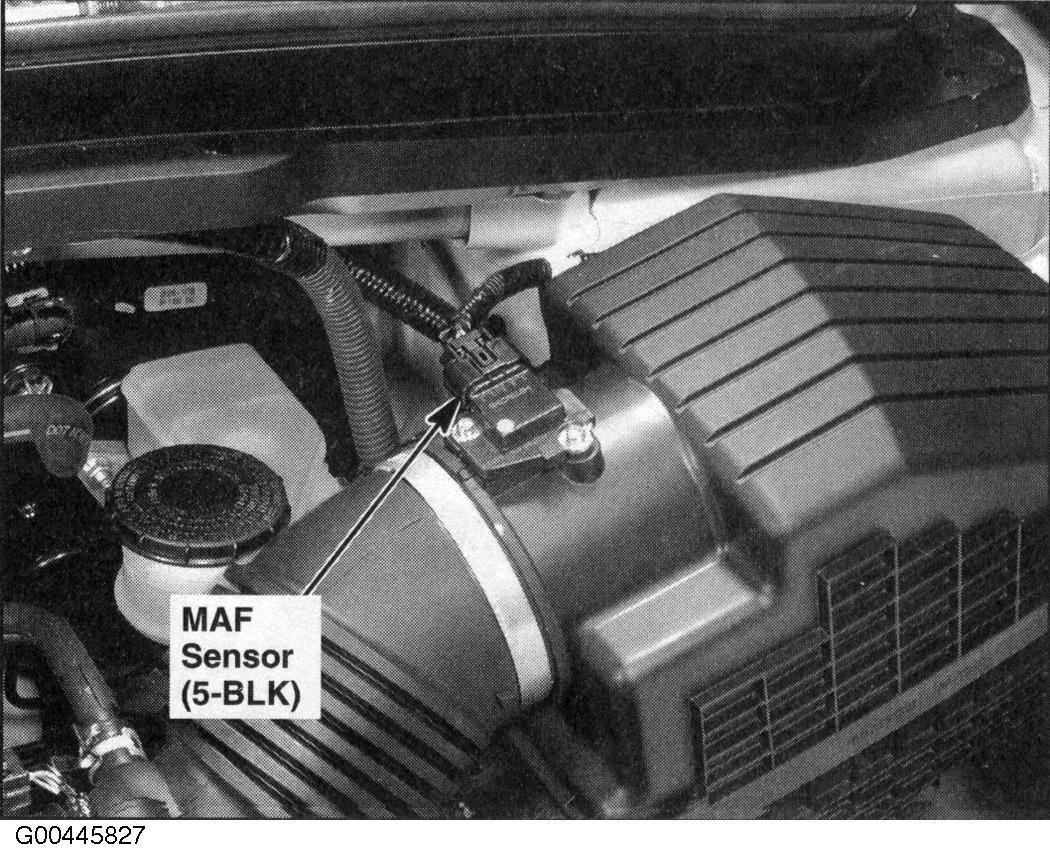

Fig 180: Left Rear Of Engine Compartment

G00445827

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 181: Top Of Transmission

G00445831

Courtesy of AMERICAN HONDA MOTOR CO., INC.

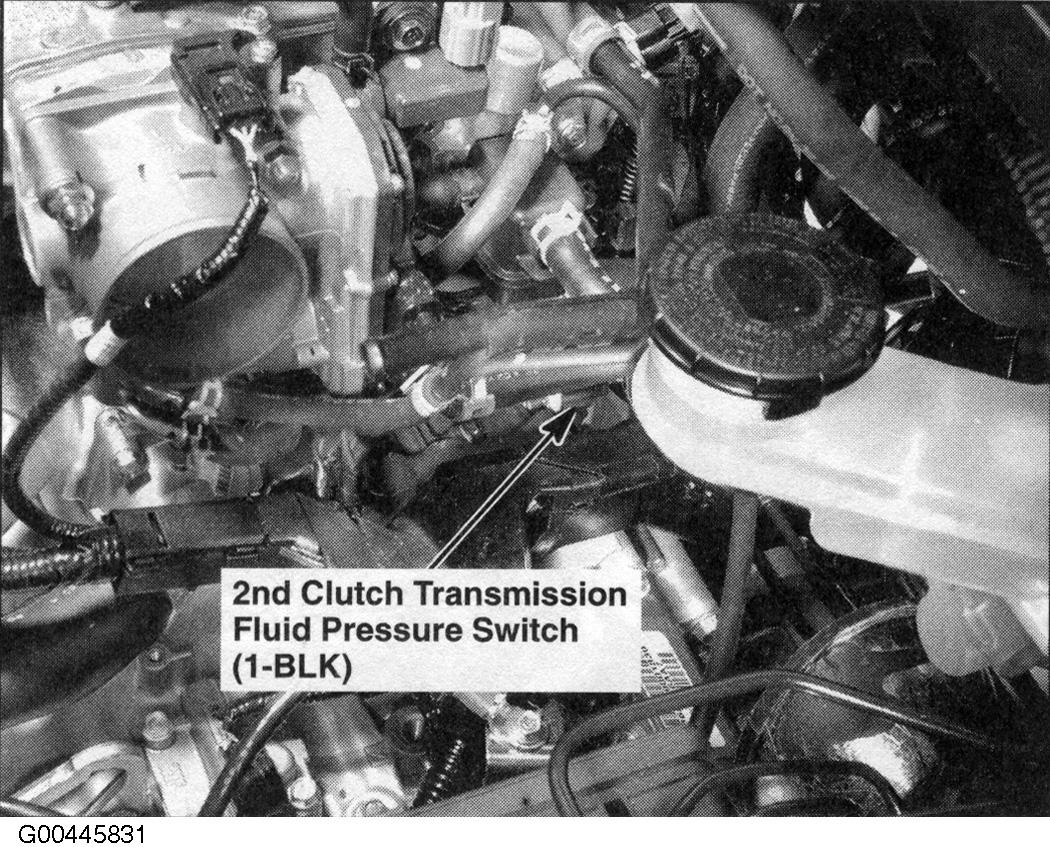

Fig 182: Transmission Housing

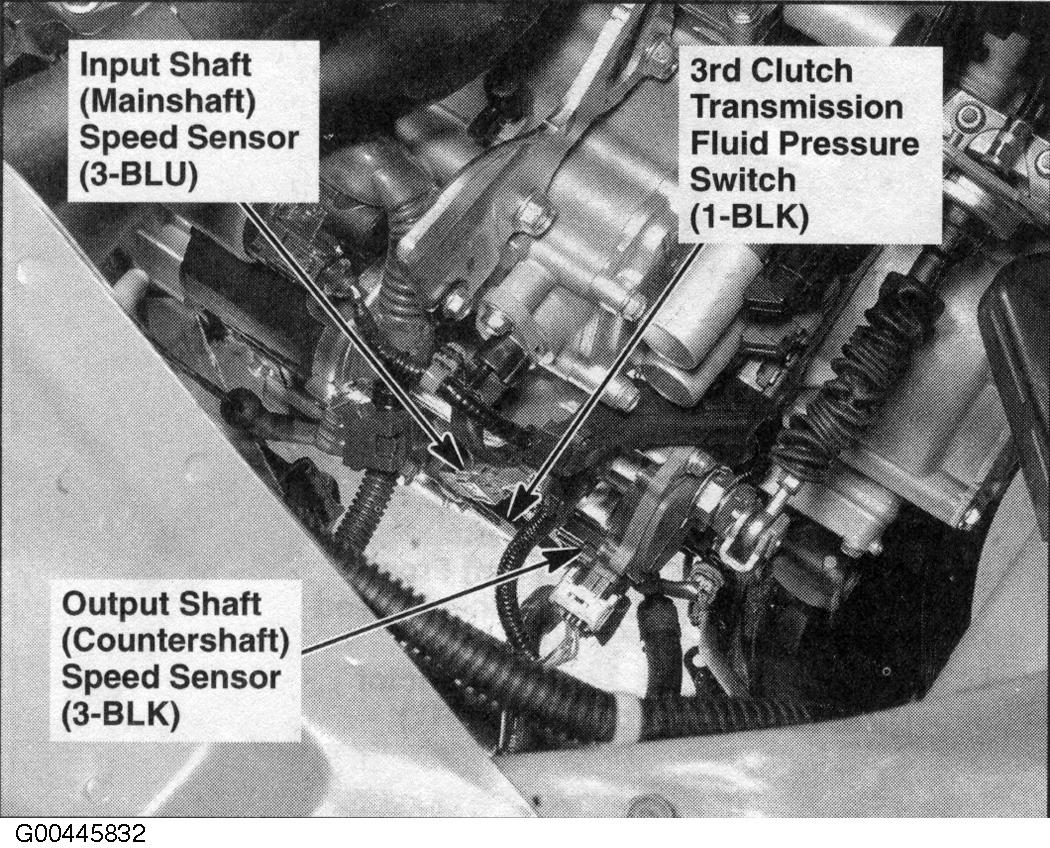

G00445832

Courtesy of AMERICAN HONDA MOTOR CO., INC.

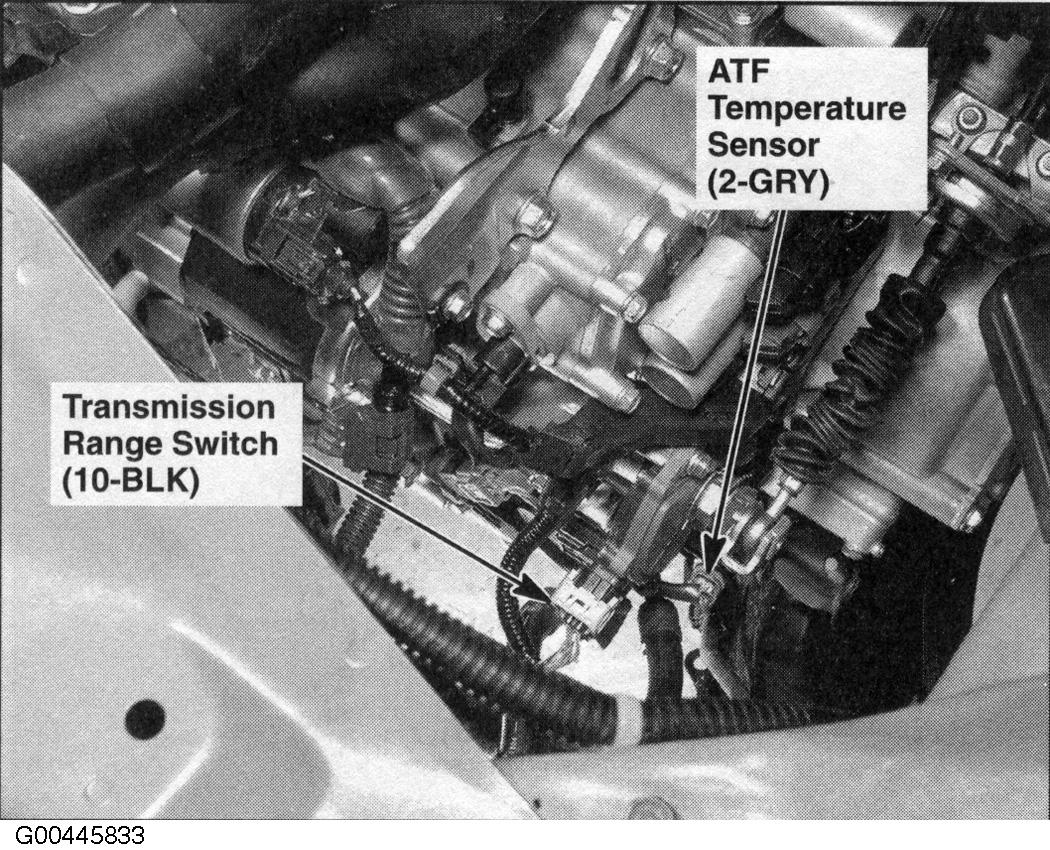

Fig 183: Transmission Housing

G00445833

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 184: Under Left Side Of Dash

G00445839

Courtesy of AMERICAN HONDA MOTOR CO., INC.

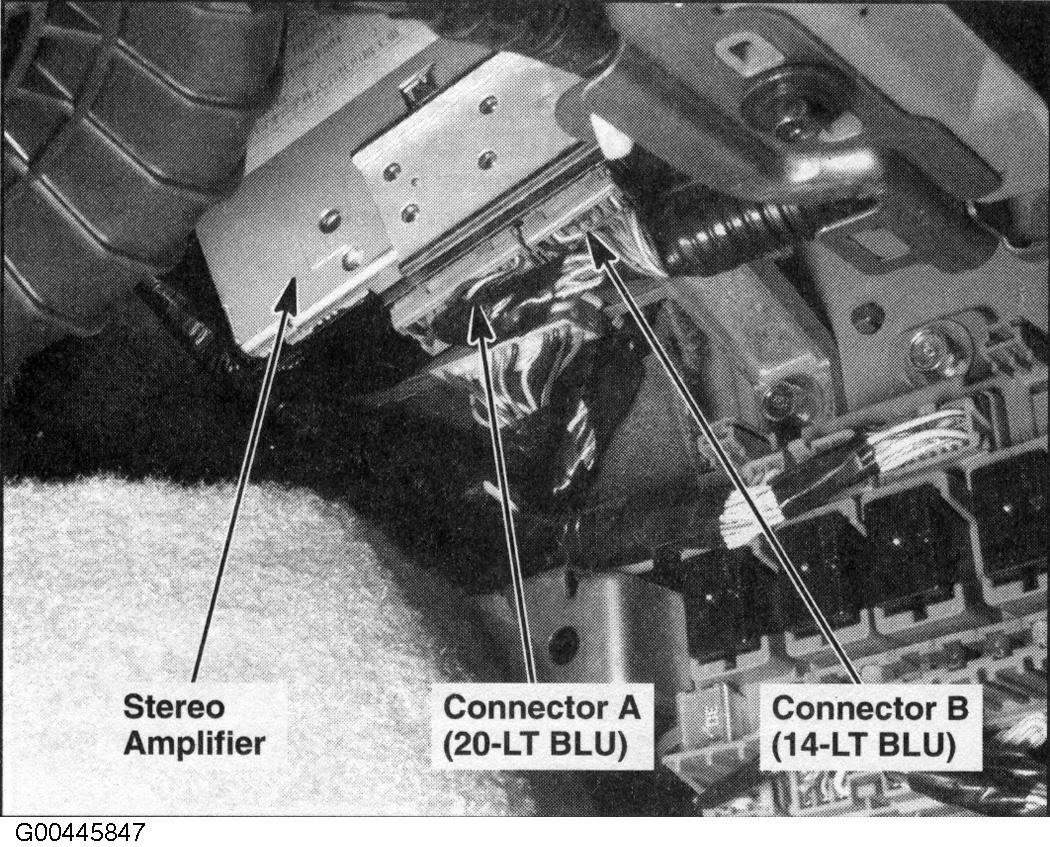

Fig 185: Behind Glove Box (Touring)

G00445847

Courtesy of AMERICAN HONDA MOTOR CO., INC.

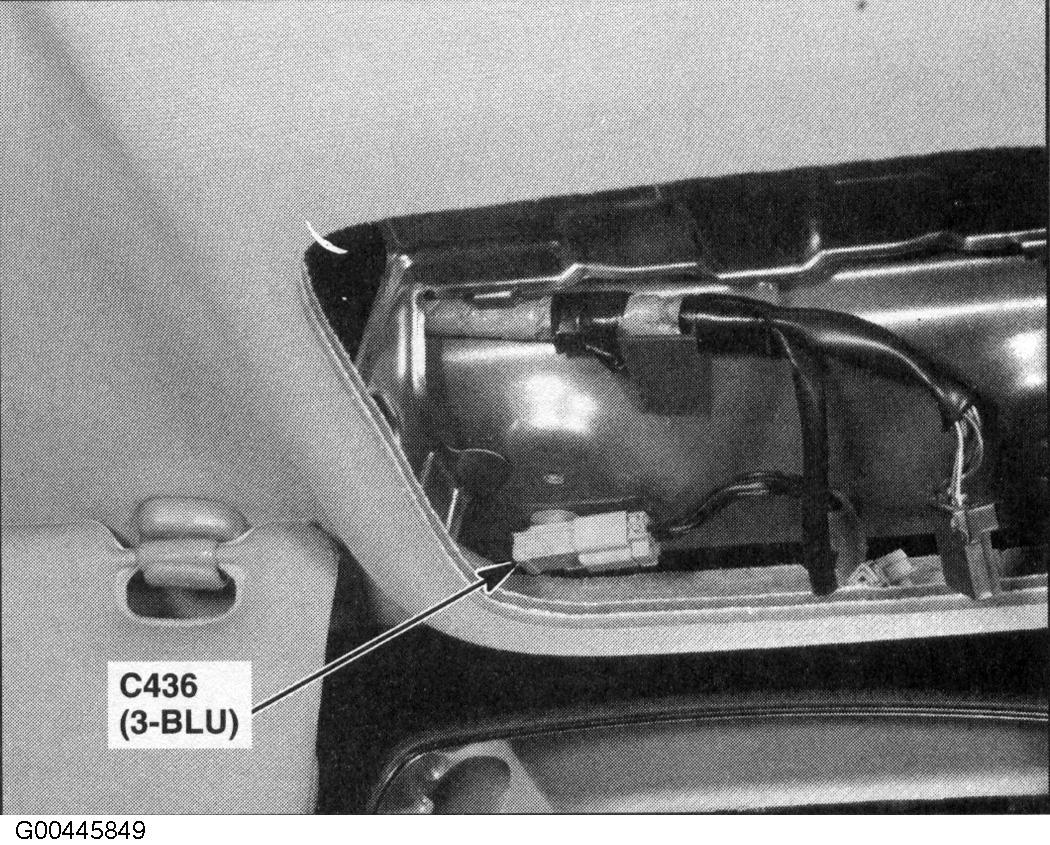

Fig 186: Front Of Roof (Touring)

G00445849

Courtesy of AMERICAN HONDA MOTOR CO., INC.

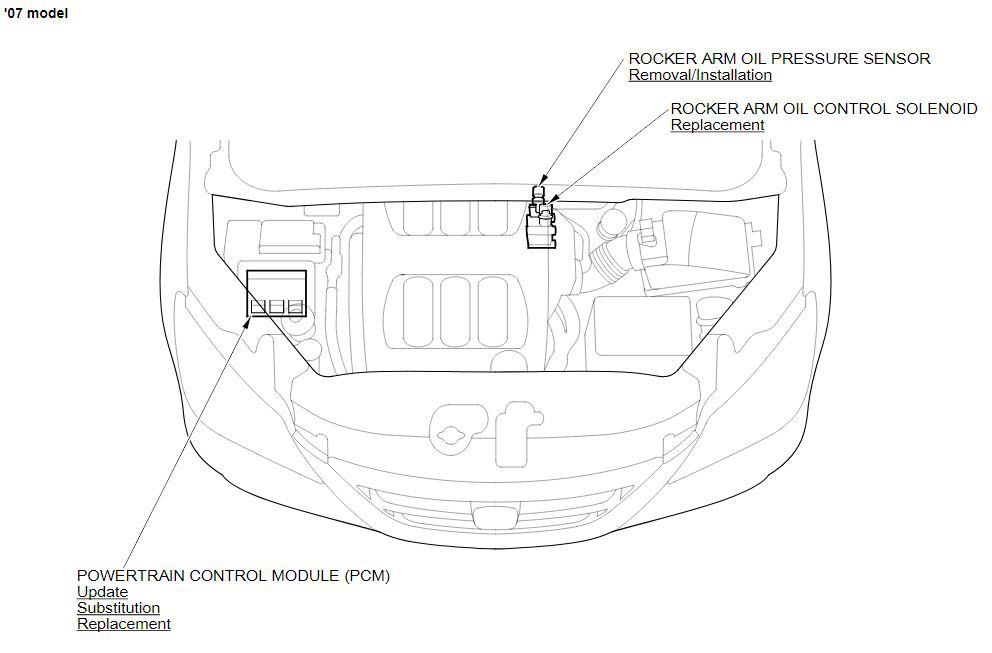

Fig 187: Rear Of Engine

G00564799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

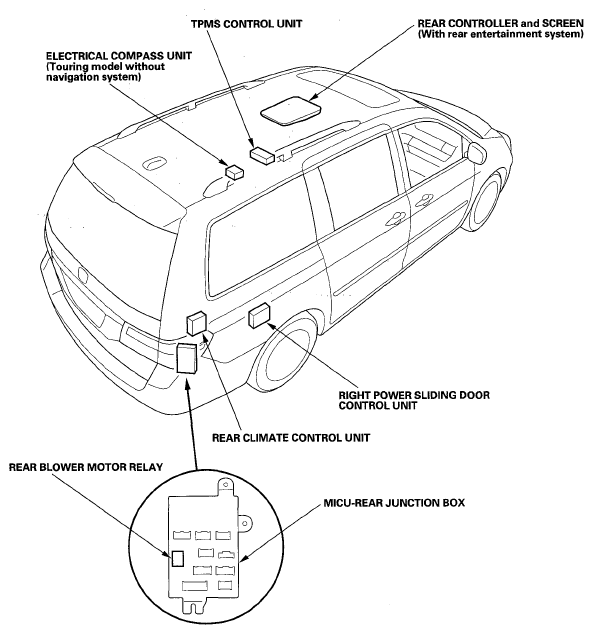

Fig 188: Rear Control Units And Relays

G05526477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 189: Under-Dash Fuse/Relay Boxes (1 Of 2)

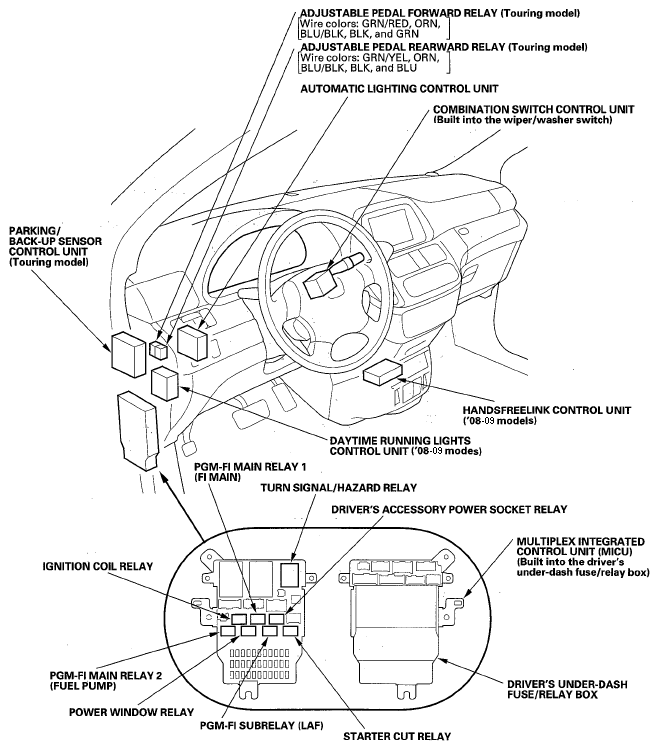

G05526473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

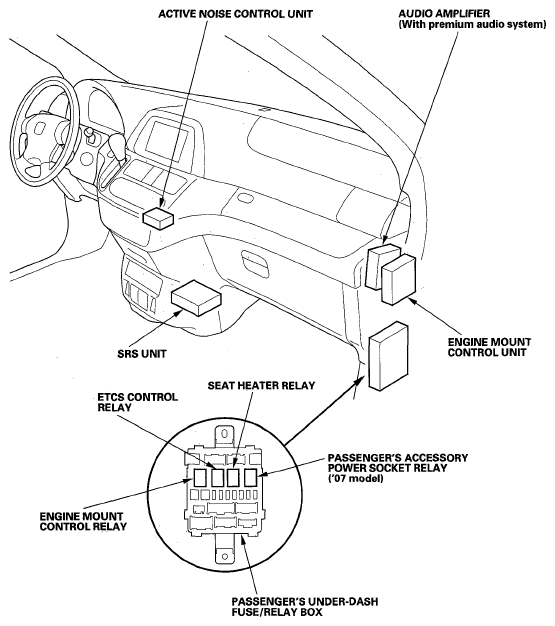

Fig 190: Under-Dash Fuse/Relay Boxes (2 Of 2)

G05526475

Courtesy of AMERICAN HONDA MOTOR CO., INC.

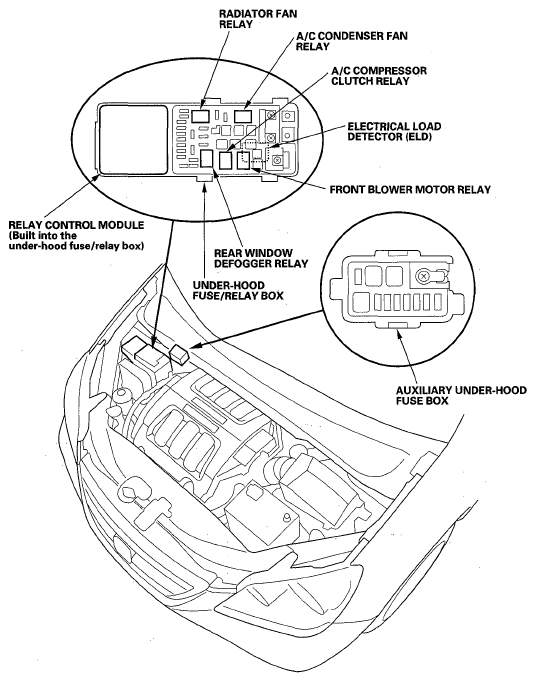

Fig 191: Under-Hood Fuse/Relay Box

G05526471

Courtesy of AMERICAN HONDA MOTOR CO., INC.
