Starter Performance Test

Remove the starter:
- J35A6, '07 model J35A7 engines (see Starter Removal and Installation ).
- '08-10 models J35A7 engine (see Starter Removal and Installation ).
Disconnect the wire from the M terminal.
Make the connections for this test using the thickest (gauge) wire possible (preferably the same gauge as used on the vehicle).
NOTE: To avoid damaging the starter, never leave the battery connected for more than 10 seconds.

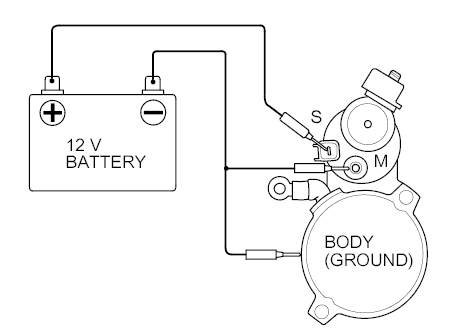

Fig 1: Identifying Fully Charged Battery To Starter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the battery as shown. Make sure you disconnect the starter motor wire from the solenoid. If the starter pinion moves out, it is working properly.
Disconnect the battery from the M terminal. If the pinion does not retract, the hold-in coil of the solenoid is working properly.

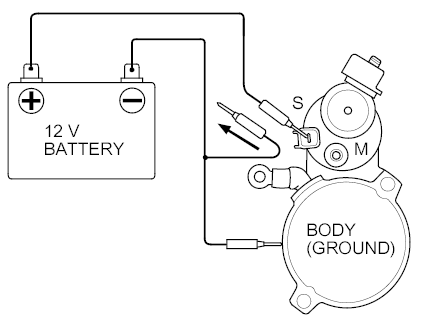

Fig 2: Identifying Battery From M Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

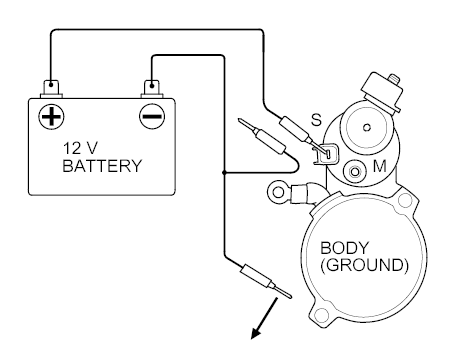

Disconnect the battery from the starter as shown. If the pinion retracts immediately, it is working properly.

Fig 3: Identifying Battery From Starter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clamp the starter firmly in a vise.
Reconnect the wire to the M terminal.

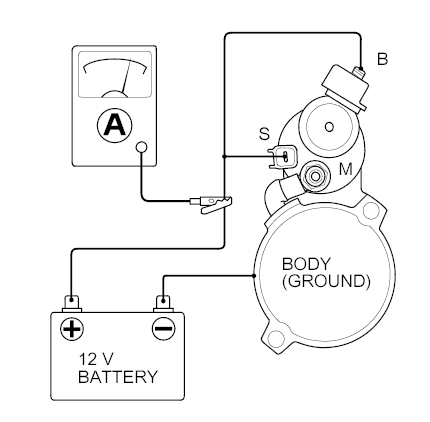

Connect the starter to the battery as shown, and confirm that the motor starts and keeps rotating.

Fig 4: Identifying Starter To Battery
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the electric current meets the specification when the battery voltage is at 11 V, the starter is working properly.
Specification

Electric Current: 90 A or less
