EVAP Canister Replacement

  1. Raise the vehicle on a lift.
  2. Remove the EVAP canister cover (A).
    Fig 1: EVAP Canister Cover With Torque Specification
    G05524215Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).

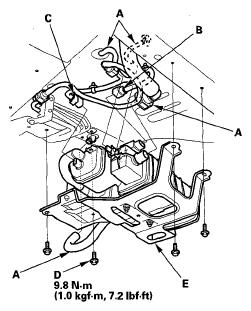

    Fig 2: EVAP Canister Assembly With Torque Specification
    G05524216Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts (D).
  5. Remove the EVAP canister assembly (E).
  6. Remove the EVAP canister bracket (A).
    NOTE: The canister filter remains on the bracket.
    Fig 3: EVAP Canister Bracket With Torque Specification
    G05524217Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the parts in the reverse order of removal.
