Fuel Fill Pipe Removal/Installation

  1. Drain the fuel tank (see FUEL PRESSURE TEST ).
  2. Remove the fuel fill cap.
  3. Remove the fuel fill pipe cover (A).
    Fig 1: Fuel Fill Pipe Cover With Torque Specification
    G05524085Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the quick-connect fitting (A) (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ), and the fuel fill tube (B) from the fuel fill pipe (C). Slide back the clamp, then twist the hose as you pull to avoid damaging it.

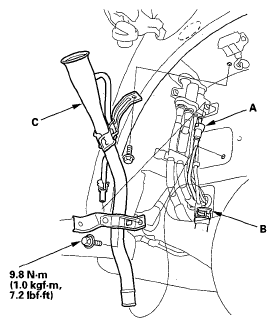

    Fig 2: Quick-Connect Fitting, Fuel Fill Tube And Fuel Fill Pipe With Torque Specification
    G05524086Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the fuel fill pipe.
  6. Install the parts in the reverse order of removal.
