Exploded View

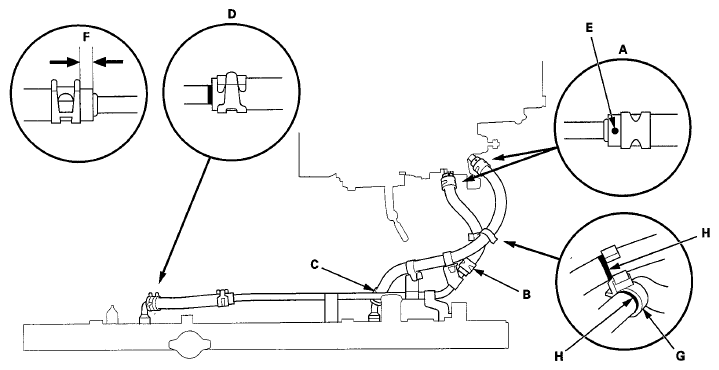

Fig 1: Identifying ATF Cooler Hose And ATF Cooler Lines

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the ATF cooler hoses over the ATF cooler lines with the clips at appropriate points in reference to the following list. Align the white paint mark (E) so it faces up.

HOSE END CONTACT POINT CHART

Point	Distance from Hose End to Clip (F)	Hose End Contact Point
A	6-8 mm (0.24-0.31 in)	Bulge
B	6-8 mm (0.24-0.31 in)	Bulge
C	2-4 mm (0.08-0.16 in)	Bulge
D	2-4 mm (0.08-0.16 in)	White paint line

Secure the ATF cooler hoses with the clamp (G) at the white paint lines (H).
Refill the transmission with ATF to the proper level (see ATF REPLACEMENT ).
