Ignition Coil Removal/Installation

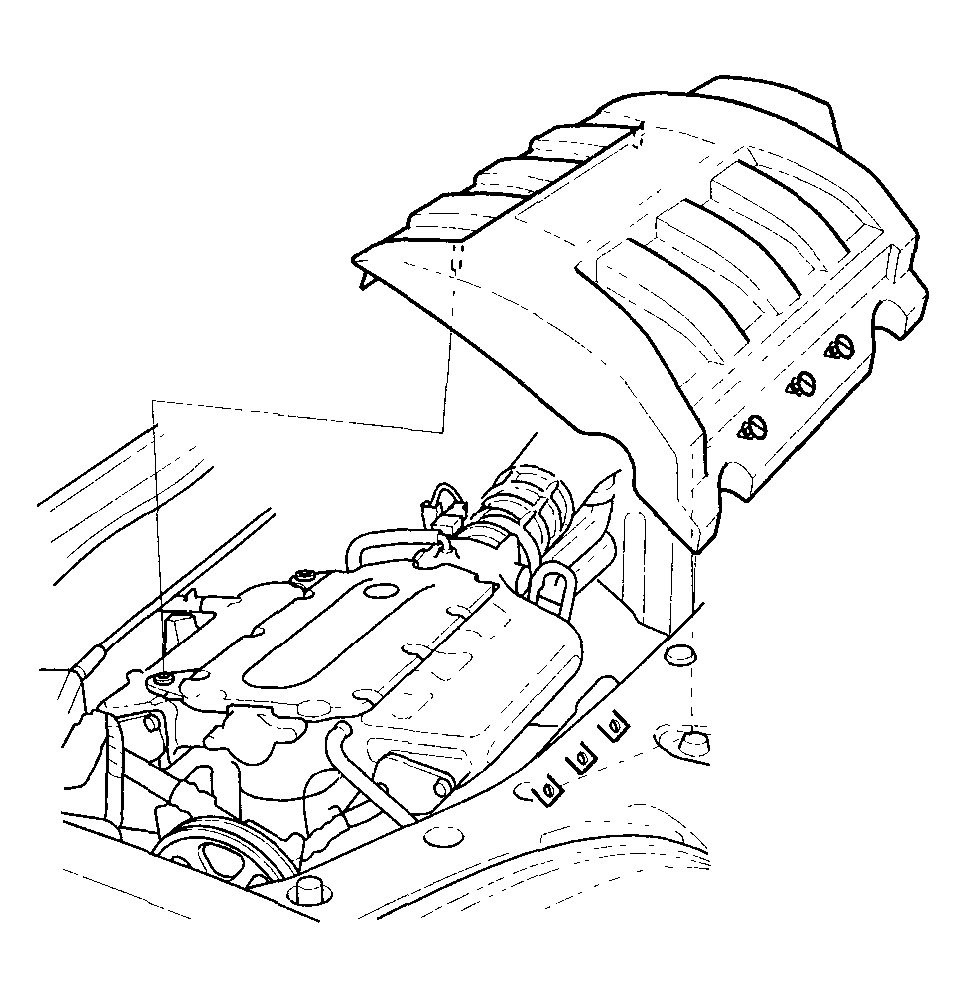

Remove the intake manifold cover.

Fig 1: Removing Intake Manifold Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

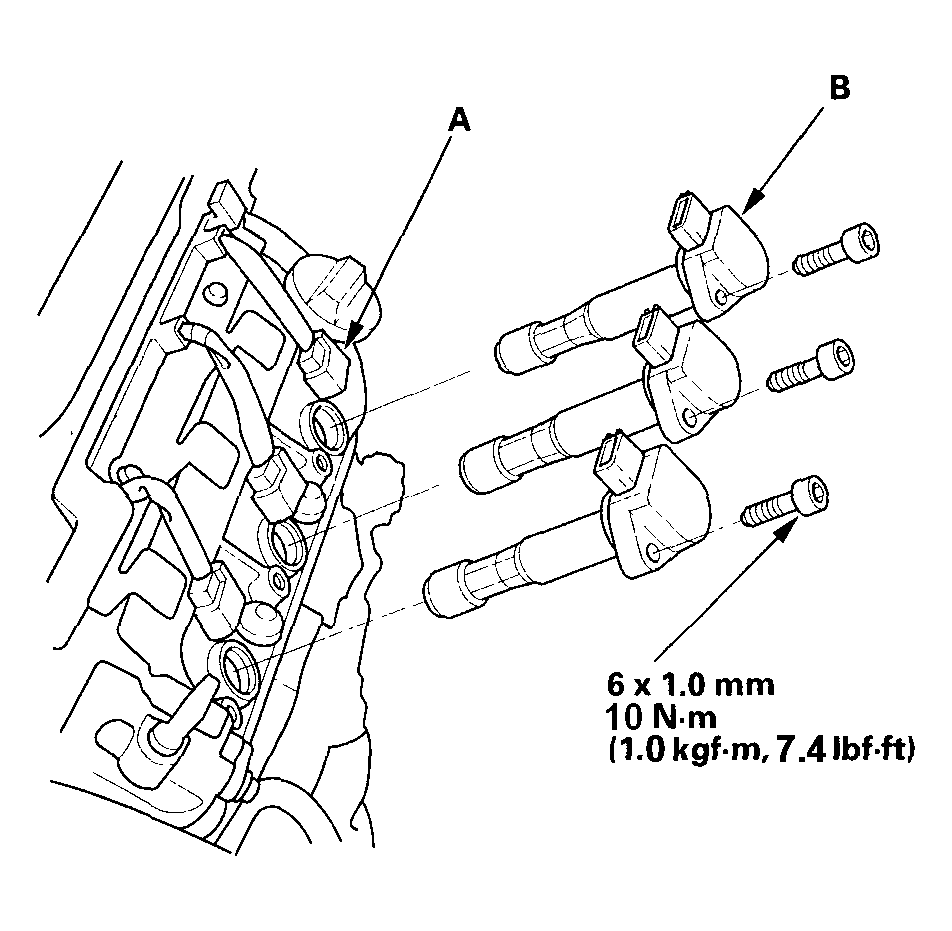

Disconnect the ignition coil connectors (A), then remove the front bank ignition coils (B).

Fig 2: Removing Front Bank Ignition Coils With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

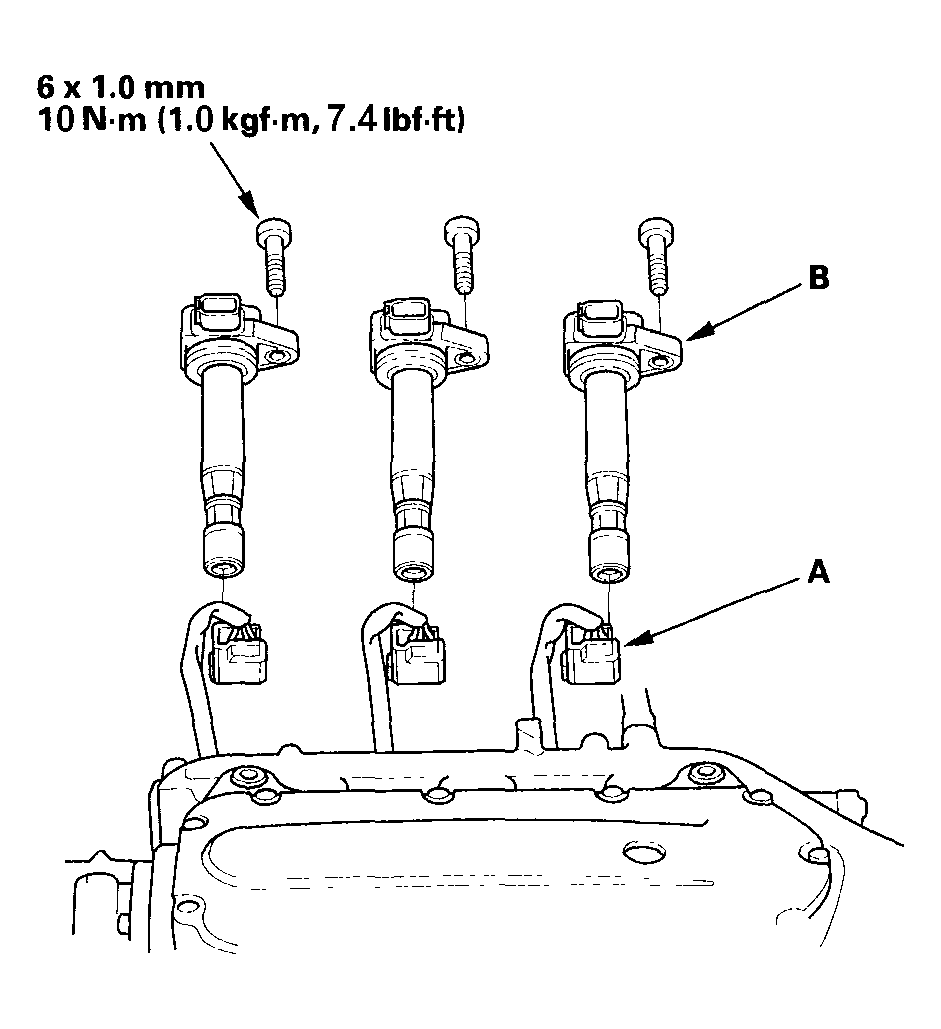

Disconnect the ignition coil connectors (A), then remove the rear bank ignition coils (B).

Fig 3: Removing Rear Bank Ignition Coils With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ignition coils in the reverse order of removal.
