EVAP Canister Replacement

  1. Remove the EVAP canister cover (A).

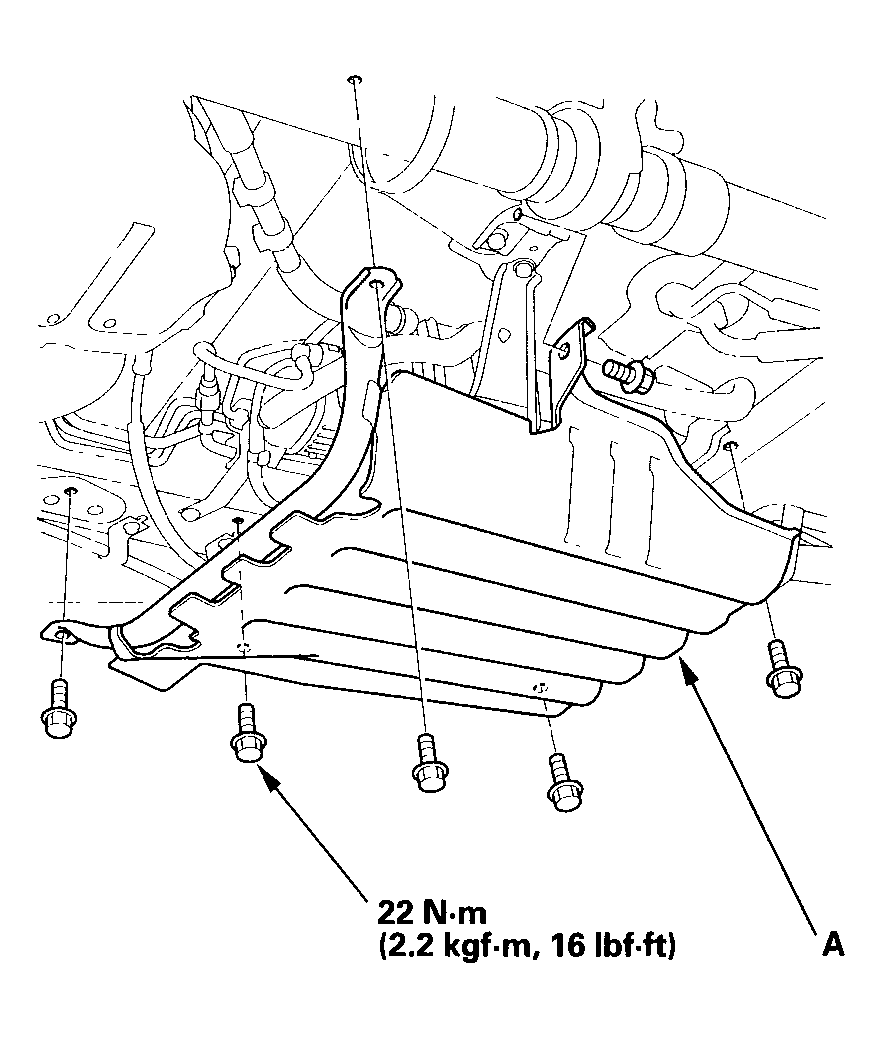

    Fig 1: Removing EVAP Canister Cover With Torque Specifications
    G04245597Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the hoses (A), the FTP sensor 3P connector (B), and EVAP canister vent shut valve 2P connector (C).

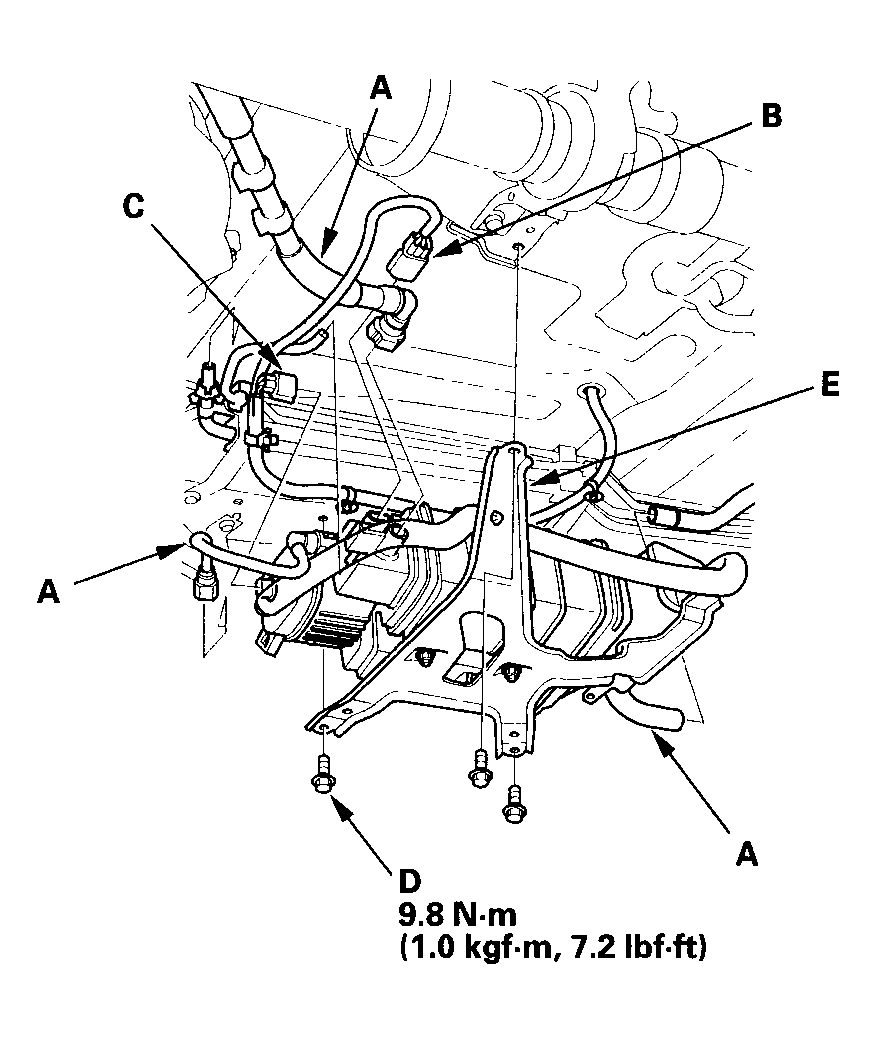

    Fig 2: Removing Hoses, FTP Sensor 3P Connector And EVAP Canister Vent Shut Valve 2P Connector With Torque Specifications
    G04245598Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (D).
  4. Remove the EVAP canister assembly (E).
  5. Remove the EVAP canister bracket (A).
    NOTE: The canister filter remains on the bracket.

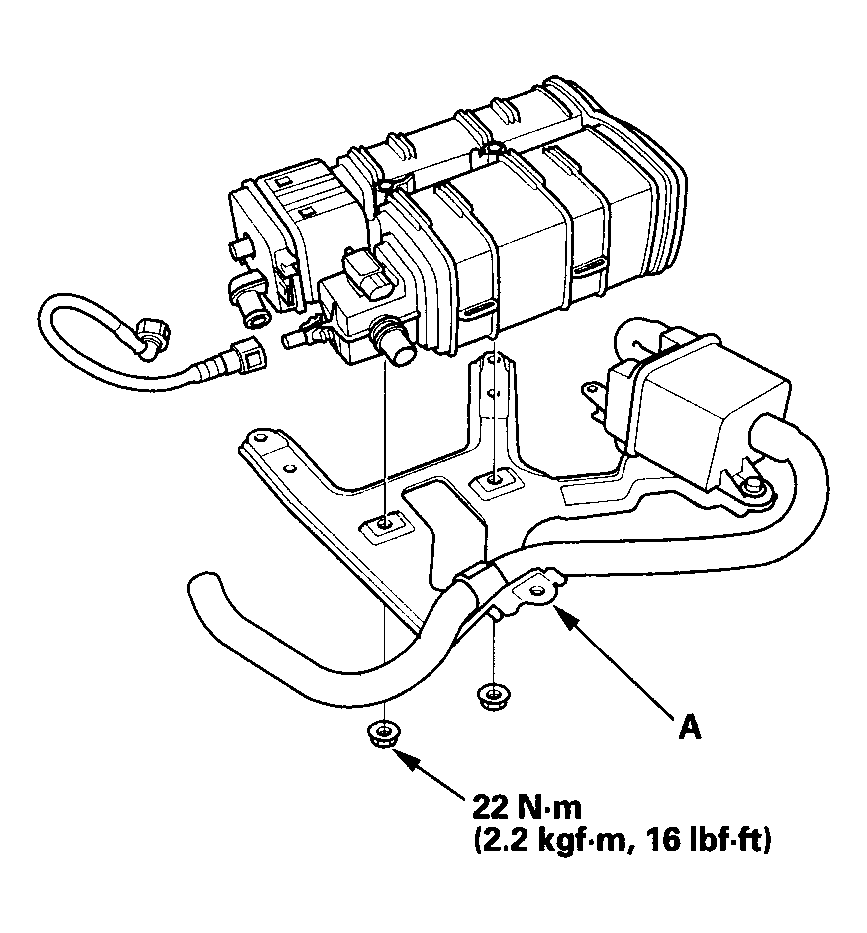

    Fig 3: Removing EVAP Canister Bracket With Torque Specifications
    G04245599Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the canister in the reverse order of removal.
