APP Sensor Replacement

  1. Remove the bolts and the throttle cable cover (A).
    Fig 1: Removing Throttle Cable Cover & Bolts
    G04245353Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the throttle cable (see THROTTLE CABLE REMOVAL/INSTALLATION ).
  3. Disconnect the APP sensor 6P connector (A).

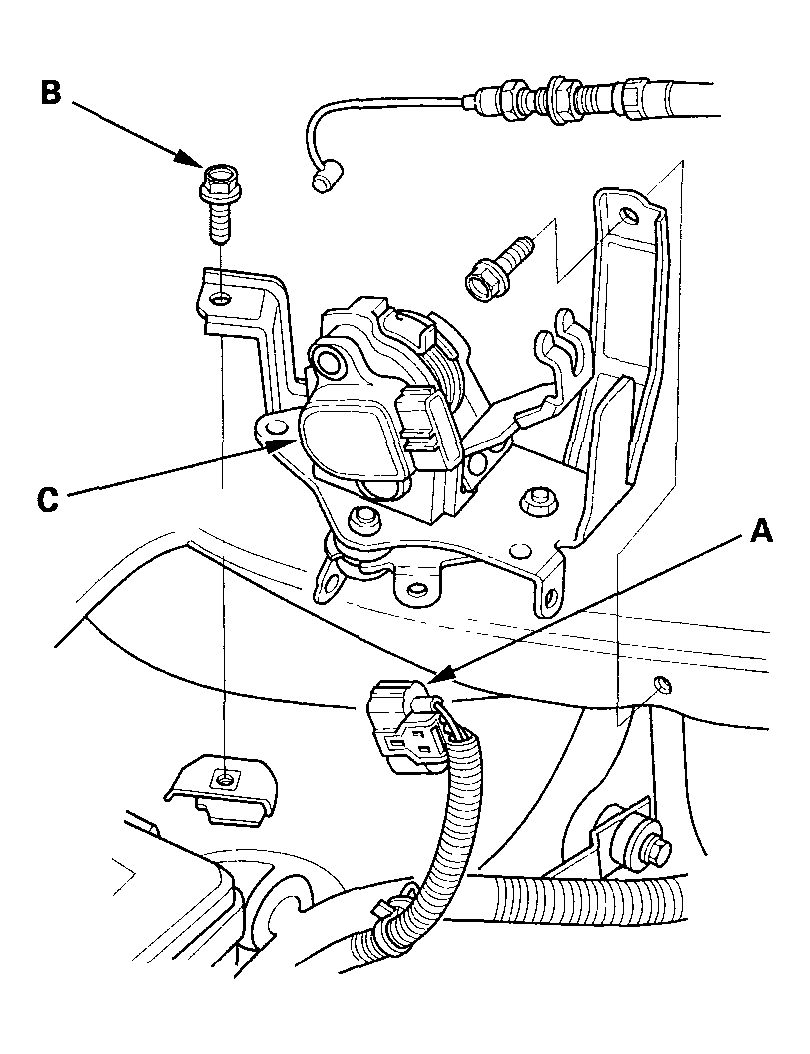

    Fig 2: Disconnecting APP Sensor 6P Connector & Removing APP Sensor With Bolts
    G04245354Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts (B) and APP sensor (C).
  5. Install the parts in the reverse order of removal.
