Throttle Position Learning Check

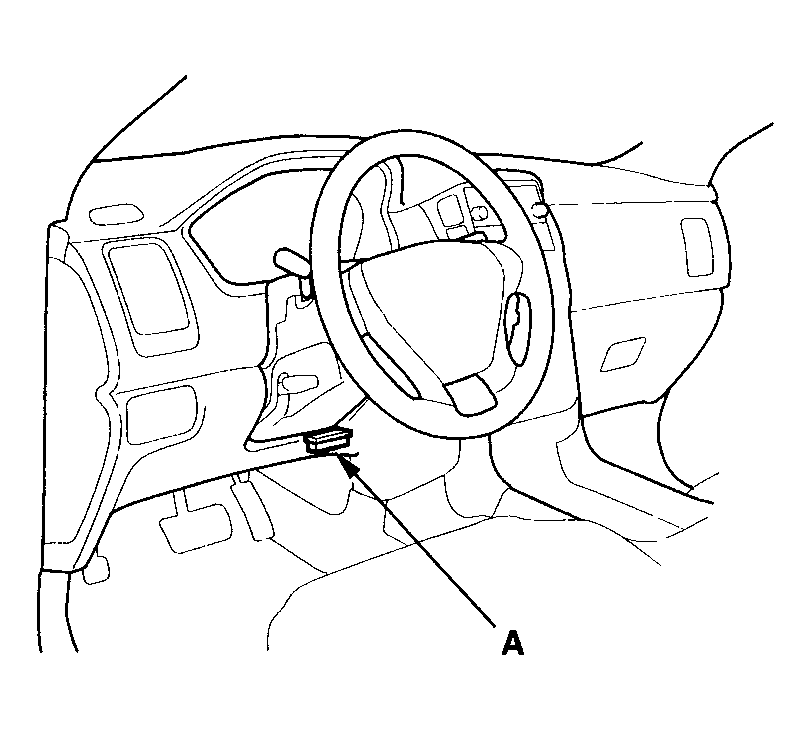

  1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
    Fig 1: Connecting HDS To DLC
    G04245535Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch ON (II).
  3. Make sure the HDS communicates with the PCM. If it doesn't, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  4. Select the INSPECTION MENU with the HDS.
  5. Do the TP POSITION CHECK in the ETCS TEST. If needed, clean the throttle body (see THROTTLE BODY TEST  ).
