MAP Sensor Replacement

  1. Remove the engine cover (see step 1 under IGNITION COIL REMOVAL/INSTALLATION ).
  2. Disconnect the MAP sensor 3P connector (A).

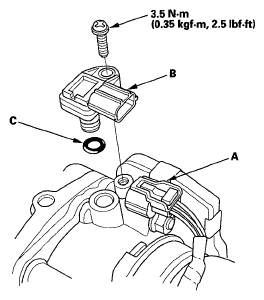

    Fig 1: MAP Sensor With Torque Specifications
    G05593769Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the MAP sensor (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
