Ignition Switch/Steering Lock: Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before performing repairs or servicing.

1. Make sure you have the anti-theft code for the radio and the navigation system, then write down the radio presets. Make sure the ignition switch OFF.
2. Disconnect the battery negative cable.
3. Remove the left front door sill trim and left kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
4. Disconnect the 6P connector from the under-dash fuse/relay box.

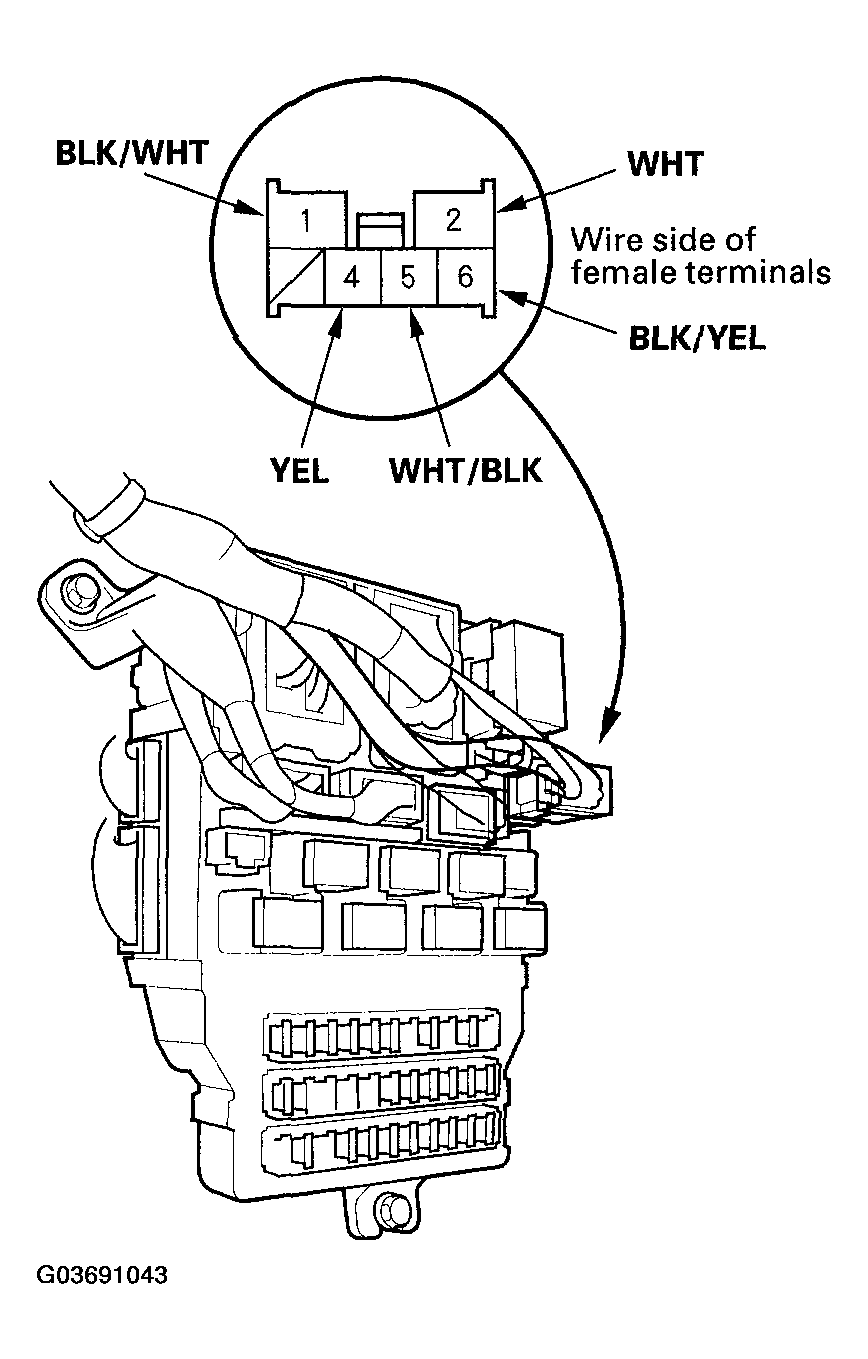

   Fig 1: Disconnecting 6P Connector From Under-Dash Fuse/Relay Box

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Check for continuity between the terminals in each switch position according to the table.

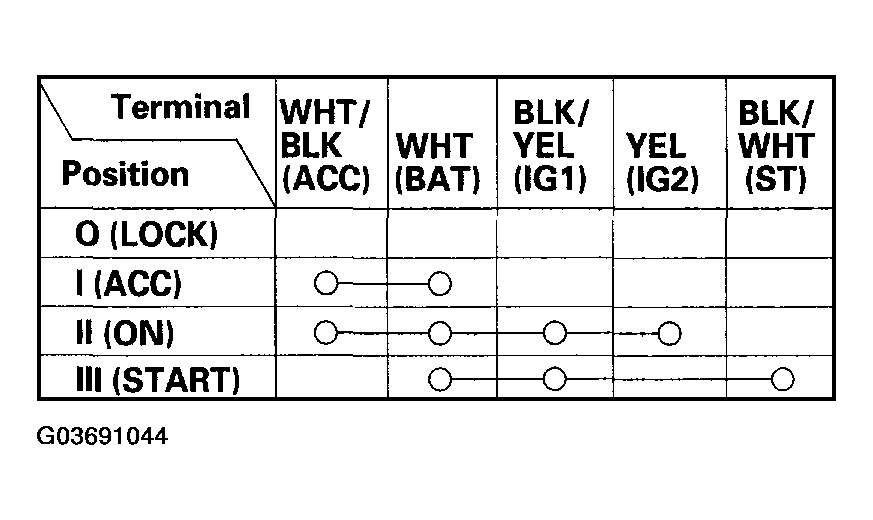

   Fig 2: Terminals Switch Position Continuity Table

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. If the continuity checks do not agree with the table, replace the steering lock.
7. After reconnecting the battery, enter the anti-theft code for the radio and the navigation system (if equipped). Set the clock (on vehicles without navigation).
