Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

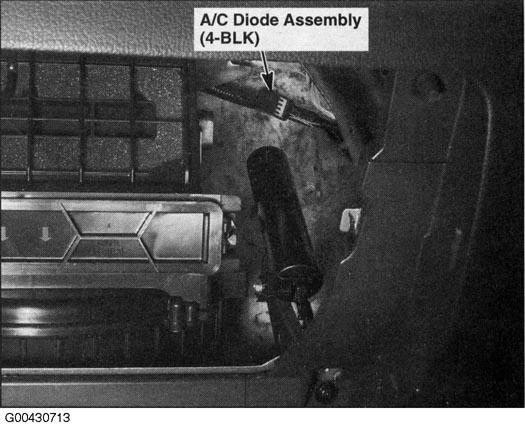

| A/C Diode Assembly | Behind right side of dash. See Figure. |

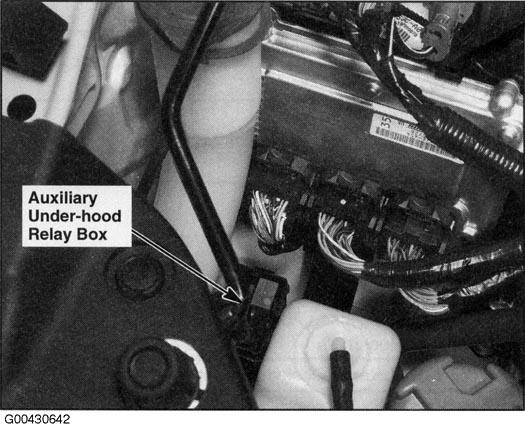

| Auxiliary Under-Hood Relay Box | Left rear of engine compartment. See Figure. |

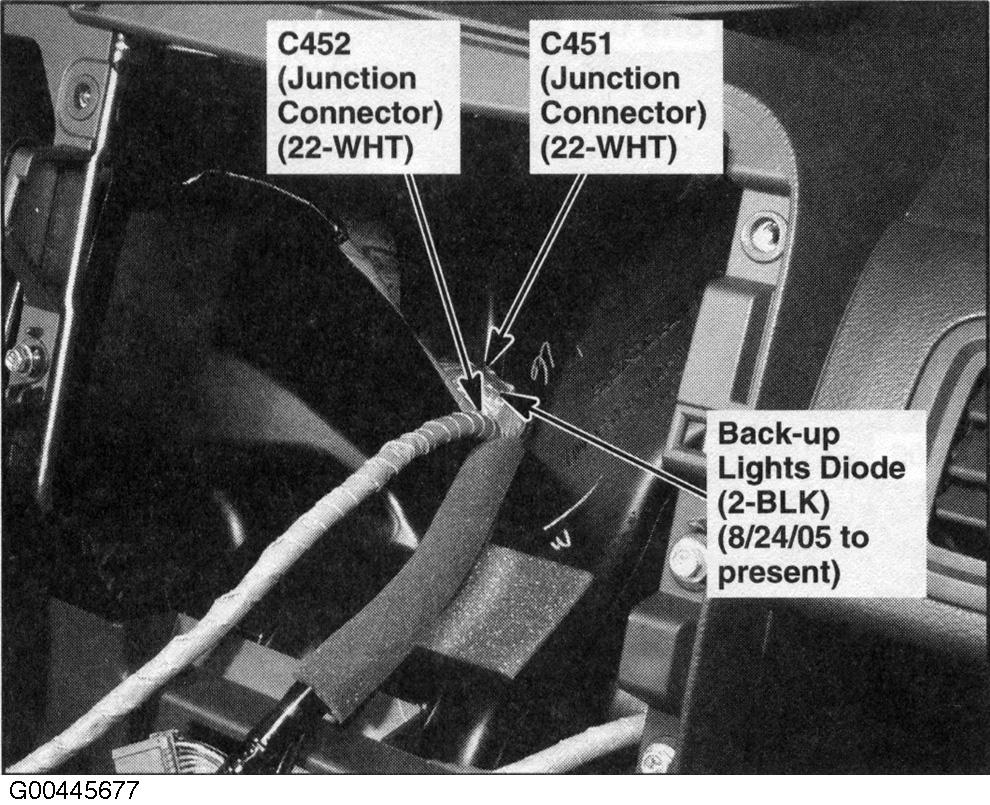

| Back-Up Lights Diode | Under middle of dash. See Figure. |

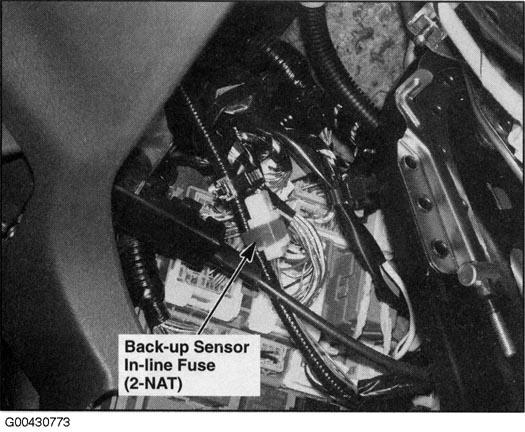

| Back-Up Sensor In-Line Fuse | Behind left kick panel. See Figure. |

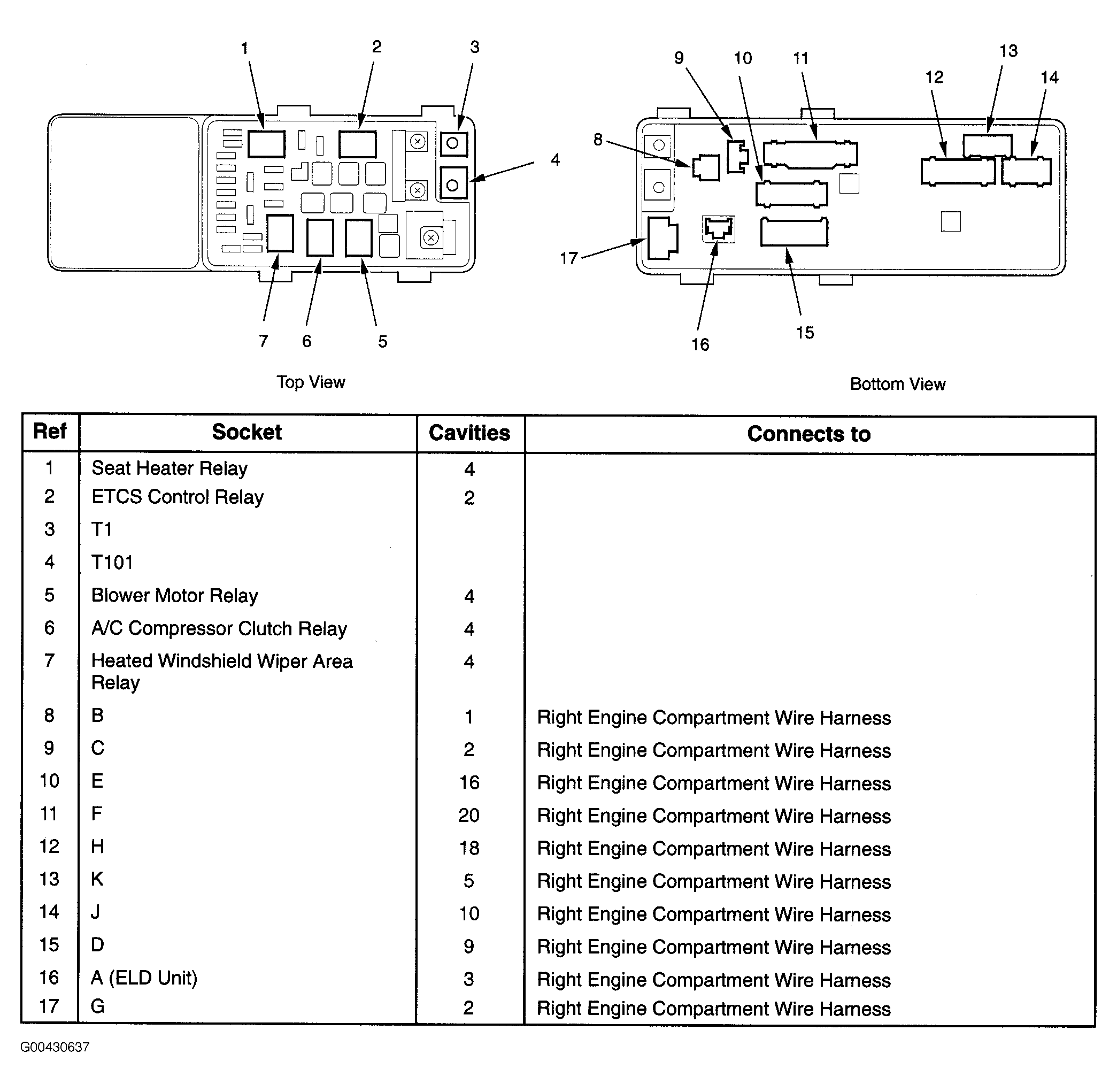

| ELD Unit (16) | On under-hood fuse/relay box. See Figure. |

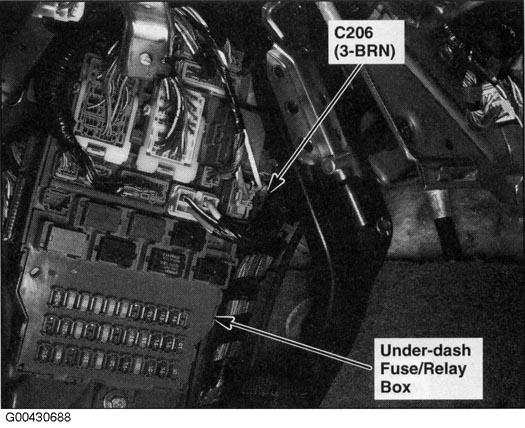

| Under-Dash Fuse/Relay Box | At left kick panel. See Figure. |

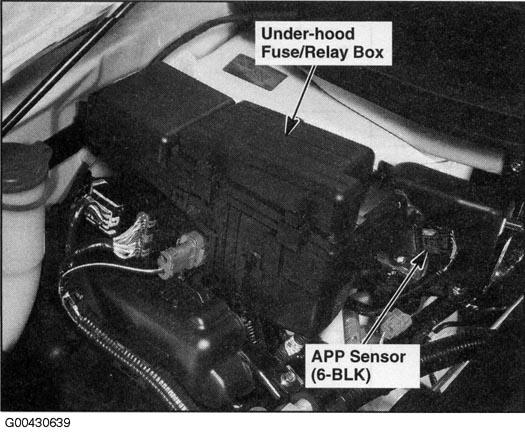

| Under-Hood Fuse/Relay Box | At right rear of engine compartment. See Figure. |
