Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

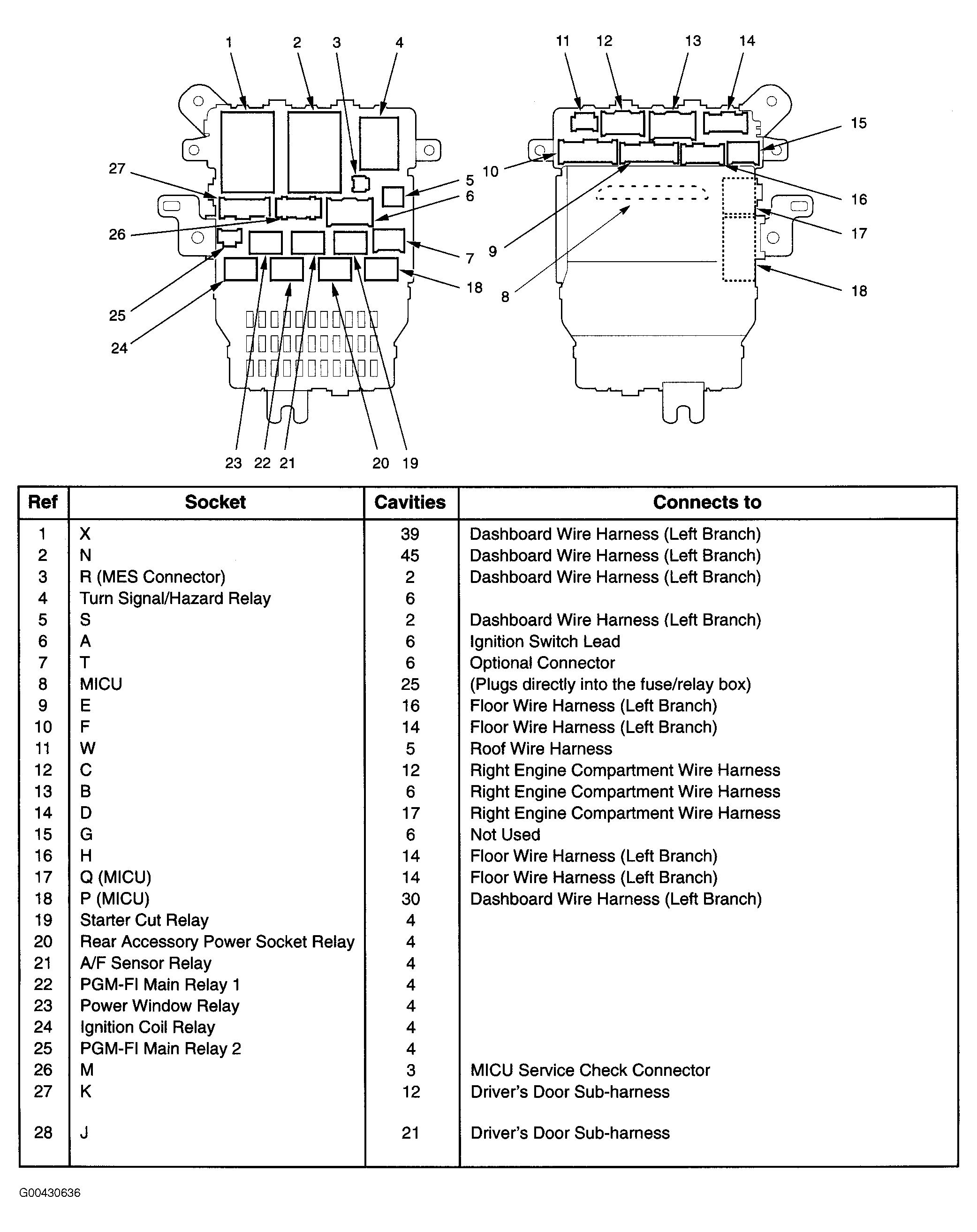

Fig 1: Under-Dash Fuse/Relay Box

G00430636

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Under-Hood Fuse/Relay Box

G00430637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

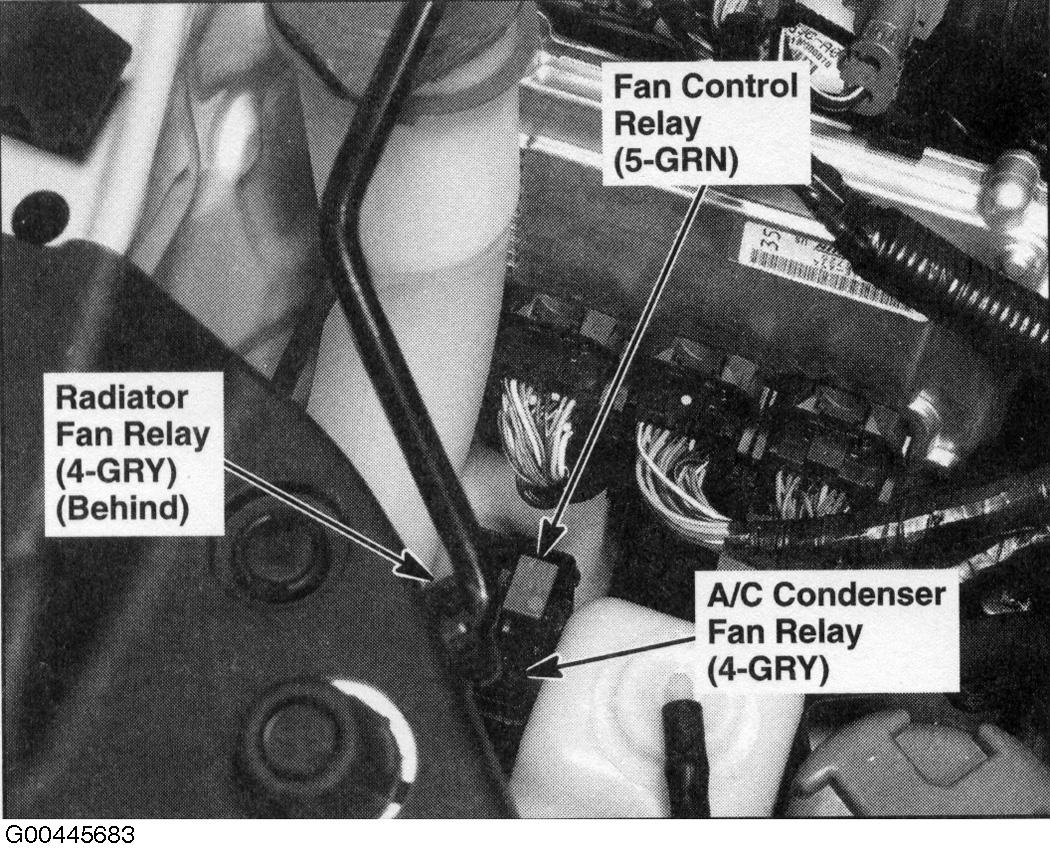

Fig 3: Right Rear Of Engine Compartment

G00445683

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Rear Of Engine Compartment

G00430639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

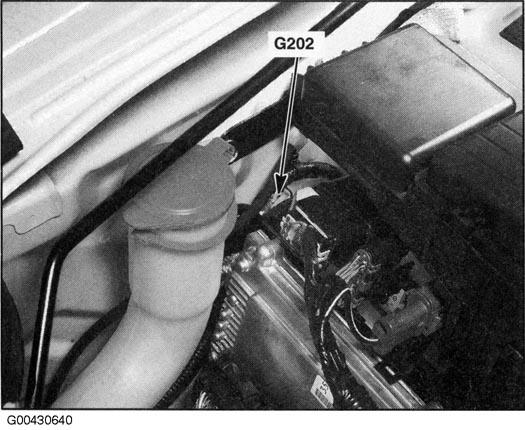

Fig 5: Right Rear Of Engine Compartment

G00430640

Courtesy of AMERICAN HONDA MOTOR CO., INC.

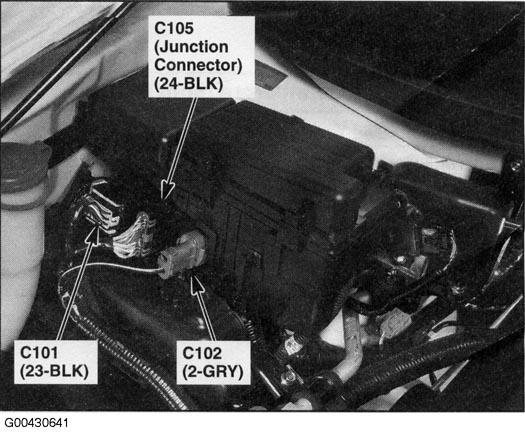

Fig 6: Right Rear Of Engine Compartment

G00430641

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Left Rear Of Engine Compartment

G00430642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Right Rear Of Engine Compartment

G00430643

Courtesy of AMERICAN HONDA MOTOR CO., INC.

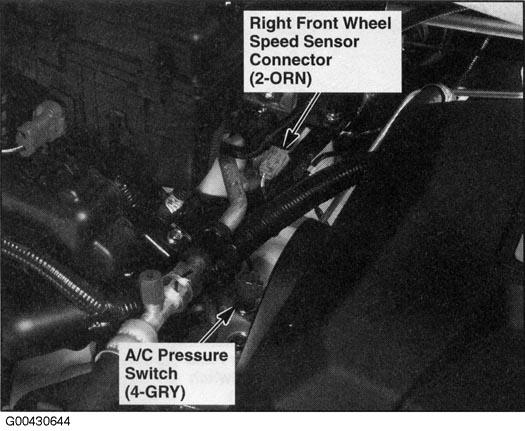

Fig 9: Right Rear Of Engine Compartment

G00430644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

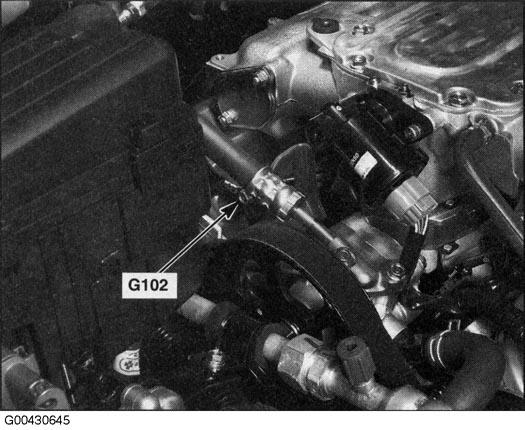

Fig 10: Front Of Engine

G00430645

Courtesy of AMERICAN HONDA MOTOR CO., INC.

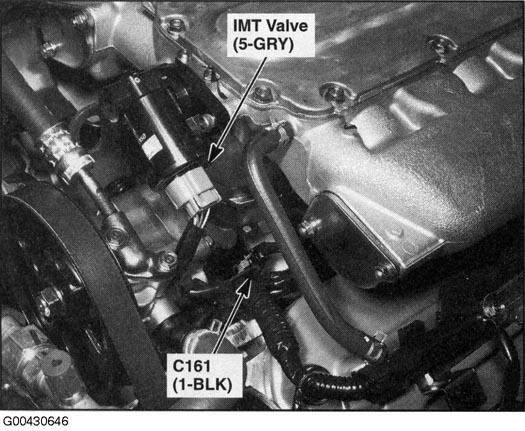

Fig 11: Front Of Engine

G00430646

Courtesy of AMERICAN HONDA MOTOR CO., INC.

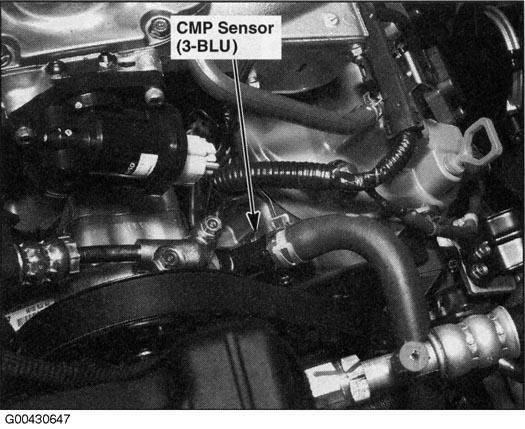

Fig 12: Front Of Engine

G00430647

Courtesy of AMERICAN HONDA MOTOR CO., INC.

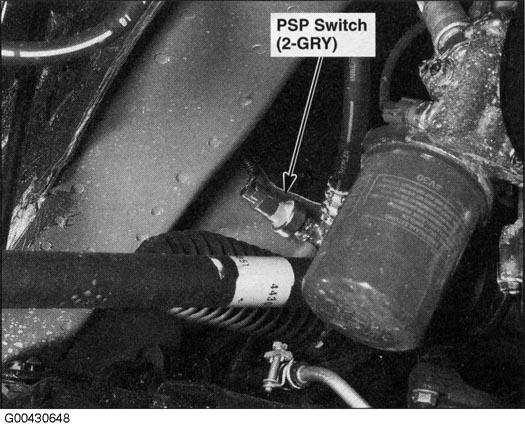

Fig 13: Lower Front Of Engine

G00430648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

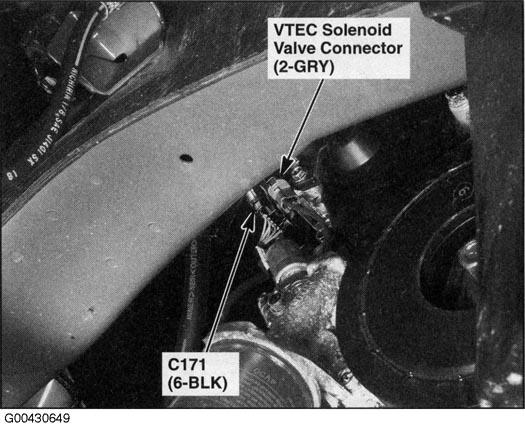

Fig 14: Lower Front Of Engine

G00430649

Courtesy of AMERICAN HONDA MOTOR CO., INC.

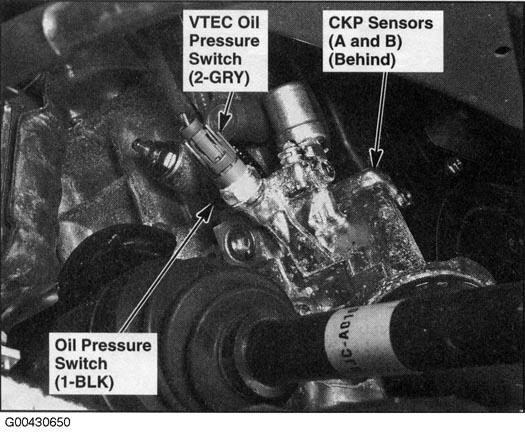

Fig 15: Lower Front Of Engine

G00430650

Courtesy of AMERICAN HONDA MOTOR CO., INC.

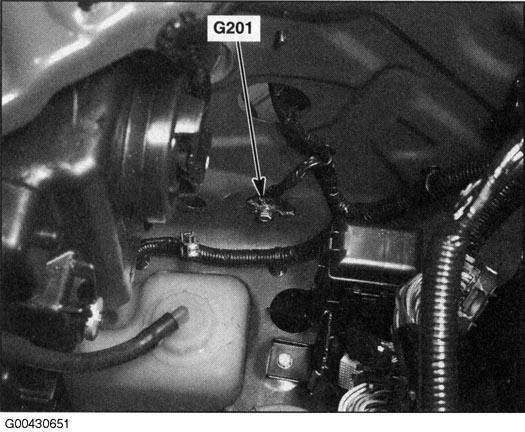

Fig 16: Right Front Of Engine Compartment

G00430651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

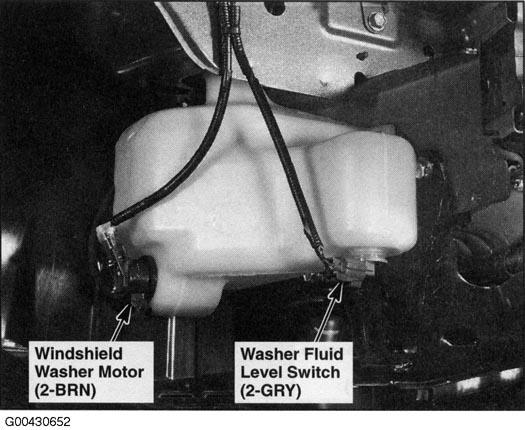

Fig 17: Behind Right Side Of Front Bumper

G00430652

Courtesy of AMERICAN HONDA MOTOR CO., INC.

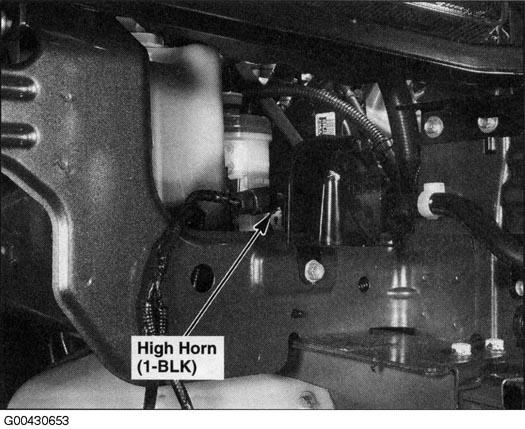

Fig 18: Behind Right Side Of Front Bumper

G00430653

Courtesy of AMERICAN HONDA MOTOR CO., INC.

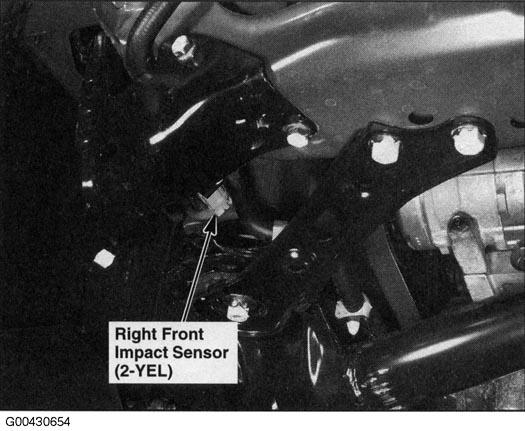

Fig 19: Behind Right Side Of Front Bumper

G00430654

Courtesy of AMERICAN HONDA MOTOR CO., INC.

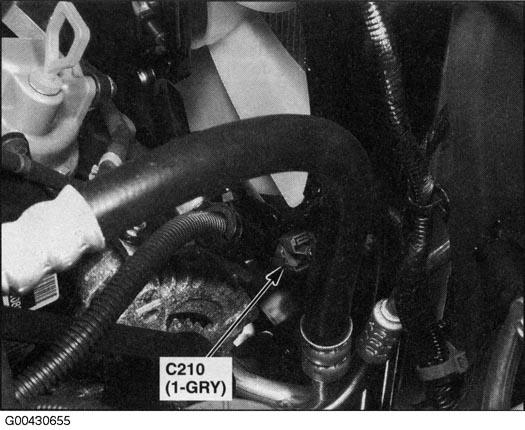

Fig 20: Right Front Of Engine Compartment

G00430655

Courtesy of AMERICAN HONDA MOTOR CO., INC.

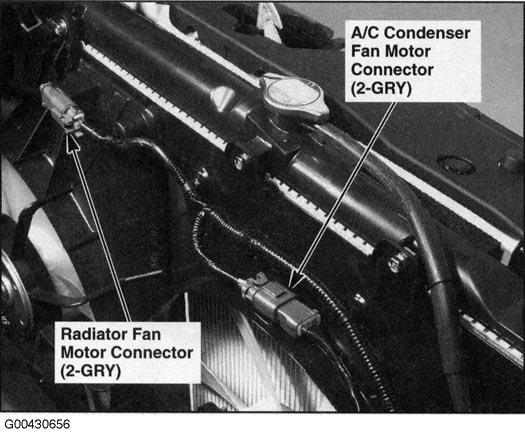

Fig 21: Front Of Engine Compartment

G00430656

Courtesy of AMERICAN HONDA MOTOR CO., INC.

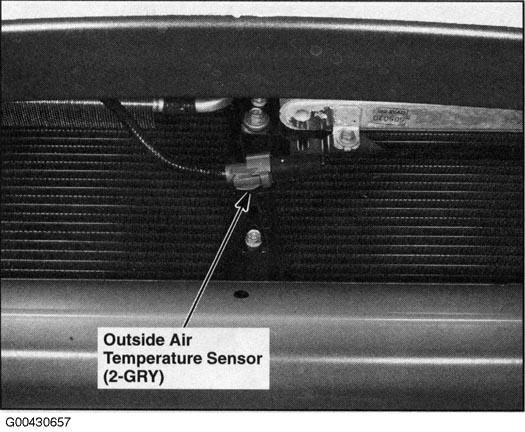

Fig 22: Behind Middle Of Front Bumper

G00430657

Courtesy of AMERICAN HONDA MOTOR CO., INC.

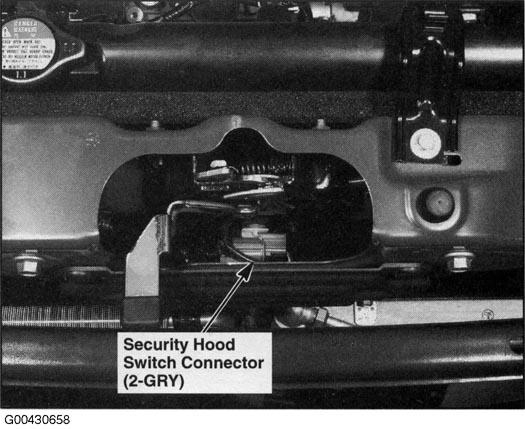

Fig 23: Behind Middle Of Front Bumper

G00430658

Courtesy of AMERICAN HONDA MOTOR CO., INC.

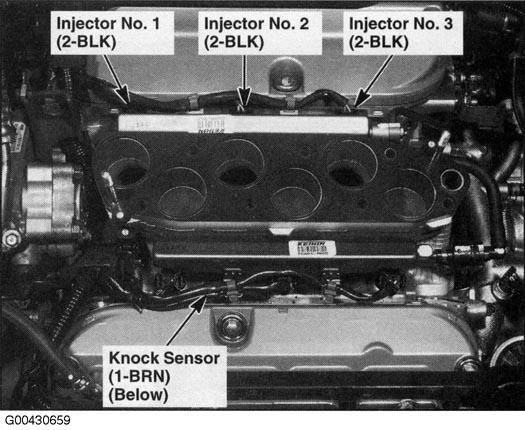

Fig 24: Middle Of Engine

G00430659

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Middle Of Engine

G00430660

Courtesy of AMERICAN HONDA MOTOR CO., INC.

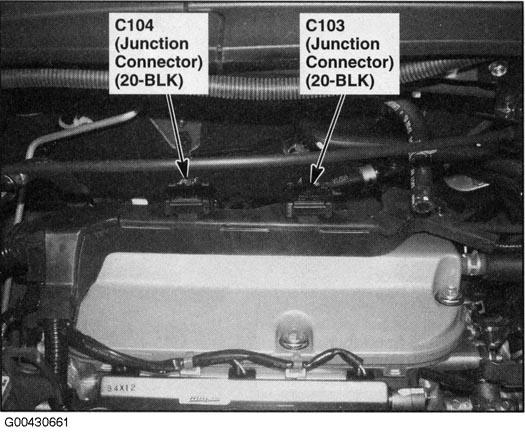

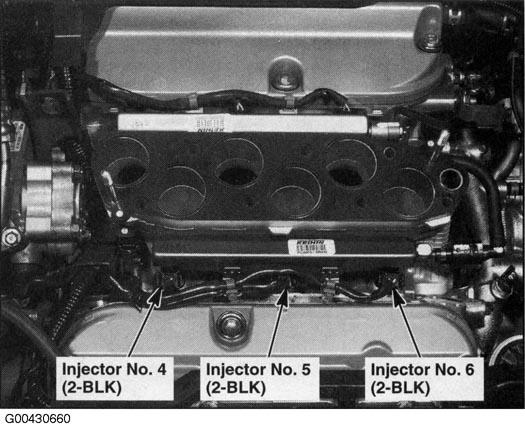

Fig 26: Middle Of Engine

G00430661

Courtesy of AMERICAN HONDA MOTOR CO., INC.

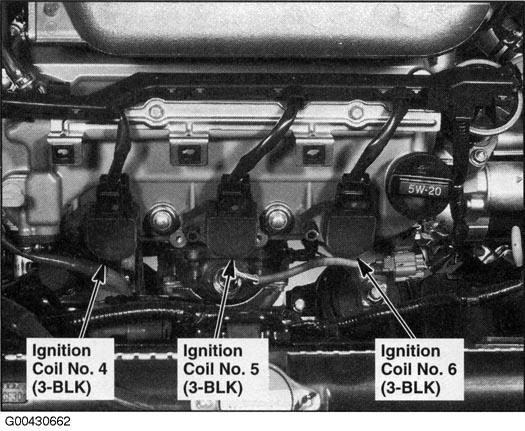

Fig 27: Middle Of Engine

G00430662

Courtesy of AMERICAN HONDA MOTOR CO., INC.

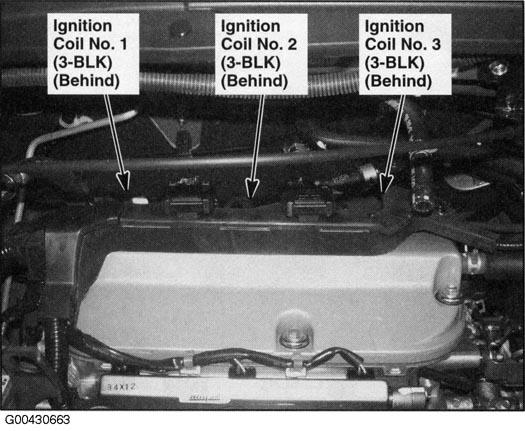

Fig 28: Middle Of Engine

G00430663

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Behind Left Side Of Front Bumper

G00430664

Courtesy of AMERICAN HONDA MOTOR CO., INC.

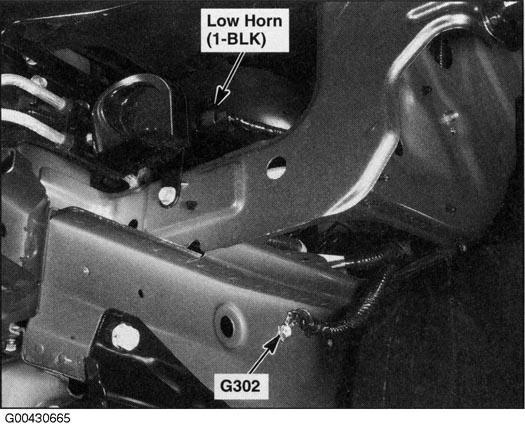

Fig 30: Behind Left Side Of Front Bumper

G00430665

Courtesy of AMERICAN HONDA MOTOR CO., INC.

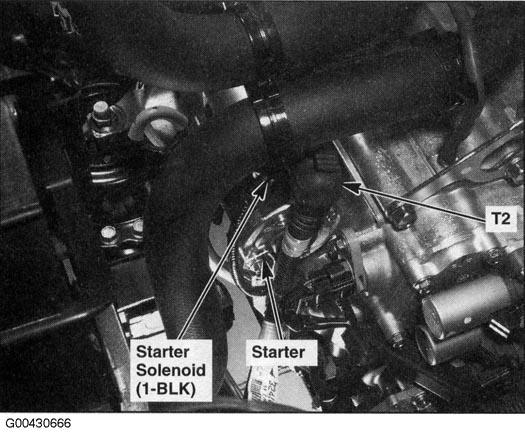

Fig 31: Rear Of Engine

G00430666

Courtesy of AMERICAN HONDA MOTOR CO., INC.

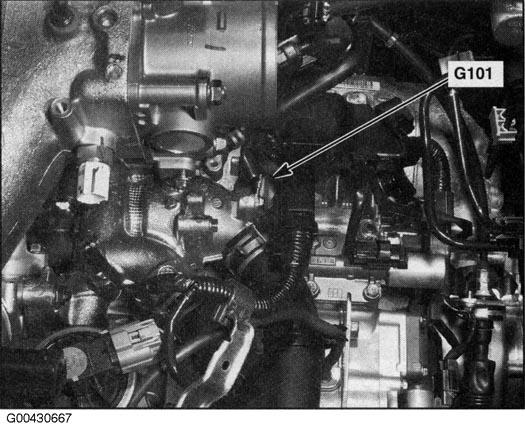

Fig 32: Rear Of Engine

G00430667

Courtesy of AMERICAN HONDA MOTOR CO., INC.

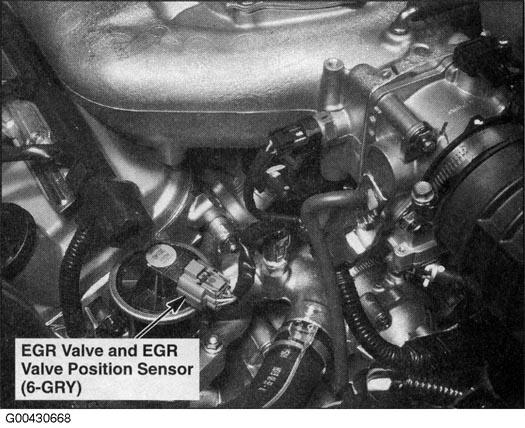

Fig 33: Rear Of Engine

G00430668

Courtesy of AMERICAN HONDA MOTOR CO., INC.

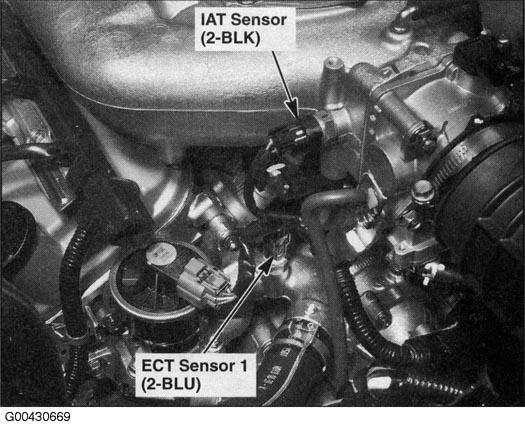

Fig 34: Rear Of Engine

G00430669

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Rear Of Engine

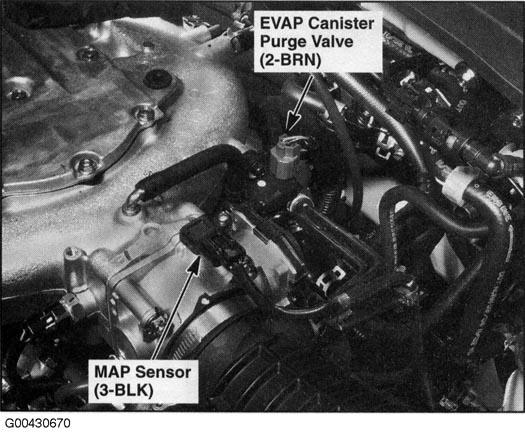

G00430670

Courtesy of AMERICAN HONDA MOTOR CO., INC.

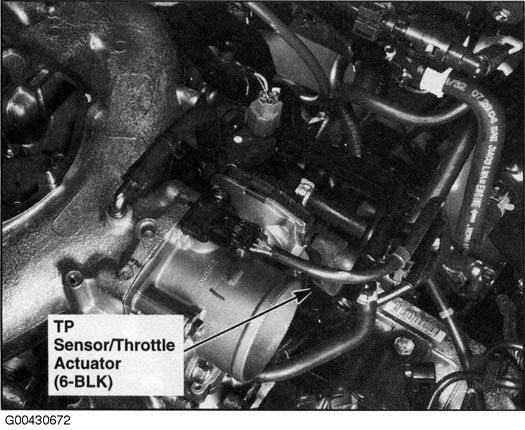

Fig 36: Rear Of Engine

G00430672

Courtesy of AMERICAN HONDA MOTOR CO., INC.

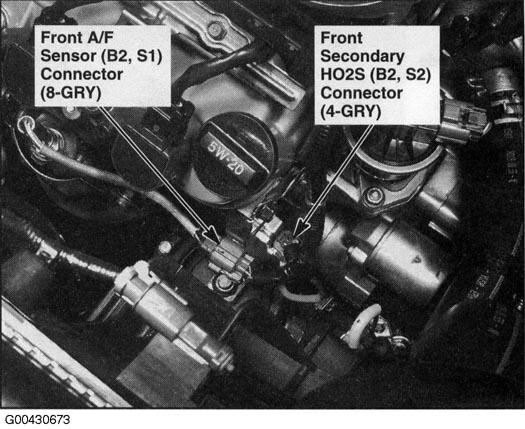

Fig 37: Left Side Of Engine Compartment

G00430673

Courtesy of AMERICAN HONDA MOTOR CO., INC.

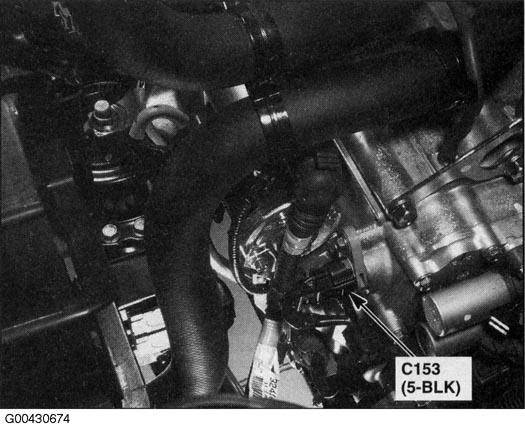

Fig 38: Transmission Housing

G00430674

Courtesy of AMERICAN HONDA MOTOR CO., INC.

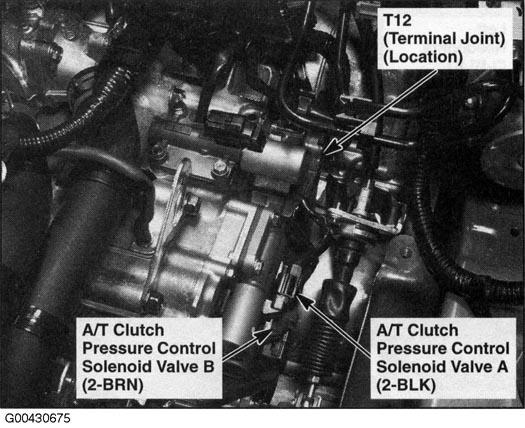

Fig 39: Transmission Housing

G00430675

Courtesy of AMERICAN HONDA MOTOR CO., INC.

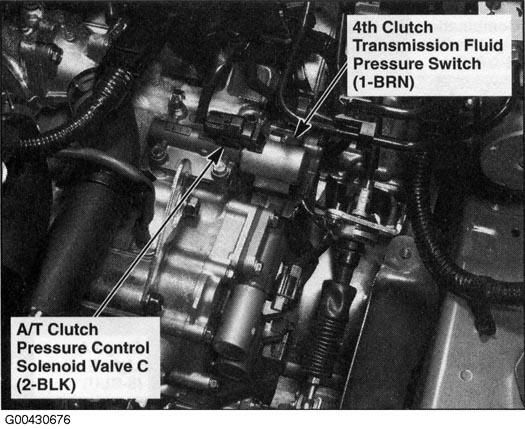

Fig 40: Transmission Housing

G00430676

Courtesy of AMERICAN HONDA MOTOR CO., INC.

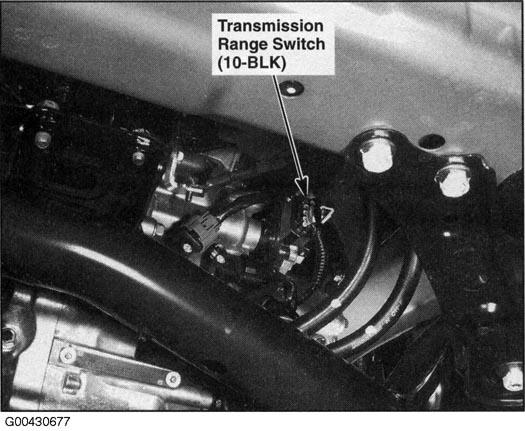

Fig 41: Transmission Housing

G00430677

Courtesy of AMERICAN HONDA MOTOR CO., INC.

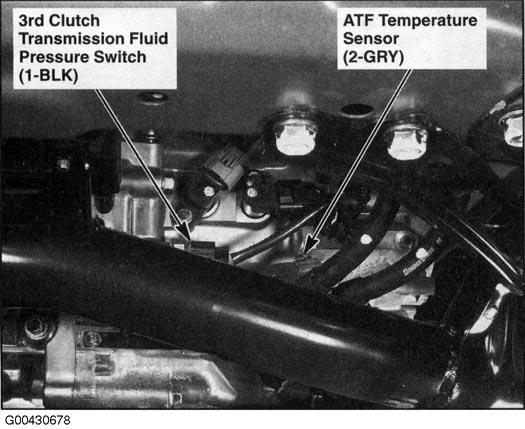

Fig 42: Transmission Housing

G00430678

Courtesy of AMERICAN HONDA MOTOR CO., INC.

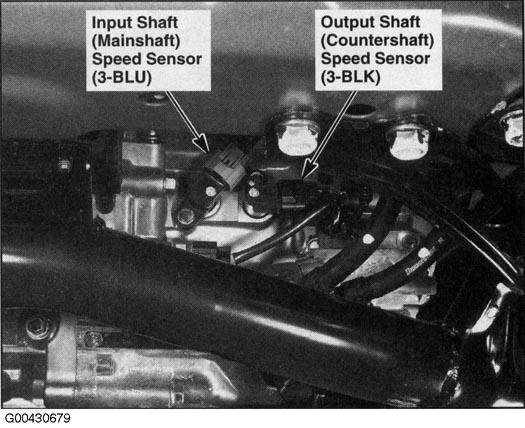

Fig 43: Transmission Housing

G00430679

Courtesy of AMERICAN HONDA MOTOR CO., INC.

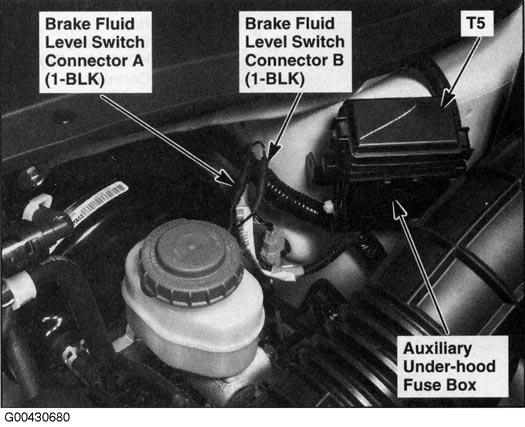

Fig 44: Left Rear Of Engine Compartment

G00430680

Courtesy of AMERICAN HONDA MOTOR CO., INC.

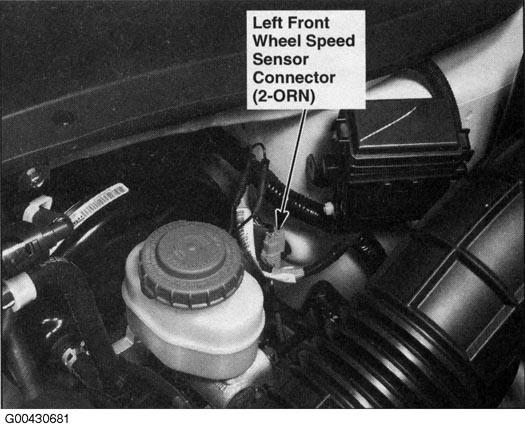

Fig 45: Left Rear Of Engine Compartment

G00430681

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Left Rear Of Engine Compartment

G00430682

Courtesy of AMERICAN HONDA MOTOR CO., INC.

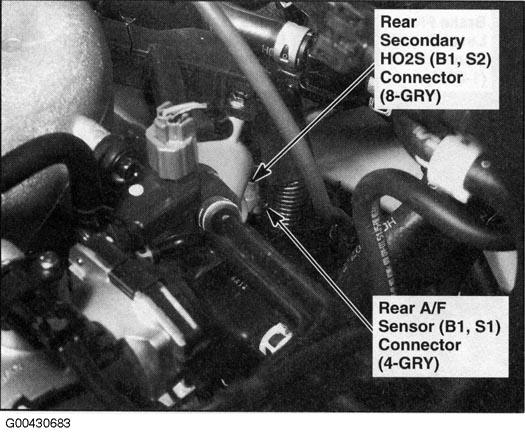

Fig 47: Left Rear Of Engine Compartment

G00430683

Courtesy of AMERICAN HONDA MOTOR CO., INC.

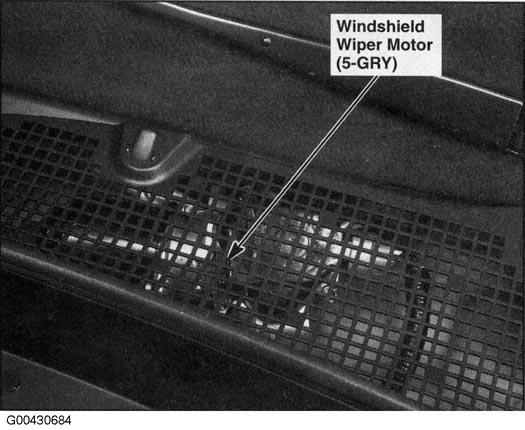

Fig 48: Left Rear Of Engine Compartment

G00430684

Courtesy of AMERICAN HONDA MOTOR CO., INC.

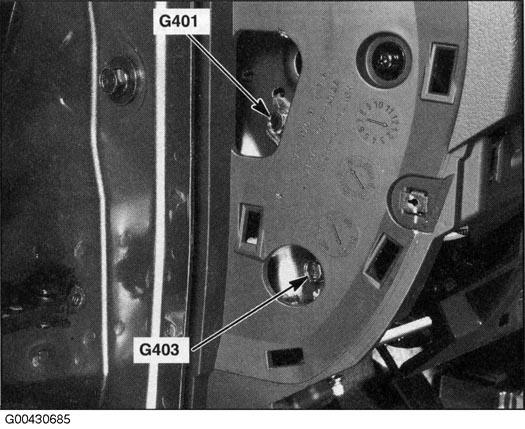

Fig 49: Left Side Of Dash

G00430685

Courtesy of AMERICAN HONDA MOTOR CO., INC.

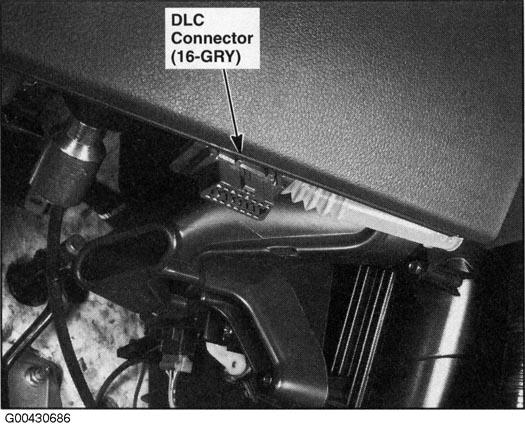

Fig 50: Left Side Of Dash

G00430686

Courtesy of AMERICAN HONDA MOTOR CO., INC.

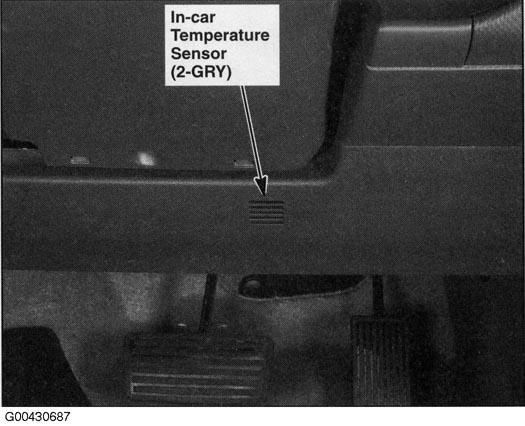

Fig 51: Lower Left Side Of Dash

G00430687

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Left Kick Panel

G00430688

Courtesy of AMERICAN HONDA MOTOR CO., INC.

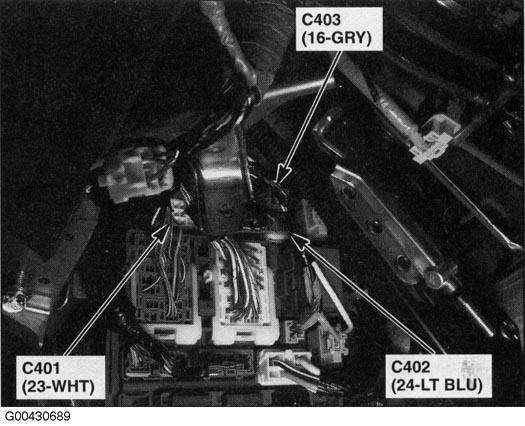

Fig 53: Left Kick Panel

G00430689

Courtesy of AMERICAN HONDA MOTOR CO., INC.

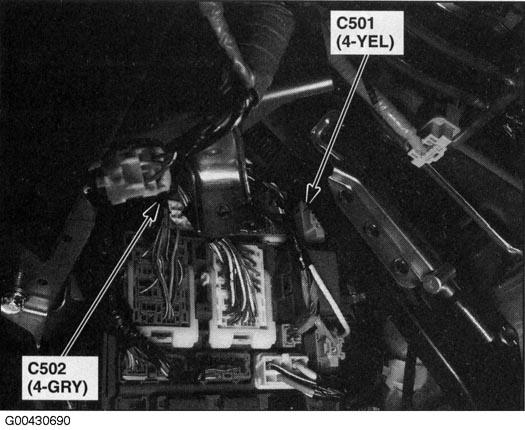

Fig 54: Left Kick Panel

G00430690

Courtesy of AMERICAN HONDA MOTOR CO., INC.

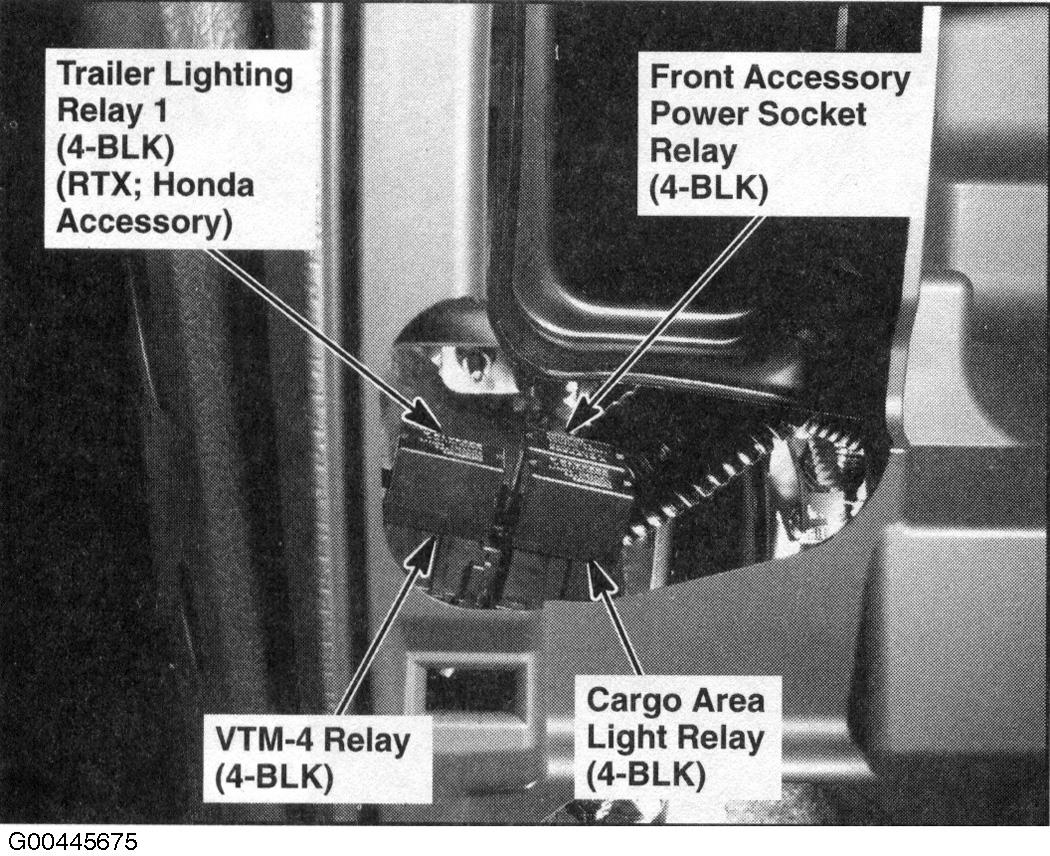

Fig 55: Left Side Of Dash

G00445675

Courtesy of AMERICAN HONDA MOTOR CO., INC.

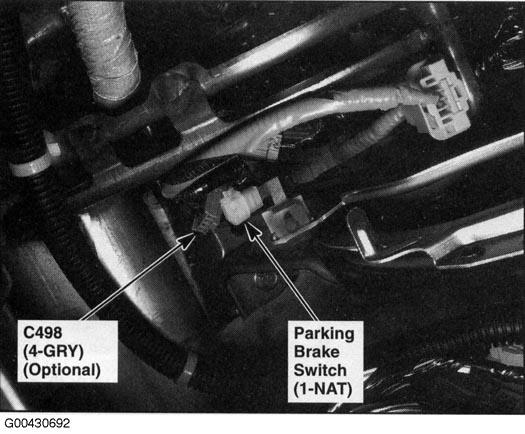

Fig 56: Under Left Side Of Dash

G00430692

Courtesy of AMERICAN HONDA MOTOR CO., INC.

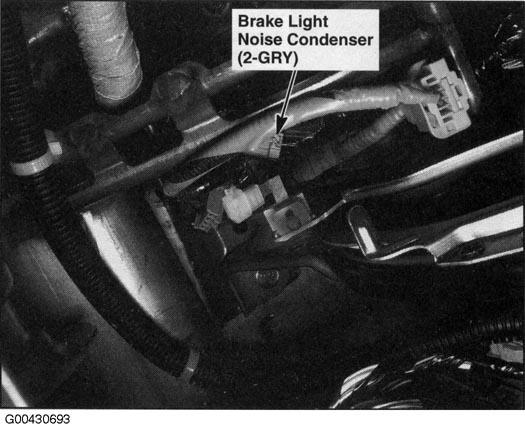

Fig 57: Under Left Side Of Dash

G00430693

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Under Left Side Of Dash

G00430694

Courtesy of AMERICAN HONDA MOTOR CO., INC.

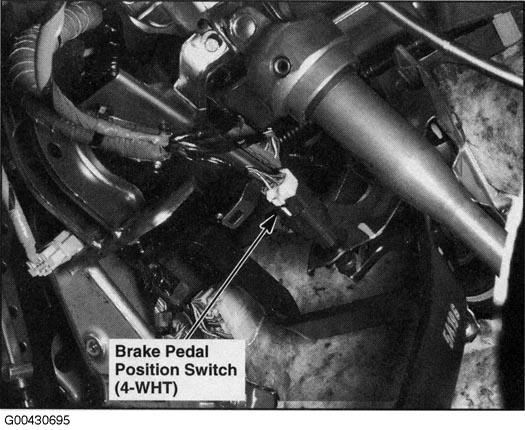

Fig 59: Under Left Side Of Dash

G00430695

Courtesy of AMERICAN HONDA MOTOR CO., INC.

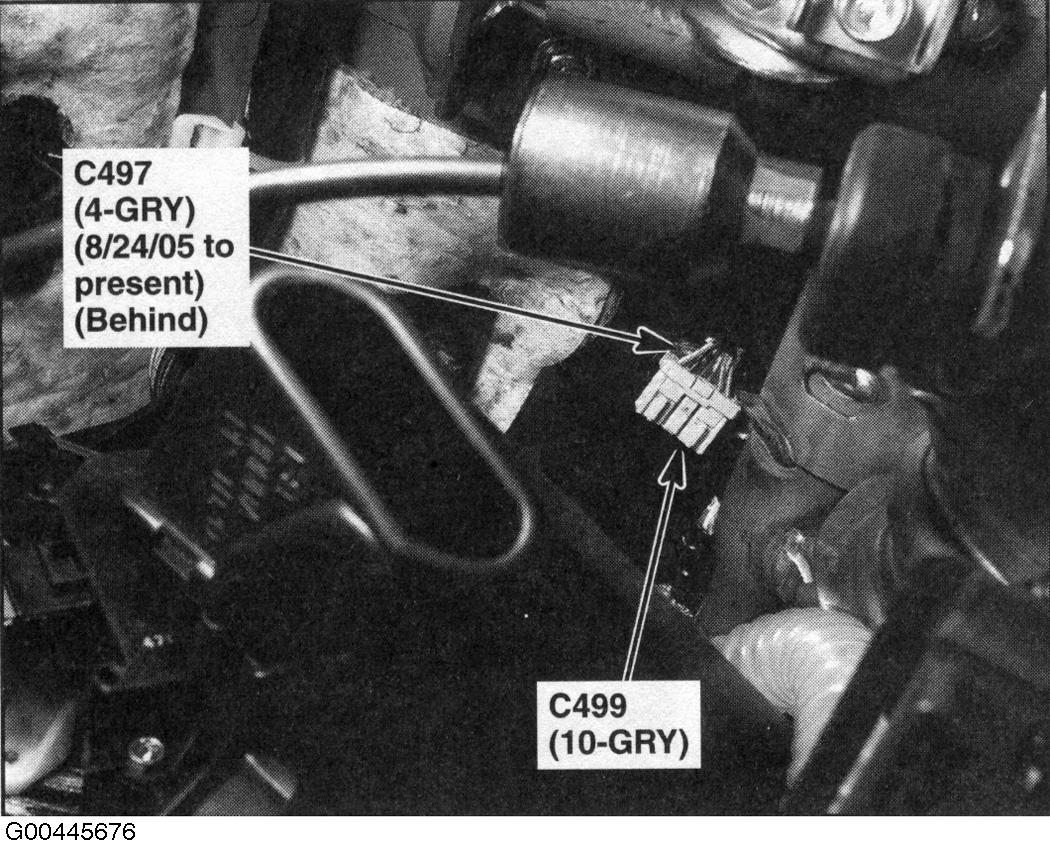

Fig 60: Under Left Side Of Dash

G00445676

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Under Left Side Of Dash

G00430697

Courtesy of AMERICAN HONDA MOTOR CO., INC.

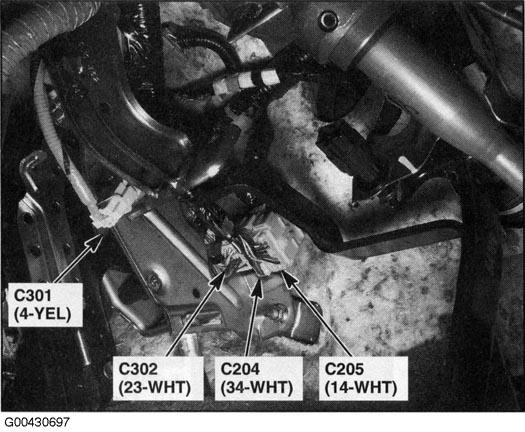

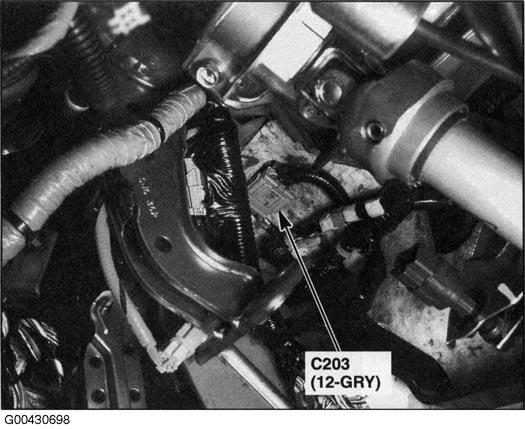

Fig 62: Under Left Side Of Dash

G00430698

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Bottom Of Steering Column

G00430699

Courtesy of AMERICAN HONDA MOTOR CO., INC.

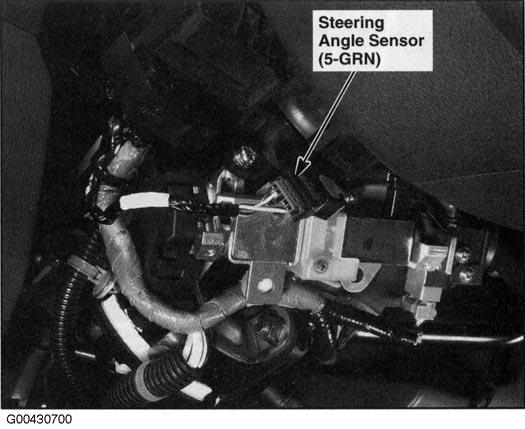

Fig 64: Left Side Of Steering Column

G00430700

Courtesy of AMERICAN HONDA MOTOR CO., INC.

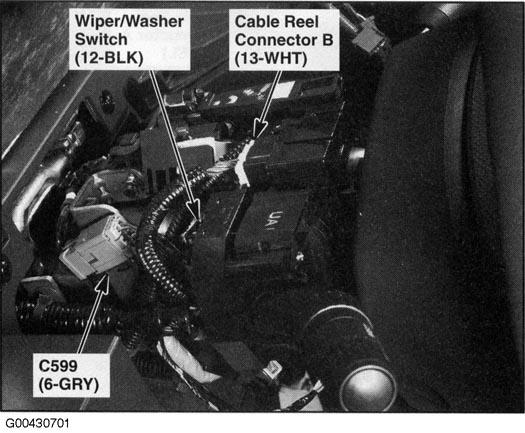

Fig 65: Top Of Steering Column

G00430701

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Right Side Of Steering Column

G00430702

Courtesy of AMERICAN HONDA MOTOR CO., INC.

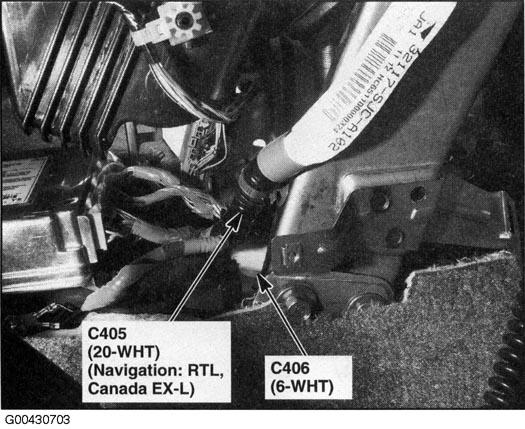

Fig 67: Under Middle Of Dash

G00430703

Courtesy of AMERICAN HONDA MOTOR CO., INC.

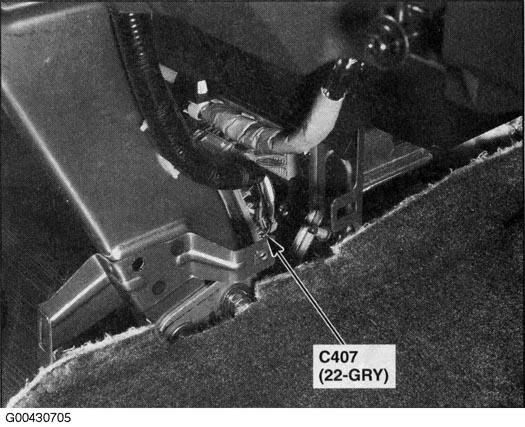

Fig 68: Under Middle Of Dash

G00430704

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Under Middle Of Dash

G00430705

Courtesy of AMERICAN HONDA MOTOR CO., INC.

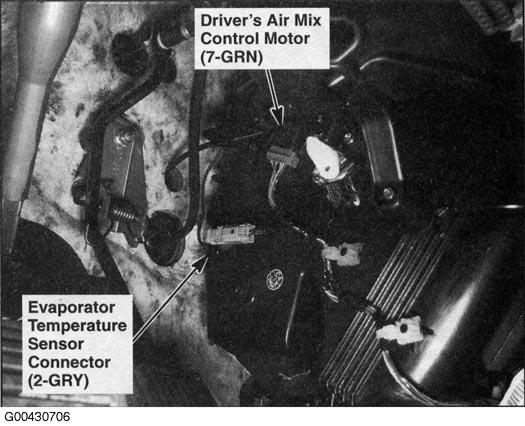

Fig 70: Under Middle Of Dash

G00430706

Courtesy of AMERICAN HONDA MOTOR CO., INC.

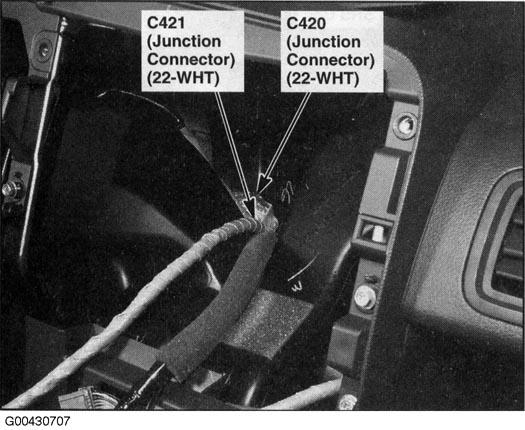

Fig 71: Under Middle Of Dash

G00430707

Courtesy of AMERICAN HONDA MOTOR CO., INC.

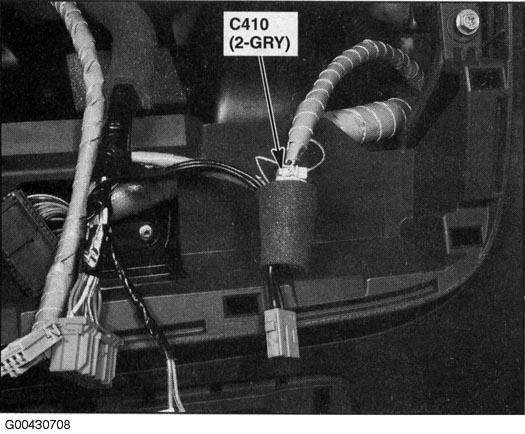

Fig 72: Under Middle Of Dash

G00430708

Courtesy of AMERICAN HONDA MOTOR CO., INC.

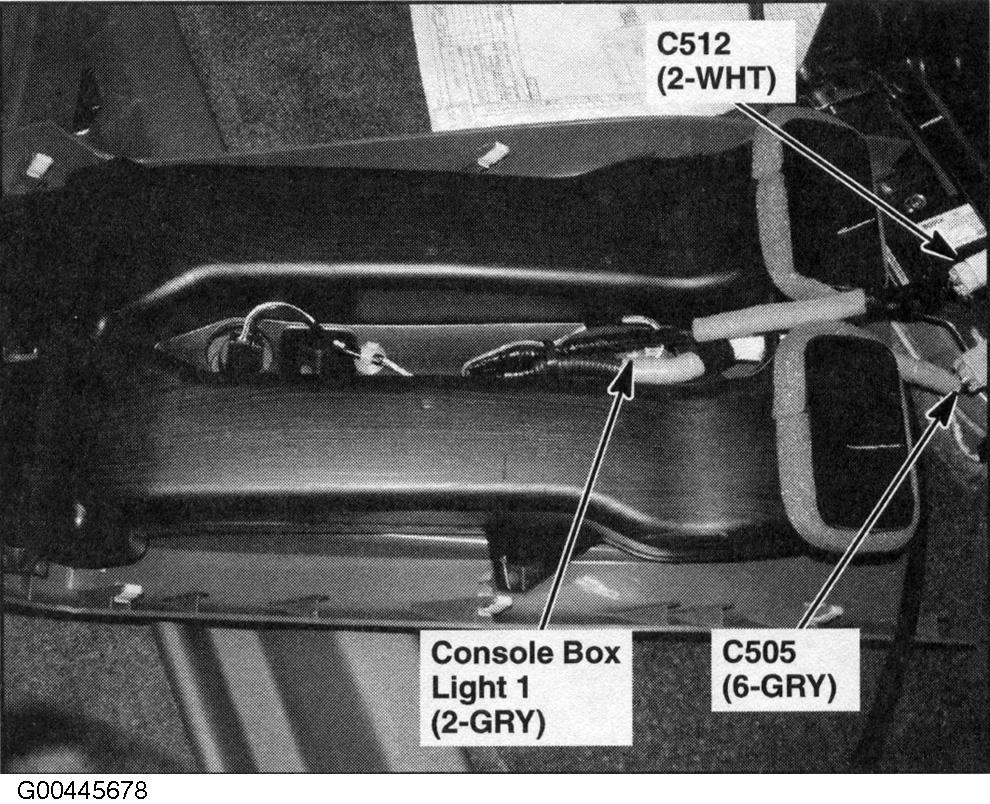

Fig 73: Rear Of Center Console

G00445678

Courtesy of AMERICAN HONDA MOTOR CO., INC.

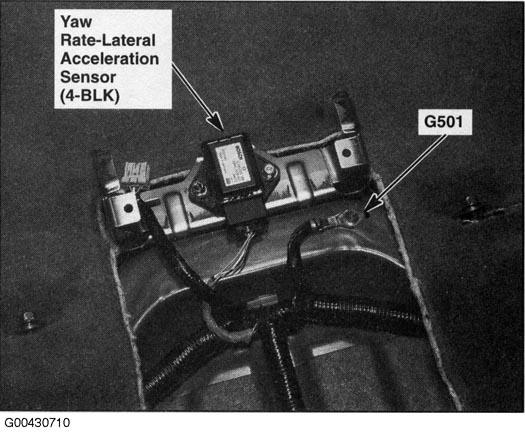

Fig 74: Under Center Console

G00430710

Courtesy of AMERICAN HONDA MOTOR CO., INC.

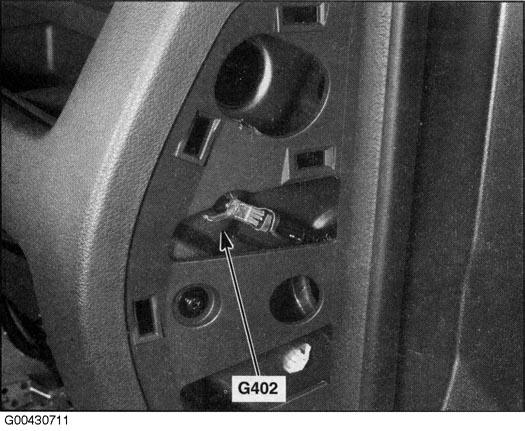

Fig 75: Right Side Of Dash

G00430711

Courtesy of AMERICAN HONDA MOTOR CO., INC.

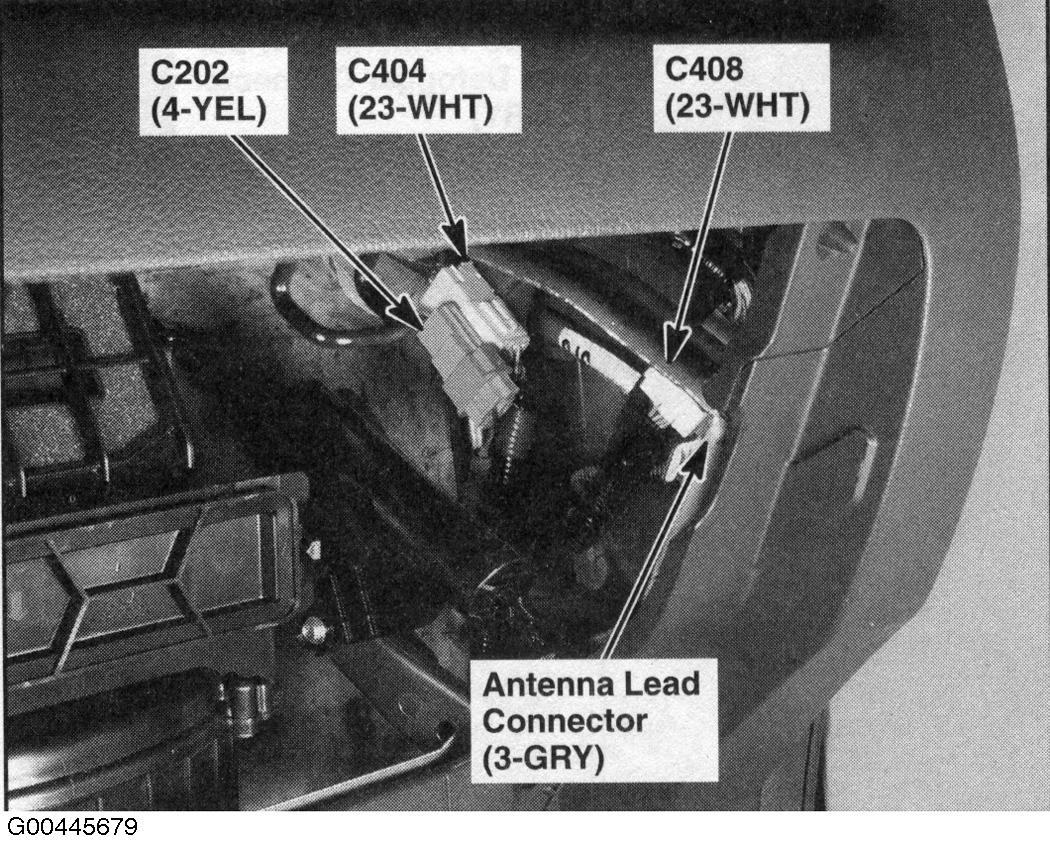

Fig 76: Behind Glove Box

G00445679

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Behind Glove Box

G00430713

Courtesy of AMERICAN HONDA MOTOR CO., INC.

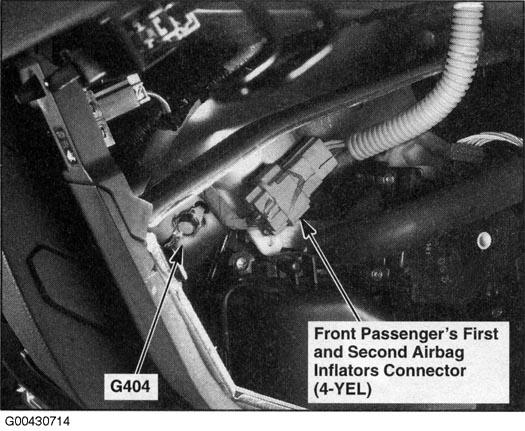

Fig 78: Behind Glove Box

G00430714

Courtesy of AMERICAN HONDA MOTOR CO., INC.

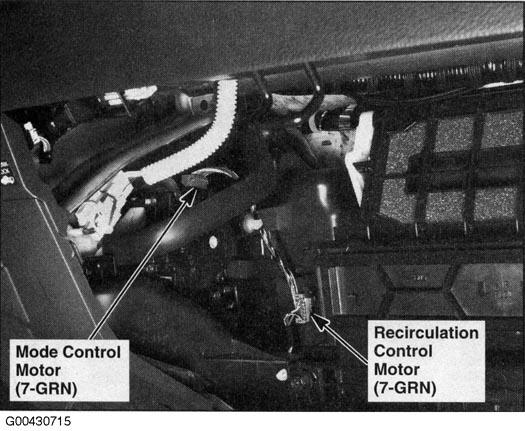

Fig 79: Behind Glove Box

G00430715

Courtesy of AMERICAN HONDA MOTOR CO., INC.

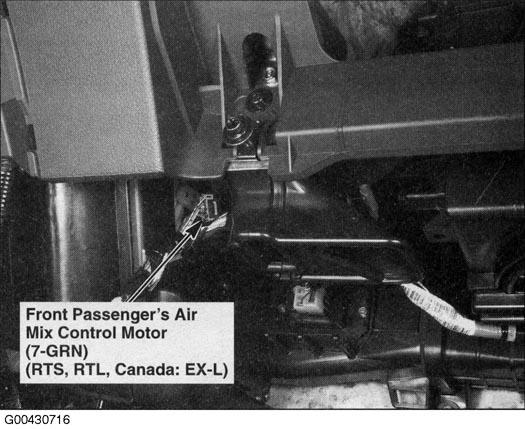

Fig 80: Under Right Side Of Dash

G00430716

Courtesy of AMERICAN HONDA MOTOR CO., INC.

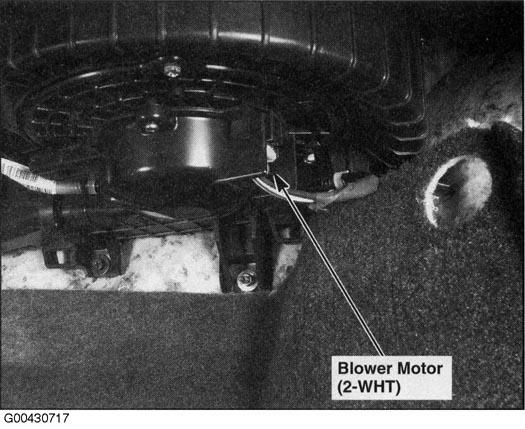

Fig 81: Under Right Side Of Dash

G00430717

Courtesy of AMERICAN HONDA MOTOR CO., INC.

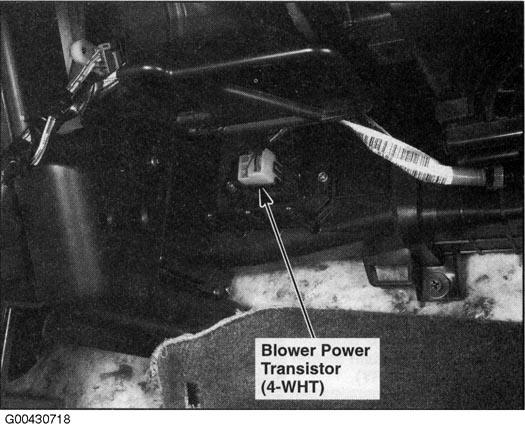

Fig 82: Under Right Side Of Dash

G00430718

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Behind Right Kick Panel

G00430719

Courtesy of AMERICAN HONDA MOTOR CO., INC.

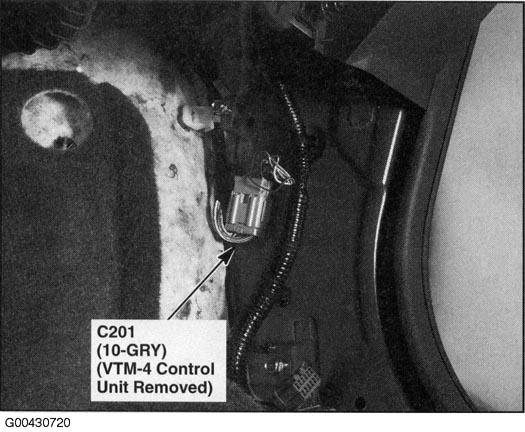

Fig 84: Behind Right Kick Panel

G00430720

Courtesy of AMERICAN HONDA MOTOR CO., INC.

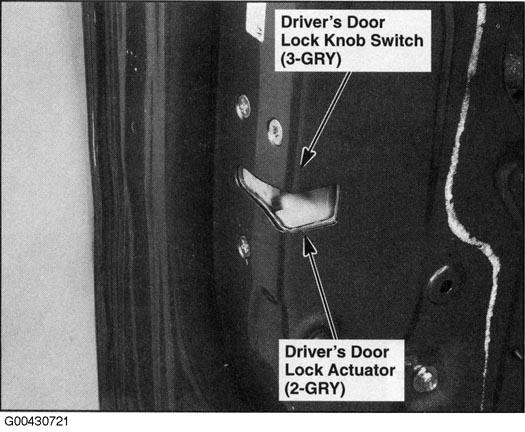

Fig 85: Driver's Door

G00430721

Courtesy of AMERICAN HONDA MOTOR CO., INC.

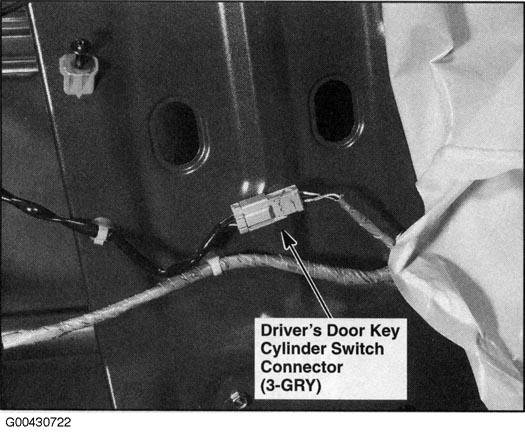

Fig 86: Driver's Door

G00430722

Courtesy of AMERICAN HONDA MOTOR CO., INC.

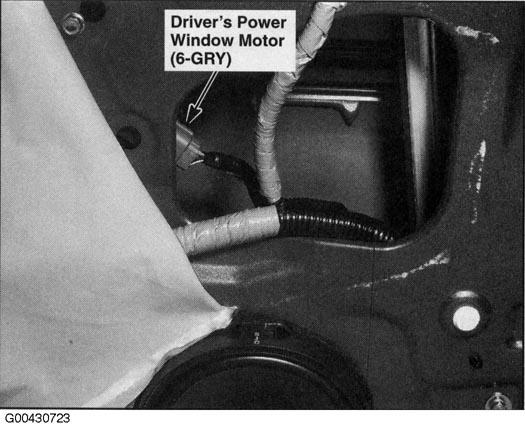

Fig 87: Driver's Door

G00430723

Courtesy of AMERICAN HONDA MOTOR CO., INC.

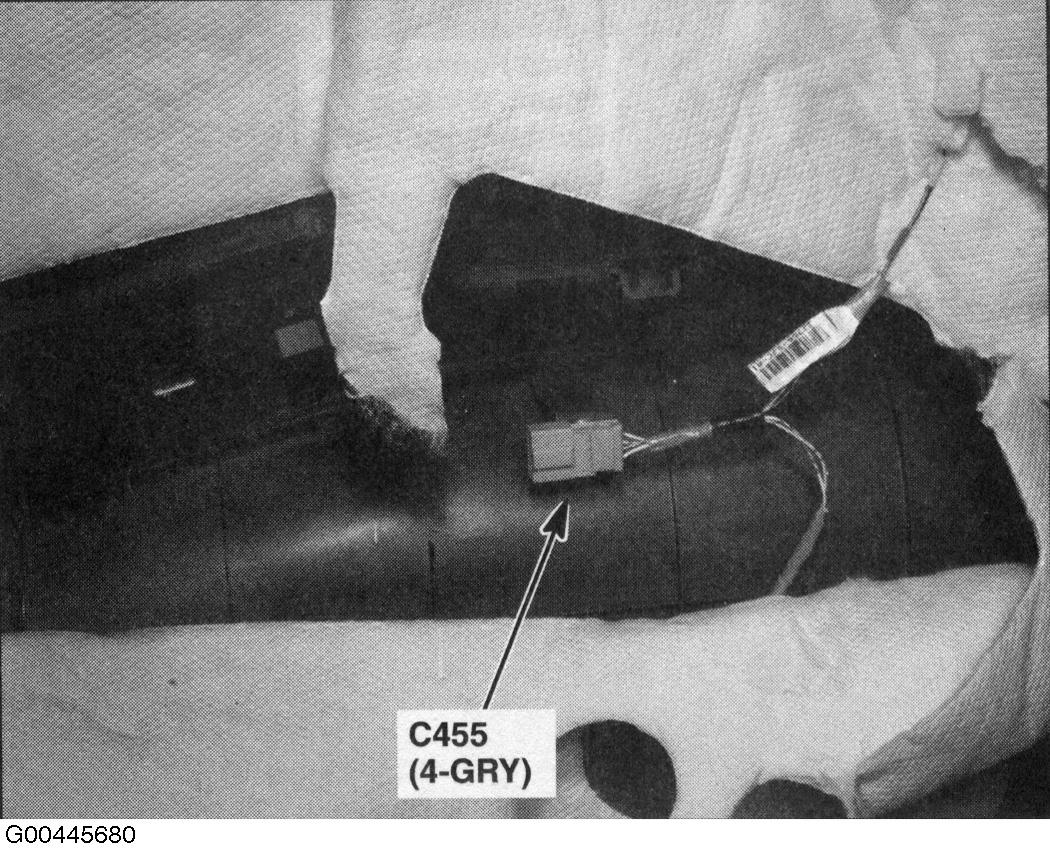

Fig 88: Driver's Door

G00445680

Courtesy of AMERICAN HONDA MOTOR CO., INC.

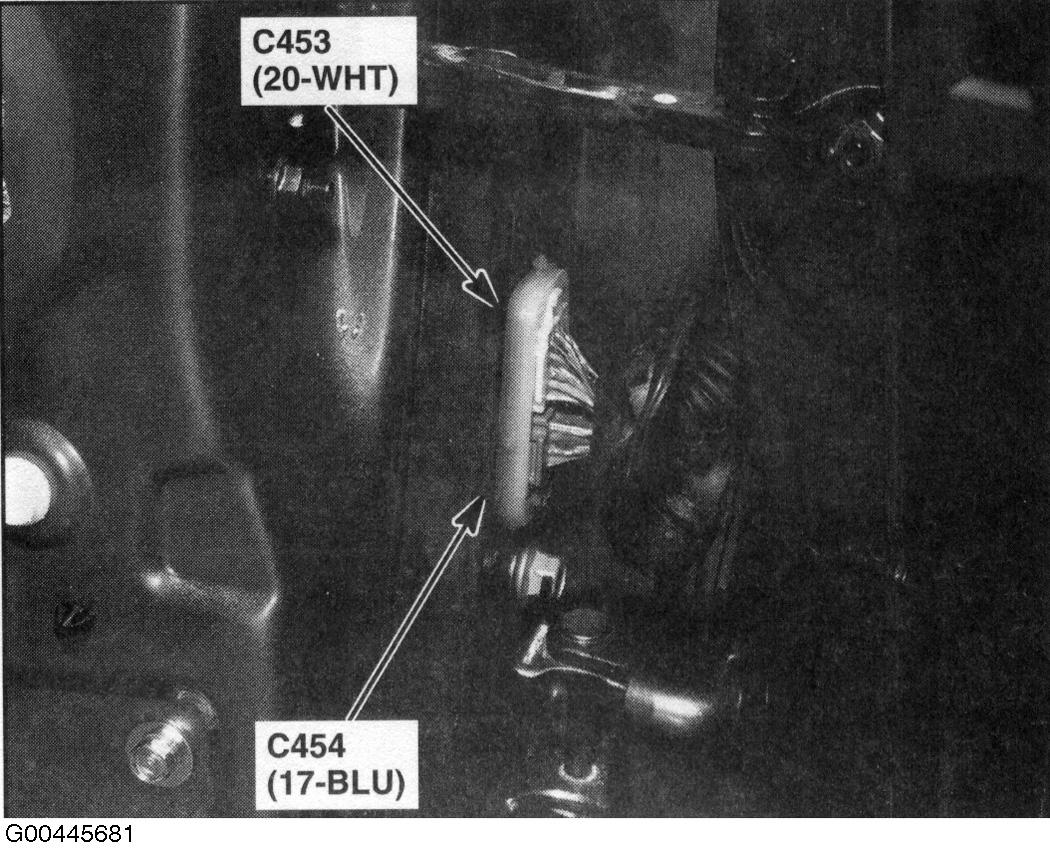

Fig 89: Driver's Door

G00445681

Courtesy of AMERICAN HONDA MOTOR CO., INC.

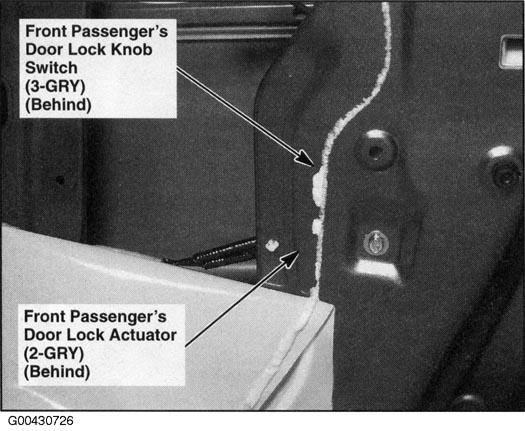

Fig 90: Front Passenger's Door

G00430726

Courtesy of AMERICAN HONDA MOTOR CO., INC.

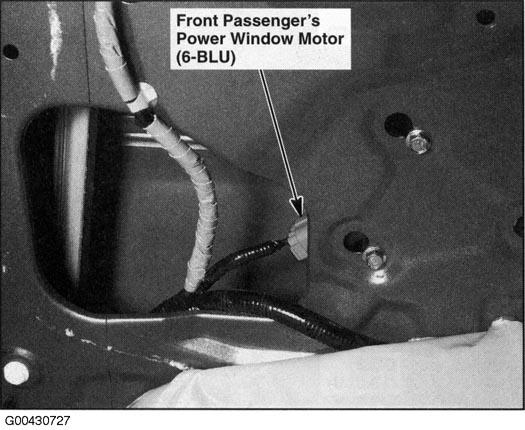

Fig 91: Front Passenger's Door

G00430727

Courtesy of AMERICAN HONDA MOTOR CO., INC.

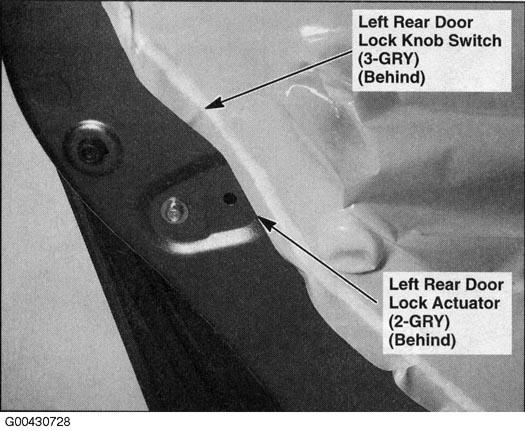

Fig 92: Left Rear Door (Right Similar)

G00430728

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Left Rear Door (Right Similar)

G00430729

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Under Driver's Seat

G00430730

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Under Driver's Seat

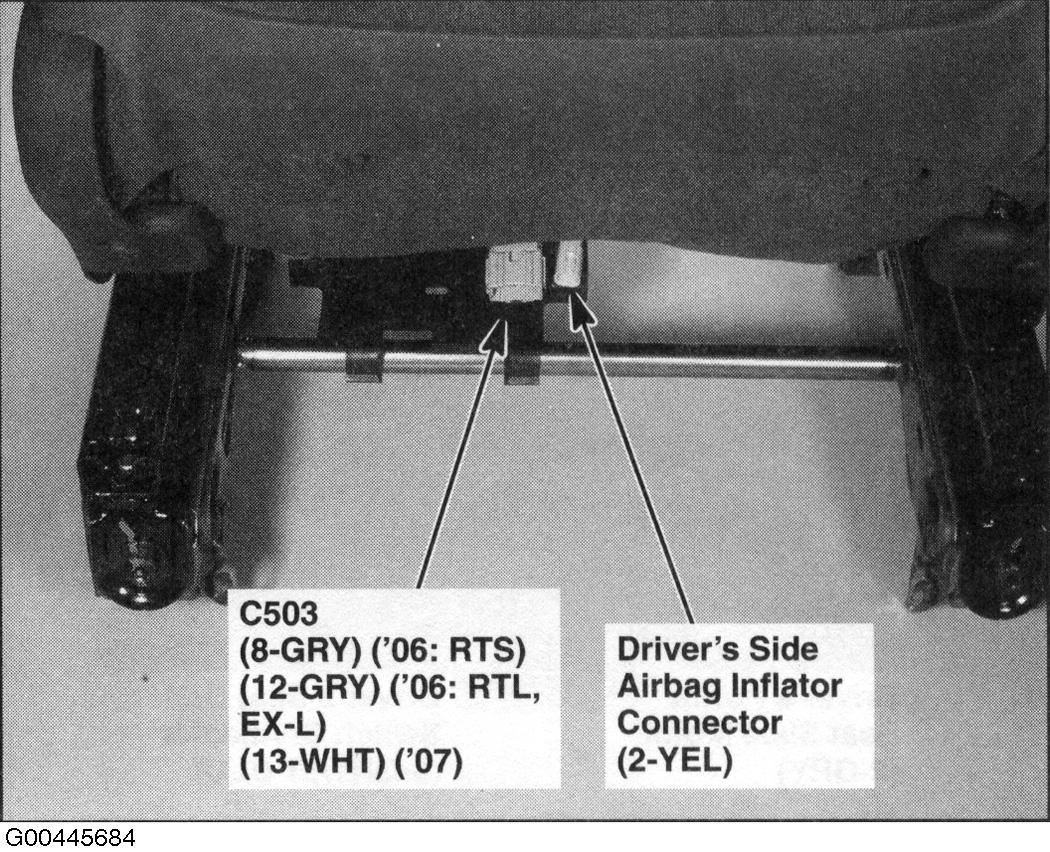

G00445684

Courtesy of AMERICAN HONDA MOTOR CO., INC.

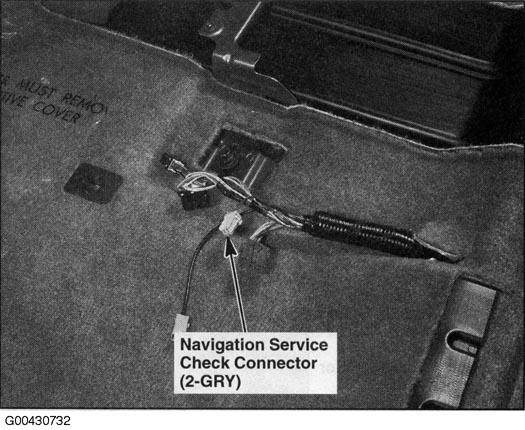

Fig 96: Under Driver's Seat

G00430732

Courtesy of AMERICAN HONDA MOTOR CO., INC.

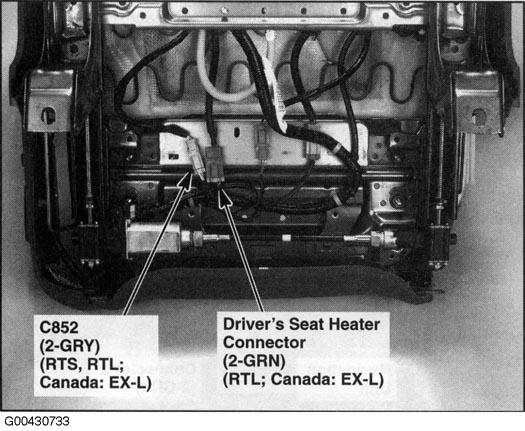

Fig 97: Under Driver's Seat

G00430733

Courtesy of AMERICAN HONDA MOTOR CO., INC.

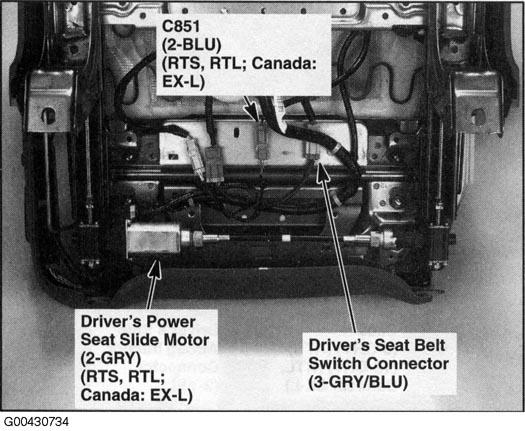

Fig 98: Under Driver's Seat

G00430734

Courtesy of AMERICAN HONDA MOTOR CO., INC.

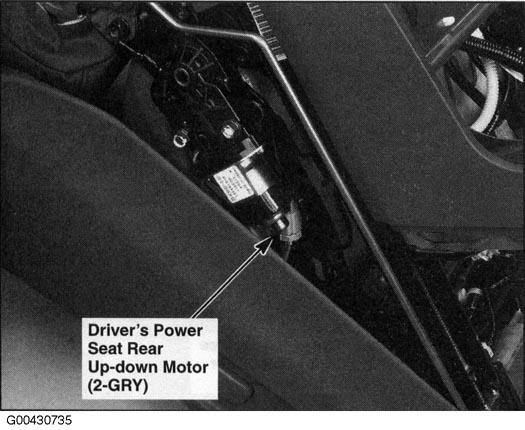

Fig 99: Left Side Of Driver's Seat

G00430735

Courtesy of AMERICAN HONDA MOTOR CO., INC.

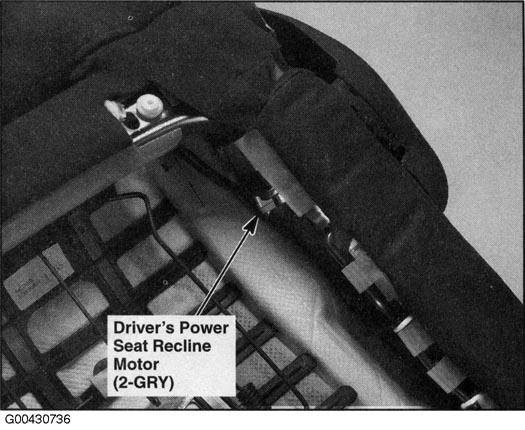

Fig 100: Driver's Seat Back

G00430736

Courtesy of AMERICAN HONDA MOTOR CO., INC.

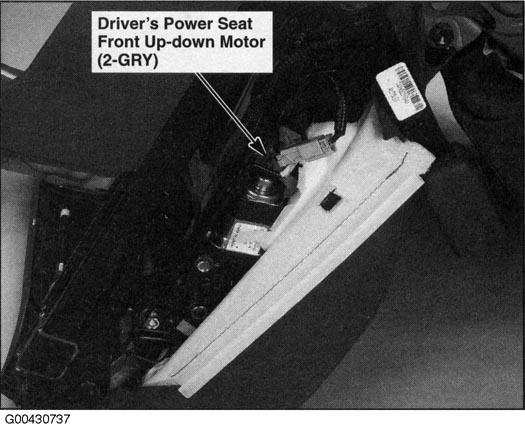

Fig 101: Right Side Of Driver's Seat

G00430737

Courtesy of AMERICAN HONDA MOTOR CO., INC.

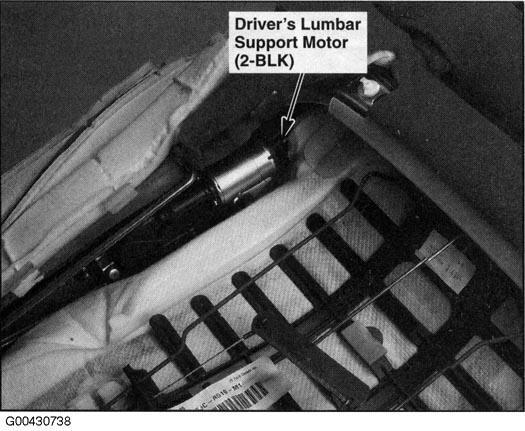

Fig 102: Right Side Of Driver's Seat Back

G00430738

Courtesy of AMERICAN HONDA MOTOR CO., INC.

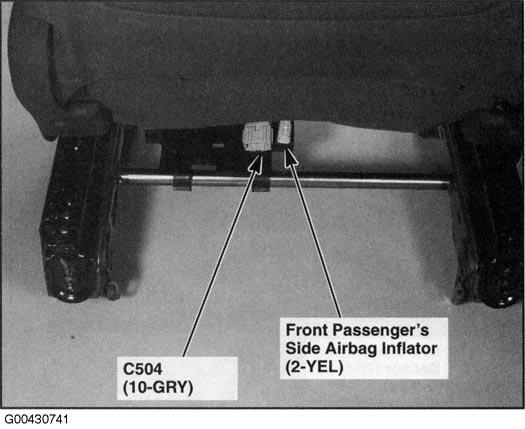

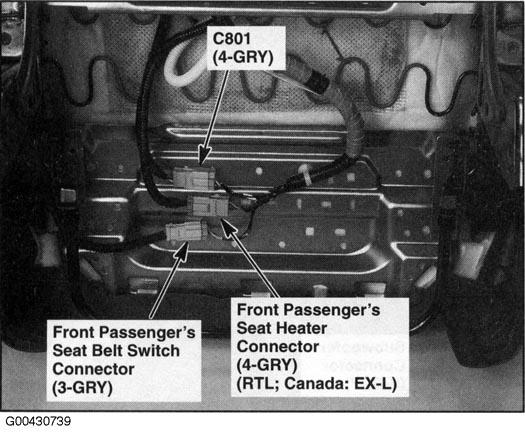

Fig 103: Under Front Passenger's Seat

G00430739

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Under Front Passenger's Seat

G00430741

Courtesy of AMERICAN HONDA MOTOR CO., INC.

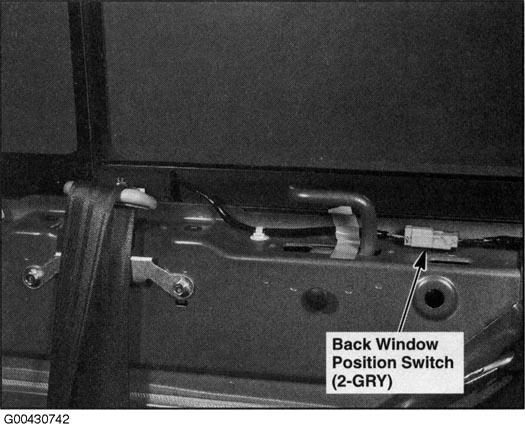

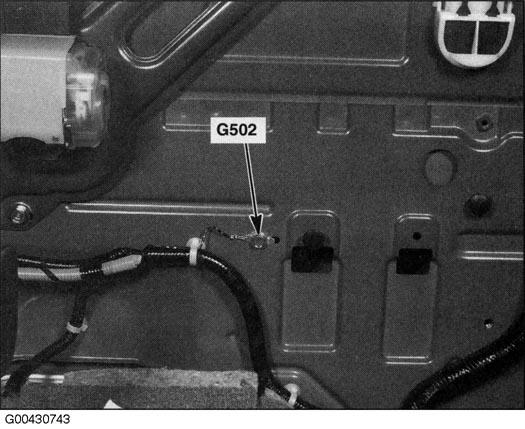

Fig 105: Behind Rear Seat

G00430742

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 106: Behind Rear Seat

G00430743

Courtesy of AMERICAN HONDA MOTOR CO., INC.

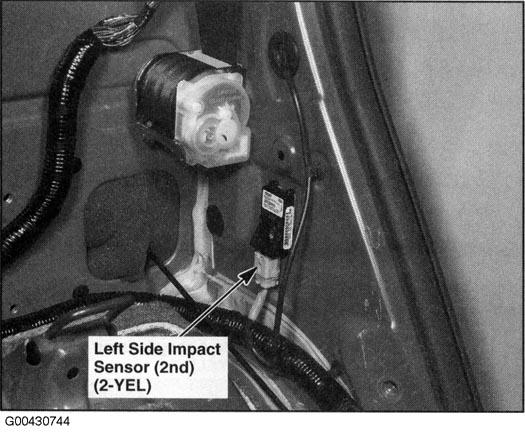

Fig 107: Behind Left Side Of Rear Seat (Right Similar)

G00430744

Courtesy of AMERICAN HONDA MOTOR CO., INC.

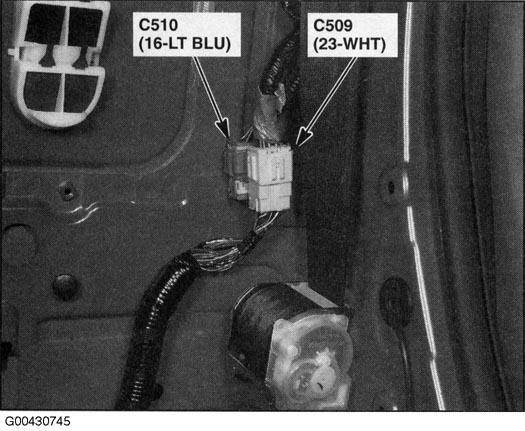

Fig 108: Behind Left Side Of Rear Seat

G00430745

Courtesy of AMERICAN HONDA MOTOR CO., INC.

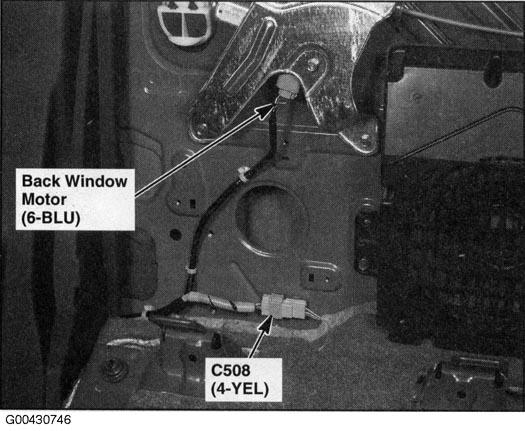

Fig 109: Behind Right Side Of Rear Seat

G00430746

Courtesy of AMERICAN HONDA MOTOR CO., INC.

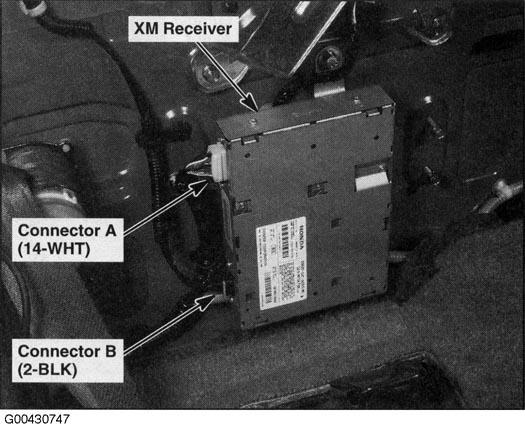

Fig 110: Behind Right Side Of Rear Seat

G00430747

Courtesy of AMERICAN HONDA MOTOR CO., INC.

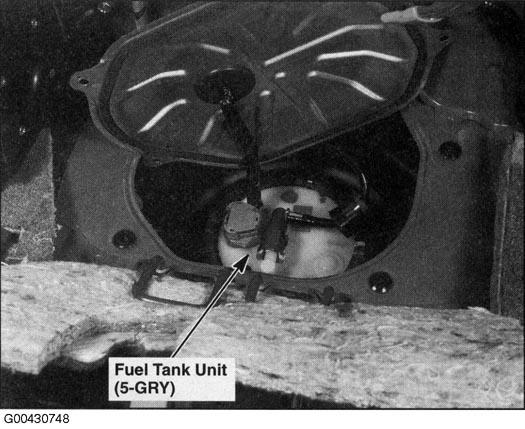

Fig 111: Under Rear Seat

G00430748

Courtesy of AMERICAN HONDA MOTOR CO., INC.

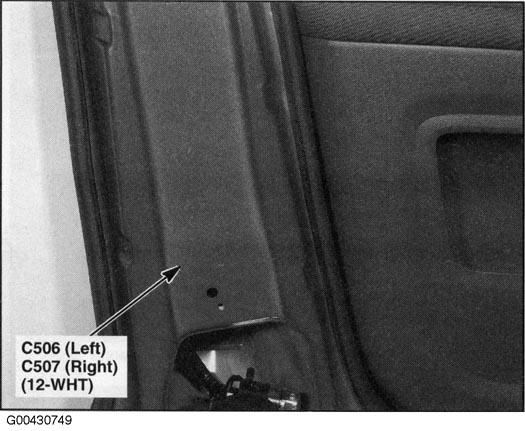

Fig 112: Left "B" Pillar (Right Similar)

G00430749

Courtesy of AMERICAN HONDA MOTOR CO., INC.

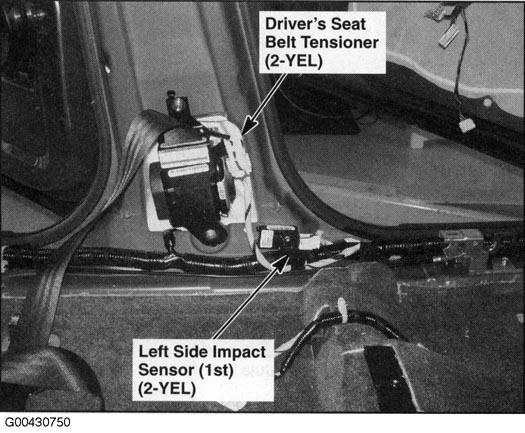

Fig 113: Left "B" Pillar (Right Similar)

G00430750

Courtesy of AMERICAN HONDA MOTOR CO., INC.

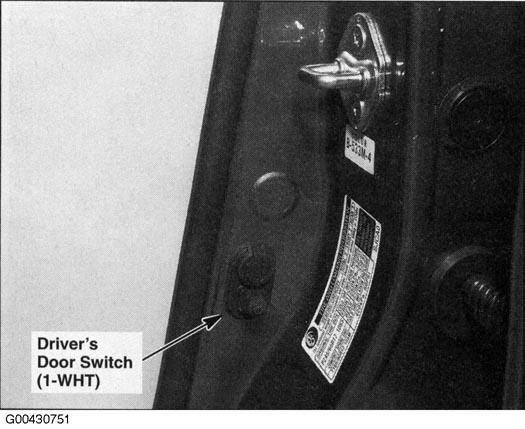

Fig 114: Left "B" Pillar (Right Similar)

G00430751

Courtesy of AMERICAN HONDA MOTOR CO., INC.

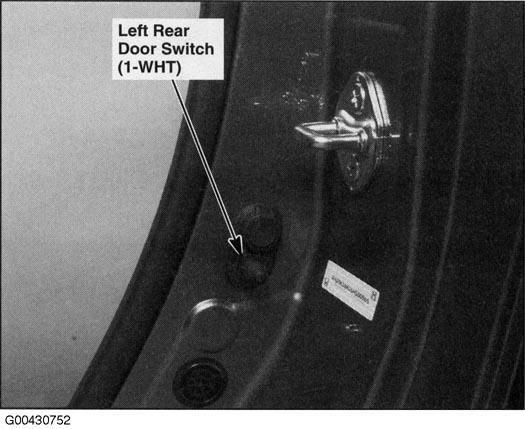

Fig 115: Left "C" Pillar (Right Similar)

G00430752

Courtesy of AMERICAN HONDA MOTOR CO., INC.

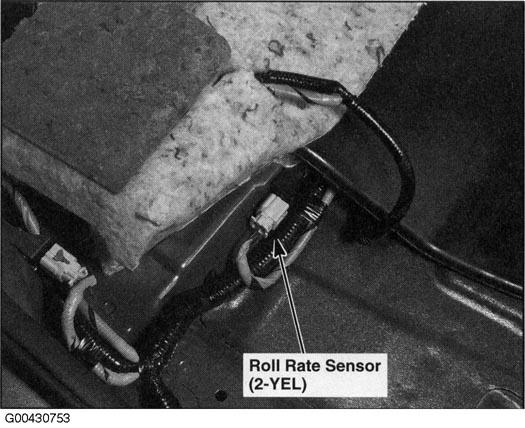

Fig 116: Right Side Of Floor

G00430753

Courtesy of AMERICAN HONDA MOTOR CO., INC.

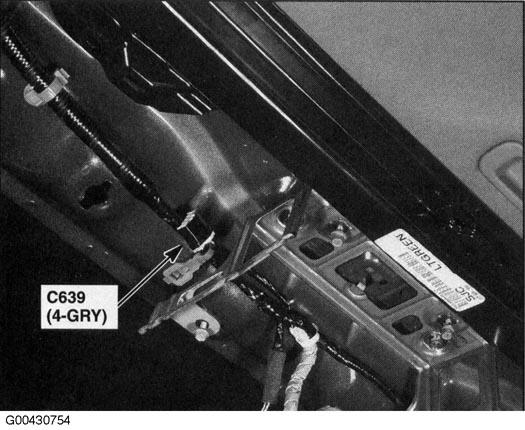

Fig 117: Front Middle Of Roof

G00430754

Courtesy of AMERICAN HONDA MOTOR CO., INC.

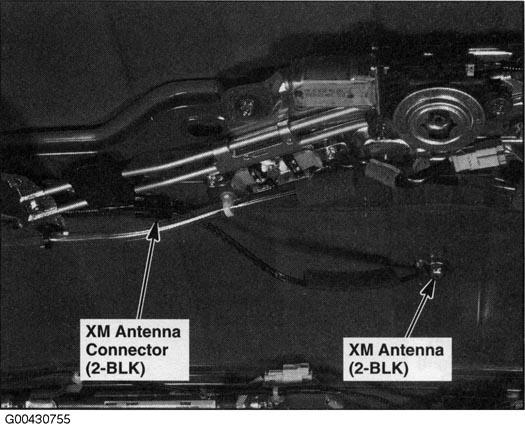

Fig 118: Rear Of Roof

G00430755

Courtesy of AMERICAN HONDA MOTOR CO., INC.

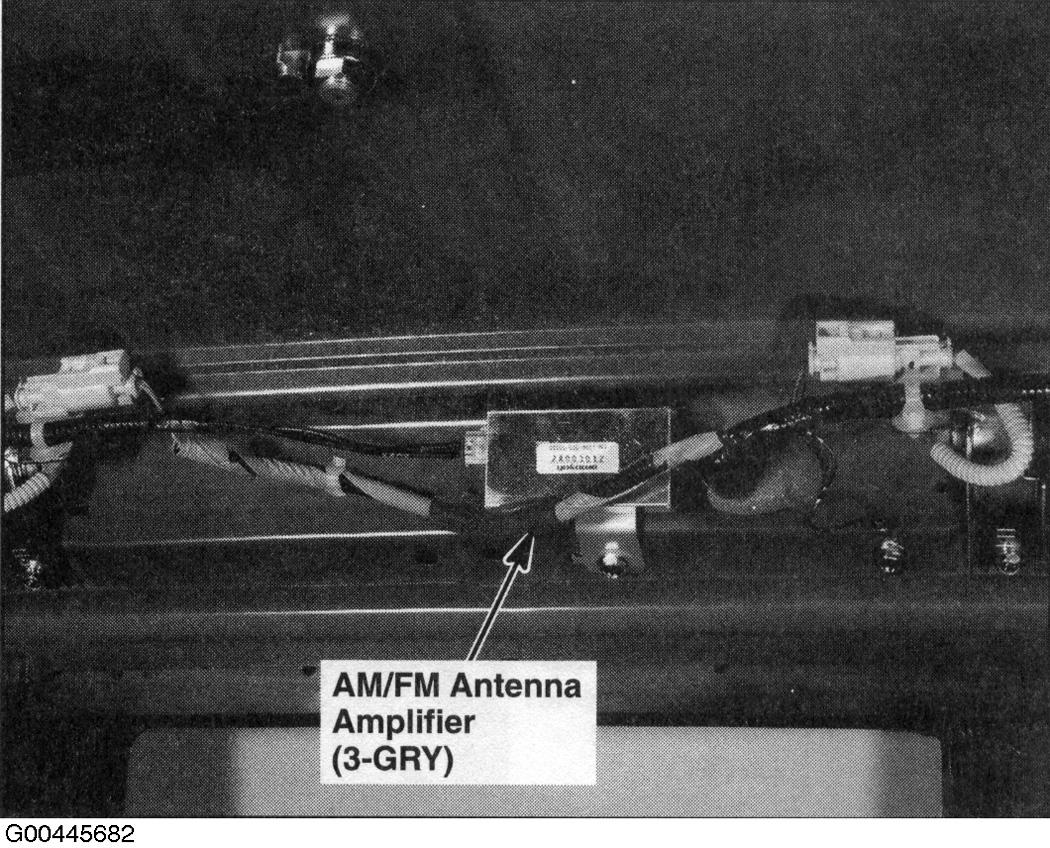

Fig 119: Rear Of Roof

G00445682

Courtesy of AMERICAN HONDA MOTOR CO., INC.

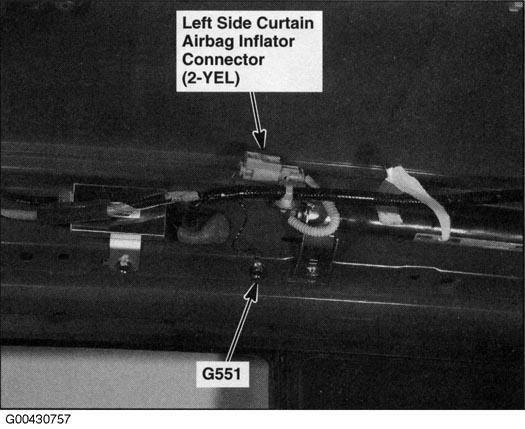

Fig 120: Rear Of Roof

G00430757

Courtesy of AMERICAN HONDA MOTOR CO., INC.

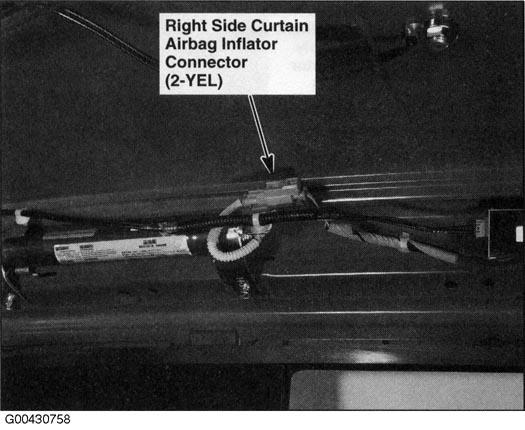

Fig 121: Rear Of Roof

G00430758

Courtesy of AMERICAN HONDA MOTOR CO., INC.

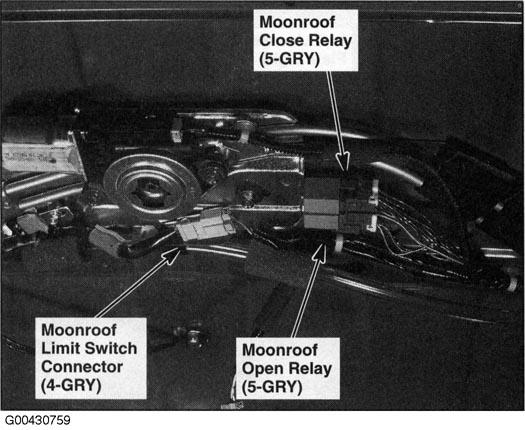

Fig 122: Rear Of Roof

G00430759

Courtesy of AMERICAN HONDA MOTOR CO., INC.

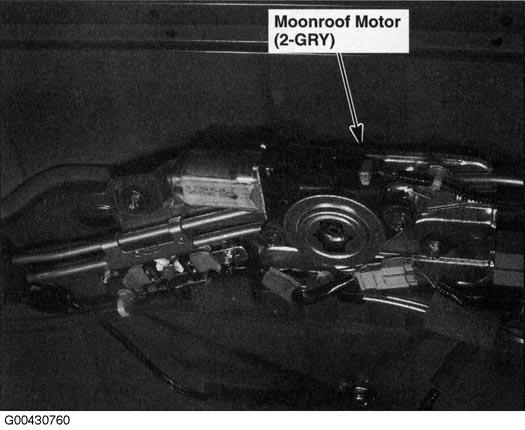

Fig 123: Rear Of Roof

G00430760

Courtesy of AMERICAN HONDA MOTOR CO., INC.

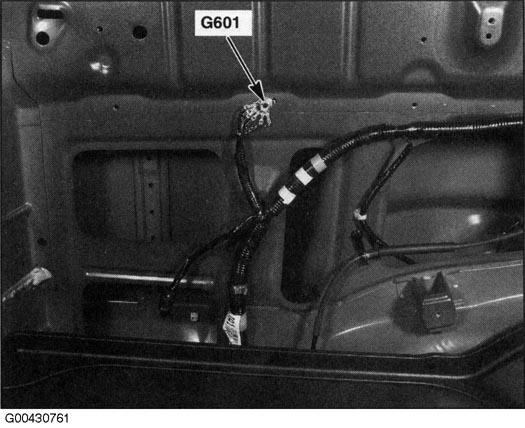

Fig 124: Left Side Of Cargo Area

G00430761

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Right Side Of Cargo Area

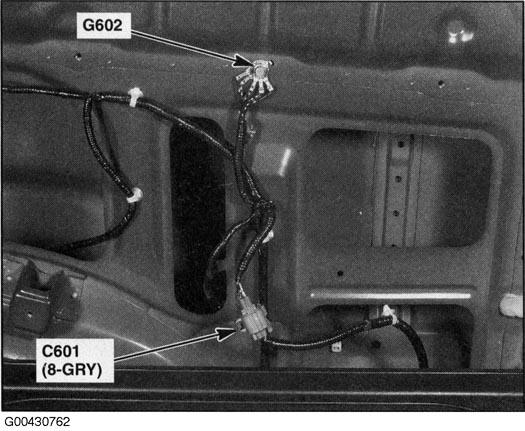

G00430762

Courtesy of AMERICAN HONDA MOTOR CO., INC.

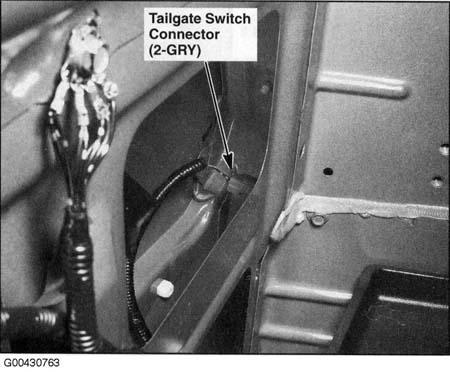

Fig 126: Right Rear Of Cargo Area

G00430763

Courtesy of AMERICAN HONDA MOTOR CO., INC.

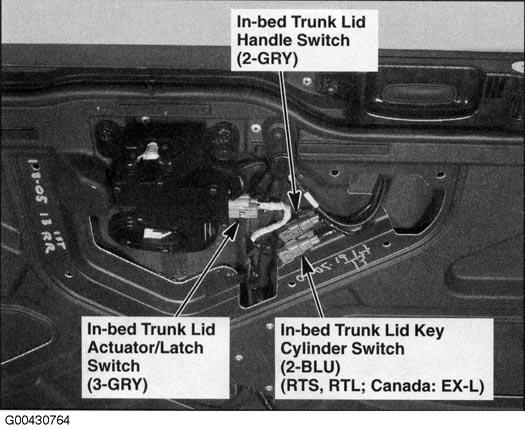

Fig 127: In-Bed Trunk Lid

G00430764

Courtesy of AMERICAN HONDA MOTOR CO., INC.

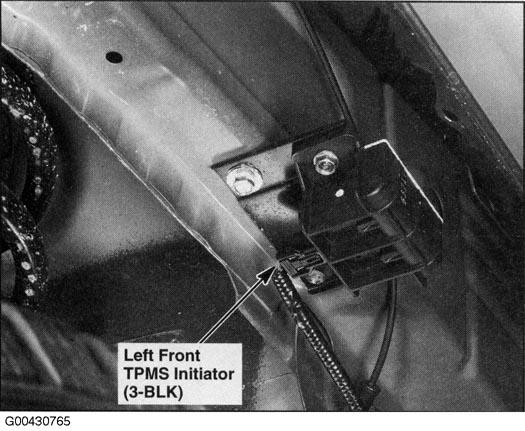

Fig 128: Left Front Wheelwell (Right Similar)

G00430765

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 129: Left Rear Wheelwell (Right Similar)

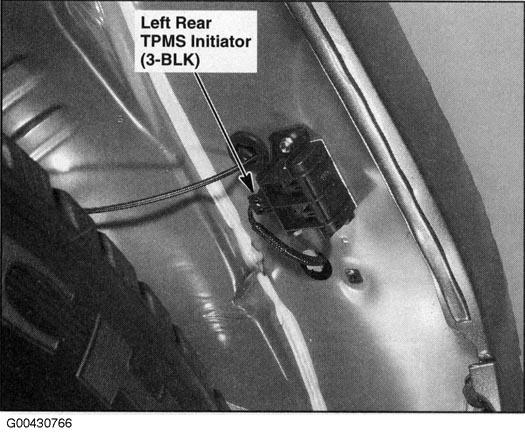

G00430766

Courtesy of AMERICAN HONDA MOTOR CO., INC.

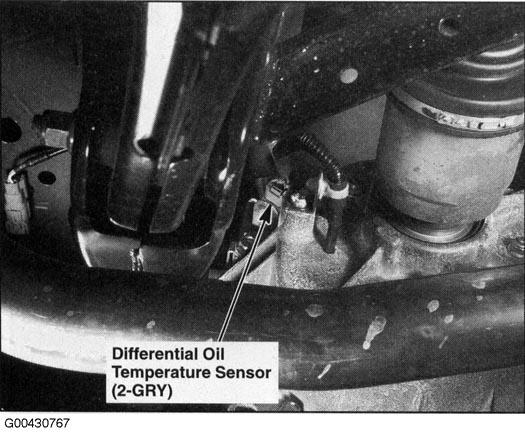

Fig 130: Rear Differential

G00430767

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Under Left Rear Of Vehicle

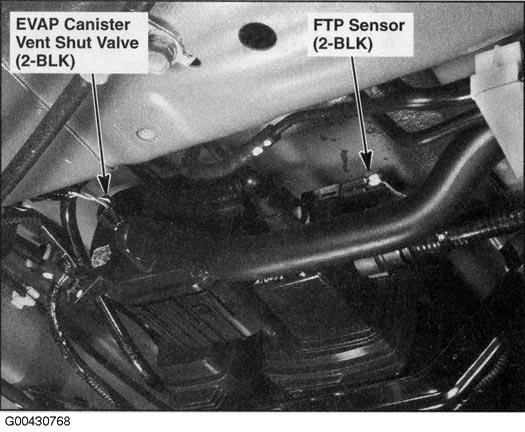

G00430768

Courtesy of AMERICAN HONDA MOTOR CO., INC.

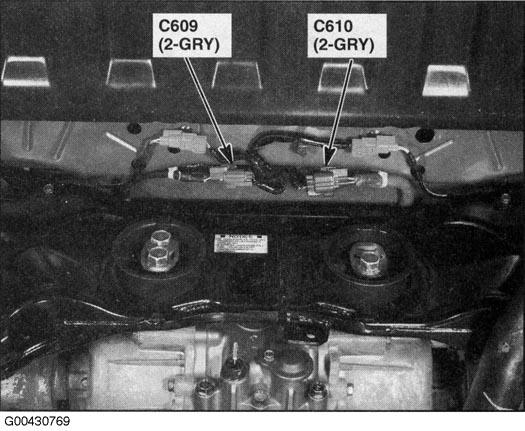

Fig 132: Under Rear Of Vehicle

G00430769

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 133: Under Rear Of Vehicle

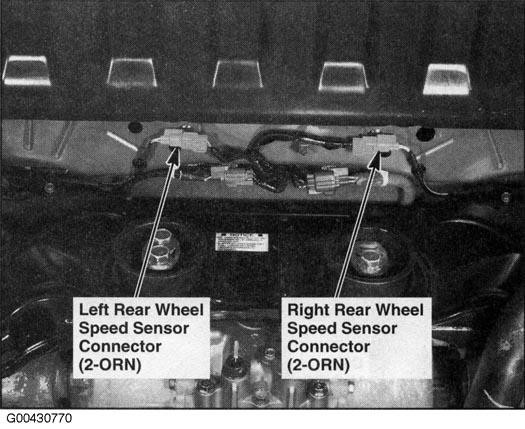

G00430770

Courtesy of AMERICAN HONDA MOTOR CO., INC.

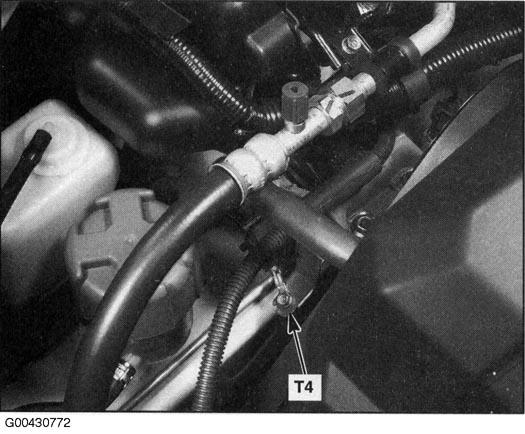

Fig 134: Right Front Of Engine Compartment

G00430772

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Behind Left Kick Panel

G00430773

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 136: Behind Left Kick Panel

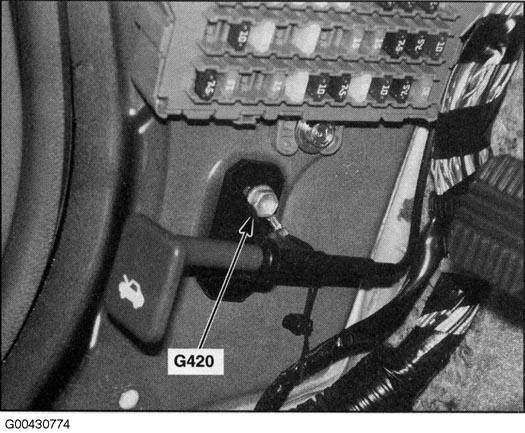

G00430774

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 137: Behind Left Side Of Rear Seat

G00430775

Courtesy of AMERICAN HONDA MOTOR CO., INC.

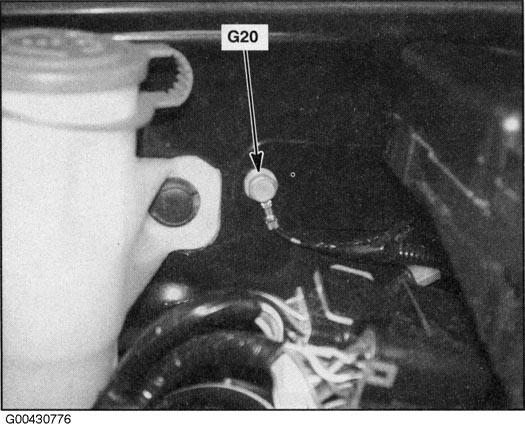

Fig 138: Right Side Of Engine Compartment

G00430776

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Right Front Of Engine Compartment

G00430777

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 140: Right Front Of Engine Compartment

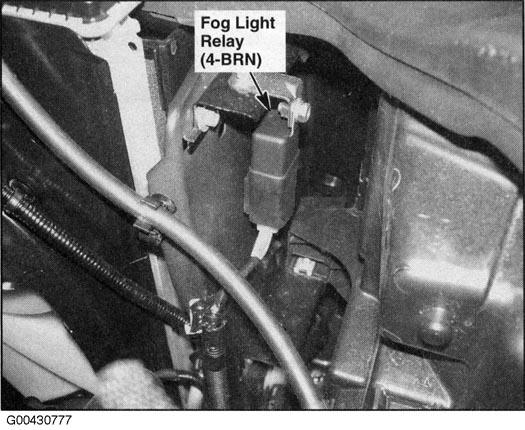

G00430778

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 141: Under Middle Of Dash

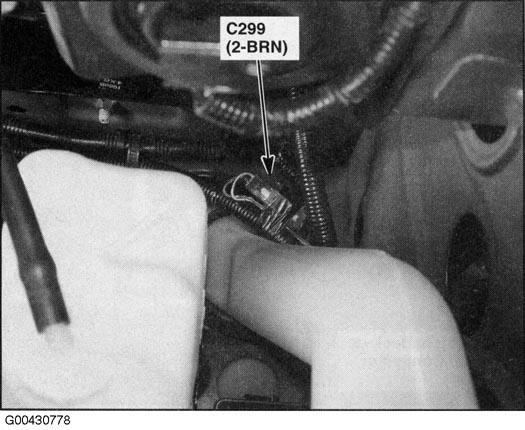

G00445677

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 142: Under Driver's Seat

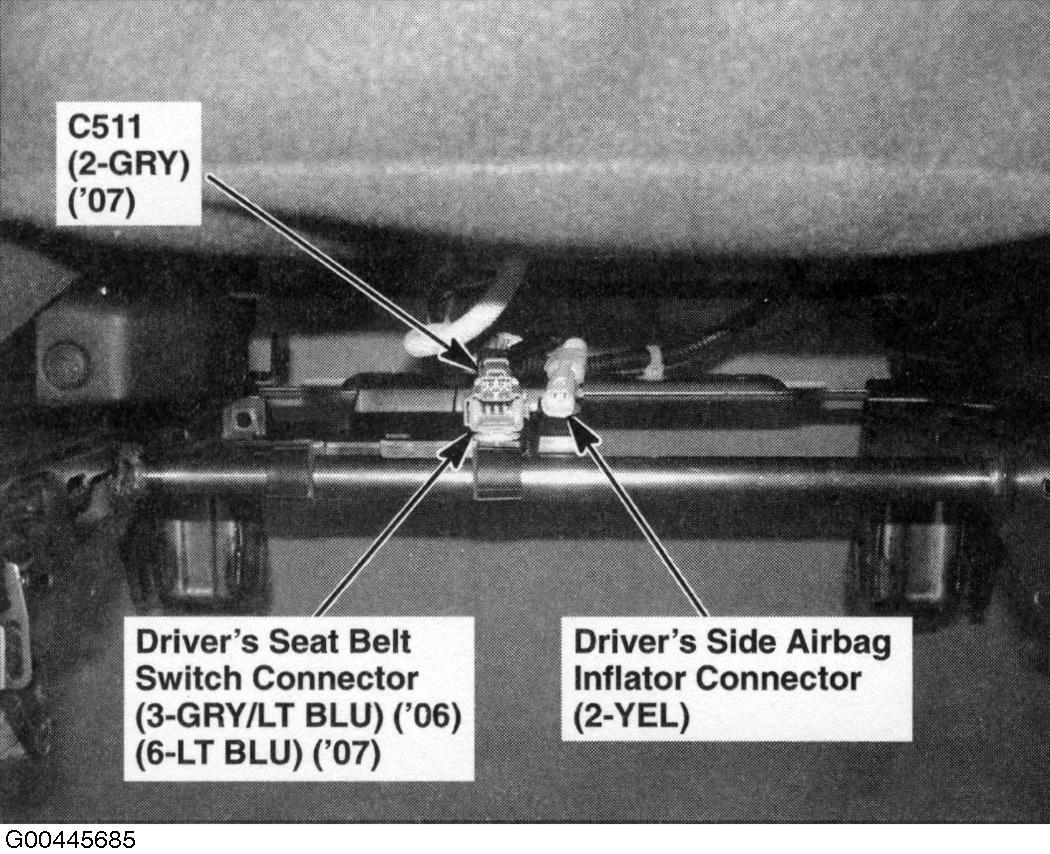

G00445685

Courtesy of AMERICAN HONDA MOTOR CO., INC.

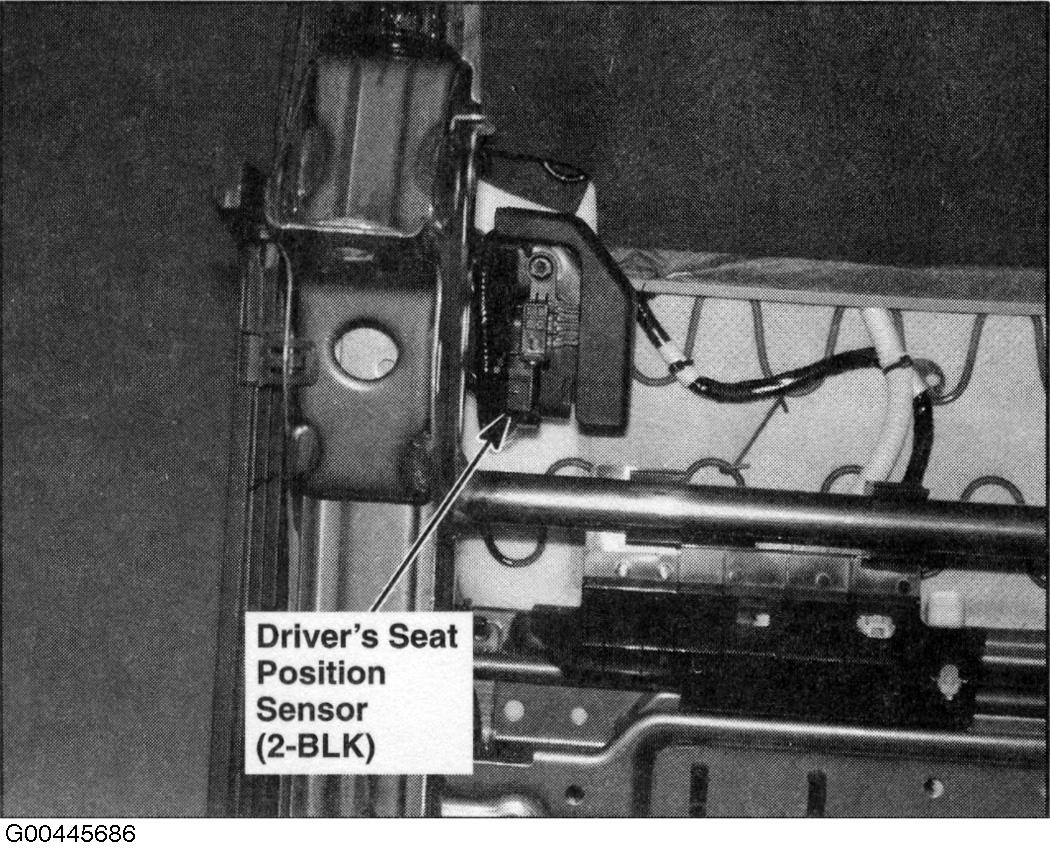

Fig 143: Under Driver's Seat

G00445686

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 144: Under Front Passenger's Seat

G00445687

Courtesy of AMERICAN HONDA MOTOR CO., INC.

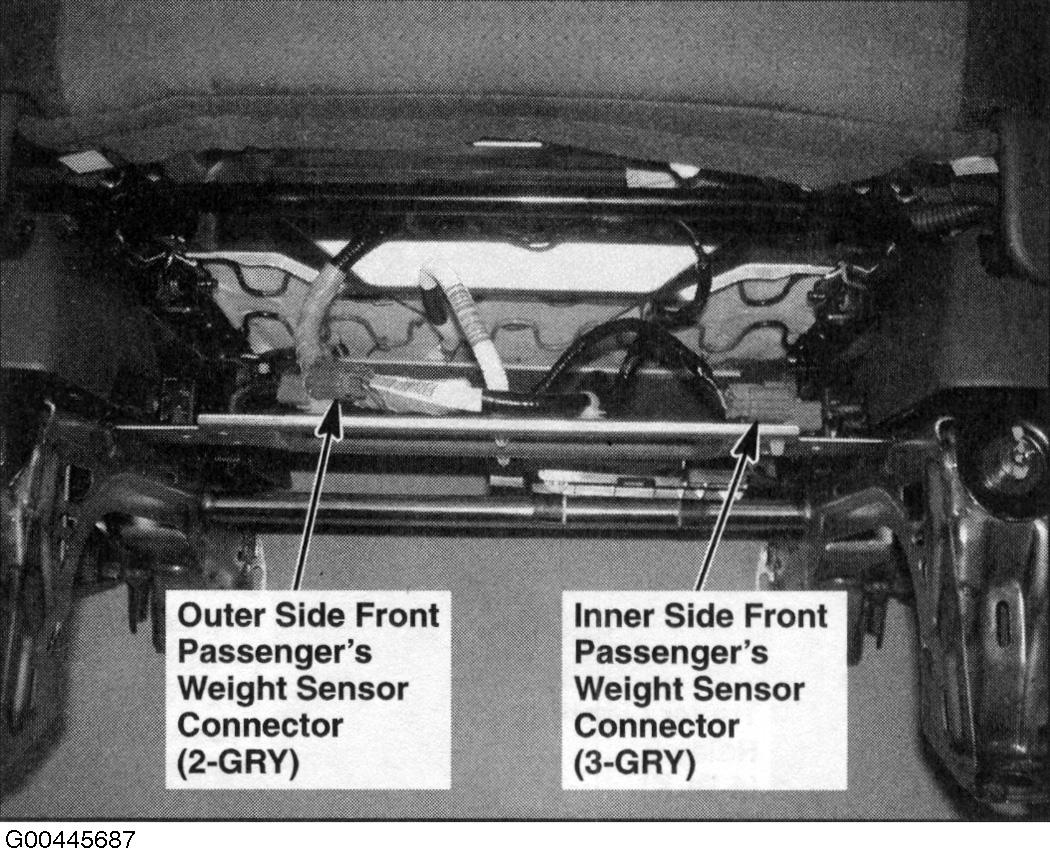

Fig 145: Left Side Of Front Passenger's Seat Back

G00445688

Courtesy of AMERICAN HONDA MOTOR CO., INC.

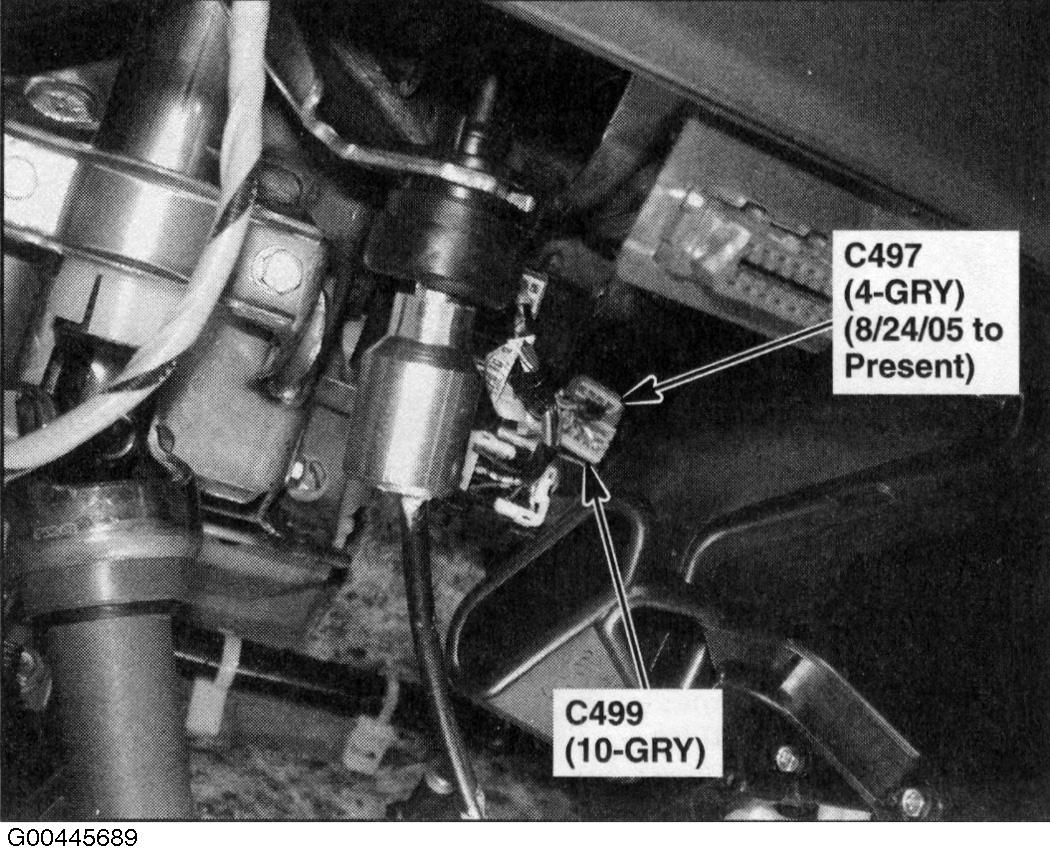

Fig 146: Under Left Side Of Dash

G00445689

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 147: Under Left Side Of Dash

G00445690

Courtesy of AMERICAN HONDA MOTOR CO., INC.

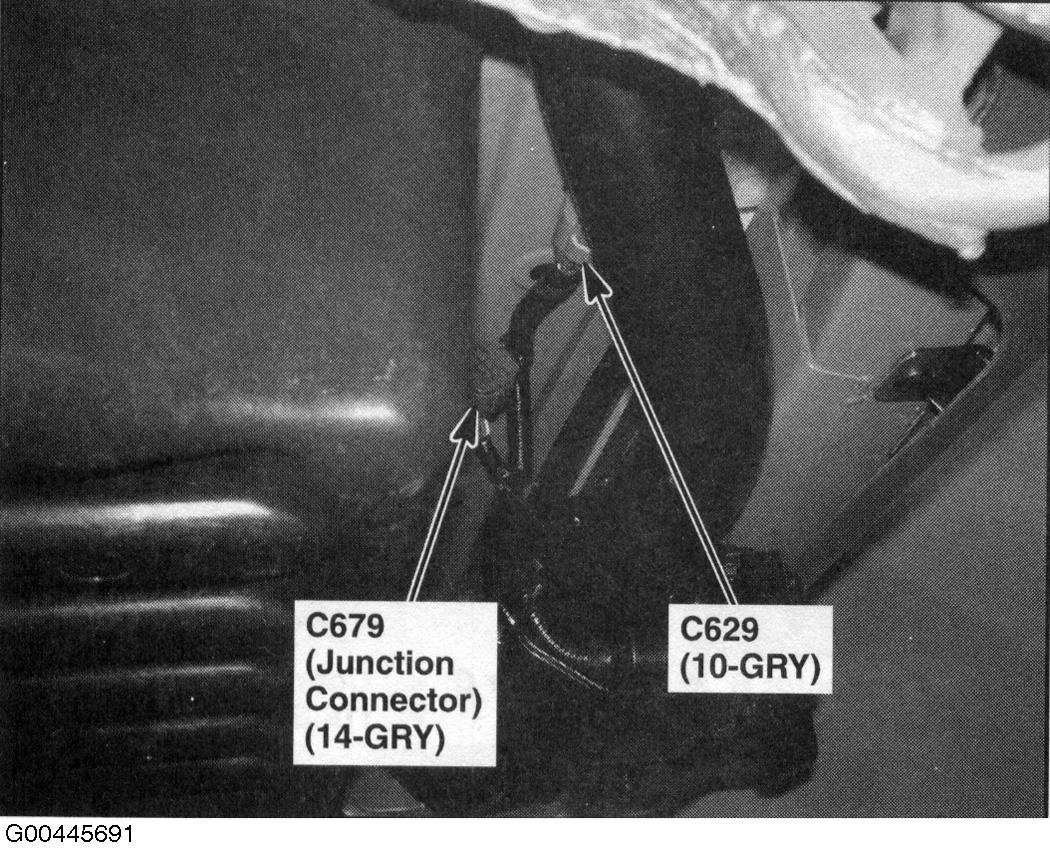

Fig 148: Under Left Rear Of Vehicle

G00445691

Courtesy of AMERICAN HONDA MOTOR CO., INC.
