Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

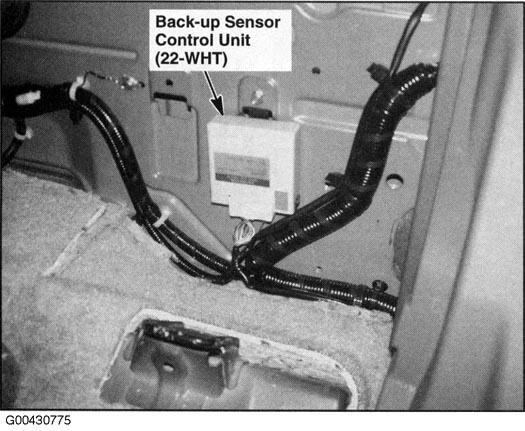

| Back-Up Sensor Control Unit | Behind left side of rear seat. See Figure. |

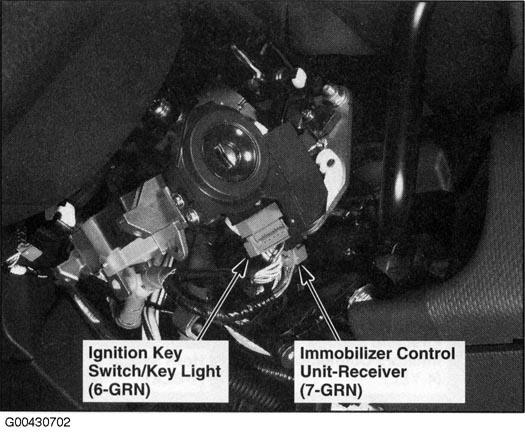

| Immobilizer Control Unit Receiver | In steering column, on ignition key cylinder. See Figure. |

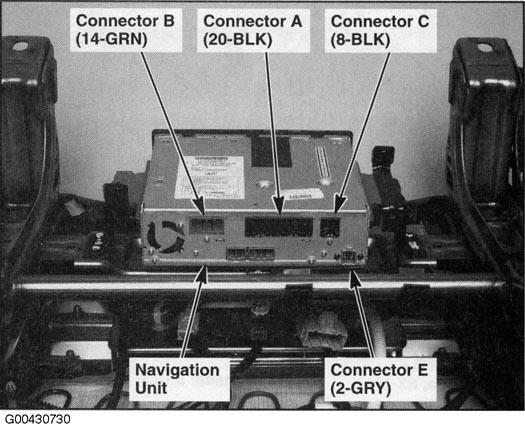

| Navigation Unit | Under driver's seat. See Figure. |

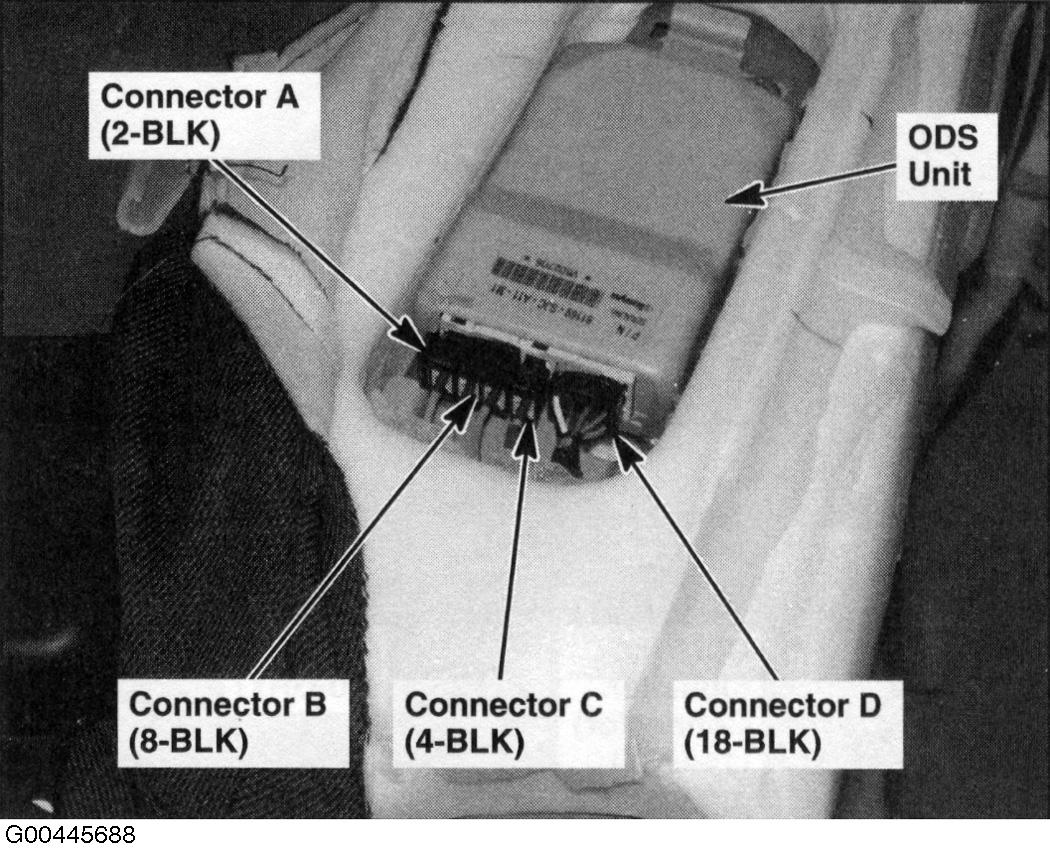

| ODS Unit | Left side of front passenger's seat back. See Figure. |

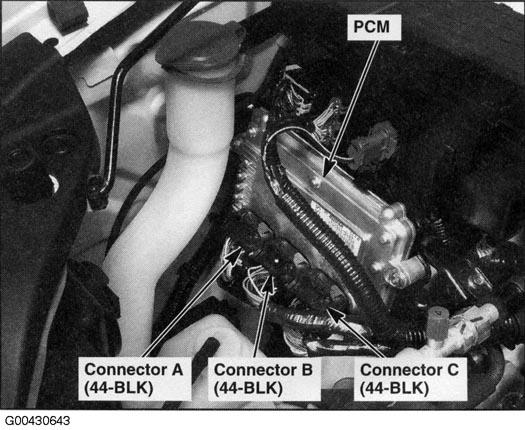

| Powertrain Control (PCM) Module | Right rear of engine compartment. See Figure. |

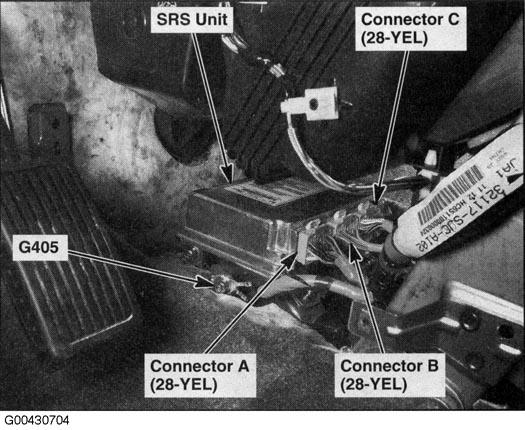

| SRS Unit | Behind lower center of dash. See Figure. |

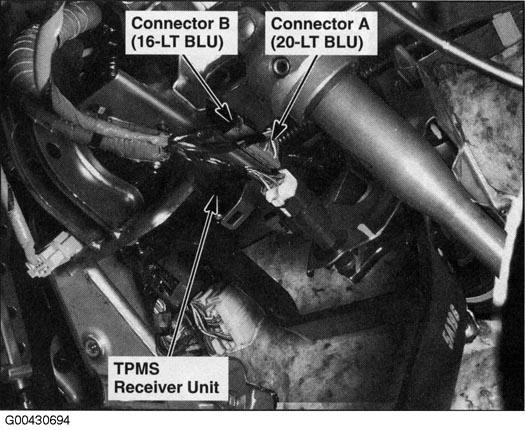

| TPMS Receiver Unit | Under left side of dash. See Figure. |

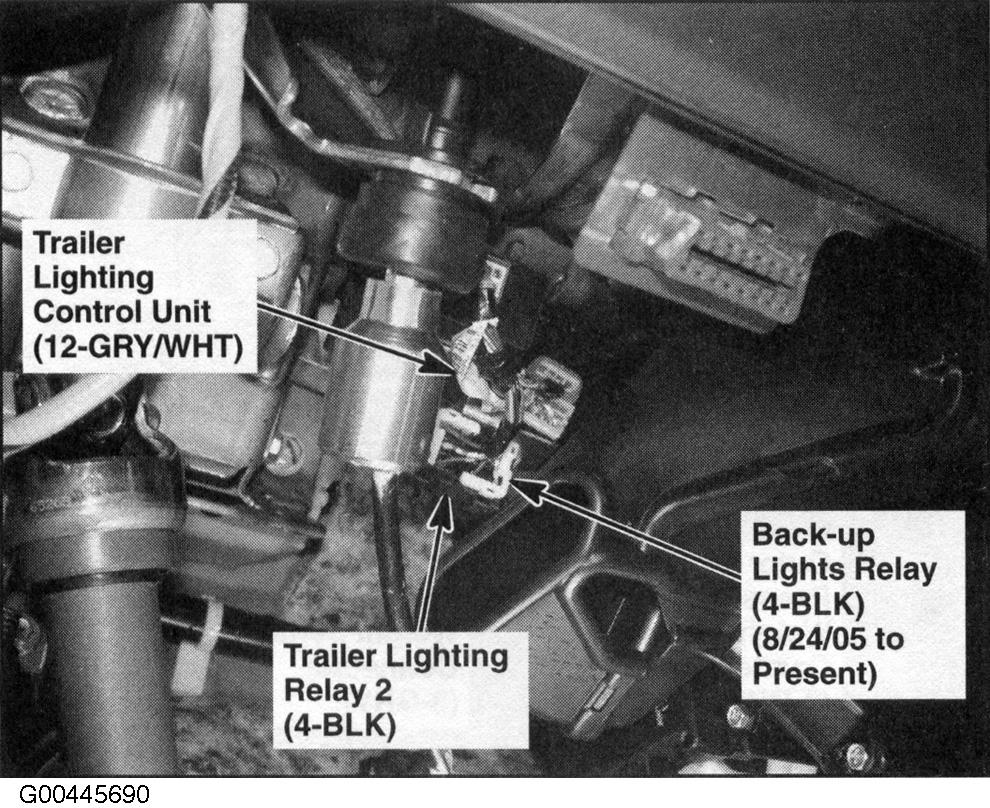

| Trailer Lighting Control Unit | Under left side of dash. See Figure. |

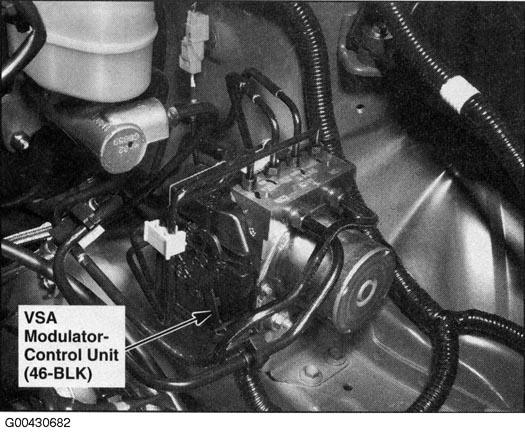

| VSA Modulator Control Unit | Left side of engine compartment. See Figure. |

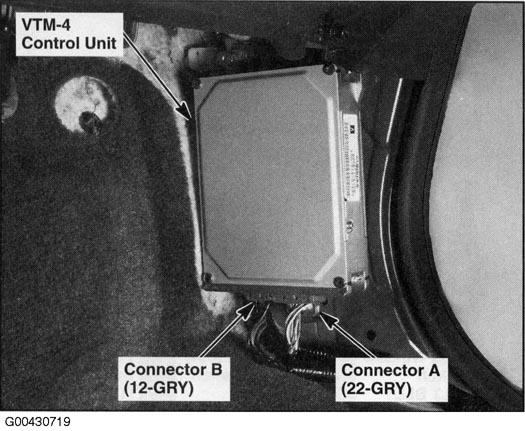

| VTM-4 Control Unit | Behind right kick panel. See Figure. |
