Transmission Installation

Special Tools Required

• Engine support hanger, A and Reds AAR-T-12566
• Engine hanger balance bar VSB02C000019
• Engine hanger adapter set VSB02C000024
• Front subframe adapter VSB02BMDXSB0

These special tools are available through the Honda Tool and Equipment Program 1-888-424-6857.

1. Clean the ATF cooler (see ATF COOLER CLEANING  ).
2. Install the torque converter (A) on the mainshaft (B) with a new O-ring (C).
   Fig 1: Identifying Torque Converter On Mainshaft With O-Ring

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the 14 mm dowel pin (D) and the 10 mm dowel pin (E) in the torque converter housing.
4. Install the transmission lower mounts.
   Fig 2: Transmission Lower Mounts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Place the transmission on the jack, and raise it to engine level.
6. Attach the transmission to the engine, and install the transmission housing mounting bolts.
   Fig 3: Transmission Housing Lower Mounting Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the transmission housing mounting bolts.
   Fig 4: Transmission Housing Rear Mounting Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Install the transmission housing mounting bolts.
   Fig 5: Transmission Housing Upper Mounting Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Install the transmission housing mounting bolt (A).
   Fig 6: Transmission Housing Front Mounting Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Install the front mount bracket (B) with new mounting bolts.

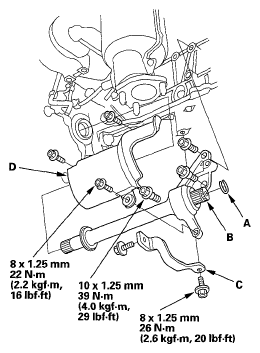

11. Install a new set ring (A) on the intermediate shaft (B), and install the intermediate shaft in the differential. While installing the intermediate shaft in the differential, be sure not to allow dust or other foreign particles to enter the transmission.
    Fig 7: Exhaust Manifold Bracket, Intermediate Shaft And Mounting Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Install the exhaust manifold bracket (C) and the heat shield (D).
13. Install a new set ring on the left driveshaft, then install the left driveshaft in the differential (see FRONT DRIVESHAFT INSTALLATION ). While installing the driveshaft in the differential, be sure not to allow dust or other foreign particles to enter the transmission. Install the right driveshaft over the intermediate shaft.
    NOTE: Turn the right and left steering knuckle fully outward, and slide the driveshafts into the differential and over the intermediate shaft until you feel the set ring engage.

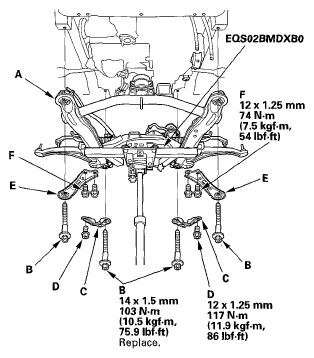

14. Support the front subframe (A) with the front subframe adapter (EQS02BMDXB0) and a jack, and lift it up to the body.
    Fig 8: Front Subframe, Subframe Mounting Bolts, Rear Stiffeners And Mounting Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
15. Loosely install new subframe mounting bolts (B), rear stiffeners (C) and mounting bolts (D), and front stiffeners (E) and mounting bolts (F).
16. Align all reference marks (A) on the front subframe (B) with the body, then tighten the bolts on the front subframe to the specified torque.
    Fig 9: Aligning Reference Marks On Front Subframe With Body

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
17. Remove the jack and the front subframe adapter.
18. For '07-08 models: Install both bolt retainers (A) on both rear mounting bolts (B) of the front subframe (C).
    Fig 10: Rear Mounting Bolts And Front Subframe With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
19. Install the rear mount bracket bolts.
    Fig 11: Rear Mount Bracket Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
20. Install the transmission lower mount nuts.
    Fig 12: Transmission Lower Mount Nuts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
21. Attach the torque converter to the drive plate (A) with eight bolts (B). Rotate the crankshaft pulley as necessary to tighten the bolt to 1/2 of the specified torque, then to the final torque, in a crisscross pattern. After tightening the last bolt, check that the crankshaft rotates freely.
    Fig 13: Torque Converter To Drive Plate And Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. Install the torque converter cover (C).
23. Connect the power steering fluid hose (A) to the line (B), and secure the hose with its hose clamp (C).
    Fig 14: Identifying Torque Converter Cover And Power Steering Fluid Hose

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
24. Secure the hose with the hose clamp (D).
25. Connect the power steering pressure switch connector.
    Fig 15: Identifying Power Steering Pressure Switch Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
26. Install the dowel pin (A) in the transmission.

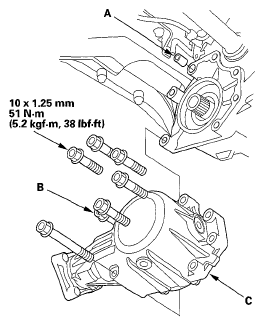

    Fig 16: Transfer Assembly To Transmission Fasteners With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
27. Insert the one 10 x 1.25 mm bolt (length: 105 mm) (B) in the rear upper of the transfer housing, then install the transfer assembly (C) on the transmission.
28. Install the propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C).
    Fig 17: Propeller Shaft Companion Flange With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

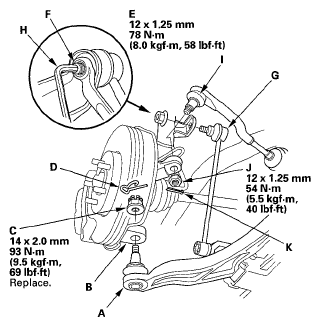

29. Install the ball joints on each lower arm (A) to each knuckle (B) with new castle nuts (C), and secure the castle nuts with the lock pins (D).
    Fig 18: Ball Joints On Lower Arm And Knuckle With Castle Nuts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
30. Install the nuts (E) to the ball joint pins (F) on each stabilizer link (G). Insert a 6 mm Allen wrench (H) in the top of the ball joint pins, and tighten the nuts to the specified torque.
31. Install the tie-rod end ball joints (I) to each knuckle with the nuts (J) and new cotter pins (K).
32. Secure the transfer breather hose bracket (A) on the transfer assembly with the bolt, and install the breather hose (B) over the breather pipe (C) with the dot (D) on the hose facing out.
    Fig 19: Transfer Breather Hose Bracket With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

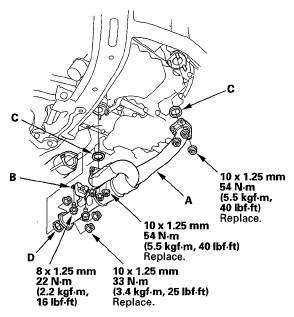

33. Install exhaust pipe A with the new self-locking nuts, its mount (B), and new gaskets (C) (D).
    Fig 20: Exhaust Pipe, Self-Locking Nuts And Gaskets With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
34. Install the front subframe stiffener with new mounting bolts.
    Fig 21: Front Subframe Stiffener With Mounting Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
35. Install a new front mount nut, and tighten it.
    Fig 22: Front Mount Nut With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
36. Remove the engine support hanger, the engine hanger adapters, and the engine balance bar.
37. Install the connector bracket on the engine front cylinder head.
    Fig 23: Connector Bracket On Engine Front Cylinder Head With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
38. Install the harness clamp brackets on the engine rear cylinder head.
    Fig 24: Harness Clamp Brackets On Engine Rear Cylinder Head With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
39. Install the transfer breather (A) on the throttle cable bracket (B). Install the transfer breather hose clamp (C) on the heater hose (D), centering the heater hose dot (E) in the clamp opening.
    Fig 25: Identifying Transfer Breather, Throttle Cable Bracket And Transfer Breather Hose Clamp

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
40. Connect the input shaft (mainshaft) speed sensor connector (A), the output shaft (countershaft) speed sensor connector (B), the ATF temperature sensor connector (C), and the 3rd clutch transmission fluid pressure switch connector (D). Do not allow water, fluid, oil, dust, or other foreign particles to enter any of the connectors.
    Fig 26: Identifying Input Shaft, Output Shaft Speed Sensor ATF Temperature Sensor Connectors

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
41. Connect the ATF cooler hoses (A) to the ATF cooler lines (B), and secure the hoses with the clips (C) (see ATF COOLER OUTLET HOSE REPLACEMENT  ).
    Fig 27: Identifying ATF Cooler Hoses And ATF Cooler Lines

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

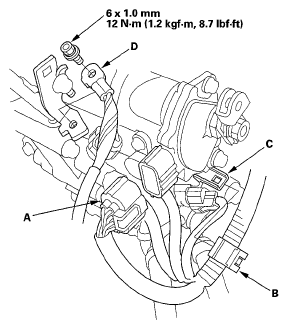

42. Connect the transmission range switch connector (A), and install the harness clamp (B) on the clamp bracket (C).
    Fig 28: Transmission Range Switch Connector And Ground Cable With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
43. Install the transmission ground cable (D).
44. Secure the harness cover (A) and the harness cover/clamp bracket (B) with the bolts.
    Fig 29: Harness Cover And Clamp Bracket With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
45. Connect the A/T clutch pressure control solenoid valve C connector (C).
46. Install the harness cover (A) on the harness cover/clamp bracket (B), and secure it with the bolt.
    Fig 30: A/T Clutch Pressure Control Solenoid Valve Connector And Harness Cover With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
47. Connect the 4th clutch transmission fluid pressure switch connector (C), and install the harness clamp (D) on the bracket. Connect the A/T clutch pressure control solenoid valve A connector (E), and the A/T clutch pressure control solenoid valve B connector (F).
48. Attach the shift cable end (A) to the control lever (B), then insert the control pin (C) into the control lever hole through the shift cable end, and secure the control pin with the spring clip/washer (D).
    Fig 31: Shift Cable, Spring Clip/Washer, Control Pin And Bracket With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
49. Secure the shift cable bracket (E) with the nuts.
50. Install the starter (A) and a new gasket (B) (see STARTER REMOVAL AND INSTALLATION ). Install the mounting bolt (C) through the harness clamp bracket hole (D), and into the lower mounting bolt thread hole (E).
    Fig 32: Starter And Fasteners With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
51. Install the starter cables (A), and install the harness clamps (B) on the clamp brackets (C).
    Fig 33: Starter Cables With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
52. Connect the solenoid harness connector (D).
53. Install the transmission breather hose (A) over the breather pipe (B) at the transmission housing, and install the hose in the clamp (C) at the dot (D) on the hose with facing out.
    Fig 34: Identifying Transmission Breather Hose Over Breather Pipe

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

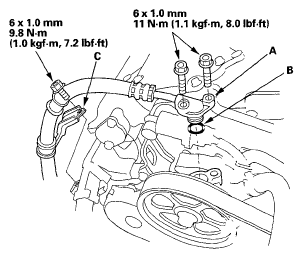

54. Install the power steering pump outlet line (A) with a new O-ring (B) to the pump, and secure the hose clamp (C) with the bolt.
    Fig 35: Power Steering Pump Outlet Line With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
55. Connect the steering joint (see STEERING COLUMN REMOVAL AND INSTALLATION ).
56. Refill the power steering fluid reservoir with fluid to the upper level line.
57. Refill the transmission with the ATF (see step  5 ).
58. Install the battery base bracket and the battery base.
59. Install the air cleaner housing, the resonator, the intake air duct, and the intake manifold cover.
60. Install the battery tray, the battery, and the battery hold-down bracket, then connect the battery cables.
61. Install the splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
62. Install the service caps on the cowl cover.
63. Set the parking brake, run the engine at fast idle, and turn the steering wheel from lock-to-lock several times to bleed air from the system. Recheck the fluid level, and refill if necessary.
64. Set the parking brake. Start the engine, and shift the transmission through all positions three times. Check the shift lever operation, A/T gear position indicator operation, and shift cable adjustment.
65. Check and adjust the front wheel alignment (see WHEEL ALIGNMENT ).
66. Start the engine in the P or N position, and warm it up to normal operating temperature (the radiator fan comes on).
67. Turn off the engine, and check the ATF level (see ATF LEVEL CHECK  ).
68. Do the road test (see ROAD TEST  ).
69. Enter the anti-theft codes for the audio system and the navigation system (if equipped). Set the clock (on vehicles without navigation).
70. Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ).
