Home >> Honda >> 2007 >> S2000 >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> PCV System >> PCV Valve Replacement

PCV Valve Replacement

  1. Disconnect the PCV hose.
  2. Remove the PCV valve (A).
  3. Install the valve in the reverse order of removal with a new washer (B).

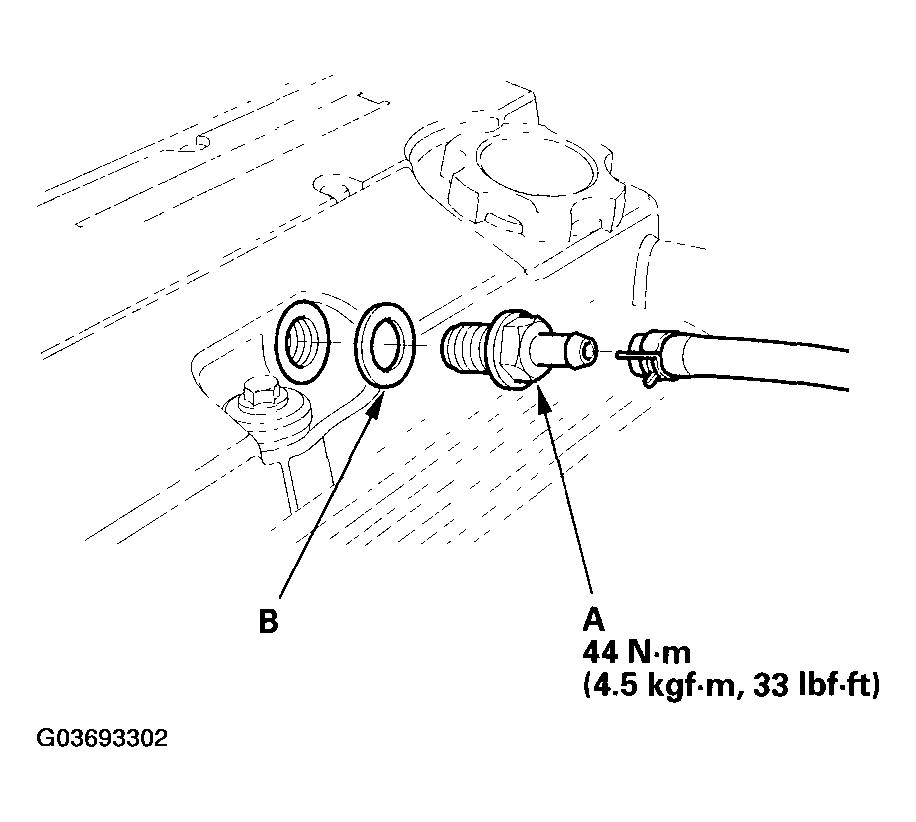

    4. Fig 1: Installing PCV Valve With Torque Specifications
    G03693302Courtesy of AMERICAN HONDA MOTOR CO., INC.
