Fuel Pulsation Damper Replacement

  1. Remove the fuel rail (see INJECTOR REPLACEMENT ).
  2. Remove the fuel pulsation damper (A) from the fuel rail (B).

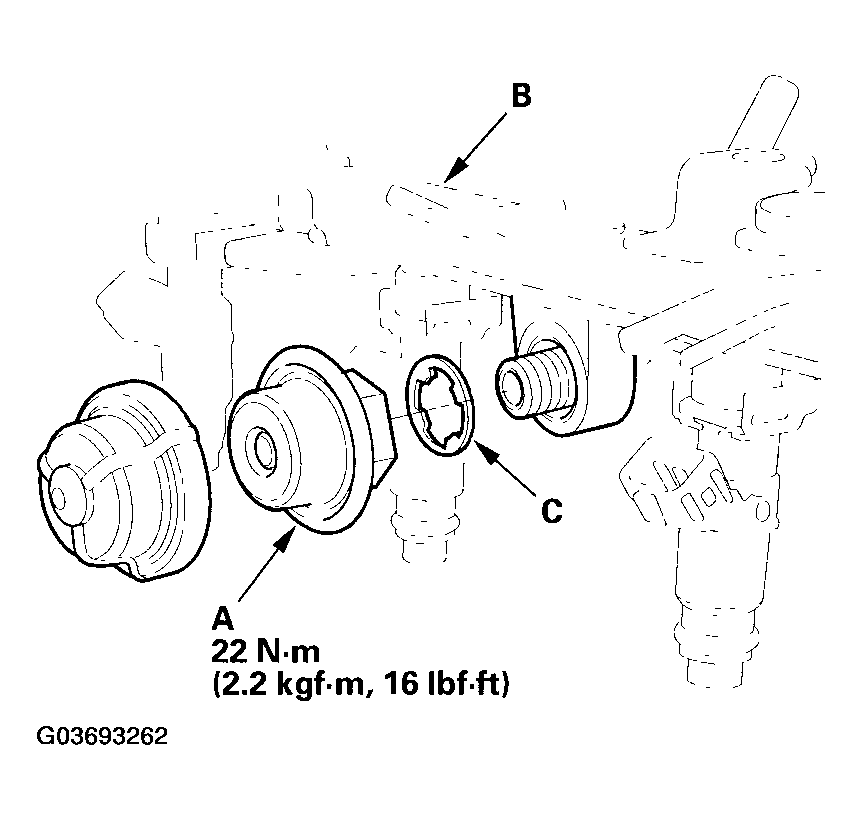

    Fig 1: Removing Fuel Pulsation Damper From Fuel Rail With Torque Specifications
    G03693262Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the fuel pulsation damper in the reverse order of removal with new washers (C).
