MAP Sensor Replacement

  1. Disconnect the MAP sensor 3P connector (A).

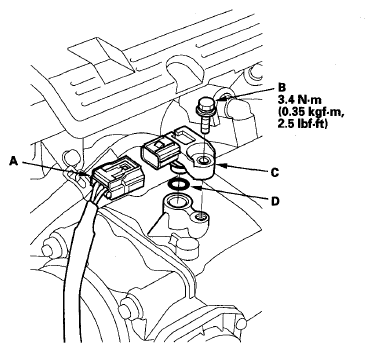

    Fig 1: MAP Sensor 3P Connector With Torque Specifications
    G06231770Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolt (B).
  3. Remove the MAP sensor (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
