Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

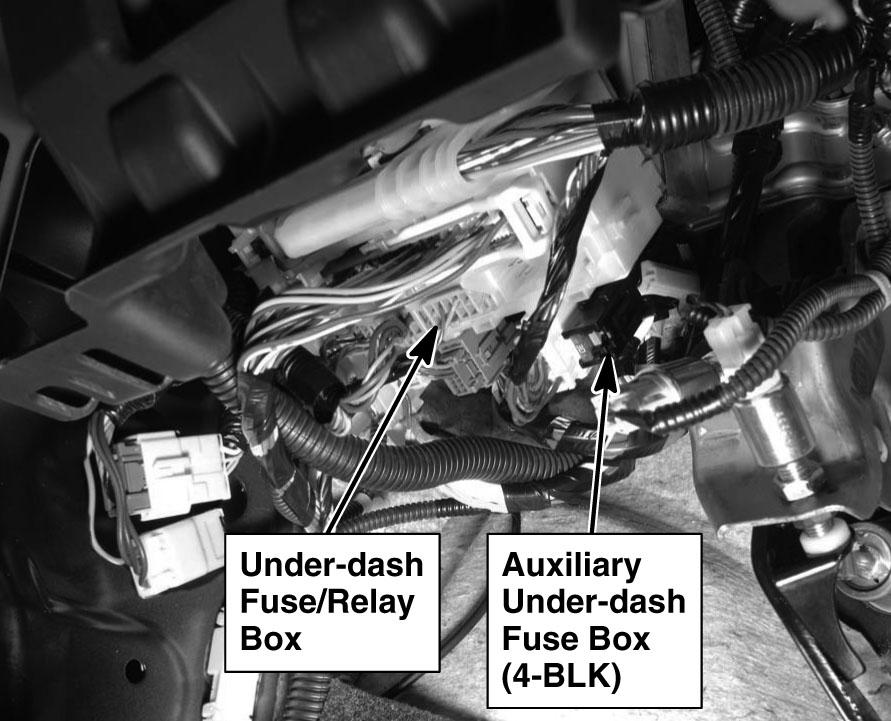

| Auxiliary Under-Dash Fuse Box | Under left end of dash. See Figure. |

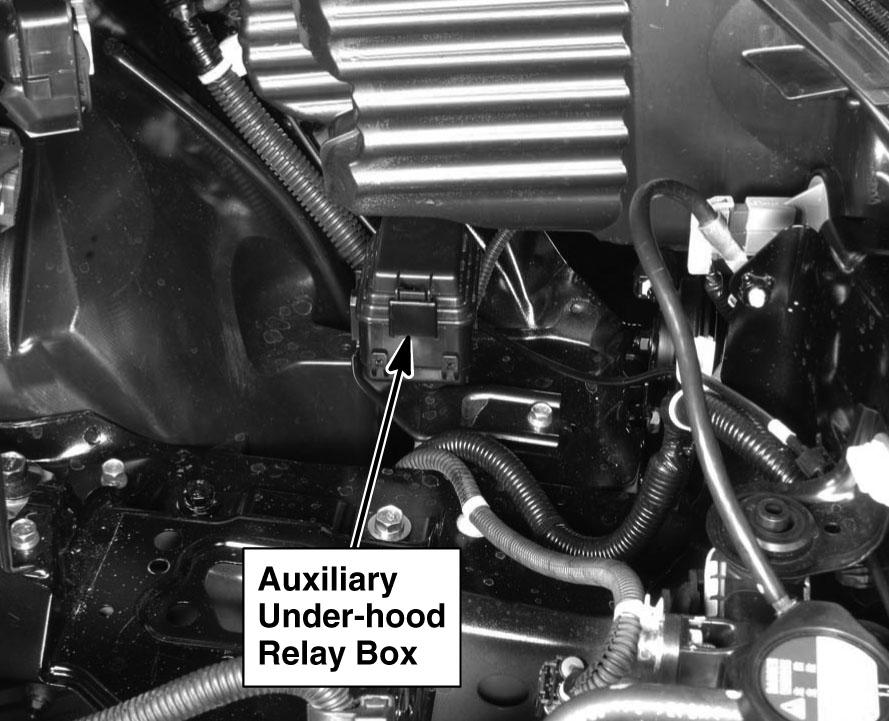

| Auxiliary Under-Hood Relay Box | Left side of engine compartment. See Figure. |

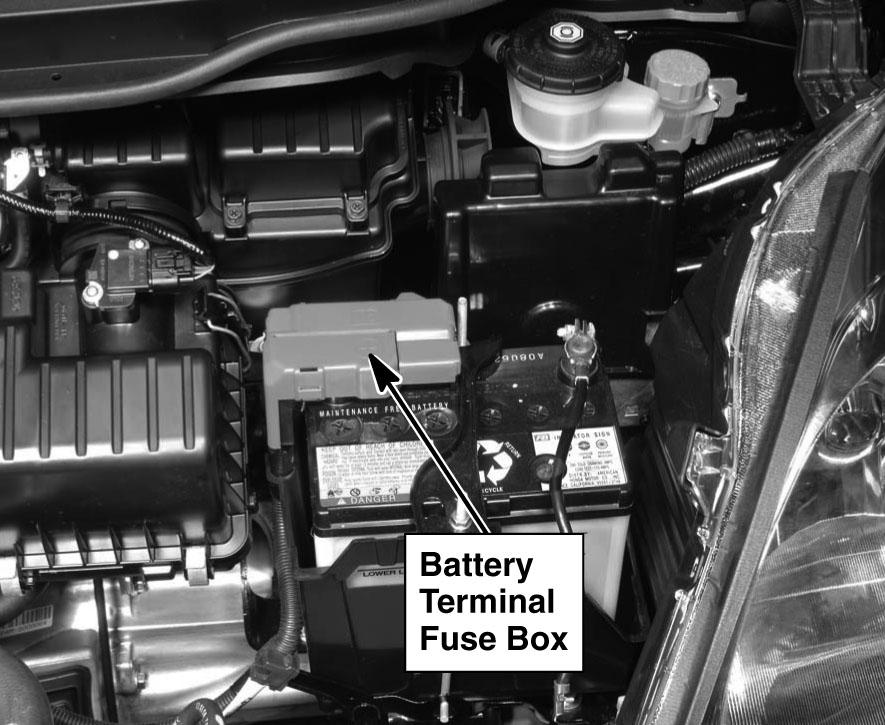

| Battery Terminal Box | Near battery. See Figure. |
| Under-Dash Fuse/Relay Box | Under left end of dash. See Figure. |
