Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

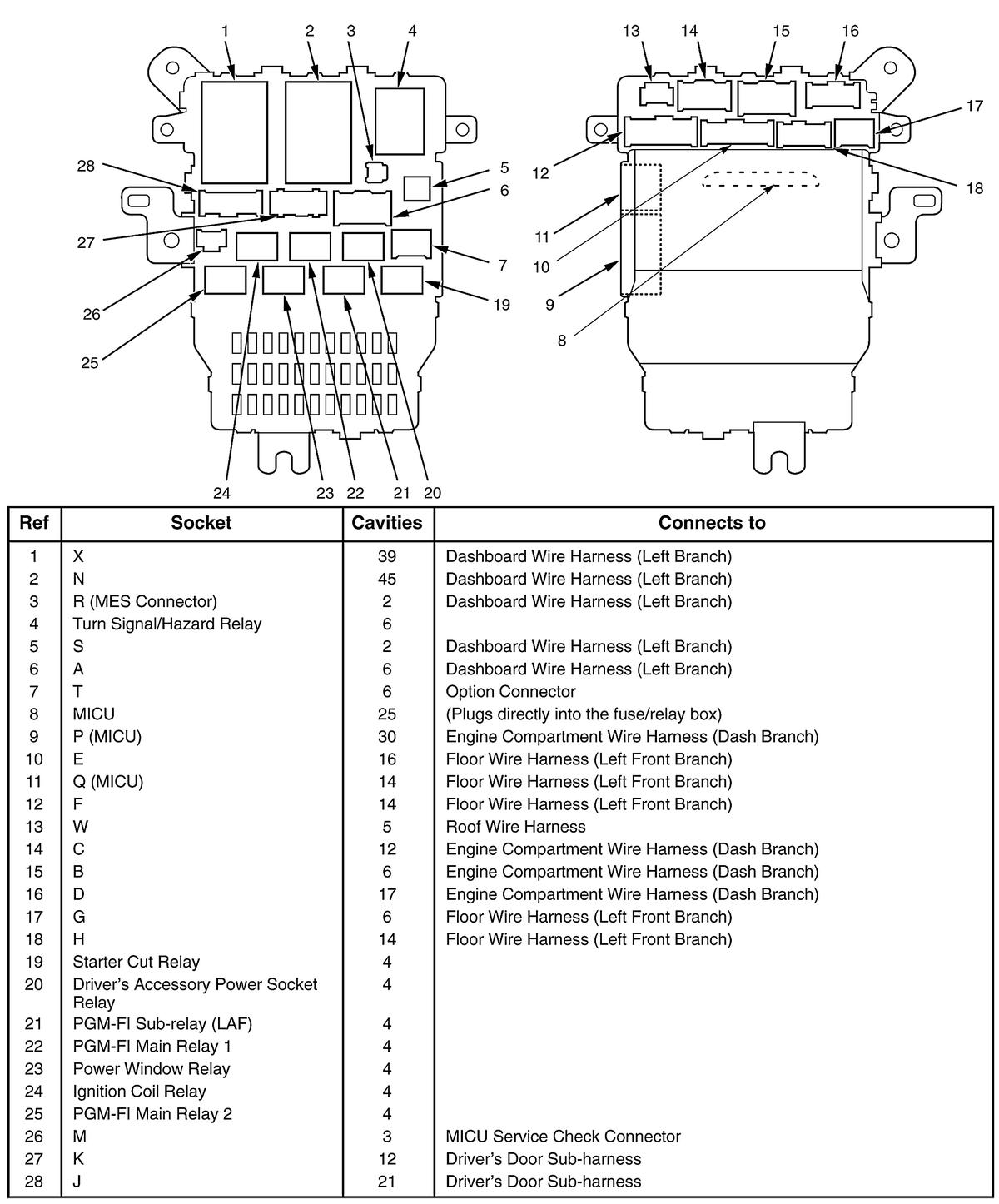

Fig 1: Driver's Under-Dash Fuse/Relay Box

G00472396

Courtesy of AMERICAN HONDA MOTOR CO., INC.

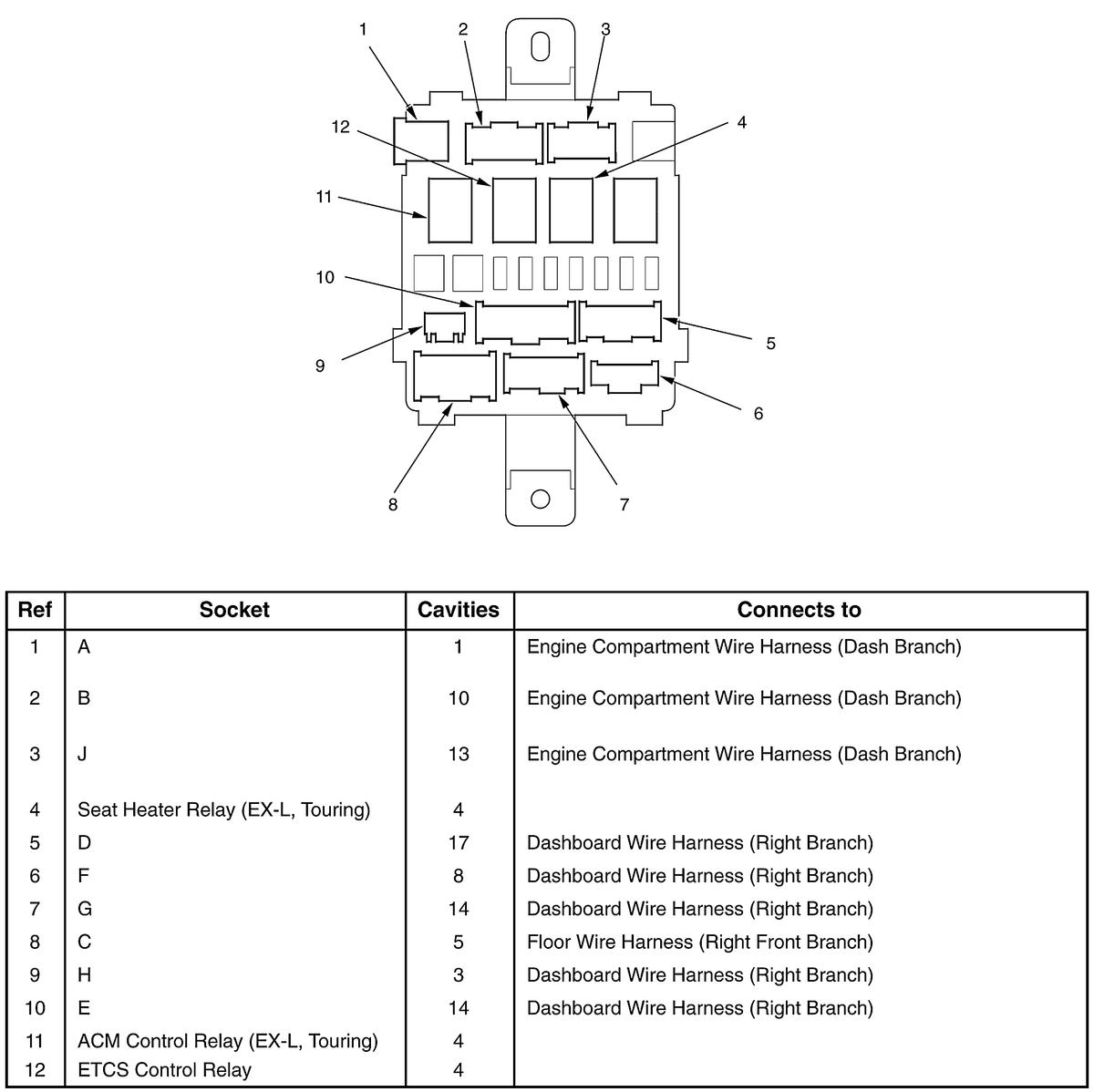

Fig 2: Passenger's Under-Dash Fuse/Relay Box

G00472397

Courtesy of AMERICAN HONDA MOTOR CO., INC.

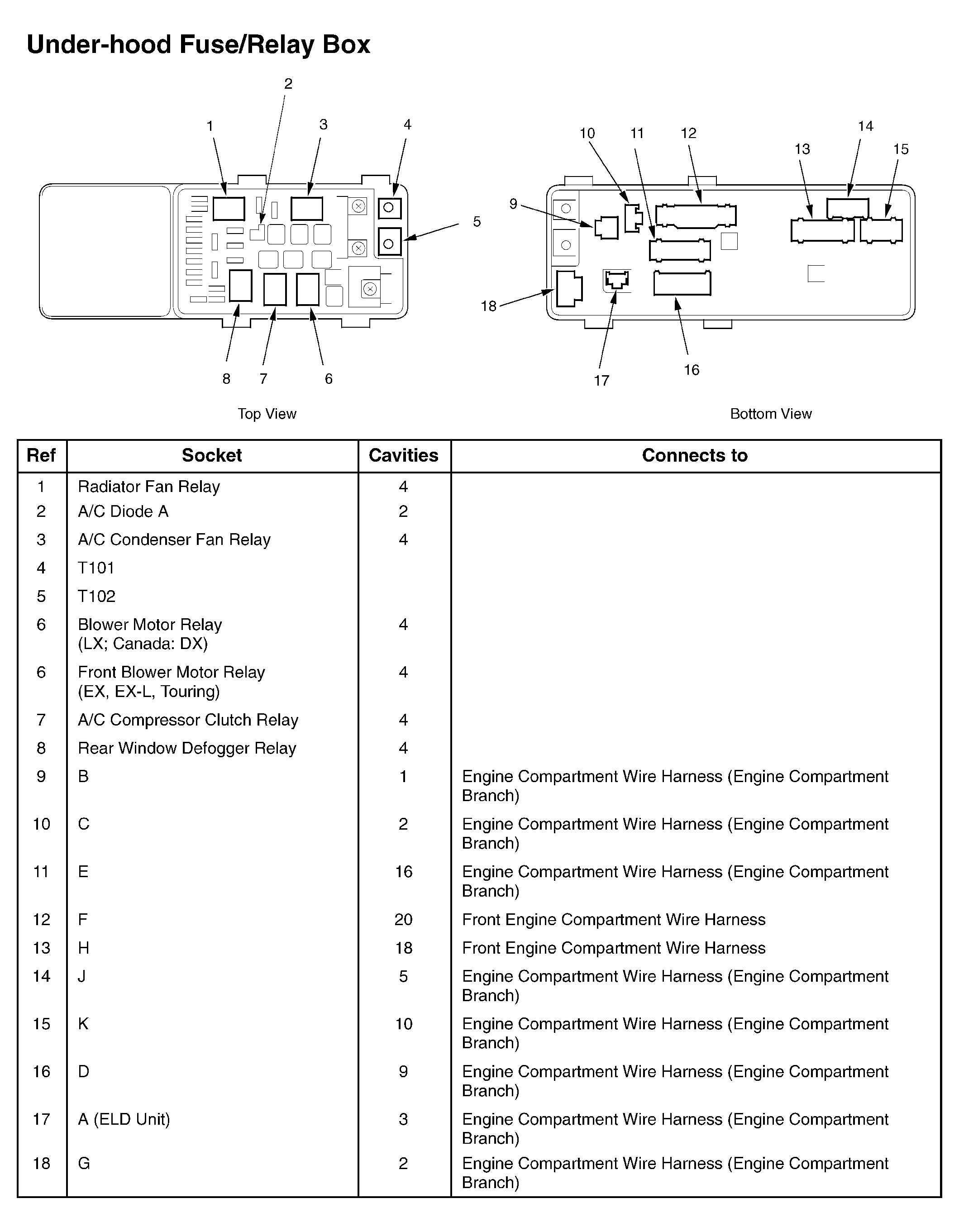

Fig 3: Under-Hood Fuse/Relay Box

G00464056

Courtesy of AMERICAN HONDA MOTOR CO., INC.

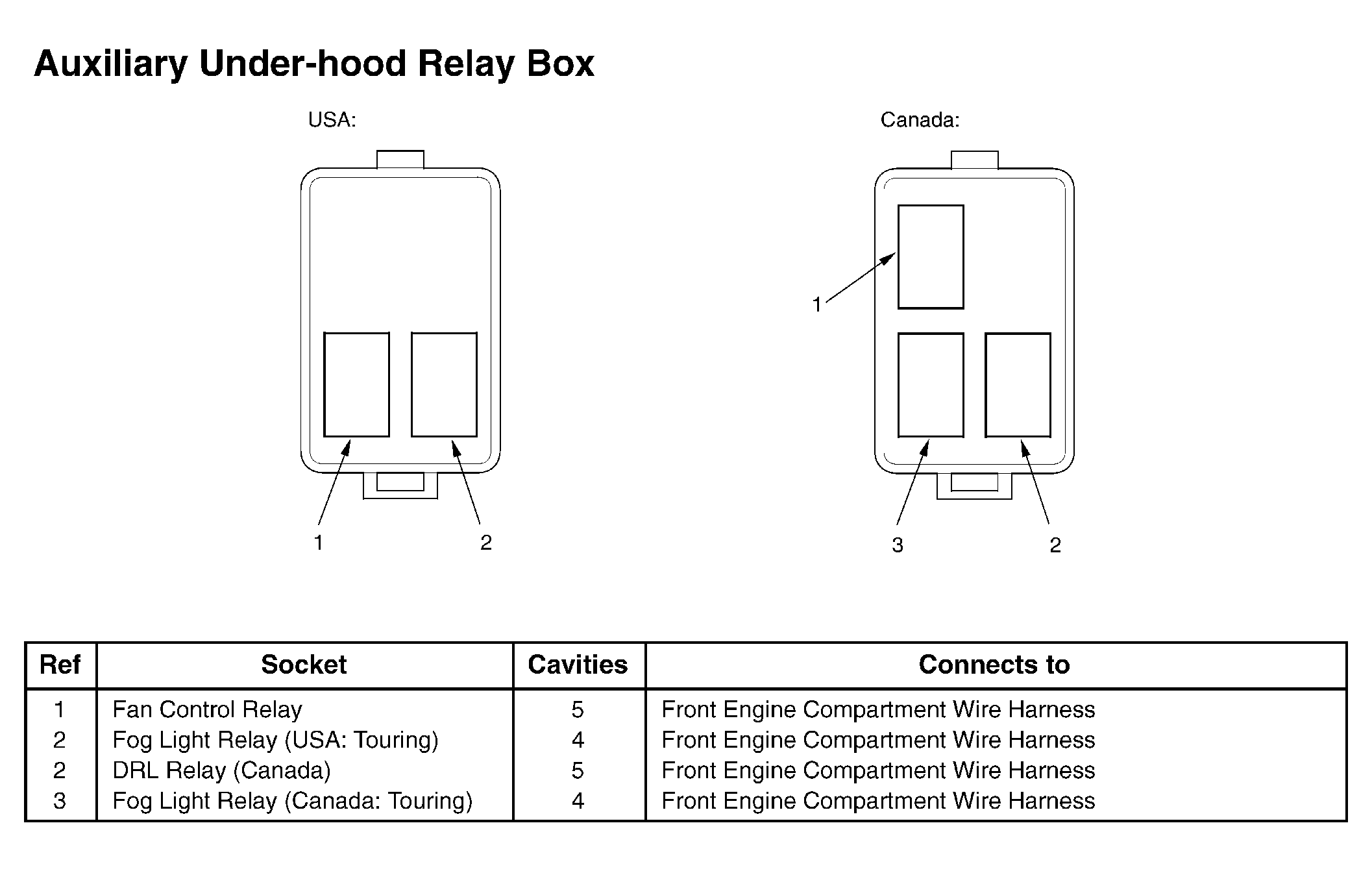

Fig 4: Auxiliary Under-Hood Relay Box

G00464057

Courtesy of AMERICAN HONDA MOTOR CO., INC.

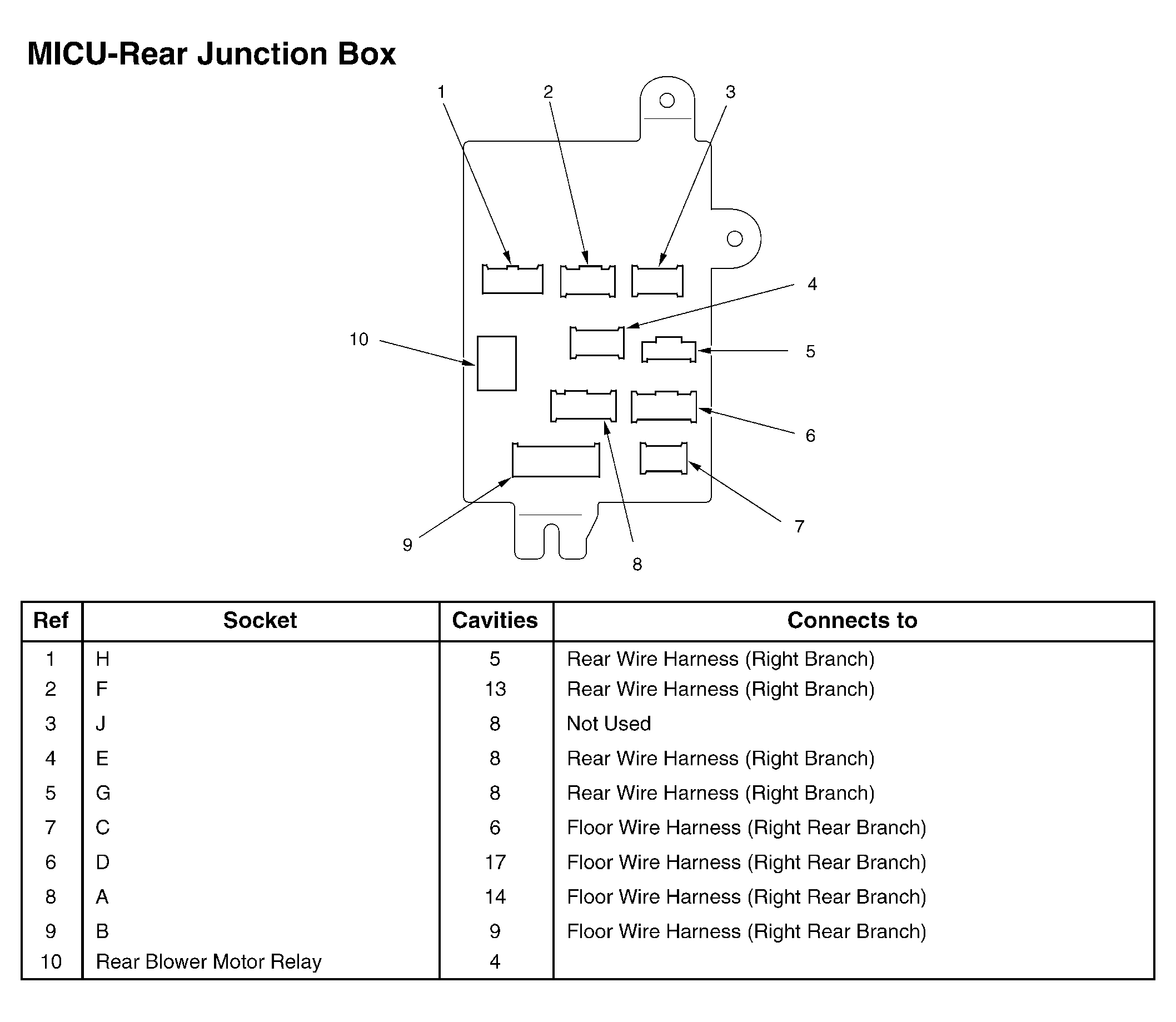

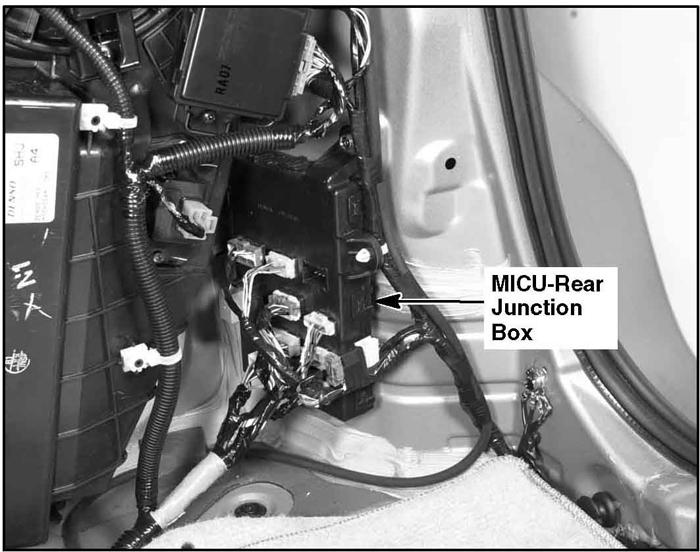

Fig 5: MICU-Rear Junction Box

G00464058

Courtesy of AMERICAN HONDA MOTOR CO., INC.

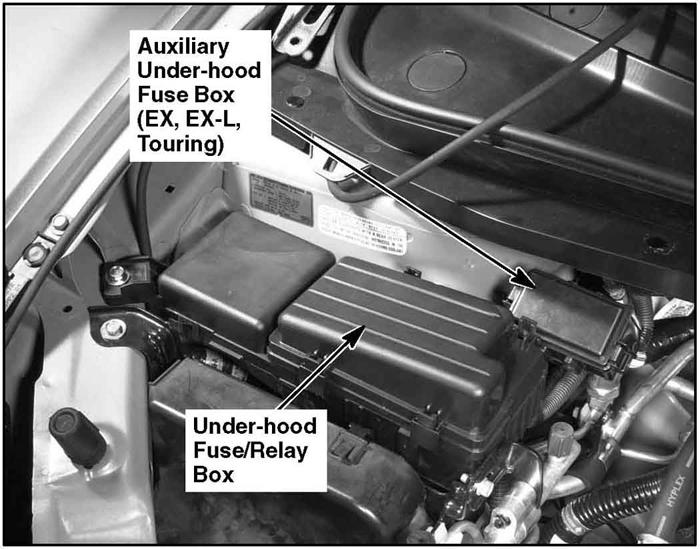

Fig 6: Right Side Of Engine Compartment

G00464059

Courtesy of AMERICAN HONDA MOTOR CO., INC.

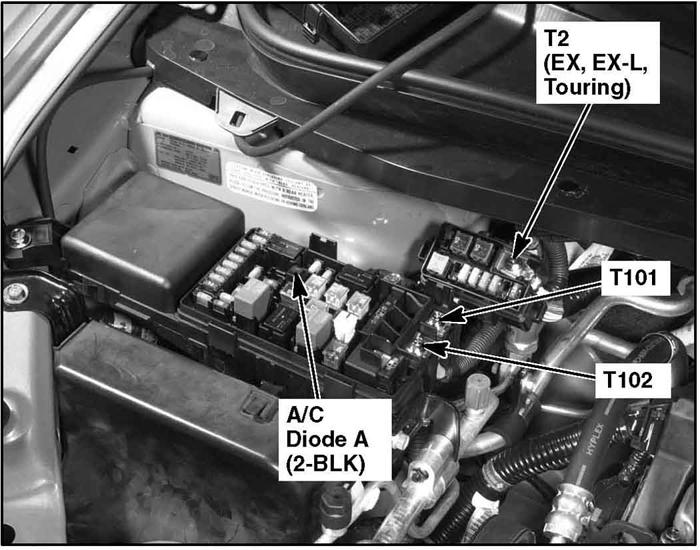

Fig 7: Right Rear Of Engine Compartment

G00464060

Courtesy of AMERICAN HONDA MOTOR CO., INC.

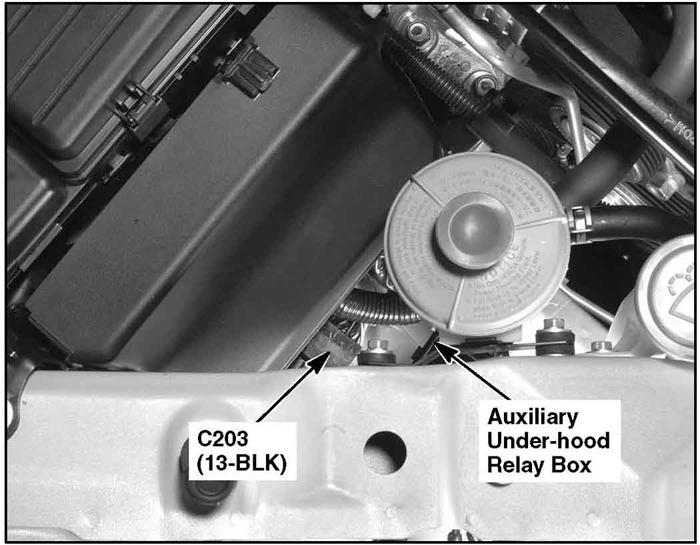

Fig 8: Right Side Of Engine Compartment

G00464061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Right Side Of Engine Compartment

G00464062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

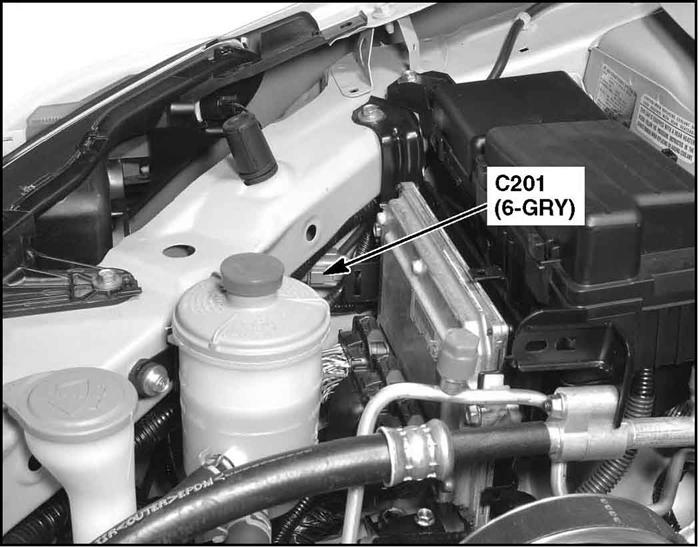

Fig 10: Right Front Of Engine Compartment

G00464063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

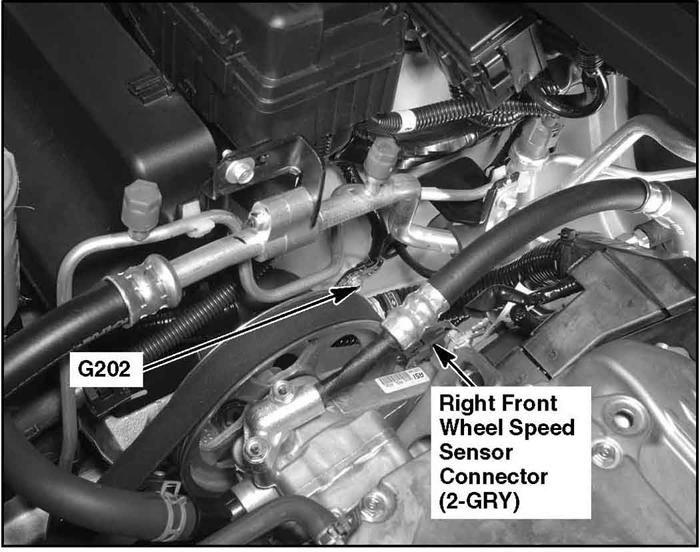

Fig 11: Right Side Of Engine Compartment

G00464065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

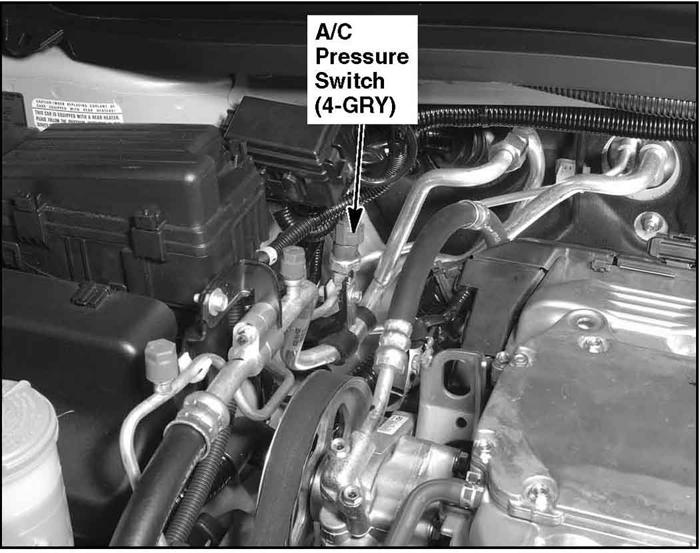

Fig 12: Right Side Of Engine Compartment

G00464066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

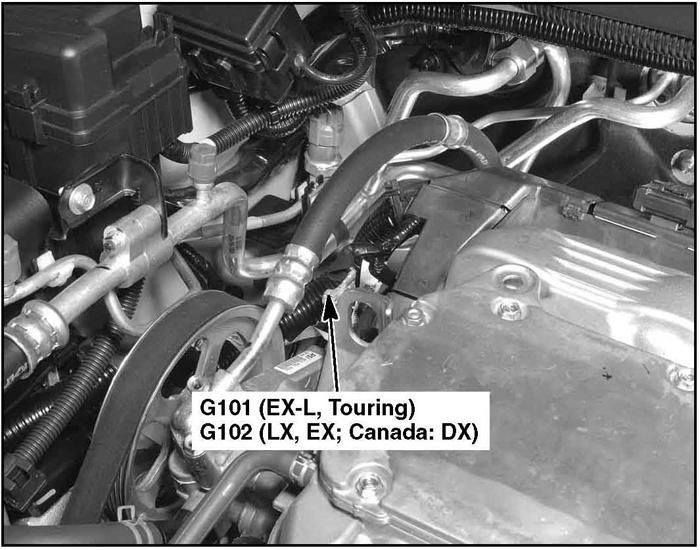

Fig 13: Front Of Engine

G00464067

Courtesy of AMERICAN HONDA MOTOR CO., INC.

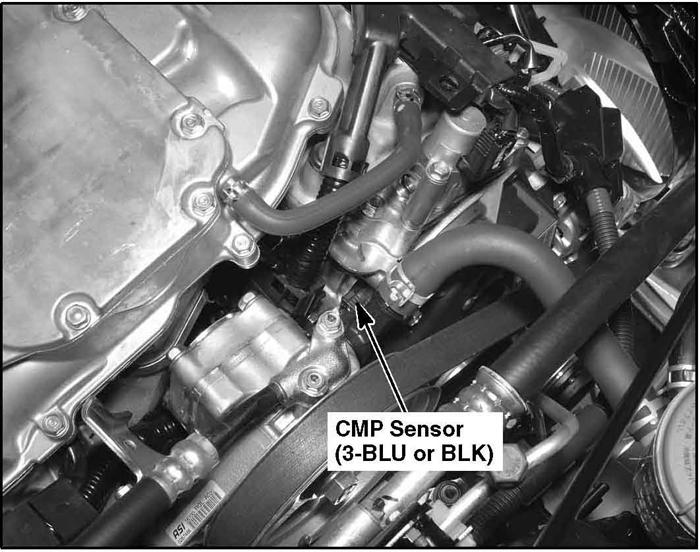

Fig 14: Front Of Engine

G00464068

Courtesy of AMERICAN HONDA MOTOR CO., INC.

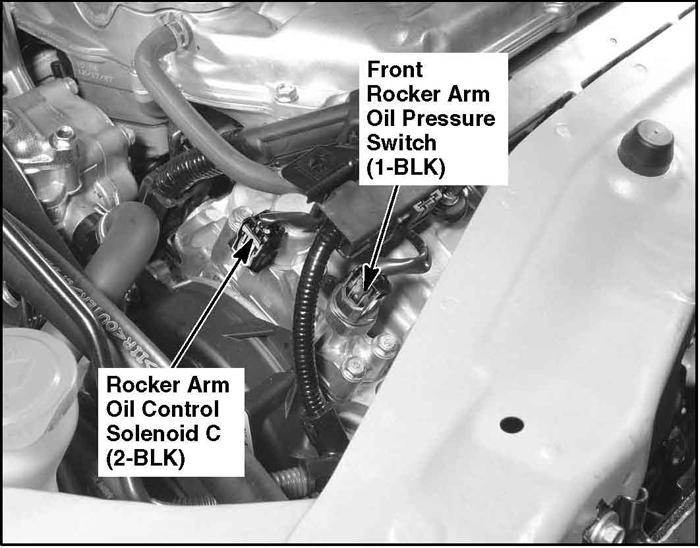

Fig 15: Left Rear Of Engine (EX-L, Touring)

G00464069

Courtesy of AMERICAN HONDA MOTOR CO., INC.

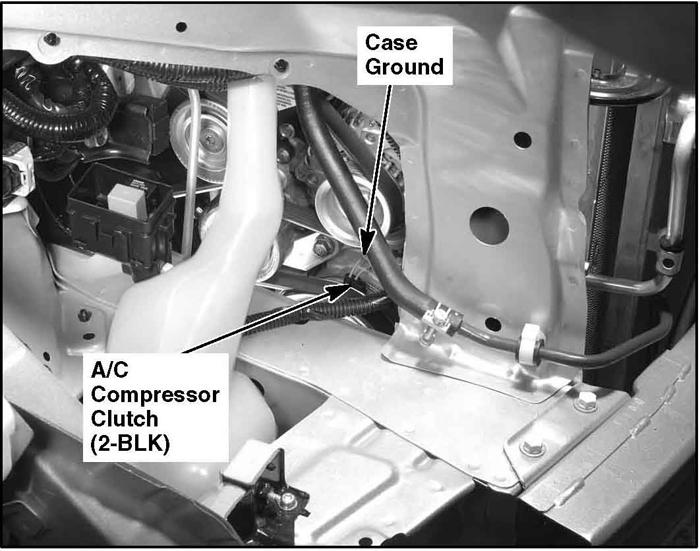

Fig 16: Front Of Engine

G00464070

Courtesy of AMERICAN HONDA MOTOR CO., INC.

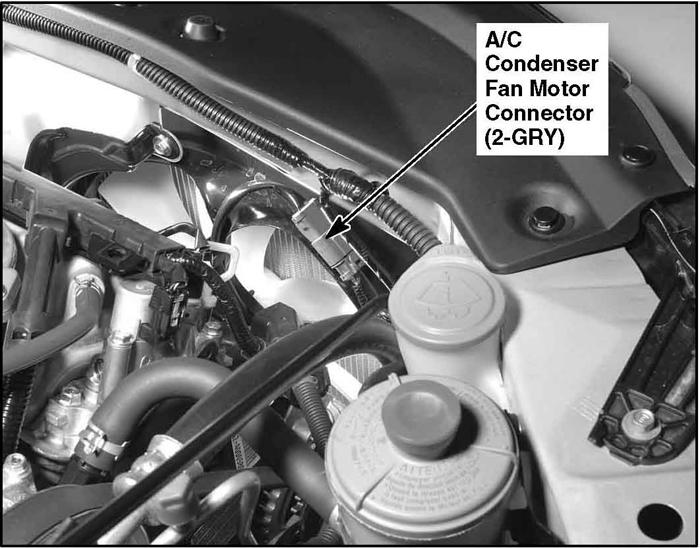

Fig 17: Right Front Of Engine Compartment

G00464071

Courtesy of AMERICAN HONDA MOTOR CO., INC.

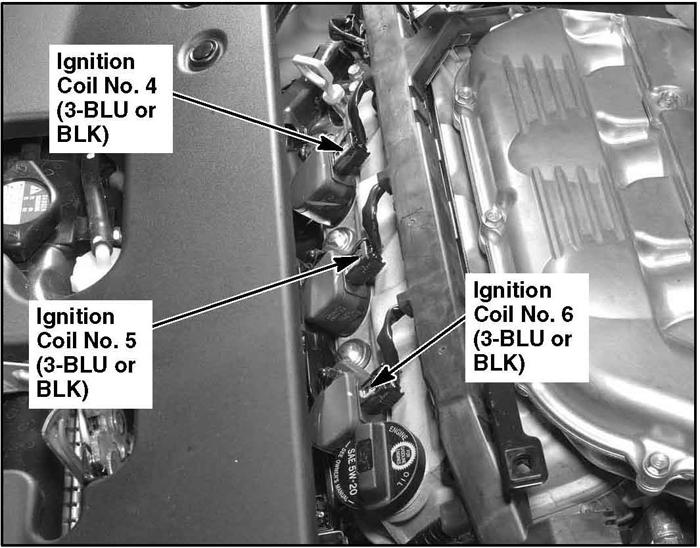

Fig 18: Left Side Of Engine

G00464072

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Top Of Engine

G00464073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

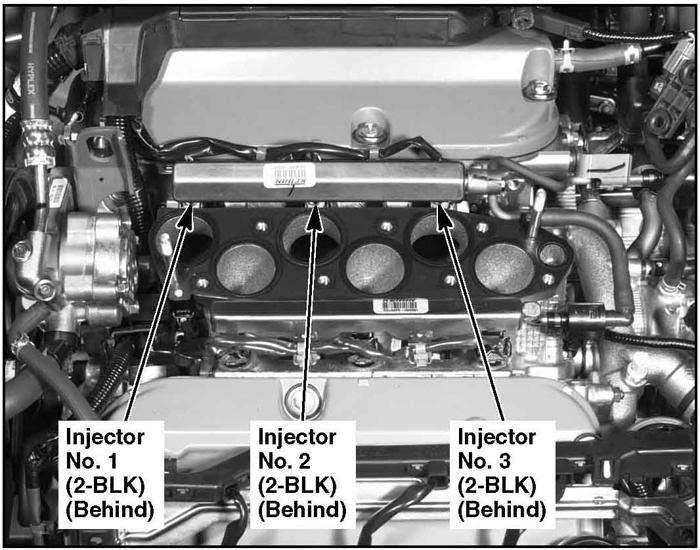

Fig 20: Top Of Engine

G00464074

Courtesy of AMERICAN HONDA MOTOR CO., INC.

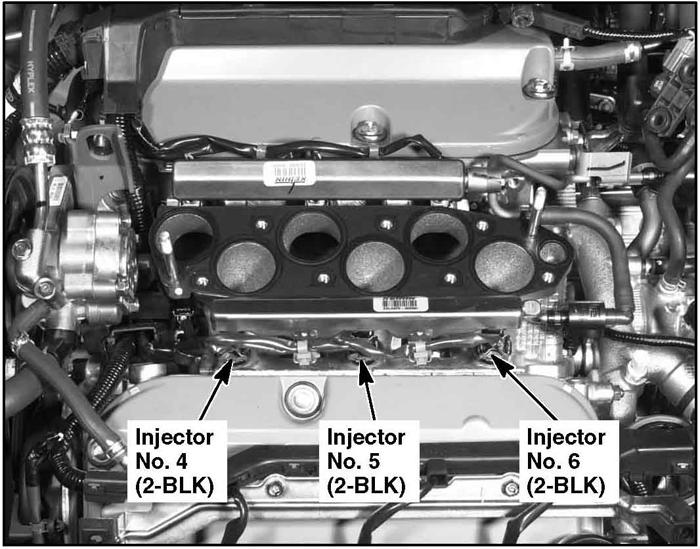

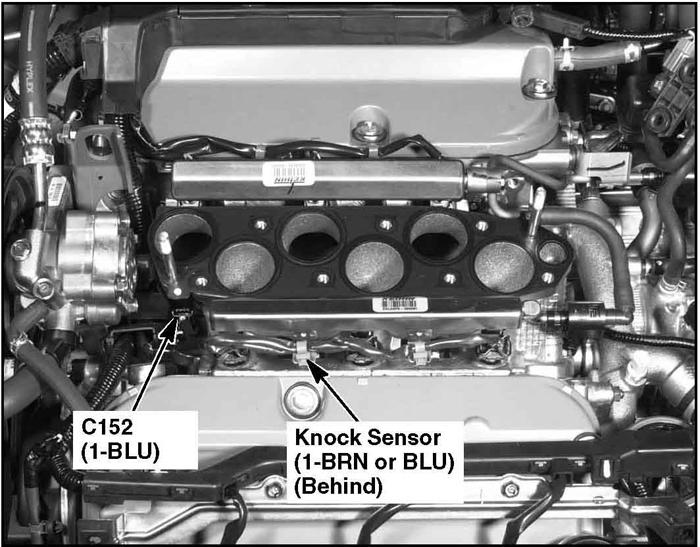

Fig 21: Top Of Engine

G00464075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

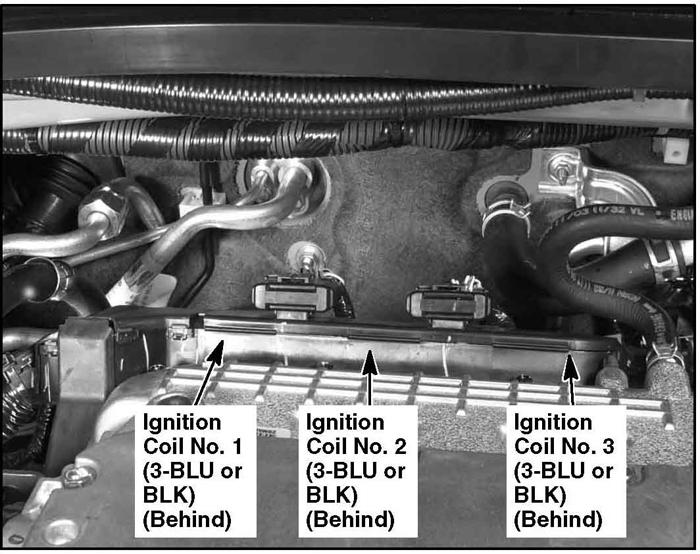

Fig 22: Right Side Of Engine

G00464076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

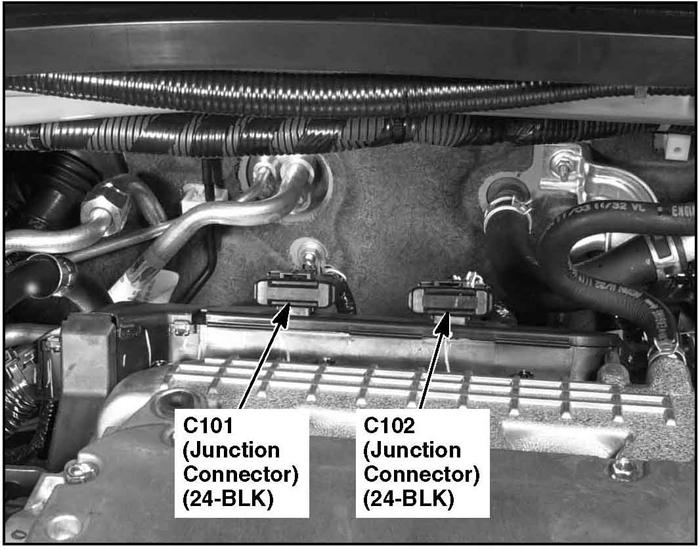

Fig 23: Right Side Of Engine (EX-L, Touring Similar)

G00464077

Courtesy of AMERICAN HONDA MOTOR CO., INC.

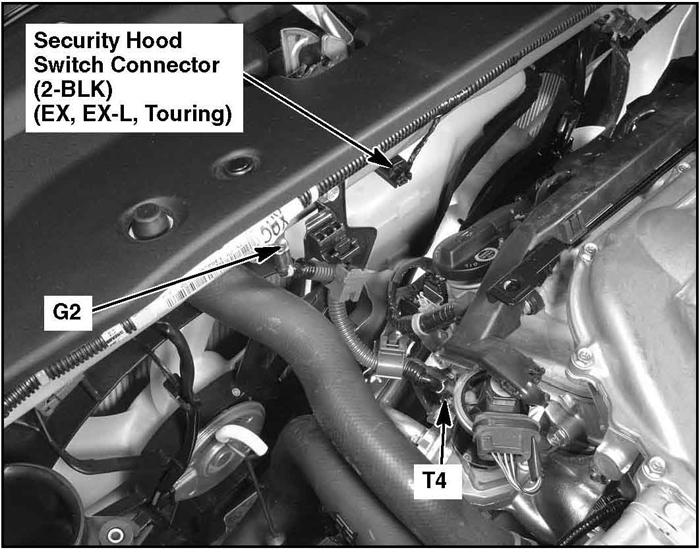

Fig 24: Front Of Engine Compartment

G00464078

Courtesy of AMERICAN HONDA MOTOR CO., INC.

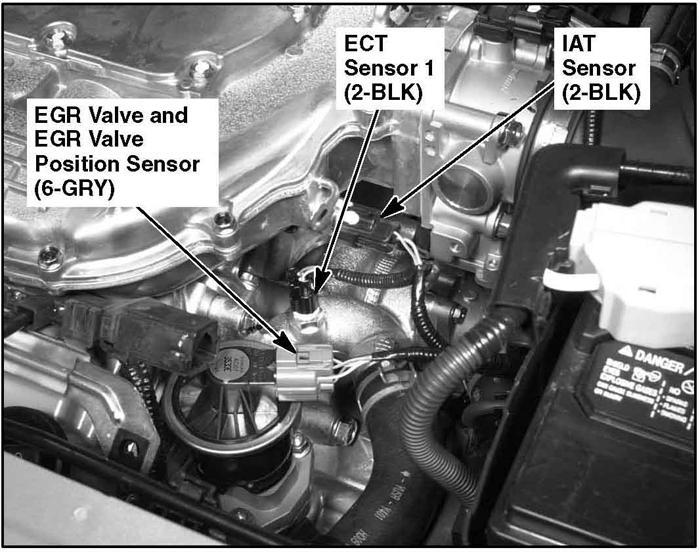

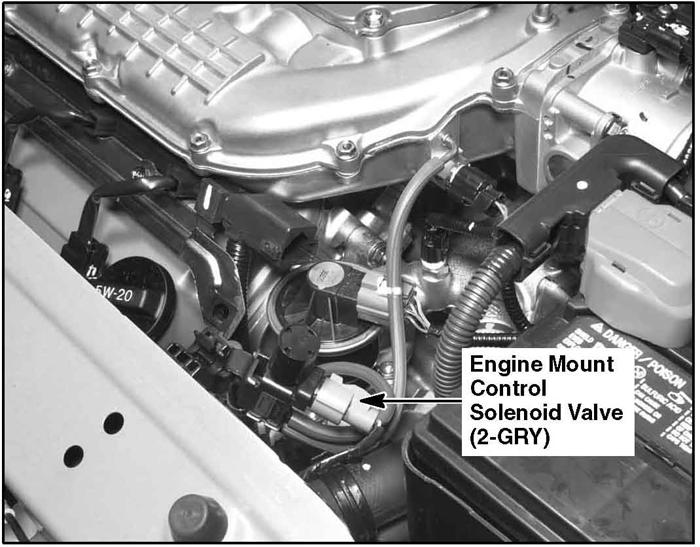

Fig 25: Left Rear Of Engine (LX & EX)

G00464079

Courtesy of AMERICAN HONDA MOTOR CO., INC.

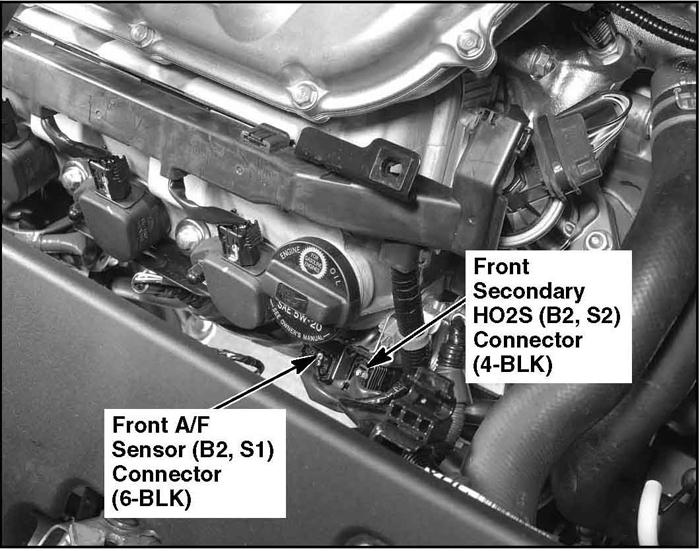

Fig 26: Left Rear Of Engine (EX-L, Touring)

G00464080

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Left Rear Of Engine (LX & EX)

G00464081

Courtesy of AMERICAN HONDA MOTOR CO., INC.

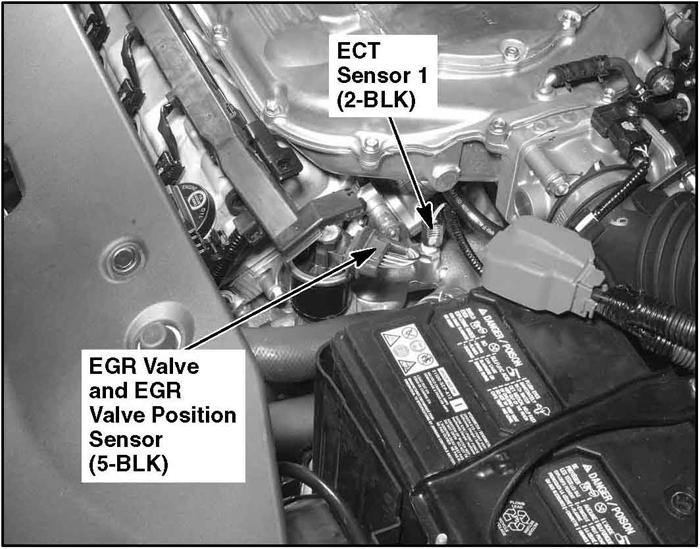

Fig 28: Rear Of Engine (EX-L, Touring)

G00464082

Courtesy of AMERICAN HONDA MOTOR CO., INC.

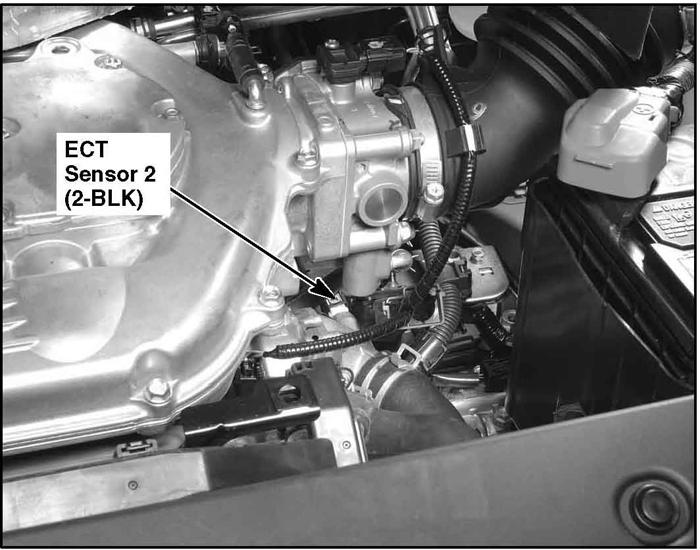

Fig 29: Rear Of Engine (EX-L, Touring)

G00464083

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Rear Of Engine (EX-L, Touring)

G00464084

Courtesy of AMERICAN HONDA MOTOR CO., INC.

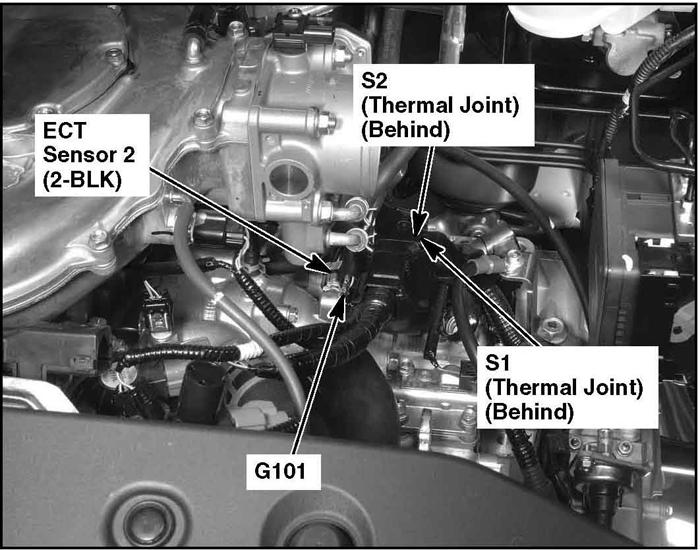

Fig 31: Rear Of Engine (LX & EX)

G00464085

Courtesy of AMERICAN HONDA MOTOR CO., INC.

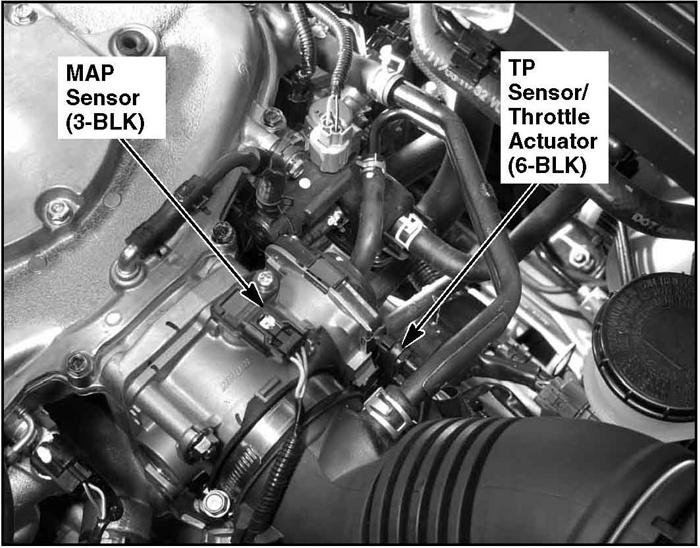

Fig 32: Rear Of Engine (LX & EX)

G00464086

Courtesy of AMERICAN HONDA MOTOR CO., INC.

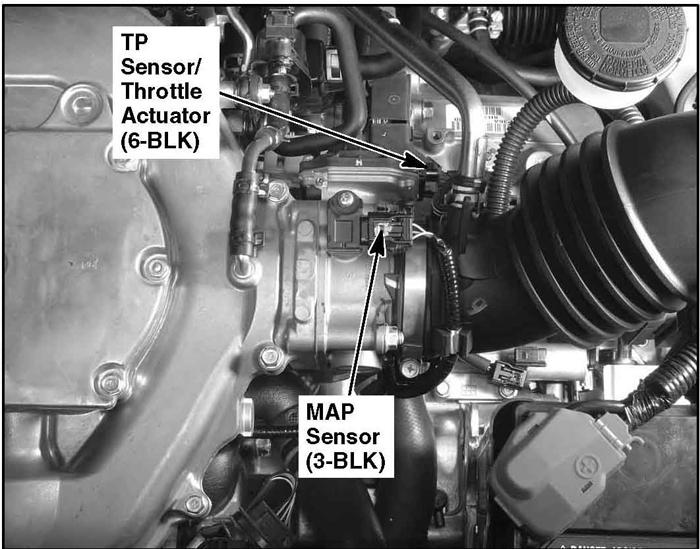

Fig 33: Rear Of Engine (EX-L, Touring)

G00464087

Courtesy of AMERICAN HONDA MOTOR CO., INC.

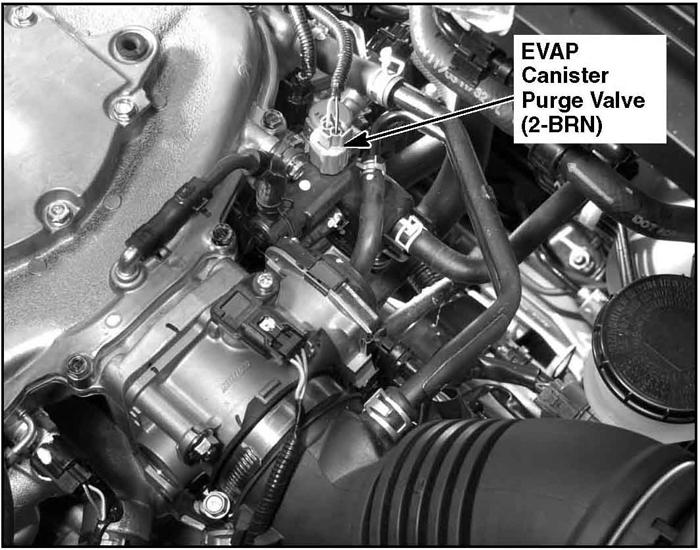

Fig 34: Right Rear Of Engine (LX & EX)

G00464088

Courtesy of AMERICAN HONDA MOTOR CO., INC.

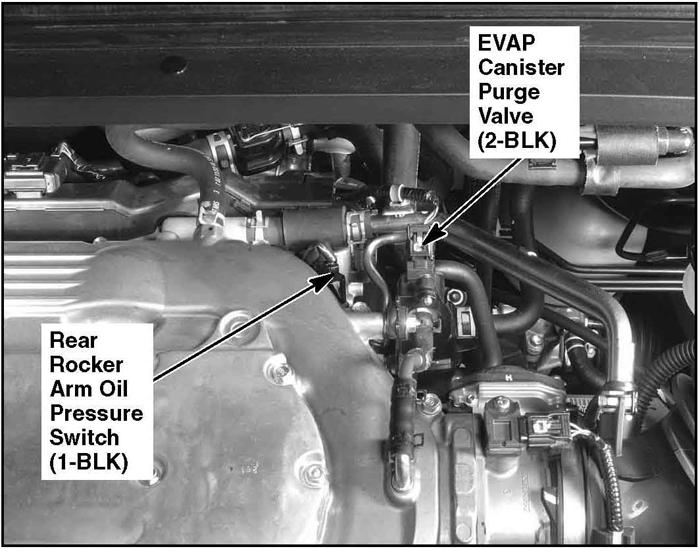

Fig 35: Right Rear Of Engine (EX-L, Touring)

G00464089

Courtesy of AMERICAN HONDA MOTOR CO., INC.

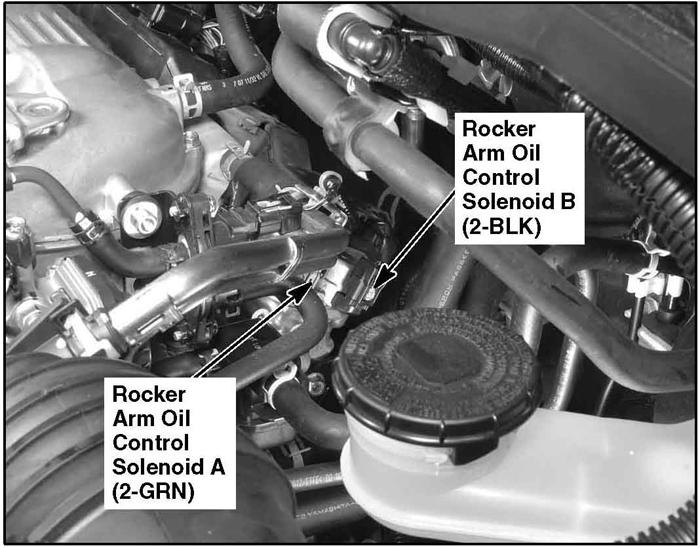

Fig 36: Right Rear Of Engine (EX-L, Touring)

G00464090

Courtesy of AMERICAN HONDA MOTOR CO., INC.

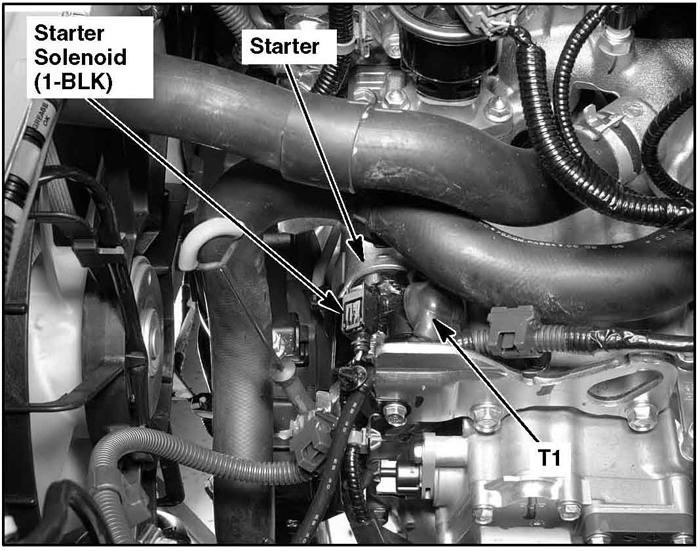

Fig 37: Left Rear Of Engine (LX & EX)

G00464091

Courtesy of AMERICAN HONDA MOTOR CO., INC.

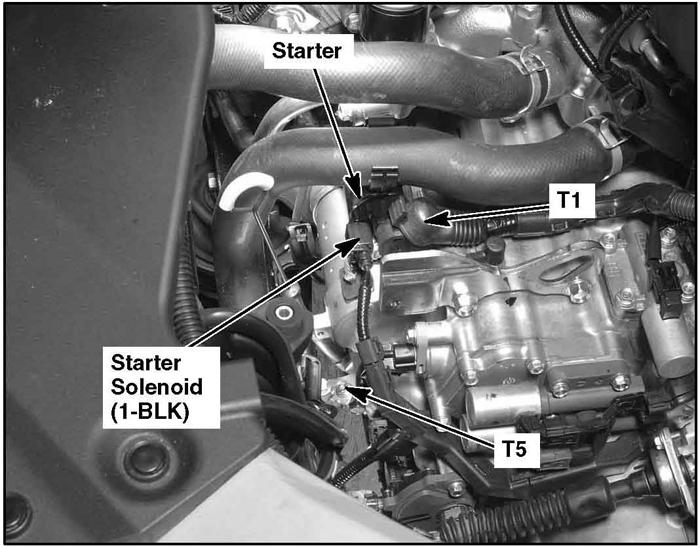

Fig 38: Top Of Transmission (EX-L, Touring)

G00464092

Courtesy of AMERICAN HONDA MOTOR CO., INC.

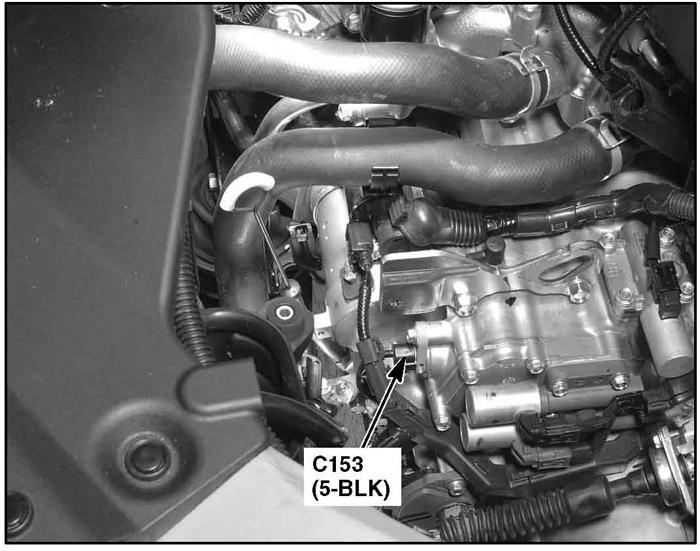

Fig 39: Transmission Housing

G00464093

Courtesy of AMERICAN HONDA MOTOR CO., INC.

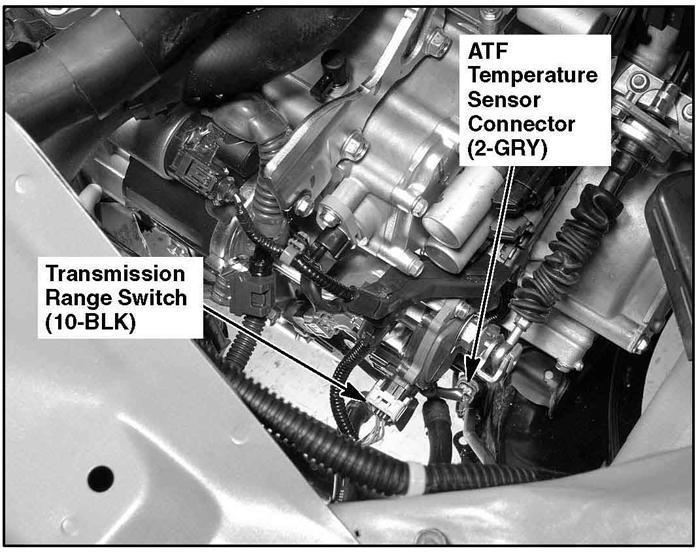

Fig 40: Transmission Housing

G00464094

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Transmission Housing

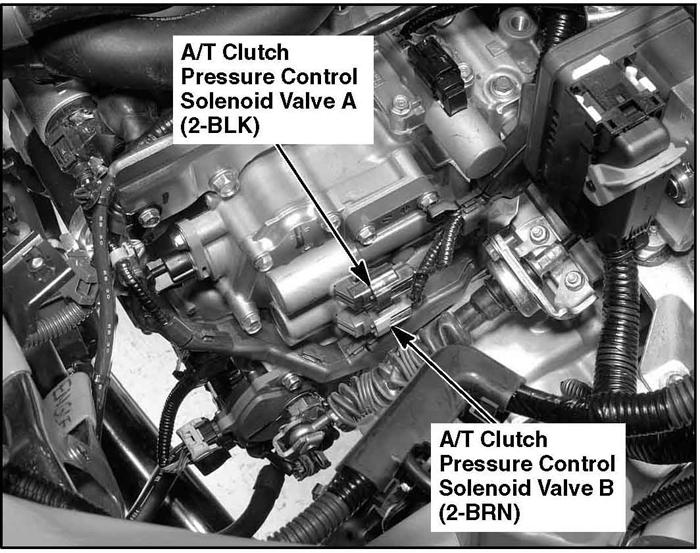

G00464095

Courtesy of AMERICAN HONDA MOTOR CO., INC.

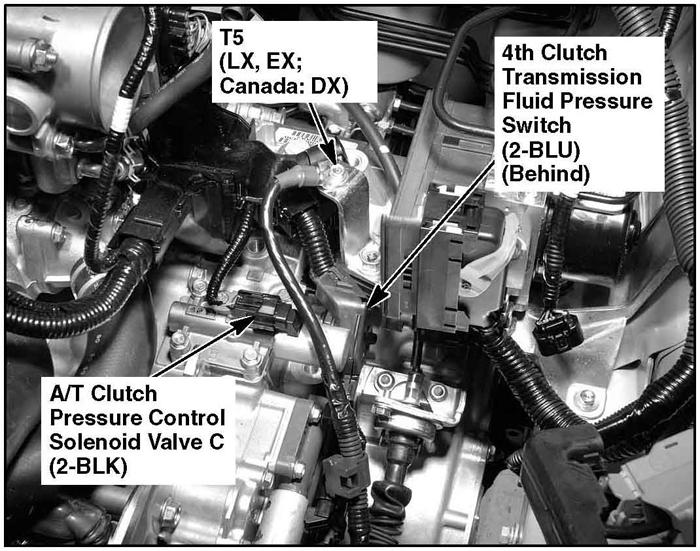

Fig 42: Transmission Housing

G00464096

Courtesy of AMERICAN HONDA MOTOR CO., INC.

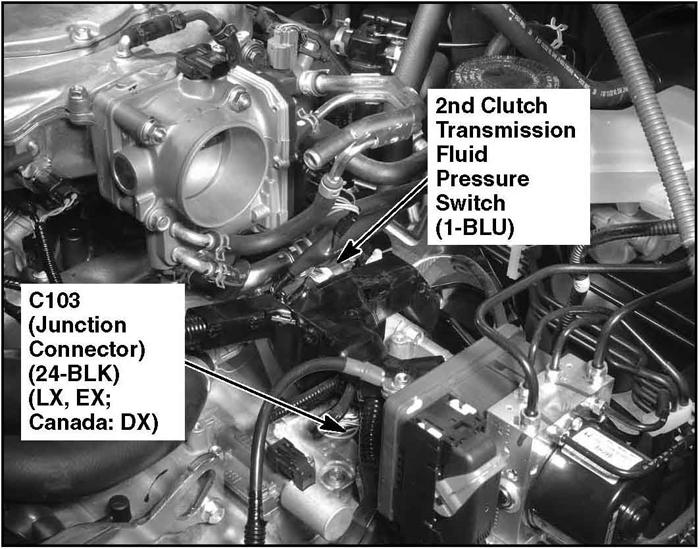

Fig 43: Transmission Housing

G00464097

Courtesy of AMERICAN HONDA MOTOR CO., INC.

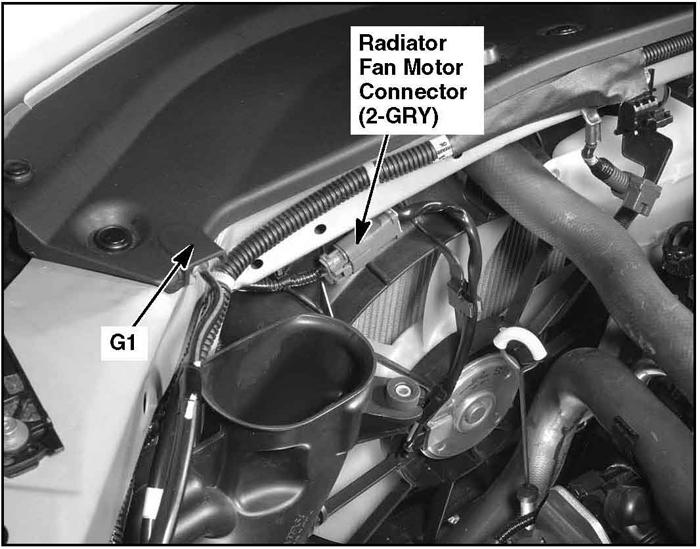

Fig 44: Left Front Of Engine Compartment

G00464098

Courtesy of AMERICAN HONDA MOTOR CO., INC.

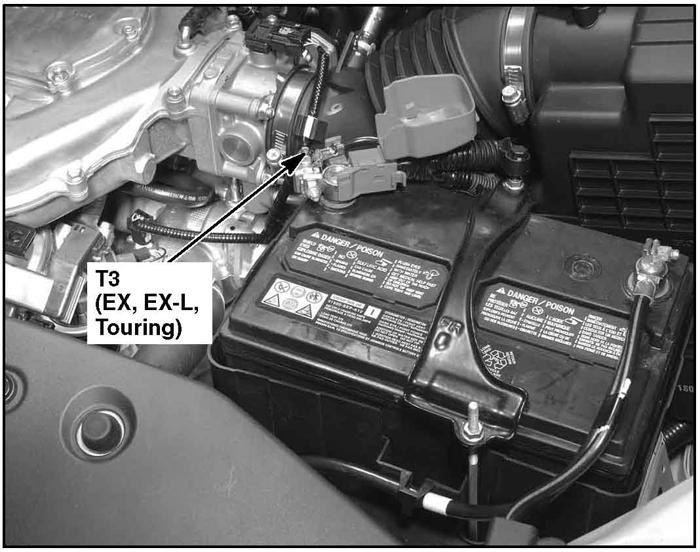

Fig 45: Left Front Of Engine Compartment

G00464099

Courtesy of AMERICAN HONDA MOTOR CO., INC.

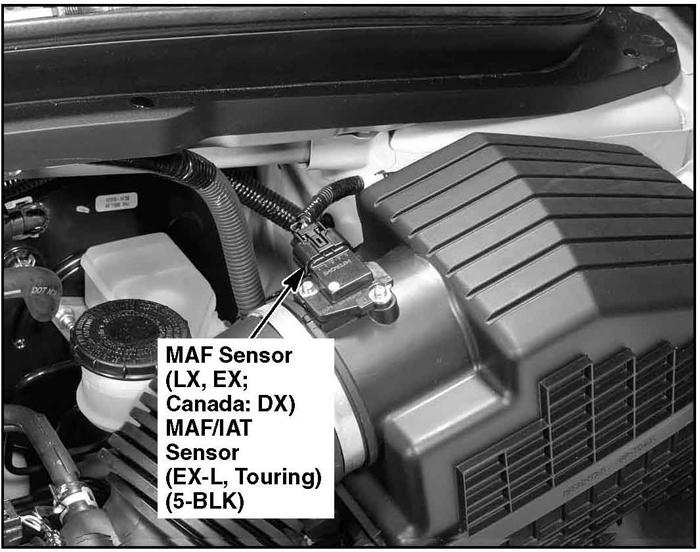

Fig 46: Left Rear Of Engine Compartment

G00464100

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Left Side Of Engine Compartment

G00464101

Courtesy of AMERICAN HONDA MOTOR CO., INC.

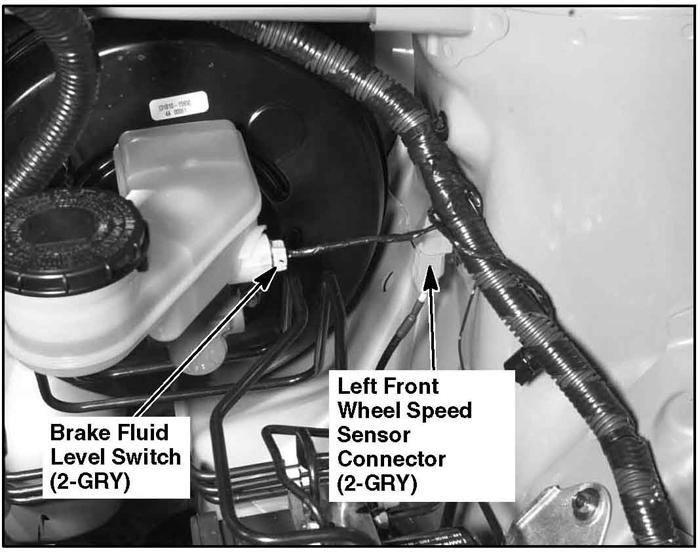

Fig 48: Left Rear Of Engine Compartment

G00464102

Courtesy of AMERICAN HONDA MOTOR CO., INC.

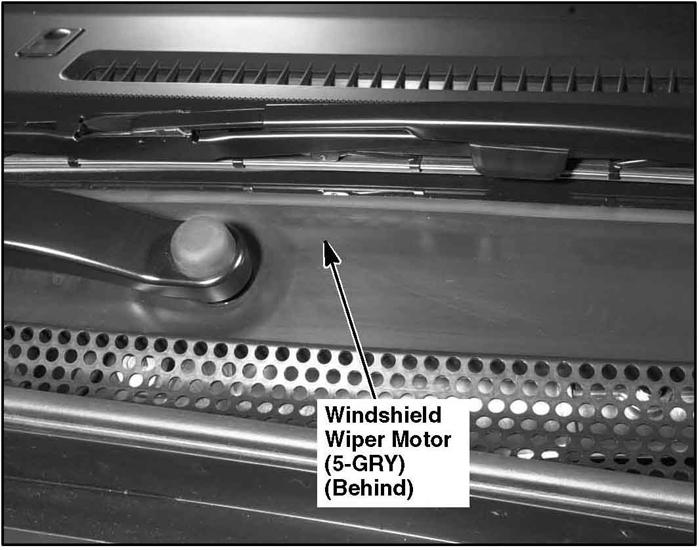

Fig 49: Under Middle Of Cowl Cover

G00464103

Courtesy of AMERICAN HONDA MOTOR CO., INC.

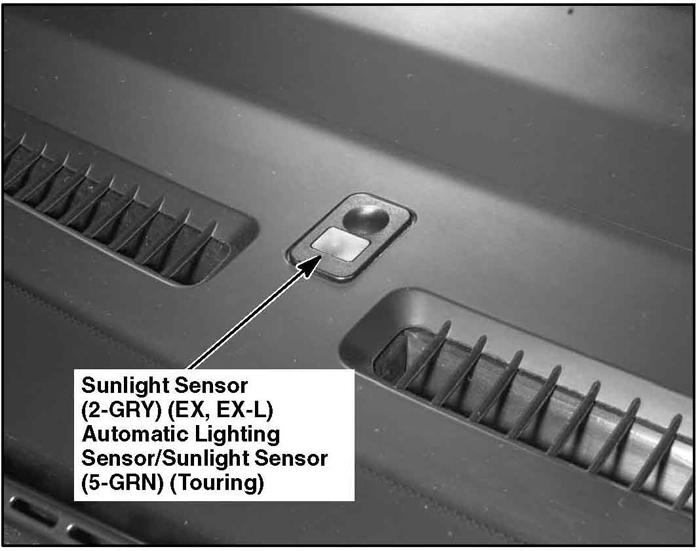

Fig 50: Top Center Of Dash

G00464104

Courtesy of AMERICAN HONDA MOTOR CO., INC.

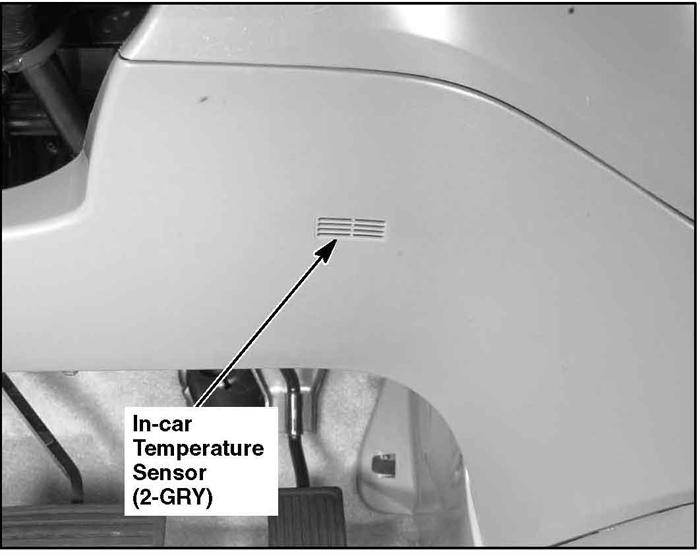

Fig 51: Left Side Of Dash (EX, EX-L, Touring)

G00464105

Courtesy of AMERICAN HONDA MOTOR CO., INC.

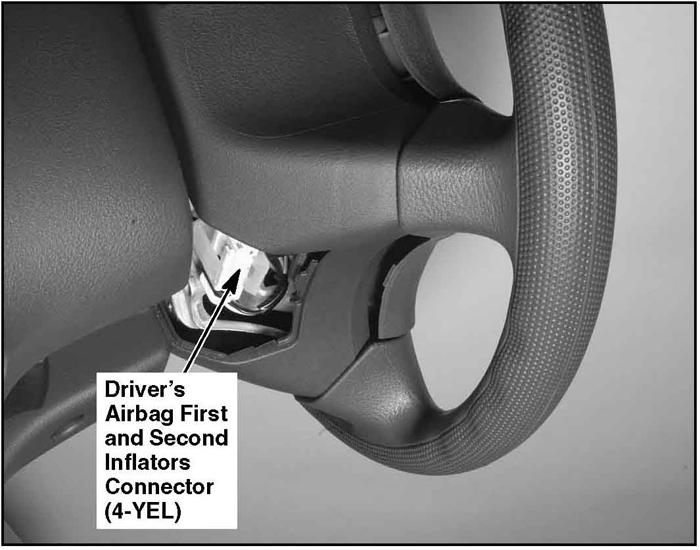

Fig 52: Steering Wheel

G00464106

Courtesy of AMERICAN HONDA MOTOR CO., INC.

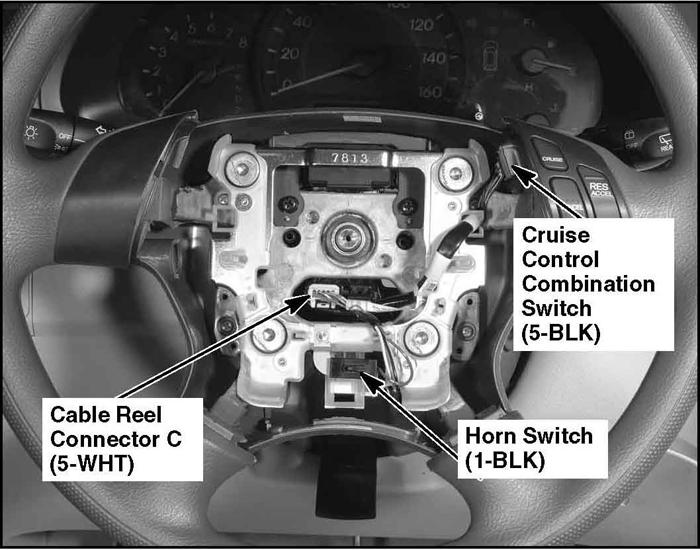

Fig 53: Steering Wheel

G00464107

Courtesy of AMERICAN HONDA MOTOR CO., INC.

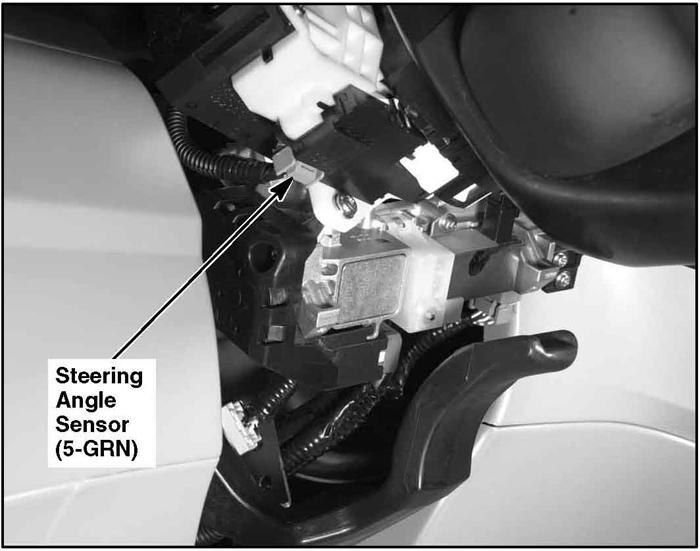

Fig 54: Under Steering Column Cover

G00464108

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Under Steering Column Cover

G00464109

Courtesy of AMERICAN HONDA MOTOR CO., INC.

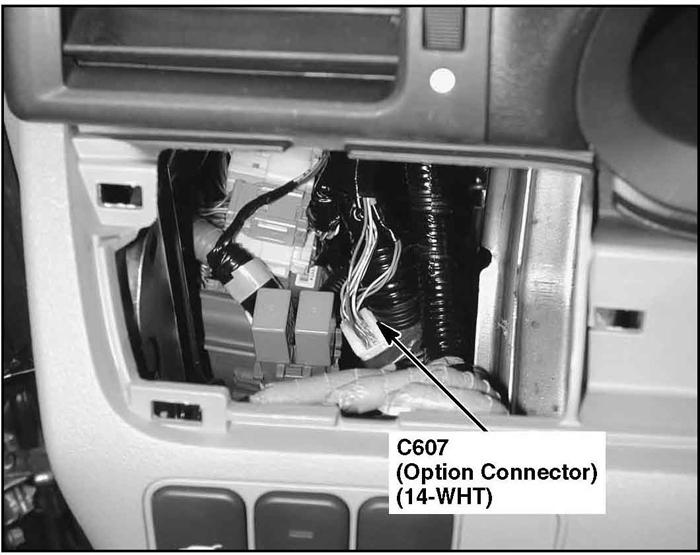

Fig 56: Under Left Side Of Dash

G00464110

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Under Left Side Of Dash

G00464111

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Under Left Side Of Dash

G00464112

Courtesy of AMERICAN HONDA MOTOR CO., INC.

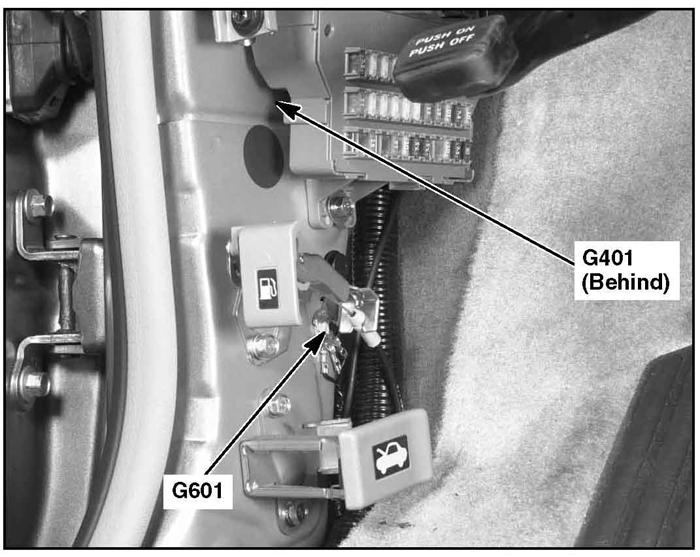

Fig 59: Behind Left Kick Panel

G00464113

Courtesy of AMERICAN HONDA MOTOR CO., INC.

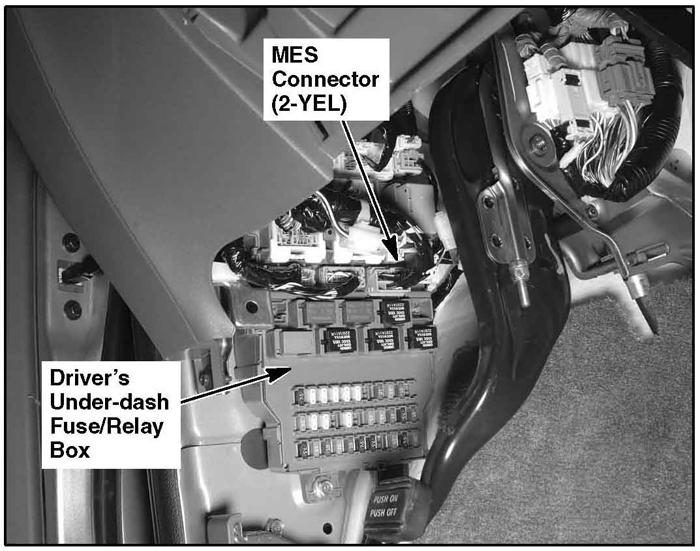

Fig 60: Behind Left Kick Panel

G00464114

Courtesy of AMERICAN HONDA MOTOR CO., INC.

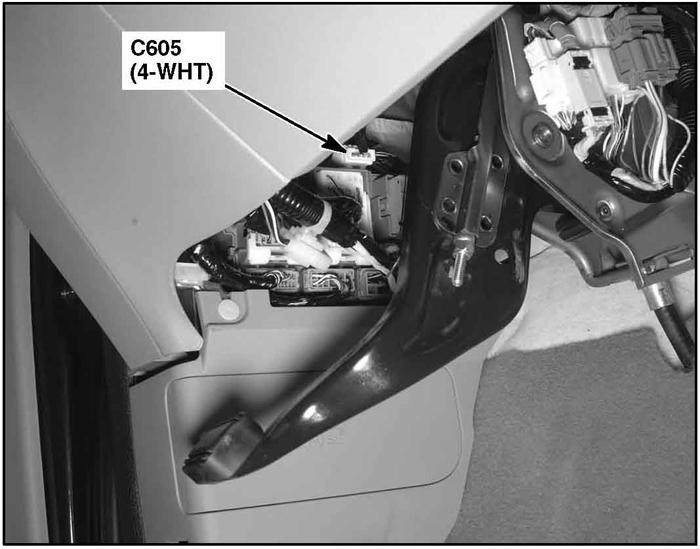

Fig 61: Under Left End Of Dash (LX)

G00464115

Courtesy of AMERICAN HONDA MOTOR CO., INC.

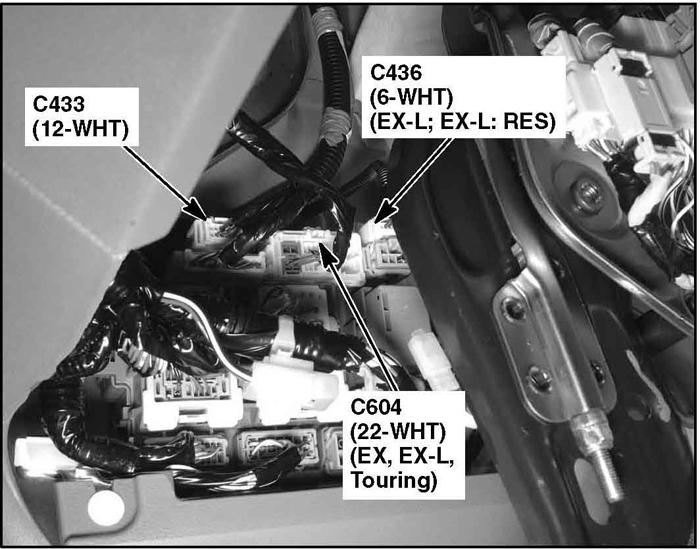

Fig 62: Behind Left Kick Panel

G00464116

Courtesy of AMERICAN HONDA MOTOR CO., INC.

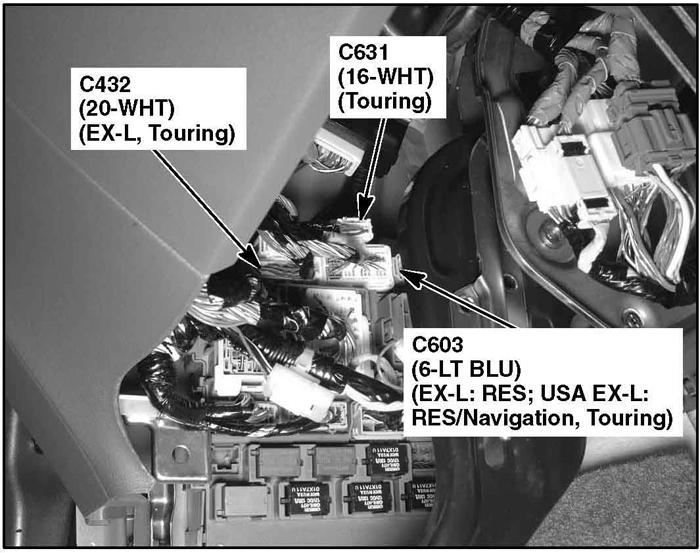

Fig 63: Under Left End Of Dash

G00464117

Courtesy of AMERICAN HONDA MOTOR CO., INC.

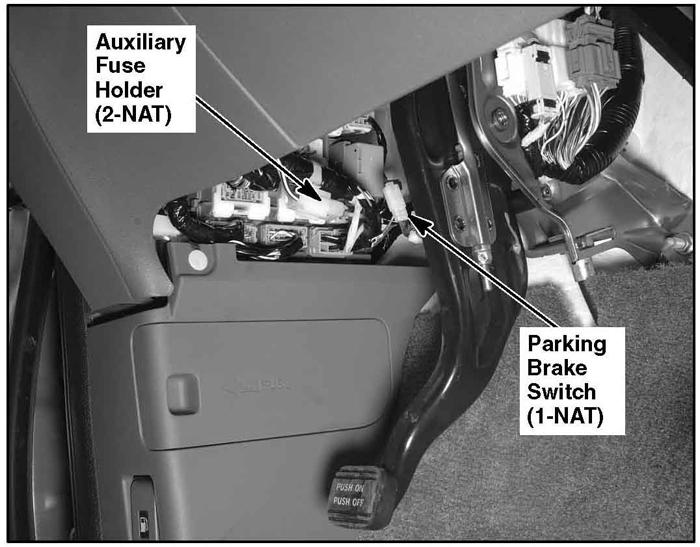

Fig 64: Under Left Side Of Dash

G00464118

Courtesy of AMERICAN HONDA MOTOR CO., INC.

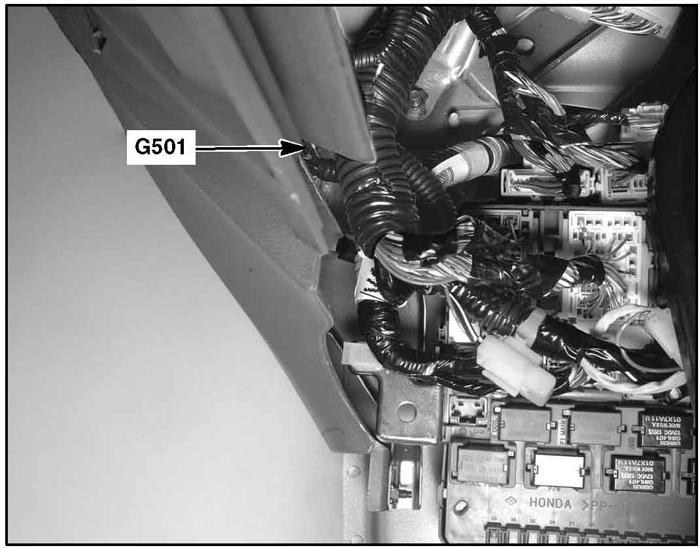

Fig 65: Under Left Side Of Dash

G00464119

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Under Left Side Of Dash (Touring)

G00464120

Courtesy of AMERICAN HONDA MOTOR CO., INC.

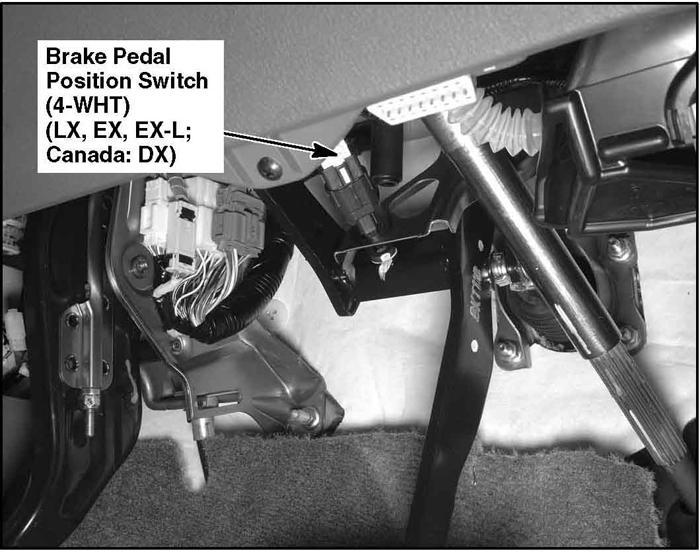

Fig 67: Under Left Side Of Dash (Touring)

G00464121

Courtesy of AMERICAN HONDA MOTOR CO., INC.

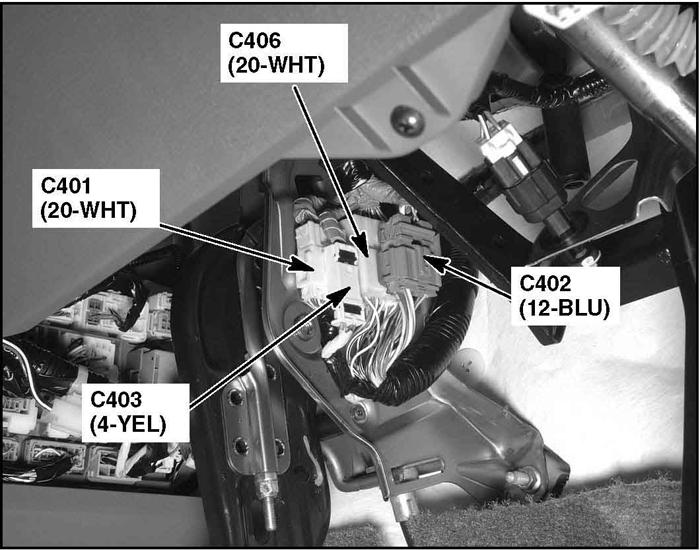

Fig 68: Under Left Side Of Dash

G00464122

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Under Left Side Of Dash

G00464123

Courtesy of AMERICAN HONDA MOTOR CO., INC.

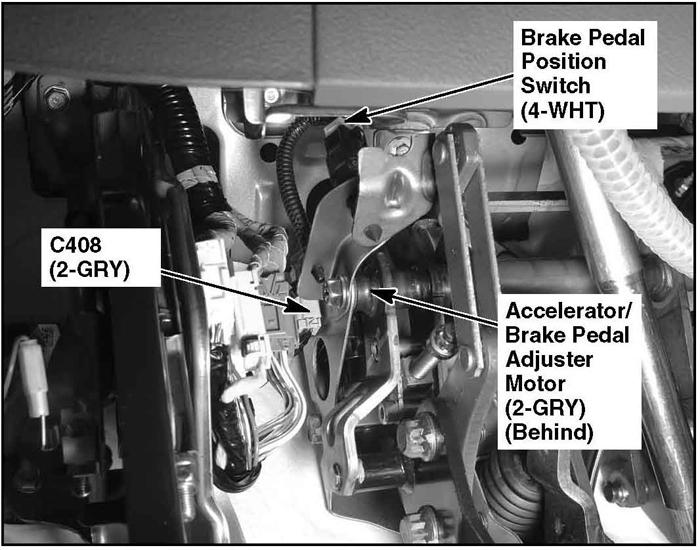

Fig 70: Under Left Side Of Dash (Touring)

G00464124

Courtesy of AMERICAN HONDA MOTOR CO., INC.

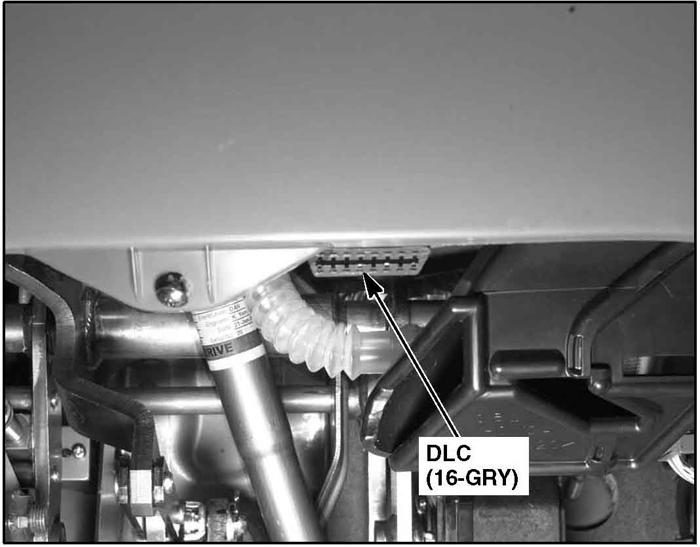

Fig 71: Under Left Side Of Dash

G00464125

Courtesy of AMERICAN HONDA MOTOR CO., INC.

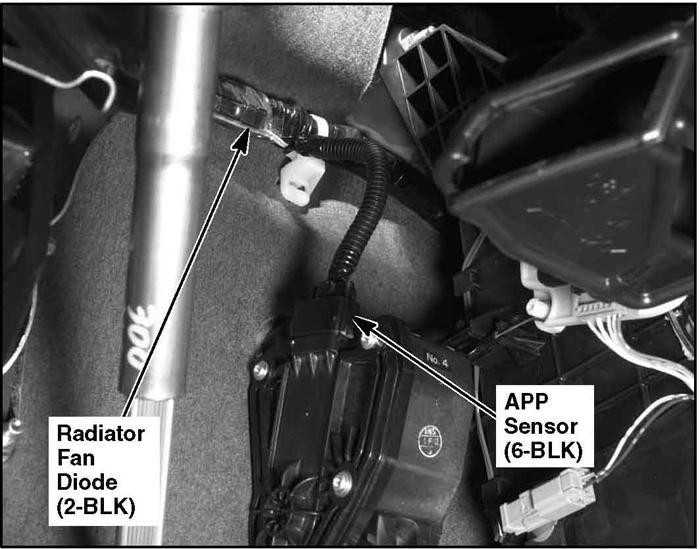

Fig 72: Under Left Side Of Dash

G00464126

Courtesy of AMERICAN HONDA MOTOR CO., INC.

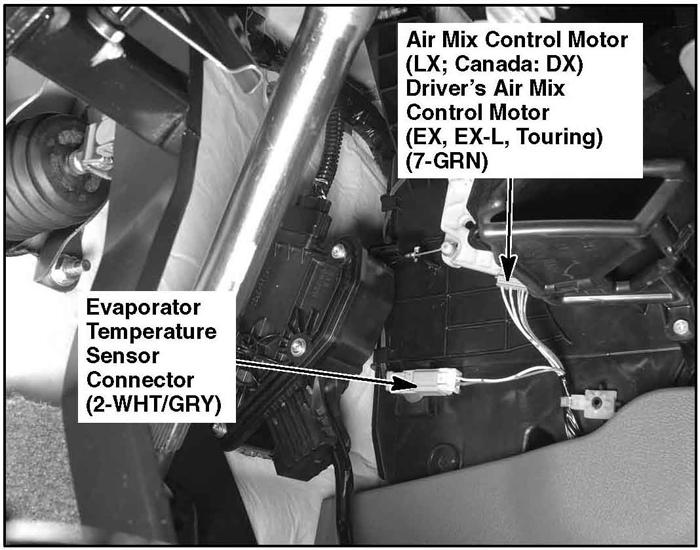

Fig 73: Under Left Side Of Dash

G00464127

Courtesy of AMERICAN HONDA MOTOR CO., INC.

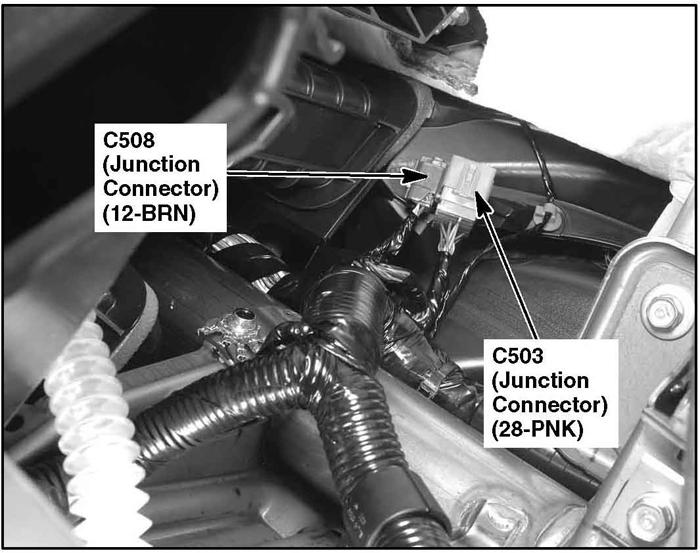

Fig 74: Under Left Side Of Dash

G00464128

Courtesy of AMERICAN HONDA MOTOR CO., INC.

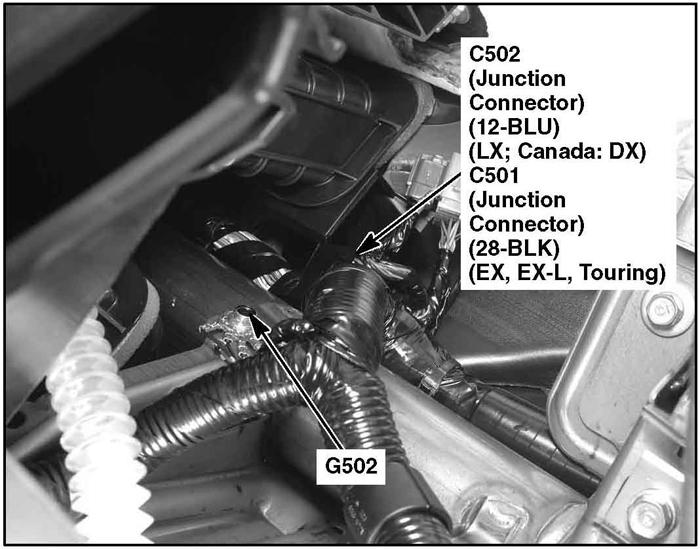

Fig 75: Under Left Side Of Dash

G00464129

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Under Left Side Of Dash

G00464130

Courtesy of AMERICAN HONDA MOTOR CO., INC.

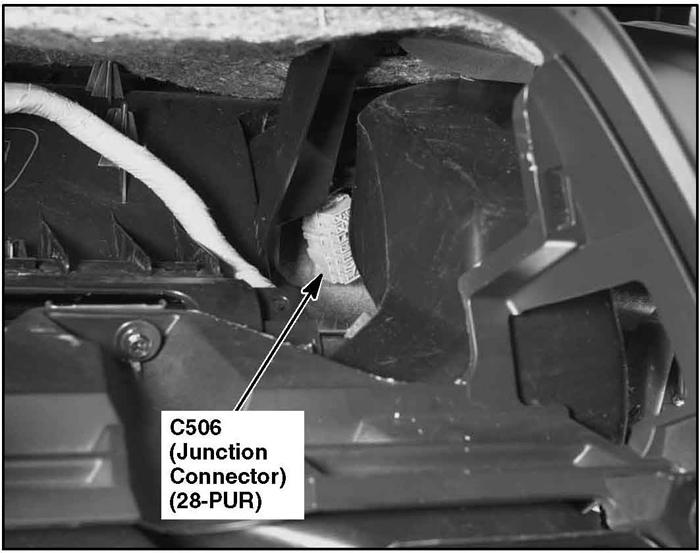

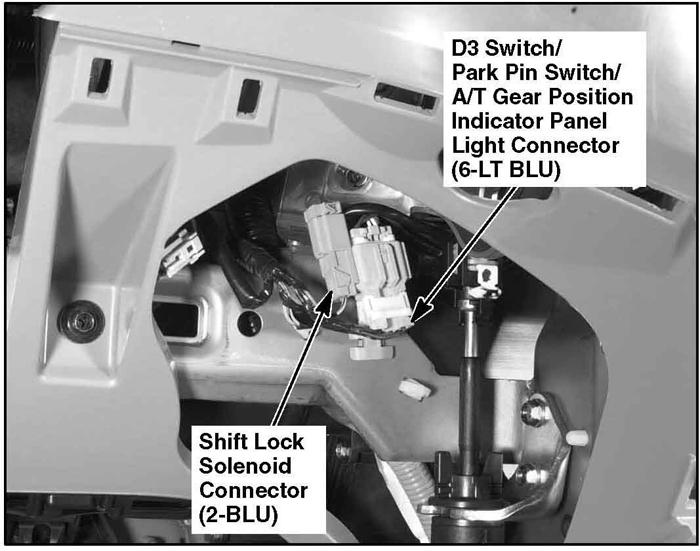

Fig 77: Under Middle Of Dash

G00464131

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Under Middle Of Dash (Touring)

G00464132

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Under Middle Of Dash

G00464133

Courtesy of AMERICAN HONDA MOTOR CO., INC.

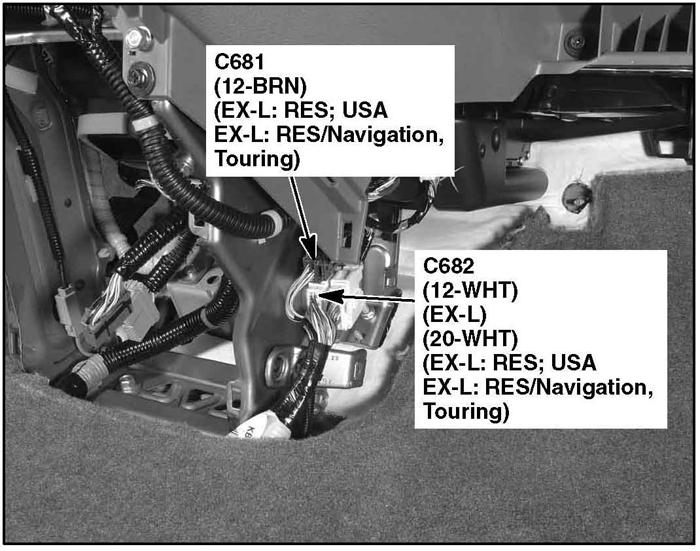

Fig 80: Under Middle Of Dash

G00464134

Courtesy of AMERICAN HONDA MOTOR CO., INC.

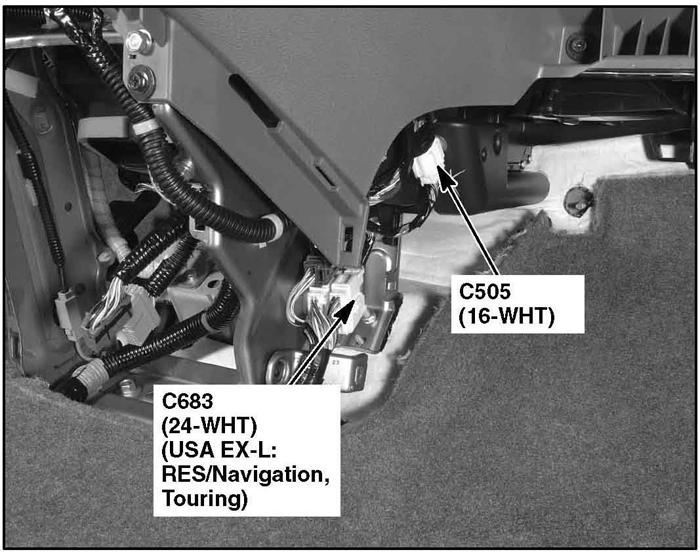

Fig 81: Under Middle Of Dash

G00464135

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Behind Center Of Dash

G00464136

Courtesy of AMERICAN HONDA MOTOR CO., INC.

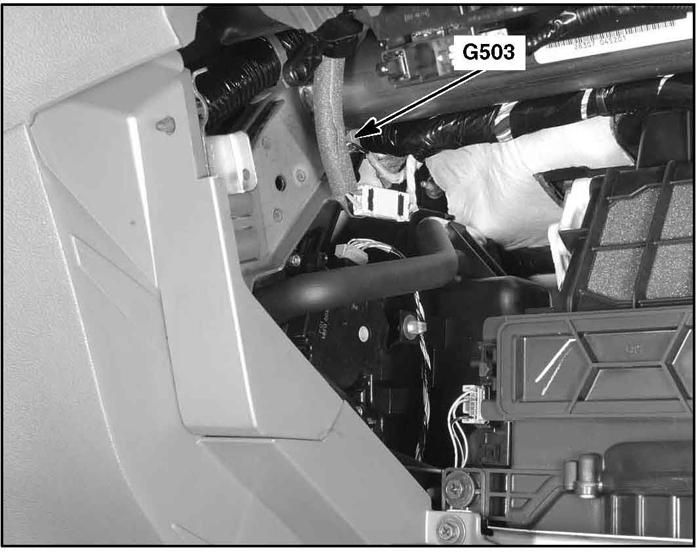

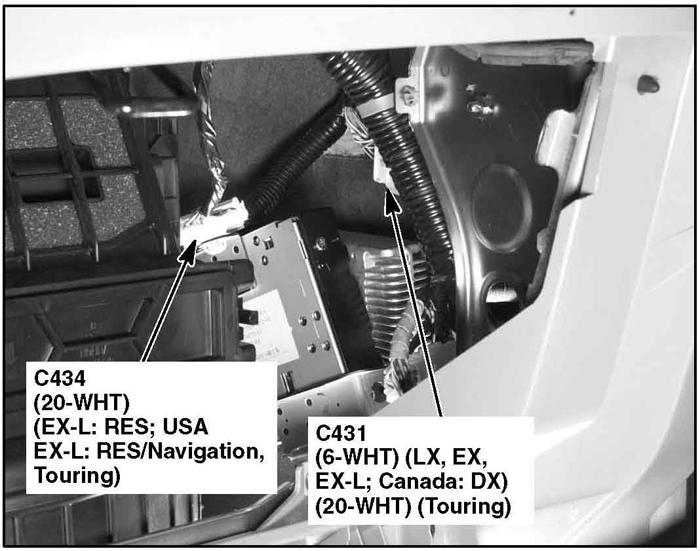

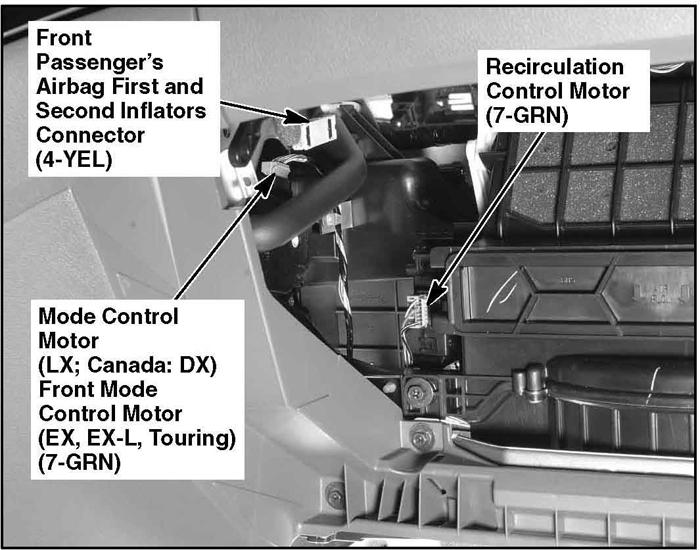

Fig 83: Behind Glove Box

G00464137

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Behind Glove Box

G00464138

Courtesy of AMERICAN HONDA MOTOR CO., INC.

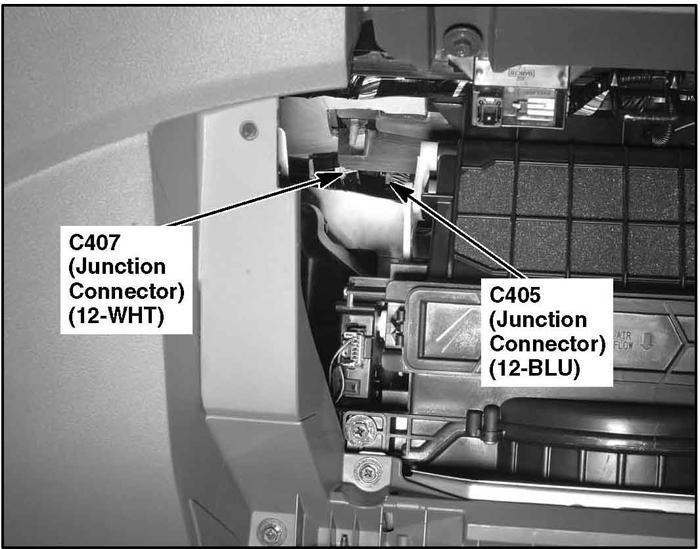

Fig 85: Behind Glove Box

G00464139

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Behind Glove Box

G00464140

Courtesy of AMERICAN HONDA MOTOR CO., INC.

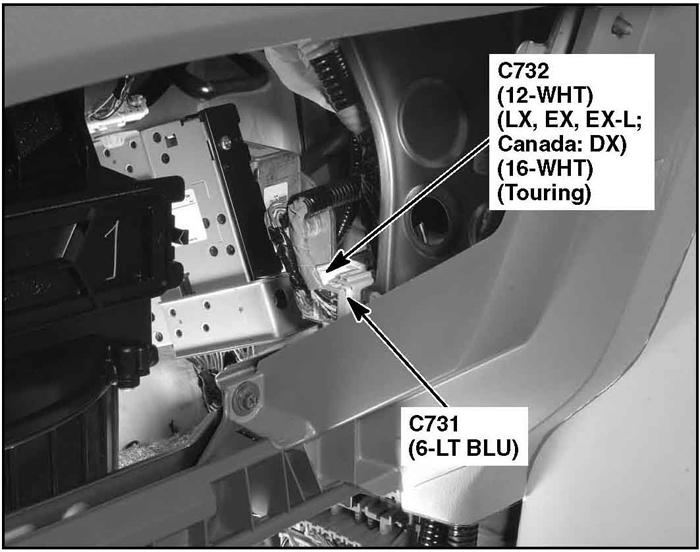

Fig 87: Behind Glove Box

G00464141

Courtesy of AMERICAN HONDA MOTOR CO., INC.

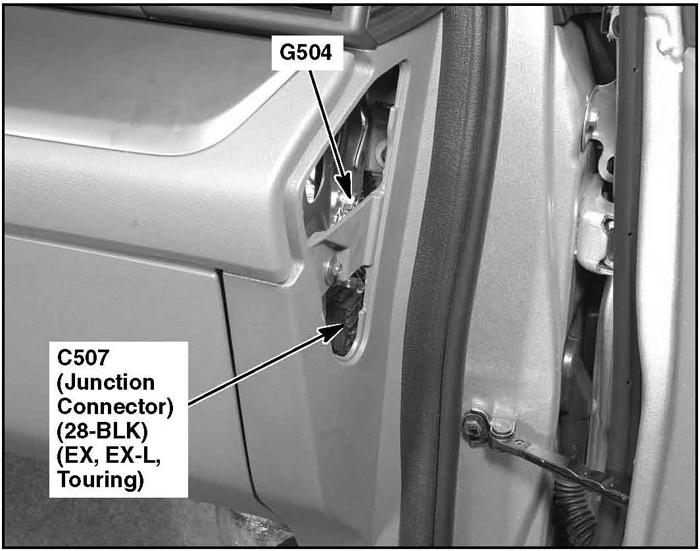

Fig 88: Right End Of Dash

G00464142

Courtesy of AMERICAN HONDA MOTOR CO., INC.

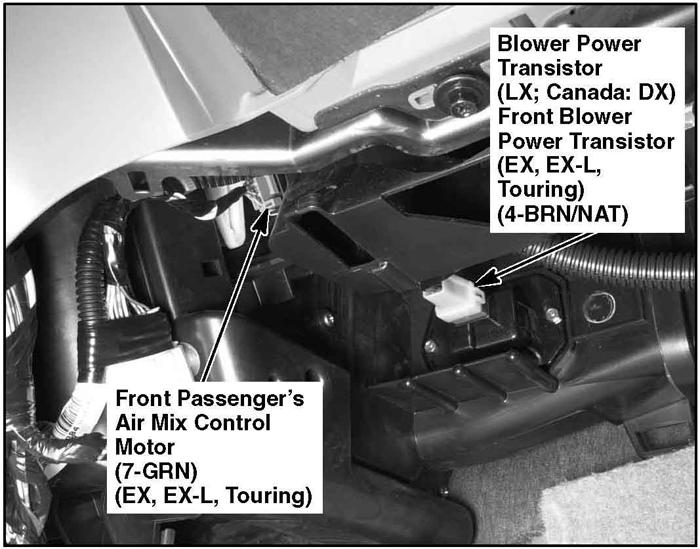

Fig 89: Under Right Side Of Dash

G00464143

Courtesy of AMERICAN HONDA MOTOR CO., INC.

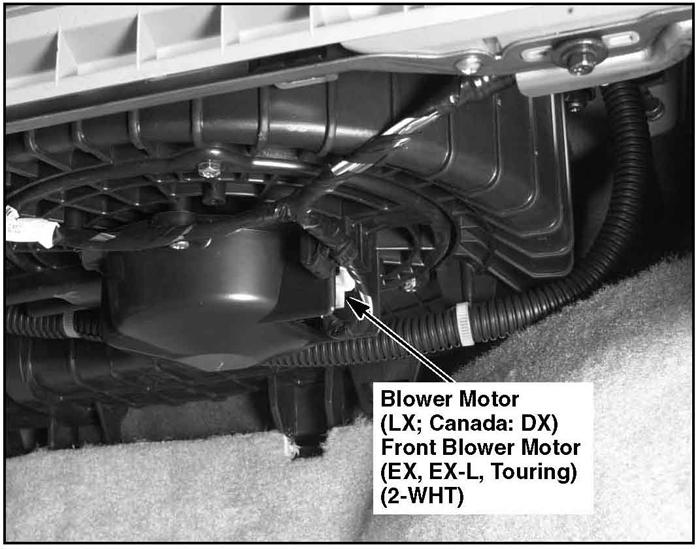

Fig 90: Under Right Side Of Dash

G00464144

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Under Right Side Of Dash (EX-L)

G00464145

Courtesy of AMERICAN HONDA MOTOR CO., INC.

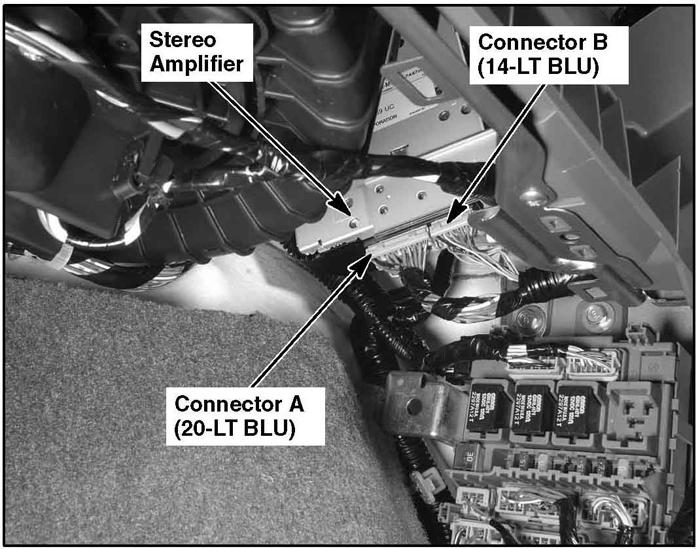

Fig 92: Under Right Side Of Dash (Touring)

G00464146

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Under Right Side Of Dash (EX-L, Touring)

G00464147

Courtesy of AMERICAN HONDA MOTOR CO., INC.

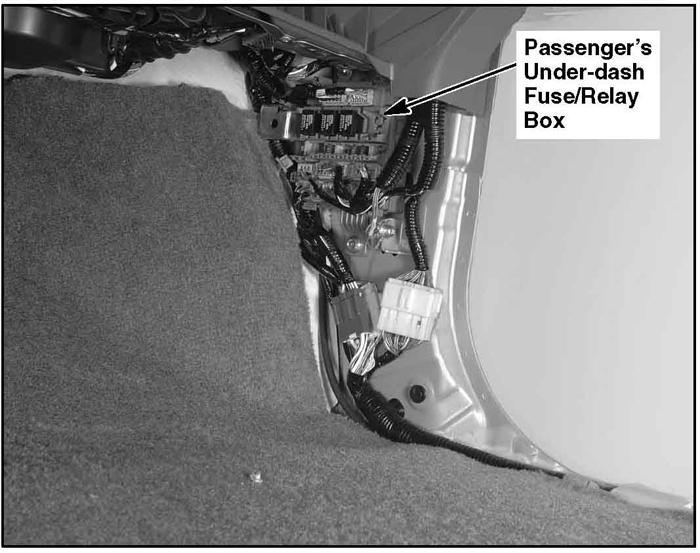

Fig 94: Behind Right Kick Panel

G00464148

Courtesy of AMERICAN HONDA MOTOR CO., INC.

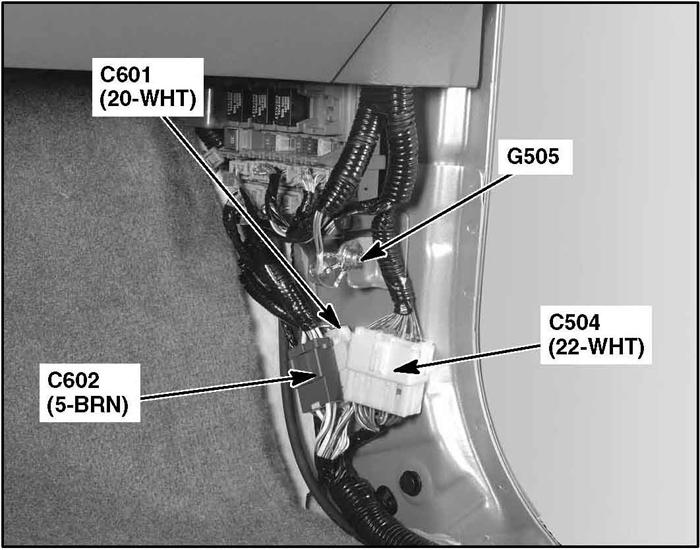

Fig 95: Behind Right Kick Panel

G00464149

Courtesy of AMERICAN HONDA MOTOR CO., INC.

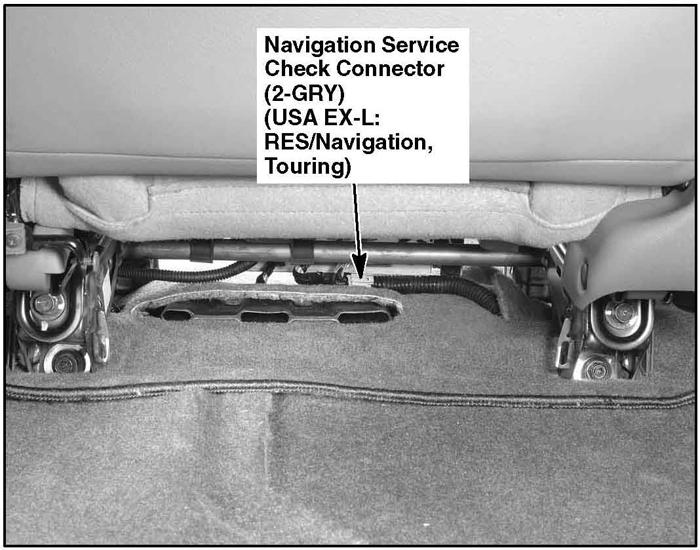

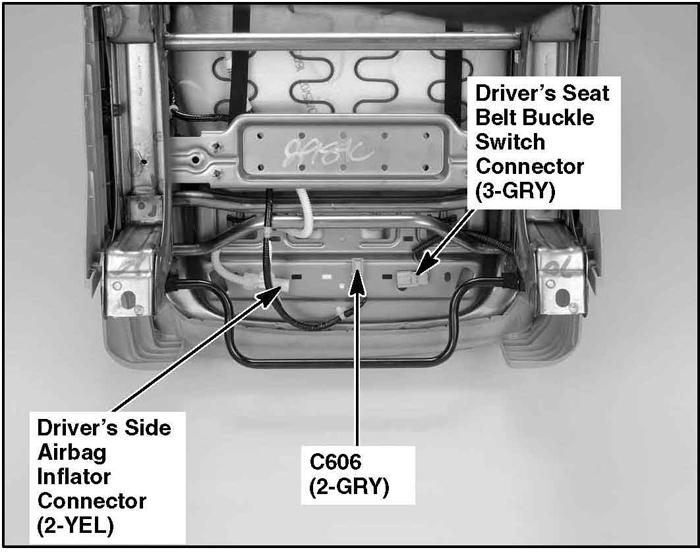

Fig 96: Under Driver's Seat

G00464150

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Under Driver's Seat (LX)

G00464151

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Under Driver's Seat (LX)

G00464152

Courtesy of AMERICAN HONDA MOTOR CO., INC.

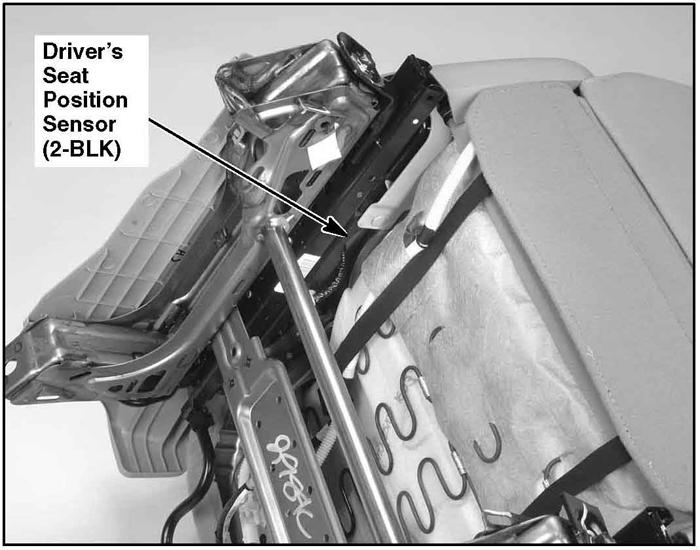

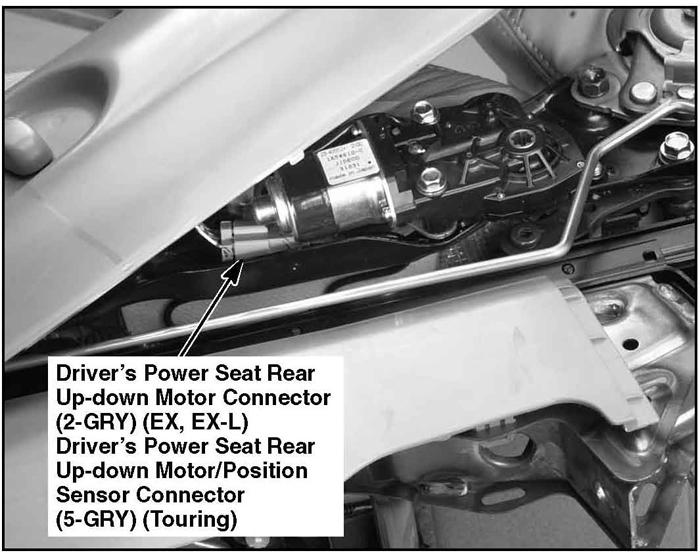

Fig 99: Left Side Of Driver's Seat (EX, EX-L, Touring)

G00464153

Courtesy of AMERICAN HONDA MOTOR CO., INC.

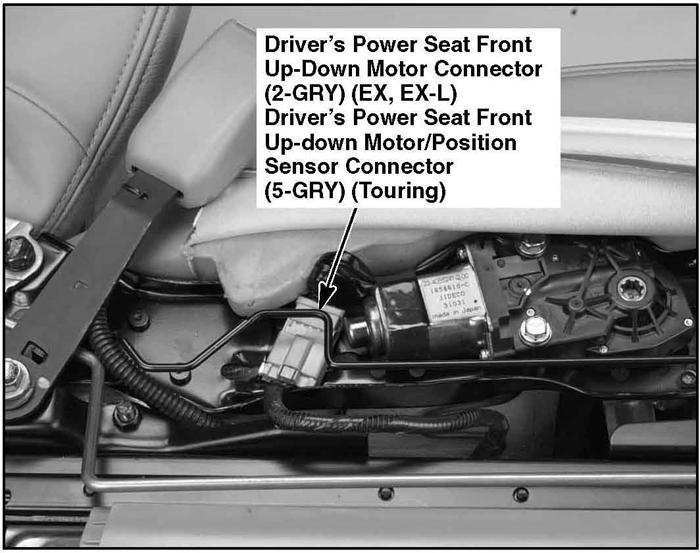

Fig 100: Right Side Of Driver's Seat (EX, EX-L, Touring)

G00464154

Courtesy of AMERICAN HONDA MOTOR CO., INC.

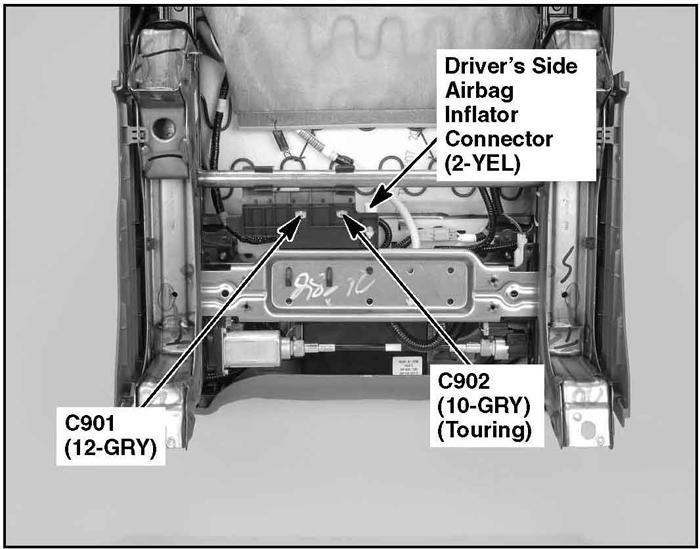

Fig 101: Under Driver's Seat (EX, EX-L, Touring)

G00464155

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Under Driver's Seat (USA EX-L: RES/Navi., Touring)

G00464156

Courtesy of AMERICAN HONDA MOTOR CO., INC.

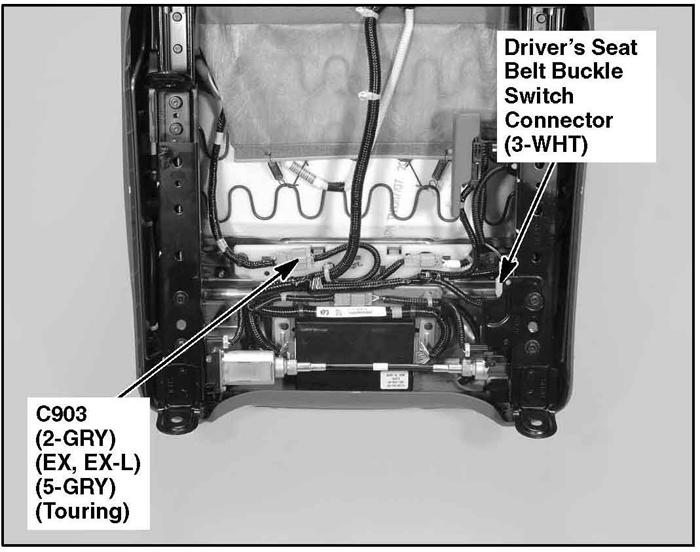

Fig 103: Under Driver's Seat (EX, EX-L, Touring)

G00464157

Courtesy of AMERICAN HONDA MOTOR CO., INC.

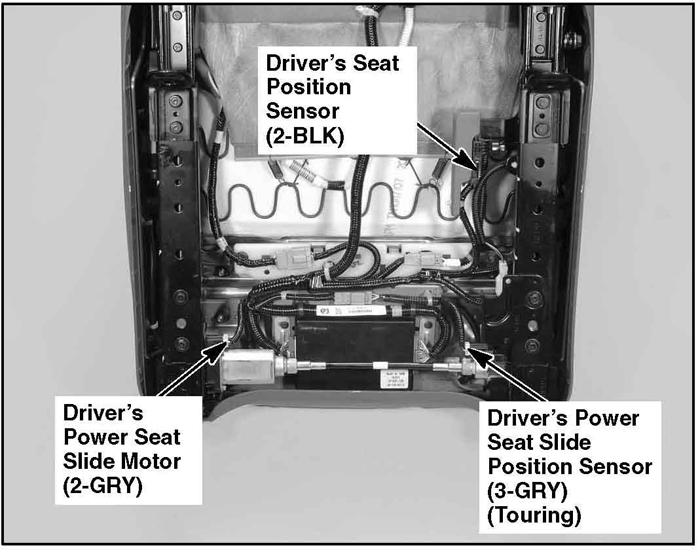

Fig 104: Under Driver's Seat (EX, EX-L, Touring)

G00464158

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Under Driver's Seat (Touring)

G00464159

Courtesy of AMERICAN HONDA MOTOR CO., INC.

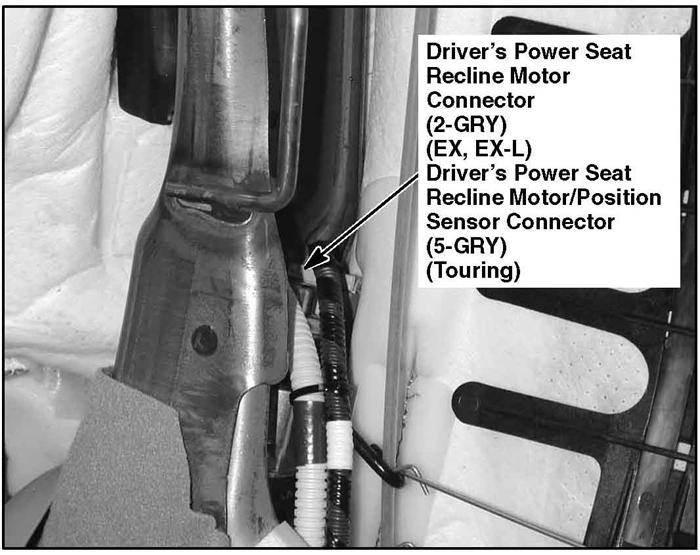

Fig 106: Side Of Driver's Seat Back

G00464160

Courtesy of AMERICAN HONDA MOTOR CO., INC.

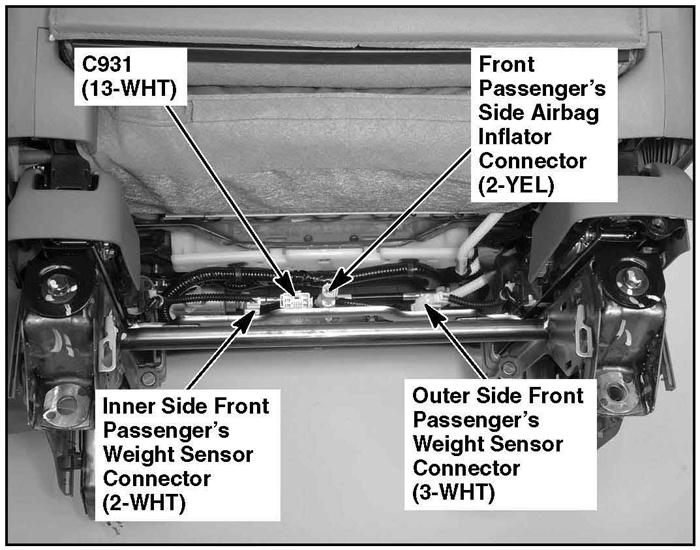

Fig 107: Under Front Passenger's Seat

G00464161

Courtesy of AMERICAN HONDA MOTOR CO., INC.

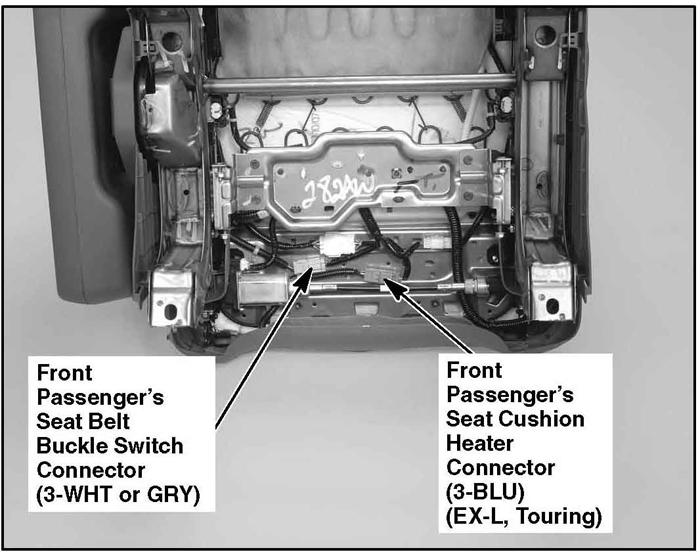

Fig 108: Under Front Passenger's Seat

G00464162

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 109: Under Front Passenger's Seat (EX-L, Touring)

G00464163

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 110: Left Side Of Front Passenger's Seat Back

G00464164

Courtesy of AMERICAN HONDA MOTOR CO., INC.

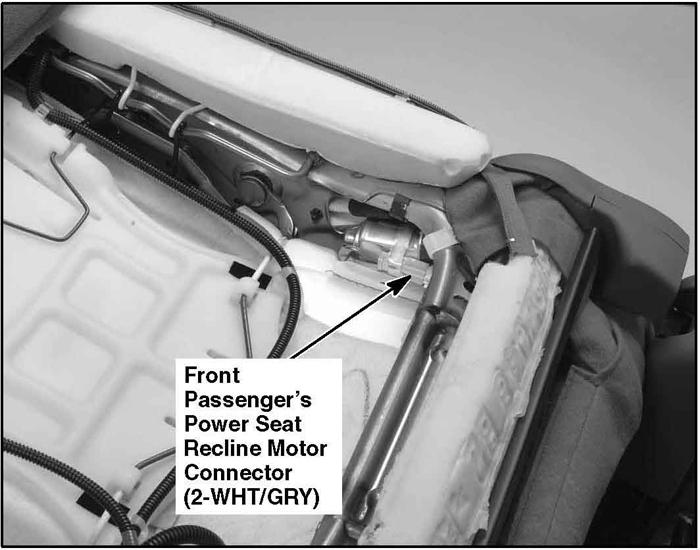

Fig 111: Right Side Of Front Passenger's Seat Back (EX-L, Touring)

G00464165

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Under Driver's Seat

G00464166

Courtesy of AMERICAN HONDA MOTOR CO., INC.

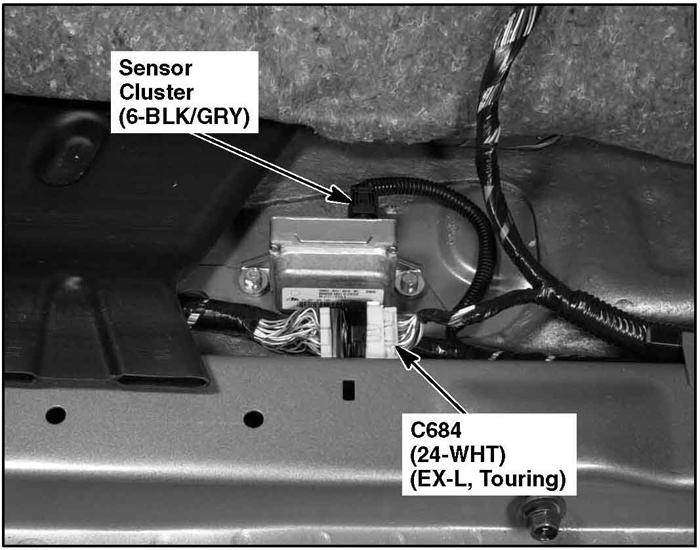

Fig 113: Under Middle Of 2nd Row Seat

G00464167

Courtesy of AMERICAN HONDA MOTOR CO., INC.

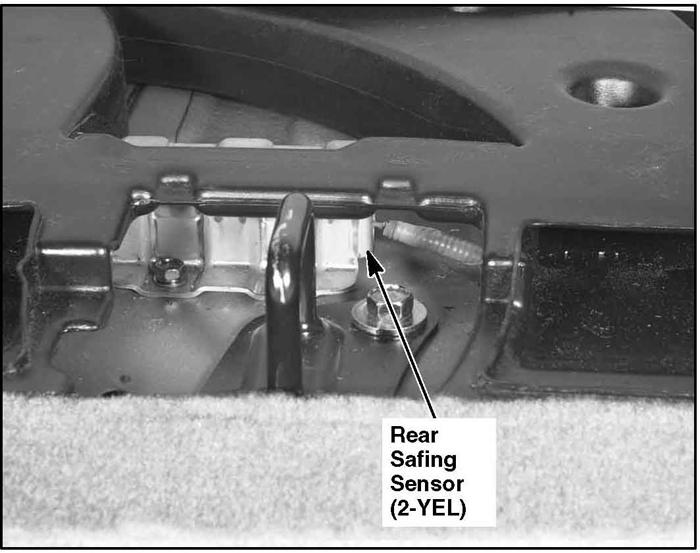

Fig 114: Under 3rd Row Seat

G00464168

Courtesy of AMERICAN HONDA MOTOR CO., INC.

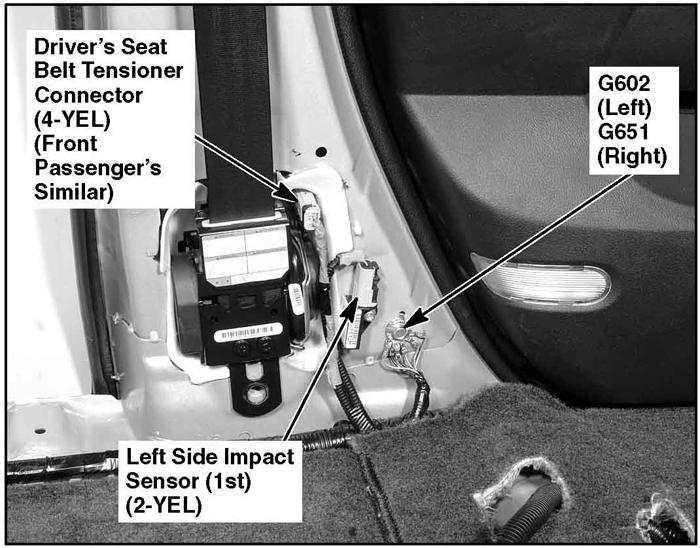

Fig 115: Left "B" Pillar (Right Similar)

G00464169

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 116: Left "B" Pillar (Right Similar)

G00464170

Courtesy of AMERICAN HONDA MOTOR CO., INC.

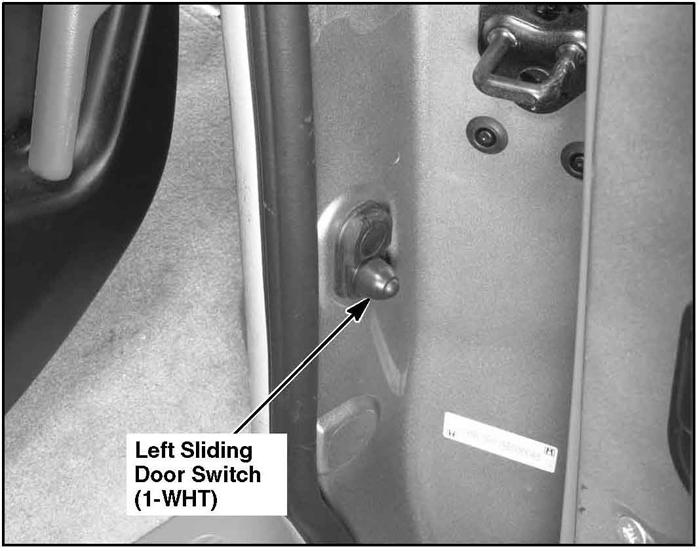

Fig 117: Left "C" Pillar (Right Similar)

G00464171

Courtesy of AMERICAN HONDA MOTOR CO., INC.

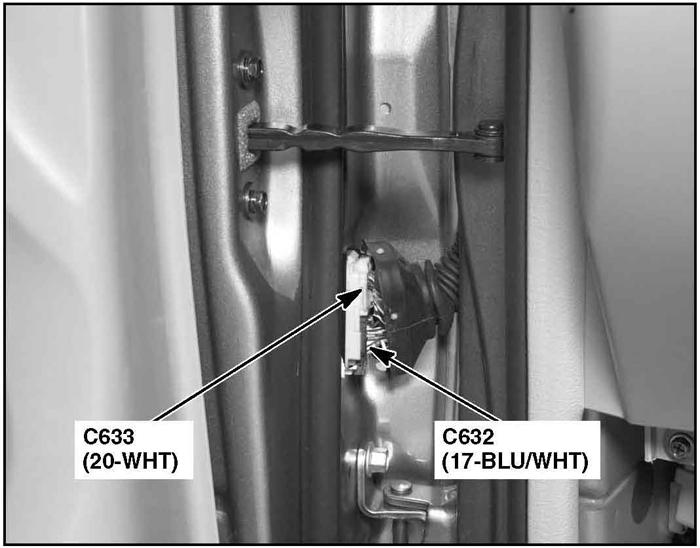

Fig 118: Left "A" Pillar

G00464172

Courtesy of AMERICAN HONDA MOTOR CO., INC.

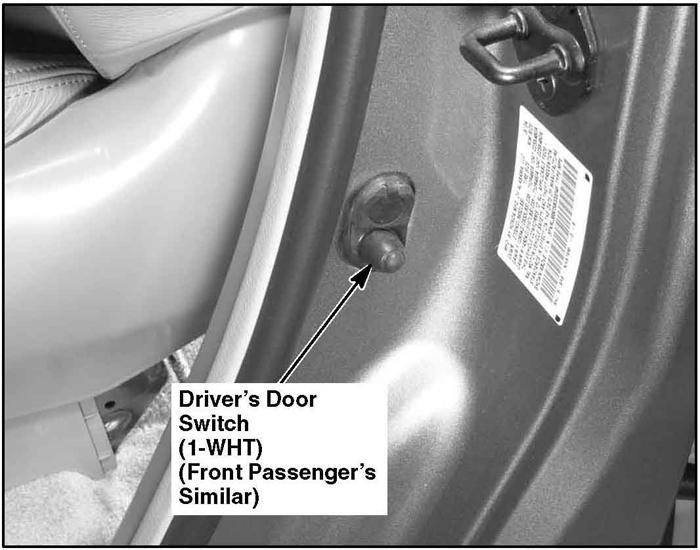

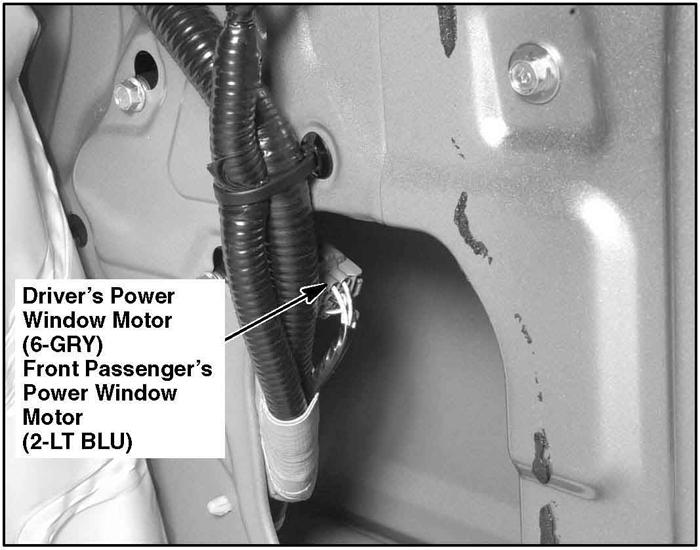

Fig 119: Driver's Door (Front Passenger's Similar)

G00464173

Courtesy of AMERICAN HONDA MOTOR CO., INC.

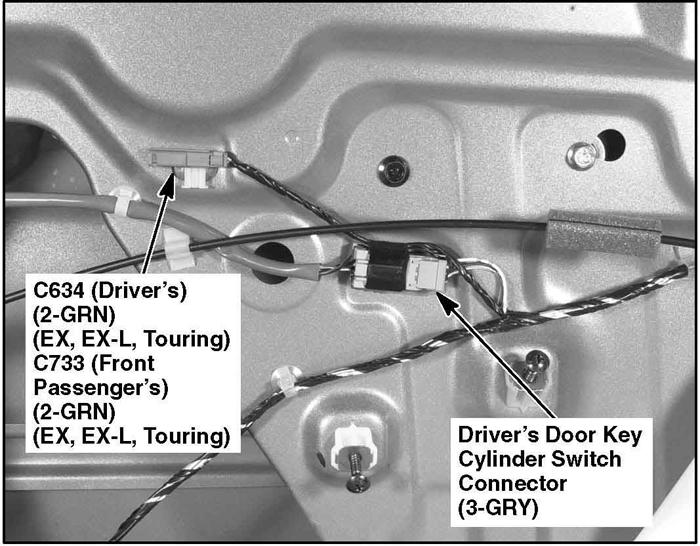

Fig 120: Driver's Door (Front Passenger's Similar)

G00464174

Courtesy of AMERICAN HONDA MOTOR CO., INC.

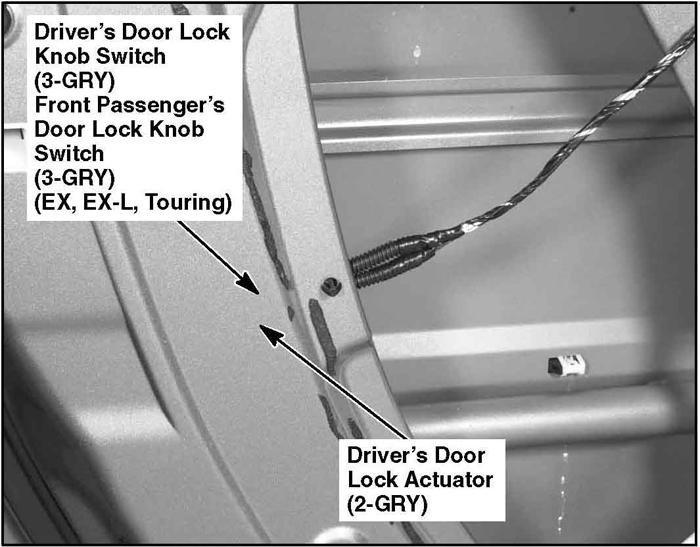

Fig 121: Driver's Door (Front Passenger's Similar)

G00464175

Courtesy of AMERICAN HONDA MOTOR CO., INC.

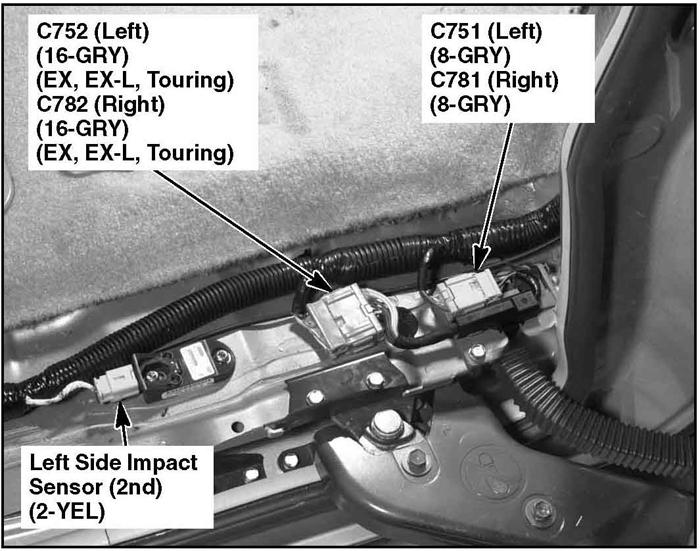

Fig 122: Left Sliding Door Sill (Right Similar)

G00464176

Courtesy of AMERICAN HONDA MOTOR CO., INC.

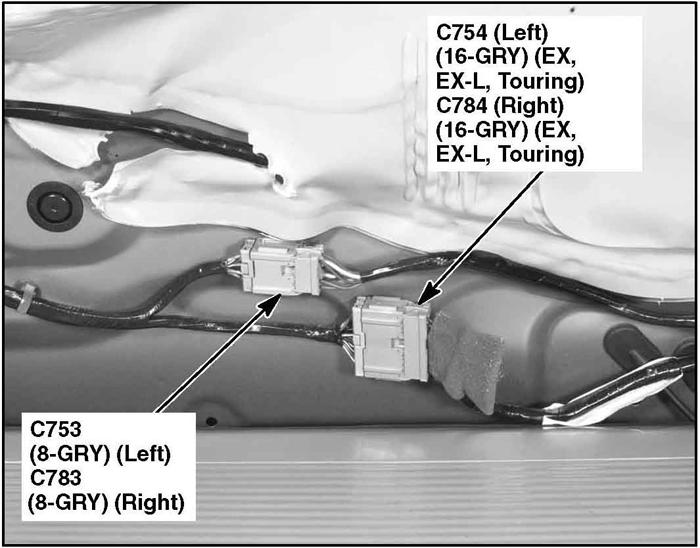

Fig 123: Left Sliding Door Sill (Right Similar)

G00464177

Courtesy of AMERICAN HONDA MOTOR CO., INC.

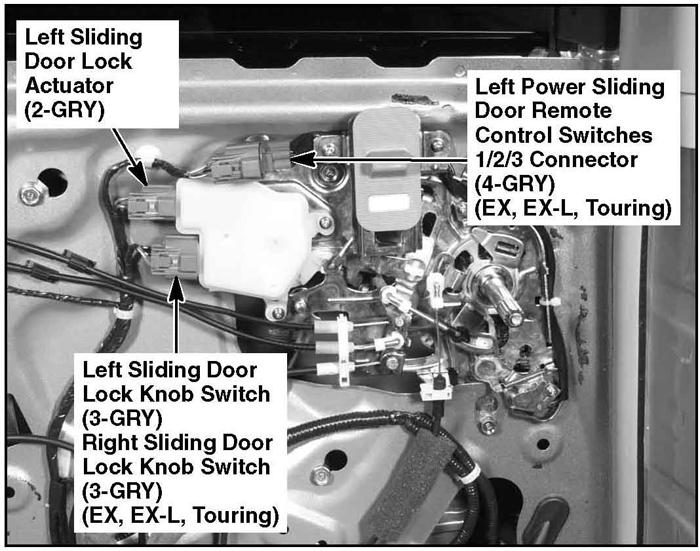

Fig 124: Left Sliding Door Sill (Right Similar)

G00464178

Courtesy of AMERICAN HONDA MOTOR CO., INC.

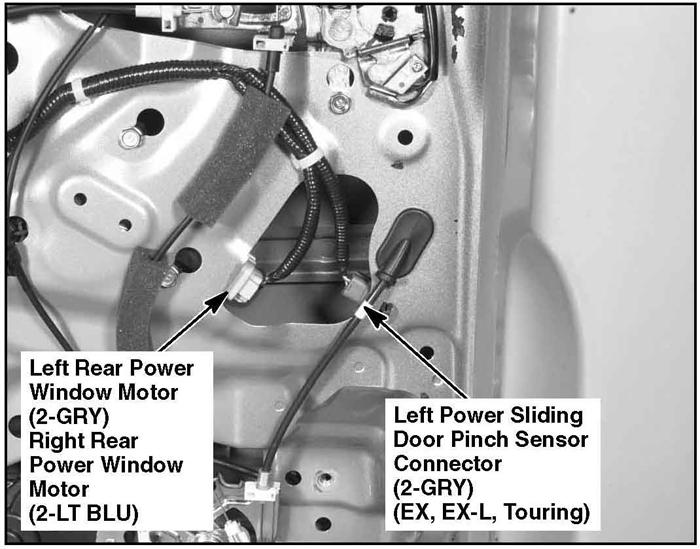

Fig 125: Left Sliding Door Sill (Right Similar)

G00464179

Courtesy of AMERICAN HONDA MOTOR CO., INC.

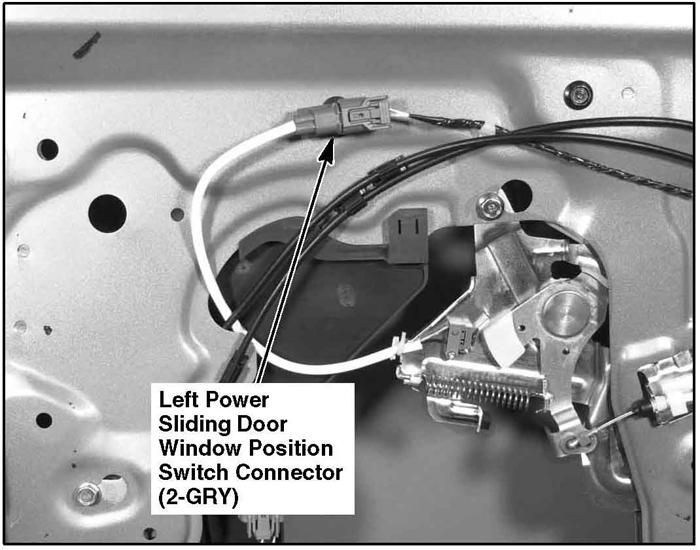

Fig 126: Left Sliding Door (Right Similar) (EX, EX-L, Touring)

G00464180

Courtesy of AMERICAN HONDA MOTOR CO., INC.

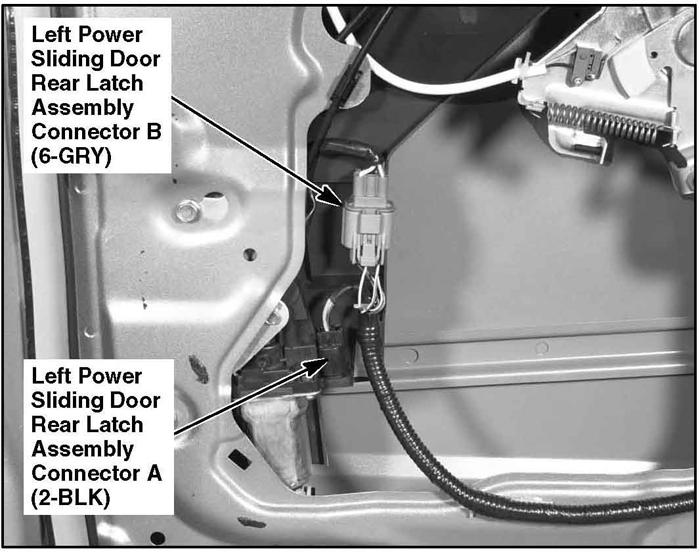

Fig 127: Left Sliding Door (Right Similar) (EX, EX-L, Touring)

G00464181

Courtesy of AMERICAN HONDA MOTOR CO., INC.

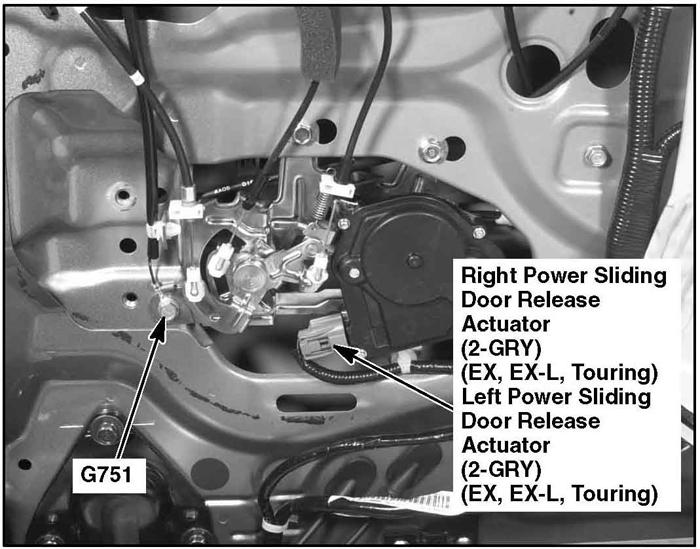

Fig 128: Right Sliding Door (Left Similar)

G00464182

Courtesy of AMERICAN HONDA MOTOR CO., INC.

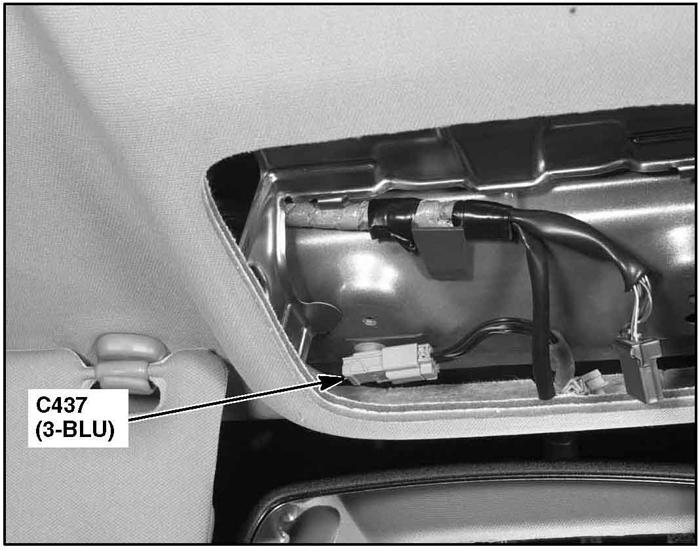

Fig 129: Front Of Roof (USA EX-L: RES/Navi., Touring)

G00464183

Courtesy of AMERICAN HONDA MOTOR CO., INC.

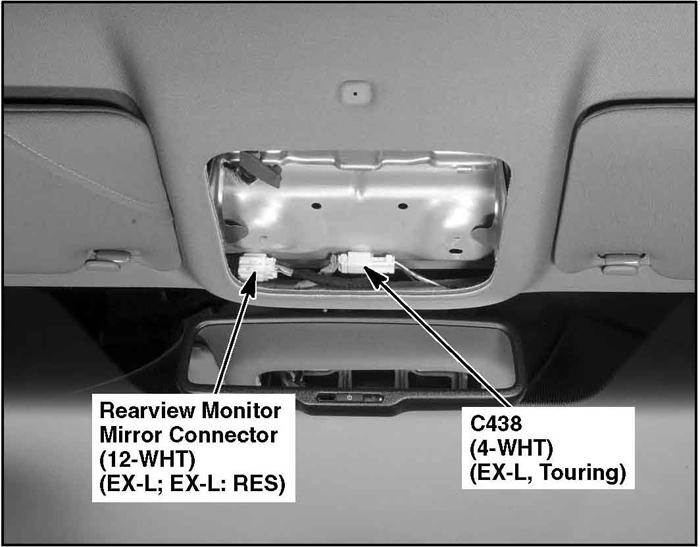

Fig 130: Front Of Roof

G00464184

Courtesy of AMERICAN HONDA MOTOR CO., INC.

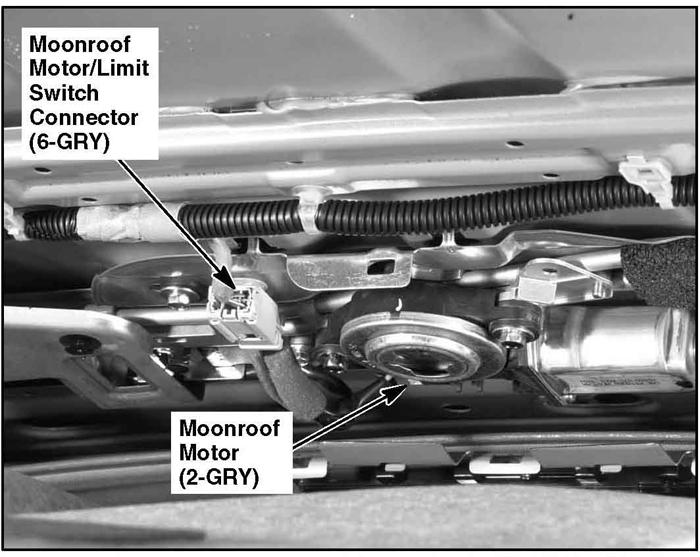

Fig 131: Middle Of Roof (EX-L, Touring)

G00464185

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Middle Of Roof

G00464186

Courtesy of AMERICAN HONDA MOTOR CO., INC.

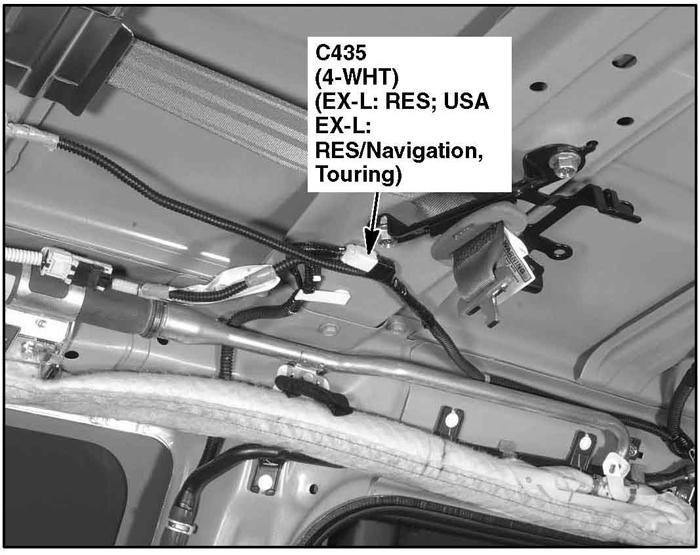

Fig 133: Left Middle Of Roof

G00464187

Courtesy of AMERICAN HONDA MOTOR CO., INC.

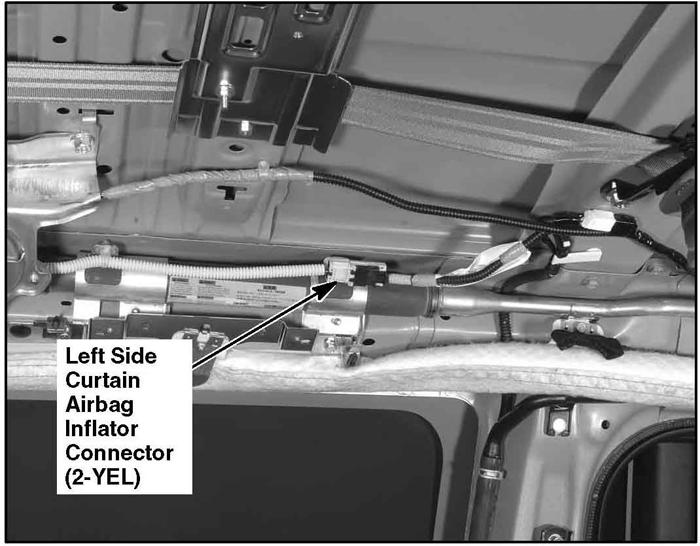

Fig 134: Left Rear Of Roof (Right Similar)

G00464188

Courtesy of AMERICAN HONDA MOTOR CO., INC.

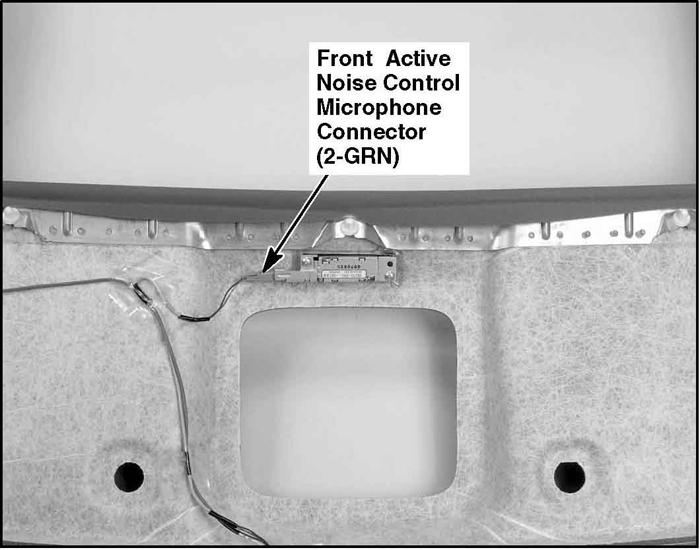

Fig 135: Front Of Roof (EX-L, Touring)

G00464189

Courtesy of AMERICAN HONDA MOTOR CO., INC.

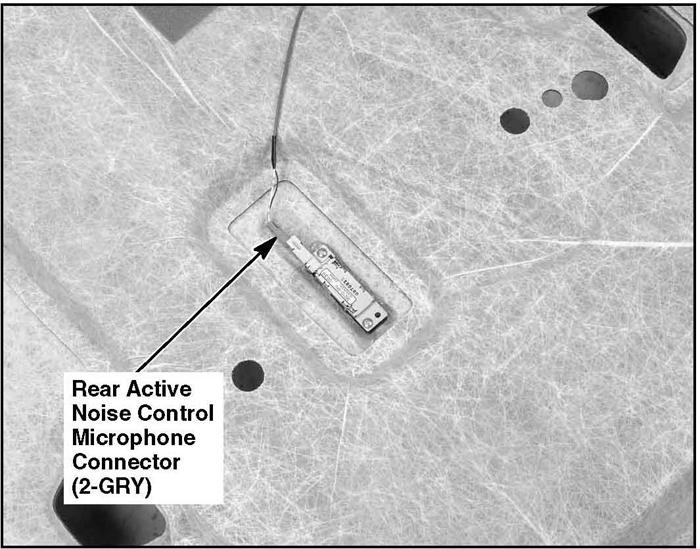

Fig 136: Left Rear Of Roof (EX-L, Touring)

G00464190

Courtesy of AMERICAN HONDA MOTOR CO., INC.

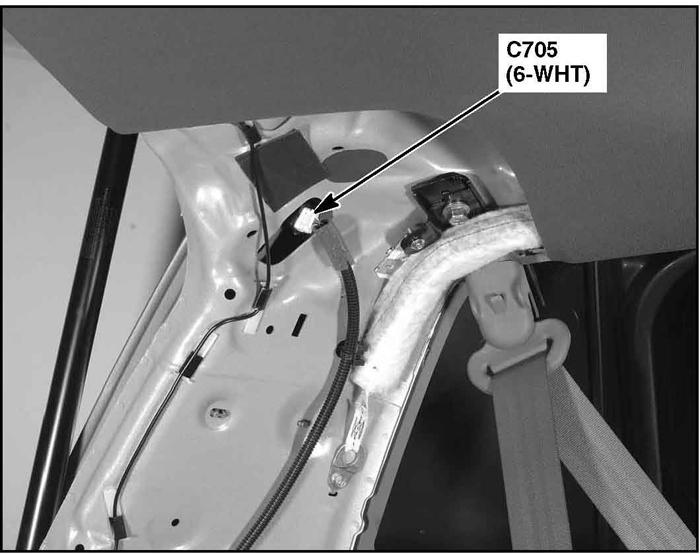

Fig 137: Left "D" Pillar (EX-L; EX-L: RES; USA EX-L: RES/Navi.)

G00464191

Courtesy of AMERICAN HONDA MOTOR CO., INC.

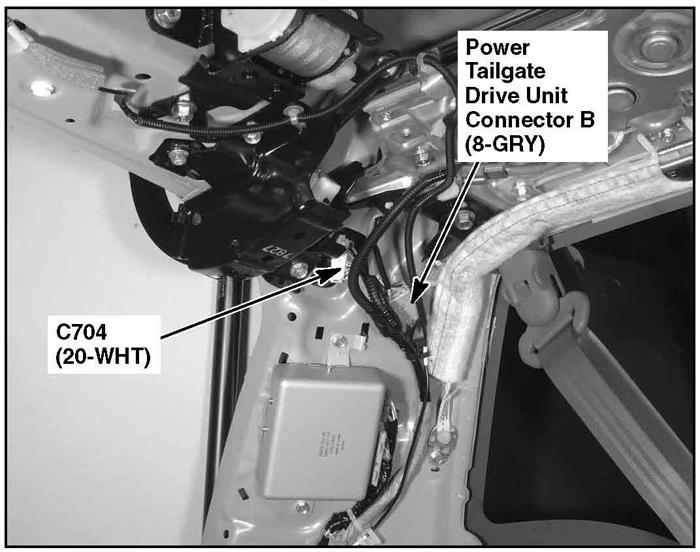

Fig 138: Left "D" Pillar (Touring)

G00464192

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Left "D" Pillar (Touring)

G00464193

Courtesy of AMERICAN HONDA MOTOR CO., INC.

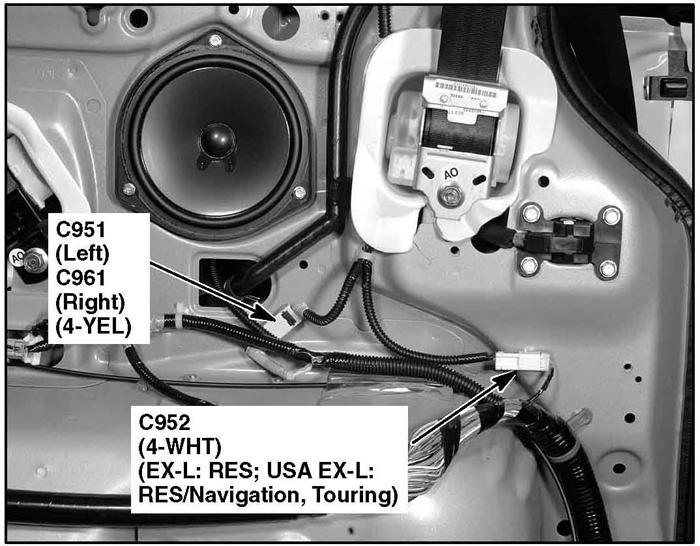

Fig 140: Behind Left Rear Side Trim Panel (Right Similar)

G00464194

Courtesy of AMERICAN HONDA MOTOR CO., INC.

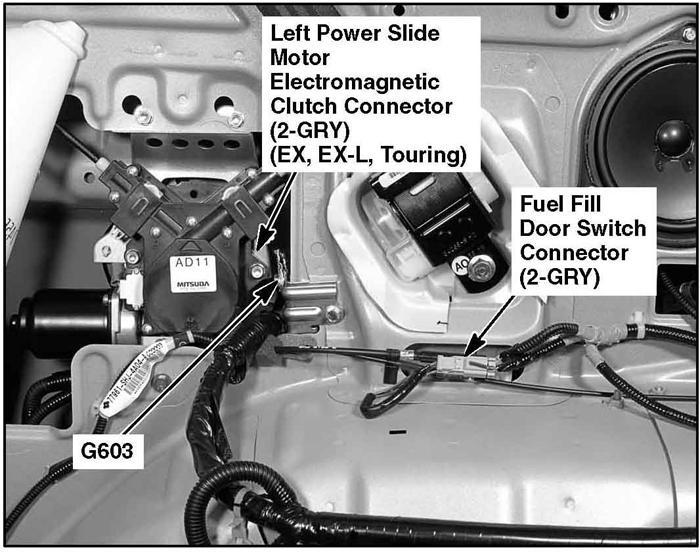

Fig 141: Behind Left Rear Side Trim Panel

G00464195

Courtesy of AMERICAN HONDA MOTOR CO., INC.

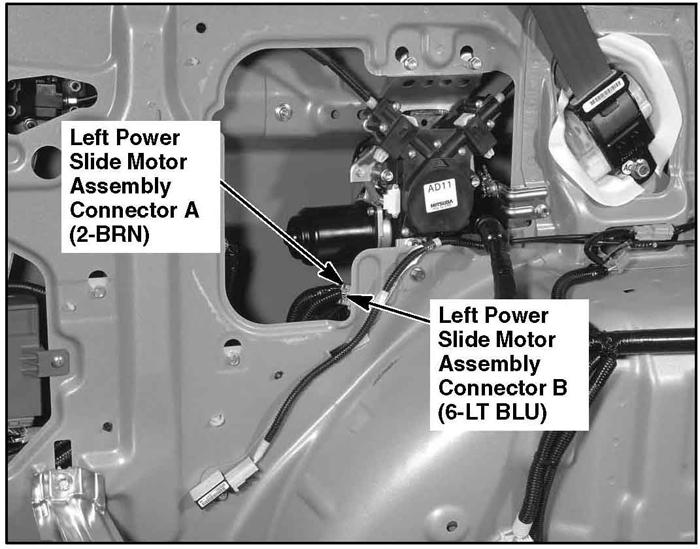

Fig 142: Behind Left Rear Side Trim Panel (EX, EX-L, Touring)

G00464196

Courtesy of AMERICAN HONDA MOTOR CO., INC.

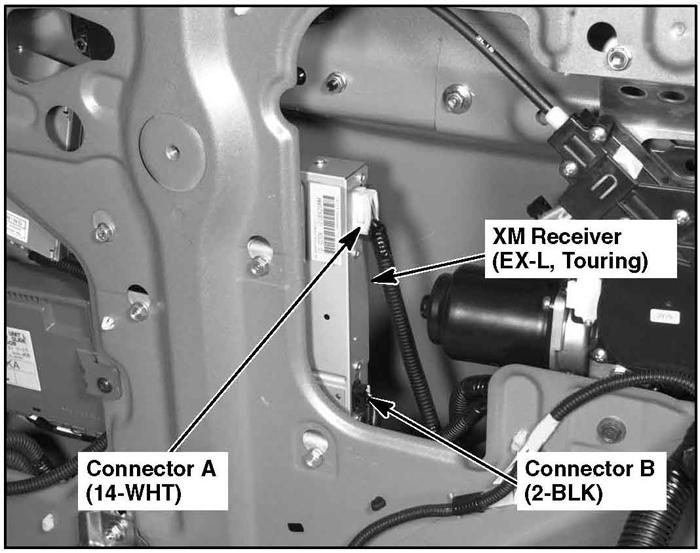

Fig 143: Behind Left Rear Side Trim Panel

G00464197

Courtesy of AMERICAN HONDA MOTOR CO., INC.

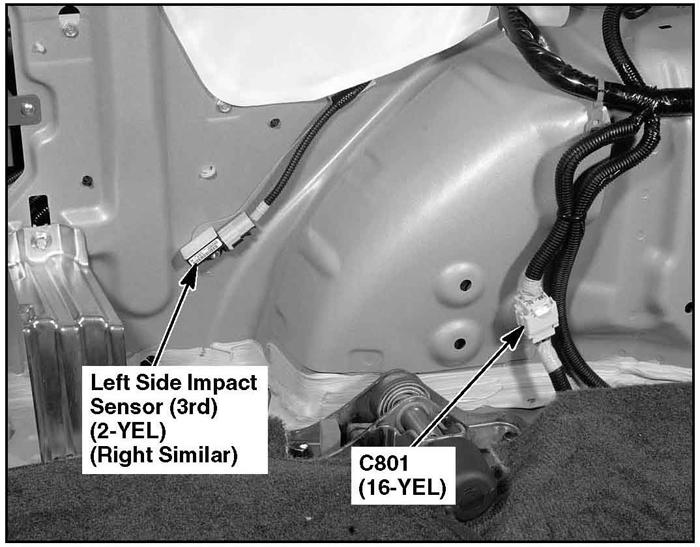

Fig 144: Behind Left Rear Side Trim Panel

G00464198

Courtesy of AMERICAN HONDA MOTOR CO., INC.

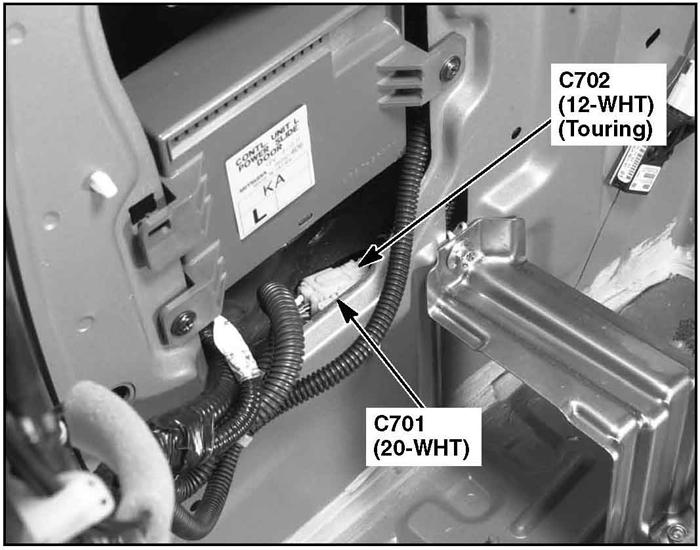

Fig 145: Behind Left Rear Side Trim Panel

G00464199

Courtesy of AMERICAN HONDA MOTOR CO., INC.

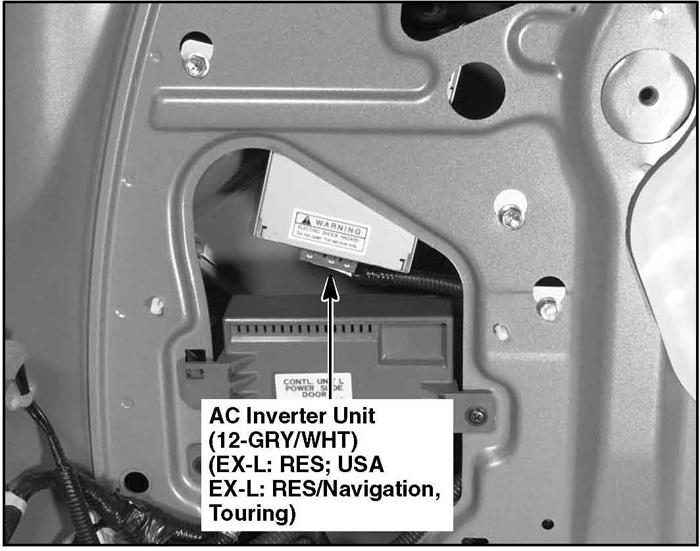

Fig 146: Behind Left Rear Side Trim Panel

G00464200

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 147: Behind Left Rear Side Trim Panel (EX, EX-L, Touring)

G00464201

Courtesy of AMERICAN HONDA MOTOR CO., INC.

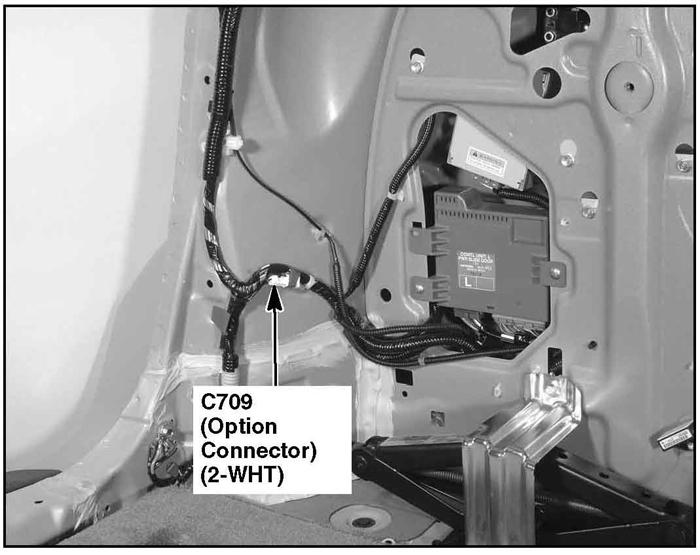

Fig 148: Behind Left Rear Side Trim Panel

G00464202

Courtesy of AMERICAN HONDA MOTOR CO., INC.

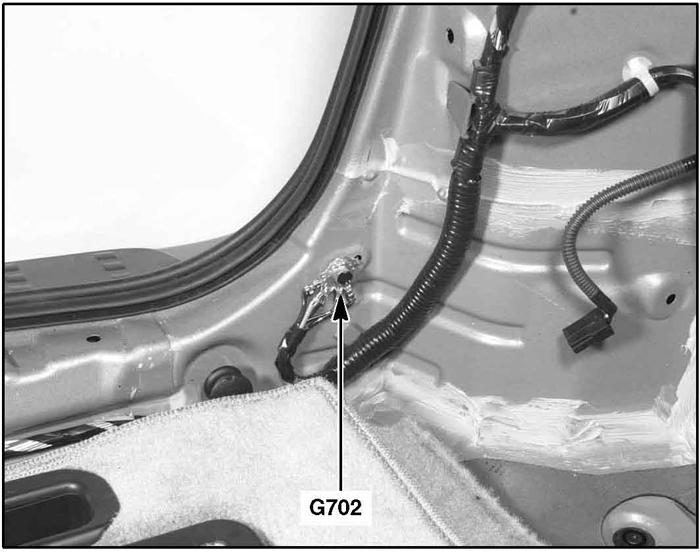

Fig 149: Behind Left Rear Side Trim Panel

G00464203

Courtesy of AMERICAN HONDA MOTOR CO., INC.

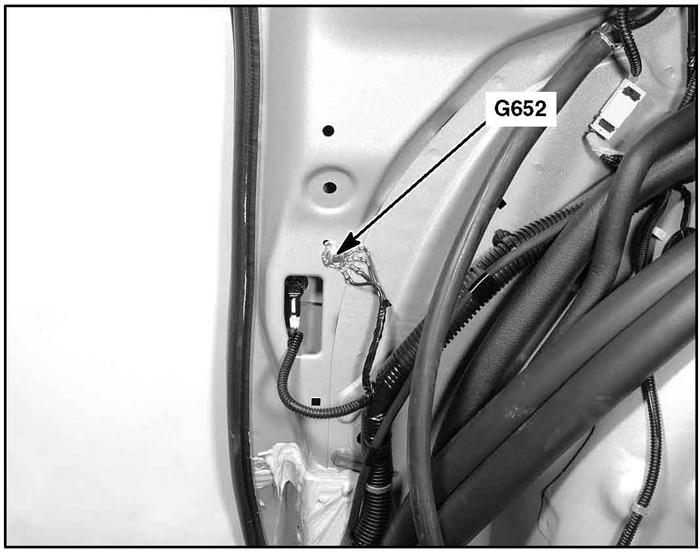

Fig 150: Behind Right Rear Side Trim Panel

G00464204

Courtesy of AMERICAN HONDA MOTOR CO., INC.

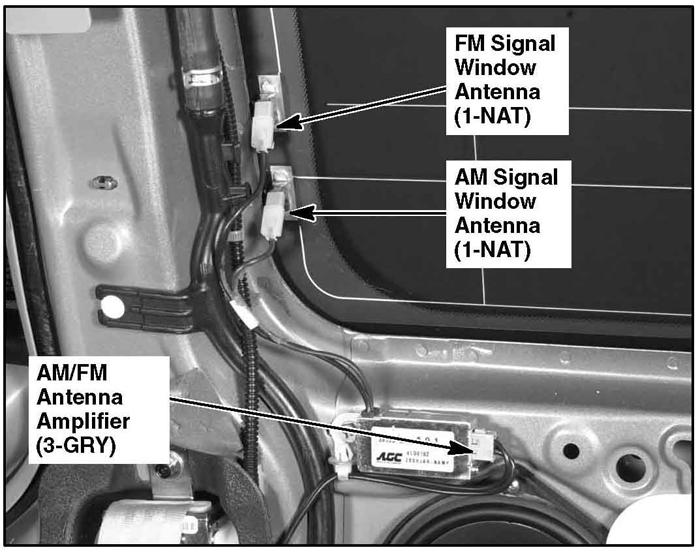

Fig 151: Right "C" Pillar

G00464205

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 152: Behind Right Rear Side Trim Panel (EX, EX-L, Touring)

G00464206

Courtesy of AMERICAN HONDA MOTOR CO., INC.

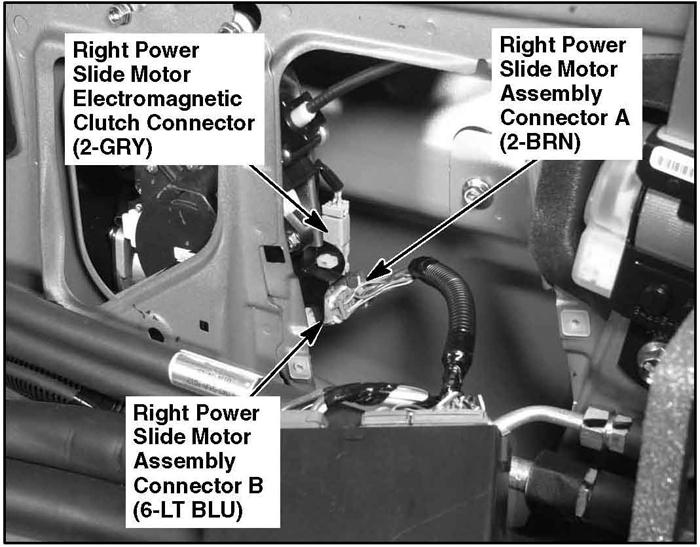

Fig 153: Behind Right Rear Side Trim Panel (EX, EX-L, Touring)

G00464207

Courtesy of AMERICAN HONDA MOTOR CO., INC.

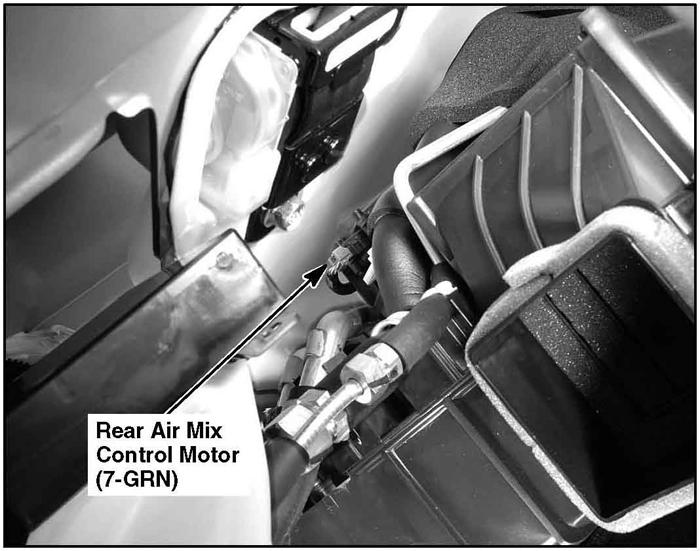

Fig 154: Behind Right Rear Side Trim Panel

G00464208

Courtesy of AMERICAN HONDA MOTOR CO., INC.

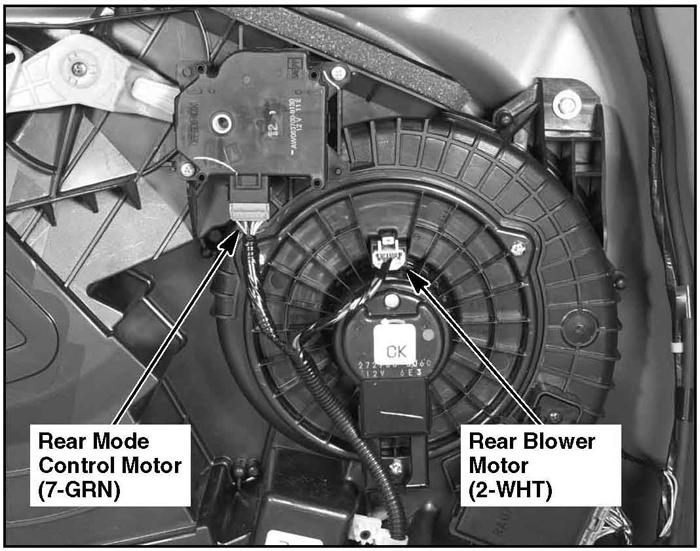

Fig 155: Behind Right Rear Side Trim Panel

G00464209

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 156: Behind Right Rear Side Trim Panel

G00464210

Courtesy of AMERICAN HONDA MOTOR CO., INC.

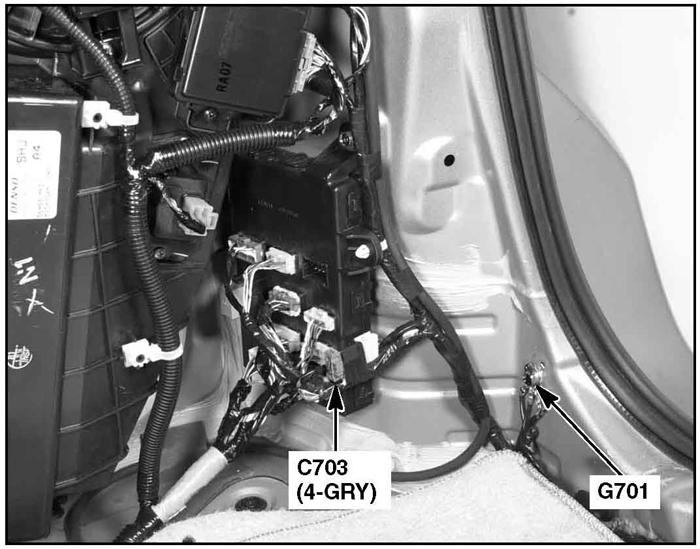

Fig 157: Behind Right Rear Side Trim Panel

G00464211

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 158: Behind Right Rear Side Trim Panel

G00464212

Courtesy of AMERICAN HONDA MOTOR CO., INC.

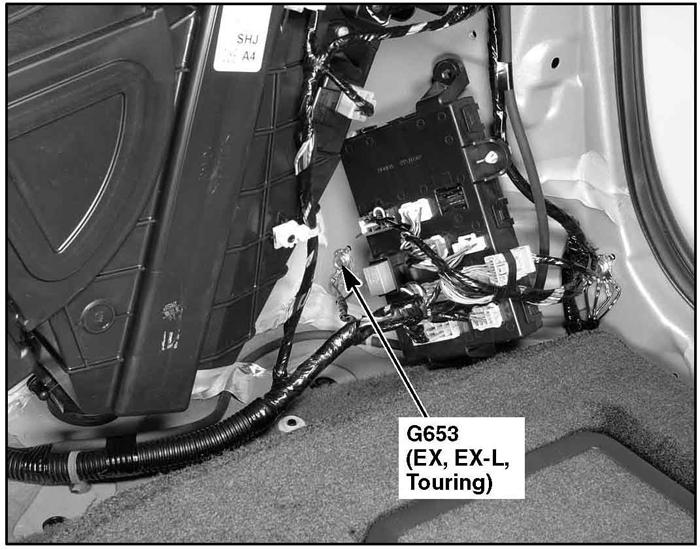

Fig 159: Behind Right Rear Side Trim Panel

G00464213

Courtesy of AMERICAN HONDA MOTOR CO., INC.

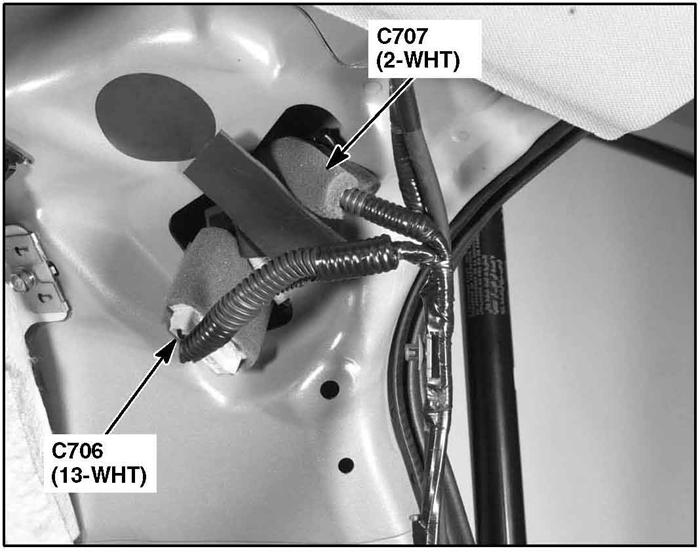

Fig 160: Right "D" Pillar

G00464214

Courtesy of AMERICAN HONDA MOTOR CO., INC.

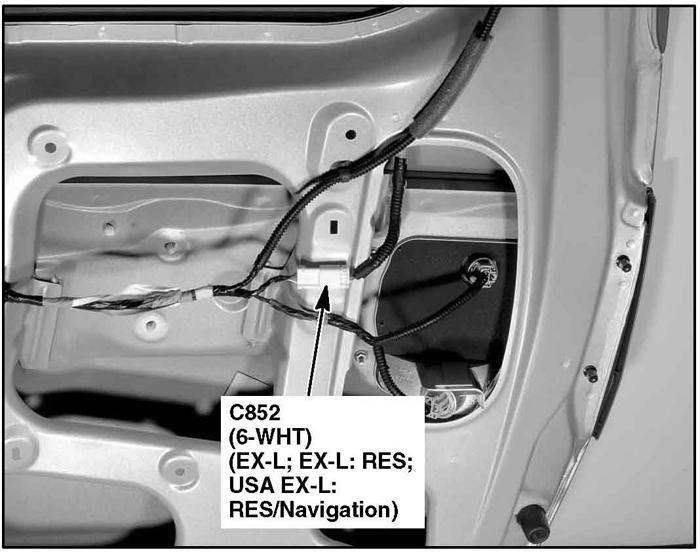

Fig 161: Left Side Of Tailgate

G00464215

Courtesy of AMERICAN HONDA MOTOR CO., INC.

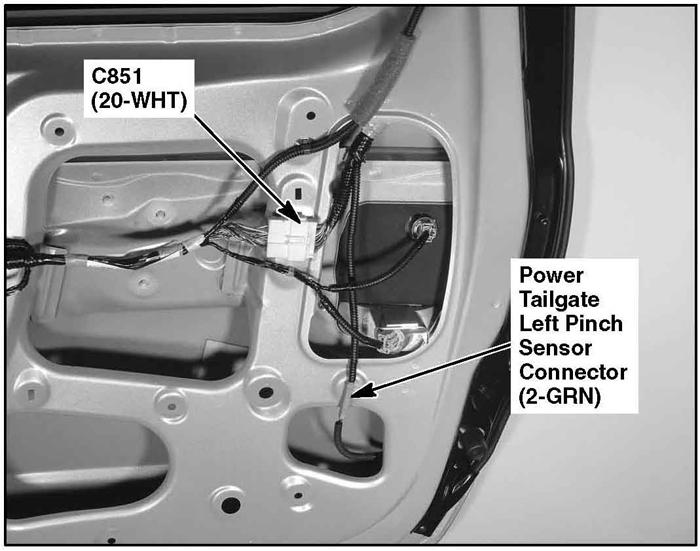

Fig 162: Left Side Of Tailgate (Touring)

G00464216

Courtesy of AMERICAN HONDA MOTOR CO., INC.

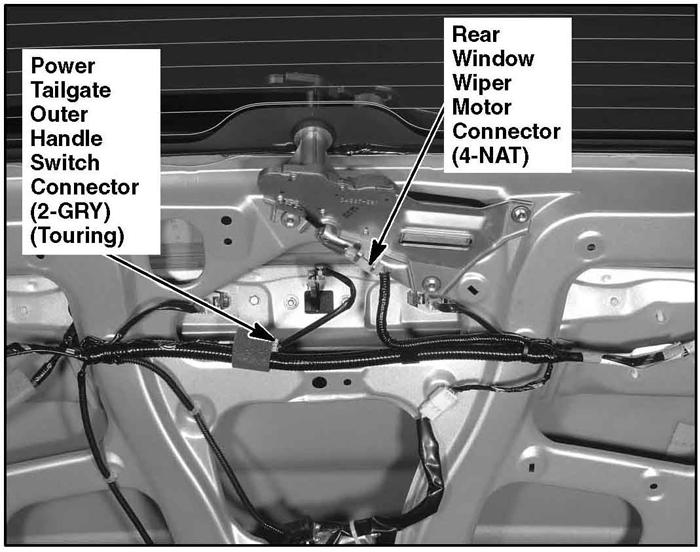

Fig 163: Middle Of Tailgate

G00464217

Courtesy of AMERICAN HONDA MOTOR CO., INC.

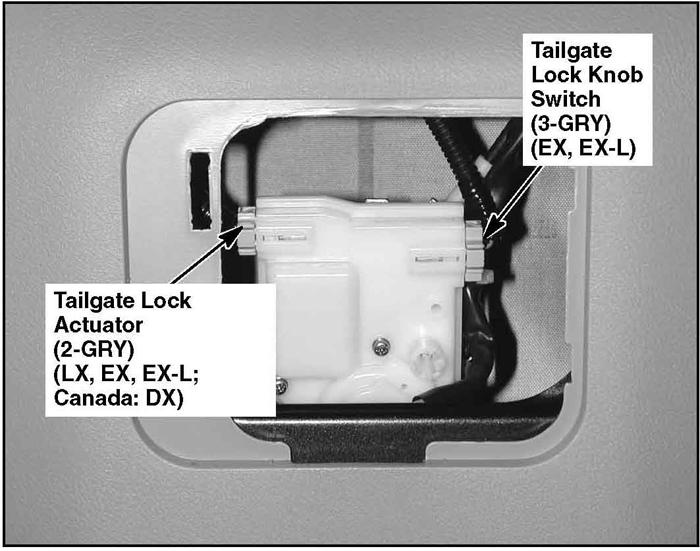

Fig 164: Middle Of Tailgate

G00464218

Courtesy of AMERICAN HONDA MOTOR CO., INC.

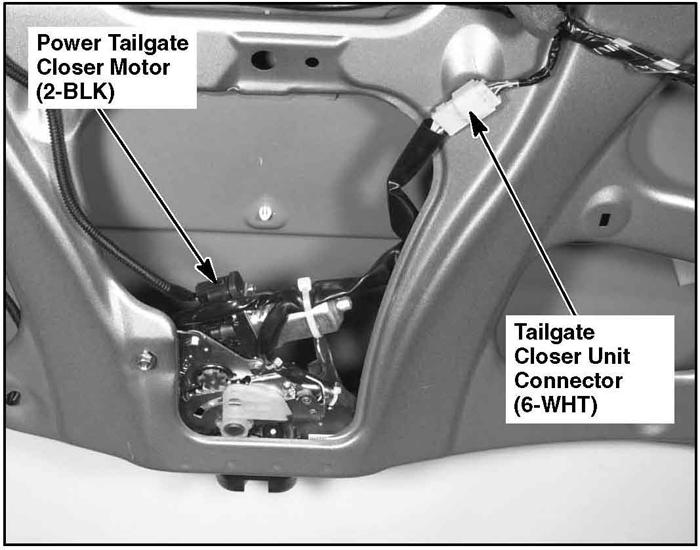

Fig 165: Middle Of Tailgate (Touring)

G00464219

Courtesy of AMERICAN HONDA MOTOR CO., INC.

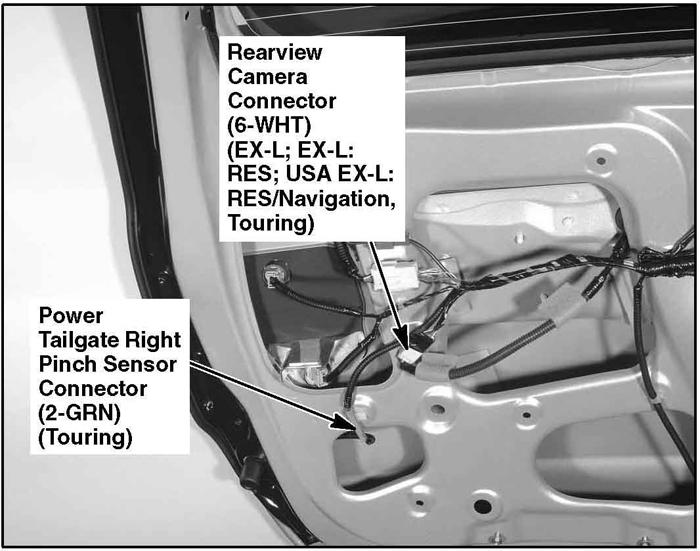

Fig 166: Right Side Of Tailgate

G00464220

Courtesy of AMERICAN HONDA MOTOR CO., INC.

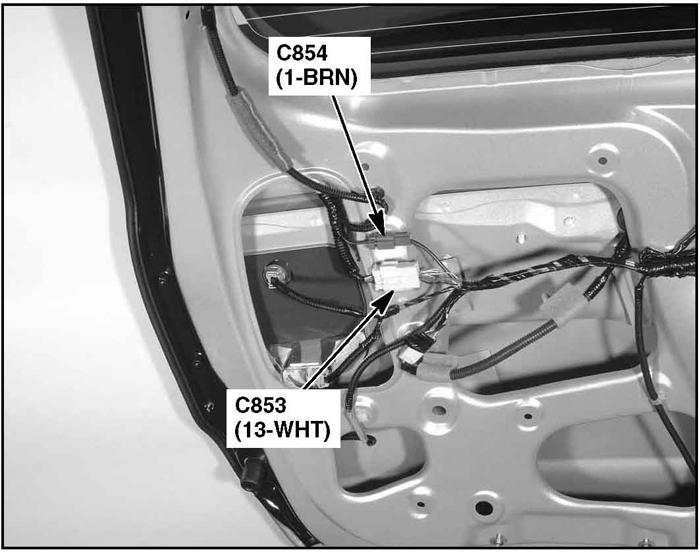

Fig 167: Right Side Of Tailgate

G00464221

Courtesy of AMERICAN HONDA MOTOR CO., INC.

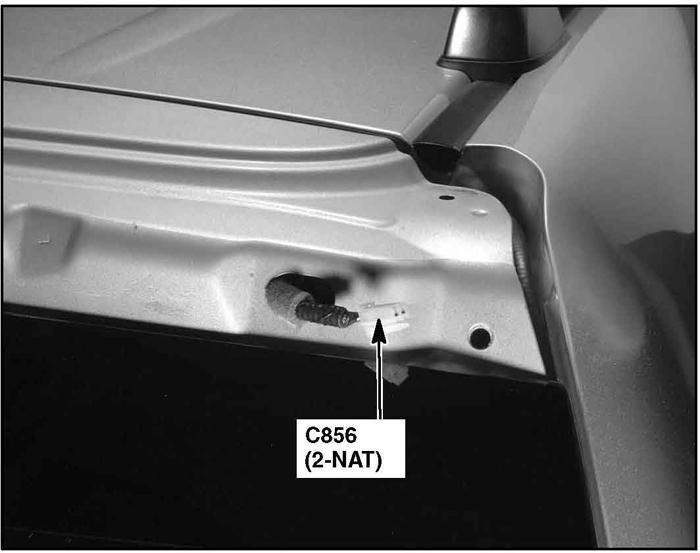

Fig 168: Right Side Of Tailgate

G00464222

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 169: Behind Left Side Of Front Bumper (Touring)

G00464223

Courtesy of AMERICAN HONDA MOTOR CO., INC.

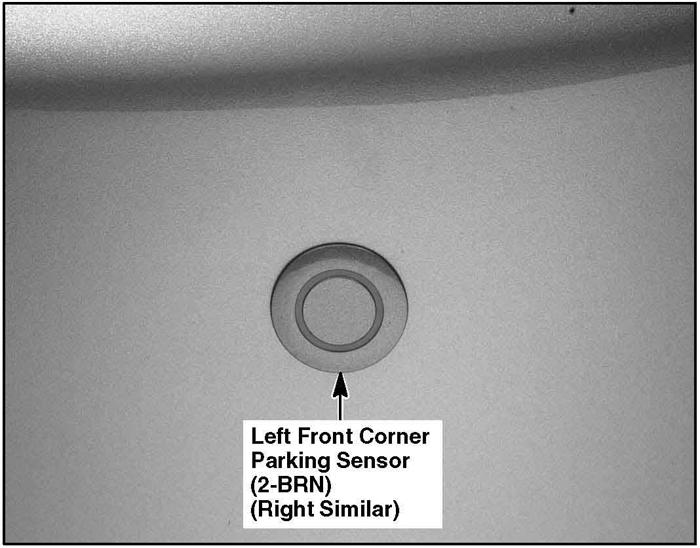

Fig 170: Left Side Of Front Bumper (Touring)

G00464224

Courtesy of AMERICAN HONDA MOTOR CO., INC.

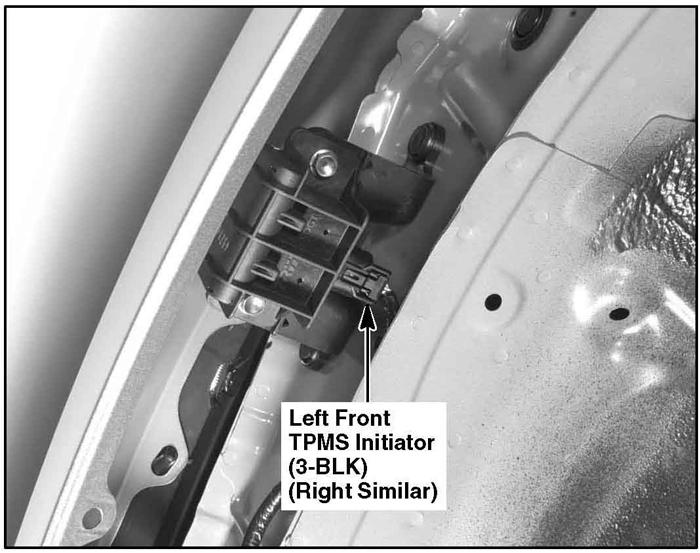

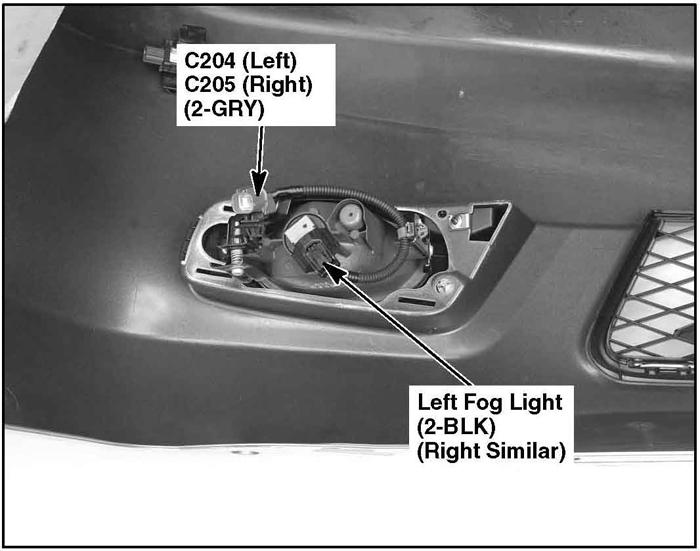

Fig 171: Behind Left Side Of Front Bumper (Touring) (Right Similar)

G00464225

Courtesy of AMERICAN HONDA MOTOR CO., INC.

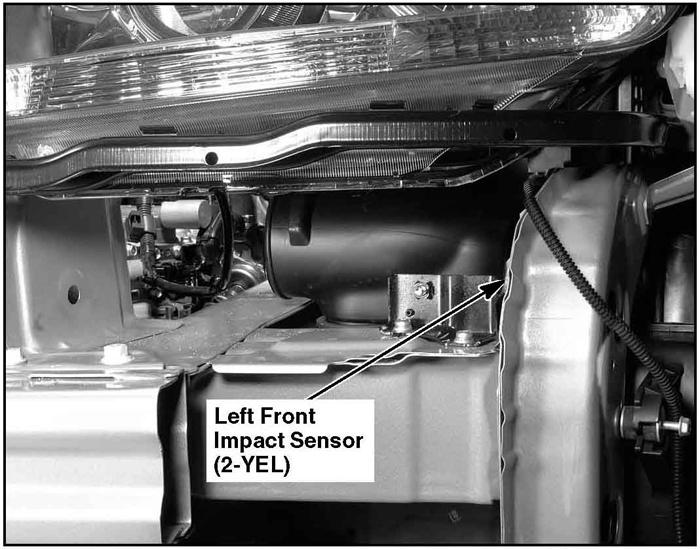

Fig 172: Behind Left Side Of Front Bumper (Right Similar)

G00464226

Courtesy of AMERICAN HONDA MOTOR CO., INC.

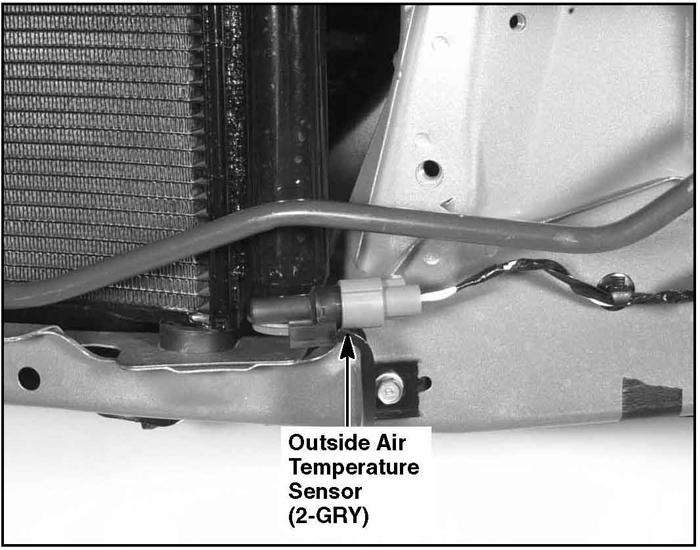

Fig 173: Behind Left Side Of Front Bumper (EX, EX-L, Touring)

G00464227

Courtesy of AMERICAN HONDA MOTOR CO., INC.

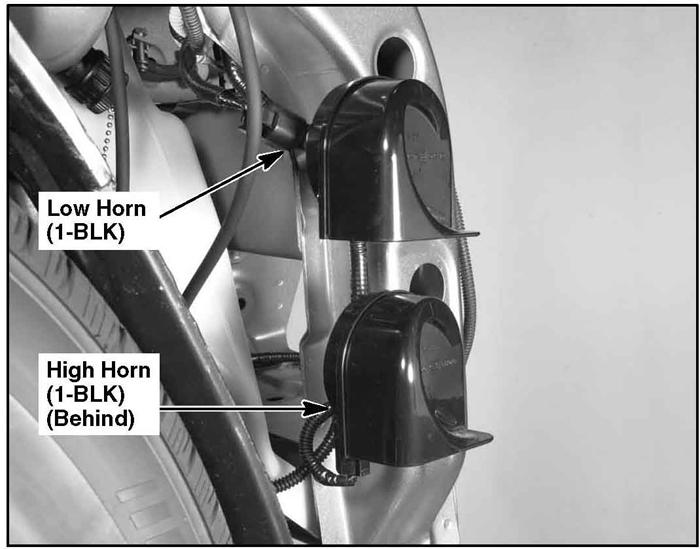

Fig 174: Behind Right Side Of Front Bumper

G00464228

Courtesy of AMERICAN HONDA MOTOR CO., INC.

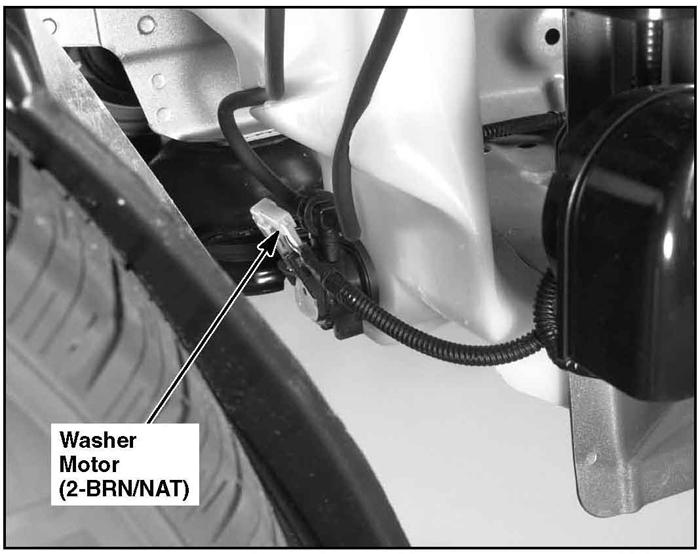

Fig 175: Behind Right Side Of Front Bumper

G00464229

Courtesy of AMERICAN HONDA MOTOR CO., INC.

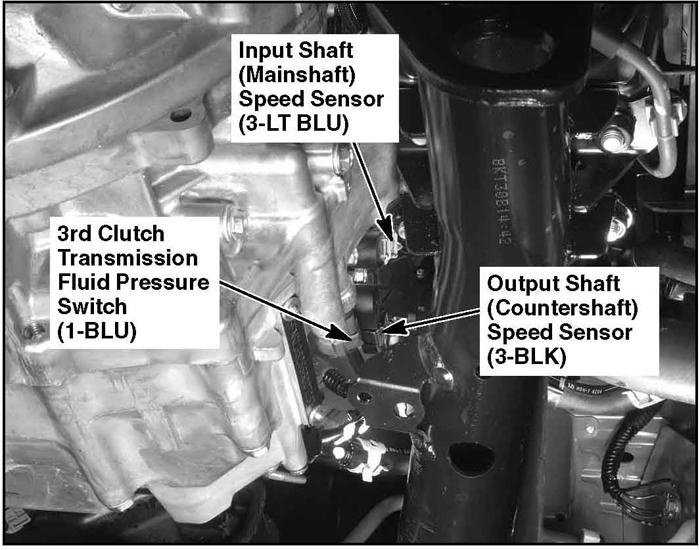

Fig 176: Transmission Housing

G00464230

Courtesy of AMERICAN HONDA MOTOR CO., INC.

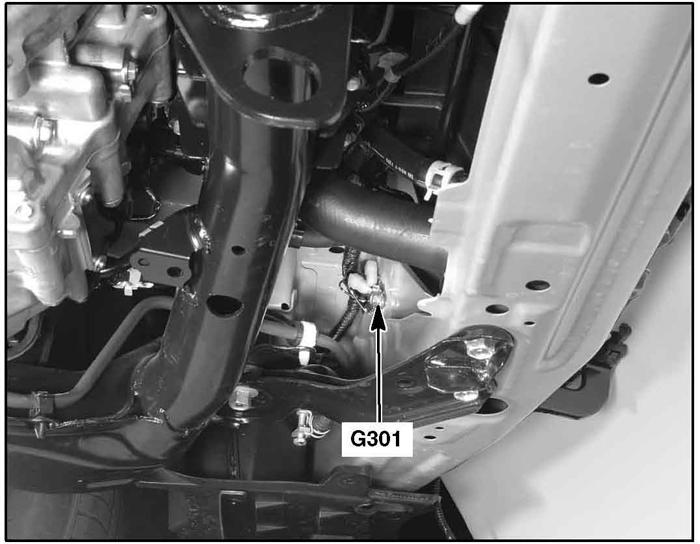

Fig 177: Under Left Front Of Engine Compartment

G00464231

Courtesy of AMERICAN HONDA MOTOR CO., INC.

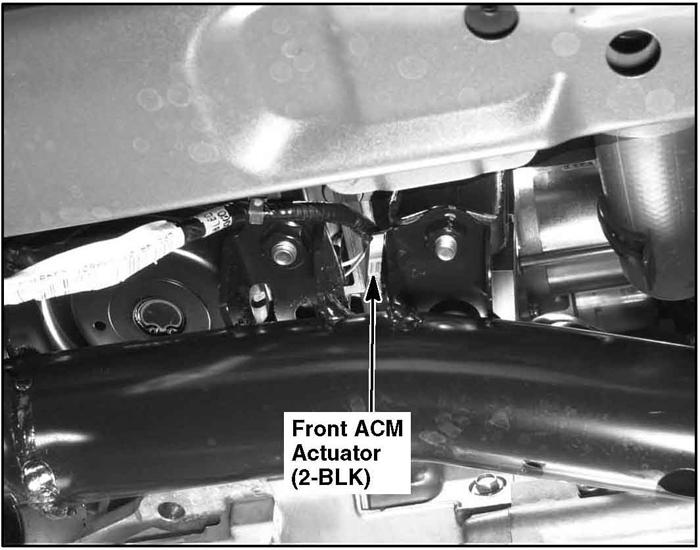

Fig 178: Under Front Of Engine Compartment (EX-L, Touring)

G00464232

Courtesy of AMERICAN HONDA MOTOR CO., INC.

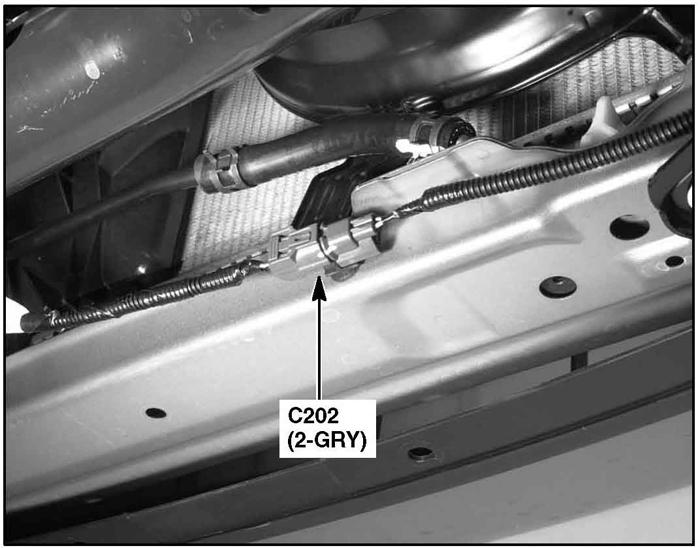

Fig 179: Under Front Of Engine Compartment (EX-L, Touring)

G00464233

Courtesy of AMERICAN HONDA MOTOR CO., INC.

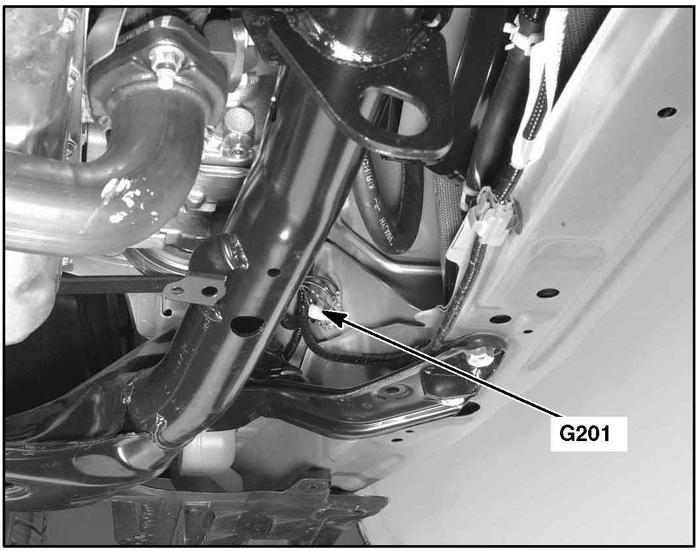

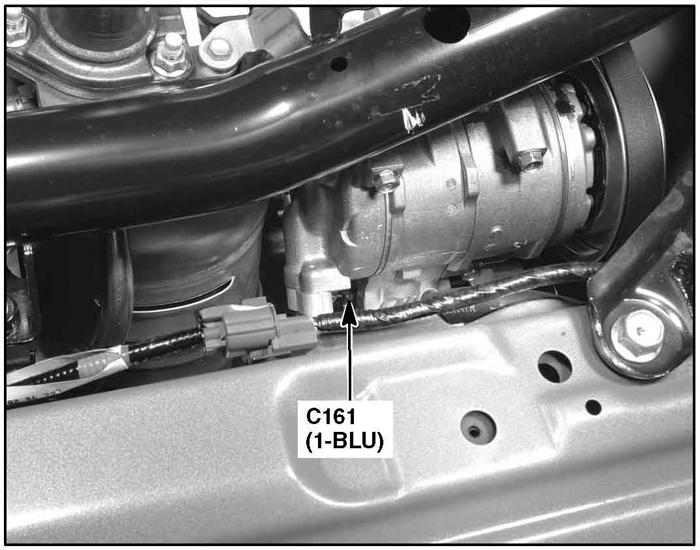

Fig 180: Under Right Front Of Engine Compartment

G00464234

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 181: Under Right Front Of Engine Compartment

G00464235

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 182: Under Right Side Of Engine

G00464236

Courtesy of AMERICAN HONDA MOTOR CO., INC.

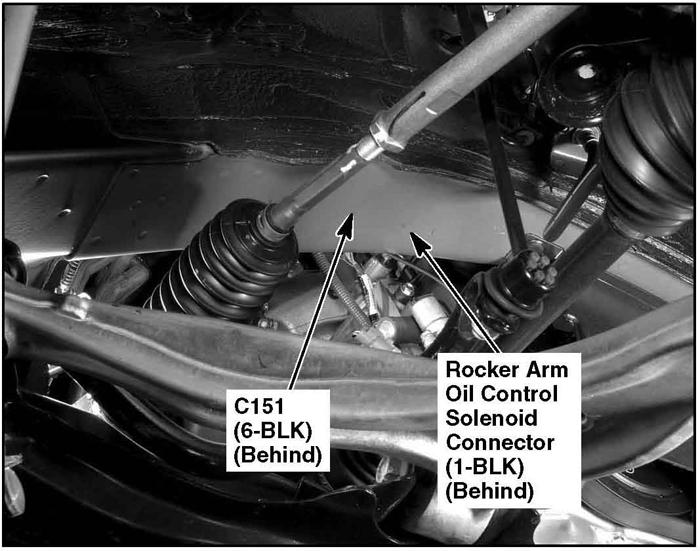

Fig 183: Under Right Side Of Engine (LX & EX)

G00464237

Courtesy of AMERICAN HONDA MOTOR CO., INC.

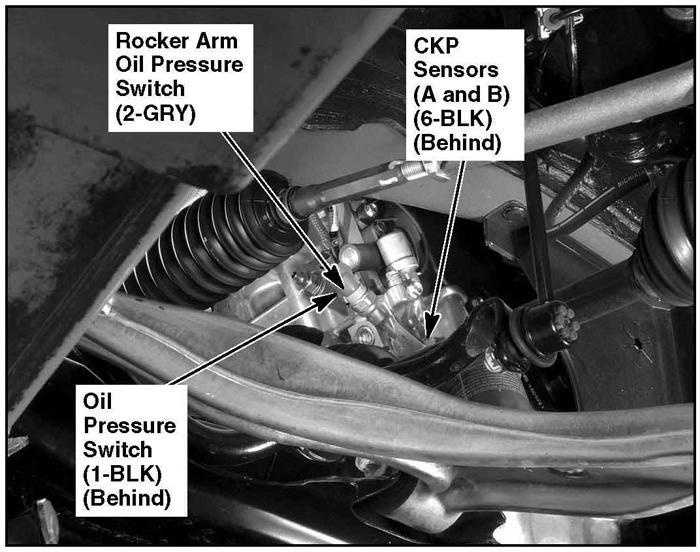

Fig 184: Under Right Side Of Engine (LX & EX)

G00464238

Courtesy of AMERICAN HONDA MOTOR CO., INC.

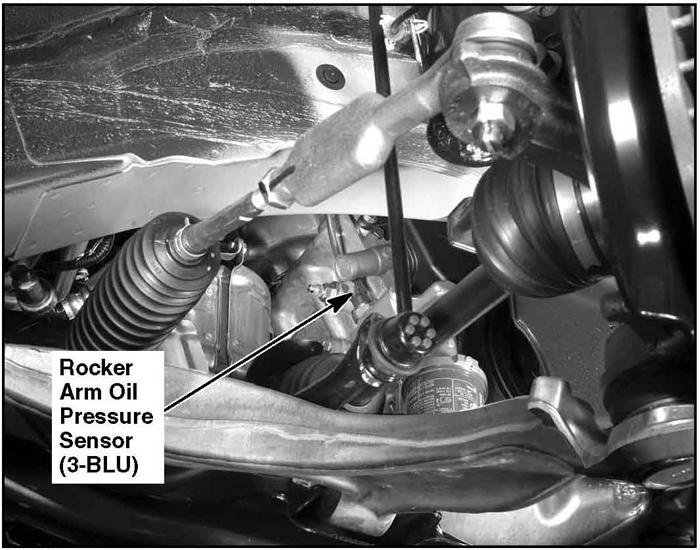

Fig 185: Under Right Side Of Engine (EX-L, Touring)

G00464239

Courtesy of AMERICAN HONDA MOTOR CO., INC.

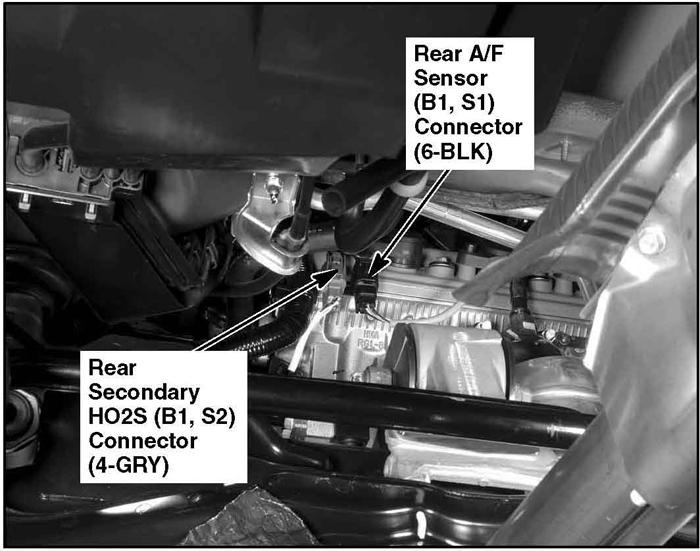

Fig 186: Middle Right Side Of Engine (LX & EX)

G00464240

Courtesy of AMERICAN HONDA MOTOR CO., INC.

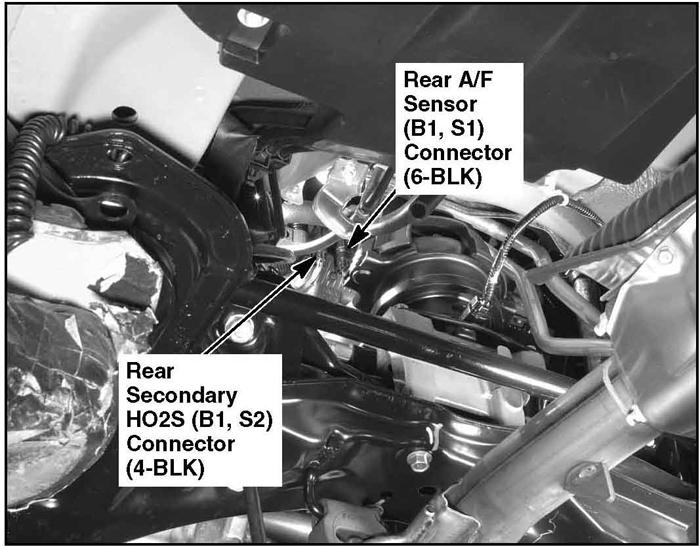

Fig 187: Lower Right Side Of Engine (EX-L, Touring)

G00464241

Courtesy of AMERICAN HONDA MOTOR CO., INC.

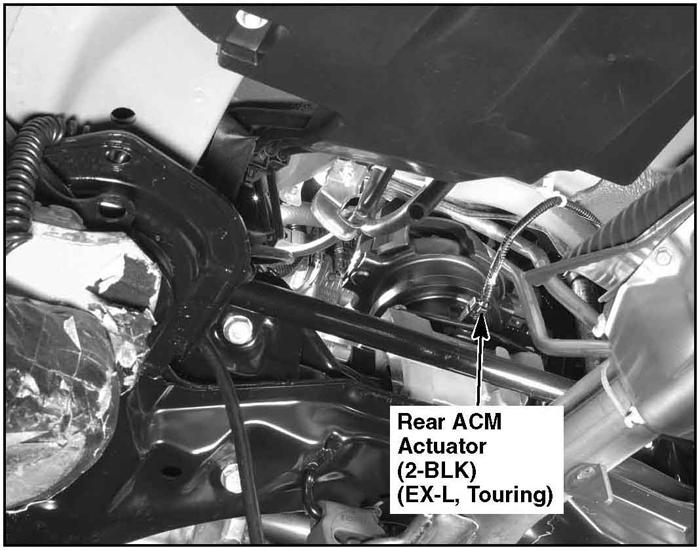

Fig 188: Under Middle Rear Of Engine Compartment

G00464242

Courtesy of AMERICAN HONDA MOTOR CO., INC.

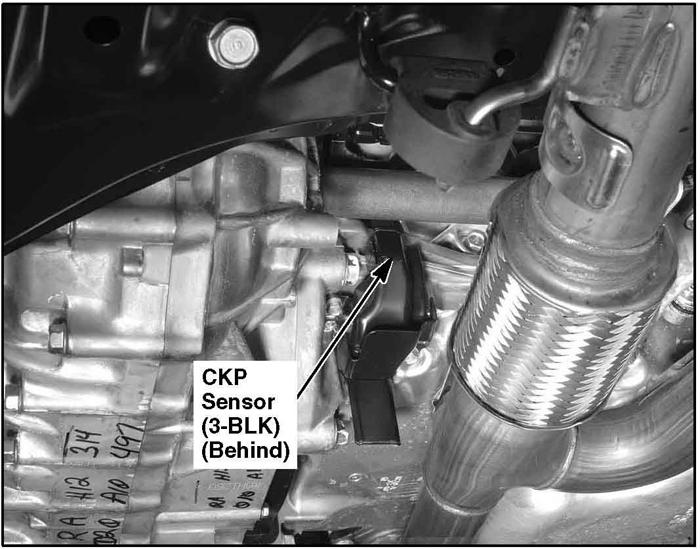

Fig 189: Lower Right Side Of Engine (EX-L, Touring)

G00464243

Courtesy of AMERICAN HONDA MOTOR CO., INC.

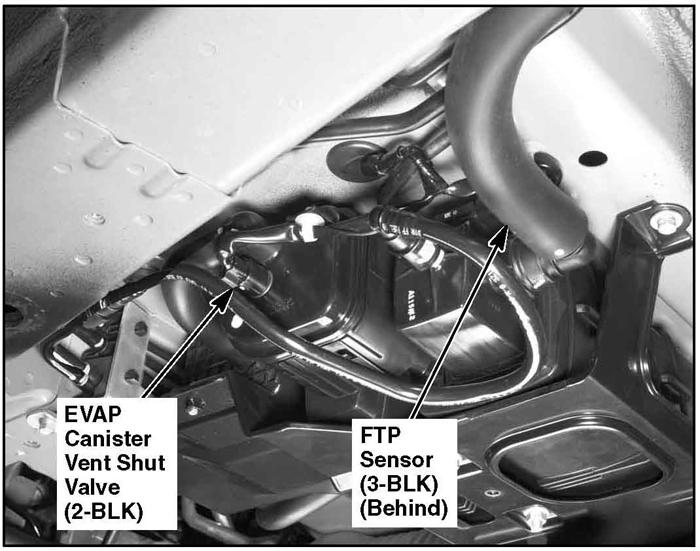

Fig 190: Under Middle Of Vehicle

G00464244

Courtesy of AMERICAN HONDA MOTOR CO., INC.

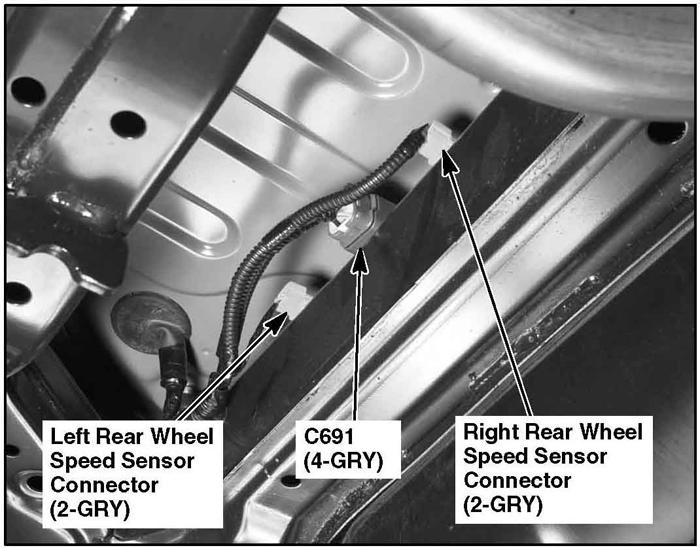

Fig 191: Under Rear Of Vehicle

G00464245

Courtesy of AMERICAN HONDA MOTOR CO., INC.

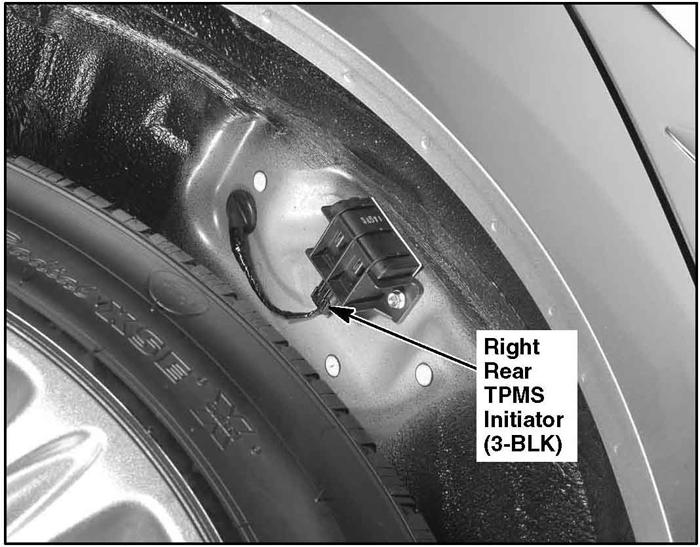

Fig 192: Right Rear Wheelwell (Touring) (Left Similar)

G00464246

Courtesy of AMERICAN HONDA MOTOR CO., INC.

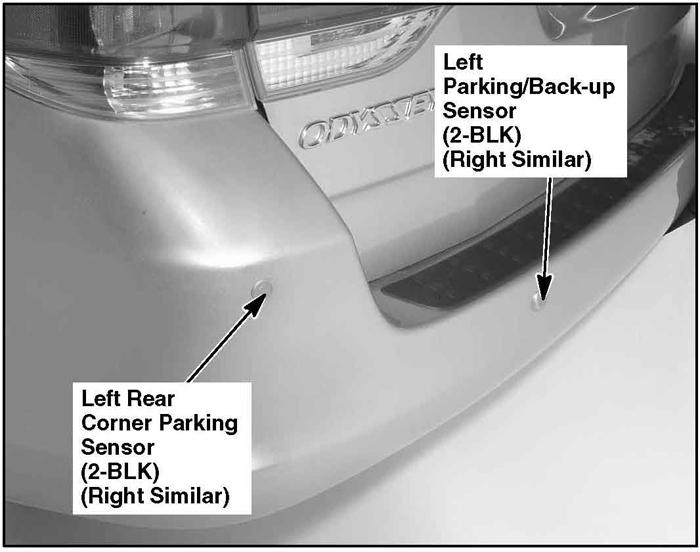

Fig 193: Left Side Of Rear Bumper (Touring)

G00441754

Courtesy of AMERICAN HONDA MOTOR CO., INC.

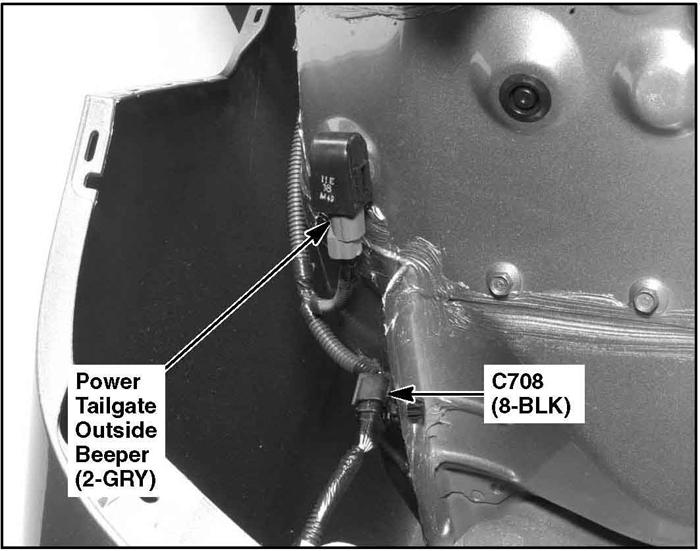

Fig 194: Behind Left Side Of Rear Bumper (Touring)

G00441755

Courtesy of AMERICAN HONDA MOTOR CO., INC.
