Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

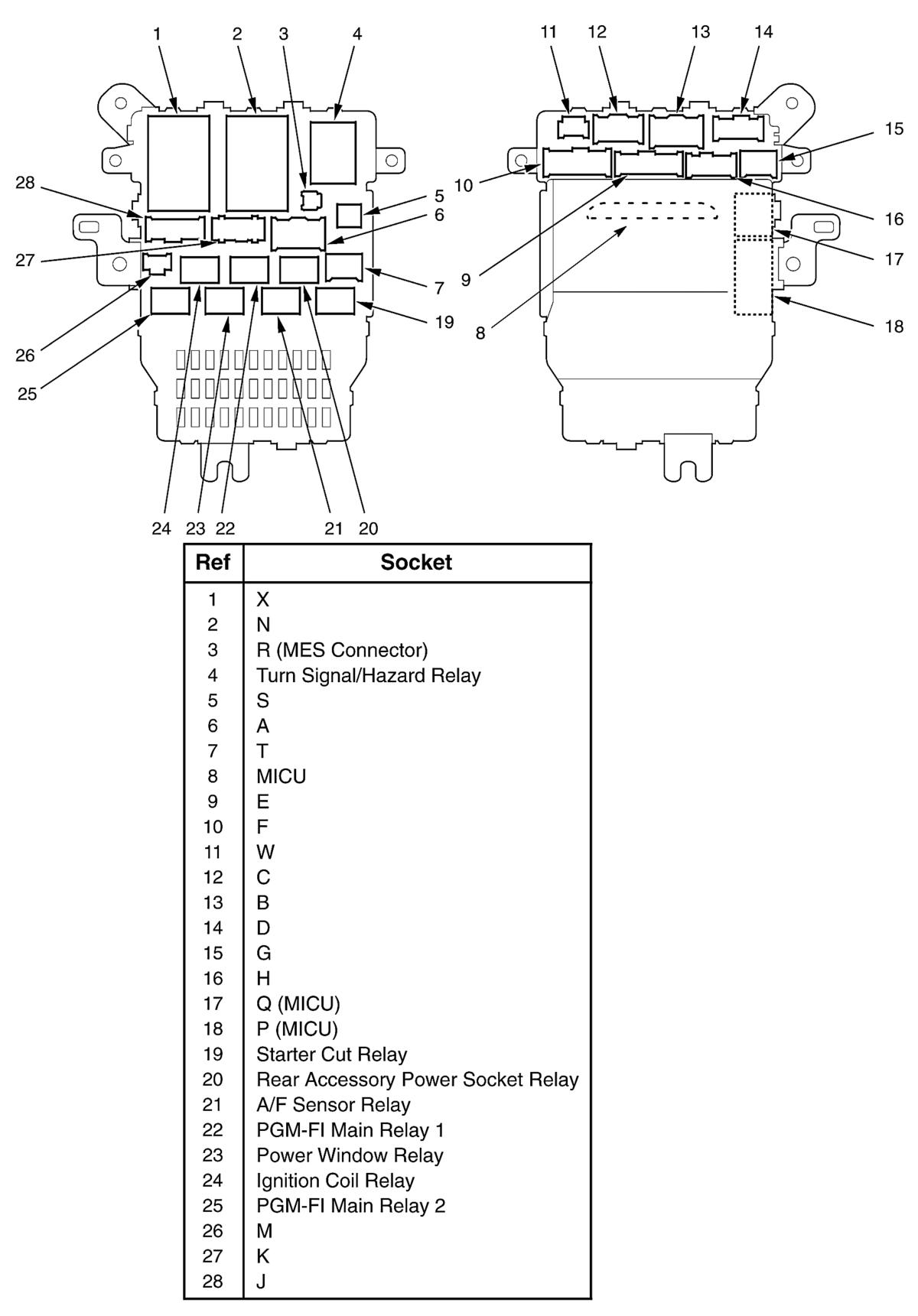

Fig 1: Under-Dash Fuse/Relay Box

G00472469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Under-Hood Fuse/Relay Box

G00430637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Right Rear Of Engine Compartment

G00430639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Left Rear Of Engine Compartment

G00430642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Right Rear Of Engine Compartment

G00430644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Lower Front Of Engine

G00430648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Right Front Of Engine Compartment

G00430651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Behind Right Side Of Front Bumper

G00430652

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Front Of Engine Compartment

G00430656

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Behind Middle Of Front Bumper

G00430657

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Behind Middle Of Front Bumper

G00430658

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Middle Of Engine

G00430659

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Middle Of Engine

G00430660

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Middle Of Engine

G00430661

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Middle Of Engine

G00430662

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Middle Of Engine

G00430663

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Transmission Housing

G00430676

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Left Rear Of Engine Compartment

G00430681

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Left Rear Of Engine Compartment

G00430682

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Left Rear Of Engine Compartment

G00430684

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Left Side Of Dash

G00430685

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Under Left Side Of Dash

G00459017

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Under Left Side Of Dash

G00430693

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Under Left Side Of Dash

G00430695

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Under Left Side Of Dash

G00430697

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Bottom Of Steering Column

G00430699

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Left Side Of Steering Column

G00430700

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Top Of Steering Column

G00459019

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Right Side Of Steering Column

G00430702

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Under Middle Of Dash

G00430705

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Under Middle Of Dash

G00459022

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Under Center Console

G00430710

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: Right Side Of Dash

G00430711

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Behind Glove Box

G00430714

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Behind Glove Box

G00430715

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Under Right Side Of Dash

G00430716

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Under Right Side Of Dash

G00430717

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Under Right Side Of Dash

G00430718

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Behind Right Kick Panel

G00430719

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Driver's Door

G00430721

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Driver's Door

G00430722

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Driver's Door

G00430723

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Front Passenger's Door

G00430726

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Front Passenger's Door

G00430727

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Left Rear Door (Right Similar)

G00430728

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Left Rear Door (Right Similar)

G00430729

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Under Driver's Seat

G00445684

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Under Driver's Seat

G00430732

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Under Driver's Seat

G00430734

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Left Side Of Driver's Seat

G00430735

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Right Side Of Driver's Seat

G00430737

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Right Side Of Driver's Seat Back

G00430738

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Front Passenger's Seat

G00430741

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Behind Rear Seat

G00459023

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Behind Rear Seat

G00430743

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Behind Left Side Of Rear Seat (Right Similar)

G00430744

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Behind Left Side Of Rear Seat

G00430745

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Behind Right Side Of Rear Seat

G00430746

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Behind Right Side Of Rear Seat

G00430747

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Under Rear Seat

G00430748

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Left "B" Pillar (Right Similar)

G00430750

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Left "B" Pillar (Right Similar)

G00459024

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Left "C" Pillar (Right Similar)

G00459025

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Rear Of Roof

G00445682

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Rear Of Roof

G00430757

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Rear Of Roof

G00430758

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Rear Of Roof

G00430759

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Rear Of Roof

G00430760

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Left Side Of Cargo Area

G00430761

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Right Side Of Cargo Area

G00430762

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: In-Bed Trunk Lid

G00430764

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Left Front Wheelwell (Right Similar)

G00430765

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Left Rear Wheelwell (Right Similar)

G00430766

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 74: Under Left Rear Of Vehicle

G00430768

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Under Rear Of Vehicle

G00430770

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Behind Left Kick Panel

G00430773

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Behind Left Side Of Rear Seat

G00430775

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Under Driver's Seat

G00445686

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Left Side Of Front Passenger's Seat Back

G00445688

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Left Front Of Engine Compartment

G00459013

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Under Left Side Of Dash (Except RTX)

G00459018

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Top Center Of Dash

G00459021

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Behind Left Kick Panel

G00459032

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Behind Middle Of Rear Seat

G00459038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

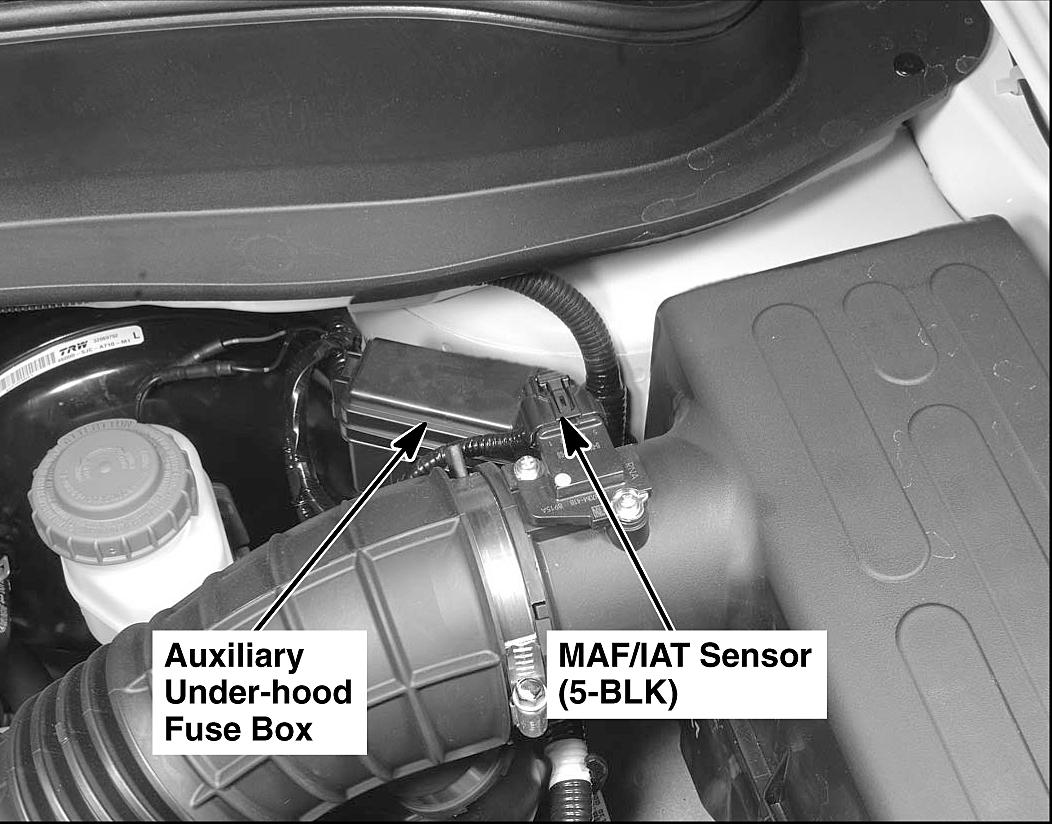

Fig 85: Left Side Of Engine Compartment

G00472404

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Left Rear Of Engine Compartment

G00472405

Courtesy of AMERICAN HONDA MOTOR CO., INC.

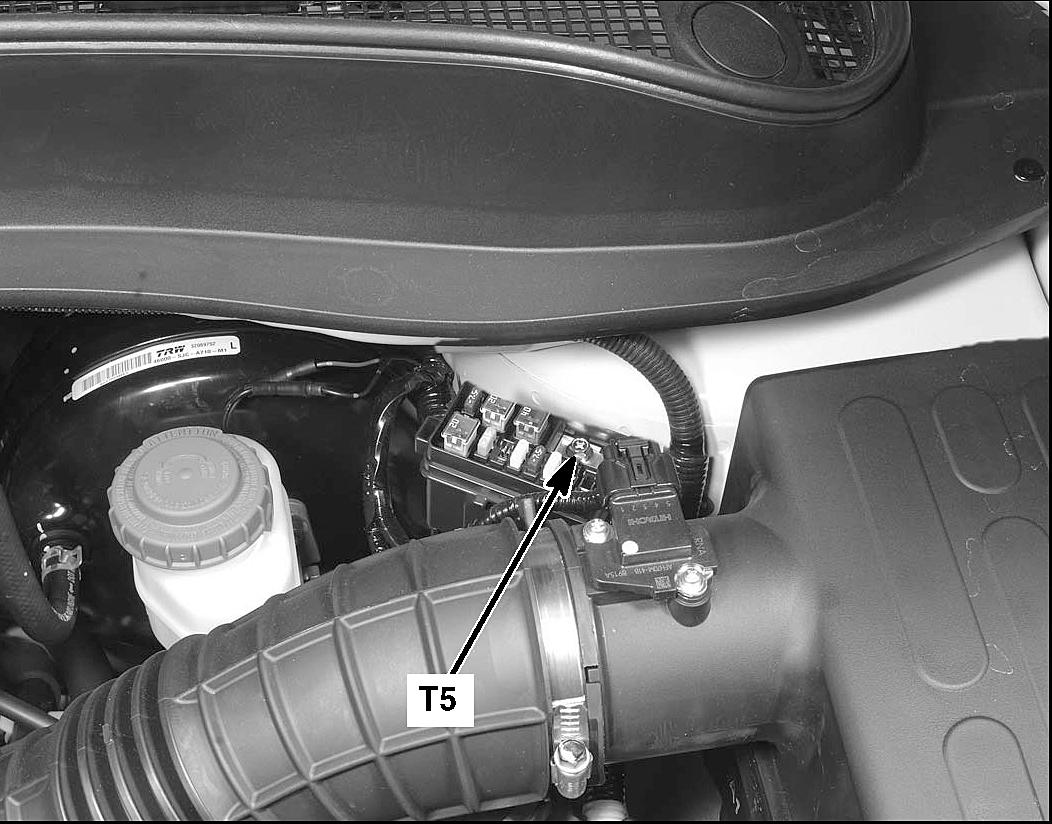

Fig 87: Left Side Of Engine Compartment

G00472406

Courtesy of AMERICAN HONDA MOTOR CO., INC.

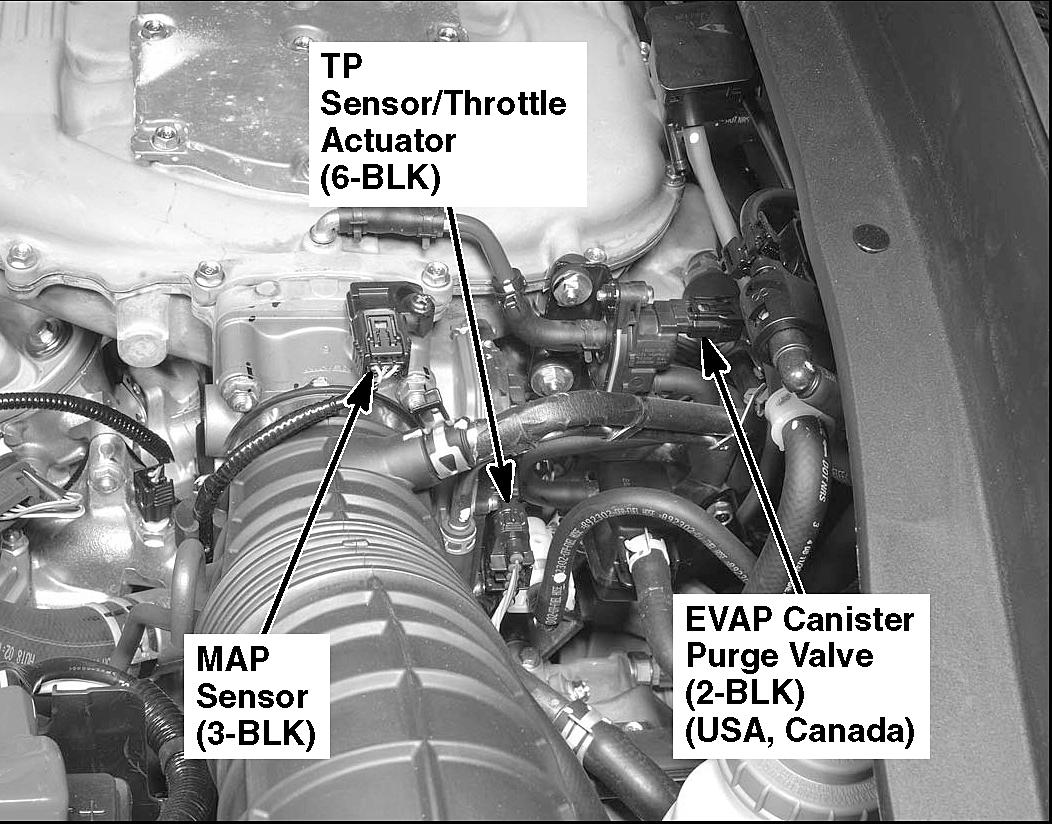

Fig 88: Left Side Of Engine

G00472407

Courtesy of AMERICAN HONDA MOTOR CO., INC.

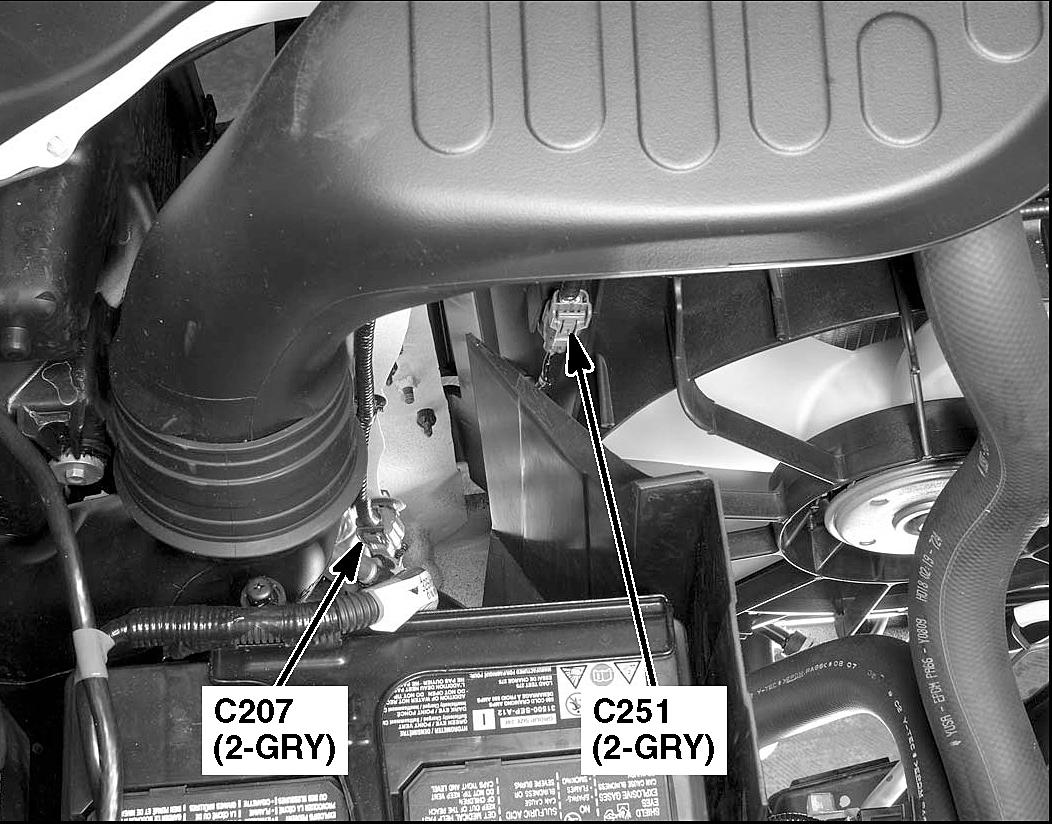

Fig 89: Left Front Of Engine Compartment

G00472408

Courtesy of AMERICAN HONDA MOTOR CO., INC.

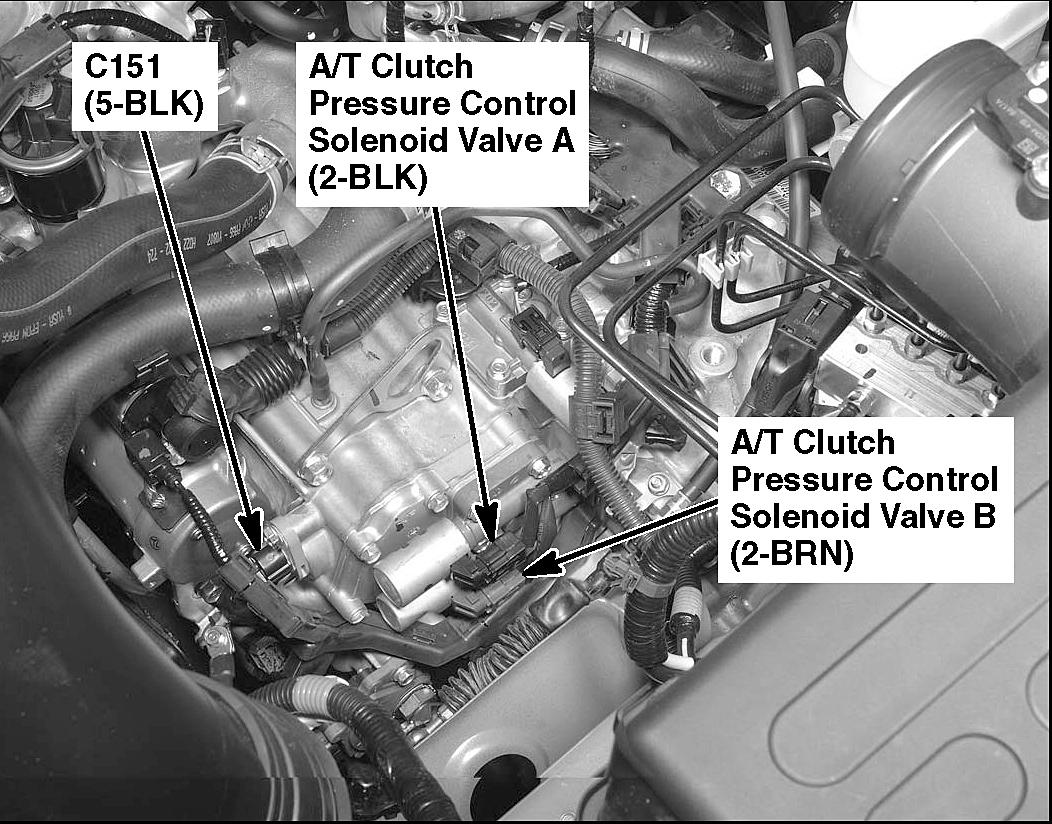

Fig 90: Transmission Housing

G00472409

Courtesy of AMERICAN HONDA MOTOR CO., INC.

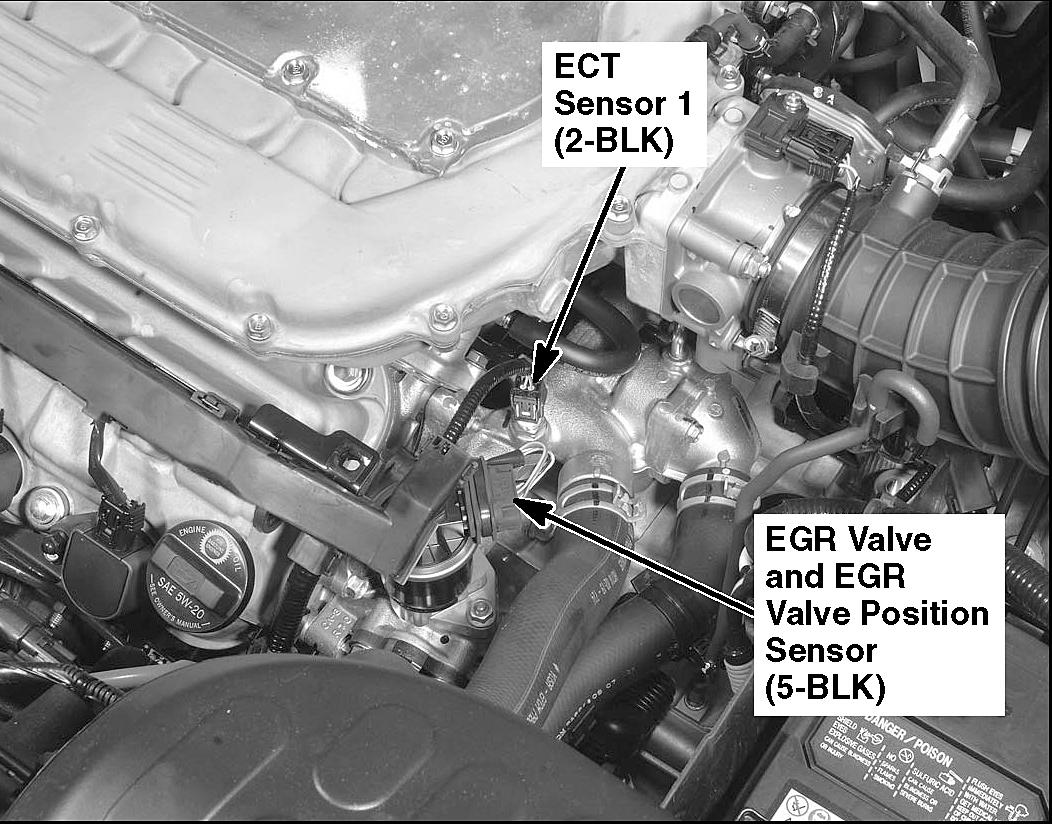

Fig 91: Left Side Of Engine

G00472410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

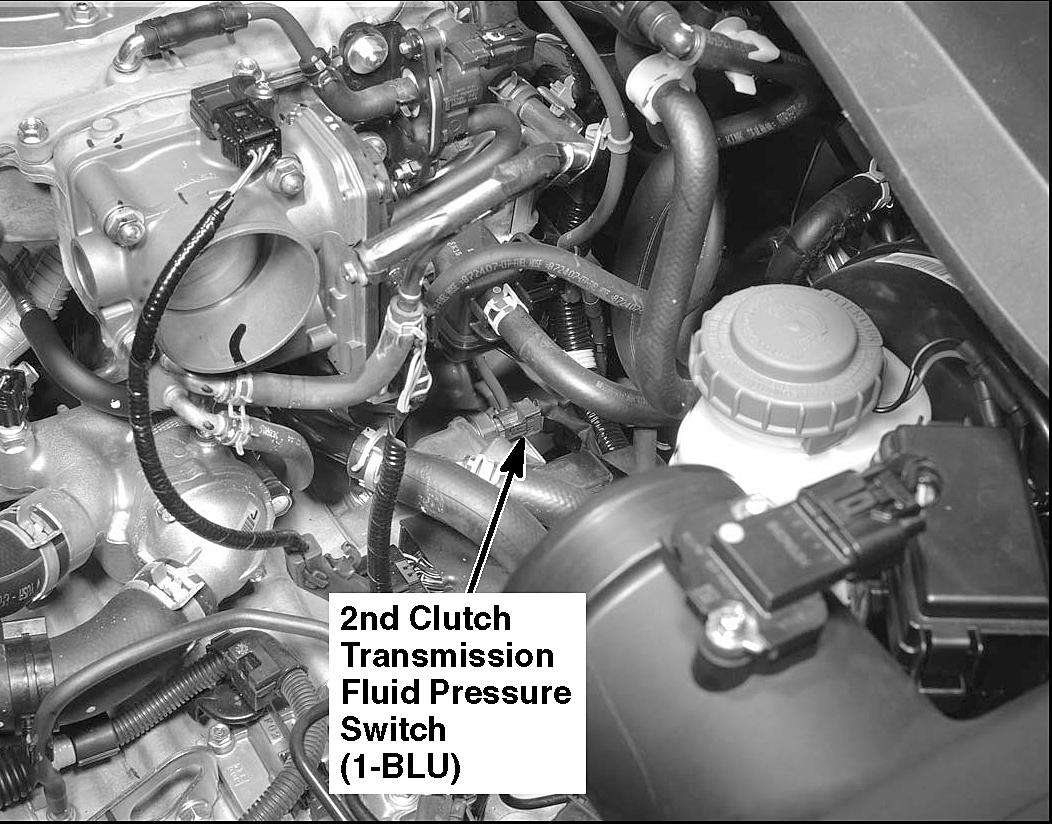

Fig 92: Transmission Housing

G00472411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

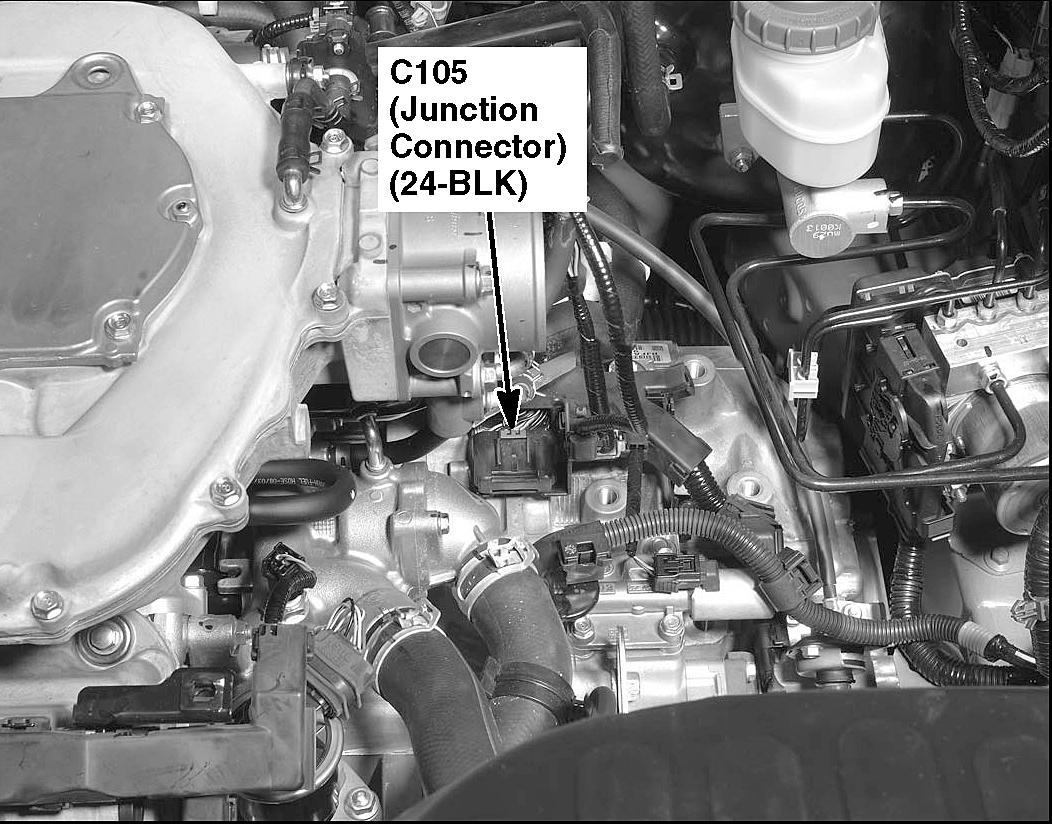

Fig 93: Top Of Transmission Housing

G00472412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

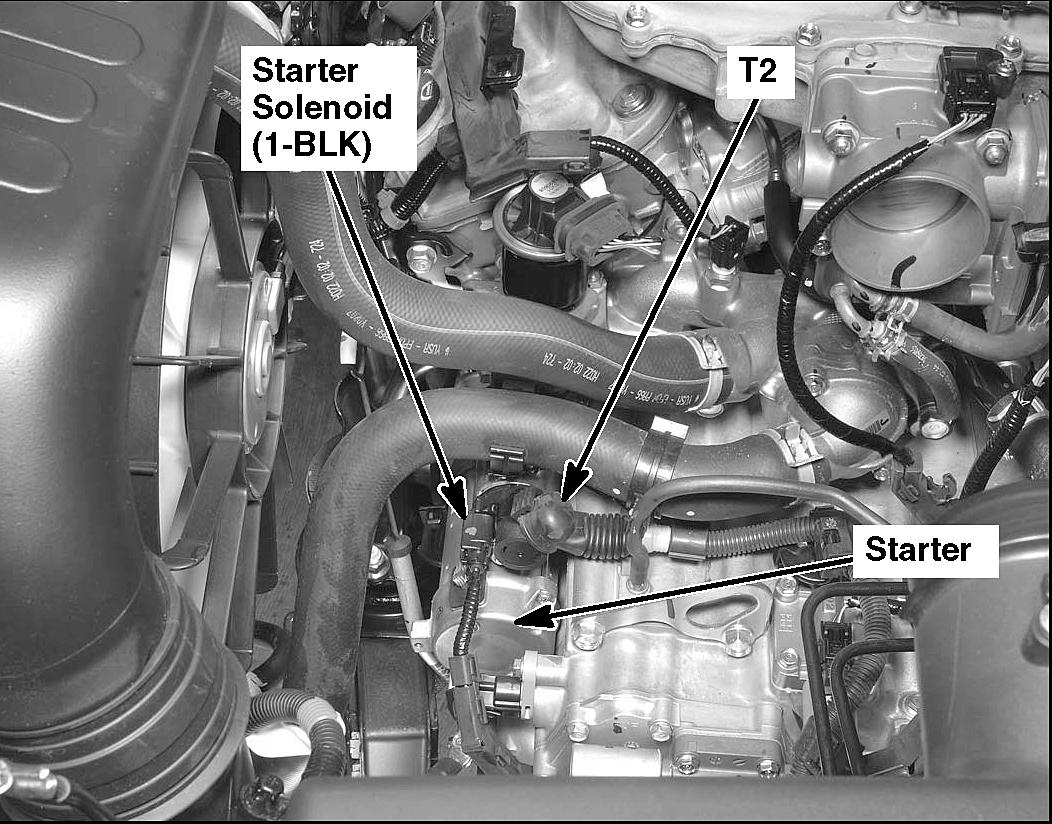

Fig 94: Transmission Housing

G00472413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

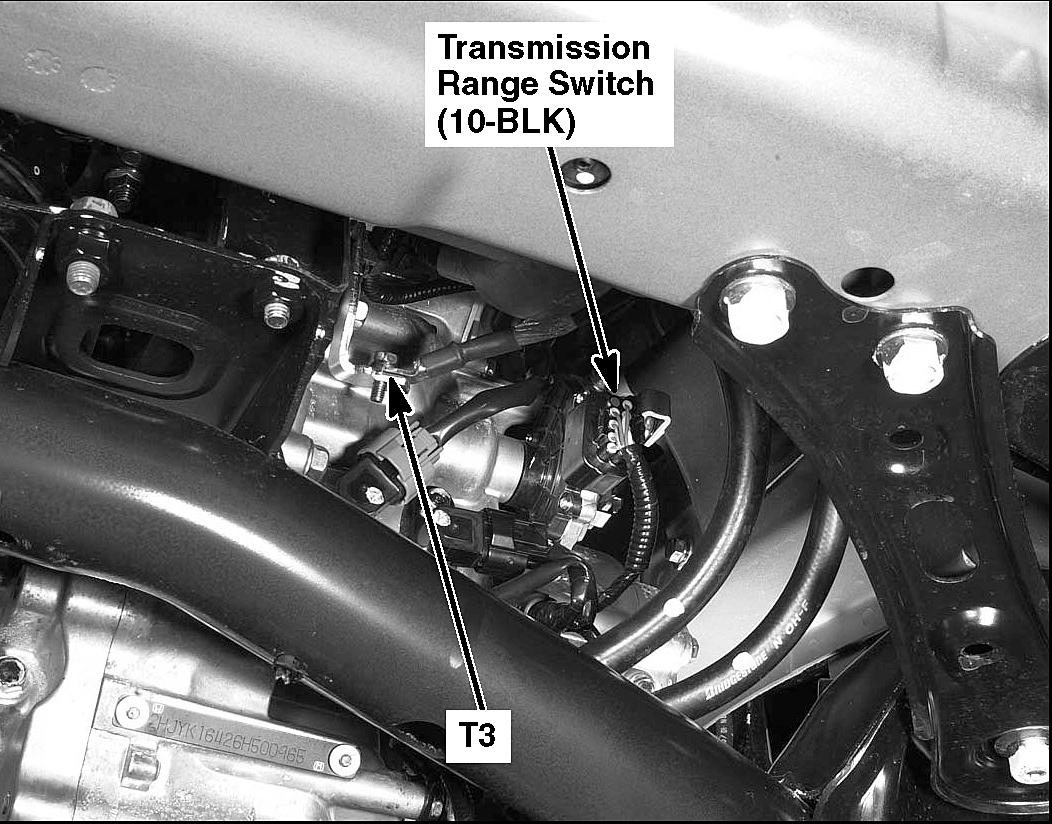

Fig 95: Transmission Housing

G00472414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

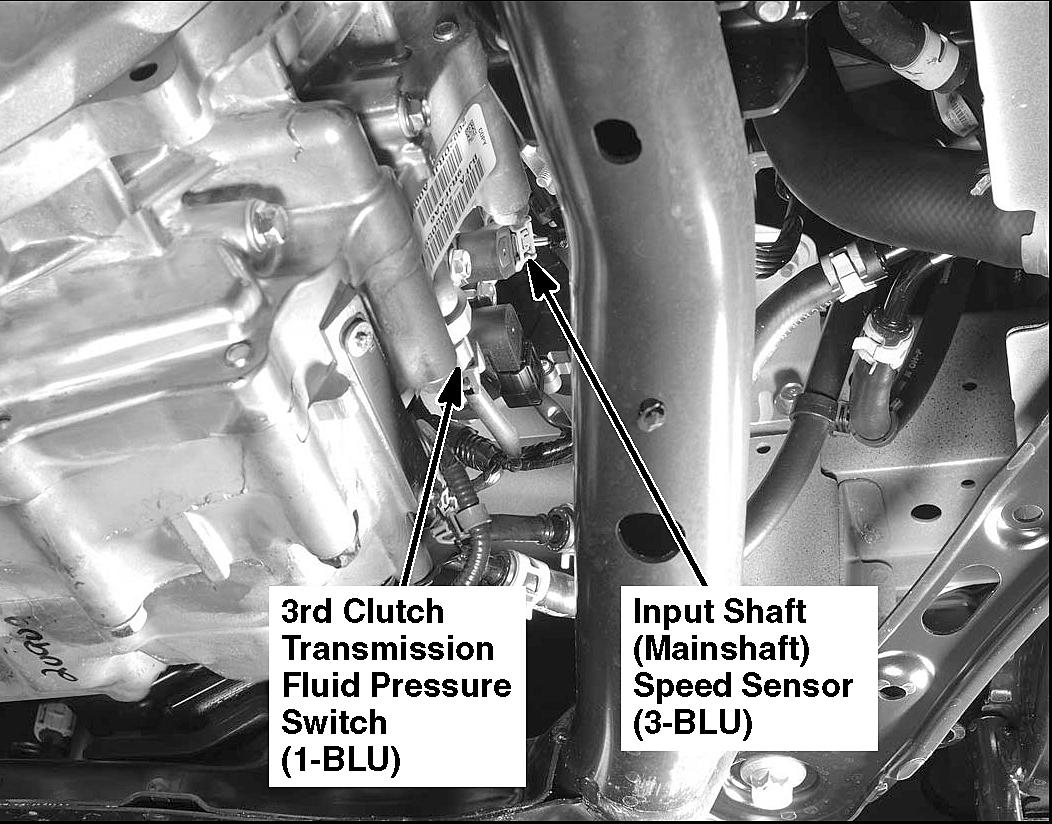

Fig 96: Transmission Housing

G00472415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

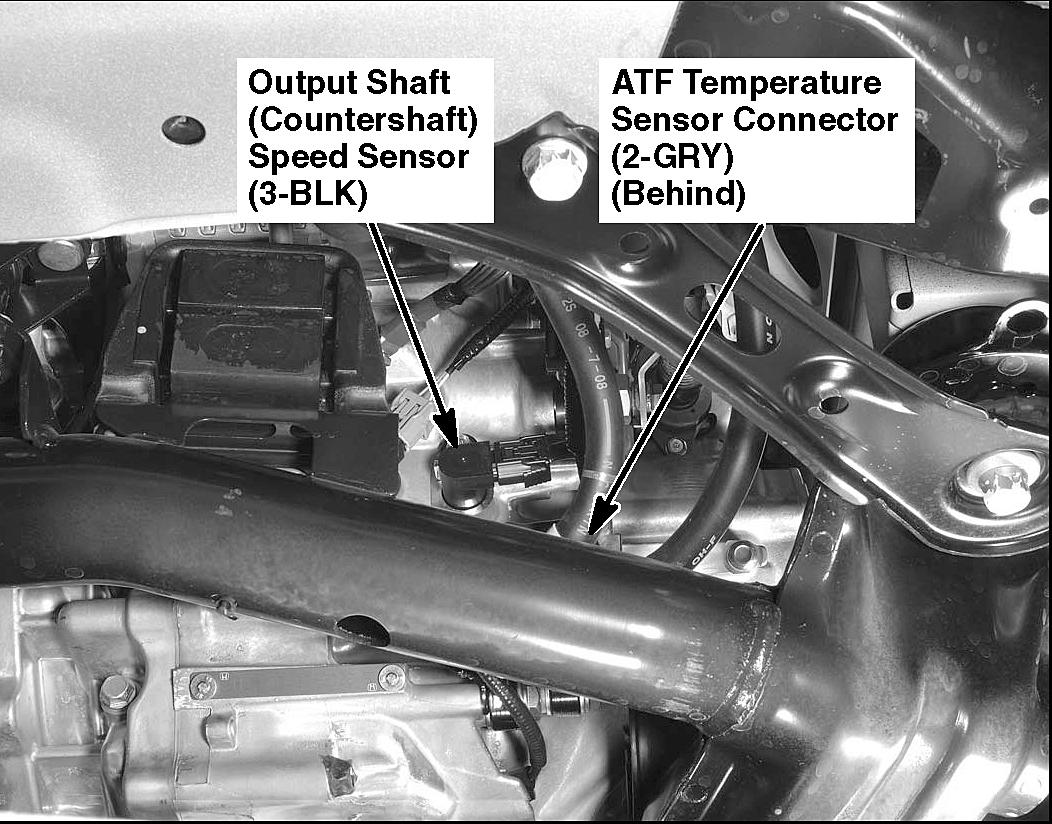

Fig 97: Transmission Housing

G00472416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

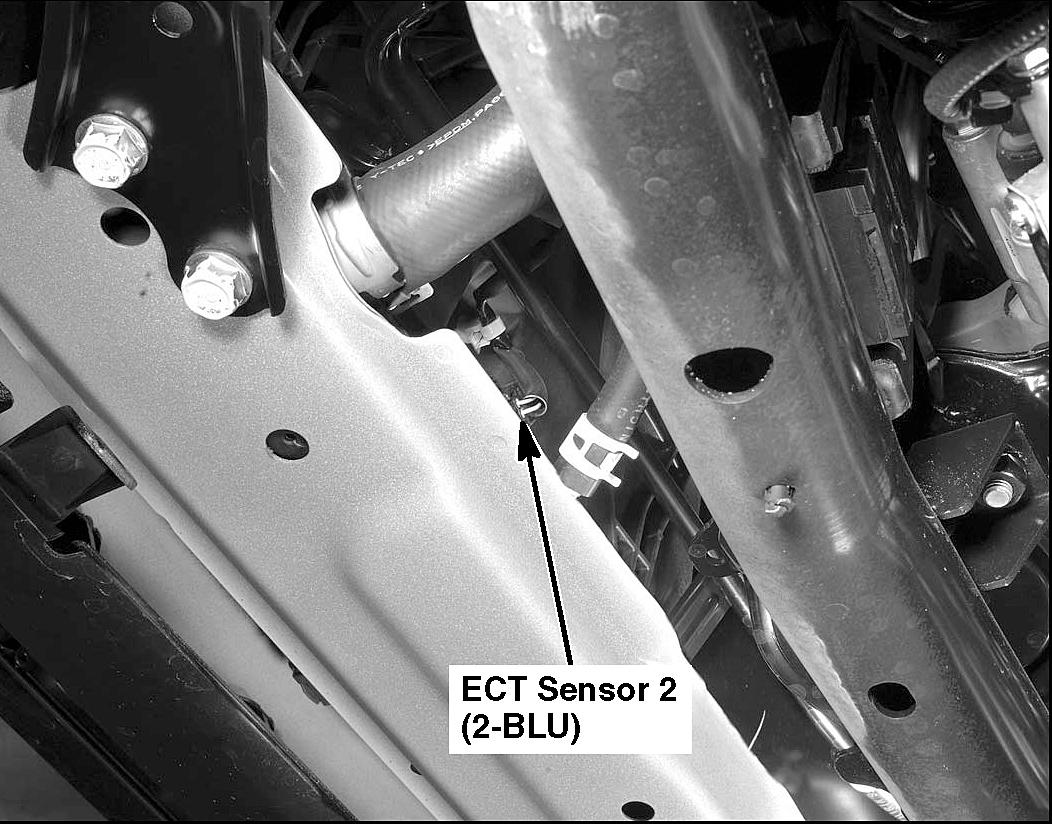

Fig 98: Under Left Side Of Engine

G00472417

Courtesy of AMERICAN HONDA MOTOR CO., INC.

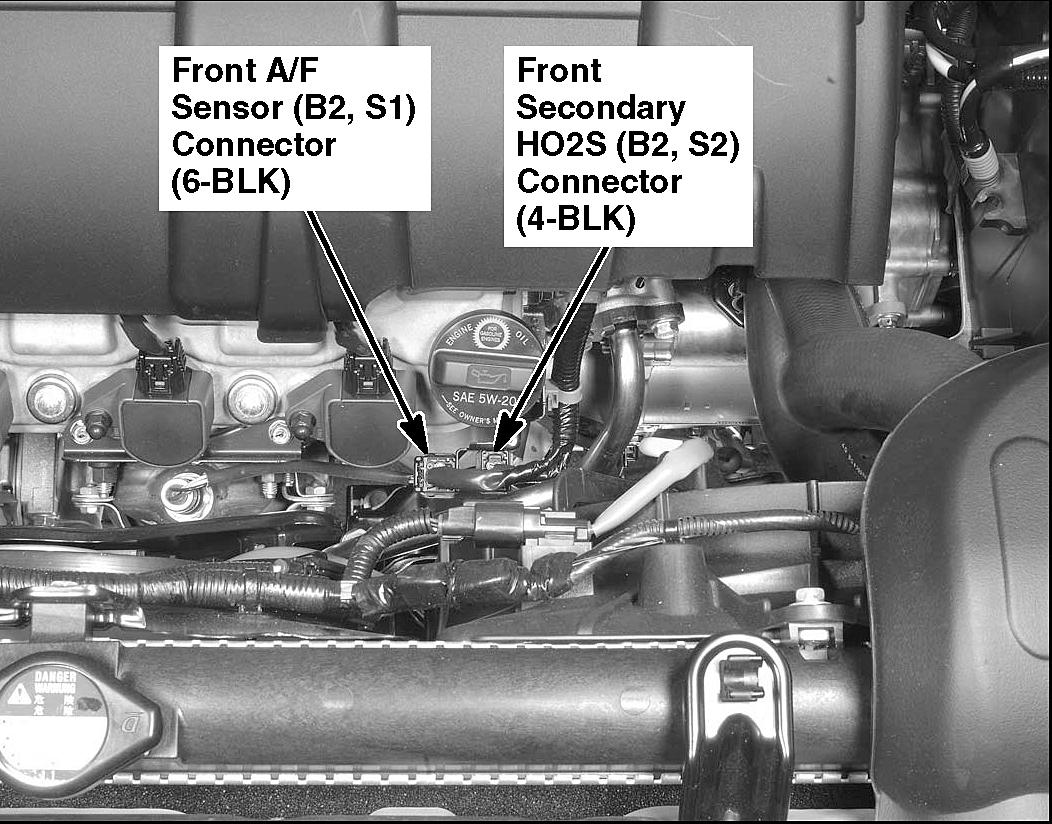

Fig 99: Left Rear Of Engine

G00472418

Courtesy of AMERICAN HONDA MOTOR CO., INC.

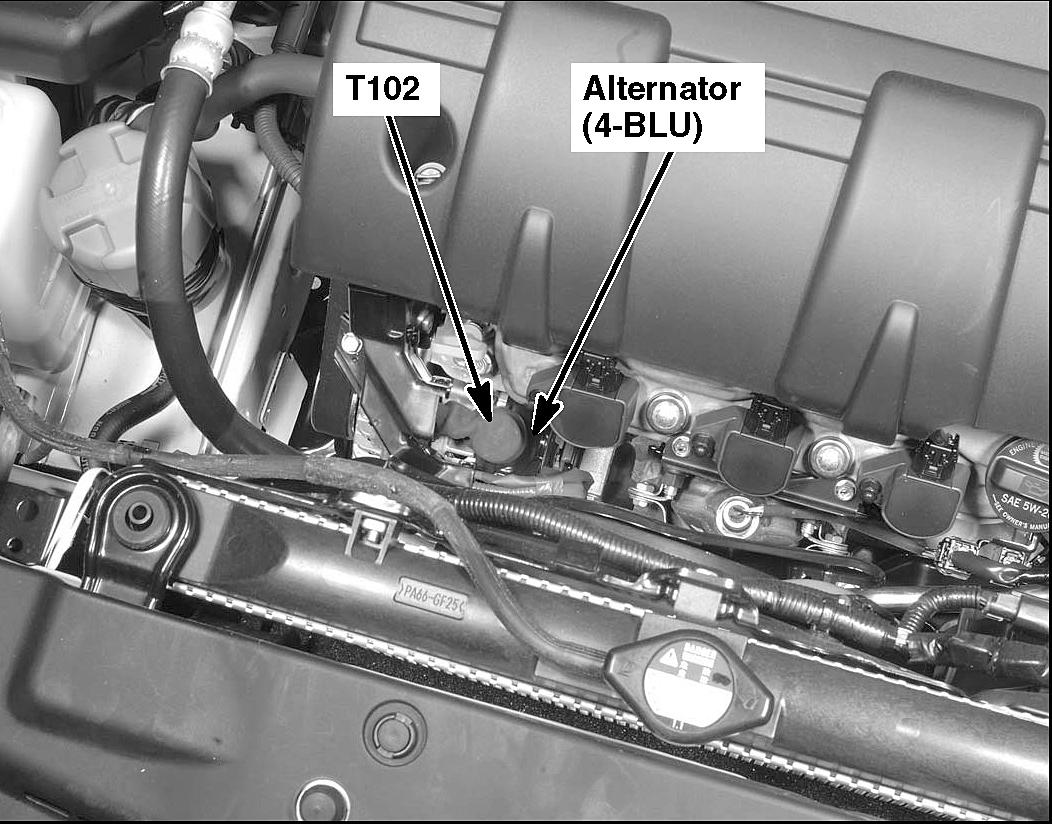

Fig 100: Left Front Of Engine

G00472419

Courtesy of AMERICAN HONDA MOTOR CO., INC.

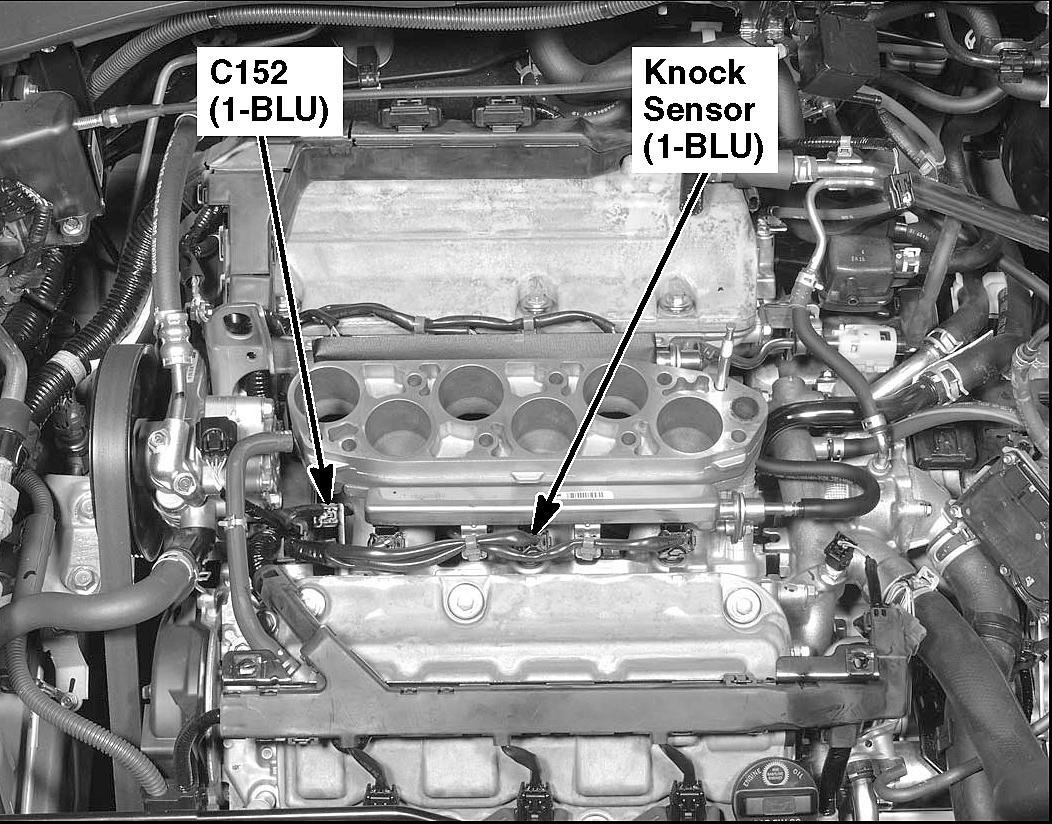

Fig 101: Top Center Of Engine

G00472420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

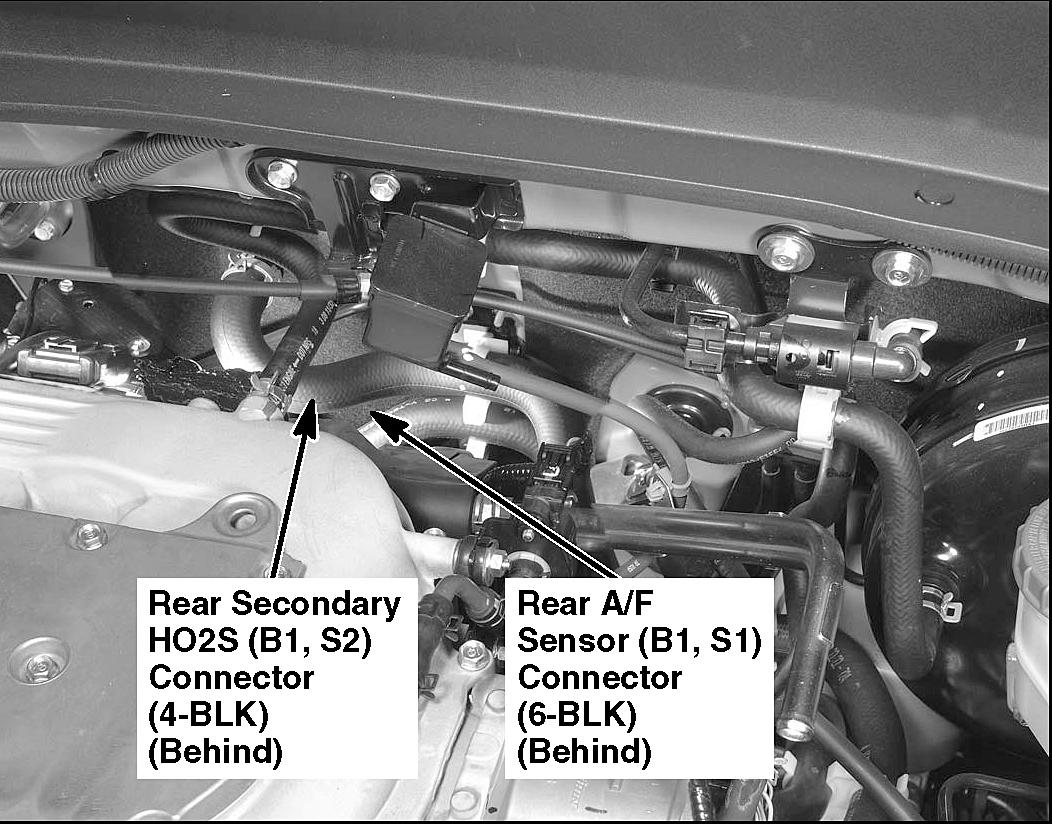

Fig 102: Right Rear Of Engine

G00472421

Courtesy of AMERICAN HONDA MOTOR CO., INC.

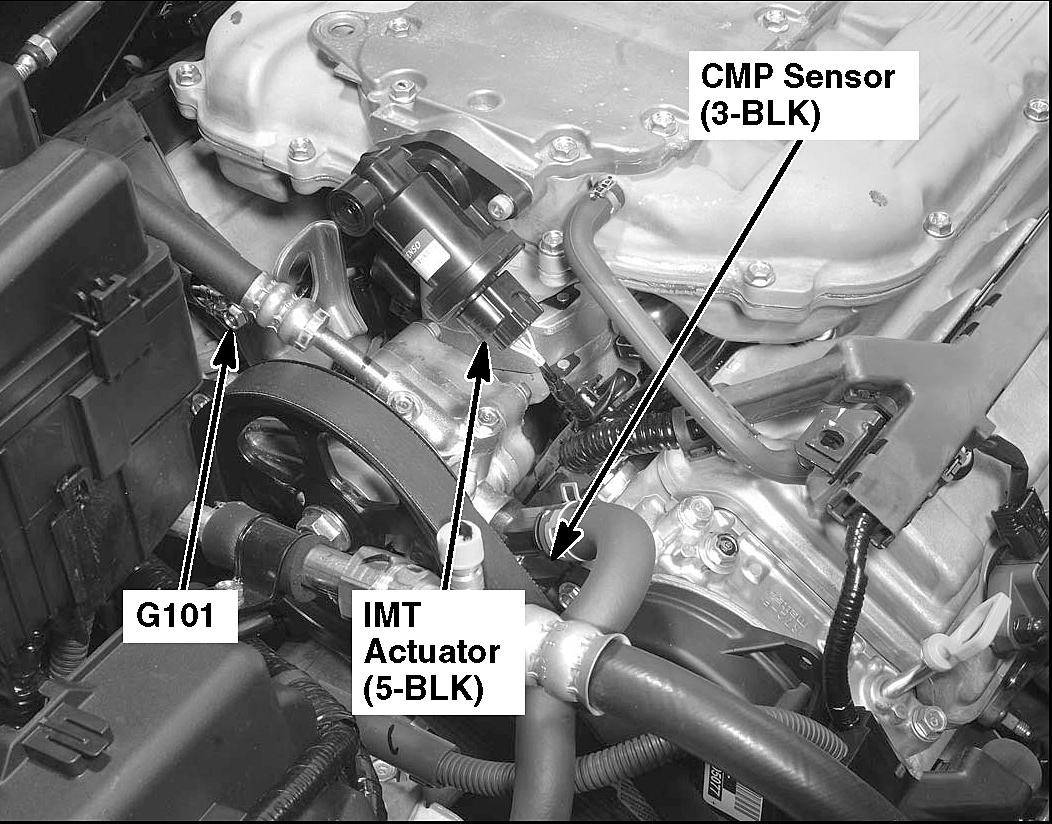

Fig 103: Front Of Engine

G00472422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

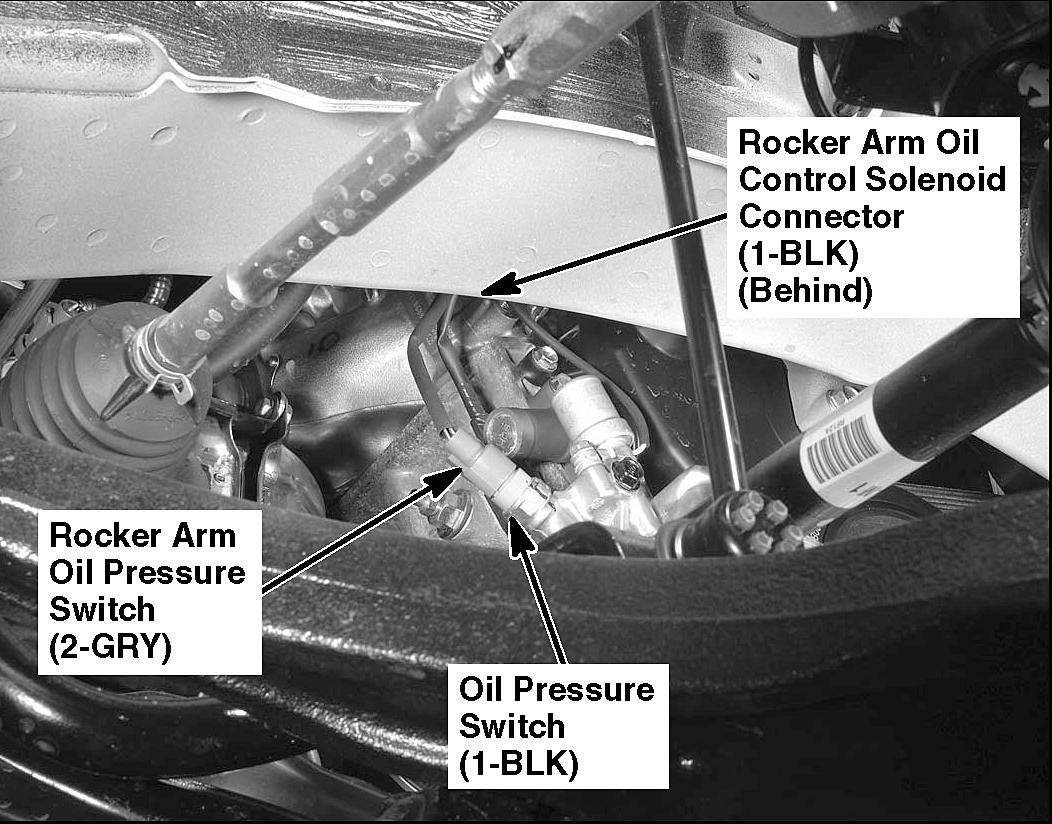

Fig 104: Lower Front Of Engine

G00472423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

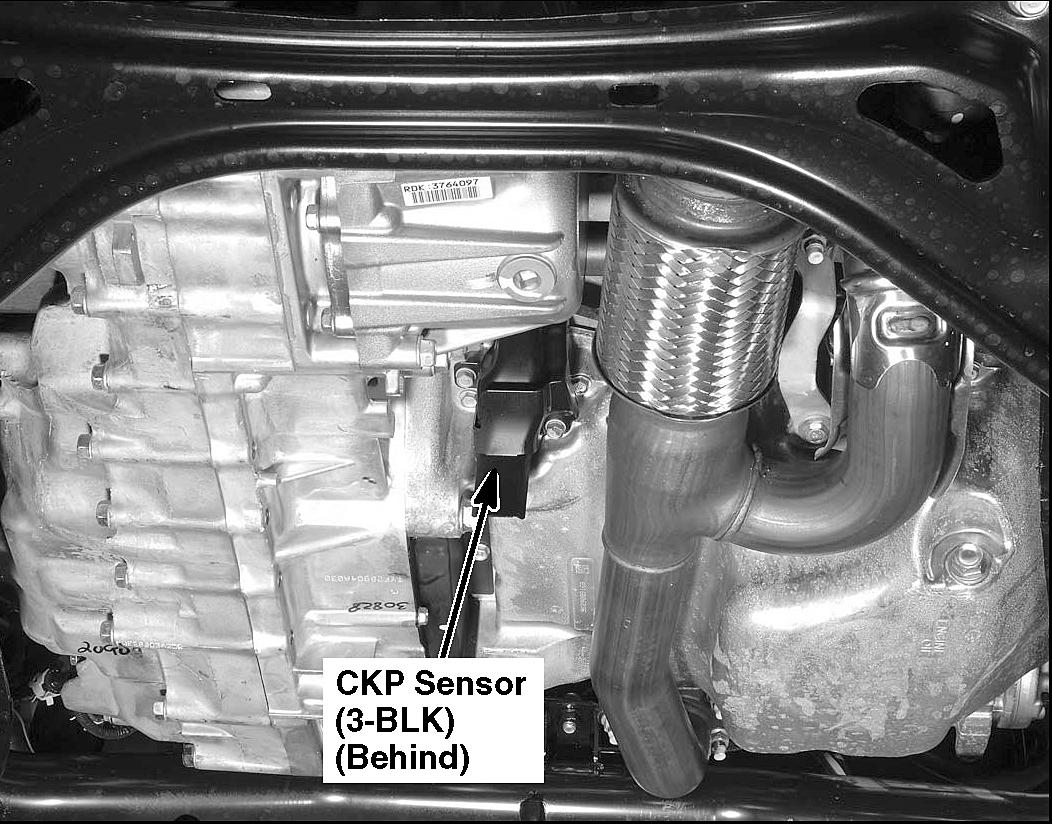

Fig 105: Under Right Side Of Engine

G00472424

Courtesy of AMERICAN HONDA MOTOR CO., INC.

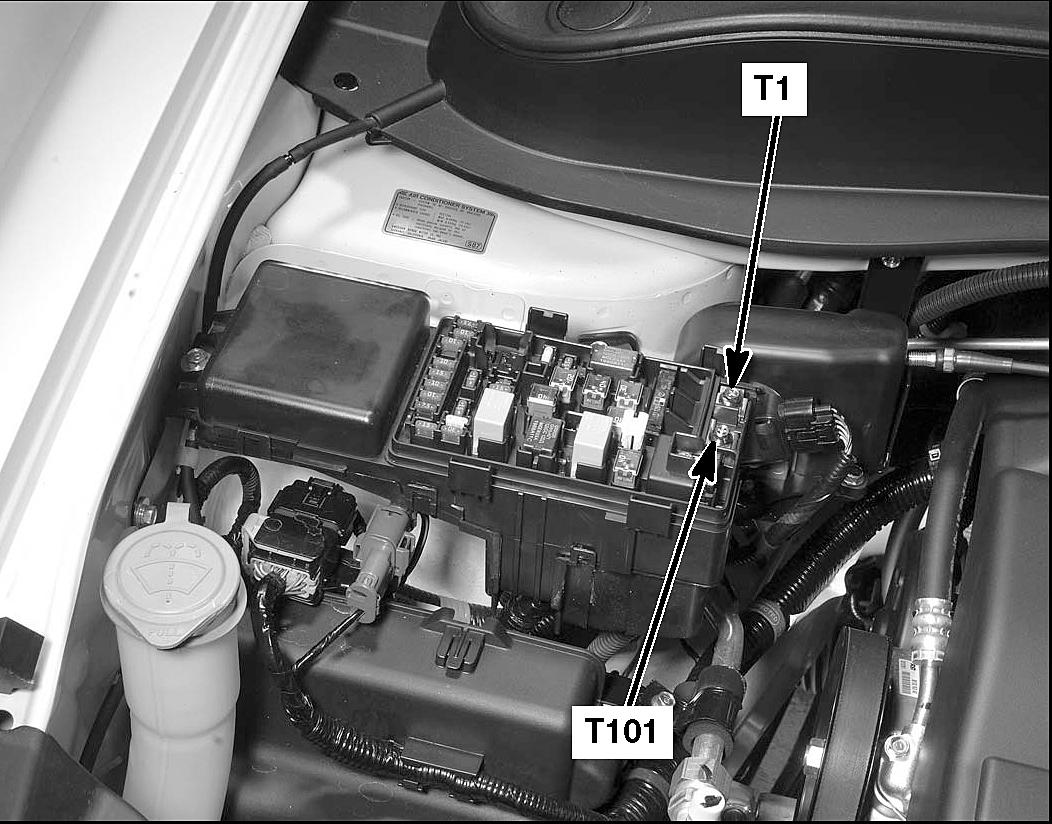

Fig 106: Right Rear Of Engine Compartment

G00472425

Courtesy of AMERICAN HONDA MOTOR CO., INC.

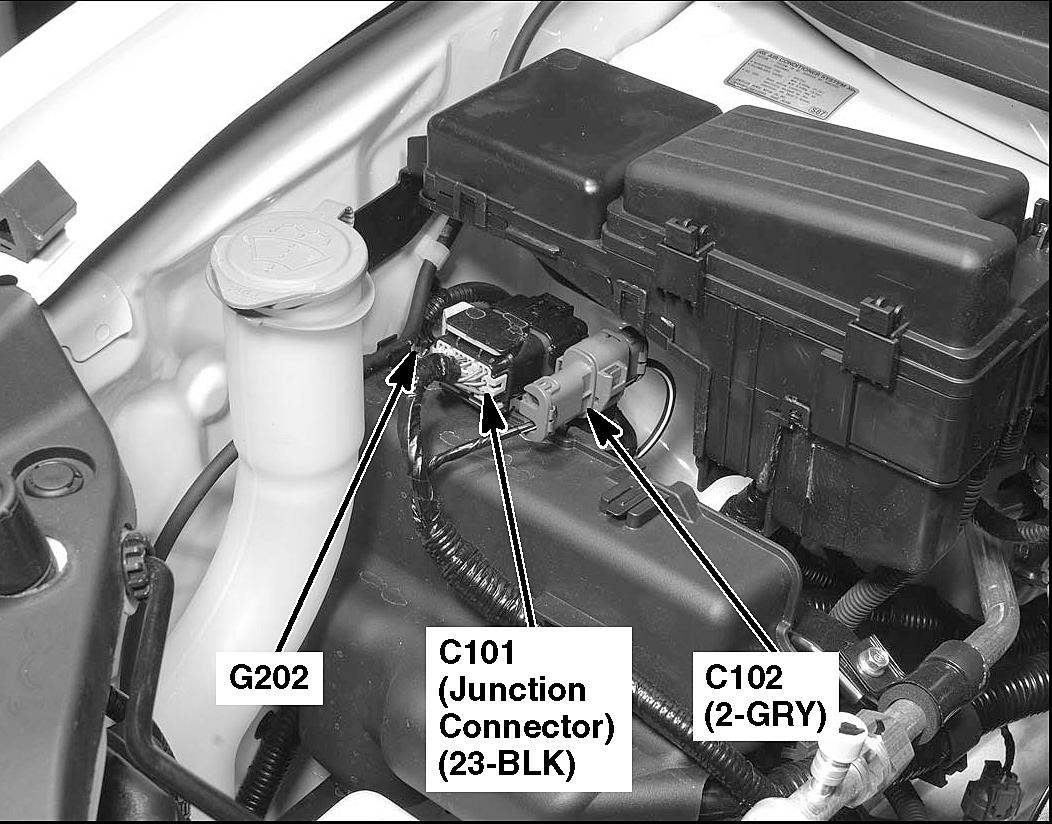

Fig 107: Right Side Of Engine Compartment

G00472426

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Right Rear Of Engine Compartment

G00472427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

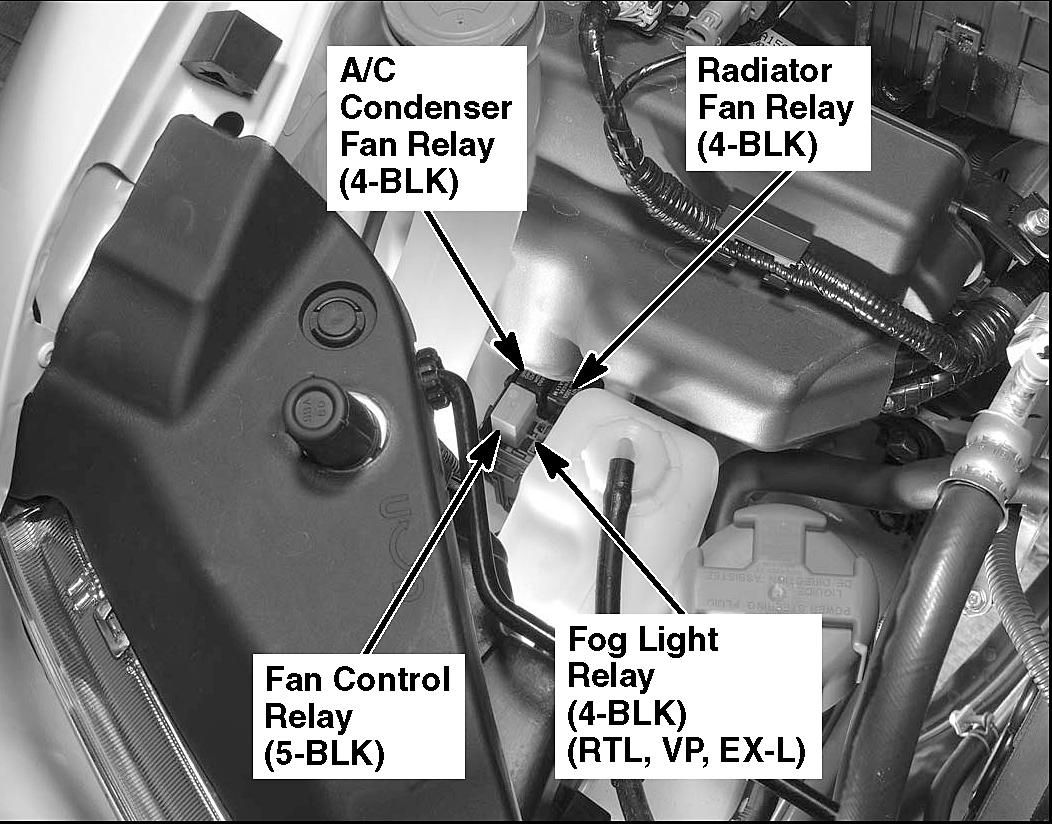

Fig 109: Left Front Of Engine Compartment

G00472428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

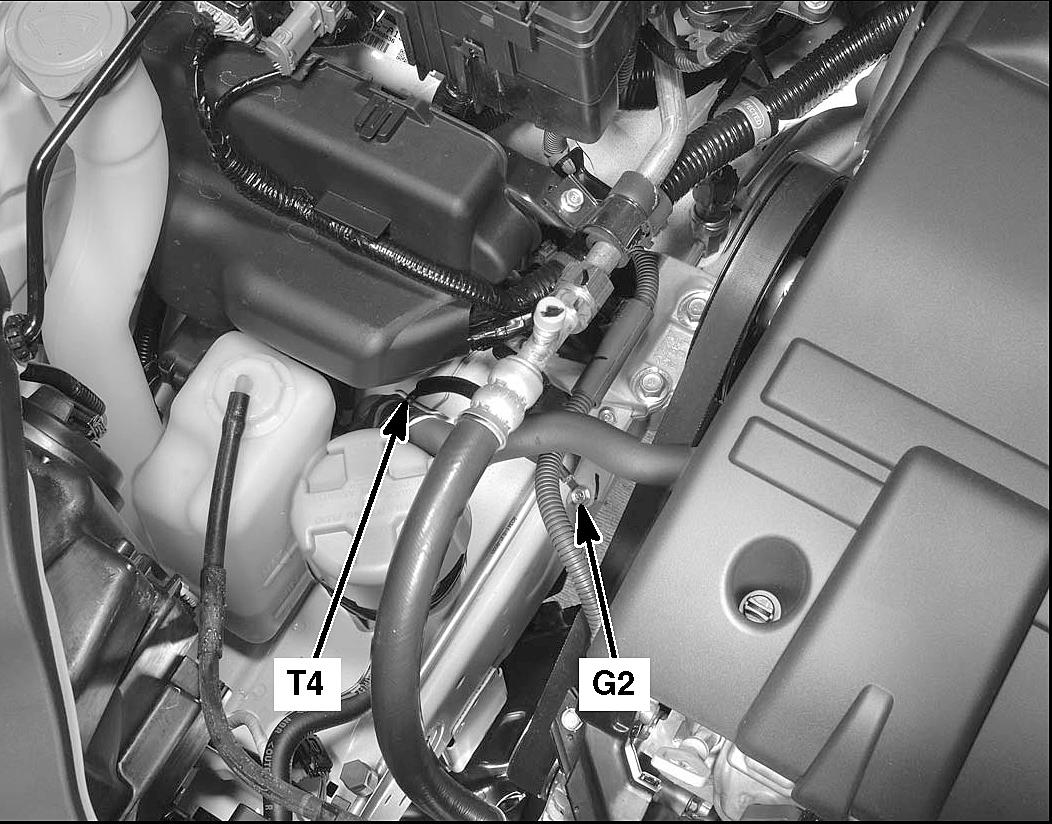

Fig 110: Right Side Of Engine Compartment

G00472429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

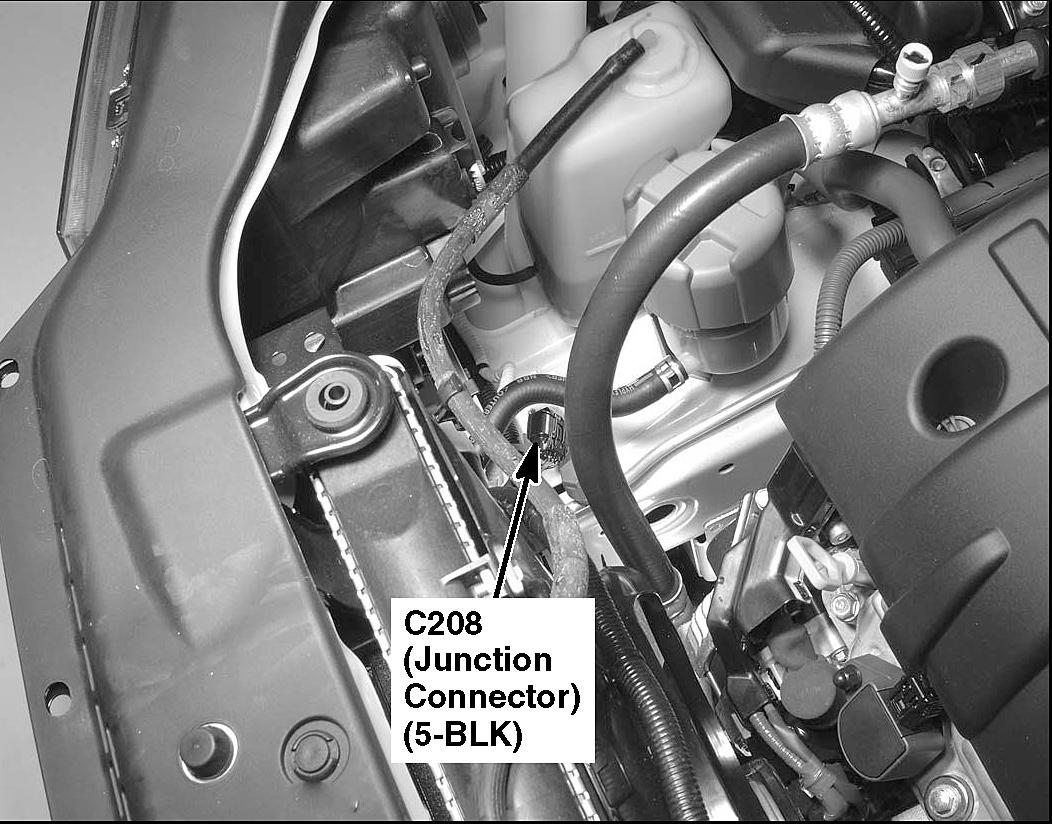

Fig 111: Right Front Of Engine Compartment

G00472430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

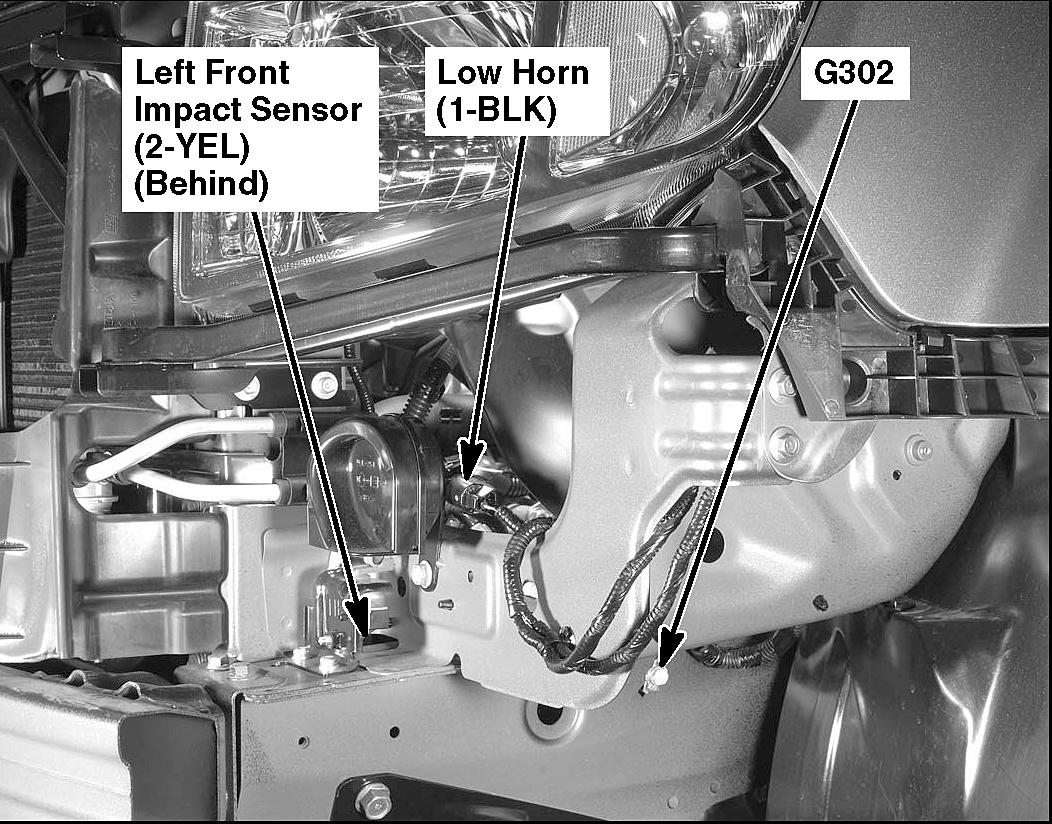

Fig 112: Behind Left Side Of Front Bumper

G00472431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 113: Under Driver's Seat

G00472432

Courtesy of AMERICAN HONDA MOTOR CO., INC.

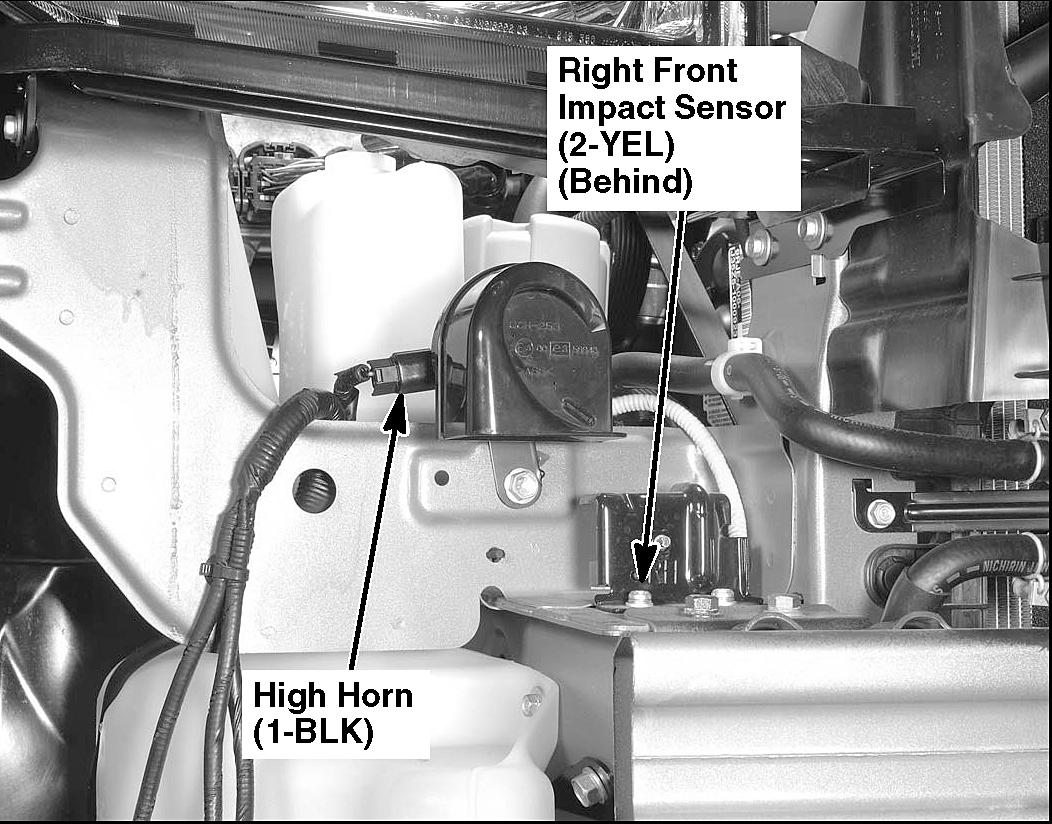

Fig 114: Right Side Of Front Bumper

G00472433

Courtesy of AMERICAN HONDA MOTOR CO., INC.

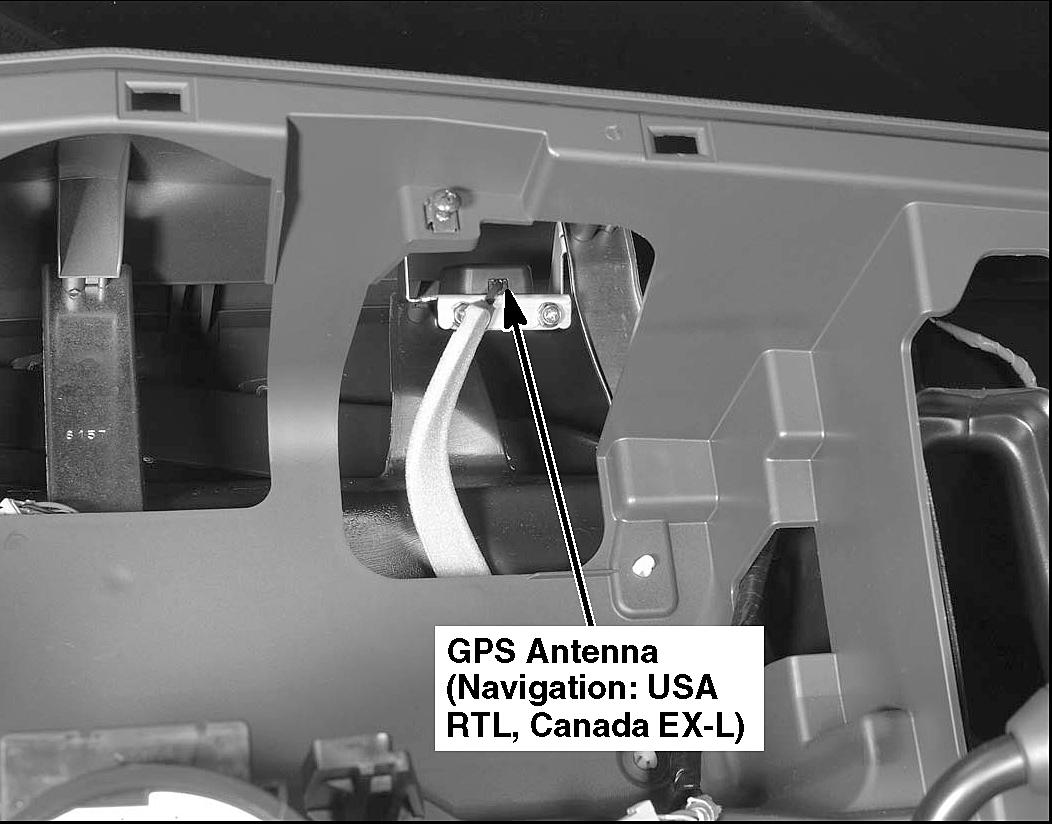

Fig 115: Behind Left Side Of Dash

G00472434

Courtesy of AMERICAN HONDA MOTOR CO., INC.

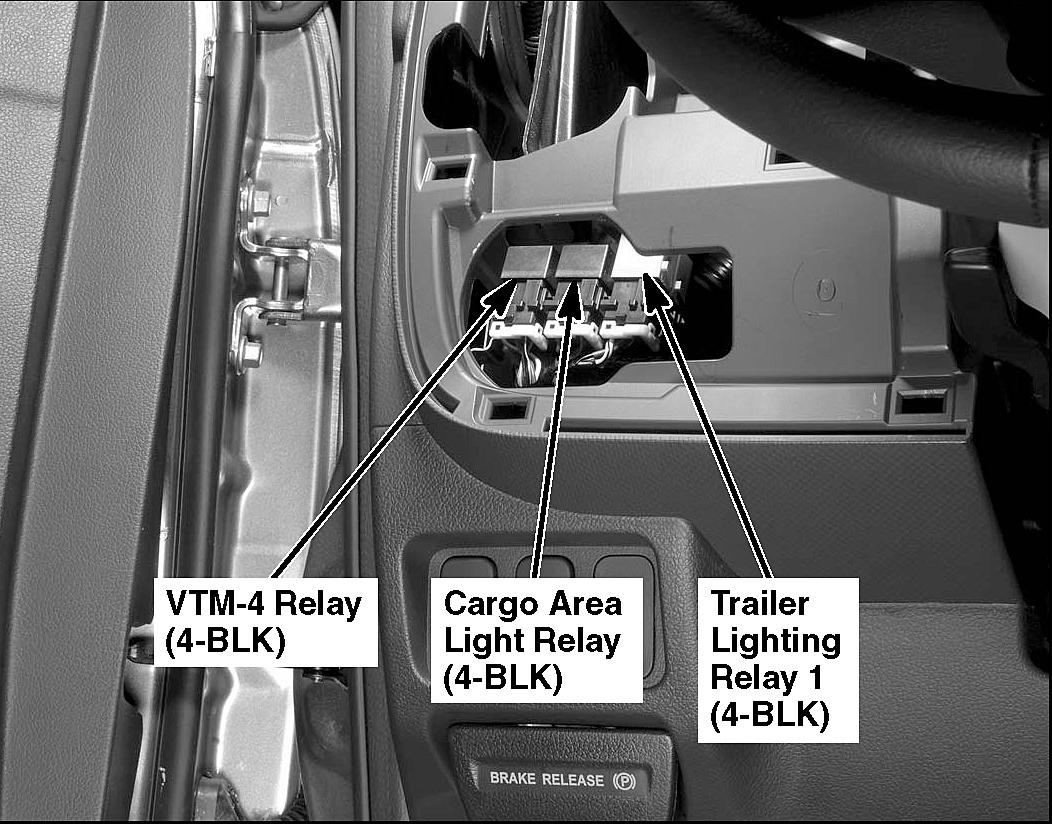

Fig 116: Left Side Of Dash

G00472435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

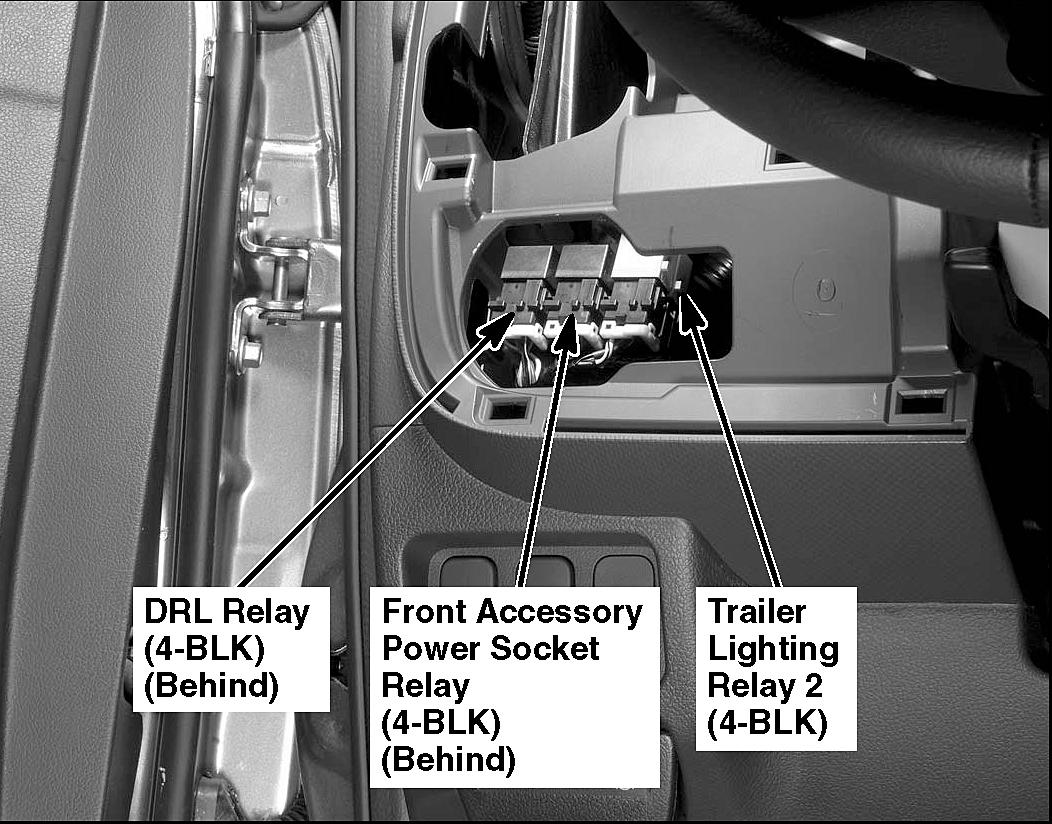

Fig 117: Left Side Of Dash

G00472436

Courtesy of AMERICAN HONDA MOTOR CO., INC.

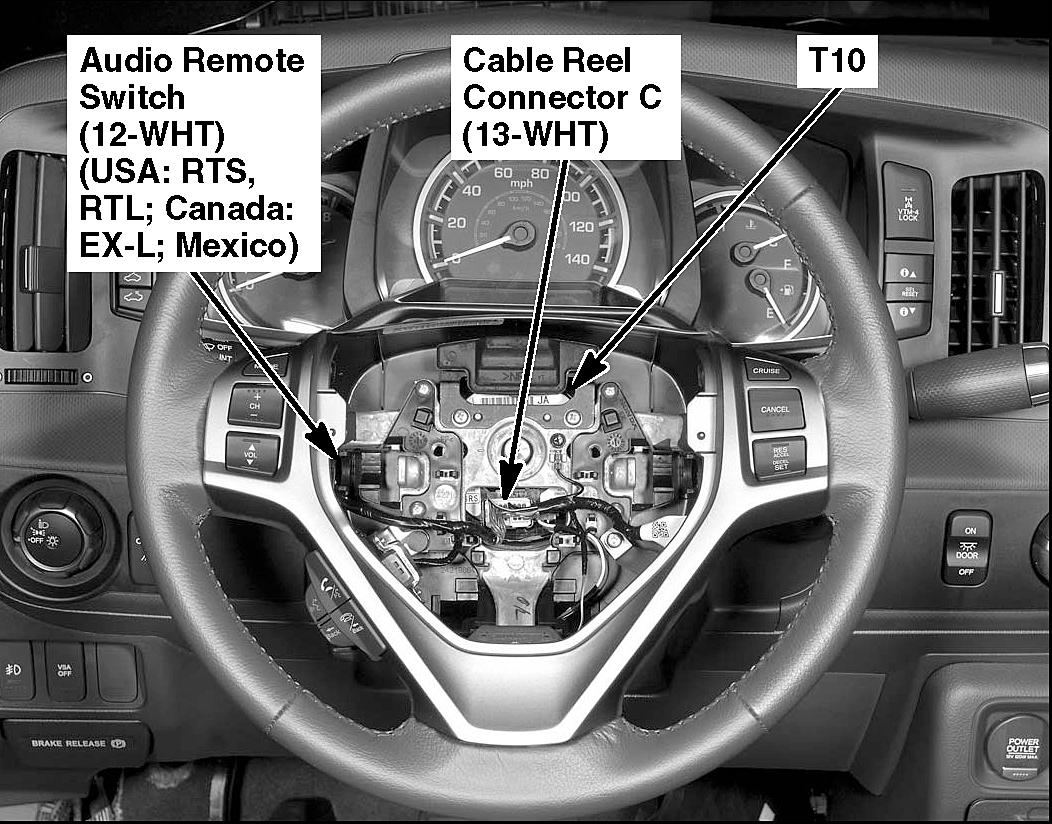

Fig 118: Steering Wheel (Airbag Removed)

G00472437

Courtesy of AMERICAN HONDA MOTOR CO., INC.

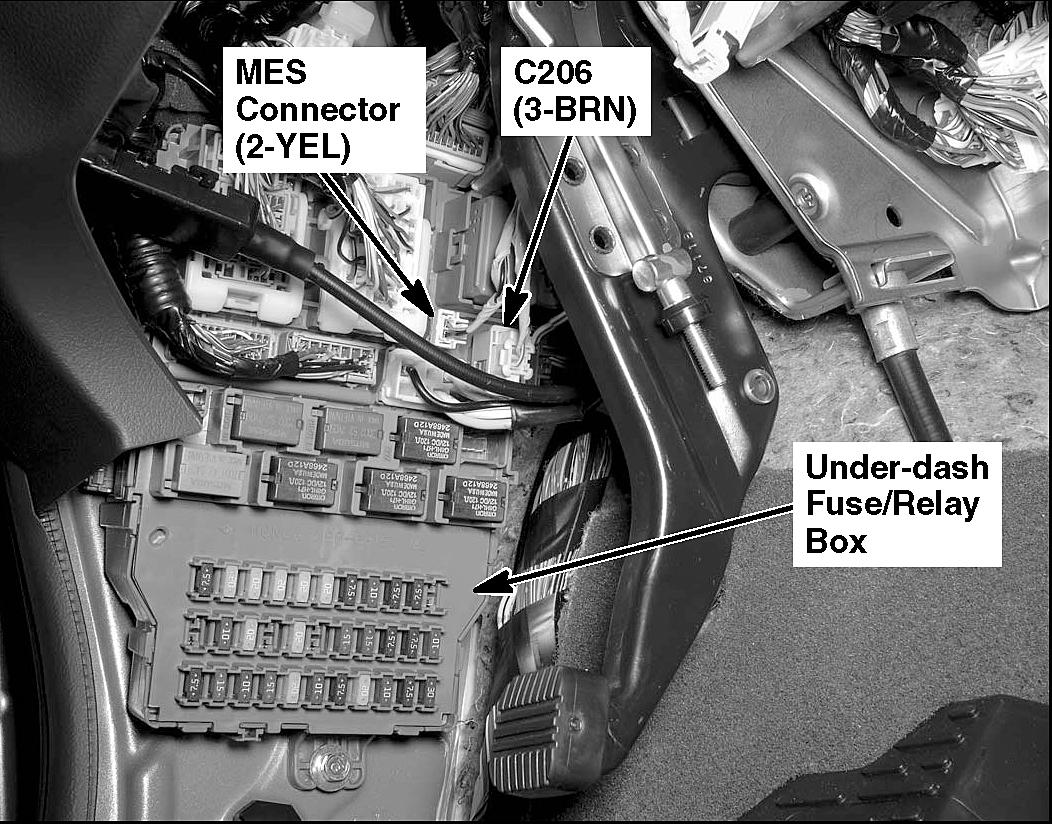

Fig 119: Left Kick Panel

G00472438

Courtesy of AMERICAN HONDA MOTOR CO., INC.

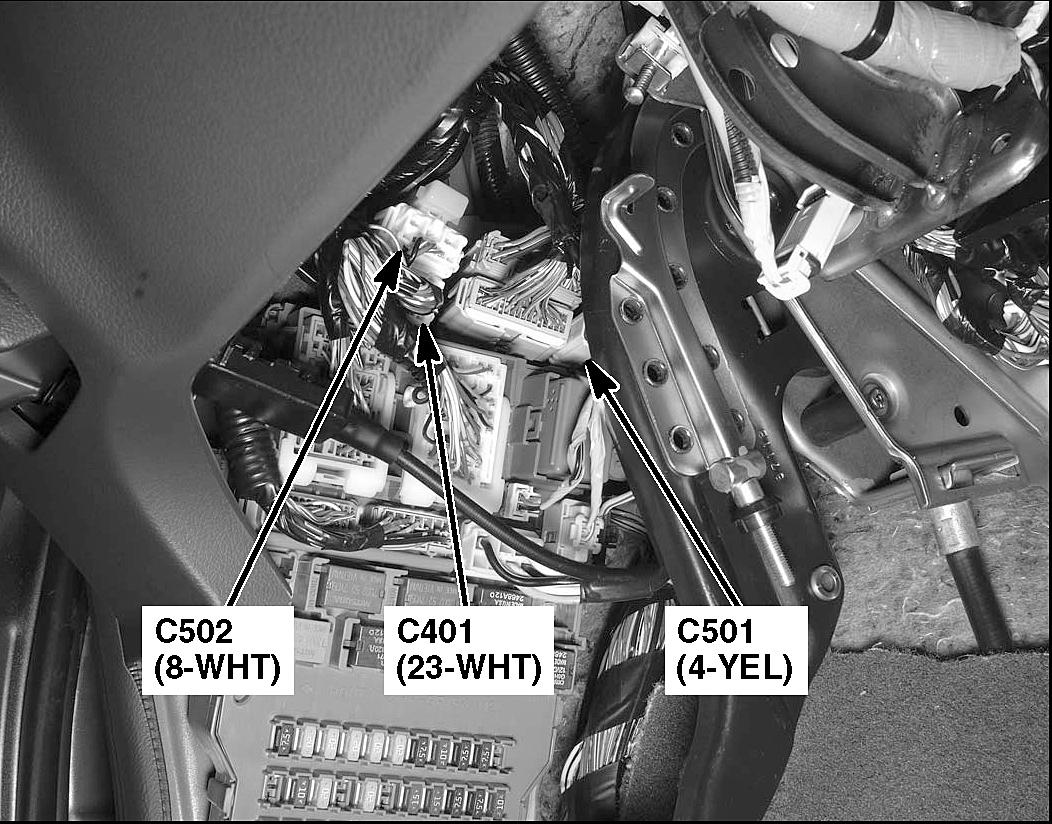

Fig 120: Left Kick Panel

G00472439

Courtesy of AMERICAN HONDA MOTOR CO., INC.

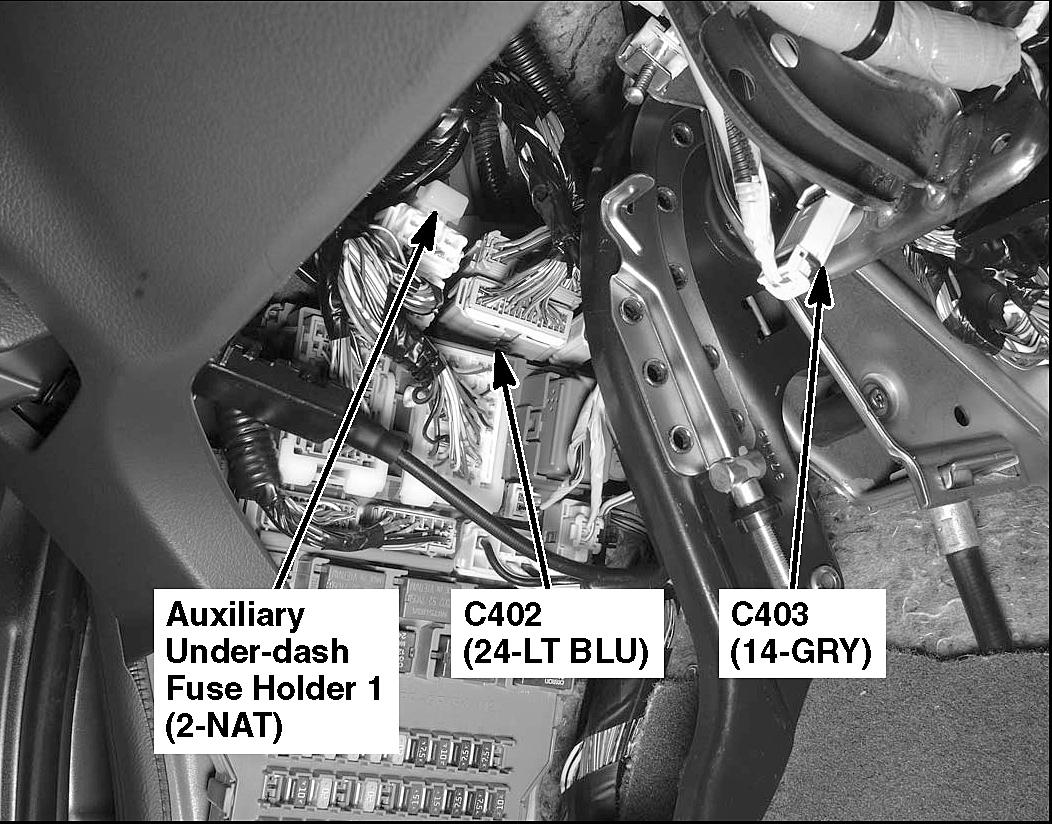

Fig 121: Left Kick Panel

G00472440

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 122: Left Side Of Dash

G00472441

Courtesy of AMERICAN HONDA MOTOR CO., INC.

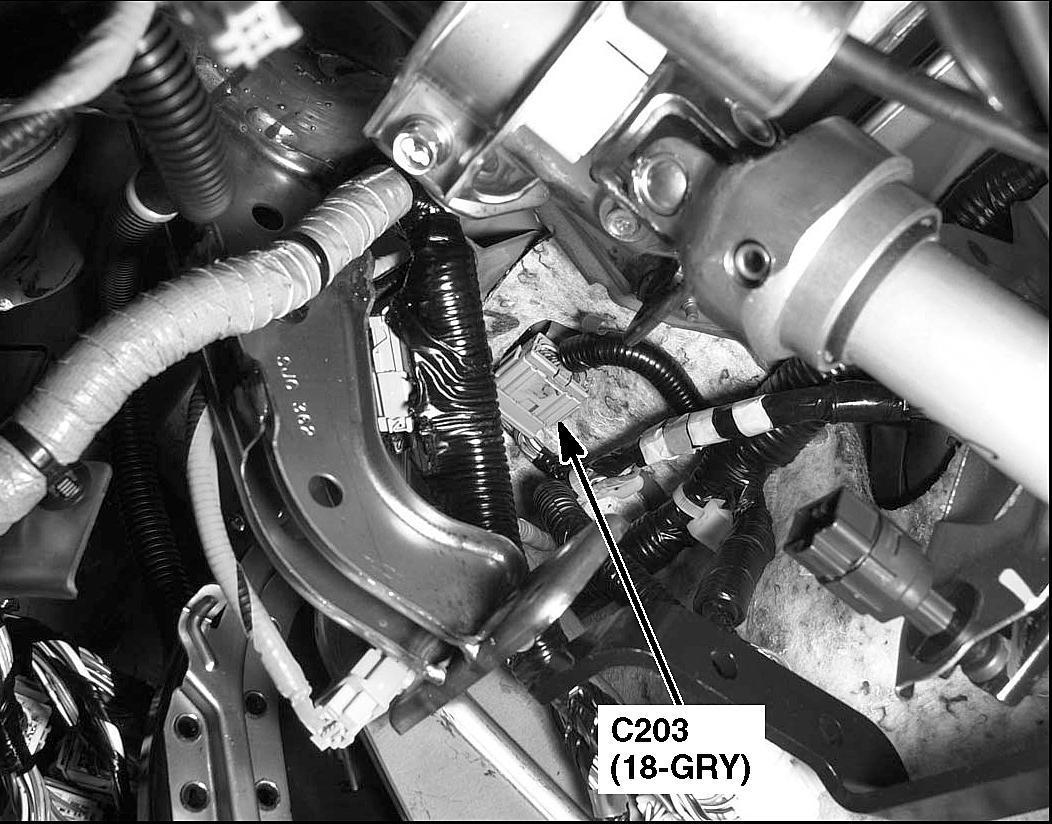

Fig 123: Under Left Side Of Dash

G00472442

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 124: Under Left Side Of Dash

G00472443

Courtesy of AMERICAN HONDA MOTOR CO., INC.

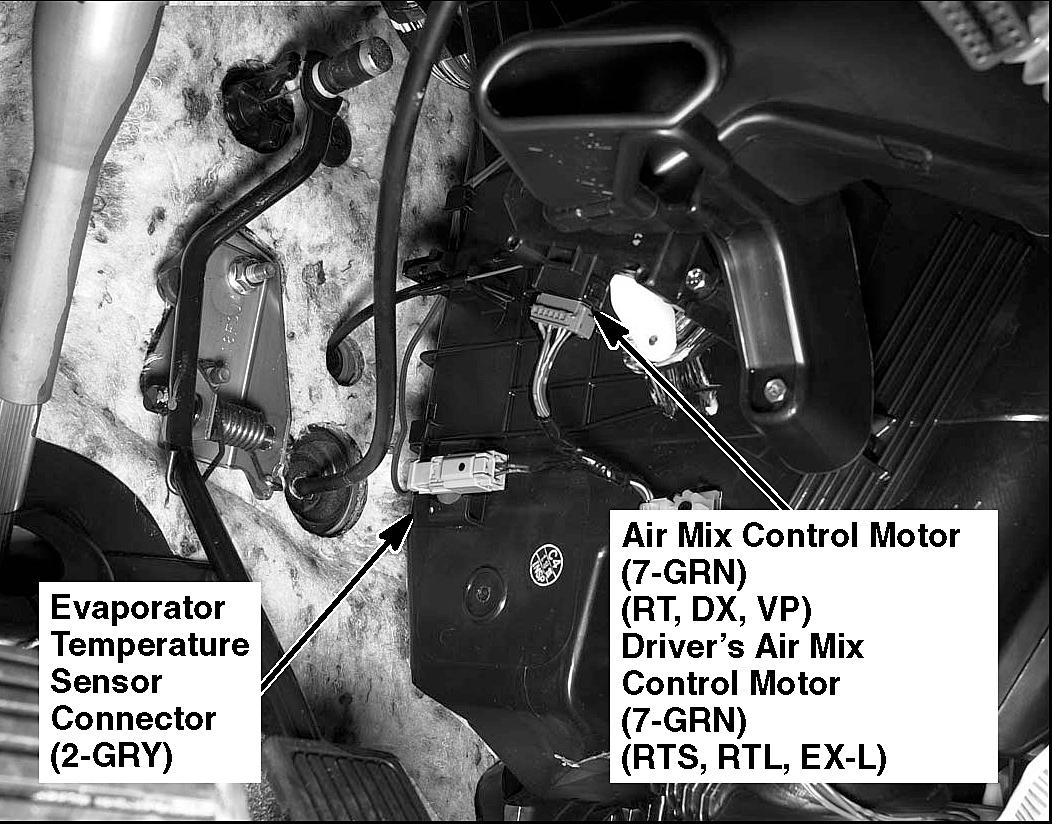

Fig 125: Under Middle Of Dash

G00472444

Courtesy of AMERICAN HONDA MOTOR CO., INC.

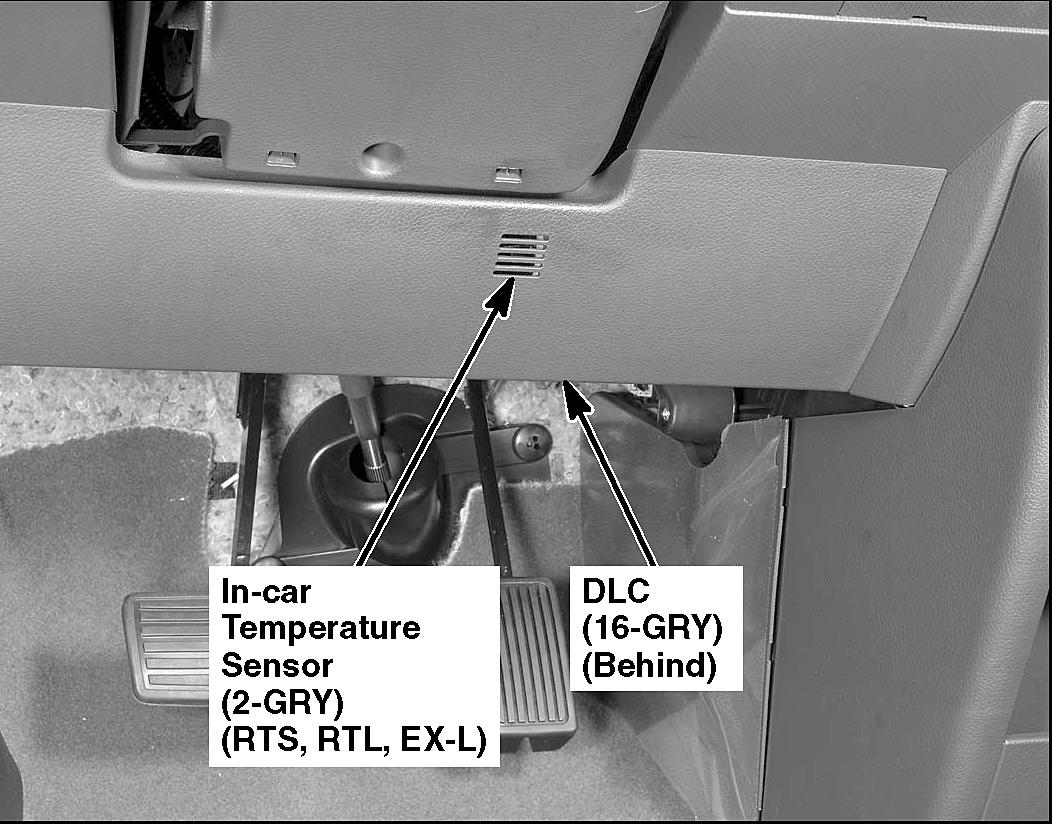

Fig 126: Lower Left Side Of Dash

G00472445

Courtesy of AMERICAN HONDA MOTOR CO., INC.

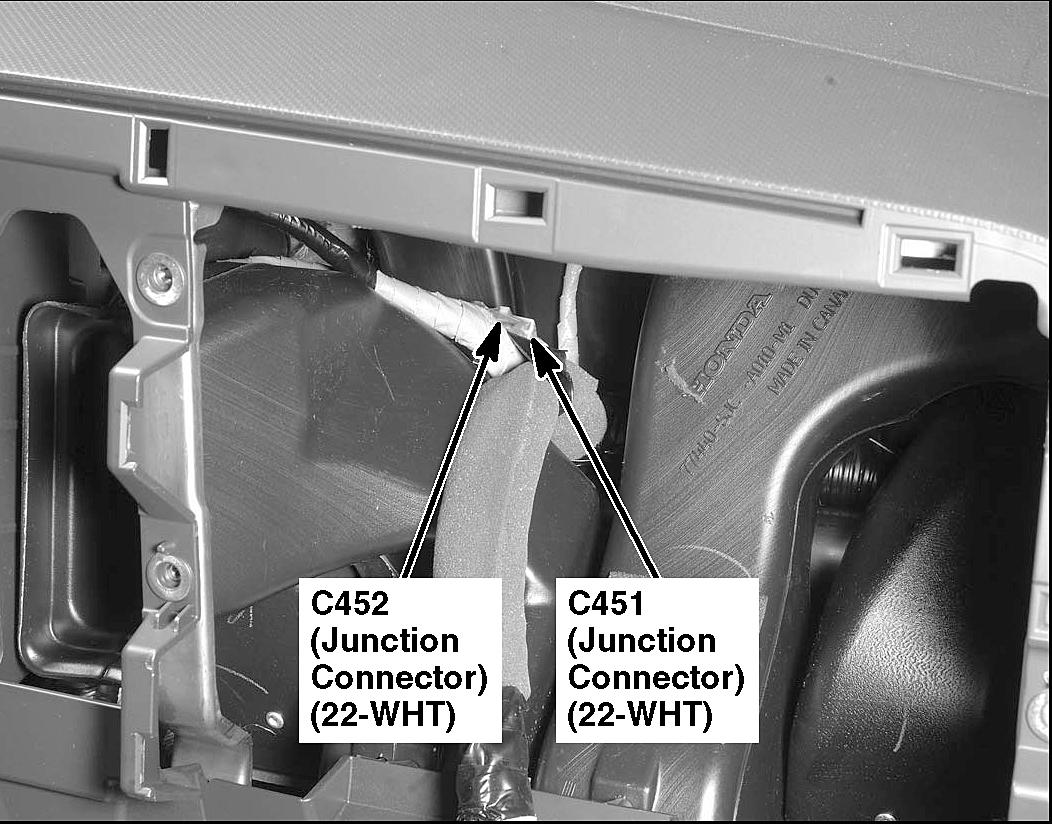

Fig 127: Middle Of Dash

G00472446

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 128: Under Middle Of Dash

G00472447

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 129: Under Middle Of Dash

G00472448

Courtesy of AMERICAN HONDA MOTOR CO., INC.

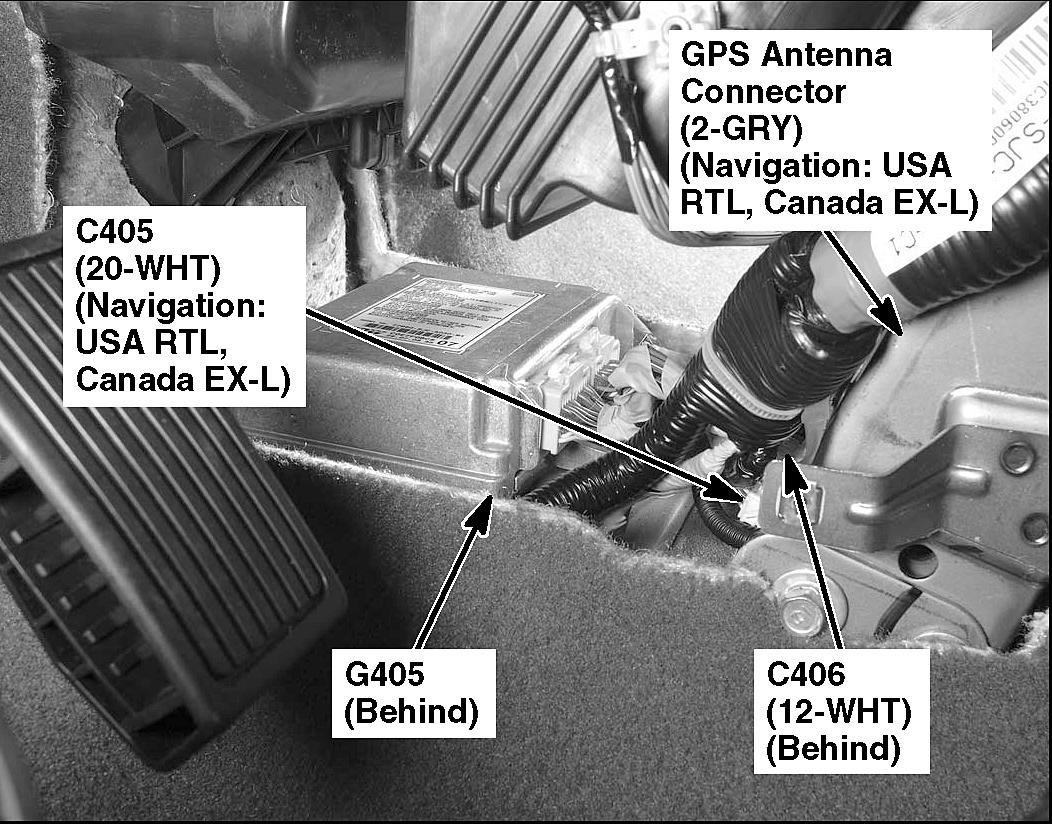

Fig 130: Under Middle Of Dash

G00472449

Courtesy of AMERICAN HONDA MOTOR CO., INC.

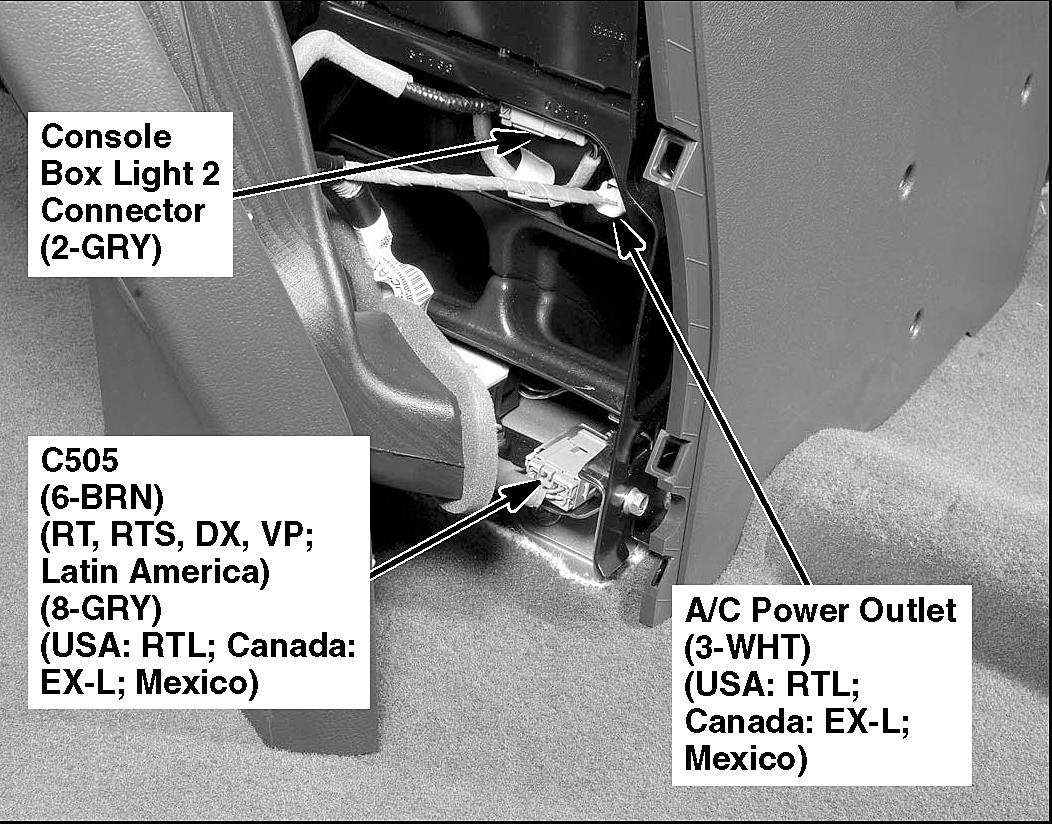

Fig 131: Rear Of Center Console

G00472450

Courtesy of AMERICAN HONDA MOTOR CO., INC.

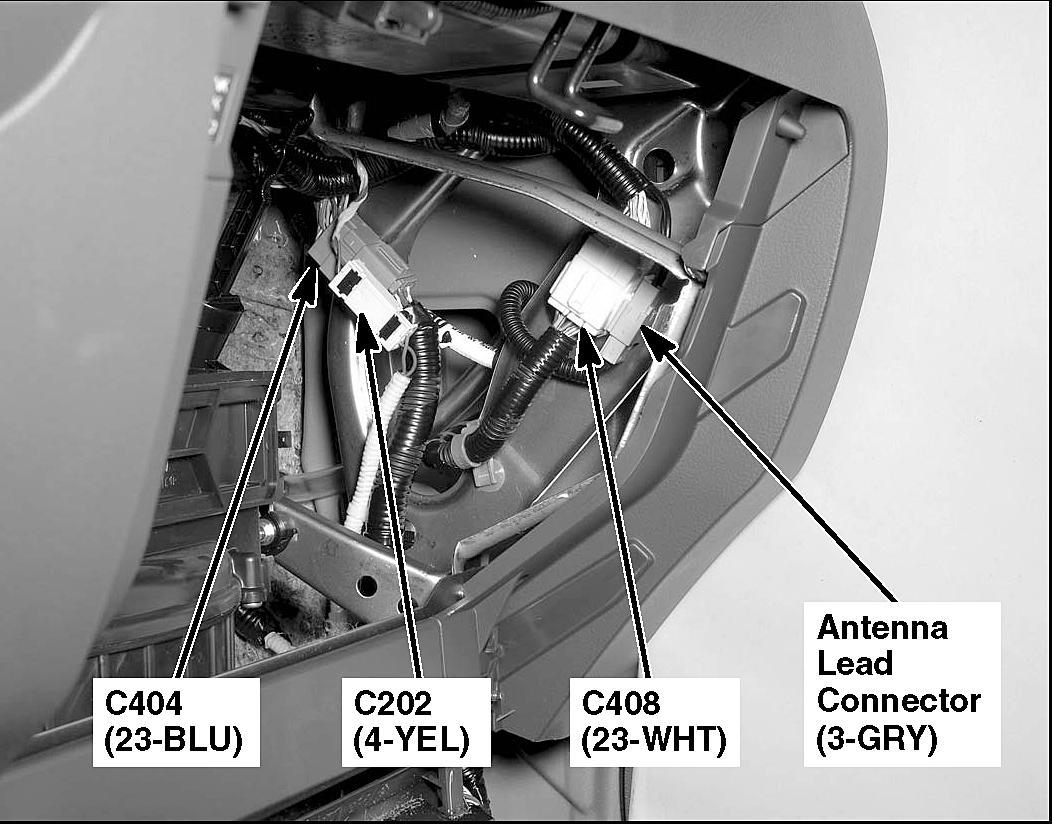

Fig 132: Behind Glove Box

G00472451

Courtesy of AMERICAN HONDA MOTOR CO., INC.

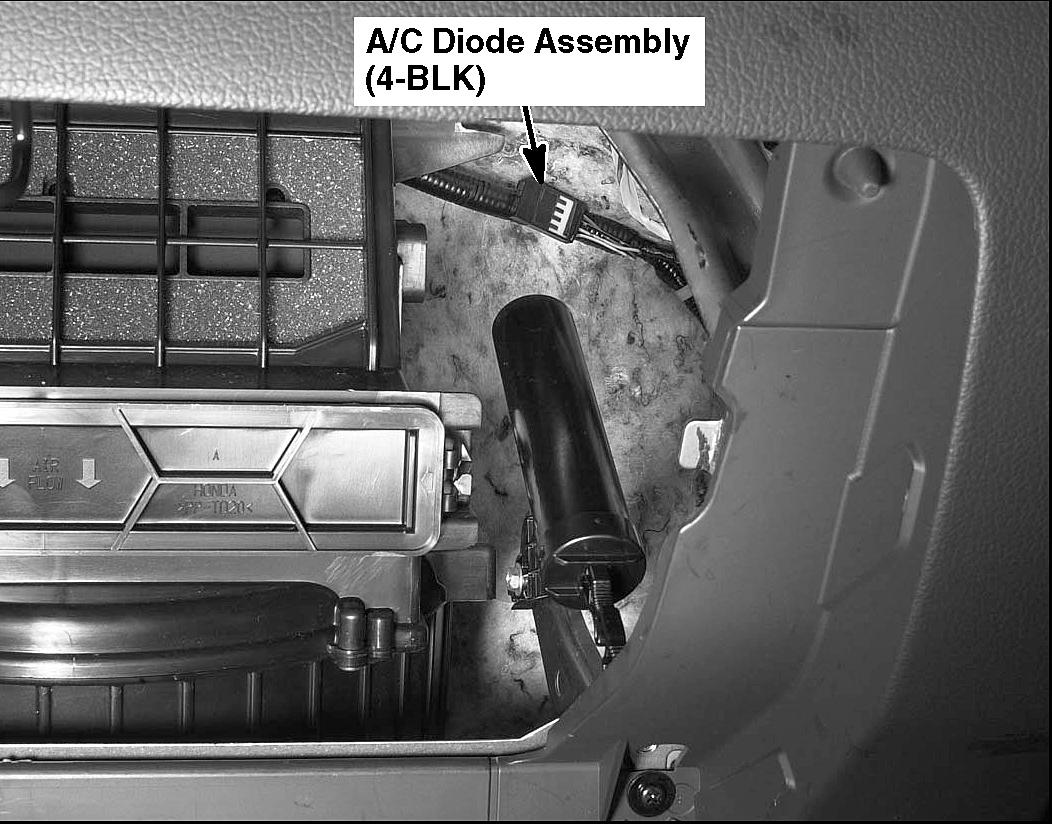

Fig 133: Behind Glove Box

G00472452

Courtesy of AMERICAN HONDA MOTOR CO., INC.

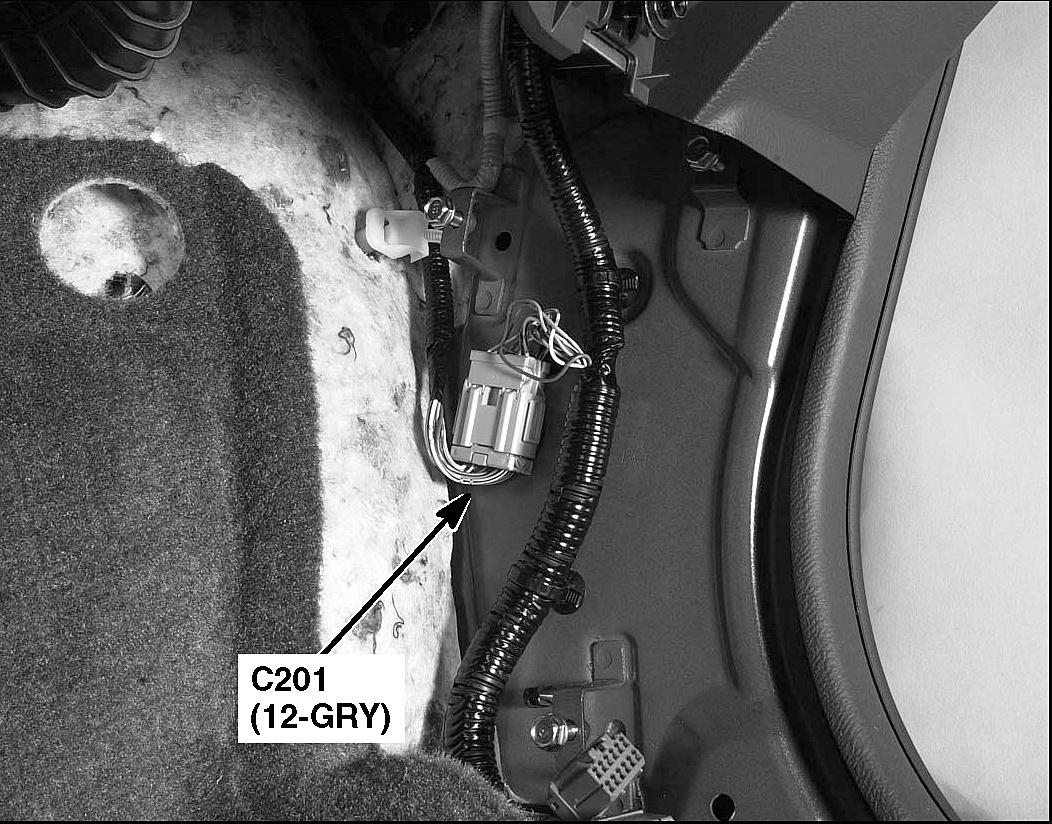

Fig 134: Behind Right Kick Panel

G00472453

Courtesy of AMERICAN HONDA MOTOR CO., INC.

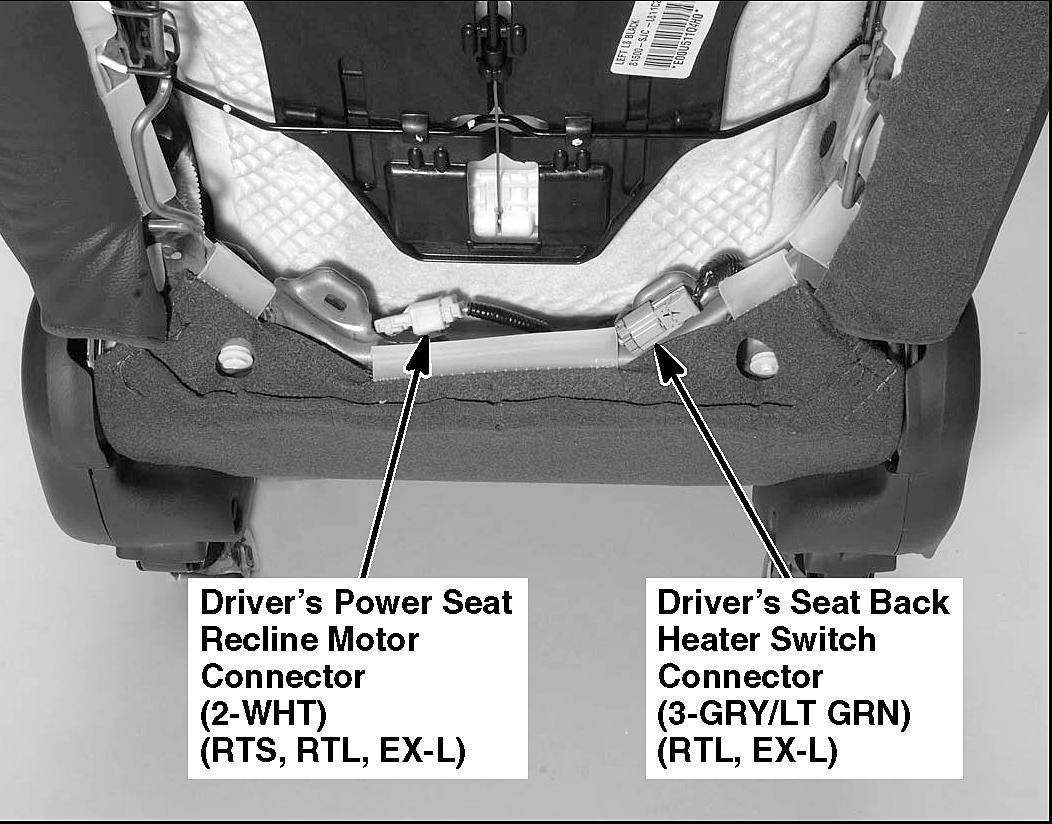

Fig 135: Driver's seat Back

G00472454

Courtesy of AMERICAN HONDA MOTOR CO., INC.

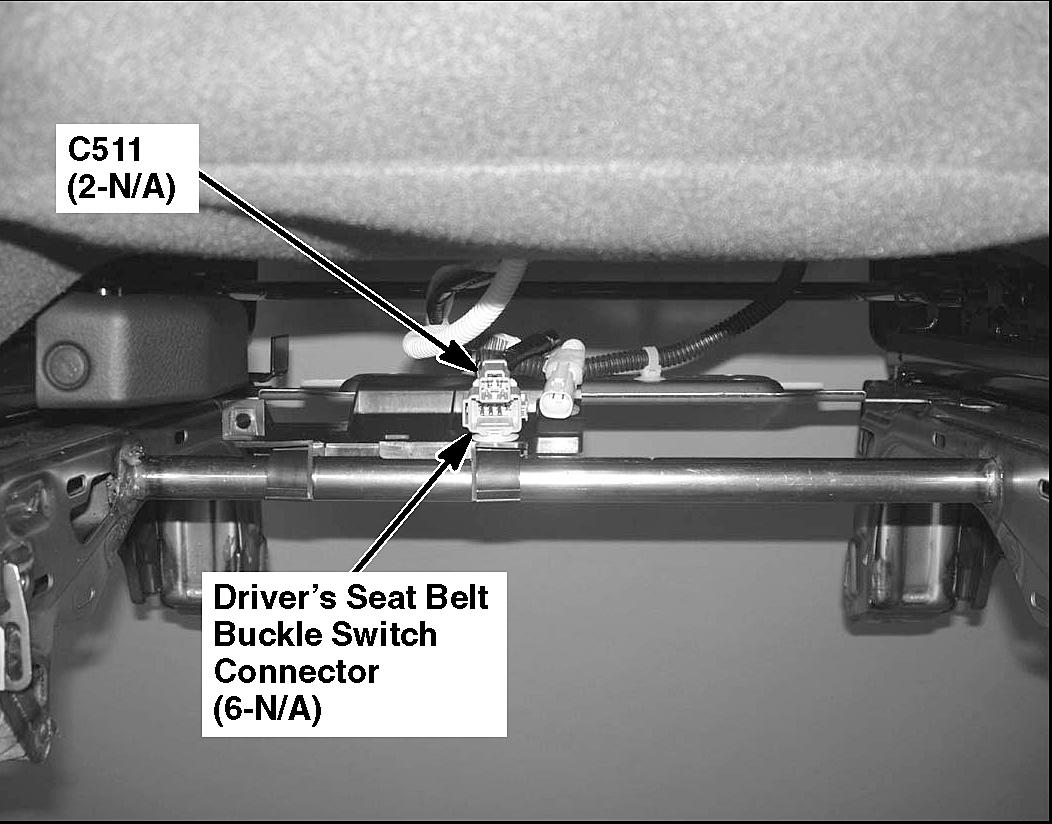

Fig 136: Under Driver's Seat

G00472455

Courtesy of AMERICAN HONDA MOTOR CO., INC.

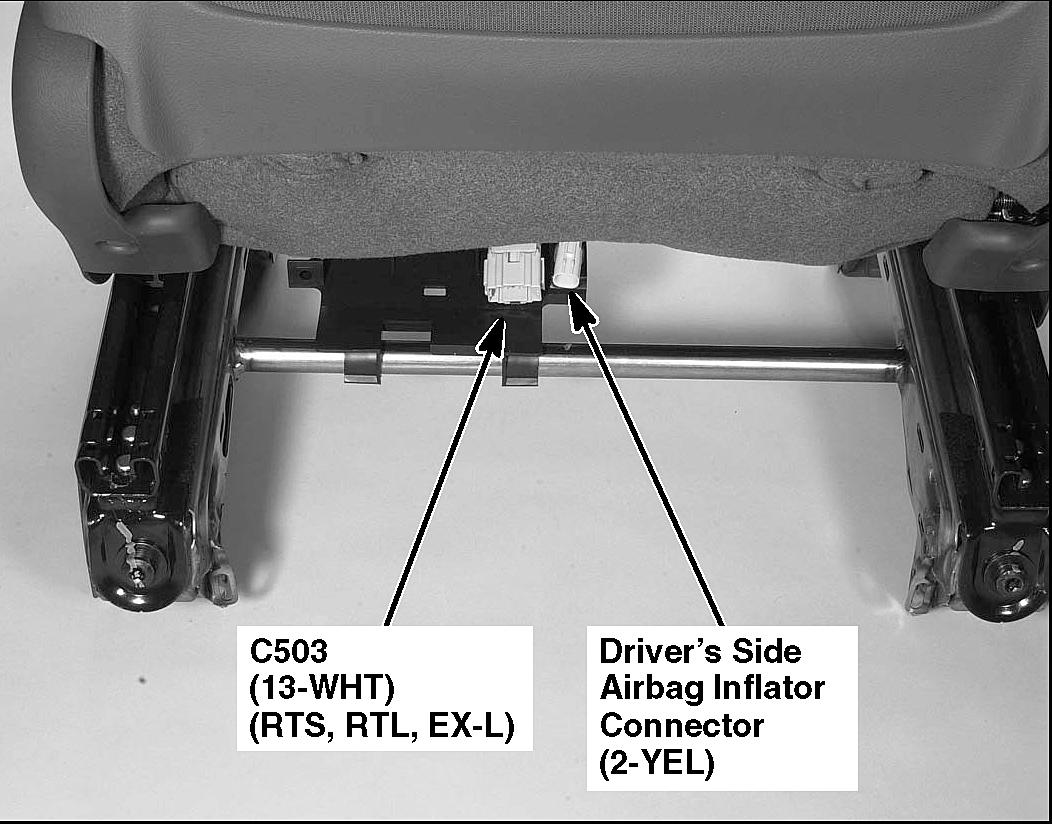

Fig 137: Under Driver's Seat

G00472456

Courtesy of AMERICAN HONDA MOTOR CO., INC.

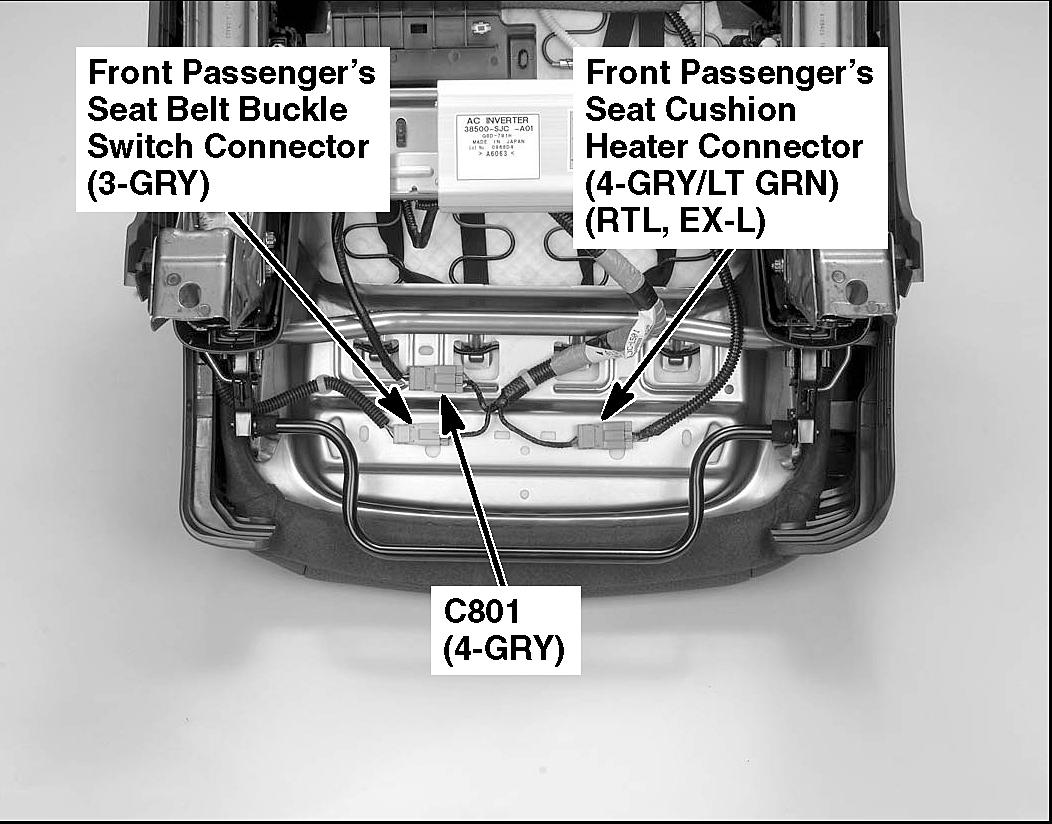

Fig 138: Under Front Passenger's Seat

G00472457

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Under Front Passenger's Seat

G00472458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

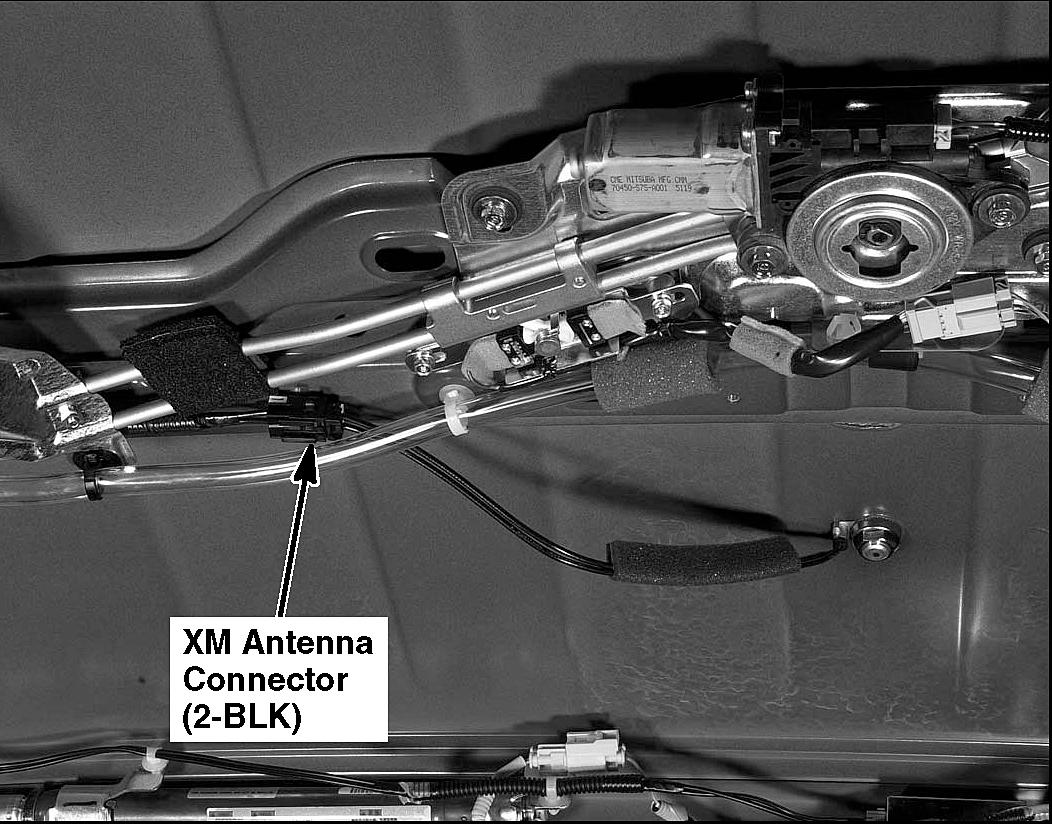

Fig 140: Rear Of Roof

G00472459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

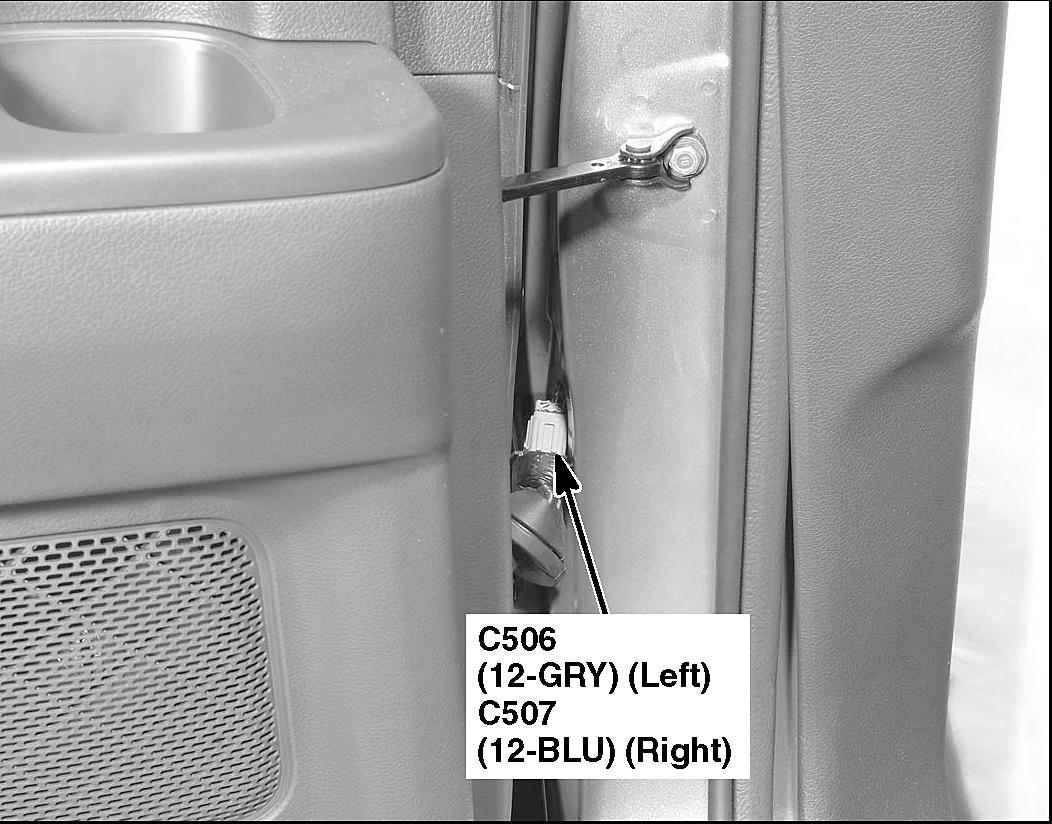

Fig 141: Left "B" Pillar

G00472460

Courtesy of AMERICAN HONDA MOTOR CO., INC.

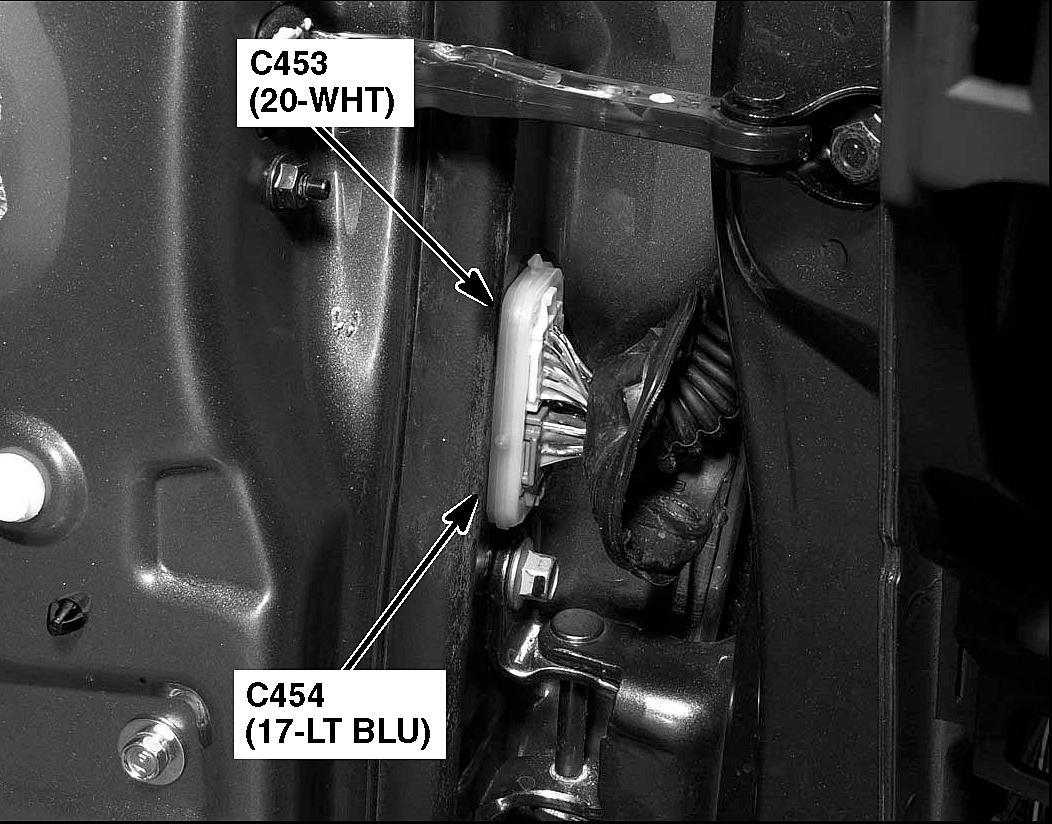

Fig 142: Driver's Door

G00472461

Courtesy of AMERICAN HONDA MOTOR CO., INC.

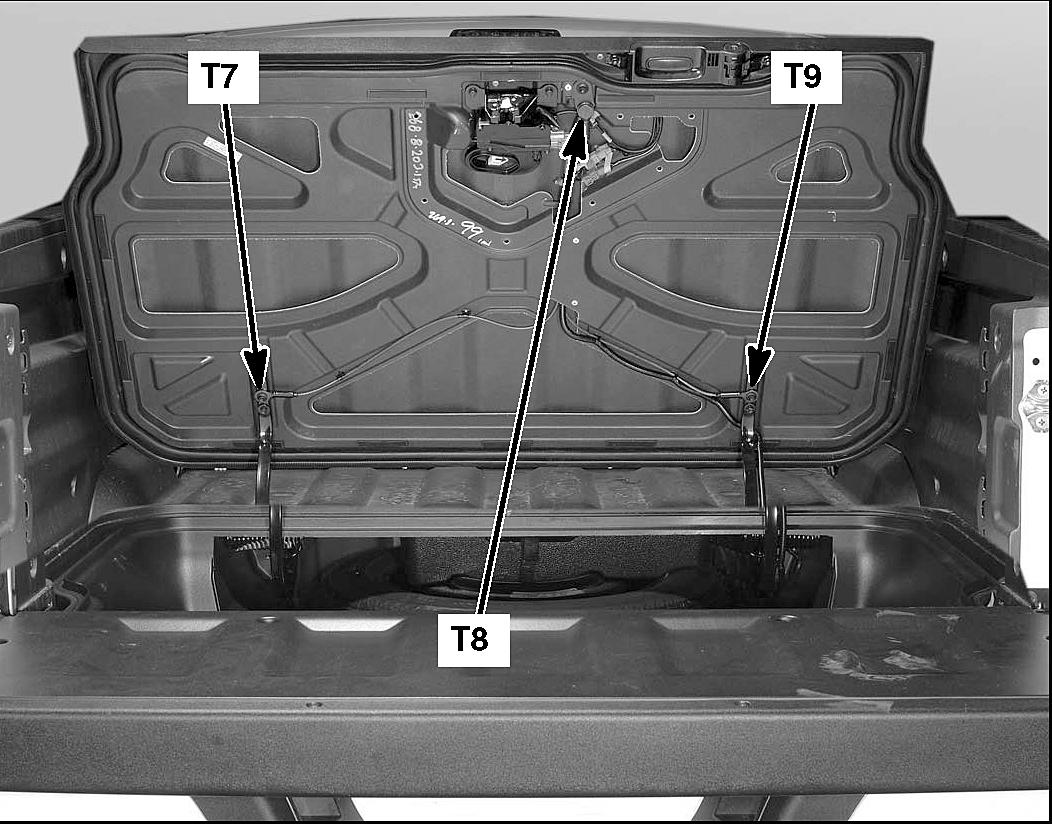

Fig 143: In-Bed Trunk Lid

G00472462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

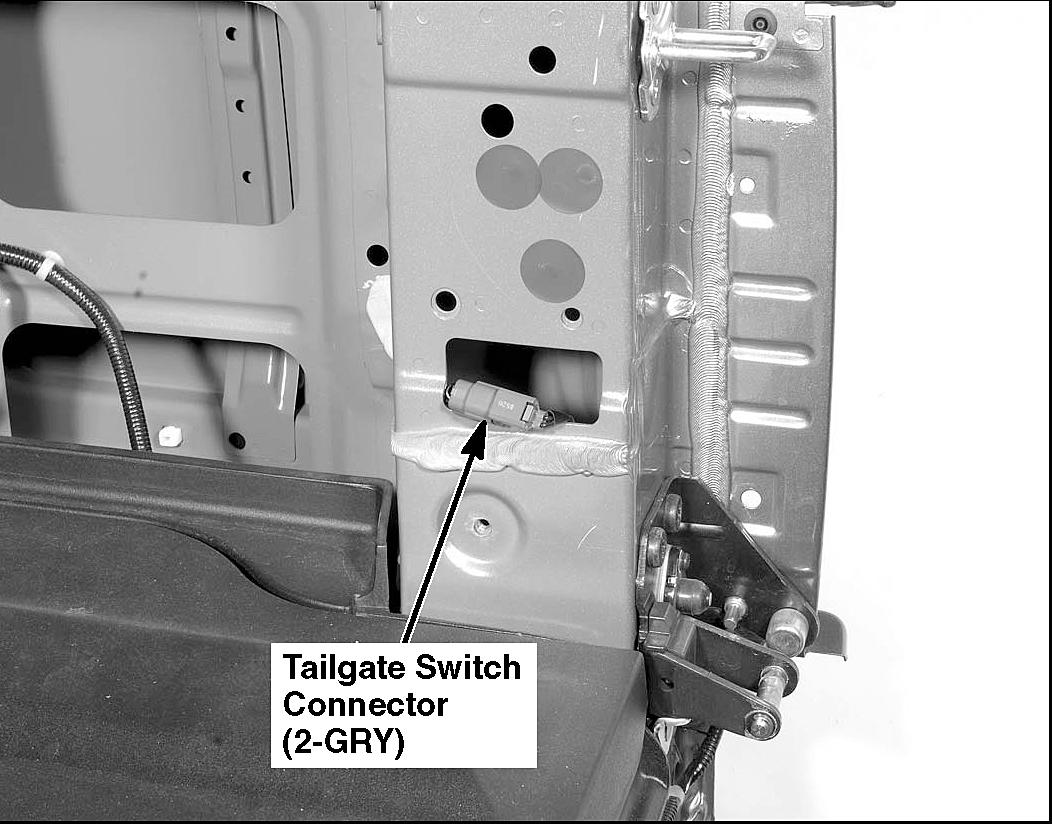

Fig 144: Right Rear Of Cargo Area

G00472463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

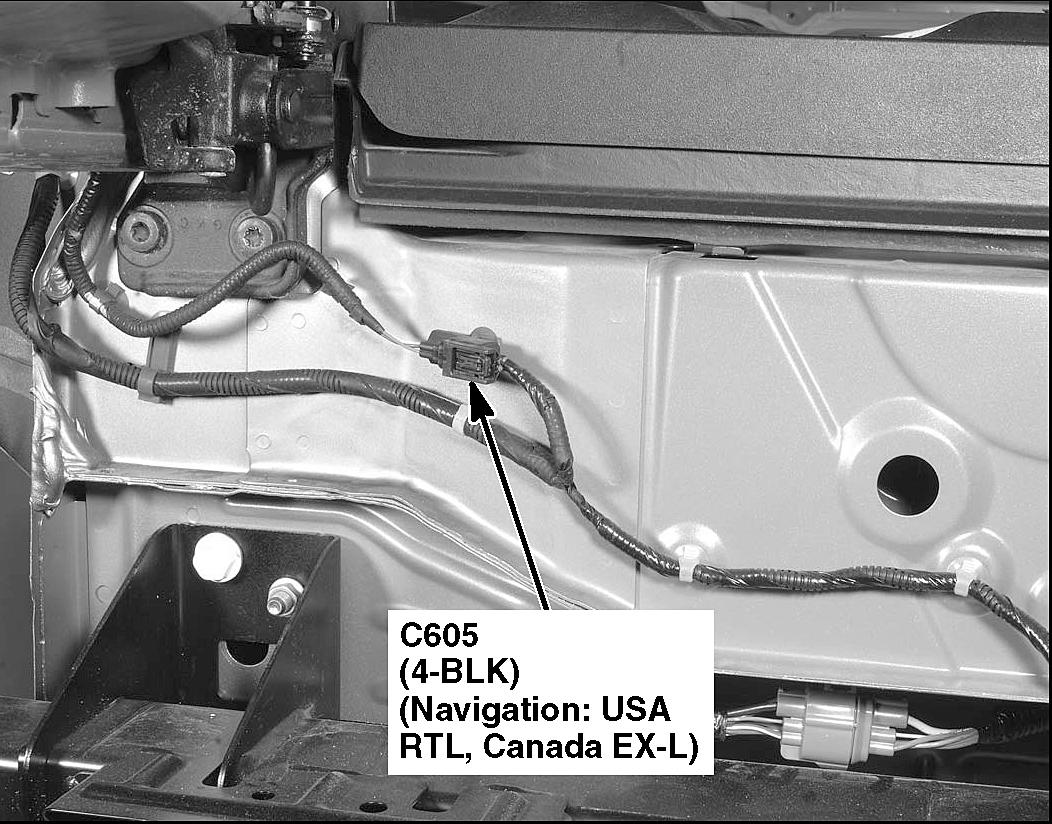

Fig 145: Behind Left Side Of Rear Bumper

G00472464

Courtesy of AMERICAN HONDA MOTOR CO., INC.

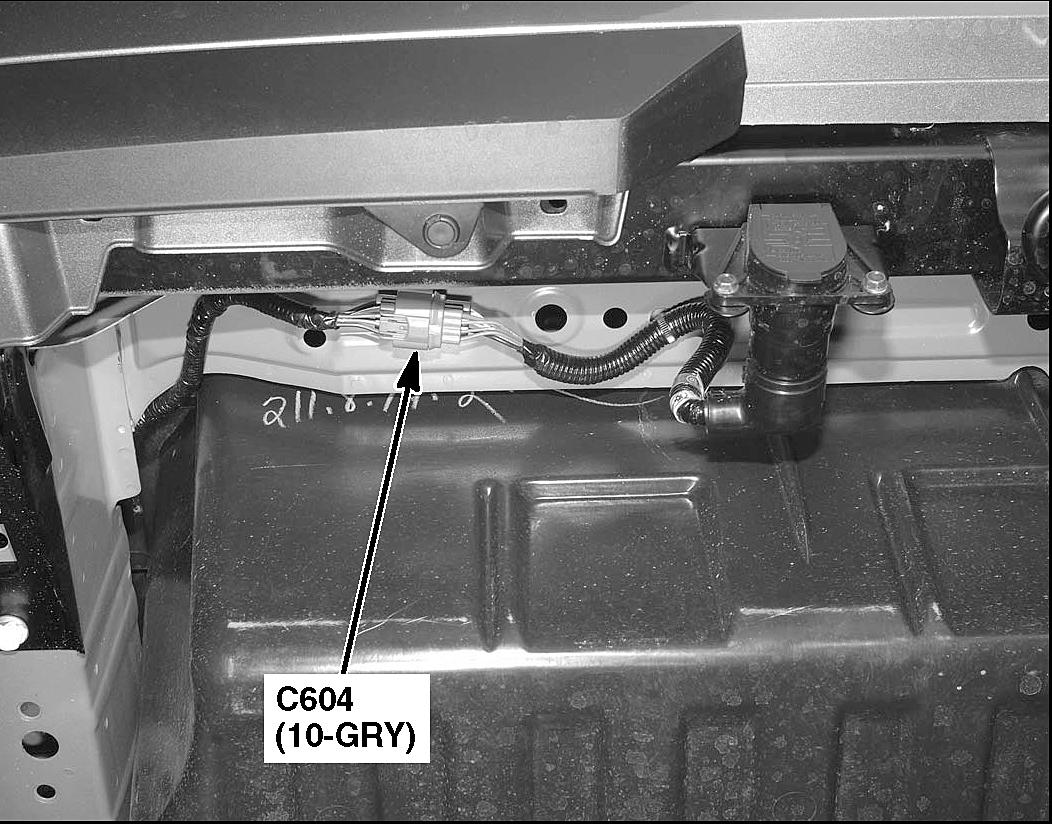

Fig 146: Under Left Rear Of Cargo Area

G00472465

Courtesy of AMERICAN HONDA MOTOR CO., INC.

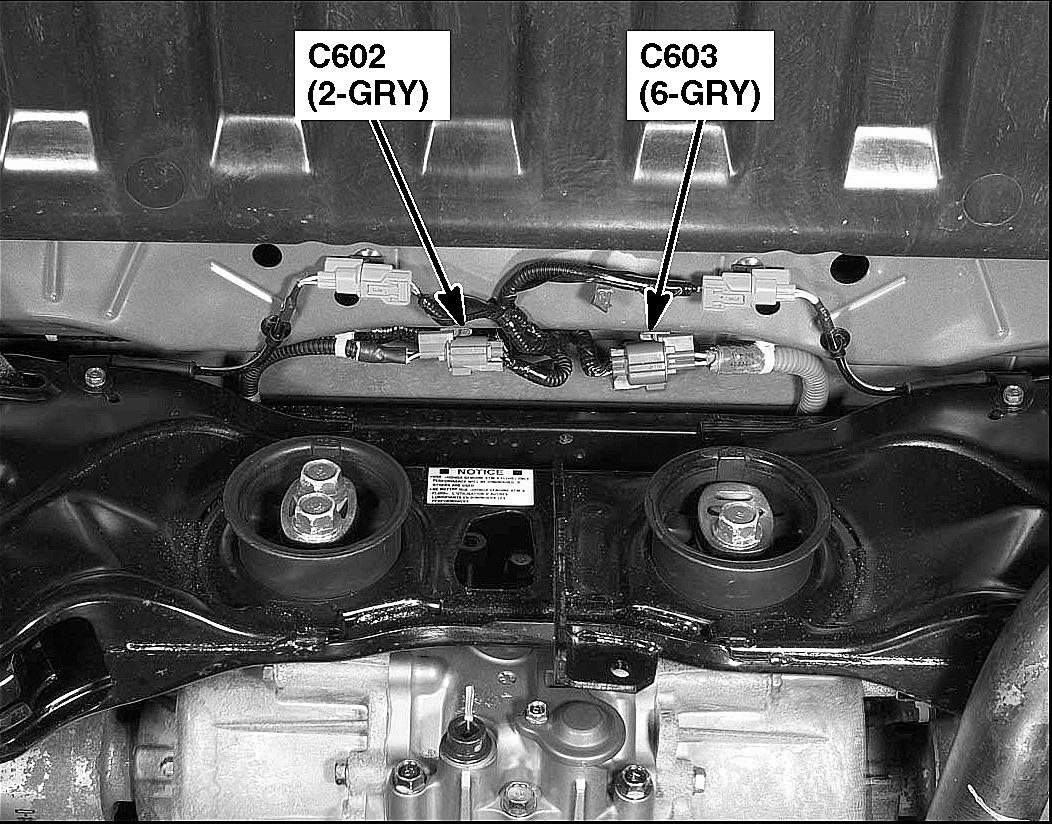

Fig 147: Under Rear Of Vehicle

G00472466

Courtesy of AMERICAN HONDA MOTOR CO., INC.

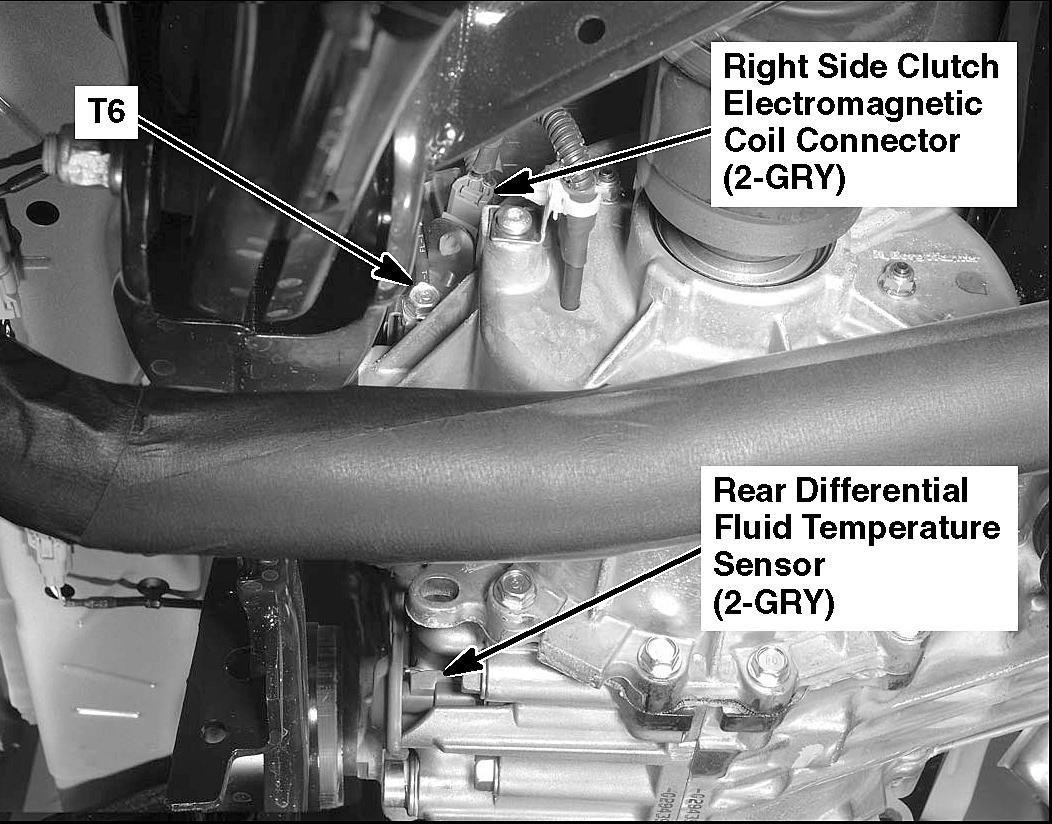

Fig 148: Rear Differential

G00472467

Courtesy of AMERICAN HONDA MOTOR CO., INC.

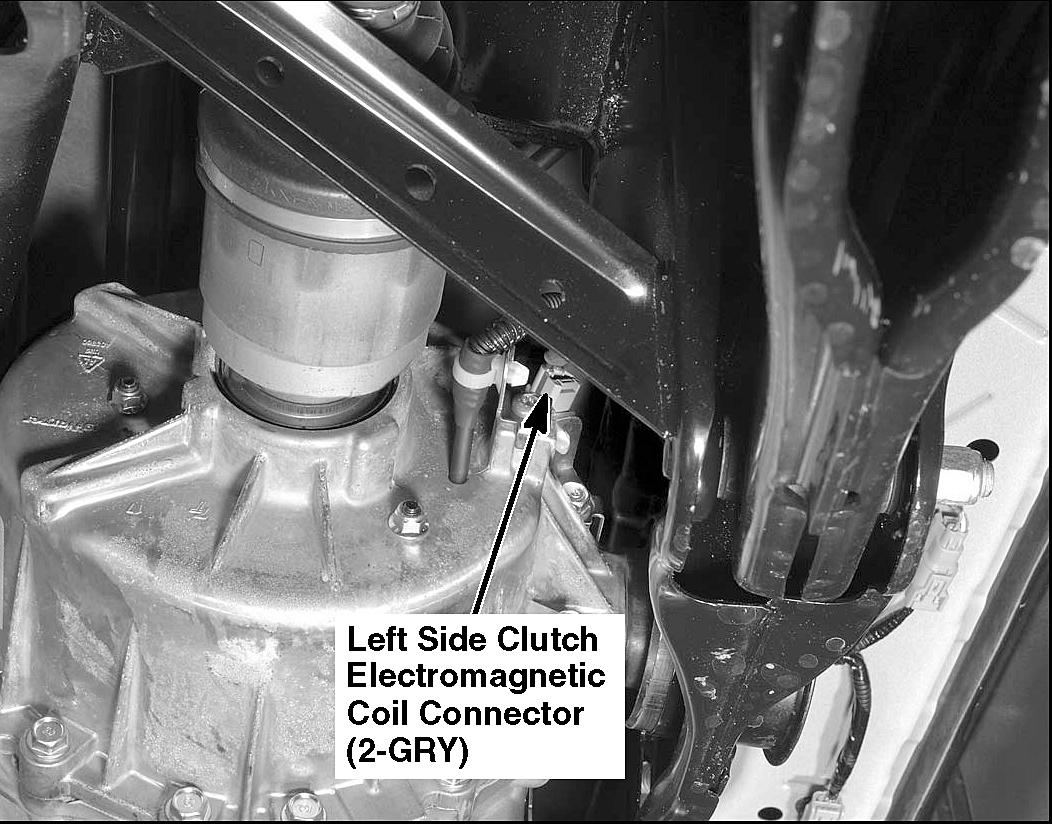

Fig 149: Rear Differential

G00472468

Courtesy of AMERICAN HONDA MOTOR CO., INC.
